Aiwa XD-DW1 User manual
SERVICE MANUAL
DATA
DVD PLAYER
XD-DW1
S/M Code No. 09-002-339-7R1
AU(S),AHC(S)
REVISION
This Service Manual is the “Revision Publishing” and replaces “Simple Manual”
XD-DW1 AU(S),AHC(S)(S/M Code No. 09-002-339-7T1).
• BASIC DVD MECHANISM : DV21
If requiring information about the IC DESCRIPTION & IC BLOCK DIAGRAM,
see Supplement Service manual of XD-DW1 AU(S),AHC(S)(S/M Code No. 09-002-339-7S1).
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
2
TABLE OF CONTENTS
SPECIFICATIONS .................................................................................................................................. 3
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING ................................................ 4
Precaution to replace Optical block......................................................................................................... 4
DISASSEMBLY INSTRUCTIONS...................................................................................................... 5-15
ELECTRICAL MAIN PARTS LIST ................................................................................................... 16-21
TRANSISTOR ILLUSTRATION ............................................................................................................ 21
LCD DISPLAY....................................................................................................................................... 22
WIRING-1 (MAIN: COMPONENT SIDE) ........................................................................................ 23, 24
WIRING-2 (MAIN: 2ND LAYER) ..................................................................................................... 25, 26
WIRING-3 (MAIN: 3RD LAYER) ..................................................................................................... 27, 28
WIRING-4 (MAIN: CONDUCTOR SIDE) ........................................................................................ 29, 30
SCHEMATIC DIAGRAM-1 (MAIN 1/8)............................................................................................ 31, 32
SCHEMATIC DIAGRAM-2 (MAIN 2/8)............................................................................................ 33, 34
SCHEMATIC DIAGRAM-3 (MAIN 3/8)............................................................................................ 35, 36
SCHEMATIC DIAGRAM-4 (MAIN 4/8)............................................................................................ 37, 38
SCHEMATIC DIAGRAM-5 (MAIN 5/8)............................................................................................ 39, 40
SCHEMATIC DIAGRAM-6 (MAIN 6/8)............................................................................................ 41, 42
SCHEMATIC DIAGRAM-7 (MAIN 7/8)............................................................................................ 43, 44
SCHEMATIC DIAGRAM-8 (MAIN 8/8)............................................................................................ 45, 46
WIRING-5 (TFT/FR1/FR2/BATT1/BATT2: COMPONENT SIDE)................................................... 47, 48
WIRING-6 (TFT/FR1/FR2/BATT1/BATT2: 2ND LAYER)................................................................ 49, 50
WIRING-7 (TFT/FR1/FR2/BATT1/BATT2: 3RD LAYER)................................................................ 51, 52
WIRING-8 (TFT/FR1/FR2/BATT1/BATT2: CONDUCTOR SIDE)................................................... 53, 54
SCHEMATIC DIAGRAM-9 (TFT) .................................................................................................... 55, 56
SCHEMATIC DIAGRAM-10 (FR1/FR2) ................................................................................................ 57
VOLTAGE INFORMATION .............................................................................................................. 58-61
WAVE FORM ................................................................................................................................... 62-65
ELECTRICAL ADJUSTMENT.......................................................................................................... 66-71
INITIALIZE MODE................................................................................................................................. 71
IC BLOCK DIAGRAM....................................................................................................................... 72-75
MECHANICAL PARTS LIST 1/1 ........................................................................................................... 76
MECHANICAL EXPLODED VIEW 1/1............................................................................................ 77, 78
ACCESSORIES/PACKAGE LIST ......................................................................................................... 79
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
3
SPECIFICATIONS
Power supply 120 V AC, 60 Hz <AU(S)>
100-240 V AC, 60 Hz <AHC(S)>
Power consumption 18 W
Weight Main unit: 970 g (33.95 oz)
Battery pack: 520 g (18.2 oz)
External dimensions 165 (W) *180 (H) *51 (D) mm
(6 1/2*7 1/8*2 1/8in.)
Signal format NTSC <AU(S)>
NTSC/PAL <AHC(S)>
Supported discs DVD video discs
12 cm (single-sided single-layer, single-sided double-layer,
double-sided double layer)
8 cm (single-sided single-layer, single-sided double-layer,
double-sided double layer)
Compact discs (CD-DA, video CD) <AU(S)>
12 cm and 8 cm discs
Compact discs (CD-DA, video CD, Super VCD) <AHC(S)>
12 cm and 8 cm discs
S1 video output Y output: 1 Vp-p (75 ohms, sync negative)
C output: 0.286 Vp-p
Video output Video composite output
1 Vp-p (75 ohms, sync negative)
RCA jacks
Audio output DOWN MIXING AUDIO OUTPUT connector
1.5 Vrms (1 kHz)
2 RCA jacks (L/R)
Fiber optical connector (IEC 958)
Audio output characteristics Frequency range:
CD/VCD: 20 Hz to 20 kHz
DVD: 4 Hz to 22 kHz (48 kHz sampling)
Wow and flutter: unmeasurable
Operating conditions 5˚C to 35˚C (41˚F to 95˚F)
•
Design and specifications are subject to change without
notice.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
4

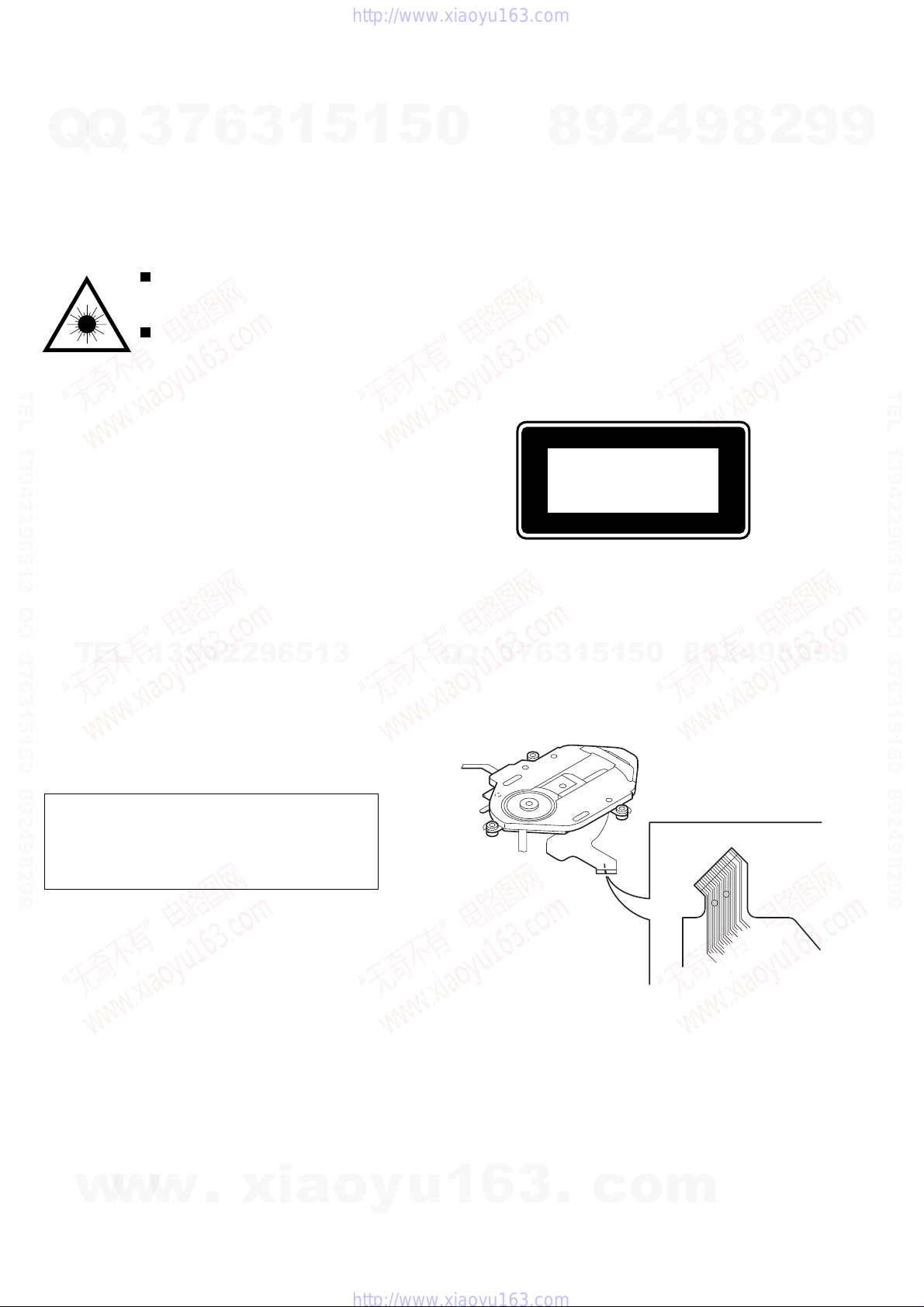

PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa mainit-
ulla tavalla saattaa altistaa käyt-täjän turvallisuusluokan 1 ylit-
tävälle näkymättömälle lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som specificeras i
denna bruksanvising, kan användaren utsättas för osynling
laserstrålning, som överskrider gränsen för laserklass 1.
Caution: Invisible laser radiation when
open and interlocks defeated avoid expo-
sure to beam.
Advarsel:Usynling laserståling ved åbning,
når sikkerhedsafbrydere er ude af funktion.
Undgå udsættelse for stråling.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
ATTENTION
L'utilisation de commandes, réglages ou procédures autres que
ceux spécifiés peut entraîner une dangereuse exposition aux
radiations.
ADVARSEL!
Usynlig laserståling ved åbning, når sikkerhedsafbrydereer ude
af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1 LASER
product.
The CLASS 1 LASER PRODUCT label is located on the rear
exterior.
This set employs laser. Therefore, be sure to follow carefully the
instructions below when servicing.
WARNING!
WHEN SERVICING, DO NOT APPROACH THE LASER EXIT
WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO
CONFIRM LASER BEAM EMISSION. BE SURE TO OBSERVE
FROM A DISTANCE OF MORE THAN 30cm FROM THE
SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL
PICK-UP BLOCK.
CLASS 1
KLASSE 1
LUOKAN 1
KLASS 1
LASER PRODUCT
LASER PRODUKT
LASER LAITE
LASER APPARAT
Precaution to replace Optical block
(DV21)
Body or clothes electrostatic potential could ruin
laser diode in the optical block. Be sure ground
body and workbench, and use care the clothes
do not touch the diode.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
5

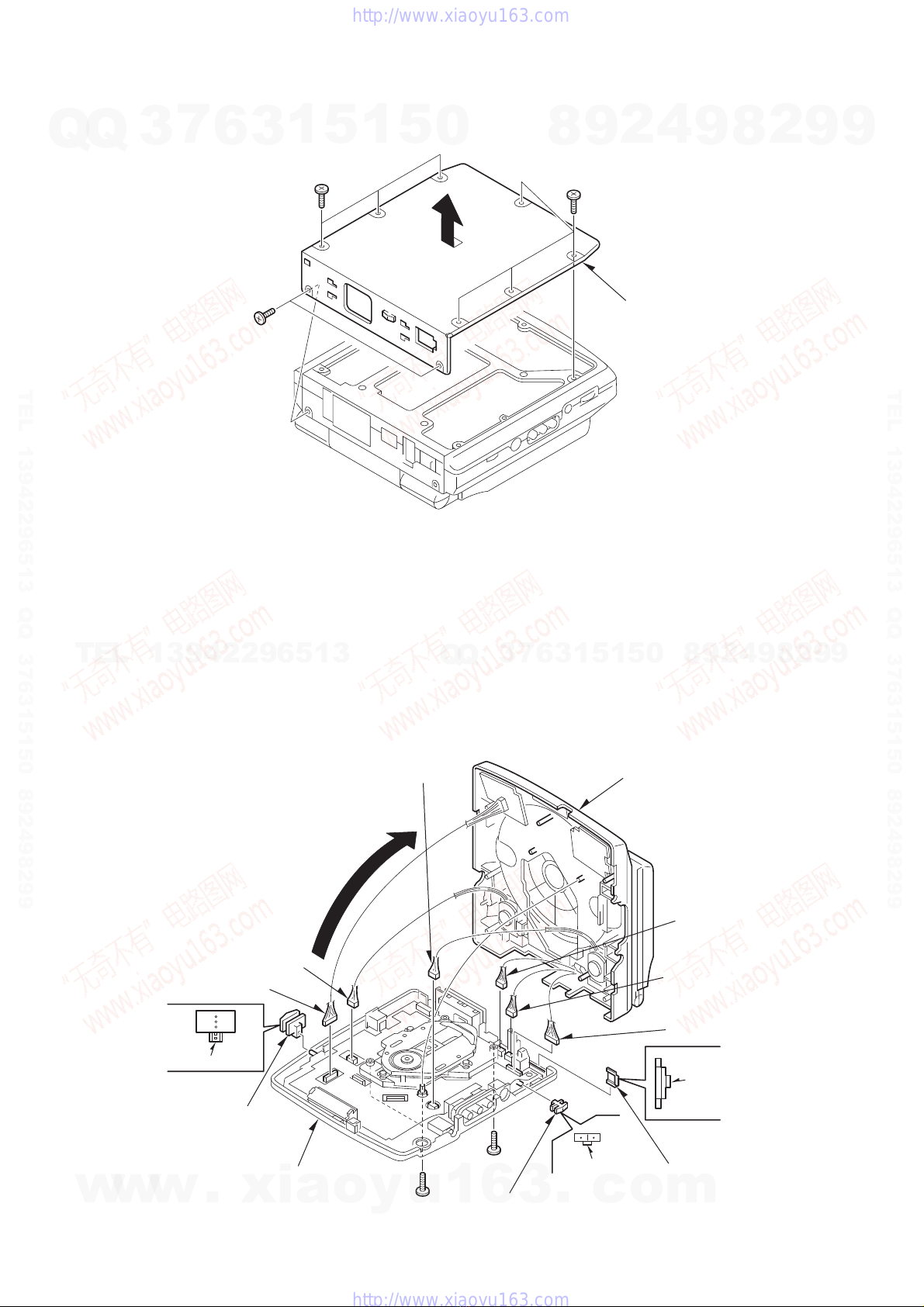

DISASSEMBLY INSTRUCTIONS
A
B
A
PLATE, BOTTOM ASSY
1. CABI, BOTTOM ASSY
(1) Remove screws A (*7) and B (*2), and remove the PLATE, BOTTOM ASSY from the unit.
(2) Remove the screws A (*3) on the CABI, BOTTOM ASSY side and disassemble the unit into the CABI, TOP ASSY and CABI,
BOTTOM ASSY.
(3) Remove the connectors connected to each of CN551, CN552, CN701, CN702, CN800 and CN802, and remove each of the
KNOB, SL N/P and PLATE, OPTICAL and KNOB, SL POWER knobs.
Note During Assembling:
Twist the connectors to be connected to CN551 and CN552 clockwise five times, then insert them.
Be careful of the upward and downward directions of the wiring and KNOB, SL N/P and PLATE, OPTICAL and KNOB, SL
POWER.
CONNECTOR (CN701)
CONNECTOR (CN702)
CONNECTOR (CN551)
CONNECTOR (CN800)
CONNECTOR (CN552)
CONNECTOR (CN802)
PLATE, OPTICAL
KNOB, SL N/P
KNOB, SL POWER
A
A
BOTTOM SIDE
BOTTOM SIDE
OUT SIDE
CABI, TOP ASSY
CABI, BOTTOM ASSY
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
6
A
HINGE, FRICTION
CABI, MONITOR ASSY
THREE CONNECTORS
HOLE
CABI, TOP ASSY
A
CABI, MONITOR FOOT, MONITOR
LCD, TFT
FF-CABLE
LCD POWER SUPPLY CONNECTOR
2. CABI, MONITOR ASSY
(1) Remove the screws A (*2) and remove the HINGE, FRICTION.
• Before disassembling, fully open the CABI, MONITOR ASSY. When assembling the ASSY, leave it open.
(2) Remove the CABI, MONITOR ASSY from the unit.
• Remove the three connectors from the holes.
(3) Remove the screws A (*2) under the FOOT, MONITOR
and remove the CABI, MNT while sliding it in the
direction of the arrow.
Note During Assembling:
Be careful not to pinch the wires and not to intertwist
each wire.
(4) Pull the LCD, TFT in the direction of the arrow and
remove the LCD power supply connector and FF-
CABLE, 30P 0.8 TFT from the PWB, TFT, then remove
the LCD, TFT.
Note During Assembling:
Be careful not to disconnect the two wires.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
7
CLAW
CLAWS
PWB, TFT
CONN, ASSY, 2P
EARTH-MT
PLATE, 8-10-0.5
KNOB, LEVER OPEN POWER, UNIT
SPR-P, MONITOR
A
(5) Remove the three claws and remove the PWB, TFT. Then, remove the CONN ASSY, 2P EARTH-MT.
Note During Assembling:
Be careful not to touch the SFR of the PWB, TFT.
(6) After removing the POWER, UNIT, remove the screws A (*2). Then, remove the SPR P, MONITOR and the KNOB, LEVER
OPEN.
Note During Assembling:
Confirm that the PLATE, 8-10-0.5 at the right edge of the POWER UNIT is securely fixed. If it is not fixed securely, fix it again.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
8

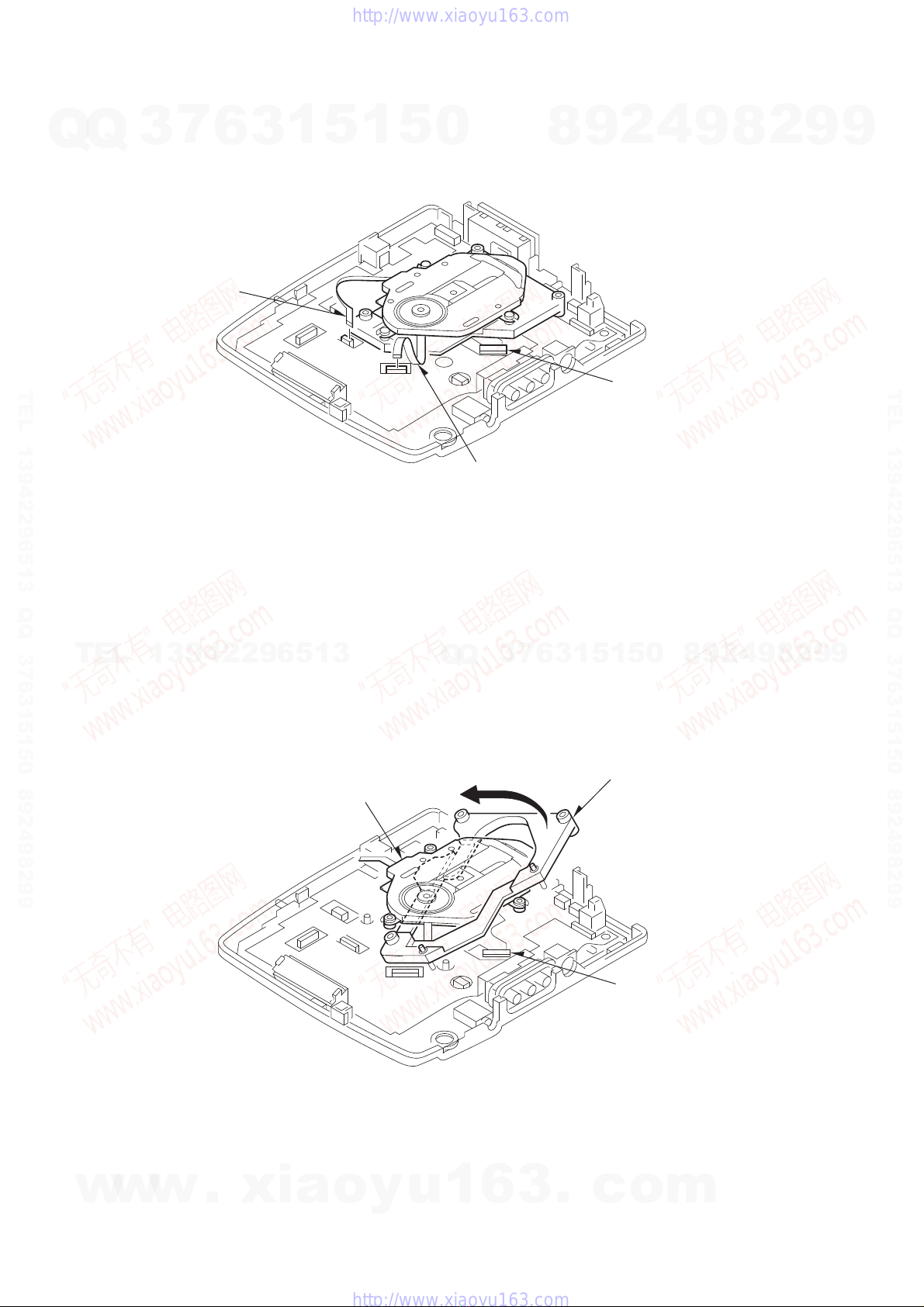

3. DVD MECHANISM and PWB, MAIN
(1) Remove the FFC connected to CN300 and CN301.
• Do not remove the FFC connected to CN200.
(2) Lift up the DV21 ASSY gently and remove the HLDR, MECHA in the direction of the arrow.
• Do not remove the FFC connected to CN200.
FFC (CN300)
FFC (CN301)
CN200
(Do not remove this.)
DV21 ASSY
HLDR, MECHA
CN200
(Do not remove this.)
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
9
WIRE (BLACK)
LUG PLATE
CN200
FFC
FFC (CN200)
SHORT
DV21 ASSY
PWB, MAIN
CABI, BOTTOM ASSY
(3) Solder the two short lands of the FFC connected to CN200 to short them.
(4) Remove the FFC connected to CN200.
• To unlock, pull the brown portion of CN200 to the front.
(5) Remove the wire (black) soldered on the lug plate of the DV21 ASSY.
Note During Assembling:
Be careful of wiring (route it under the HLDR, MECHA.)
(6) Remove the PWB, MAIN from the CABI, BOTTOM ASSY.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
10
A
B
HINGE, OPEN DISC
SPR-P, LID-JP
SPR-T, DISC COVER
SHAFT, LID DISC
CABI, TOP ASSY
PLATE, DISC ASSY
W-L, 2.6-3.7-0.3
CONN ASSY, 9PWHT60MM-SM1
CONN ASSY, 7PWHT60MM-SS2
KEY, PLAY ASSY
KEY, STOP
KEY, STOP ASSY
PWB, FR1
PWB, FR1
WIRE
(BROWN)
PWB, FR2
SHLD-SH, EARTH
A
A
CABI, TOP ASSY
4. OPERATION PWB
(1) Remove the CONN ASSY, 7PWHT60MM-SS2, CONN ASSY and 9PWHT60MM-SM1.
(2) Remove the wire (brown) coming from the PWB, FR1.
Note During Assembling:
Stick securely the SHLD-SH, EARTH connecting the rear side of the CABI, TOP ASSY and the aluminum portion of the
WINDOW.
(3) Remove the screws A (four each) and remove the PWB, FR1 and PWB, FR2.
(4) Remove the KEY, STOP ASSY.
(5) Remove the KEY, PLAY ASSY and KEY, STOP from the PWB, FR1.
• Take extra care when handling the CABI, TOP ASSY whose rear side is coated by conductive paint.

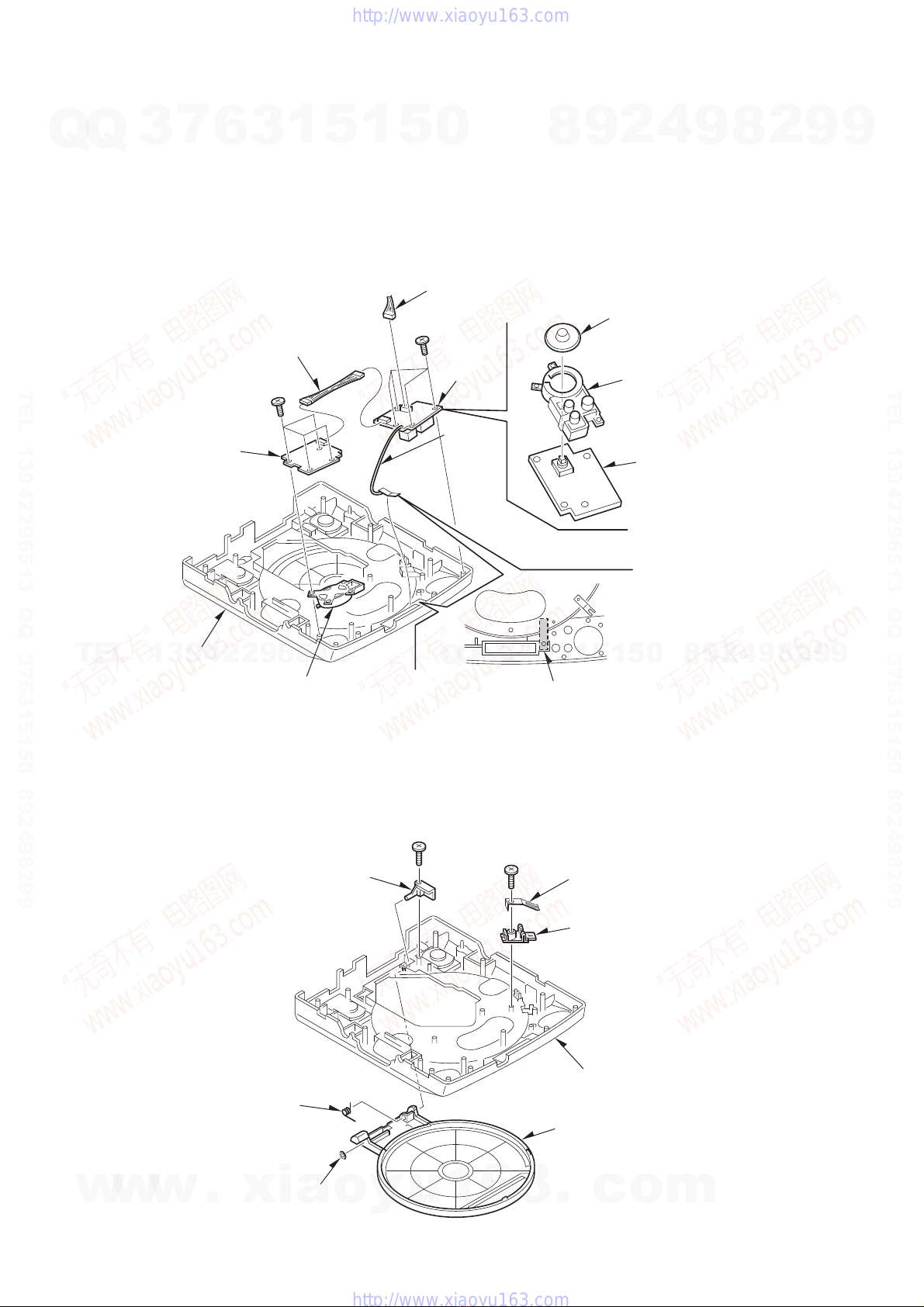

5. CABI, TOP ASSY
(1) Remove the screw B (*1) on the rear side of the CABI, TOP ASSY and remove SPR-P, LID-JP and HINGE, OPEN DISC.
(2) Remove the screw A (*1) on the rear side of the CABI, TOP ASSY and remove the SHAFT, LID DISC.
(3) Remove the PLATE, DISC ASSY.
(4) Remove the SPR-T, DISC COVER and washer on the rear side of the PLATE, DISC ASSY.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
11
A
B
BHLDR, MONITOR LV
BTN, DISC SW
SPKR, ASSY L
SPKR, ASSY L
CABI, TOP ASSY
LEVER, MONITOR SW
BTN, DISC OPEN
COVER, OPEN DW1
SPR-C, OPEN-JP
CABI, TOP ASSY
(5) Remove the screw A (*1) on the rear side of the CABI, TOP ASSY and remove the HLDR, MONITOR LV and BTN, DISC SW.
(6) Remove the screw B (two each) on the rear side of the CABI, TOP ASSY and remove the SPKR ASSY R and L.
(7) Remove the BTN, DISC OPEN and LEVER, MONITOR SW and COVER, OPEN DW1 and SPR-C and OPEN-JP on the front
side of the CABI, TOP ASSY.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
12
CONNECTOR (CN801) COVER, BAT ASSY
PWB, MAIN
COVER, BAT PIN
SOLDER
CLAWS
CLAWS
CLAWS
HLDR, BAT PIN (R, L)
WIRES
CLAWS
SOLDER
WIRES
6. COVER, BAT ASSY
(1) Remove the connector connected to CN801.
(2) Remove the COVER, BAT ASSY from the PWB, MAIN.
(3) Remove the wire soldered on the four terminals.
• Wipe off any solder remaining on the terminals.
(4) Remove the four claws respectively and remove the HLDR, BAT PIN (R, L).
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
13

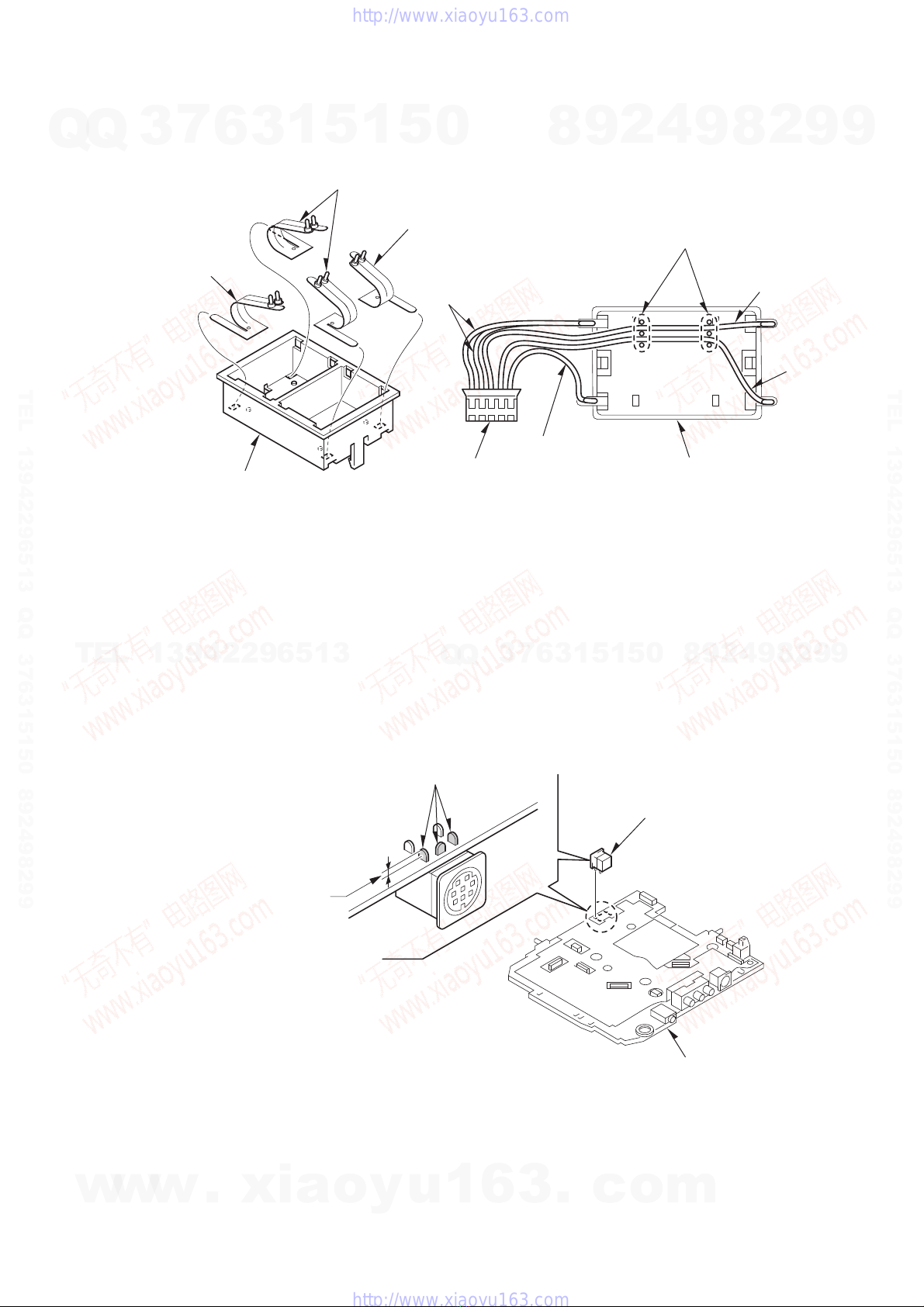

(5) Remove the TERMINAL, POWER1 ASSYs (*2) and TERMINAL, POWER2 ASSYs (*2) from the COVER, BAT PIN.
• Before assembling, return the wire to the original position (route it under the projecting portion).
7. Appendix
(1) Before replacing J800 (JACK, CMS 5008-0902), cut three legs among the five ones of the connector by 0.5 to 1.0 mm.
TERMINAL POWER 1 ASSY
TERMINAL POWER 2 ASSY
TERMINAL
POWER 2 ASSY
CONNECTOR
BLACK
COVER, BAT PIN COVER, BAT PIN
BLACK
GRAY
PROJECTING PORTION
RED
JACK CONNECTOR
(J800)
THREE PINS
Cut pins at the length
of 0.5 to 1.0 mm.
PWB, MAIN
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
14
(2) Assembling procedure of the SHLD-SH, EMC-1 and SHLD-SH, EMC-2.
PWB, MAIN
(COMPONENT SIDE)
SHLD-SH, EMC-1
WIRE
CN200
C747
J800
Peel off the shaded portion
and solder the shield.
Solder the shield and the wire
to the ground of the connector.
Solder the shield
to the board.
Solder the body
connector.
Solder the shield
to the board. Solder the wire to the negative (–)
polarity terminal of the capacitor.
Solder the wire to the negative (–)
polarity terminal of the capacitor.
PWB, MAIN
(CONDUCTOR SIDE)
SHLD-SH, EMC-2 J800
C371
Peel off the shaded portion
and solder the wire. Solder the wire to the
ground of the connector.
Solder the wire to
the video ground.
Solder the wire to
the audio Rch ground.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
15
(3-1) Models whose MAIN PCB No. is “8Z-HU1-601-01”
Pin-19 of IC501 is temporarily unsoldered and a chip-resistor is connected instead.
IC 501
19PIN
WIRE
C-RES, U 150-1/6WJ CUSH-S, PWB
SOLDER
SOLDERINGS
IC 501
17PIN
18PIN
Short here
by soldering.
(3-2) Models whose MAIN PCB No. is “8Z-HU1-601-11”
The portion between pin-17 and pin-18 of IC501 is shorted by soldering.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
16
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
ELECTRICAL MAIN PARTS LIST
IC
87-A21-498-010 C-IC,IR3Y29BM
87-A21-074-040 C-IC,HC4066PW
87-002-272-080 IC,TC4052BF
87-A20-140-040 C-IC,NJM3414V
87-A21-497-040 C-IC,DS1669S-10
87-A21-492-010 C-IC,TA1293F
87-070-190-040 IC,NJM2115V
87-A21-496-040 C-IC,LA6393M
87-A21-494-010 C-IC,TC9453F
87-A21-514-030 C-IC,GLT42016-40TC
87-A21-056-040 C-IC,TC7S66F
87-020-818-080 IC,TC4066BF
87-A21-516-040 C-IC,BA5954FP
87-A21-517-040 C-IC,BA6849FP
87-A21-495-010 C-IC,TMP95C265F
87-001-604-080 IC,TC74HCU04F
8Z-HU1-620-010 C-IC,AT49F1025-70JC
87-A21-493-010 C-IC,TC9469BF
87-A21-515-040 C-IC,GLT44016-40TC
87-002-379-080 IC,TC74HC373AF
87-A21-512-010 C-IC,LS500
8Z-AV2-633-010 C-IC,MB81F161622B
8Z-HU1-622-010 C-IC ASSY,MBM29LV800BA
87-A21-505-040 C-IC,TC7WU04FU
87-A21-508-010 IC,RPM6938
87-017-825-010 IC,GP1F32T
87-017-506-080 IC,PST600 JMT
88-KT1-608-010 C-IC,LC75854W
87-A21-509-010 C-IC,ADV7170KSU
87-A21-507-040 C-IC,MM1226XF
87-A20-036-080 C-IC,NJM2233BM
87-017-462-080 IC,NJM2268M
87-A21-583-040 C-IC,TK11250BMCL
87-A21-510-040 C-IC,PCM1716
87-017-585-080 IC,NJM4580E
87-001-792-080 IC,NJM2100M
87-017-832-080 C-IC,TC74HC4066AF
87-020-784-080 IC,TC4053BF
87-A21-077-040 C-IC,NJW1105M
87-A21-085-040 C-IC,TA2120FN
87-A21-480-040 C-IC,MM1305BWBE
87-A20-965-040 C-IC,S-80842ANNP-ED6
87-A21-032-080 C-IC,S-8520B28MC
87-A21-332-040 C-IC,MB3800PFV
87-A21-549-080 C-IC,S-816A25AMC-BAA-T2
TRANSISTOR
87-026-342-080 CHIP-TR,DTC144EU
87-A30-143-080 C-TR,2SA1576A
87-A30-377-040 C-TR,2SB815B7
87-026-350-080 CHIP TRANSISTOR DTC114TU
89-341-165-080 C-TR,2SC4116GR
87-A30-396-040 C-TR,DTA144TUA
89-110-372-080 TR,2SA1037(140MHZ 200MW)
89-333-266-080 CHIP TR,2SC3326B
89-324-122-080 TR,2SC2412K
87-026-352-080 C-TR,DTC144TU
89-115-864-080 C-TR,2SA1586Y
87-026-334-080 CHIP TRANSISTOR DTA143TU
87-A30-201-040 C-FET,2SJ418
87-A30-033-080 C-FET,2SK2035
87-026-327-080 C-TR,DTA144EU
87-A30-382-040 C-FET,FTS1002
89-112-134-080 TR,2SA1213Y (1W)
87-A30-381-040 C-TR,2SC5569
87-A30-384-040 C-FET,TPC8106-H
89-214-123-080 TR,2SB1412 R
87-A30-380-040 C-FET,TPC8003
DIODE
87-017-799-080 C-DIODE,1SS352
87-020-027-080 CHIP-DIODE 1SS184
87-017-975-080 C-DIODE,HN1D01FU
87-020-331-080 C-DIODE,DAN202K
87-001-165-080 DIODE,1SS300 (100MA)
87-001-142-080 DIODE,1SS294 (100MA)
87-A40-676-040 C-ZENER,UDZ11B
87-017-990-080 C-DIODE,U2FWJ44N
87-A40-797-040 C-DIODE,SBE001
87-A40-412-040 C-DIODE,SB05-05CP
87-001-166-080 DIODE,1SS301
87-A40-811-040 C-DIODE,CRZ15
87-A40-812-040 C-DIODE,CRZ22
MAIN C.B
C200 87-010-831-080 C-CAP,U,0.1-16F
C201 87-010-831-080 C-CAP,U,0.1-16F
C202 87-016-558-080 C-CAP,TN47-6.3F93B
C203 87-012-286-080 CAP, U 0.01-25
C204 87-016-558-080 C-CAP,TN47-6.3F93B
C205 87-010-831-080 C-CAP,U,0.1-16F
C206 87-010-831-080 C-CAP,U,0.1-16F
C207 87-016-558-080 C-CAP,TN47-6.3F93B
C208 87-012-286-080 CAP, U 0.01-25
C209 87-016-558-080 C-CAP,TN47-6.3F93B
C210 87-012-274-080 CHIP CAP,U 1000P-50B
C211 87-012-286-080 CAP, U 0.01-25
C212 87-016-558-080 C-CAP,TN47-6.3F93B
C213 87-012-274-080 CHIP CAP,U 1000P-50B
C214 87-010-831-080 C-CAP,U,0.1-16F
C215 87-012-286-080 CAP, U 0.01-25
C216 87-016-558-080 C-CAP,TN47-6.3F93B
C217 87-016-558-080 C-CAP,TN47-6.3F93B
C218 87-010-831-080 C-CAP,U,0.1-16F
C219 87-010-831-080 C-CAP,U,0.1-16F
C220 87-010-831-080 C-CAP,U,0.1-16F
C221 87-012-274-080 CHIP CAP,U 1000P-50B
C222 87-012-274-080 CHIP CAP,U 1000P-50B
C223 87-012-172-080 CAPACITOR CHIP U 10P CH
C224 87-010-831-080 C-CAP,U,0.1-16F
C225 87-012-286-080 CAP, U 0.01-25
C226 87-016-558-080 C-CAP,TN47-6.3F93B
C227 87-010-831-080 C-CAP,U,0.1-16F
C228 87-012-282-080 CAP, U 4700P-50
C229 87-012-282-080 CAP, U 4700P-50
C230 87-010-831-080 C-CAP,U,0.1-16F
C231 87-012-274-080 CHIP CAP,U 1000P-50B
C232 87-010-831-080 C-CAP,U,0.1-16F
C233 87-012-286-080 CAP, U 0.01-25
C234 87-016-558-080 C-CAP,TN47-6.3F93B
C236 87-012-336-080 CAP, CHIP SS 3300 SL
C237 87-012-336-080 CAP, CHIP SS 3300 SL
C238 87-012-282-080 CAP, U 4700P-50
C239 87-012-336-080 CAP, CHIP SS 3300 SL
C240 87-010-831-080 C-CAP,U,0.1-16F
C241 87-012-180-080 C-CAP,U 22P-50 CH
C242 87-016-558-080 C-CAP,TN47-6.3F93B
C243 87-012-286-080 CAP, U 0.01-25
C244 87-010-831-080 C-CAP,U,0.1-16F
C245 87-010-831-080 C-CAP,U,0.1-16F
C246 87-010-831-080 C-CAP,U 0.1-16 Z F
C247 87-010-831-080 C-CAP,U 0.1-16 Z F
C250 87-016-558-080 C-CAP,TN47-6.3F93B
C251 87-016-558-080 C-CAP,TN47-6.3F93B
C252 87-016-558-080 C-CAP,TN47-6.3F93B
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
17
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
C253 87-016-558-080 C-CAP,TN47-6.3F93B
C254 87-016-558-080 C-CAP,TN47-6.3F93B
C255 87-A11-031-080 C-CAP,E 100-16 M WX
C299 87-016-669-080 C-CAP,S 0.1-25 K B
C300 87-A11-946-080 C-CAP,TN 100-6.3 M F93 C
C301 87-010-831-080 C-CAP,U,0.1-16F
C302 87-016-558-080 C-CAP,TN47-6.3F93B
C303 87-016-558-080 C-CAP,TN47-6.3F93B
C304 87-012-172-080 CAPACITOR CHIP U 10P CH
C305 87-012-172-080 CAPACITOR CHIP U 10P CH
C306 87-012-278-080 C-CAP,U 2200P-50 B
C307 87-010-831-080 C-CAP,U,0.1-16F
C308 87-010-831-080 C-CAP,U,0.1-16F
C309 87-010-831-080 C-CAP,U,0.1-16F
C310 87-010-831-080 C-CAP,U,0.1-16F
C311 87-010-831-080 C-CAP,U,0.1-16F
C312 87-010-831-080 C-CAP,U,0.1-16F
C313 87-A11-946-080 C-CAP,TN 100-6.3 M F93 C
C314 87-010-831-080 C-CAP,U,0.1-16F
C315 87-A11-946-080 C-CAP,TN 100-6.3 M F93 C
C316 87-010-831-080 C-CAP,U,0.1-16F
C317 87-010-831-080 C-CAP,U,0.1-16F
C318 87-010-831-080 C-CAP,U,0.1-16F
C319 87-010-831-080 C-CAP,U,0.1-16F
C320 87-010-831-080 C-CAP,U,0.1-16F
C321 87-012-197-080 C-CAP,U 150P-50 CH
C322 87-012-197-080 C-CAP,U 150P-50 CH
C323 87-010-831-080 C-CAP,U,0.1-16F
C324 87-010-831-080 C-CAP,U,0.1-16F
C325 87-010-831-080 C-CAP,U,0.1-16F
C326 87-012-286-080 CAP, U 0.01-25
C327 87-012-286-080 CAP, U 0.01-25
C328 87-012-280-080 CAP, U 3300P-50
C329 87-012-282-080 CAP, U 4700P-50
C330 87-012-284-080 CAP, U 6800P-50
C331 87-016-558-080 C-CAP,TN47-6.3F93B
C332 87-012-195-080 C-CAP,U 100P-50CH
C333 87-012-270-080 CAP, U 470P-50
C334 87-012-277-080 C-CAP, U 1800P-50 B
C335 87-012-275-080 C-CAP,U 1200P-50 B
C336 87-010-831-080 C-CAP,U,0.1-16F
C337 87-010-831-080 C-CAP,U,0.1-16F
C338 87-010-831-080 C-CAP,U,0.1-16F
C339 87-010-831-080 C-CAP,U,0.1-16F
C340 87-010-831-080 C-CAP,U,0.1-16F
C341 87-012-336-080 CAP, CHIP SS 3300 SL
C342 87-012-336-080 CAP, CHIP SS 3300 SL
C343 87-A10-794-080 C-CAP,U 0.15-16 Z F
C344 87-010-831-080 C-CAP,U,0.1-16F
C345 87-010-831-080 C-CAP,U,0.1-16F
C346 87-010-831-080 C-CAP,U,0.1-16F
C347 87-010-831-080 C-CAP,U,0.1-16F
C348 87-010-831-080 C-CAP,U,0.1-16F
C349 87-010-831-080 C-CAP,U,0.1-16F
C350 87-010-831-080 C-CAP,U,0.1-16F
C351 87-010-831-080 C-CAP,U,0.1-16F
C352 87-016-558-080 C-CAP,TN47-6.3F93B
C353 87-010-831-080 C-CAP,U,0.1-16F
C354 87-012-195-080 C-CAP,U 100P-50CH
C355 87-012-286-080 CAP, U 0.01-25
C356 87-A10-707-080 C-CAP,U 0.47U-16 F Z
C357 87-010-831-080 C-CAP,U,0.1-16F
C358 87-016-558-080 C-CAP,TN47-6.3F93B
C359 87-016-558-080 C-CAP,TN47-6.3F93B
C360 87-010-831-080 C-CAP,U,0.1-16F
C361 87-012-335-080 C-CAP,U 270P-50 SL
C362 87-010-831-080 C-CAP,U,0.1-16F
C363 87-010-831-080 C-CAP,U,0.1-16F
C371 87-016-558-080 C-CAP,TN47-6.3F93B
C372 87-010-831-080 C-CAP,U,0.1-16F
C373 87-010-831-080 C-CAP,U,0.1-16F
C374 87-A11-031-080 C-CAP,E 100-16 M WX
C375 87-010-831-080 C-CAP,U,0.1-16F
C381 87-010-831-080 C-CAP,U,0.1-16F
C382 87-010-831-080 C-CAP,U,0.1-16F
C383 87-A11-946-080 C-CAP,TN 100-6.3 M F93 C
C400 87-010-831-080 C-CAP,U,0.1-16F
C401 87-012-286-080 CAP, U 0.01-25
C402 87-012-286-080 CAP, U 0.01-25
C403 87-010-831-080 C-CAP,U,0.1-16F
C404 87-016-558-080 C-CAP,TN47-6.3F93B
C405 87-010-831-080 C-CAP,U,0.1-16F
C406 87-012-165-080 C-CAP,U 3P-50 C CH
C407 87-012-165-080 C-CAP,U 3P-50 C CH
C408 87-010-831-080 C-CAP,U,0.1-16F
C409 87-010-831-080 C-CAP,U,0.1-16F
C410 87-012-286-080 CAP, U 0.01-25
C411 87-010-831-080 C-CAP,U,0.1-16F
C450 87-010-831-080 C-CAP,U,0.1-16F
C451 87-010-831-080 C-CAP,U,0.1-16F
C452 87-010-831-080 C-CAP,U,0.1-16F
C453 87-010-831-080 C-CAP,U,0.1-16F
C454 87-016-558-080 C-CAP,TN47-6.3F93B
C455 87-010-831-080 C-CAP,U,0.1-16F
C456 87-012-167-080 C-CAP,U 5P-50 C CH
C457 87-012-167-080 C-CAP,U 5P-50 C CH
C458 87-010-831-080 C-CAP,U,0.1-16F
C459 87-010-831-080 C-CAP,U,0.1-16F
C460 87-010-831-080 C-CAP,U,0.1-16F
C461 87-010-831-080 C-CAP,U,0.1-16F
C462 87-010-831-080 C-CAP,U,0.1-16F
C463 87-010-831-080 C-CAP,U,0.1-16F
C464 87-010-831-080 C-CAP,U,0.1-16F
C465 87-016-558-080 C-CAP,TN47-6.3F93B
C466 87-010-831-080 C-CAP,U,0.1-16F
C467 87-010-831-080 C-CAP,U,0.1-16F
C468 87-012-184-080 C-CAP,U 33P-50 CH
C469 87-012-274-080 C-CAP,U 1000P-50 K B
C501 87-010-831-080 C-CAP,U,0.1-16F
C502 87-010-831-080 C-CAP,U,0.1-16F
C503 87-010-831-080 C-CAP,U,0.1-16F
C504 87-010-831-080 C-CAP,U,0.1-16F
C505 87-010-831-080 C-CAP,U,0.1-16F
C506 87-010-831-080 C-CAP,U,0.1-16F
C507 87-010-831-080 C-CAP,U,0.1-16F
C508 87-010-831-080 C-CAP,U,0.1-16F
C509 87-010-831-080 C-CAP,U,0.1-16F
C510 87-010-831-080 C-CAP,U,0.1-16F
C511 87-010-831-080 C-CAP,U,0.1-16F
C512 87-010-831-080 C-CAP,U,0.1-16F
C513 87-010-831-080 C-CAP,U,0.1-16F
C514 87-010-831-080 C-CAP,U,0.1-16F
C515 87-010-831-080 C-CAP,U,0.1-16F
C516 87-010-831-080 C-CAP,U,0.1-16F
C517 87-010-831-080 C-CAP,U,0.1-16F
C518 87-010-831-080 C-CAP,U,0.1-16F
C519 87-010-831-080 C-CAP,U,0.1-16F
C520 87-010-831-080 C-CAP,U,0.1-16F
C521 87-010-831-080 C-CAP,U,0.1-16F
C522 87-010-831-080 C-CAP,U,0.1-16F
C524 87-010-831-080 C-CAP,U,0.1-16F
C525 87-A11-967-080 C-CAP,TN 10-16 M B F93
C526 87-010-831-080 C-CAP,U,0.1-16F
C527 87-012-274-080 CAP, U 1000P-50 K B
C528 87-012-286-080 CAP, U 0.01-25
C529 87-010-831-080 C-CAP,U,0.1-16F
C530 87-012-196-080 C-CAP,U 120P-50 CH
C531 87-012-170-080 C-CAP,U 8P-50 D CH
C532 87-012-170-080 C-CAP,U 8P-50 D CH
C534 87-010-831-080 C-CAP,U,0.1-16F
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
18
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
C535 87-016-558-080 C-CAP,TN47-6.3F93B
C537 87-016-669-080 C-CAP,S 0.1-25 K B
C538 87-016-669-080 C-CAP,S 0.1-25 K B
C539 87-016-669-080 C-CAP,S 0.1-25 K B
C540 87-016-669-080 C-CAP,S 0.1-25 K B
C541 87-016-669-080 C-CAP,S 0.1-25 K B
C542 87-016-669-080 C-CAP,S 0.1-25 K B
C543 87-016-669-080 C-CAP,S 0.1-25 K B
C551 87-016-558-080 C-CAP,TN47-6.3F93B
C552 87-010-831-080 C-CAP,U,0.1-16F
C553 87-010-831-080 C-CAP,U,0.1-16F
C554 87-010-831-080 C-CAP,U,0.1-16F
C555 87-012-272-080 C-CAP,U 680P-50 B
C601 87-A11-241-080 C-CAP,TN 22-6.3 M F93 A
C602 87-012-286-080 CAP, U 0.01-25
C603 87-A11-157-080 C-CAP,TN 1-16 M A F93
C604 87-010-831-080 C-CAP,U,0.1-16F
C605 87-010-831-080 C-CAP,U,0.1-16F
C606 87-010-831-080 C-CAP,U,0.1-16F
C607 87-010-831-080 C-CAP,U,0.1-16F
C608 87-010-831-080 C-CAP,U,0.1-16F
C609 87-010-831-080 C-CAP,U,0.1-16F
C610 87-010-831-080 C-CAP,U,0.1-16F
C611 87-012-178-080 C-CAP,U 18P-50 J CH
C612 87-012-172-080 C-CAP,U 10P-50 D CH
C613 87-012-178-080 C-CAP,U 18P-50 J CH
C614 87-A11-022-080 C-CAP,E 4.7-35 M ZS 4.5L
C615 87-010-831-080 C-CAP,U,0.1-16F
C616 87-010-831-080 C-CAP,U,0.1-16F
C617 87-016-431-080 C-CAP,E 220-4 5.5N
C618 87-A11-946-080 C-CAP,TN 100-6.3 M F93 C
C621 87-012-178-080 C-CAP,U 18P-50 J CH
C622 87-012-172-080 C-CAP,U 10P-50 D CH
C623 87-012-178-080 C-CAP,U 18P-50 J CH
C624 87-A11-022-080 C-CAP,E 4.7-35 M ZS 4.5L
C625 87-A11-022-080 C-CAP,E 4.7-35 M ZS 4.5L
C626 87-A11-241-080 C-CAP,TN 22-6.3 M F93 A
C627 87-A11-946-080 C-CAP,TN 100-6.3 M F93 C
C631 87-012-178-080 C-CAP,U 18P-50 J CH
C632 87-012-172-080 C-CAP,U 10P-50 D CH
C633 87-012-178-080 C-CAP,U 18P-50 J CH
C634 87-010-831-080 C-CAP,U,0.1-16F
C635 87-016-114-080 U 0.01-25 J B GRM
C636 87-010-831-080 C-CAP,U,0.1-16F
C641 87-010-831-080 C-CAP,U,0.1-16F
C642 87-012-285-080 C-CAP,U 8200P-50 K B GRM
C661 87-016-558-080 C-CAP,TN 47-6.3 F93B
C671 87-016-558-080 C-CAP,TN 47-6.3 F93B
C681 87-016-558-080 C-CAP,TN 47-6.3 F93B
C701 87-016-289-080 C-CAP,TN 10-6.3 F93
C702 87-016-289-080 C-CAP,TN 10-6.3 F93
C703 87-012-278-080 C-CAP,U 2200P-50 B
C704 87-012-278-080 C-CAP,U 2200P-50 B
C705 87-012-279-080 C-CAP,U 2700P-50 B
C706 87-012-279-080 C-CAP,U 2700P-50 B
C707 87-010-831-080 C-CAP,U,0.1-16F
C708 87-016-289-080 C-CAP,TN 10-6.3 F93
C709 87-012-335-080 C-CAP,U 270P-50 SL
C710 87-012-335-080 C-CAP,U 270P-50 SL
C711 87-010-831-080 C-CAP,U,0.1-16F
C712 87-016-289-080 C-CAP,TN 10-6.3 F93
C713 87-012-186-080 C-CAP,U 39P-50 J CH
C714 87-012-186-080 C-CAP,U 39P-50 J CH
C715 87-010-831-080 C-CAP,U,0.1-16F
C716 87-010-831-080 C-CAP,U,0.1-16F
C717 87-A11-967-080 C-CAP,TN 10-16 M B F93
C718 87-A11-967-080 C-CAP,TN 10-16 M B F93
C719 87-012-274-080 CHIP CAP,U 1000P-50B
C720 87-012-274-080 CHIP CAP,U 1000P-50B
C723 87-010-831-080 C-CAP,U,0.1-16F
C724 87-016-558-080 C-CAP,TN47-6.3F93B
C725 87-010-831-080 C-CAP,U,0.1-16F
C726 87-010-831-080 C-CAP,U,0.1-16F
C727 87-010-831-080 C-CAP,U,0.1-16F
C728 87-010-831-080 C-CAP,U,0.1-16F
C729 87-010-831-080 C-CAP,U,0.1-16F
C730 87-010-831-080 C-CAP,U,0.1-16F
C731 87-A11-967-080 C-CAP,TN 10-16 M B F93
C732 87-A11-967-080 C-CAP,TN 10-16 M B F93
C733 87-010-831-080 C-CAP,U,0.1-16F
C734 87-010-831-080 C-CAP,U,0.1-16F
C735 87-012-285-080 C-CAP,U8200P-50 K B GRM
C736 87-012-285-080 C-CAP,U8200P-50 K B GRM
C737 87-012-282-080 C-CAP,U 4700P-50 B
C738 87-012-282-080 C-CAP,U 4700P-50 B
C739 87-012-336-080 C-CAP,U330P-50 SL
C740 87-012-336-080 C-CAP,U330P-50 SL
C741 87-010-831-080 C-CAP,U,0.1-16F
C742 87-016-289-080 C-CAP,TN 10-6.3 F93
C743 87-A11-946-080 C-CAP,TN 100-6.3 M F93 C
C744 87-A11-241-080 C-CAP,TN 22-6.3 M F93 A
C745 87-010-831-080 C-CAP,U,0.1-16F
C746 87-016-286-080 C-CAP,TN 2.2-6.3 F93
C747 87-A11-157-080 C-CAP,TN 1-16 M A F93
C751 87-A10-047-080 C-CAP,U 1-10 Z F
C752 87-A10-047-080 C-CAP,U 1-10 Z F
C753 87-010-831-080 C-CAP,U,0.1-16F
C754 87-010-831-080 C-CAP,U,0.1-16F
C755 87-010-944-180 C-CAP,E 220-4 M MV
C756 87-010-944-180 C-CAP,E 220-4 M MV
C757 87-012-274-080 CHIP CAP,U 1000P-50B
C758 87-012-274-080 CHIP CAP,U 1000P-50B
C761 87-016-289-080 C-CAP,TN 10-6.3 F93
C762 87-A11-241-080 C-CAP,TN 22-6.3 M F93 A
C763 87-016-287-080 C-CAP,TN 3.3-6.3 M
C764 87-A10-047-080 C-CAP,U 1-10 Z F
C765 87-A11-241-080 C-CAP,TN 22-6.3 M F93 A
C766 87-016-289-080 C-CAP,TN 10-6.3 F93
C767 87-010-831-080 C-CAP,U,0.1-16F
C800 87-016-669-080 C-CAP,S 0.1-25 K B
C801 87-016-669-080 C-CAP,S 0.1-25 K B<AHC<S>>
C802 87-016-669-080 C-CAP,S 0.1-25 K B<AHC<S>>
C803 87-016-669-080 C-CAP,S 0.1-25 K B<AHC<S>>
C804 87-A11-282-080 C-CAP,S 1-16 K B
C805 87-A11-031-080 C-CAP,E 100-16 M WX
C806 87-A11-031-080 C-CAP,E 100-16 M WX
C807 87-016-669-080 C-CAP,S 0.1-25 K B
C808 87-016-669-080 C-CAP,S 0.1-25 K B
C809 87-016-669-080 C-CAP,S 0.1-25 K B
C810 87-016-669-080 C-CAP,S 0.1-25 K B
C811 87-A11-031-080 C-CAP,E 100-16 M WX
C812 87-A11-031-080 C-CAP,E 100-16 M WX
C813 87-016-669-080 C-CAP,S 0.1-25 K B
C815 87-A10-949-080 C-CAP,TN 10-10 M A
C816 87-A10-949-080 C-CAP,TN 10-10 M A
C817 87-A11-967-080 C-CAP,TN 10-16 M B F93
C818 87-A11-162-080 C-CAP,TN 47-16 M C F93
C819 87-A11-161-080 C-CAP,TN 10-35 M C F93
C820 87-016-669-080 C-CAP,S 0.1-25 K B
C821 87-A12-032-080 C-CAP,TN 47U-16 M F95 G
C822 87-016-669-080 C-CAP,S 0.1-25 K B
C823 87-010-197-080 CAP, CHIP 0.01 DM
C824 87-016-431-080 C-CAP,E 220-4 5.5N
C825 87-A11-162-080 C-CAP,TN 47-16 M C F93
C826 87-A11-161-080 C-CAP,TN 10-35 M C F93
C827 87-016-669-080 C-CAP,S 0.1-25 K B
C828 87-A12-032-080 C-CAP,TN 47U-16 M F95 G
C829 87-016-669-080 C-CAP,S 0.1-25 K B
C830 87-010-197-080 CAP, CHIP 0.01 DM
C831 87-A11-031-080 C-CAP,E 100-16 M WX
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
19
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
C832 87-A11-162-080 C-CAP,TN 47-16 M C F93
C833 87-A11-161-080 C-CAP,TN 10-35 M C F93
C834 87-016-669-080 C-CAP,S 0.1-25 K B
C835 87-A12-032-080 C-CAP,TN 47U-16 M F95 G
C836 87-016-669-080 C-CAP,S 0.1-25 K B
C837 87-010-197-080 CAP, CHIP 0.01 DM
C838 87-A11-031-080 C-CAP,E 100-16 M WX
C839 87-A11-162-080 C-CAP,TN 47-16 M C F93
C840 87-A11-161-080 C-CAP,TN 10-35 M C F93
C841 87-016-669-080 C-CAP,S 0.1-25 K B
C842 87-A11-162-080 C-CAP,TN 47-16 M C F93
C843 87-016-669-080 C-CAP,S 0.1-25 K B
C844 87-010-178-080 CHIP CAP 1000P
C845 87-A11-606-080 C-CAP,S 0.22-25 K B
C847 87-A11-161-080 C-CAP,TN 10-35 M C F93
C848 87-A11-162-080 C-CAP,TN 47-16 M C F93
C852 87-A11-162-080 C-CAP,TN 47-16 M C F93
C854 87-016-669-080 C-CAP,S 0.1-25 K B
C857 87-016-669-080 C-CAP,S 0.1-25 K B
C858 88-118-332-080 C-RES,S 3.3K-1/10W J
C859 87-A11-161-080 C-CAP,TN 10-35 M C F93
C861 87-016-669-020 C-CAP,S 0.1-25 K B
C864 87-A11-241-080 C-CAP,TN 22-6.3 M F93 A
C865 87-A11-241-080 C-CAP,TN 22-6.3 M F93 A
C866 87-A12-032-080 C-CAP,TN 47U-16 M F95 G
C873 87-016-669-080 C-CAP,S 0.1-25 K B
C874 87-016-669-080 C-CAP,S 0.1-25 K B
C875 87-016-669-080 C-CAP,S 0.1-25 K B
C876 87-016-669-080 C-CAP,S 0.1-25 K B
C877 87-A11-162-080 C-CAP,TN 47-16 M C F93
C878 87-016-669-080 C-CAP,S 0.1-25 K B
C879 87-A11-162-080 C-CAP,TN 47-16 M C F93
C880 87-016-669-080 C-CAP,S 0.1-25 K B
C881 87-A11-162-080 C-CAP,TN 47-16 M C F93
C882 87-016-669-080 C-CAP,S 0.1-25 K B
C883 87-016-669-080 C-CAP,S 0.1-25 K B
C888 87-A12-021-080 C-CAP, 2.2-16 K B C3216
C889 87-A12-021-080 C-CAP, 2.2-16 K B C3216
C890 87-A12-021-080 C-CAP, 2.2-16 K B C3216
C891 87-A12-021-080 C-CAP, 2.2-16 K B C3216
C892 87-A11-031-080 C-CAP,E 100-16 M WX
C893 87-A11-031-080 C-CAP,E 100-16 M WX
C896 87-A11-162-080 C-CAP,TN 47-16 M C F93
C897 87-A11-031-080 C-CAP,E 100-16 M WX
C899 87-016-669-080 C-CAP,S 0.1-25 K B
CN200 87-A61-197-080 C-CONN,30P H 52893
CN300 87-A61-199-080 C-CONN,8P V 52559
CN301 87-A61-198-080 C-CONN,14P V 52559
CN551 87-A61-183-080 C-CONN,9P V WHT BM09B-SRSS-TB
CN552 87-A61-182-080 C-CONN,14P V WHT BM14B-SRSS-TB
CN701 87-009-984-280 C-CONN,2P ZR RED
CN702 87-009-984-280 C-CONN,2P ZR RED
CN800 87-009-984-080 C-CONN,2PZR WHT
CN801 87-A60-942-080 C-CONN,5P V PH-SM3-TB
CN802 87-009-984-280 C-CONN,2P ZR RED
FB200 87-A50-551-080 C-COIL,S BLM21A601F
FB201 87-A50-551-080 C-COIL,S BLM21A601F
FB300 87-A50-551-080 C-COIL,S BLM21A601F
FB301 87-A50-551-080 C-COIL,S BLM21A601F
FB302 87-A50-552-080 C-COIL,S BLM21B050S
FB303 87-A50-551-080 C-COIL,S BLM21A601F
FB450 87-A50-552-080 C-COIL,S BLM21B050S<AHC<S>>
FB710 87-A50-505-080 C-COIL,4.7UH LQG21F
J601 87-A61-193-010 JACK,MD-S4100-90
J701 87-A61-207-010 JACK,PIN 3P W/O SW YKC21-5765
J702 87-A61-194-010 JACK,DIA3.5 ST W/SW HSJ1493
J800 87-A61-216-010 JACK,CMS 5008-0902
L101 87-005-819-080 C-COIL, 47UH J FLC32
L102 87-005-819-080 C-COIL, 47UH J FLC32
L103 87-005-814-080 C-COIL, 18UH J FLC32
L200 87-A50-553-080 C-COIL,S 2.2UH LQG21F2R2N
L201 87-A50-553-080 C-COIL,S 2.2UH LQG21F2R2N
L250 87-A50-387-080 C-COIL,22UHD73C-636CY
L251 87-A50-387-080 C-COIL,22UHD73C-636CY
L252 87-A50-387-080 C-COIL,22UHD73C-636CY
L253 87-A50-387-080 C-COIL,22UHD73C-636CY
L254 87-A50-387-080 C-COIL,22UHD73C-636CY
L255 87-A50-387-080 C-COIL,22UHD73C-636CY
L450 87-A50-553-080 C-COIL,S 2.2UH LQG21F2R2N
L611 87-005-813-080 C-COIL,15UH J FLC32
L621 87-005-813-080 C-COIL,15UH J FLC32
L631 87-005-813-080 C-COIL,15UH J FLC32
L800 87-A50-554-080 C-COIL,CPFC85-WH07
L801 87-A50-330-080 C-COIL,100UH-D75C
L802 87-A50-545-080 C-COIL,47UH-D124C
L803 87-A50-546-080 C-COIL,100UH-D124C
L804 87-A50-330-080 C-COIL,100UH-D75C
L805 87-A50-545-080 C-COIL,47UH-D124C
L806 87-A50-546-080 C-COIL,100UH-D124C
L807 87-A50-330-080 C-COIL,100UH-D75C
L808 87-A50-545-080 C-COIL,47UH-D124C
L809 87-A50-546-080 C-COIL,100UH-D124C
L810 87-A50-330-080 C-COIL,100UH-D75C
L811 87-A50-544-080 C-COIL,10CA-TFT
L812 87-A50-323-080 C-COIL, 22UH K NLFC322522
L813 87-A50-323-080 C-COIL, 22UH K NLFC322522
L814 87-A50-395-080 C-COIL,100UHD73C-636CY
L815 87-A50-323-080 C-COIL, 22UH K NLFC322522
L818 87-A50-546-080 C-COIL,100UH-D124C
LCD551 8Z-HU1-607-010 LCD,ZHU-1
LPF101 88-HV1-643-080 C-FLTR,P613BG 0304GW
LPF102 88-HV1-645-080 C-FLTR,4FS 8782(NTSC)
LPF103 88-HV1-644-080 C-FLTR,4FS 8781(PAL)
R817 87-022-215-080 CHIP RESISTOR U 1K-1/16W F
R818 87-022-257-080 C-RES U 56K-F
R820 87-022-233-080 C-RES,U 5.6K-1/16W F
R825 87-022-286-080 C-RES U 100K-1/16WF
R826 87-022-287-080 C-RES,U 120K-1/16W F
R827 87-022-288-080 C-RES,U 150K-1/16WF
R835 87-022-249-080 C-RES U27K 1/16WF
R836 87-022-286-080 C-RES U 100K-1/16WF
R841 87-022-284-080 C-RES,U 68K 1-16W F
R842 87-022-285-080 C-RES U82K-1/16WF
R847 87-022-284-080 C-RES,U 68K 1-16W F
R848 87-022-285-080 C-RES U82K-1/16WF
S551 87-A91-609-080 C-SW,MICRO SPPB53V
S553 87-A91-609-080 C-SW,MICRO SPPB53V
S554 87-A91-602-010 SW,SL 1-1-2 SSSS912N4C2
S555 87-A91-602-010 SW,SL 1-1-2 SSSS912N4C2
S800 87-A91-601-080 C-SW,SL 1-1-3 SSSS7A3NCB
VR300 87-024-407-080 CHIP SFR 10K RH03A3A
VR701 87-A91-145-080 C-VR,RTRY 30KCX2 H RK14J12R
VR800 87-024-403-080 CHIP SFR 2.2K RH03A3A
X300 87-030-321-080 C-VIB,XTAL 22.5792M
X400 87-A70-246-080 C-VIB,XTAL 32MHZ HC-49/U03C
X450 87-A70-250-080 C-VIB,XTAL 50MHZ FCX-02
X501 87-A70-195-080 C-VIB,XTAL 27MHZ HC-49/U03C
TFT C.B
C101 87-A10-249-080 C-CAP,U 1-10 ZF
C102 87-A10-249-080 C-CAP,U 1-10 ZF
C103 87-A10-249-080 C-CAP,U 1-10 ZF
C104 87-A10-249-080 C-CAP,U 1-10 ZF
C105 87-A10-249-080 C-CAP,U 1-10 ZF
C106 87-A10-249-080 C-CAP,U 1-10 ZF
C107 87-A10-249-080 C-CAP,U 1-10 ZF
C108 87-A10-249-080 C-CAP,U 1-10 ZF
C109 87-A10-249-080 C-CAP,U 1-10 ZF
C110 87-A10-249-080 C-CAP,U 1-10 ZF
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
20
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
C111 87-012-197-080 C-CAP,U 150P-50 CH
C112 87-A10-249-080 C-CAP,U 1-10 ZF
C113 87-010-831-080 C-CAP,U,0.1-16F
C114 87-010-831-080 C-CAP,U,0.1-16F
C115 87-010-831-080 C-CAP,U,0.1-16F
C116 87-A10-006-080 C-CAP,TN 47-10 MC F9
C117 87-012-286-080 CAP, U 0.01-25
C118 87-012-284-080 CAP, U 6800P-50
C119 87-016-286-080 C-CAP,TN 2.2-6.3 F93
C120 87-010-831-080 C-CAP,U,0.1-16F
C121 87-012-272-080 C-CAP,U 680P-50 B
C122 87-A11-792-080 C-CAP,TN 33-4 M F93 A
C123 87-A11-792-080 C-CAP,TN 33-4 M F93 A
C124 87-010-831-080 C-CAP,U,0.1-16F
C125 87-A10-504-080 C-CAP,U 0.047-16 K B
C126 87-012-286-080 CAP, U 0.01-25
C127 87-012-193-080 C-CAP,U 82P-50 CH
C128 87-010-831-080 C-CAP,U,0.1-16F
C129 87-A10-025-080 C-CAP,U,0.1-16F
C130 87-012-286-080 C-CAP,U 0.01-25 K B<AU<S>>
C130 87-010-831-080 C-CAP,U,0.1-16F<AHC<S>>
C131 87-A10-249-080 C-CAP,U 1-10 ZF
C132 87-A10-249-080 C-CAP,U 1-10 ZF
C133 87-A10-249-080 C-CAP,U 1-10 ZF
C134 87-010-831-080 C-CAP,U,0.1-16F
C135 87-A11-162-080 C-CAP,TN 47-16 M C F93
C136 87-A10-249-080 C-CAP,U 1-10 ZF
C137 87-012-170-080 C-CAP,U 8P-50 CH
C138 87-012-170-080 C-CAP,U 8P-50 CH
C139 87-A10-249-080 C-CAP,U 1-10 ZF
C140 87-012-286-080 CAP, U 0.01-25
C141 87-A11-241-080 C-CAP,TN 22-6.3 M F93 A
C142 87-012-286-080 CAP, U 0.01-25
C143 87-010-759-080 C-CAP,U, 0.1-25F
C144 87-010-759-080 C-CAP,U, 0.1-25F
C145 87-A11-967-080 C-CAP,TN 10-16 M B F93
C147 87-A11-967-080 C-CAP,TN 10-16 M B F93
C148 87-A11-030-080 C-CAP,E 10-35 M ZS 4.5L
C149 87-A11-030-080 C-CAP,E 10-35 M ZS 4.5L
C150 87-010-831-080 C-CAP,U,0.1-16F
C151 87-A10-249-080 C-CAP,U 1-10 ZF
C152 87-010-831-080 C-CAP,U,0.1-16F
C180 87-010-248-080 CAP,E 220-10 M11L SME
C181 87-010-263-080 CAP,E 100-10 M11L SME
CN101 87-A61-181-080 C-CONN,14P H WHT SM14B-SRSS-TB
CN102 87-A61-185-080 C-CONN,24P H CFP1624-0101
S101 87-A91-338-080 C-SW,TACT SKQYAB
S102 87-A91-338-080 C-SW,TACT SKQYAB
S103 87-A91-338-080 C-SW,TACT SKQYAB
S104 87-A91-338-080 C-SW,TACT SKQYAB
S105 87-A91-338-080 C-SW,TACT SKQYAB
S106 87-A91-338-080 C-SW,TACT SKQYAB
SFR101 87-024-411-080 C-SFR,47K RHO3A3A
SFR102 87-024-411-080 C-SFR,47K RHO3A3A
SFR103 87-024-411-080 C-SFR,47K RHO3A3A
SFR104 87-024-411-080 C-SFR,47K RHO3A3A
SFR105 87-024-411-080 C-SFR,47K RHO3A3A
SFR106 87-024-411-080 C-SFR,47K RHO3A3A
SFR107 87-024-411-080 C-SFR,47K RHO3A3A
SFR108 87-024-411-080 C-SFR,47K RHO3A3A
SFR109 87-024-405-080 C-SFR,4.7K RHO3A3A
X101 87-A70-161-080 C-VIB,XTAL 3.579545MHZ
X102 87-A70-162-080 C-VIB,XTAL 4.433619MHZ
FR1 C.B
CN571 87-A61-183-080 C-CONN,9P V WHT BM09B-SRSS-TB
CN572 87-A61-184-080 C-CONN,7P H WHT SM07B-SRSS-TB
S581 87-A91-486-080 C-SW,TACT SKQYPA
S582 87-A91-486-080 C-SW,TACT SKQYPA
S583 87-A91-486-080 C-SW,TACT SKQYPA
S584 87-A91-486-080 C-SW,TACT SKQYPA
S585 87-A91-486-080 C-SW,TACT SKQYPA
FR2 C.B
C384 87-012-182-080 C-CAP,U 27P-50 J CH
C523 87-012-186-080 C-CAP,U 39P-50 J CH
C690 87-012-274-080 C-CAP,U 1000P-50 K B
C691 87-012-178-080 C-CAP,U 18P-50 J CH
C693 87-016-114-080 C-CAP,U 0.01-25 J B GRM
C791 87-016-114-080 C-CAP,U 0.01-25 J B GRM
CN581 87-A61-184-080 C-CONN,7P H WHT SM07B-SRSS-TB
L691 87-003-381-080 C-COIL,33UH K MLF1608
S571 87-A91-603-080 C-SW,TACT SKQUDB
S572 87-A91-486-080 C-SW,TACT SKQYPA
S573 87-A91-486-080 C-SW,TACT SKQYPA
S574 87-A91-486-080 C-SW,TACT SKQYPA
BATT2 C.B
C902 87-016-425-080 C-CAP,E 33-25 5.5N
CN900 87-049-469-010 CONN,4P V
CN901 87-049-796-010 CONN,4P EH V BLK
J900 87-A61-217-010 JACK,TCS7726-182036
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
Other manuals for XD-DW1
3
Table of contents
Other Aiwa Portable DVD Player manuals
