AIYCHEN PT Series User manual

PT Series Oven
Instruction Manual
Thank You For Purchasing From
AIYCHEN
Pizza Oven
Model: DQ176
NOTE:
To continuously improve its products, AIYCHEN reserves the right to modify this information without prior
notification. For any questions during assembly, please watch the video in the product page for reference. Or
contact our customer service with any questions, comments, or concerns. Thank you for using AIYCHEN
products in your home!
AIYCHEN mainly produces and sells products such as electric fryers, toaster ovens, pizza ovens, steak ovens, gas
combination boilers, burger machines, noodle machines, heat preservation cabinets, toaster ovens, kitchen work
tables, kitchen carts, etc.; the products are fashionable, energy-saving and technologically advanced, and are
suitable for various hotels, Chinese and Western restaurants, bars, etc.
[e-mail]
MADE IN CHINA

PT Series Oven
Thanks for buying and using this oven . To make full use of this product and
avoid unnecessary loss and hurt, please read this manual carefully before using.
Please keep it carefully for reference in future.
Table of Contents
Instruction.........................................................................................................1
Function and application.................................................................................2
Use instruction...................................................................................................3
Warning Tips.......................................................................................................3
Cleaning................................................................................................................4
Maintenance.........................................................................................................4
Troubleshooting...................................................................................................5
Warranty and Service............................................................................................6
READ THIS MANUAL INSTRUCTION CAREFULLY BEFORE USING THE
UNIT. PLEASE KEEP THIS FOR FUTURE REFERENCE.

PT Series Oven
- 1 -
1. Instruction
Model
Dimensions
Voltage
Power
Temperature
HEP-2PB(DQ176)
22.4*22*17.3inch
110V / 60HZ
3KW
122-662℉
Note:The timer plays a reminder function, no automatic shutdown function,
when the scheduled time is reached, the machine will "Ding" a sound to indicate
that the scheduled time has been reached; when the scheduled temperature is
reached the light will go out, the machine will shut down, when the temperature
drops below the scheduled temperature machine will start working again.

PT Series Oven
- 2 -

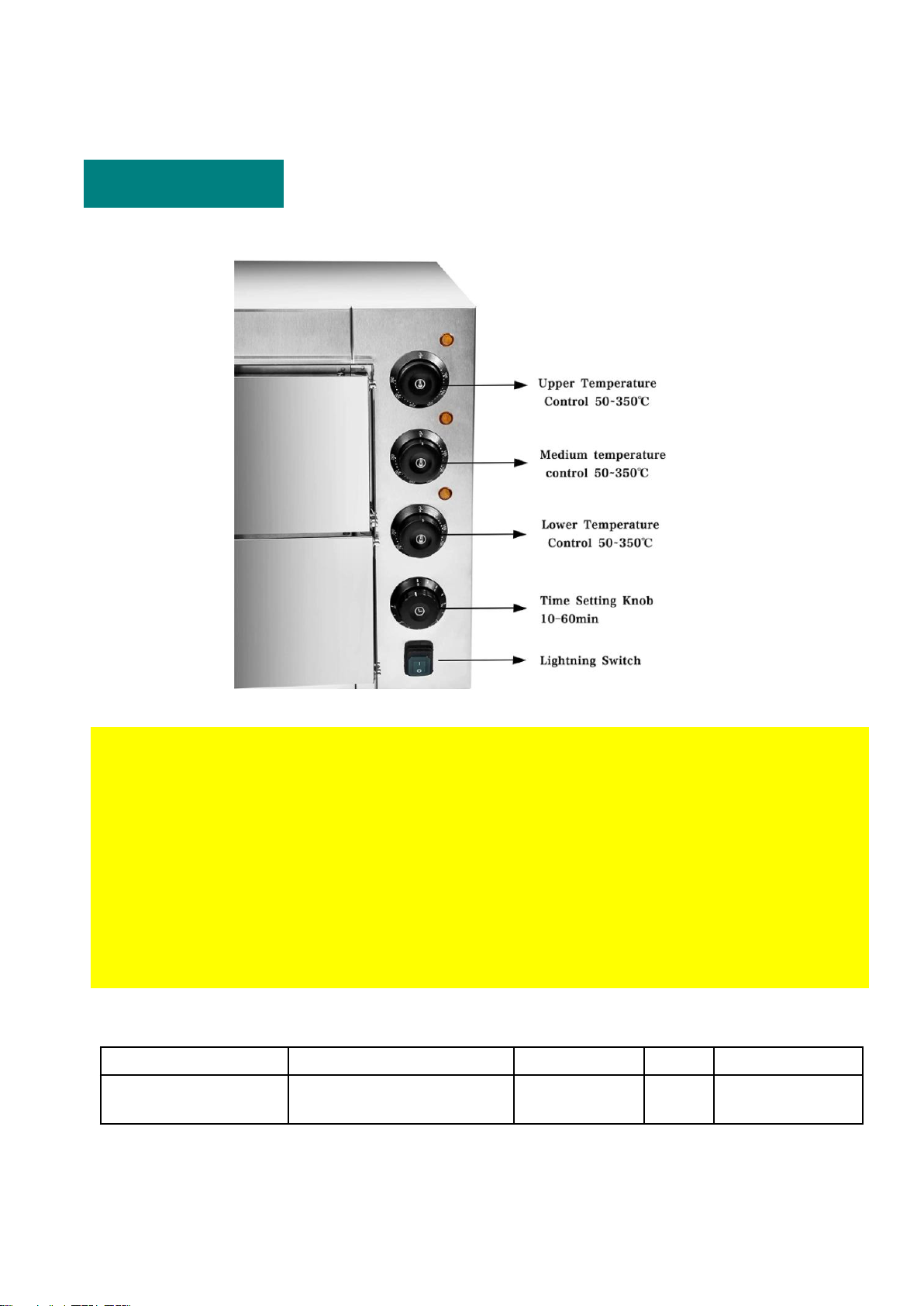

1.1 Turn the timer clockwise to the desired time, then the indicator light on and the heating
element starts working, when it reaches the set temperature, the indicator light off. If the
temperature is below the set temperature, the heating element will be automatically reheated and
the indicator light on. The temperature of the oven can be adjusted between 50~350℃ / 122-662
℉ .
1.2 These two thermostats are separately control the top and bottom heating elements and
their indicator lights, you can freely adjust the temperature of each heating element. The internal
lighting can help monitoring the baking process.
1.3 Primer heating tube and indicator are controlled by primer thermostat , middle heating tube
and indicator are controlled by middle thermostat, while surface heating tube and indicator
controlled by surface thermostat.
1.4 Cooking time depends on the amount of the food, the more the food had, the longer the
time required. And please turn off the power if not using.
2. Function and application
2.1 Function
a. Temperature raises up fast.This oven has 662℉ (350 ℃) thermostat. It greatly improves roasting speeding.
b. Using bluestone board makes food heat more equal. It can imitate professional European traditional stone
oven and roast European bread and pizza.
c. As stone surface is thin and brittle, it can absorb water on bread bottom, and makes baking heat more equal.
d. Surface and primer on each layer are controlled by separate thermostat. It can adjust temperature as needed.
2.2 Application
a. For all fresh and frozen bread and flour products bakery
b. For all fresh and frozen meat products roast
c. For all gastronomy product cooking

PT Series Oven
- 3 -
3. Use instruction
Recheck the parameter , installation before using.
a. For all fresh and frozen bread and flour products bakery
b. For all fresh and frozen meat products roast
c. Bake food after oven temperature reaching 392-572 ℉（200-300℃）.
d. Cooking temperature can be within 0-662 ℉（0-350℃）.
e. Rotate thermostat clockwise to needed temperature s. At the same time indicator is on , it shows that heat
tube is working. If temperature reaches set temperature, indicator will be off. If temperature is lower than set
temperature, heat tube will heat automatically and indicator will be on.
f. Oven lighting is on once turning on the lighting , this will be easier to watch the baked food.
g. Food quantity has an effect on cooking time. More food , more cooking time, vice versa.
h. Turn off the power when it is not used.
4. Warning Tips
a. Pull of the plug during cleanliness, maintenance, move .
b. Do not touch switch, plug with wet hand.
c. Do not wash it with water, nor let it soak in water . In case of leakage, do not let water flow into plug
d. Adolescent is prohibited to approach and use this product
e. This product is not intended for disabled, intellectual deficiency, inexperienced , including children, unless
under the guidance and assistance of people in charge of their safety.
f. It must connect earth wire . (There’s a sign). It must return to normal after maintenance .

PT Series Oven
- 4 -
5. Cleaning
5.1 Pull of the plug before maintenance. Clean after cooling
5.2 Clean oil residue inside with dry cloth. Do not wash it with water. Take the pizza stone out, brush it and
wash it with water, then dry it under sunshine.(Do not use liquid detergent which contains chemicals. As the stone
is capable of absorbing water, chemical liquid is easy to absorb. Otherwise, it will spoil the taste of food) Wipe
inner cavity with dry cloth, and then clean it with wet cloth, do not wash with water.
6. Maintenance
2.1 Test and examine by experienced professional staff termly.( Suggest one time each month)
6.2 User notes
a. Do not clean while electricity is on.
b. Clean after cooling. Do not clean with acidity water .
c. Product only used by qualified staff.
d. User should read the manual carefully, and know its property, application and Operation.
e. Keep this manual carefully in case of future reference
f. This oven is only for food roasting and bakery, Any other application is improper. Oven operation
temperature is 68-662 ℉ (20-350℃)
For cleaning and maintenance, the power supply should be cut off
and the unit should be completely cool down before cleaning.
For daily cleaning, you can use a dry cloth to wipe off the grease on the
chamber, don’t flush the chamber with water directly.

PT Series Oven
- 5 -
7. Troubleshooting
Before calling service team for support, please check the following troubleshooting tips:
Trouble
Solution
Without heating
1. Check whether the wire loosen or fall of
2. Rotate thermostat to needed temperature
3. Check whether power is matched with parameter
4. Contact service center to examine
Short Circuit
Contact service center to examine
High temperature bulb off
Shut the power. Back-out the outer lamp house by counterclockwise
after cooling. Replace the bulb
Burnt smell
Contact service center to examine whether short circuit
Bakery uneven
Adjust thermostat , or Contact service center to examine whether heat
tube is not working
Not Heating Up
1.Please check whether the connection is loose.
2.Rotate the thermostat to your needed temperature.
3.Please check whether the power switch is match up with the parameters
4.Contact the service center for repair suggestions.

PT Series Oven
- 6 -
8. Warranty and Service
If any problems occur, please contact the AIYCHEN customer service center via the contact
information listed in this User Guide.
We can only provide after sales service for products that are sold by AIYCHEN or AIYCHEN
authorized retailers and distributors. If you have purchased your unit from a different place,
please contact your seller for return and warranty issues.
If you have any questions, please contact us at
[e-mail]
