Socket User Manual
Updated March 3, 2020
Socket is a wireless smart plug with the power-consumption meter for indoor
use. Designed as a European plug adapter (Schuko type F), Socket controls the
power supply of electrical appliances with a load of up to 2.5 kW. Socket
indicates the load level and is protected from overload. Connecting to the Ajax
security system via a secured radio protocol, the device supports
communication at a distance of up to 1,000 m in line of sight.
Socket operates with only and does not support connecting via
or integration modules.
Use scenarios to program actions of (Relay, WallSwitch or
Socket) in response to an alarm, press or a schedule. A scenario can be
created remotely in the Ajax app.
Jeweller
Ajax hubs ocBridge Plus
uartBridge
automation devices
Button
How to create and congure a scenario in the Ajax security system

The Ajax security system can be connected to a central monitoring station of a
security company.
Functional Elements
Operating Principle
Socket switches on/off the 230 V power supply, opening one pole by the user
command in the or automatically according to ,
, .
Socket is protected against voltage overload (exceeding the range of 184–253
V) or overcurrent (exceeding 11 A). In case of overload, the power supply
switches off, resuming automatically when voltage restored to normal values. In
case of overcurrent, the power supply switches off automatically, but can only
be restored manually by the user command in the Ajax app.
Buy smart plug Socket

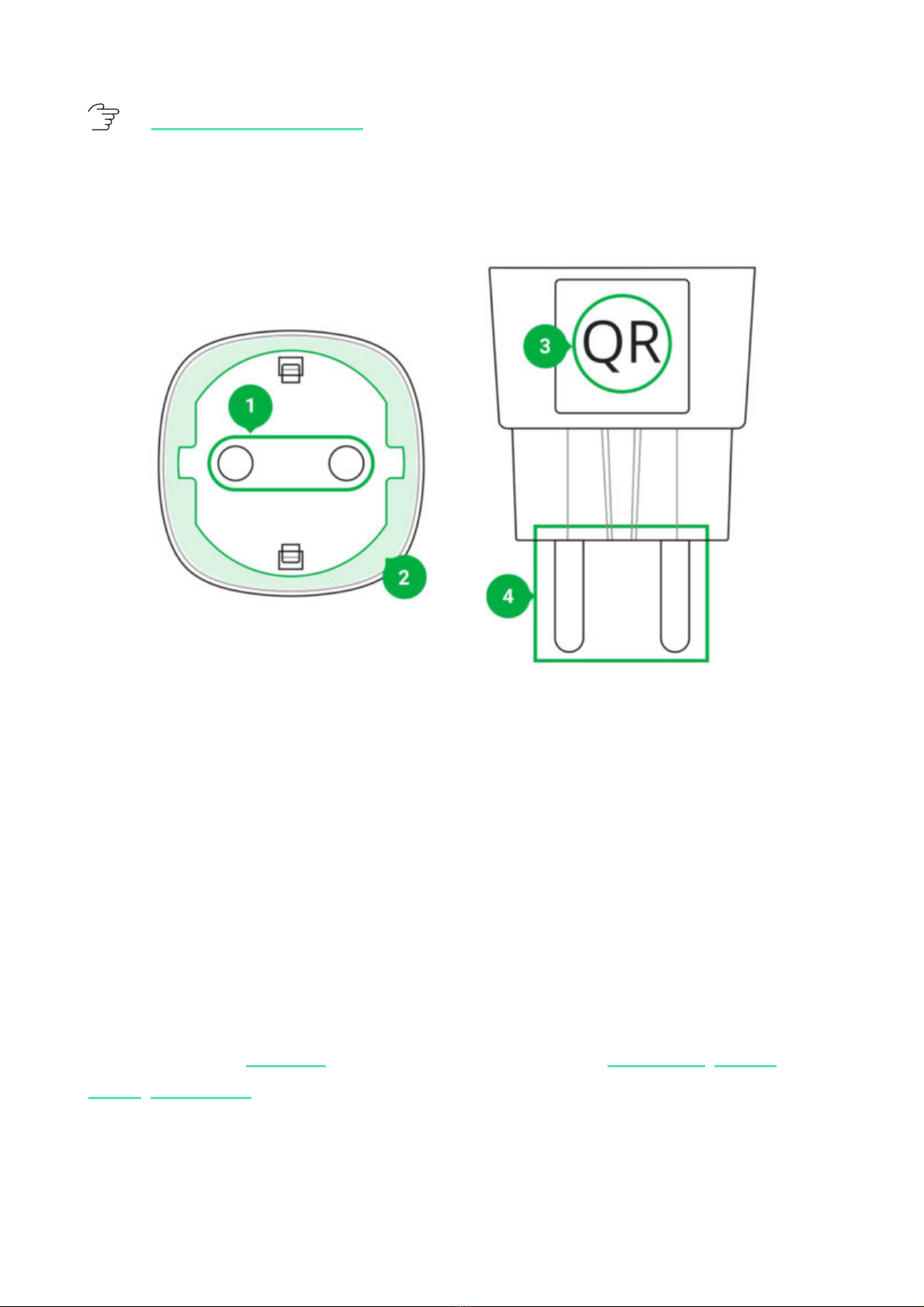

1. Two-pin socket
2. LED border
3. QR Code
4. Two-pin plug
Ajax app a scenario Button
press a schedule

The maximum resistive load is 2.5 kW. When using inductive or capacitive loads, the
maximum switching current is reduced to 8 A at 230 V!
In the app, users can check the power or amount of energy consumed by
electrical appliances connected via Socket.
At low loads (up to 25 W), current and power consumption indications may be displayed
incorrectly due to hardware limitations.
Connecting
Before connecting the device
Only users with administrator rights can add a device to the app.
To pair Socket with the hub
1. Switch on the hub and check its Internet connection (the logo glows white
or green).
2. Install the . Create the account, add the hub to the app, and create
at least one room.
Ajax app
3. Make sure that the hub is not armed, and it does not update by checking its
status in the Ajax app.
1. Click Add device in the Ajax app.
2. Name the device, scan it, or enter the QR code manually (located on the
case and packaging), select the room.

The device statuses update depends on the ping interval set in the hub settings.
The default value is 36 seconds.
If the device failed to pair, wait 30 seconds and then retry.
For detection and pairing to occur, the device should be located in the coverage
area of the hub’s wireless network (at the same object). A connection request is
transmitted only at the moment of switching on the device.
When pairing the hub with the smart plug that was previously paired with
another hub, make sure that it was unpaired with a former hub in the Ajax app.
For correct unpairing, the device should be in the coverage area of the hub’s
wireless network (at the same object): when unpaired correctly, the Socket LED
frame continuously blinks green.
If the device has not been correctly unpaired, do the following to connect it to
the new hub:
3. Plug the Socket into a power outlet and wait 30 seconds — the LED frame
will ash green.
4. Click Add — the countdown will begin.
5. Socket will appear in the list of hub devices.
1. Make sure that Socket is outside the coverage area of the former hub’s
wireless network (the indicator of the communication level between the
device and the hub in the app is crossed out).

Socket can be connected to one hub only.
States
2. Select the hub with which you want to pair Socket.
3. Click Add Device.
4. Name the device, scan or enter the QR code manually (located on the case
and packaging), select the room.
5. Click Add — the countdown will begin.
6. During the countdown, for a few seconds, give Socket at least 25 W load (by
connecting and disconnecting a working kettle or lamp).
7. Socket will appear in the list of hub devices.

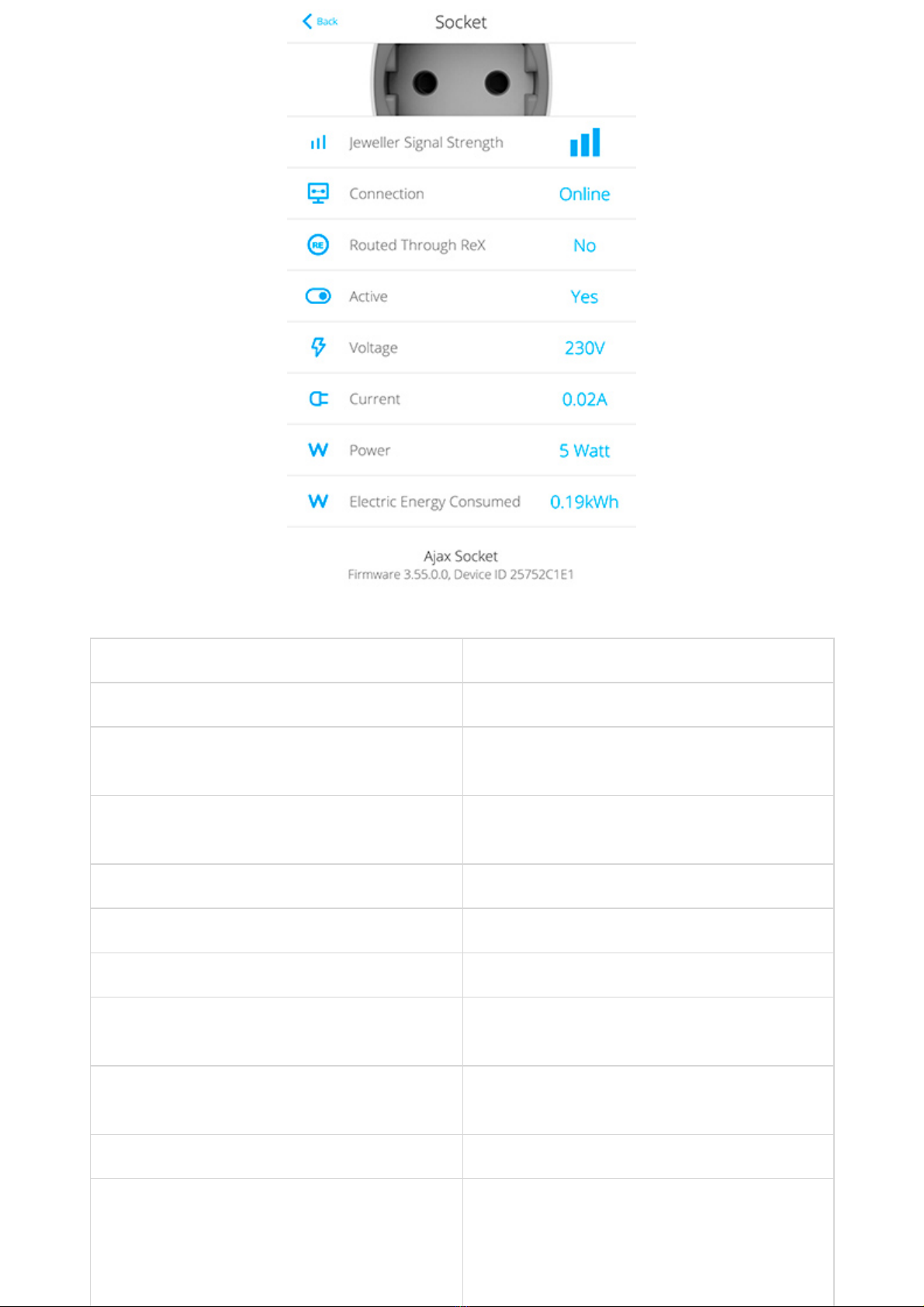

1. Devices
2. Socket

Parameter Value
Jeweller Signal Strength Signal strength between the hub and the Socket
Connection Connection status between the hub and the
Socket
Routed Through ReX Displays the status of using the ReX range
extender
Active State of the Socket (turned on/off)
Voltage The current input voltage level of Socket
Current Current at the Socket input
Current protection Indicates whether the overcurrent protection is
enabled
Voltage protection Indicates whether the overvoltage protection is
enabled
Power Current consumption in W
Electric energy consumed The electric power consumed by the device
connected to the Socket.

The counter is reset when the Socket lose the
power
Firmware Device rmware version
Device ID Device identier
Settings
Setting Value
First eld Device name, can be edited
Room Selecting the virtual room to which the device is
assigned
Current protection
If enabled, power supply switches off if the
current load exceeds 11A, if disabled the
threshold is 6A (or 13A for 5 seconds)
Voltage protection If enabled, power supply switches off in case of a
voltage surge beyond the range of 184 – 253 V
Indication If enabled, the LED shows the load with different
colors
1. Devices
2. Socket
3. Settings

Scenarios
Opens the menu for creating and conguring
scenarios
Jeweller Signal Strength Test
Jeweller Signal Strength Test Switches the device to the signal strength test
mode
User Guide Opens the Socket User Guide
Unpair Device Disconnects the device from the hub and deletes
its settings
Indication
Socket informs the user of the power level consumed by connected appliances
using the LED.
If the load is more than 3 kW (purple), the current protection activates.
Load level Indication
No power on the Socket Don’t have any indication

Socket turned off Blue
Socket turned on, no load Green
~550 W Yellow
~1250 W Orange
~2000 W Red
~2500 W Dark red
~3000 W Purple
One or more types of protection triggered Smoothly lights up and goes out red
Hardware failure Quick red ashes
The exact power can be seen in the .
Functionality Testing
The Ajax security system allows conducting tests for checking the functionality
of connected devices.
The tests do not start immediately but within a period of 36 seconds when using
default settings. The test time start depends on the settings of the detector ping
interval (the “Jeweller” menu in the hub settings).
Installation of the Device
The location of Socket depends on its remoteness from the hub, and obstacles
hindering the radio signal transmission: walls, oors, large objects inside the
room.
Do not install the device near sources of magnetic elds (magnets, magnetized objects,
wireless chargers, etc.) and inside rooms with temperature and humidity outside the
permissible limits!
Ajax Security System application
Jeweller Signal Strength Test

Check the Jeweller signal level at the installation location. If the signal level is
low (one bar), we cannot guarantee the stable operation of the device.
If the device has a low or unstable signal strength, use a
.
Socket is designed to connect to a European two-pin socket (Schuko type F).
Maintenance
The device does not require maintenance.
Tech specs
Actuating element Electromagnetic relay
Service life At least 200,000 switches
Voltage and type of external power supply 110–230 V, 50/60 Hz
Voltage protection for 230 V mains Yes, 184–253 V
Maximum load current 11 A (continuous), 13A (up to 5 s)
Maximum current protection Yes, 11 A if the protection is turned on, up to 13
A if the protection is turned off
Maximum temperature protection Yes, +85°С. The socket turns off automatically if
the temperature is exceeded
Electric shock protection class Class I (with grounding terminal)
Energy consumption parameter check Yes (current, voltage, power consumption)
Load indicator Yes
Output power (resistive load at 230 V) Up to 2.5 kW
Average energy consumption of the device on
standby Less than 1 W⋅h
Frequency band 868.0 – 868.6 MHz
Compatibility Operates only with , ,
and
Maximum radio signal power 8,97 mW (limit 25 mW)
ReX radio signal range
extender
Hub Hub Plus Hub 2
ReX

Radio signal modulation GFSK
Radio signal range Up to 1000 m (when there are no obstacles)
Operating temperature range From 0°С to +40°С
Operating humidity up to 75%
Protection class IP20
Overall dimensions 65.5 × 45 × 45 mm (with plug)
Weight 58 g
In case of using inductive or capacitance load, the maximum switched current is
reduced to 8 A at 230 V AC!
Complete Set
Warranty
Warranty for the “AJAX SYSTEMS MANUFACTURING” LIMITED LIABILITY
COMPANY products is valid for 2 years after the purchase.
If the device does not work correctly, you should rst contact the support
service—in half of the cases, technical issues can be solved remotely!
Customer support:
1. Socket
2. Quick Start Guide
The full text of the warranty
User Agreement
