AJAX Systems WaterStop Jeweller User manual

WaterStop Jeweller User manual
Updated January 12, 2023
WaterStop Jeweller is a smart water shutoff valve. Operates as part of an
automated water leak detection system. Controls it in Ajax apps, through a
button on the enclosure, a lever on a shutoff valve, as well as automation
scenarios.
An Ajax hub is required for operation. A list of compatible hubs and range extenders is
.
WaterStop communicates with the hub using an encrypted radio
protocol. The communication range without obstacles is up to 1,100 meters.
Runs on pre-installed batteries for up to three years. It can also be powered by a
third-party 9-12 V⎓ power supply.
available here
Jeweller
Buy WaterStop

Functional elements
1. LED indicator. Reports the status of WaterStop.
2. Control button. Activates and deactivates the device when the button is
pressed for three seconds. When short pressed (for a second), it controls
the water supply.
3. Mounting lockers. Supplied in two options: standard (pre-installed) and
alternative (anti-sabotage).
4. Holes for installation of a mounting locker. The locker can be installed on
any of the four sides of the WaterStop.
Learn more
5. Mechanical indicator of shutoff valve status: open or closed.
6. Position mark Open. The water is open when the mechanical indicator
corresponds to this position.
7. Position mark Closed. The water is shut off when the mechanical indicator
corresponds to this position.
8. Lever on the mount. It is designed for manual control of a shutoff valve.

Operating principle
9. Mounting platform. It is installed between the shutoff valve and the electric
drive.
10. Removable part of the mount. Allows changing the position of the electric
valve by 180° without removing the mount.
11. Bonomi shutoff valve. WaterStop is supplied with a valve in one of three
sizes: ½” (DN 15), ¾” (DN 20), or 1″ (DN 25).

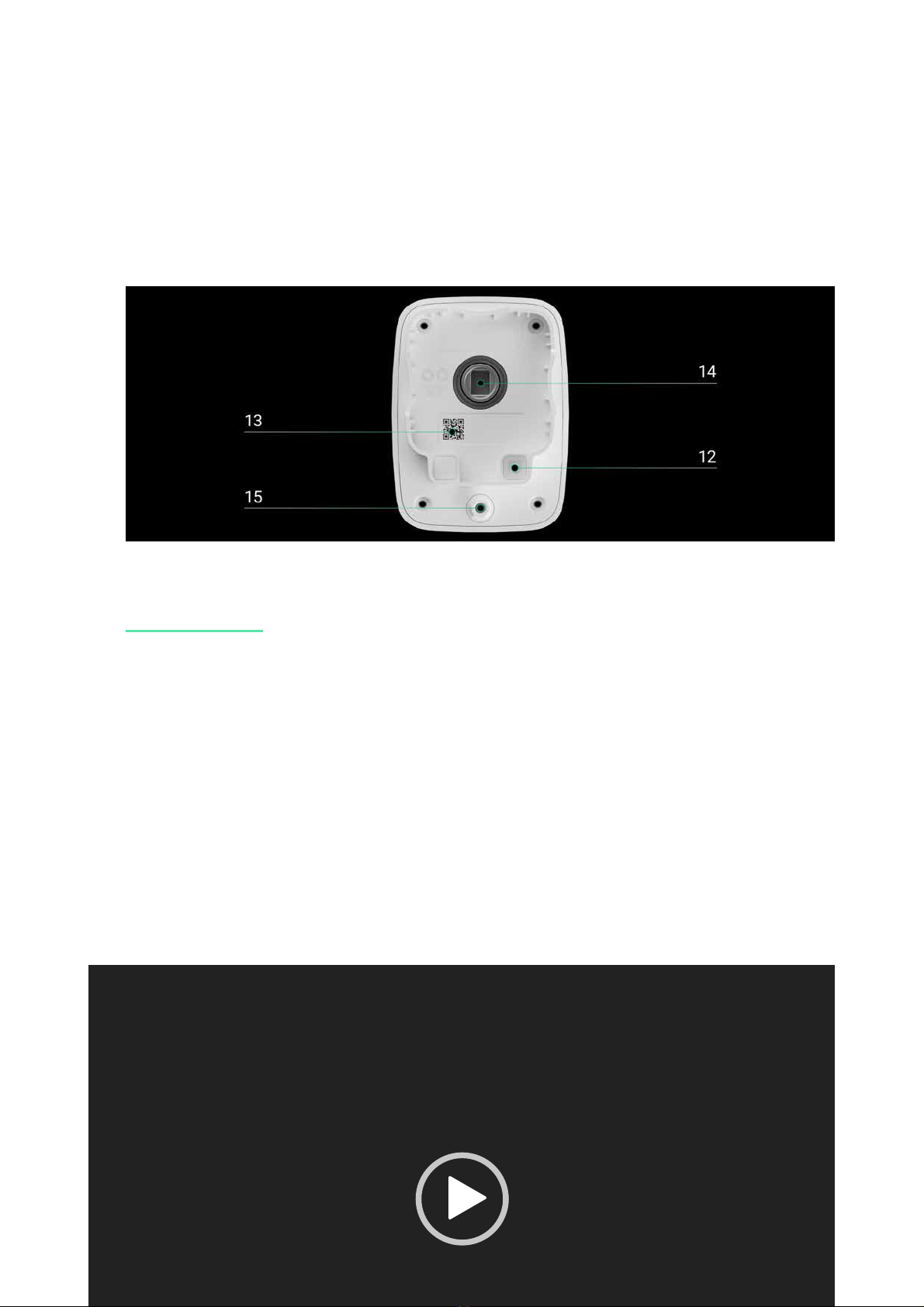

12. . Reacts to the removal of the electric actuator from the
mount.
Tamper button
13. QR code and ID/serial number of the device. It is used to connect WaterStop
to the Ajax system.
14. The rotary part of the water shutoff mechanism (electric actuator coupling).
15. Plug for a third-party 9-12 V⎓ power supply connection.

WaterStop Jeweller is a smart water shutoff valve with remote control. Operates
as part of the Ajax system’s automated water leak detection system.
WaterStop can be controlled from anywhere in the world where there is the
Internet — Ajax apps allow checking the status and changing the position of the
valve at any time.
WaterStop consists of the following blocks:
Control via the app
WaterStop can control the water supply at the object using the .
Notications indicate the device’s name, a virtual room, activation time, and the
user who opened or shut off the water supply.
1. The electric actuator controls the shutoff valve.
2. The shutoff valve is a Bonomi ball valve. WaterStop is supplied with a valve
in one of three sizes: ½” (DN 15), ¾” (DN 20), or 1″ (DN 25).
3. The mount is installed between the shutoff valve and the electric actuator.
4. The mounting locker axes the electric actuator to the shutoff valve. There
are two options: standard (pre-installed) and alternative (for installation in
public places).
Learn more
Ajax apps
00:00
00:12

By clicking the toggle in the WaterStop eld in the Devices menu of the Ajax
apps, the state of the valve contacts change to the opposite, and the water
supply will stop or restore. Thus, a user can, for example, remotely shut off the
water in a country house.
Users can also control the water supply in the Control menu. To do this, a
user must swipe up the Control menu. A swipe opens a list of automation
devices connected to the hub. The valve state reverses by pressing the switch in
the WaterStop eld, and the water supply stops or restores.
Manual control
Users can control the water supply at the object in Ajax apps and manually.
There are two ways to control the WaterStop manually: a button on the electric
actuator enclosure and a lever on the mount.
More about Ajax apps
00:00
00:04
00:00
00:04

This control method is provided for manually shutting off the water supply
during the installation of a shutoff valve, when installing an electric valve, or in
emergencies. The water valve is open if the lever is along the shutoff valve. If
the lever is across the valve, the water is shut off.
1. By button on the electric actuator enclosure. When pressed, the shutoff
valve opens/closes. This method of water supply control works when the
electric actuator is already installed. The state of the shutoff valve can be
found in the Ajax app and by looking at the position of the mechanical
indicator.
The ability to control the water supply with a button on the enclosure can be
disabled in the .
device settings
2. By lever on the mount. An installer or plumber can turn the lever and open or
shut the water without the tools. This method of controlling the water supply
only works with the electric actuator removed.
00:00
00:02
00:00
00:04

Automation scenarios
Security system scenarios help automate security, reduce the number of routine
actions, and improve user experience. WaterStop supports the following types
of scenarios:
Scenarios by humidity and CO concentration are available when is added to
the system.
Alarm reactions.
Security mode change responses.
Scheduled actions.
By pressing Button.
Temperature protection.
By pressing LightSwitch.
By humidity.
By CO concentration.
2
2LifeQuality
00:00
00:07

For example, using scenarios, the water supply can be turned off by the
leak detector alarms, according to a schedule, or when the
security system is armed.
Temperature protection
To protect against overheating, the WaterStop electric actuator has temperature
protection. It is activated when the WaterStop electric actuator is heated up to
+60°C.
As soon as the protection is triggered, appropriate notications are sent to the
Ajax apps, and the water supply is stopped. Notication is sent to both end-user
apps and PRO Desktop. This allows not only users but also representatives of
service companies to monitor the status of devices at the objects.
As soon as the electric actuator temperature returns to normal, the water supply
can again be controlled by WaterStop.
Stuck prevention
The ball shutoff valve should be serviced for stuck prevention. Without this
procedure, a thick layer of limescale can form inside the valve over time. This
LeaksProtect
More about scenarios
00:00
00:05

deposit can impair or block the ability to turn the ball valve. As a result, it will be
impossible to control the water supply at the object.
For stuck prevention, WaterStop can periodically open and close the shutoff
valve. A PRO or a user with admin rights can set the maintenance period by
creating a scheduled scenario.
Protected with a tamper switch against unauthorized
dismantling
Standard mounting locker Alternative mounting locker
The WaterStop kit includes two lockers:
Learn more about scenarios
Standard (pre-installed) — for quick xing of the electric drive on the shutoff
valve. It is easily removed to access a shutoff valve or replace the electric
actuator.
Alternative (anti-sabotage) — installed instead of a standard locker. This
locker cannot be removed from WaterStop without tools. It securely xes
the electric actuator on the shutoff valve and protects the electric actuator
against unauthorized dismantling. This locker is used, for example, when

Regardless of the locker selected, the WaterStop tamper will notify users and
the monitoring company that the tamper has been triggered during an attempt
to remove the electric actuator from the ball valve.
The locker can be installed on any of the four sides of the WaterStop.
Jeweller data transfer protocol
Jeweller is a radio protocol for fast and reliable two-way communication
between a hub and connected devices. Jeweller supports block encryption with
a oating key and authentication of devices at each communication session to
prevent sabotage and device spoong.
Ajax apps provided a system of ”hub–detector” polls to monitor connection with
system devices and display their statuses. Polling frequency: from 12 to 300
seconds. The polling frequency is set by a
in the hub settings.
Sending events to the monitoring station
The Ajax security system can transmit events and alarms to the
monitoring app as well as the Central Monitoring Station (CMS) via SurGard
(Contact ID), SIA DC-09 (ADM-CID), ADEMCO 685, and other protocols.
Only communication loss events between WaterStop and the hub (or the radio
signal range extender) are transmitted to the CMS. Use PRO Desktop to receive
all device events.
installing the device in cafés, restaurants, hotels, factories, or places with
public access.
PRO or a user with system setup
rights
Learn more
PRO Desktop
Which CMSs Ajax connects to

The addressability of Ajax devices allows sending events and the type of the
device, the name, the virtual room, and the security group assigned to it to the
PRO Desktop and the CMS. The list of transmitted parameters may differ
depending on the CMS type and the selected communication protocol.
The ID and device loop (zone) number are available in the device .
Selecting the installation site
The installation of WaterStop should be carried out by a specialist: a plumber or an
installer. The list of authorized Ajax partners is .
WaterStop is installed on water supply or heating pipes. The device can control
the supply of both cold and hot water.
40 bar is the maximum water pressure for which the bundled Bonomi ball valve
is designed. Do not install the device on pipes that may be under greater
pressure.
WaterStop can control water supply with temperatures from +5°C to +120°C. Do
not install the device on water pipes with lower or higher temperatures.
States
available here

WaterStop is not designed to control the supply of domestic or industrial gas or liquids
besides water.
When choosing a location for the WaterStop, consider its dimensions. The
intended location should have enough space to install the electric actuator in
one of the four positions. A plumber or installer should have access to the
device: for maintenance, repair, and replacement of a locker or electric actuator.
If a 9-12 V⎓ power supply is connected to the WaterStop, route the power cables
to the device beforehand.
Consider the Jeweller signal strength when choosing a place to install the
WaterStop. It is determined by the number of undelivered or corrupted data
packets exchanged between the device and the hub or range extender over a
certain period.
The icon in the Devices menu indicates the signal strength. The signal
strength is also shown in the device states.
Signal strength value:
Check the Jeweller signal strength at the installation site. WaterStop should
have a signal strength of two or three bars. To roughly calculate the signal
strength at the place of installation, use a
.
With a signal strength of one or zero bars, the stable operation of the security
system is not guaranteed. Use the if the selected
installation site has a signal strength of fewer than two bars.
Do not install a smart valve
Three bars — excellent signal strength.
Two bars — good signal strength.
One bar — low signal strength. Stable operation is not guaranteed.
Crossed-out icon — no signal. Stable operation is not guaranteed.
radio communication range
calculator
radio signal range extender

Installation
Before installing WaterStop, ensure that the optimal location of the device has been
selected and that it complies with the requirements of this manual. When installing and
operating the device, follow the general electrical safety rules for using electrical
appliances and the requirements of electrical safety regulations.
WaterStop electric actuator can be installed on a bundled Bonomi valve and a
third-party one. The electric actuator is compatible with valves that comply with
the ISO 5211 standard. Therefore, a plumber can install a third-party ball valve
one day, and an installer can x an electric actuator and connect the device to
the Ajax system another day.
WaterStop installation with bundled Bonomi shutoff valve
Outdoors. This may result in device failure or incorrect operation.
In rooms with humidity and temperature that are outside the permissible
limits. Doing so may cause the device to malfunction or not work correctly.
In places with low or unstable signal strength. This can lead to a loss of
connection between the smart valve and the hub (or range extender).
On pipes through which water is transported with a pressure of more than
40 bar.
On pipes through which water with a temperature below +5°C or above
+120°C is transported.
On pipes through which domestic or industrial gas is transported.
On pipes through which any liquid besides water is transported.
1. Disassemble the WaterStop:
1. Remove the mounting locker.
2. Remove the electric actuator from the shutoff valve mount.

2. Shut off the water supply to the circuit where the WaterStop will be installed.
3. Install the bundled Bonomi shutoff valve on the pipeline.
4. Select the installation option of the electric actuator on the mount. It can be
installed on a mount with a rotation angle of 0, 90, 270, or 360 degrees.
Choose the installation angle so that the WaterStop is easy to install and maintain.
5. Place the mount on the shutoff valve.
6. Ensure the lever on the mount and the electric actuator are in the same
position. If the positions do not match, change the position of the key or the
00:00
00:04
00:00
00:03

electric actuator coupling (by switching its position with the button on the
enclosure).
The lever on the mount in the open position must always be directed along the
pipeline.
7. Install the electric valve on the mount.
8. Secure the electric valve with the mounting locker.
1. Standard locker allows quickly removing the electric valve. Suitable for
private houses, ats, or other non-public places.
2. An alternative locker is suitable to protect against the unauthorized
dismantling of the electric actuator. Used in restaurants, laundries,
factories, and other public or crowded places.
00:00
00:03

WaterStop installation with third-party shutoff valve
9. .
Connect WaterStop to the hub
10. Resume water supply.
11. .
Check the operability of WaterStop
1. Disassemble the WaterStop:
1. Remove the mounting locker.
2. Remove the electric actuator from the shutoff valve mount.
3. Remove the mount from the bundled shutoff valve using a hexagon (⌀ 3
mm).
2. Shut off the water supply to the circuit where the WaterStop will be installed.
3. Select the installation option of the electric actuator on the mount. It can be
installed on a mount with a rotation angle of 0, 90, 270, or 360 degrees.
4. Install the mount on the shutoff valve. Fix it to the valve with bundled
fasteners.
5. Ensure the lever on the mount and the electric actuator are in the same
position. If the positions do not match, change the position of the key or the
electric actuator coupling (by switching its position with the button on the
enclosure).
The lever on the mount in the open position must always be directed along the
pipeline.
6. Install the electric valve on the mount.
7. Secure the electric valve with the mounting locker.
1. Standard locker allows quickly removing the electric valve. Suitable for
private houses, apartments, or other non-public places.
2. An alternative locker is suitable to protect against the unauthorized
dismantling of the electric actuator. Used in restaurants, laundries,
factories, and other public or crowded places.

Connecting external power supply
WaterStop runs up to 3 years from the bundled batteries. The device is equipped
with terminals connecting a third-party 9-12 V⎓ power supply. The connection of
the external power supply is recommended to avoid rapid discharge of batteries
in the case of installation in places characterized by low temperatures or when
frequent water shutoffs are reported.
When external power is connected, the pre-installed batteries are used as a
backup power source. Do not remove them when connecting the power supply.
Before installing the device, be sure to check the insulation of the wires for damage. Use
only a grounded power source. Do not disassemble the device under voltage. Do not use
the device with a damaged power cable.
To connect external power supply:
8. .
Connect WaterStop to the hub
9. Resume water supply.
10. .
If, after installation, WaterStop cannot shut off the water, the mount is installed in
the wrong position.
Check the operability of WaterStop
1. Shut off the water if necessary.
2. Turn off WaterStop if it was on by holding the on/off button for 3 seconds.
3. Pull out the mounting locker while holding the solenoid valve.
4. Remove the solenoid valve from the shutoff valve.
5. Place the front side of the device with the Ajax logo on it on a soft cloth so
as not to scratch the enclosure.

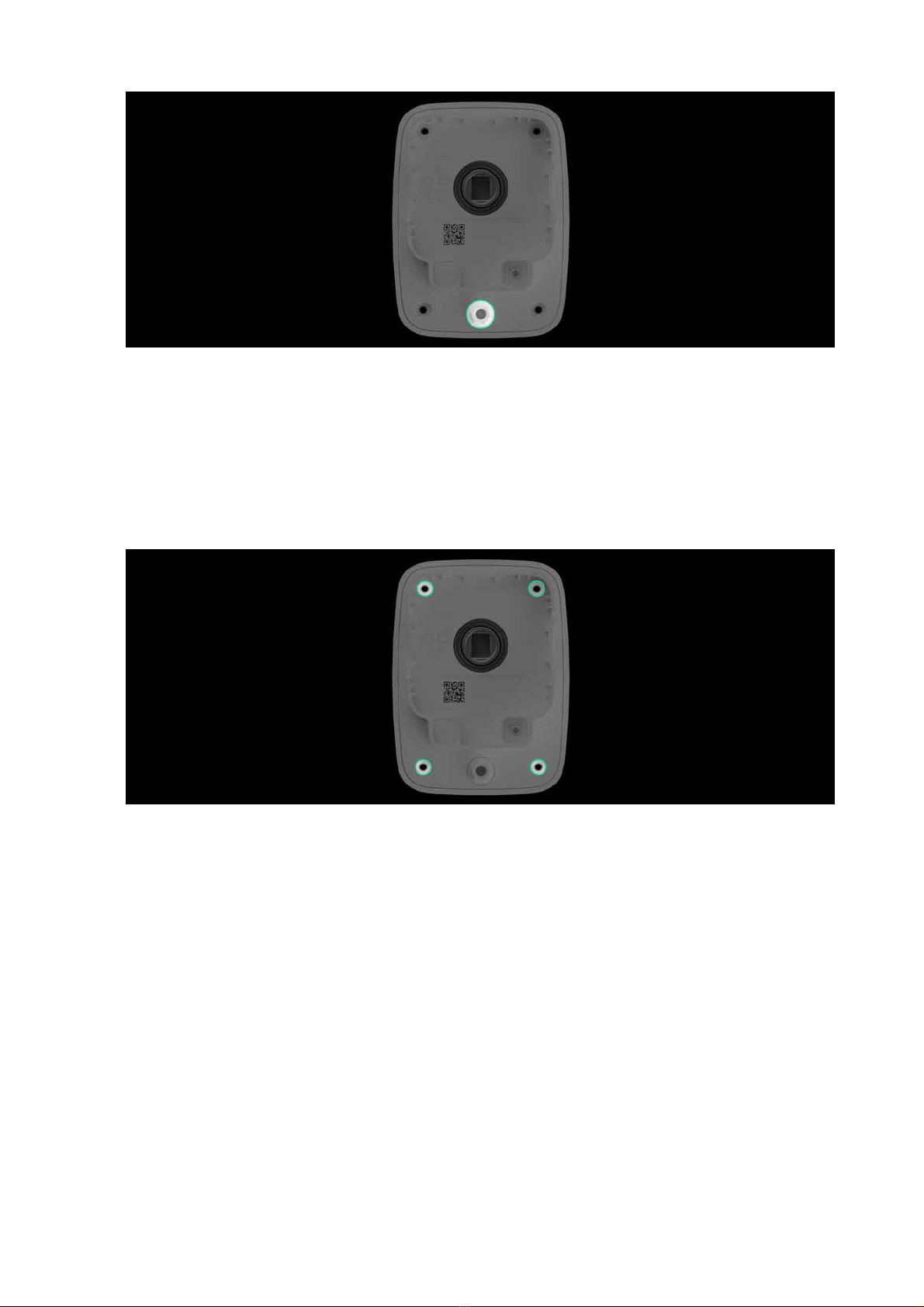

6. Unscrew the protective plug on the bottom of the electric actuator enclosure
using a hexagon (⌀ 4 mm).

7. Make a hole in the protective plug.
8. Reinstall the protective plug.
9. Loosen the screws with a PH1 cross-head screwdriver.
10. Turn the solenoid valve over while holding the front and back of the
enclosure.
11. Remove the front part of the solenoid valve enclosure.
12. Pass the protective plug through the de-energized 9-12 V⎓ power supply
cable.
13. Connect the cable to the terminal strips observing polarity. Polarity is
marked on the plastic.

Adding to the system
Before adding a device
14. Reinstall the front part of the device enclosure. The lid can be installed only
in one (correct) position.
15. Turn the device over while holding the front and back of the enclosure.
16. Tighten the four screws with a PH1 cross-head screwdriver.
17. Reinstall the solenoid valve on the shutoff valve.
18. Plug the power supply into an outlet.
19. Turn on WaterStop, and check the status of batteries and external power in
the Ajax app and the overall operation of the device.
1. Install the .
Ajax app
2. Create a or account if you don’t already have one. Add a
compatible hub to the app, set the desired settings, and create at least one
.
user PRO
virtual room
3. Make sure that the hub is on and has Internet access via Ethernet, Wi-Fi,
and/or mobile network. This can be done in the Ajax app or by looking at the
hub LED. It should light up white or green.
4. Make sure the hub is disarmed and does not start updates by checking its
status in the Ajax app.

Only a PRO or a user with administrator rights can connect WaterStop to the hub.
Connecting to the hub
WaterStop should be within the coverage area of the hub radio network to
connect to the hub. To work via a radio signal range extender, it is necessary to
pair the smart shutoff water valve to the hub and then connect it to the range
extender (via settings).
The hub is incompatible with devices operating at different frequencies. The
radio frequency range of the device may vary by region. It is recommended to
buy and use Ajax devices in the same region. Please contact
for information on the operating frequency range.
WaterStop only works with one hub. When connected to a new hub, the smart
water shutoff valve stops sending commands to the old one. Once added to a
new hub, the smart water shutoff valve is not removed from the list of devices of
the old hub. This must be done through the Ajax app.
To connect WaterStop to a hub:
technical support
1. Open the . Sign in to the account.
Ajax app
2. If your account has access to more than one hub or if you are using the PRO
app, select the hub to which you want to add the device.
3. Go to the Devices menu. Press Add Device.
4. Give a name to the smart valve.
5. Scan or enter the QR code (located on the device enclosure and its
packaging).
6. Select a virtual room and a security group (if the is enabled).
Group mode
7. Click Add Device — the countdown will begin.
