Akura AV37720HD User manual

-1-
Contents
Preparation .............................................2
Features ...............................................2
Safety Precautions .................................2
LCD TV ..................................................... 4
Remote Control Buttons .........................6
Before Switching On Your TV ................. 7
Power Connection................................7
Connections To The Aerial Input Socket7
How To Connect Other Devices ...........7
Inserting Batteries In The Remote
Control Handset ...................................7
Switching The TV ON/OFF ....................... 7
To switch the TV on:..............................7
To switch the TV off:..............................7
Initial Settings .........................................8
Initial APS (Automatic Programming
System) ................................................8
Operating The TV .................................... 8
Operating with the buttonson the TV set...8
Operating With Remote Control...........8
Menu System .......................................... 9
Picture menu ........................................9
Sound menu .......................................10
Feature menu .....................................11
Install menu .......................................12
Program menu ...................................13
Source menu......................................14
Other Features ...................................... 15
TVStatus.............................................15
Mute Indicator .....................................15
Freeze Picture.....................................15
Zoom Modes ......................................15
Teletext ..................................................16
To Operate Teletext.............................16
To Select APage Of Teletext ...............16
To Select Index Page..........................16
ToSelectTeletextWithATVProgramme.16
To Select Double Height Text .............16
To Reveal “Concealed” Information ...16
To Stop Automatic Page Change........16
To Select A Subcode Page .................16
To Exit Teletext ....................................17
To Display The Time ..........................17
Fastext................................................17
Connect Peripheral Equipment ............17
High Definition....................................17
Via The Scart ......................................17
ViaAerial Input ....................................17
Decoder..............................................18
TVAnd Video Recorder.......................18
Playback NTSC ..................................18
CopyFacility .......................................18
Search For And Store The Test
Signal Of The Video Recorder............18
Camera And Camcorder ....................18
To Connect to S-Video Input...............18
Connect The Decoder To
The Video Recorder ...........................18
Connecting Headphones...................18
Aerial Connection .................................19
Care of the Screen. ............................20
CAUTION ................................................ 21
Specifications .......................................22
Important Instruction ............................23
ENG-37720W-1602UK-37 INCH 17MB15 OEM-(WO VGA-WO PIP)(HD READY)(S)(OZEL)-50098683.p6515.12.2006, 09:591

-2-
Preparation
Install Display on solid horizontalsurfacesuch
as a table or desk.
Forventilation, leave a space ofat least10 cm
free all around the set. To prevent any fault
and unsafe situations, please do not place
any objects on top of the set.
This apparatus can be used in tropical and/or
moderate climates.
Features
• Remote controlled colour television.
• 100 programmes from VHF, UHF bands or
cable channels can be preset.
• It can tune cable channels.
• Controlling the TV is very easy by its menu
driven system.
•Ithas2Scartsocketsforexternaldevices(such
as video, video games, audio set, etc.)
• Stereo sound system (German+Nicam).
• Full function Teletext .
Fastext (1000 Pages), TOP text.
• Headphone connection.
• Direct channel access.
•A.P.S. (Automatic Programming System).
• All programmes can be named.
• Forward or backward automatic tuning.
• Sleep timer.
• Child Lock.
•Automatic sound mute when no transmission.
• NTSC Playback.
•AV in and S VIDEO are available.
• It has an HDMI connector for Digital Video
andAudio. This connection is also designed
to accept High Definition signals.
•AVL (Automatic Volume Limiting)
•Whennovalidsignalis detected,after5 min-
utes the TV switches itself automatically to
stand-by mode.
• Stereo PCAudio Input
• PLL (Frequency Search)
• 3D Comb Filter
Safety Precautions
Please read the following recommended
safety precautions carefully for your safety
1. Power Source
The receivermust only be operated on a230-
240VAC 50 Hz supply.
2. Power Cord
Do not place the set, a piece of furniture,etc.
on the power cord(mains lead) or pinch the
cord.Handle the power cord by the plug.Do
not pull out the plug by tugging the cord and
never touch the power cord when your hands
are wet as this could cause a short circuit or
electric shock.Never make a knot in the cord
or tie it with other cord.The power cord should
be placedin such away that they are not likely
to be stepped on.
A damaged power cord can cause fire or give
you an electric shock. When it is damaged
and need to be changed, it should be done by
qualified personel.
3. Moisture and Water
Do not use this equipment in a humid and
damp place (avoid the bathroom, the sink in
the kitchen, and near the washing machine).
Do not expose this equipment to rain or water,
as this may be dangerous and do not place
objects filled with liquids,such as flower vases
ontopoftheset.Avoidfromdrippingorsplash-
ing.
If any solid object or liquid falls into the cabinet,
unplug the set and have it checked by qualified
personnel before operating it any further
ENG-37720W-1602UK-37 INCH 17MB15 OEM-(WO VGA-WO PIP)(HD READY)(S)(OZEL)-50098683.p6515.12.2006, 09:592

-3-
Surely connect
the ground wire.
Be sure to ground the connection properly.
Connect the ground terminal of TV with the ground terminal provided
at the power outlet using the enclosed power cord. If theprovided plug
does not fit your outlet, consult an electrician for replacement
of the obsolete outlet.
4. Cleaning
Before cleaning, disconnect the mains sup-
ply. Donot use chemical cleaningagents. Use
a dry duster. For sticky stains, use a damp
cloth with a mild detergent.
5. Ventilation
The slots and openings on the back cover are
intended for ventilation and to ensure reliable
operation.Topreventoverheating,theseopen-
ings must not be blocked or covered in any-
way.
6.Heat and Flames
In the case of a Thunderstorm, or when leav-
ing the Tv for long periods, disconnect the
Aerial lead (if outdoor) and the mains supply
to prevent power surges damaging the Tv.
7. Lightning
In the event of a Thunderstorm or when go-
ing on holiday. Disconnect the mains supply
and aerial (if external).
8. Replacement Part
When replacement parts are required, be sure
the service technician has used replacement
partswhichare specifiedbythemanufactureror
havethesamespecificationsastheoriginalone.
Unauthorised substitutions may result in fire,
electrical shock, or other hazards.
9 . Servicing
Please refer all servicing to qualified person-
nel. Do not remove the cover yourself as this
may result in an electric shock.
WARNING: When the device is not in use for
a long time, disconnect from power.
Instructions for waste disposal:
• Packaging and packaging aids are recy-
clable and should principally be recycled.
Packaging materials, such as foil bag, must
be kept away from children.
• Remote control batteries should be disposed
of in a safe manner. Do not break open or
throw on a fire. Contact your local environ-
ment office for advice.
• Cold cathode fluoresant lamp in LCD PANEL
contains a small amount of mercury, please fol-
low local ordinates or regulations for disposal.
• The mains plug is used to disconnect the TV
from the mains and therefore it shall remain
readily operable.
Warning: To prevent injury, this device must
be securely attached to the floor/wall in ac-
cordance with the installation instrutions.
"The LCD panel is veryhigh technologyprod-
uct with about a million thin film transistors,
giving you fine picture details. Occasionally,
a few non-active pixels may appear on the
screen as a fixed point of blue, green or red.
Please note that this does not affect the per-
formance of your product."
“DO NOT LEAVE THE TV IN STANDBY OR
OPERATINGWHEN LEAVING THE HOUSE”
ENG-37720W-1602UK-37 INCH 17MB15 OEM-(WO VGA-WO PIP)(HD READY)(S)(OZEL)-50098683.p6515.12.2006, 09:593

-4-
LCD TV
FRONTVIEW
REARVIEW
MENU
- P/CH +
TV/AV
ENG-37720W-1602UK-37 INCH 17MB15 OEM-(WO VGA-WO PIP)(HD READY)(S)(OZEL)-50098683.p6515.12.2006, 10:004

-5-
S-Video Input EXT-4S
Video Input
Audio Inputss
Headphone
Power cord input
Power On/Off switch
Component Video (YPbPr) Inputs
Component Audio Inputss
HDMIInput(EXT-5)
Scart 1 (EXT-1)
Scart 2 (EXT-2)
Aerial
PCAudio Input
EXT-4
EXT-3
220V-240V
AC~50 Hz POWER
G
I
J
K
L
F
L
R
S-VHS
ENG-37720W-1602UK-37 INCH 17MB15 OEM-(WO VGA-WO PIP)(HD READY)(S)(OZEL)-50098683.p6515.12.2006, 10:005

-6-
Remote Control Buttons
TV
OK
I II
SOURCE
DTV
/
/
GUIDE
WIDEWIDE
ABC DEF GHI
JKL MNO PQR
STU VWX YZ
EXIT
P<P
SWAP
SELECT
INFO
PP
-/--
AV
= Stand By
= Cursor Up
= Cursor Right
OK / SELECT =Okay,Freeze
(InAnologue Broacast)
0 - 9 = Direct Programme
EXIT /-/- - = Exit menu / double digit
P<P /SWAP = previous programme /
programme swap
P/CH + = Programme Up
+= Volume Up
/ DTV = TV / No function
SOURCE /
AV
=External source
YELLOW *
BLUE *
/
= Hold / No function
/
= Update / No function
/ GUIDE= Index Page
= Reveal
/WIDE = Expand / Image size
= Mix, = No function
=Teletext
= Time / Subpage
/ RED = Page Down / *
/ GREEN =PageUp/*
= Mute
I-II = Mono/Stereo - DualA-B
-= Volume Down
- P/CH = Programme Down
PP = Personal settings
INFO = Information button (Program Table)
M= Menu
31
= Cursor Down
32
= Cursor Left
ENG-37720W-1602UK-37 INCH 17MB15 OEM-(WO VGA-WO PIP)(HD READY)(S)(OZEL)-50098683.p6515.12.2006, 10:006

-7-
Before Switching On Your TV
Power Connection
IMPORTANT: The TV set is designed to oper-
ate on230-240V AC, 50 Hz.
•Afterunpacking,allowtheTVsettoreachthe
ambient room temperature before you con-
nect the set to the mains.

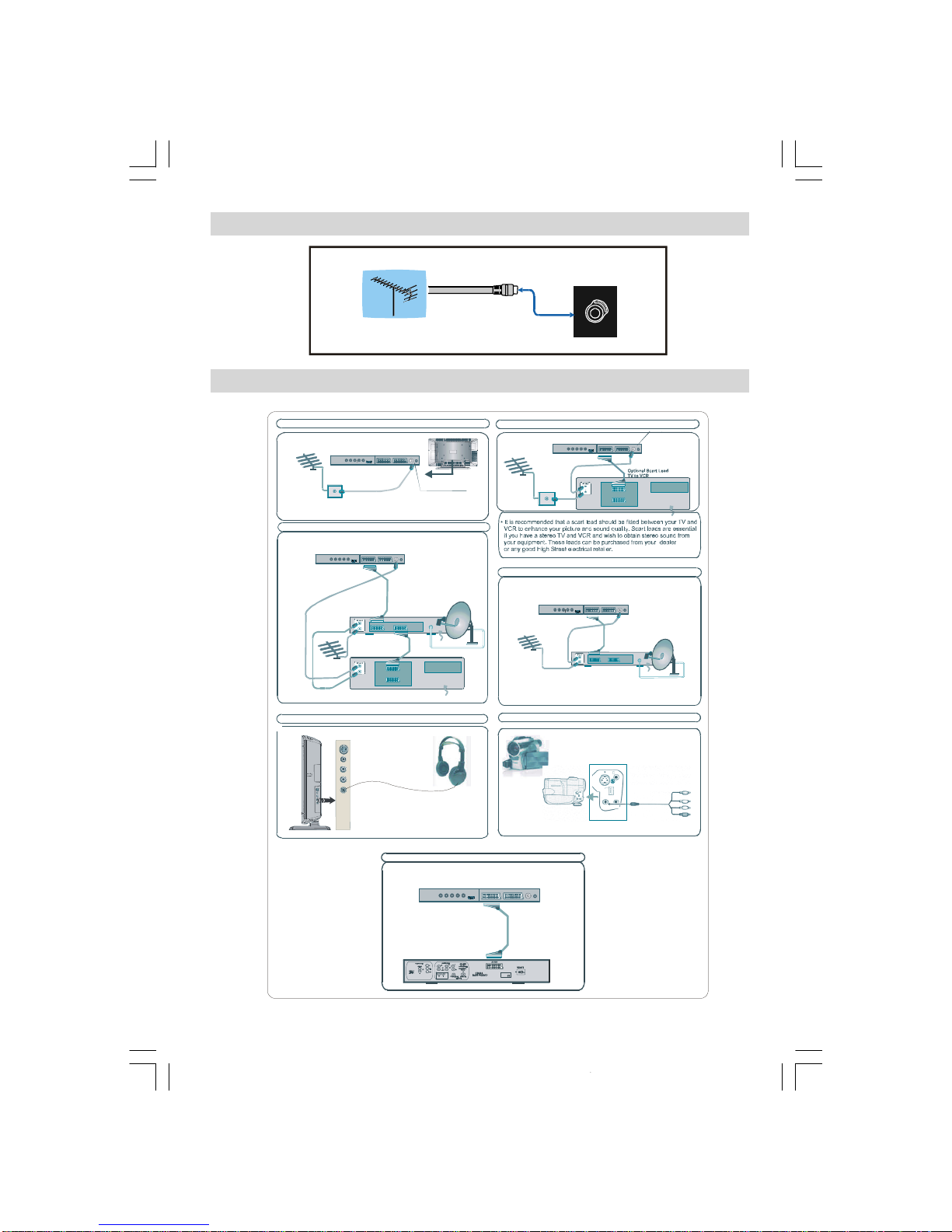

Connections To The Aerial Input
Socket
VHF/UHF
75

REAR OF THE TV
CABLE TV
• Connectthe aerial to the aerial socket on the
Tv,youmayalsoconnectaVCRor otherbox
at the same time.
How To Connect Other Devices
IMPORTANT: SwitchofftheTVbeforeconnect-
ing any external device.
Sockets for external connections are at the
rear side of the TV. For connection of other
devices via Scart refer to the manuals of the
related devices.
Inserting Batteries In The Remote
Control Handset
•Removethebatterycoverlocatedontheback
of the handset by gently pulling downwards
from the indicated part.
•InserttwoAAA/R03 orequivalenttypebatter-
ies inside. Place the batteries in the right
directions.
• Replace the battery cover.
NOTE: Remove the batteries from remote con-
trol handset when it is not to be used for a long
period.Otherwise it can be damaged due to
any leakage of batteries.
Switching The TV ON/OFF
To switch the TV on:
Your TV will switch on in two steps:
1- Connect the power supply cord to the sys-
tem. Press On/Off switch at the rear of the
TV. Then the TV switches itself to stand-by
modeand the LED becomes BLUElocated
on the front of the TV.
2- To switch on the TV from stand-by mode
either:
Press a digit button on the remote control so
that a programme number is selected,
or,
Press “ ”, "-P/CH" or "P/CH+" button on the
right side of the TV or press “-P/CH” or “P/
CH+” buttonontheremotecontrol,sothatlast
switched off programme is selected.
By either ways the TV will switch on and the
LED will turn off.
To switch the TV off:
• Press the “stand-by” button on the remote
control, so the TV will switch to stand-by
mode and the LED will become BLUE,
or,
Press the “ ” button located on the right side
of theTV, so the TV will switch off and the LED
will become BLUE.
To power down the TV completely, press On/
Off switch,
or
unplug the power cord from the mains socket.
ENG-37720W-1602UK-37 INCH 17MB15 OEM-(WO VGA-WO PIP)(HD READY)(S)(OZEL)-50098683.p6515.12.2006, 10:007

-8-
Operating The TV
You can operate your TV using both the remote
control handset and the buttons on the set.
Operating with the buttons on the
TV set
Volume setting and programme selection can
be made by using the buttons on the control
panel at the front of the TV.
Volume Setting
Pressthe " -" buttontodecreasevolumeor
the " +" button to increase volume, so a
volume level scale (slider) will be displayed at
the bottom of the screen.
Programme Selecting
Press the "+P/CH" button to select the next
programme or the "P/CH-" button to select
the previous programme.
Entering The Menu
Press the “MENU” button on the control panel
at the front of the TV to enter the menu.
"+P/CH" /"PCH-" and " -" /" +"
buttons on the TV are used as navigation but-
tons in the menu.
AV Mode
Press the"TV / AV" buttononthecontrolpanel
at the front of the TV to switch your TV to EXT
modes.
Operating With Remote Control
The remote control handset of your TV is de-
signed to control all the functions of your TV.
The functions will be described in accordance
with the menu system of your TV.
Functions of the menu system are described
in Menu System section.
Volume Setting
Press the “V +” button to increase volume.
Press the “- V” button to decrease volume.A
volume level scale (slider) will be displayed at
the bottom of the screen.
Programme Selecting
(Previous or next programme)
• Press the“- P” buttonto selectthe previous
programme.
Initial Settings
Initial APS (Automatic Programming
System)
The following menu will be displayed on the
screen when you turn your TV on for the first
time. APS, searches and sorts all channels
and stores them automatically on yourTV, ac-
cording to the transmission of programme
systems in your area.
AUTO PROGRAM
PLEASE CHECK ANTENNA CABLE
Language
English
AUTO. PROGRAMMING SYSTEM
Country
UK
OK
Cancel
First of all choose Language and Country by
using

/

and

/

buttons. This will affect
the sort process in APS. To start APS, press
theRED or“OK”button.
APS is running...
UK - I 155,25 Mhz
Cancel
01 - C-01
AfterAPSisfinalized,theprogrammetablewill
appearon the screen.In the programmetable
you will see the programme numbers and
names assigned to the programmes.
If you do not accept the locations and / or the
programme names of programmes, you can
change them from the Program Menu. (See
page 13)
ENG-37720W-1602UK-37 INCH 17MB15 OEM-(WO VGA-WO PIP)(HD READY)(S)(OZEL)-50098683.p6515.12.2006, 10:008

-9-
• Press the “P +” button to select the next
programme.
Programme Selecting (direct access):
Pressdigitbuttonsontheremotecontrolhand-
set to select programmes between 0 and 9.
The TV will switch to the selected programme
after a short delay.
• For a two digitprogramme number enter the
seconddigitafterpressingthefirstdigitwithin
2 seconds.
Menu System
Your TV has been designed with a menu sys-
tem to provide easy manipulation of a multi-
function system.
Pressthe“M” buttontoenterthemenu.Press

/

button to select a menu title and then

/

button to select a menu item and

/

or
“OK” button to enter the menu item.
You can access the menus directly by pressing
the coloured buttons on the remote control:
Red Button Sound Menu
Green Button Picture Menu
Yellow Button Feature Menu
Blue Button Install Menu
• Press the “M” or
TV
DTV
button to return to
the previous menu.
Picture menu
By pressing

/

button, select the first icon.
Picture menu appears on the screen.
OK
Mode Cinema
Contrast
PAL 50Hz
Brightness
Sharpness
Colour
Colour Temp Warm
Noise Reduction
Reset
10
24
62
32
Film Mode
Off
3D Comb
Off
Off
Mode
Bypressing

/

button, select Mode.Press

/

button to choose one of these options:
Natural,Cinemaand Dynamic.
Contrast
By pressing

/

button, select Contrast.
Press

button to increase contrast. Press

buttontodecreasecontrast.Contrastlevelcan
be adjusted between 0 and 63.
Brightness
By pressing

/

button, select Brightness.
Press

button to increase brightness. Press

buttontodecreasebrightness.Brightnesslevel
can be adjusted between 0 and 63.
Sharpness
By pressing

/

button, select Sharpness.
Press

button to increase sharpness. Press

button to decrease sharpness. Sharpness
level can be adjusted between 0 and 31.
Colour
Bypressing

/

button,selectColour.Press

button to increase colour. Press

button to
decrease colour. Colour level can be adjusted
between 0 and 99.
Hue
This item is displayed in picture menu when
the TV receives an NTSC signal. By pressing

/

button, select Hue. Press

button to
increasehue level.Press

buttontodecrease
hue level. Hue level can be adjusted between
-31 and 31.
Colour Temp
Bypressing

/

button,selectColour Temp.
Press

/

button to choose one of these op-
tions:Cool,Normal and Warm.
Noise Reduction
This item is used to reduce the image noise and
improve the picture quality at weak signals.
By pressing

/

button, select Noise Re-
duction. Press

/

button to set Noise re-
duction leveltoOff,Low,Medium or High.
ENG-37720W-1602UK-37 INCH 17MB15 OEM-(WO VGA-WO PIP)(HD READY)(S)(OZEL)-50098683.p6515.12.2006, 10:009

-10-
Film Mode
Films are recorded at a different number of
frames per second to normal television
programmes.
By pressing

/

button, selectFilm Mode.
Press

/

button to set this feature On or Off.
Turn this feature on when you are watching
films to see the fast motion scenes clearly.
3D Comb
3D Comb is used to improve colour transi-
tions and colour quality of pictures.
By pressing

/

button, select 3D Comb.
Press

/

button to set this feature On or Off.
Reset
Bypressing

/

button,select Reset. Press

/

or “OK” button to reset the picture modes
to factory default settings.
Sound menu
By pressing

/

button, select the second
icon. Sound menu appears on the screen.
Volume
Equalizer
Balance
Headphone
Sound Mode
10
0
Stereo
AVL
Effect
Dynamic Bass
On
Off
Off
SOUND
Volume
By pressing

/

button, select Volume.
Press

buttontoincreasevolumelevel.Press

buttontodecreasevolumelevel.Volumelevel
can be adjusted between 0 and 63.
Equalizer
By pressing

/

button, select Equalizer..
Press

/

or “OK” button to enter equalizer
menu.
Equalizer
Sound Mode
User
120Hz
500Hz
1.5kHz
5kHz
0
10kHz
0
0
0
0
SOUND
In equalizer menu the sound mode can be
changed to User, Pop, Rock, Jazz, Flat and
Classic by pressing

/

button. Equalizer
menu settings can be changed only when
Sound Mode is User. Select the desired fre-
quency by

/

button and increase or de-
crease the frequency gain by pressing

/

button.
Press the“M” button to return to the previous
menu.
Balance
By pressing

/

button, select Balance.
Press

buttontoincreasebalance totheright.
Press

button to increase balance to the left.
Balance level can be adjusted between -31
and 31.
Headphone
Bypressing

/

button,select Headphone.
Press

/

or “OK” button to enter hedphone
menu.
ENG-37720W-1602UK-37 INCH 17MB15 OEM-(WO VGA-WO PIP)(HD READY)(S)(OZEL)-50098683.p6515.12.2006, 10:0010

-11-
Headphone
Sound Mode
Balance
10
0
Stereo
Volume
SOUND
volume
By pressing

/

button, select Volume.
Press

button to increase hp volume level.
Press

button to decrease hp volume level.
Headphone volume level can be adjusted be-
tween 0 and 63.
sound mode
By pressing

/

button, selectSound Mode.
Press

/

button to change sound mode.
Sound mode is used to identify sound mode of
the headphone and can be set tomono, stereo,
dual a ordual b according tothe transmission.
balance
By pressing

/

button, select Balance.
Press

buttontoincreasebalancetotheright.
Press

button to decrease balance to the left.
Balance level can be adjusted between -31
and 31.
Press the“M” button to return to the previous
menu.
Sound Mode
Bypressing

/

button, select Sound Mode.
Press

/

button to change the mode.
You can selectMono,Stereo, Dual A or Dual
B mode, only if the selected channel supports
that mode.
In case of bilingual broadcast (Dual Sound),
you can select original or dubbed language
using mode option.
AVL
Automatic Volume Limiting (AVL) function ad-
justs the sound to obtain fixed output level
between programs, having different sound
levels.
Pressing

/

button will turn this feature on
oroff.
Effect
You can use this feature to switch the sound
effect on or off. If the current sound system is
Mono and the sound effect is switched on,
then the sound will be heard as if it is Stereo.
If the current sound system is Stereo, switch-
ingthis effect onwill give a more spatial effect.
Pressing

/

button will turn this feature on
oroff.
Dynamic Bass
Dynamic Bass is used to increase bass ef-
fectoftheTVset.
By pressing

/

button, select Dynamic
Bass. By pressing

/

button set Dynamic
basstoLow,HighorOff.Itisnotrecommended
to select High if listening at high volume lev-
els.
Feature menu
By pressing

/

button, select the third icon.
Feature menu appears on the screen.
Sleep Timer
Child Lock
Language
Ext-2 Out
Default Zoom
Off
Off
English
EXT - 1
Panoramic
Blue Background
On
Menu Background
Translucent
Menu Timeout
30 sec
Teletext Language
West
FEATURE
ENG-37720W-1602UK-37 INCH 17MB15 OEM-(WO VGA-WO PIP)(HD READY)(S)(OZEL)-50098683.p6515.12.2006, 10:0011

-12-
Sleep Timer
Bypressing

/

button,select Sleep Timer..
The timer can be programmed between Off
and 2 hours in steps of 10 minutes by press-
ing

/

button. If sleep timer is activated, at
the end of the selected time, the TVautomati-
cally goes into stand-by mode.
Child Lock
You can use this feature to prevent children
from turning the TV on or changing
programmes or adjustments etc. without re-
mote control.
Thechildlockfeaturecanbesetby

/

button
toeitherOn or Off. WhenOff isselected,there
will be no difference in the operation of your
TV. When On is selected, the TV can only be
controlled by the remote control handset. In
this case the control panel buttons,except the
Power on/off button, at the rear sideof the TV
willnotwork.Ifoneofthesebuttonsispressed,
“Child Lock On” will be displayed on the
screen.
Language
By pressing

/

button, select Language.
By pressing

/

button, you can select the
language.
Ext-2 Out
By pressing

/

button, select Ext-2 Out.
You can set Ext-2 Out to TV, EXT-1, EXT-3,
EXT-4or EXT-5 by pressing

/

button.
Note: Only audio output is available for EXT-3
and EXT-5. The otheroptions have both audio
and video outputs.
Default Zoom
By pressing

/

button, select Default
Zoom. You can set Default Zoom to Pan-
oramic, 4:3 or 14:9 Zoom by pressing

/

button.
IfthereisnoWSSoraspectratio(picturesize)
information and zoom mode is selected as
Auto bypressing the“WIDE” button, then the
zoom mode will automatically change to De-
fault Zoom setting.See also Zoom Modes on
page 15.
Blue Background
You can set the TV to automatically change to
a blue screen if the signal is weak or absent,
or when there is no input from an external de-
vice.
The Blue Background feature can be turned
on or off by pressing

/

button.
Menu Background
Bypressing

/

button, selectMenu Back-
ground. You can change menu background
to Translucent or Opaque by pressing

/

button.
Menu Timeout
By pressing

/

button, select Menu
Timeout. Press

/

button to change menu
timeout to 15 sec, 30 sec or 60 sec.
Teletext Language
Bypressing

/

button,selectTeletext Lan-
guage. Press

/

button to change Teletext
LanguagetoWest, East, Cyrillic, Turk/Gre or
Arabic. This will normally be set to West for
Western Europe.
Install menu
Bypressing

/

button, selectthe fourthicon.
Install menu appears on the screen.
ENG-37720W-1602UK-37 INCH 17MB15 OEM-(WO VGA-WO PIP)(HD READY)(S)(OZEL)-50098683.p6515.12.2006, 10:0012

-13-
Program
By pressing

/

button, select Program.
Press

/

button to select the program num-
ber. You can also enter a number via digit but-
tonson the remote control. There are 100 pro-
gram storage between 0 and 99.
Band
Band can be selected either "C" or "S" using
the

/

buttons. "C" is used for "Off Air"
signals. "S" is used for cable connections.
Channel
Channel can be changed by

/

button or
Digit Buttons.
Colour System
By pressing

/

button, selectColour Sys-
tem. Press

/

button to change the colour
systemtoPAL, SECAM, PAL60 orAUTO.
If Sound System is set to I, SECAM is not
available for the Colour System.
Note: In EXT mode, you can choose NTSC
3.58 and NTSC 4.43 as well.
Sound System
By pressing the

/

buttons, select Sound
System.Press the

/

buttons to select the
Sound system. BG "Western
Europe", DK "Eastern Europe", I "UK only" L
and LP "France".
Fine Tune
By pressing

/

button, select Fine Tune.
Press

/

button to adjust the tuning.
Search
By pressing

/

button, select Search.
Press

/

button to start program searching.
Thesearchingwillstopwhena signalisfound.
You can also enter a frequency value directly
by pressing the digit buttons.
VCR (Video Cassette Recorder)
• This item can be seen in all modes except
EXT-3 and EXT-5.
•Ifyouwantto watcha VCR sourcefromoneof
these modes, then it will be better to set
VCR mode “on”. For this, while the cursor is
on this item press the

/

buttons to set it
“On”.
•Ifyouwanttowatcha DVD ,thenyoumustset
this item “Off”.
Store Program
By pressing

/

button, select Store Pro-
gram. Press

/

or “OK” button to store the
adjustments. “Program Stored” will be dis-
played on the screen.
Program menu
By pressing

/

button, select thefifth icon.
Program menu appears on the screen.
01 ITV
02 ZDF
03 CH5
04 C - 02
05 C - 05
06 C - 06
07 C - 08
08 C - 21
09 C - 23
10 C - 35
11 C - 43
12 C - 64
13 C - 68
14 S - 40
15 -----
16 - - - - -
17 - - - - -
18 - - - - -
19 - - - - -
20 - - - - -
Name
Insert
Delete
APS
PROGRAM
By moving the cursor in four directions you
can reach 20 programmes in the same page.
You can scroll the pages up or down by press-
ing the navigation buttons to see all the
programmes in TV mode (except the AV
mode).
Bycursoraction,programmeselectionisdone
automatically.
Name:
To changethe name of adecidedprogramme,
select the programme and press the RED
button.
ENG-37720W-1602UK-37 INCH 17MB15 OEM-(WO VGA-WO PIP)(HD READY)(S)(OZEL)-50098683.p6515.12.2006, 10:0013

-14-
The first letter of the selected name starts to
blink. Press

/

button to change that letter
and

/

button to select the other letters. By
pressing the RED button, you can store the
name.
Insert:
Select the programme which you want to in-
sert by navigation buttons. Press the GREEN
button. By navigation buttons move the se-
lected programme to the decided programme
space and press the GREEN button again.
Delete:
To delete a programme, press the YELLOW
button. Pressing the YELLOW button again
erases the selected programme from the
programme list, and the programmes below
shift one up.
APS (Automatic Programming System)
When you press the BLUE button forAPS,the
following warning screen will be displayed.
WARNING !
Country
UK
All prestored programs
OK
Cancel
will be deleted
PROGRAM
PresstheBLUEbuttontocancelAPSifyoudo
not want to delete your existing programme
list.
To continue APS, first select the country by
pressing

/

button and then press the RED
or “OK” button.
APS is running...
UK - I 155,25 Mhz
Cancel
01 - C-01
After APS is finalized, the programme table
will appear on the screen.
Source menu
By pressing

/

button, select the sixth icon.
Source menu appears on the screen.
TV
EXT - 1
EXT - 2
EXT - 3
EXT - 4S
EXT - 4
EXT - 5
SOURCE : TV
In source menu, highlight a source by press-
ing

/

button and switch to that mode by
pressing

/

or “OK”button.
ENG-37720W-1602UK-37 INCH 17MB15 OEM-(WO VGA-WO PIP)(HD READY)(S)(OZEL)-50098683.p6515.12.2006, 10:0014

-15-
Other Features
TV Status
Programme Number,Programme Name,
Sound Indicator and Zoom Mode are dis-
played on the upper right side of the screen
when a new programme is entered, but-
ton is pressed.
Mute Indicator
It is placed in the upper left side of the screen
when enabled.
To cancel mute, there are two alternatives; the
first one is pressing the button and the
second one is increasing/decreasing the vol-
ume level.
Freeze Picture
You can freeze the picture on the screen by
pressing the OK button.
Zoom Modes
Zoom mode can be changed by pressing the
WIDE button. You can change the screen size
according to the picture aspect ratio. Select
the optimum one from the following ZOOM
modes.
Auto:
When aWSS (Wide Screen Signalling) sig-
nal, which shows the aspect ratio of the pic-
ture, is included in the broadcast signal or the
signal from an external device, the TV auto-
matically changes the ZOOM mode accord-
ing to the WSS signal.
•WhentheAUTOmodedoesnotfunctioncor-
rectlyduetopoor WSS signalqualityorwhen
youwanttochangetheZOOM mode,change
to another ZOOM mode manually.
Full:
Thisuniformlystretches theleftandrightsides
of a normal picture (4:3 aspect ratio) to fill the
wide TV screen.
• For16:9 aspect ratio pictures that have been
squeezed into a normal picture (4:3 aspect
ratio), use the Full mode to restore the pic-
ture to its original shape.
Cinema:
This zooms up the wide picture (16:9 aspect
ratio) to the full screen.
16:9 Subtitle:
This zooms up the wide picture (16:9 aspect
ratio) with subtitles to the full screen.
“Default Zoom” Modes:
4:3
Use to view a normal picture (4:3 aspect ratio)
as this is its original shape.
14:9 Zoom:
This zooms up the wide picture (14:9 aspect
ratio) to the upper and lower limits of the
screen.
Panoramic:
This stretches the left and right sides of a nor-
mal picture (4:3 aspect ratio) to fill the screen,
without making the picture appear unnatural.
ENG-37720W-1602UK-37 INCH 17MB15 OEM-(WO VGA-WO PIP)(HD READY)(S)(OZEL)-50098683.p6515.12.2006, 10:0015

-16-
The top and bottom of the picture are slightly
cutoff.
Teletext
Teletext is an information system that displays
text on your TV screen. Using the Teletext in-
formation system you can view a page of in-
formation on a subject that is available in the
list of contents (index).
To Operate Teletext
• Select a TV station where Teletext is being
transmitted.
• Press the button. Usually the list of con-
tents (index) is displayed on the screen.
TV I II
SOURCE
DTV
/
/
GUIDE
WIDEWIDE
AV
To Select A Page Of Teletext
• Press the appropriate digit buttons for the
required Teletext page number.
The selected page number is displayed in the
topleftcornerofthescreen.TheTeletextpage
counter searches until the selected page
number is located, the desired page is then
displayed on the screen.
• Press the

or “P +” button to move the
Teletext screen forward one page at a time.
• Press the

or “- P”button to move the Tele-
text screen backward one page at a time.
To Select Index Page
• To select the page number of the index(gen-
erally page 100), press the button.
To Select Teletext With A TV
Programme
• Press the button. The text is now superim-
posed over the programme on the screen.
• Press the button again to return to the
Teletext page.
To Select Double Height Text
• Press the button for the top half of the
information page to be displayed in double
heighttext.
• Press the button again for the bottom half
of the information page to be displayed in
double height text.
• Press the button once more for the full
page of normal height text.
To Reveal “Concealed” Information
• Pressing the button once will reveal an-
swers on a quiz or games page.
• Pressing the button again will conceal
the revealed answers.
To Stop Automatic Page Change
The teletext page you have selected maycon-
tain more information than what is on the
screen; the rest of the information will be dis-
played after a period of time.
• Press the button to stop the automatic
page change.
• Press the button again to allow the next
page to be displayed.
To Select A Subcode Page
Subcode pages are subsections of long Tele-
text pages that can only be displayed on the
screen one section at a time.
• Select the required Teletext page.
• Press the button.
• Select the required subcode page number
by pressing four digit buttons (e.g. 0001).
•Iftheselectedsubcodepageisnotdisplayed
in a short time, press the button. TV
programme will be displayed on the screen.
ENG-37720W-1602UK-37 INCH 17MB15 OEM-(WO VGA-WO PIP)(HD READY)(S)(OZEL)-50098683.p6515.12.2006, 10:0016

-17-
• Teletext page number will be displayed on
the upper left corner of the screen when the
selected page is found.
• Press the button to display the selected
Teletext page.
To Exit Teletext
• Press the button. The screen will switch
to TV mode.
To Display The Time
• While watching a TV programme with Tele-
text transmission press the button. The
current time information, captured from Tele-
text will be displayed on the screen.
• If the programme being watched does not
have Teletext transmission, no information
will be displayed.
Fastext
Your TV supports the 1000 page Teletext sys-
tem. When the page number of any of the 1000
pages in memory is entered, the system will not
search for the requested page; instead it will
display the page automatically. If the requested
page is not in memory, the system will search
for the requested page number and save the
1000 pages including the requested page into
memory after finding it.
• Press the

button to move the Teletext
screen forward one page at a time.
• Press the

button to move the Teletext
screen backward one page at a time.
For Fastext
The subject-heading for the information may
have a particularcolour.
• PressanappropriateRED,GREEN,YELLOW
or BLUE buttoninordertoreachtherelevant
page quickly.
For TOP text
TOP text mode of operation will be activated
automatically according to the transmission.
• If TOP text transmission is present, colour
coded buttons will appear in status row.
• If TOP text transmission is not present, sta-
tus row will not appear.
The subject-heading for information may be
located in coloured box.
In Top mode the

or

commands will re-
questthenextorpreviouspagerespectively.If
TOP text transmission is not available, in case
of operation of these commands, wraparound
occurs. For example page 100 appears to be
one greater than page 199.
Connect Peripheral
Equipment
Thereisawiderangeofaudioandvideoequip-
ment that can be connected to your TV.
The following connection diagrams show you
where the different (Optional) equipmentshould
beconnected at the rearside of theTV.
High Definition
Your LCD Television is capable of displaying
High Definition pictures from devices such as
a High Definition Satellite Receiver or DVD
Player. These devices must be connected via
theHDMIsocket(EXT-5)orComponentSocket
(EXT-3).Thesesocketscanaccepteither720p
or 1080i signals.
Note: ForproperconnectionofadevicetoHDMI
inputofyourTVviausingaDVI-to-HDMIcable,
use PC Audio In input for sound connection.
Via The Scart
LCD TV has 2 Scart sockets. If you want to
connect peripherals(e.g. video, decoder, etc.)
whichhaveScartsocketstotheTV,useSCART
1 or SCART 2.
Ifanexternaldevice isconnectedviathe Scart
sockets, the TV will be switched to AV mode
automatically.
• Do not connect Digital Set Top Box devices
via Scart 1. Use Scart 2.
Via Aerial Input
If you want to connect to your TV, peripherals
like video recorders or decoders, but the de-
viceyouwanttoconnectdoesnothaveaScart
socket, you should connect it to theAerial in-
putof theTV.
ENG-37720W-1602UK-37 INCH 17MB15 OEM-(WO VGA-WO PIP)(HD READY)(S)(OZEL)-50098683.p6515.12.2006, 10:0017

-18-
If the VCR is connected via Aerial input it is
suggested to use Programme 0.
Decoder
Cable TV offers you a wide choice of
programmes. Most of them are free, others
are to be paid for by the viewer. This means
that you will need to subscribe to the broad-
casting organisation whose programmes you
wish to receive. This organisation will supply
you a corresponding decoder unit to allow the
programmes to be unscrambled.
For further information ask your dealer. See
also the booklet supplied with your decoder.
Connect a decoder with an aerial socket
to the TV
• Connect the aerial cable.
Connect a decoder without an aerial
socket to the TV
• Connect the decoder to the TV with a Scart
cabletoSCART 1.
TV And Video Recorder
• Connect the aerial cables.
Betterpicturequalitycanbeobtainedifyoualso
connecta Scart cable toSCART sockets.
Playback NTSC
To use this option you can;
• Connect an NTSC VCR player to a Scart
socket at the rear side of the TV.
• Connect an NTSC VCR player to RCA Jacks
at the side of theTV.
Then, press
AV
/SOURCE button to select ap-
propriate source.
Copy Facility
Source selection for VCR recording.
• SelectFeature menu.
• Select Ext-2 Out bypressing

/

button.
• Select a source to copy the picture from that
source.
Search For And Store The Test
Signal Of The Video Recorder
•Unplugtheaerialcablefromtheaerialsocket
of your video recorder.
•SwitchonyourTVandputthevideorecorder
on the test signal. (See the booklet for your
video recorder.)
• Enter the Install menu and select search.
• Search for the test signal of your video re-
corder in the same way as you searched for
and stored theTV signals. Store the test sig-
nal under programme number 0.
• Replace the aerial cable in the aerial socket
ofyourvideo recorder once you have stored
the test signal.
Camera And Camcorder
To Connect To AV Input
ConnectyourcameraorcamcordertoAV(EXT-
4) input at the rightside of the TV.
• Connect your equipment to the TV via VIDEO
(yellow),AUDIO R (red)andAUDIO L (white)
inputs. You must connect the jacks to the
input using the same colour.
To Connect to S-Video Input
Connect your camera or camcorder S-Video
output to the input at the right of the Tv.
Connect the equipment to the Tv via the
S-Video inputand audio inputvia the inputAV-
2. Use a S-Video lead and RCA (phono) lead.
Connect The Decoder To The
Video Recorder
Some video recorders have a special Scart
socket for decoder.
• Connect a Scartcable to the Scart socket of
your decoderand to the specialScartsocket
ofyourvideorecorder. Refertothebookletof
your video recorder.
• To connect your video recorder to the TV, re-
fer to the TV and Video Recorder section.
Ifyouwantto connect moreequipment to your
TV, consult your dealer.
Connecting Headphones
Use the stereo headphone socket at the right
side of the TV, to connect headphones.
ENG-37720W-1602UK-37 INCH 17MB15 OEM-(WO VGA-WO PIP)(HD READY)(S)(OZEL)-50098683.p6515.12.2006, 10:0018

-19-
Connect Peripheral Equipment
Aerial Connection
VHF/UHF
75 
Round 75 ohm coaxial cable
Rear of TV
Outdoor Aerial Connection
...or through a DVD Player...
Scart Lead to
EXT-1 on TV.
LCD TV
ANT.IN
VCR
AV-1
AV-2
LCD TV
...or through a satellite decoder...
ANT.IN
RF Lead to
Aeria l
Satel lite LN B le ad
RF Lead from
Satel lite t o TV
Aeria l
• Scart Lea d to
EX T-1 on TV.
TV VC R
LCD TV
...or through a VCR and satellite decoder.
ANT.IN
ANT.IN
RF Lead to
Aerial
RF Lead
from VCR to
Satellite
RF Lead from
VCR to TV
Satellite LNB lead
Aerial
VCR
• Scart Lead to
on T V.EXT-1
AV-1
TV VCR
AV-2
LCD TV
camcorder connection
headphone connection
either connect the aerial straight to your TV...
Aerial (RF) Socket
wall
socket
Aerial (RF)
Lead
...or connect the aerial through a VCR...
Aeria l (RF) Sock et
wall
socket
Aeria l (RF)
Lead
Aerial (RF) Socket VCR
(RF) co nnector
lead VCR to TV
DC IN
IN/O U T
A/V IN /OU T
OUT
Headphone
ENG-37720W-1602UK-37 INCH 17MB15 OEM-(WO VGA-WO PIP)(HD READY)(S)(OZEL)-50098683.p6515.12.2006, 10:0019

-20-
Trouble Shooting Guide
Should the Tv malfunction, please see below before calling the Customer Help line.
S ym p to m P o ssib l e c a u se R e m e d y
Set D ead. N o led lit. N o po we r to th e Tv
C he ck a ll le ad s a nd co n ne ctio ns .
Sw itch on th e w a ll s o ck et.
N o Picture. Le d R ED Tv in s tand b y m o de . U s e e ithe r th e “o n s e t” c on tro ls o r th e “de cim a l digit” butto ns on th e
R /C to bring the Tv out o f s tan db y.
N o P icture. L e d Gre en . In correct in pu t s electe d. Sele ct TV or ID TV.
N ois y o r Gh os ting picture
(Ana log ) s ign al. P oo r s ig na l.
C he ck all aerial co nn ectio ns .
If us ing a n ind oo r aeria l it m ay not
be s uitab le.
Picture free zing o r b re akin g up
(D ig ital) s ig na l P oo r s ig na l D ig ital Tv re qu ire s a b ette r s ig n al
th a n an alog . You m ay nee d an
aerial up grade .
N o Text or corrup t text Poo r s ig na l See above
N o s o u nd . Sou nd s ou rce m a y b e incorrectly s et. Mu te m o de m ay
b e s e le cte d.
C he ck s o un d s e ttin gs , volu m e
le ve l, p re s s "Mu te " b u tto n. R e m o ve
he ad ph o ne s from s o cke t.
Soun d o nly from on e s pe a ke r. Balance inco rre ctly s et. Ente r s ou nd m e nu an d adjus t
s o un d ba lan ce .
N o AV s ig n al. C o nn e ctro rs loo s e.
W ro ng in pu t s e le cted
C he ck a ll co nn e ctio n s , try
replacem ent lea d s . Ch e ck co rrect
in pu t is s e lected.
R e m o te co ntro l
N o op eration o r interm itten
to p eration . Po or I/R s ign al fro m ha nd s e t. Rep lace batte ries . Move objects in
path to tv. R ed u ce h igh incide nt
lig ht in ro om .
If you are still having difficulty please call the Technical help line. Ring 01422 203676
(Normal rates apply).
Opening hours Mon-Fri 8 am – 8pm. Sat 9 am – 4pm. Sun 11am – 4pm “Bank holidays as Sun”
Care of the Screen.
Do NOT use any solvents or abrasive cleaners on the screen. You may damage the invisible
coating. If the screen is dirty you may use a soft cloth and mild detergent.
ENG-37720W-1602UK-37 INCH 17MB15 OEM-(WO VGA-WO PIP)(HD READY)(S)(OZEL)-50098683.p6515.12.2006, 10:0020
