V1 JUIN 2010 ALTECH Generation ALL IN ONE Type Heat Pump Water Heater Technical Manual
1
BT300i
Heat Pump Water Heater
Technical Manual
Version with Solar System
Applicable Models : BT300i
Altech reserves the right to discontinue, or change at any time, specifications or designs without notices
and without incurring obligations.

V1 JUIN 2010 ALTECH Generation ALL IN ONE Type Heat Pump Water Heater Technical Manual
2
Contents
Part 1 General Information.......................................................................3
1. Measurements....................................................................................................... 4
2. External Appearance............................................................................................ 4
3. Nomenclature........................................................................................................ 5
4. Features................................................................................................................. 6
Part 2 Outdoor Units .................................................................................8
1. Specifications ....................................................................................................... 9
2. Operation range.................................................................................................. 13
3. Capacity&COP table........................................................................................... 13
4. Dimensions......................................................................................................... 13
5. Service Space ..................................................................................................... 14
6. Wiring Diagrams................................................................................................. 14
7. Piping Diagrams ................................................................................................. 15
8. Duct connection ................................................................................................. 13
9. Exploded View .................................................................................................... 17
Part 3 Installation ....................................................................................20
1. Precautions......................................................................................................... 21
2. Installation information...................................................................................... 22
3. Unit Appearance and Composition................................................................... 23
4. Accessories......................................................................................................... 24
5. Inspecting and Handling the Unit...................................................................... 24
6. Electric Wiring .................................................................................................... 24
Part 4 Trial Operation..............................................................................26
1. Confirmation before the trial operation............................................................ 27
2. OPERATING INSTRUCTION............................................................................... 27
3. PCB explanation................................................................................................. 45
4. Maintenance........................................................................................................ 45
5. Malfunctions and Resolutions........................................................................... 47

V1 JUIN 2010 ALTECH Generation ALL IN ONE Type Heat Pump Water Heater Technical Manual
3
Part 1
Part 1Part 1
Part 1
General Information
General InformationGeneral Information
General Information
1. Measurements..................................................................4
2. External Appearance................................................................4
3. Nomenclature ...........................................................................5
4. Features ....................................................................................6

V1 JUIN 2010 ALTECH Generation ALL IN ONE Type Heat Pump Water Heater Technical Manual
4
1. Measurements
Model Dimension
(mm: OD x H) Net weight / Gross weight (kg) Power Supply
BT300i Φ650×1920 113 /129 220~240V-1ph-50Hz
2. External Appearance
BT300i

V1 JUIN 2010 ALTECH Generation ALL IN ONE Type Heat Pump Water Heater Technical Manual
5
3. Nomenclature NC

V1 JUIN 2010 ALTECH Generation ALL IN ONE Type Heat Pump Water Heater Technical Manual
6
4. Features
4.1 Safety
a. Complete isolation between water and electricity. No
electric shock problem, more safety.
b. No fuel tubes and storage, no potential danger from oil
leakage, fire, explosion etc.
c. No cross contamination potential, the condenser coil
wrapped around the stainless steel
inner tank
4.2 Max. outlet water Temperature: 60.
The system is adopted innovative heating methods: combined the Electric heating and Heat Pump heating
properly, made the water be heated stably and quickly.
4.3 Flexible installation achieved by long air intake/outlet duct with pressure
4.4 Built-in heat exchanger inside tank for integrating multiple energy, such as solar
energy.

V1 JUIN 2010 ALTECH Generation ALL IN ONE Type Heat Pump Water Heater Technical Manual
7
4.5 Automatic Control:
Automatic start-up and shutdown, automatic defrosting by revising refrigerant cycle. Save you much extra
operation.
4.6 High Efficiency and Energy Saving.
The unit adopts heat pump principle, which absorbs heat from outdoor air and produce heat water, thermal
efficiency can be approximately 3.6 (under the conditionA15/12 W15/45)
4.7 All-the-weather Running.
Within the temperature range from -30 to 43℃, it will not be affected by night, cloudy
sky, rain even snow whether.

V1 JUIN 2010 ALTECH Generation ALL IN ONE Type Heat Pump Water Heater Technical Manual
8
Part 2
Part 2Part 2
Part 2
Outdoor
Outdoor Outdoor
Outdoor U
UU
Units
nitsnits
nits
1. Specifications...................................................................9
2. Operation range......................................................................13
3. Capacity & COP table.............................................................13
4. Dimensions.............................................................................13
5. Service Space .........................................................................14
6. Wiring Diagrams.....................................................................14
7. Piping Diagrams.....................................................................15
8. Duct connection .....................................................................13
9. Exploded View........................................................................17

V1 JUIN 2010 ALTECH Generation ALL IN ONE Type Heat Pump Water Heater Technical Manual
9
1. Specifications
Model BT300i
Running Models
Economy Hybrid E-heater
Running Ambient temp. ℃-7~43 -30~43 -30~43
Power supply ph-V-Hz
220~240V-1ph-50Hz
Storage size Ltr 300
Capacity KW 3.00 3.00 3.00
Input KW 0.83 0.83 3.00
Cop W/W 3.60 3.60 1.00
Rated current A 3.00 3.00 3.00
Testing Condition Economy: A15/12 W15/45, setting Economy Mode; Hybrid: A15/12 W15/45, setting Hybird Mode;
E-heater: A15/12 W15/45, setting E-heater Mode;
Max. Input KW 1.50 4.30 3.00
Max. Current A 6.50 18.7 13
Water
Heating
Nonimal
Testing Condition Economy: A 43 W65, setting Economy Mode; Hybrid: A 10 W60, setting Hybird Mode;
E-heater: A15 W70, setting E-heater Mode;
Max. Input KW 4.3
Max. current A 18.7
Starting current A 49.0
Model RB233GRDC
Type Rotary
Brand Guangzhou Mitsubishi electric
Supplier Guangzhou Mitsubishi electric
Capacity Btu/h 9485
Input W 850
Rated current(RLA) A 4.3
Locked rotor Amp(LRA) A 30
Thermal protector ℃115
Capacitor uF 30
Crankcase W 25
Compressor
Refrigerant oil ml 520
Model YDK30-6R
Type AC Motor
Brand Welling
Insulation class B
Safety class IPX4
Input W 80
Rated current A 0.53
Capacitor uF 3.5
outdoor fan
motor
Speed(hi/lo) r/min 770/640/500
material ASG20
Type Centrifugal type
Pressure pa 30
Diameter mm 271
outdoor fan
Height mm 130
Number of rows 3
Tube pitch(a)x row pitch(b) mm 22*19.05
Fin spacing mm 1.5
Fin type Arc hydrophile seam punching fin
Tube outer dia.and type mm Ф8.0 innergroove tube
Coil length x height 482*352
outdoor coil
Number of circuits 4
Outdoor air flow (Hi/mid/lo) m3/h 500/450/400
Noise level dB(A) 48

V1 JUIN 2010 ALTECH Generation ALL IN ONE Type Heat Pump Water Heater Technical Manual
10
Running Operation Auto/Manual start up, Energy-saving, standard, Enhanced
heating type heating water
Protection Method High-pressure protection, Over-load protection,
Temp protection, Electric leakage protection
Dimension (D*H) mm Φ650×1920
Packing (W*H*D) mm 745*2030*775
Outdoor unit Net/Gross weight kg 113 /129
Refrigerant type/Quantity Kg R134a/1.2
Operating pressure (refrigerant) MPa 3.0/1.2
Tank pressure Mpa 0.15/0.7
Tank Foaming Material/Depth(mm) polyurethane/55mm
Ambient temp ℃-30~43
Diameter, water inlet pipe mm DN20
Diameter, water outlet pipe mm DN20
Diameter, drainage pipe mm DN20
Diameter, PT valve joint mm DN20
PT valce Brand Watts (active condition 99℃or 0.7Mpa )
Rated pressure MPa 1.2
Max. Operation pressure MPa 0.7
Water outlet Temp ℃(default) 55℃, 38℃℃60℃
water
pipeline
Heat exchanger Copper tube wrapped around outside of tank
Diameter, water inlet pipe mm DN20
Diameter, water outlet pipe mm DN20
Heat exchanger Surface heat exchanger; Stailess steel SUS304
heat exchanger tupe Dim.*Length mm Φ22*10000
heat exchanger area m2 0.7
Solar heat
exchanger
pipeline
Max.pressure MPa 0.7
Power wiring mm2 2.5
Connection
wiring Signal wiring mm2 0.75
Fresh Air Diameter mm 190.0
static pressure Pa 30.0
Fresh air Max Length m 10.0
Hot Water Yield m3/h 0.075 0.075 0.064
Electric Heater kW 3.0
Remark:
1. The test conditions: outdoor temp. 15/12℃(DB/WB), inlet water temp. 15℃, outlet water temp. 45℃.
2. The operation range:-30℃-43℃, heat pump operation range: -7℃-43℃
3. The specification may be changed for product improvement, please refer to the nameplate.

V1 JUIN 2010 ALTECH Generation ALL IN ONE Type Heat Pump Water Heater Technical Manual
11
2. Operation range
Mode explanation: there are 3 operation MODE: ECONOMY, HYBRID and E-HEATER
ECONOMY MODE: Water firstly is heated by compressor, if can’t get target temp when ambient temp. too low or too high
(limitation figure is shown above), element will start as a secondary heat resource.
Hybird mode: In case of massive hot water consumption, compressor & element will start at the same time.
E-HEATER MODE: Water is only heated by element;

V1 JUIN 2010 ALTECH Generation ALL IN ONE Type Heat Pump Water Heater Technical Manual
12
3. Capacity & COP table
500
1000
1500
2000
2500
3000
3500
4000
4500
5000
-7 -2 2 7 12 15 20 25 30 35 40 43 0. 50
1. 00
1. 50
2. 00
2. 50
3. 00
3. 50
4. 00
4. 50
5. 00
5. 50 Capa. (W)
COP ( W/ W)
Ambient Temperature

Ambient temp. Capacity(W)
COP(W/W)
-7 1459 1.93
-2 1614 2.08
2 1740 2.36
7 2156 2.8
10 2419 3.15
15 2926 3.6
20 3125 3.86
25 3523 4.07
30 3983 4.46
35 4230 4.63
40 4450 4.86
43 4621 4.95
Remark:
Water inlet temp. 15℃℃ Water outlet temp. 45℃

V1 JUIN 2010 ALTECH Generation ALL IN ONE Type Heat Pump Water Heater Technical Manual
13

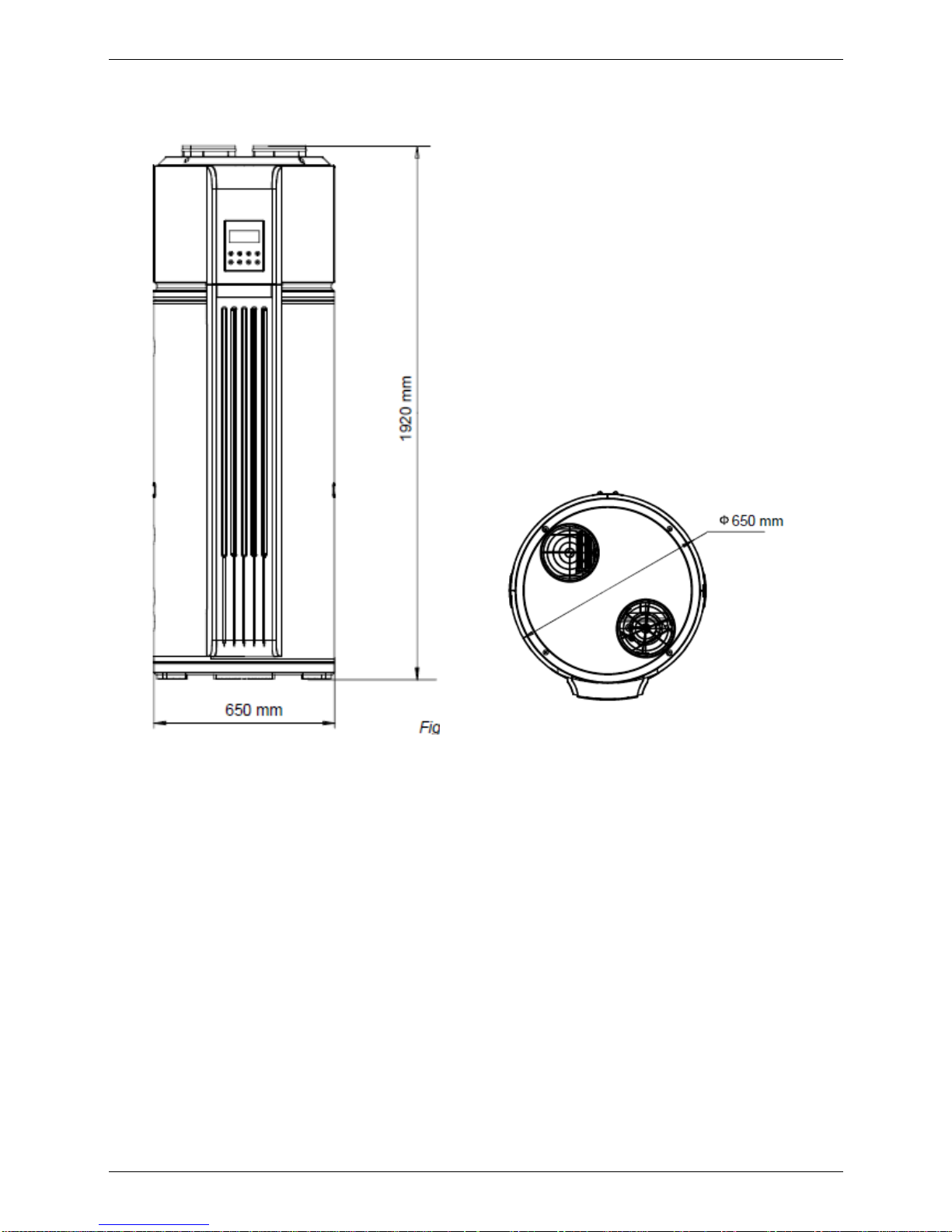

4. Dimensions

V1 JUIN 2010 ALTECH Generation ALL IN ONE Type Heat Pump Water Heater Technical Manual
14
5. Service Space
6. Wiring Diagrams

V1 JUIN 2010 ALTECH Generation ALL IN ONE Type Heat Pump Water Heater Technical Manual
15
7. Piping Diagrams

V1 JUIN 2010 ALTECH Generation ALL IN ONE Type Heat Pump Water Heater Technical Manual
16
6. Duct connection
A: Air inlet & outlet without canvas B: Only air outlet with canvas,A≤10m
When there is stable heat source in room in winter
C: Air inlet & outlet with canvas,A+B≤10m D: Only air inlet with canvas A≤10m
Charge fresh air from ambient in summer

V1 JUIN 2010 ALTECH Generation ALL IN ONE Type Heat Pump Water Heater Technical Manual
17
9. Exploded View

V1 JUIN 2010 ALTECH Generation ALL IN ONE Type Heat Pump Water Heater Technical Manual
18
No. Part Name
Quantity
No. Part Name
1 Air guider ring 2 18 Front decorative board
2 Filter 1 19 Electric heater cover
3 Wire netting 2 20 Deck magnet
4 Front net 1 21 Magnet clip
5 Up cover 1 22 Magnet cover
6 Magnesium Rod plug 1 23 4-way valve ass'y
7 Wir joint box cover 1 23.1
Pipe joint
8 Fan motor 1 23.2
Pressure switch
9 Display panel 1 23.3
4-way valve
10 Display board ass'y 1 23.4
Solenoid
11 Centrifugal fan 1 24 Electronic expansion valve ass'y
12 Display panel cover 1 24.1
Electronic expansion valve coil
13 E-box cover 1 24.2
Solenoid valve winding
14 Water tank forming ass'y 1 24.3
Electronic expansion valve
14.1 Water tank upper cover ass'y 1 24.4
Solenoid valve
14.2 Froth plug 2 25 Compressor
14.3 Temp sensor 1 26 Discharge temp sensor ass'y
14.4 Magnesium Rod 1 27 room temp sensor ass'y
14.5 Thermometer 1 28 Temp.sensor ass'y
14.6 Stator of temp. sensor 1 29 Temperature sensor
14.7 Element 1 30 Pipe temp.sensor ass'y
14.8 Sealed ring 1 31 Pipe temp.sensor ass'y
14.9 Seal Stopper 4 32 Compressor electric heater
14.10
Drain stop up 1 33 Evaporator ass'y
14.11
Tank bottom cover 1 33.1
Evaporator
14.12
PT velve loop 7 33.2
Evaporator outlet pipe ass'y
14.13
Tank handle 2 33.3
Evaporator inlet pipe ass'y
14.14
PT valve 1 34 Wiring box ass'y
15 Magnet support 1 34.1
wiring support
16 E-box ass'y 1 34.2
Wire joint, 3p
16.1 E-box welding part 1 35 Front scroll shell

V1 JUIN 2010 ALTECH Generation ALL IN ONE Type Heat Pump Water Heater Technical Manual
19
16.2 Compressor capacitor 1 36 Compressor wiring cables
16.3 Main control board ass'y 1 37 Screw Platen
16.4 Transfomer 1 38 Rear scroll shell
16.5 Motor capacitor 1 39 drainage elbow
16.6 Wire joint 4 40 Rear net
16.7 Relay 2 41 Pipe temp.sensor ass'y
17 E-box suppor 1

V1 JUIN 2010 ALTECH Generation ALL IN ONE Type Heat Pump Water Heater Technical Manual
20
Part 3
Part 3Part 3
Part 3
Installation
InstallationInstallation
Installation
1. Precautions.............................................................................21
2. Installation information..........................................................22
3. Unit Appearance and Composition.......................................23
4. Accessories ............................................................................24
5. Inspecting and Handling the Unit..........................................24
6. Electric Wiring ........................................................................24
