clage German pool CEX13 User manual

Instantaneous Water Heater
即熱式電熱水器
CEX13
by
在使用之前請詳細閱讀「使用說明書」及「保用條例」，並妥為保存。
Please read these instructions and warranty information carefully before use and keep them handy for future reference.
使用說明書 OPERATING INSTRUCTIONS
WH-CEX13-M-16(3)
Printed in Germany
MADE IN GERMANY
歐盟A級能源效益認證
EU ENERGY EFFICIENCY CLASS A
即時網上登記保用
Online Warranty Registration

P.3

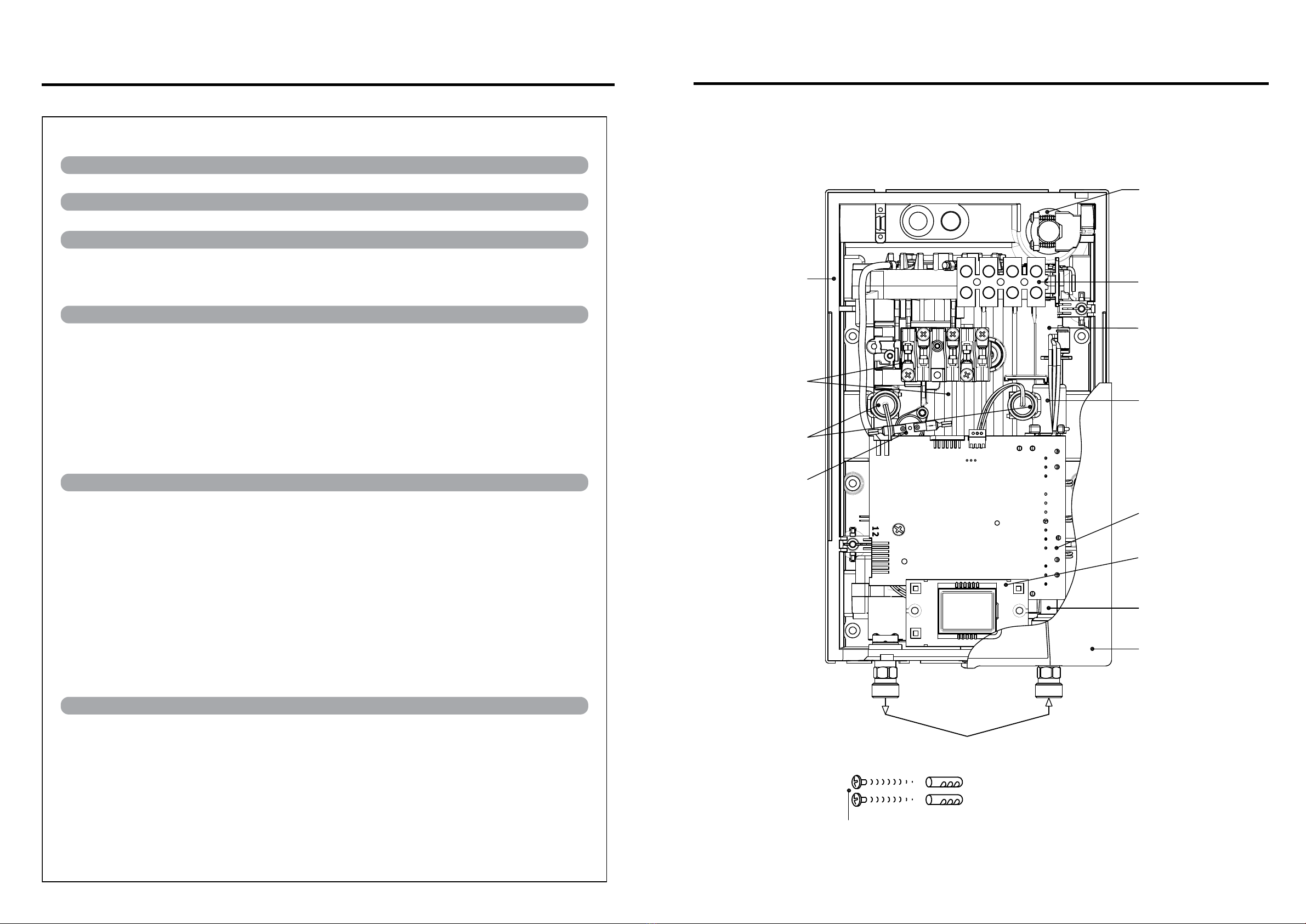

1. Overview
Contents
When ordering spare parts, please always specify the appliance model and serial number.
Screws and dowels
Hood
Non-return
valve
Electronics
Inlet pipe
Flow sensor
Connecting
terminal
Grommet
Control
panel
Bottom part
Temperature
sensor set
Heating element
with SDB
Cold and hot water connection
Safety thermal
cut-out
1. Overview 03
2. Safety instructions 04
3. Description of appliance 04
4. Technical specifications 05
5. Dimensions 06
6. Typical installation 06
7. Installation 07
Mounting the appliance 08
Installing the appliance 08
8. Electrical connection 09
Wiring diagram 09
Structural prerequisites 09
Electrical installation to a permanent connection 09
9. Initial operation 10
Selection of power rating 10
Remote control 11
Reinstallation 11
Lock level 11
10. How to use 12
Temperature setting 12
Programme buttons 12
Temperature limitation 13
Reset to factory setting 13
How to save energy 14
ECO mode 14
Power limit 14
Operation with solar systems 14
Venting after maintenance work 15
Cleaning and maintenance 15
11. Environment and recycling 15
12. Service menu 16
13. Trouble-shooting and service 18
Quick reference guide 19

P.4 P.5

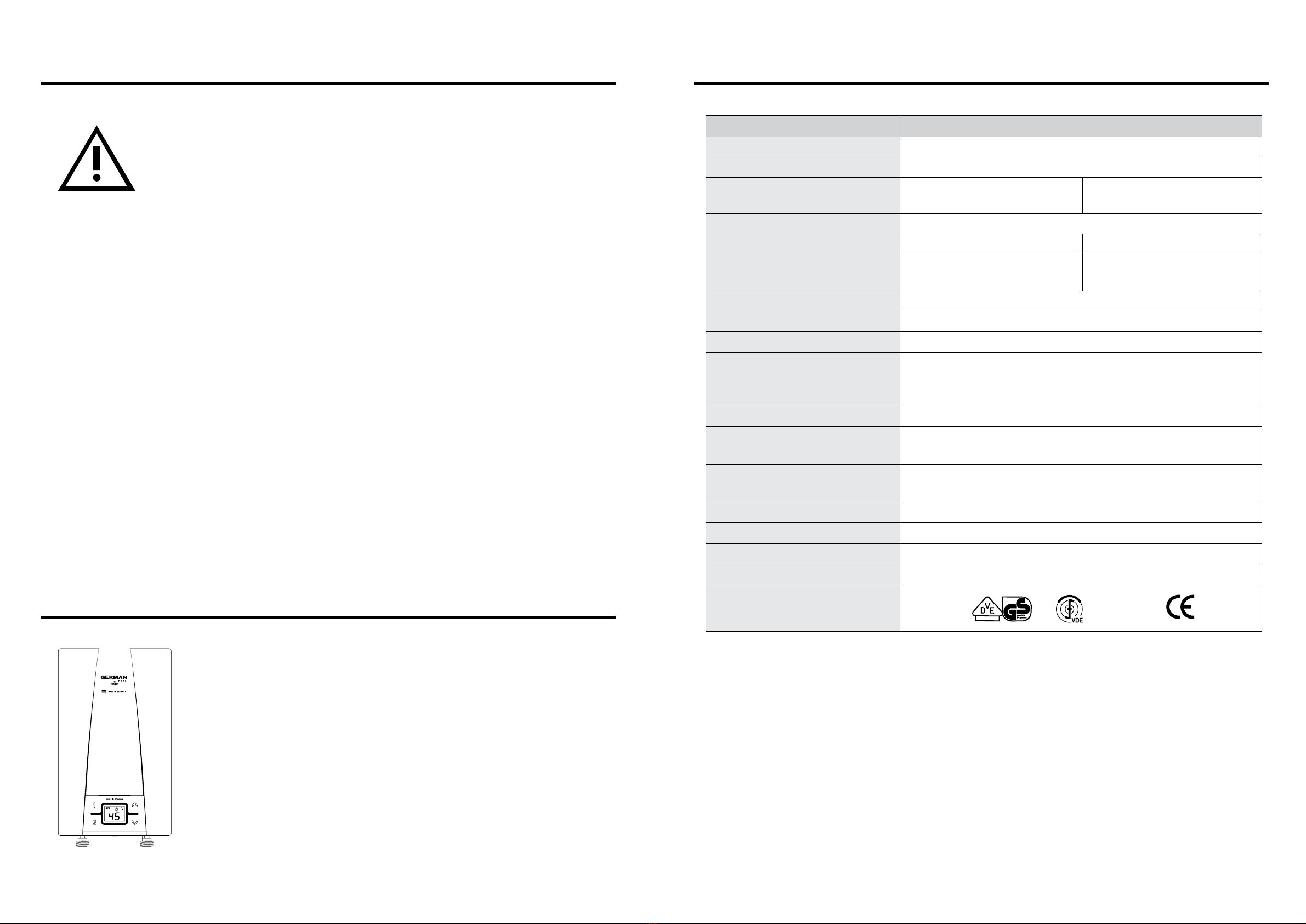

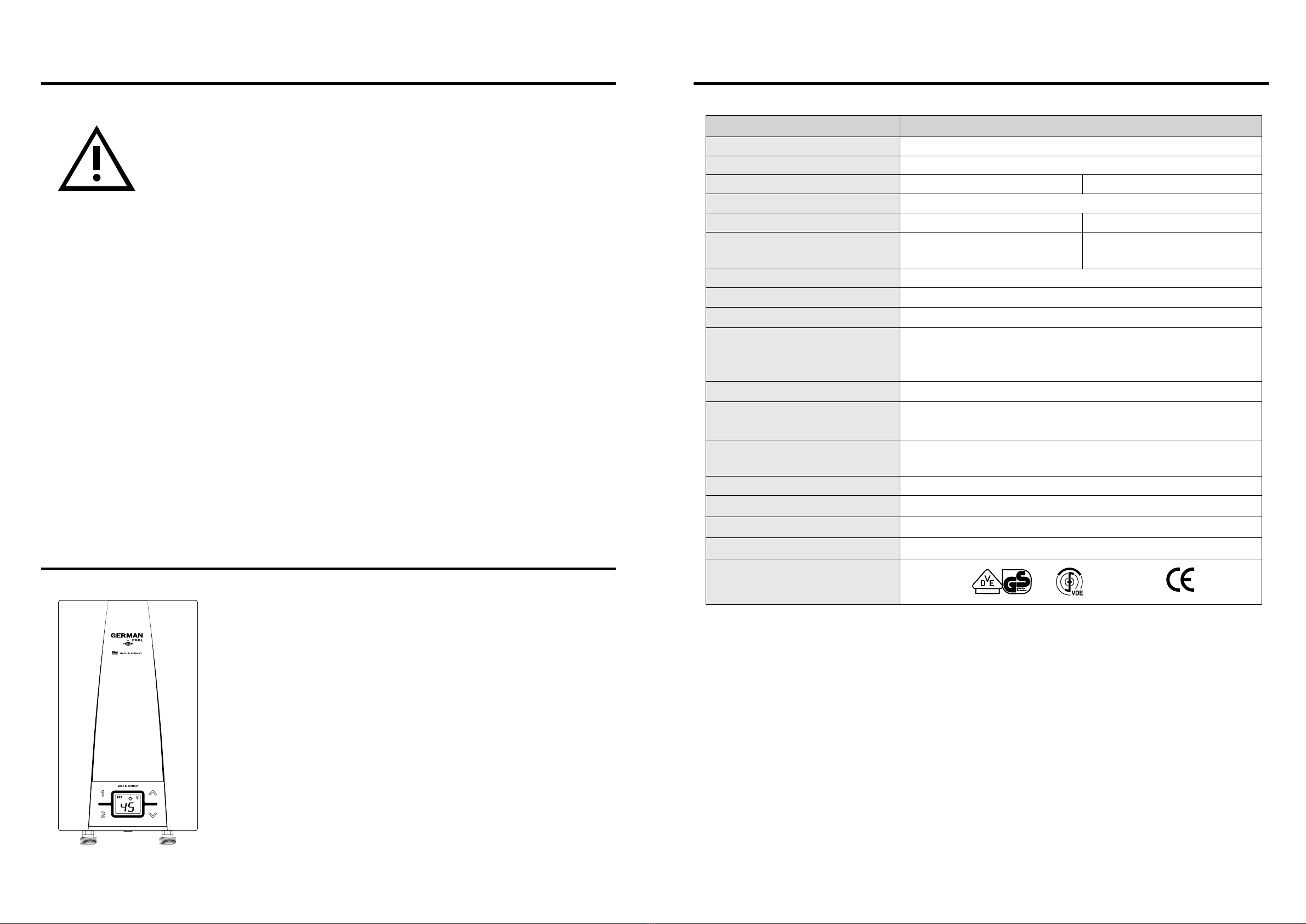

3. Description of Appliance
4. Technical Specications2. Safety Instructions
• Do not use the appliance until it has been correctly installed and unless it is in perfect working order.
• The appliance is only suitable for domestic use and similar applications inside closed
rooms, and must only be used to heat incoming water from mains supply.
• The appliance must never be exposed to frost.
• The appliance must be earthed at all times.
• Do not remove the front cover under any circumstances before switching off the mains
electrical supply to the unit.
• Never make technical modifications, either to the appliance itself or the electrical leads
and water pipes.
• Pay attention to the fact that water temperatures in excess of approx. 43°C are perceived
as hot, especially by children, and may cause a feeling of burning. Please note that the
fittings and taps may be very hot when the appliance has been in use for some time.
• This appliance can be used by children aged 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the appliance.
• Cleaning and user maintenance shall not be performed by children without supervision.
• The values stated on the rating plate must be observed.
• In case of malfunction, disconnect the fuses immediately. In case of leaks, cut off the
mains water supply instantly. Repairs must only be carried out by the customer service
department or an authorised professional.
Please read these instructions carefully before installing or using the
appliance! Keep the instructions handy with the appliance for future use!
Instruction manuals are intended for the specialist who is responsible for
the installation of the appliance. Operation manuals are for the end user.
The latest version of the instructions can be found online at www.germanpool.com.
Model CEX13 ELECTRONIC MPS®
Energy efficiency class A *)
Rated capacity / rated current 11 / 13.5 kW (16 / 19.5 A)
Chosen capacity
(Chosen current) 11 kW (16 A) 13.5 kW (20 A)
Electrical connection 3 / PE 380..415V AC
Min. required cable size 1.5 mm22.5 mm2
Hot water (l/min)
max. at ∆t = 33 K 4.8 5.8 1)
Rated volume 0.3 l
Type Pressure type 1.2 MPa (12 bar)
Heating system Bare wire heating system IES
®
Required spec. water
resistance @ 15 °C
Spec. electrical conductivity
≥ 1100 Ωcm
≤ 90.9 mS/m
Inlet temperature ≤ 70 °C
Flow rate to switch on –
max. flow rate 2.0 – 5.0 l/min 2)
Pressure loss 0.2 bar at 2.5 l/min
1.3 bar at 9.0 l/min 3)
Temperature choice 20 – 60 °C
Water connection G ½ inch
Weight (when filled w. water) 2.7 kg
VDE class of protection I
Type of protection / safety IP25
*) The declaration complies with the EU regulation No 812/2013
1) Mixed water
2) Flow rate limited to achieve optimum temperature rise
3) Without flow regulator
4) Maximum cable size 6 mm2
- Specifications are subject to change without prior notice.
- If there is any inconsistency or ambiguity between the Chinese versionand the English version, the English
version shall prevail.
- Refer to www.germanpool.com for the most up-to-date version of the User Manual.
The instantaneous water heater CEX13 is a microprocessor-
controlled, pressure-resistant water heater for a decentralised hot
water supply to one or more outlets.
Its electronic control regulates the heating power consumption
depending on the selected outlet temperature, the respective inlet
temperature and the ow rate, thus reaching the set temperature
exactly to the degree and keeping it constant in case of pressure
uctuations. The required outlet temperature can be entered on a
keypad and can be read off the digital display.
The maximum inlet temperature can be up to 70 °C so that
operation in connection with solar heating systems is possible.

P.6 P.7

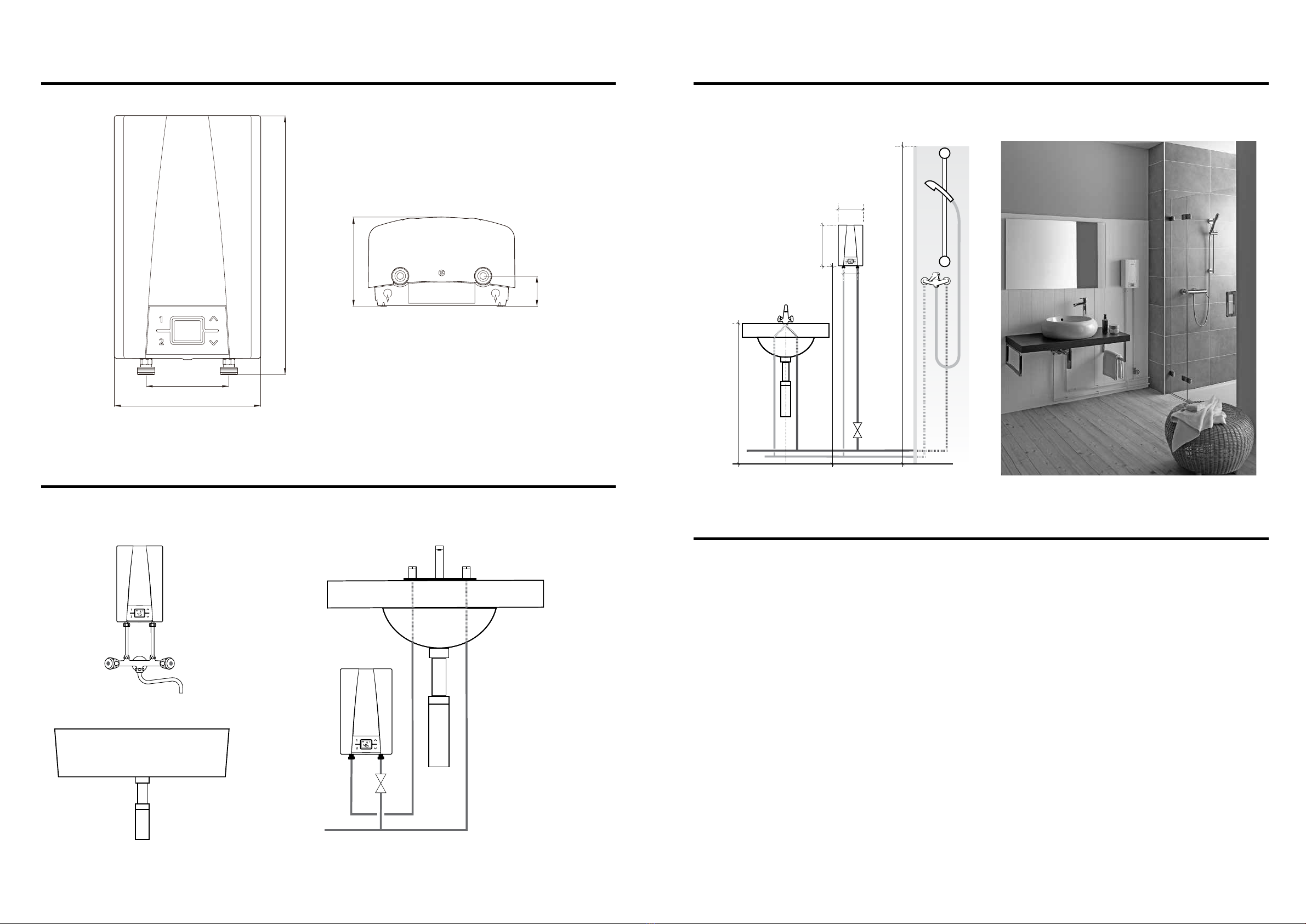

6. Typical Installation
6. Typical Installation
7. Installation
5. Dimensions
MADEIN GERMANY
312
100
177
108
37
The following regulations must be observed:
• EN 806
• Installation must comply with all statutory regulations, as well as those of the local electricity and
water supply companies.
• The rating plate and technical specifications
• Only intact and appropriate tools must be used.
Installation site
• Appliance must only be installed in frost-free rooms. Never expose appliance to frost.
• The Appliance is designed for undersink installation and has to be installed with water connectors upward.
• The appliance complies with protection type IP25.
• In order to avoid thermal losses, the distance between the instantaneous water heater and the tapping
point should be as small as possible.
• For maintenance work, a shut-off valve should be installed in the supply line. The appliance must be
accessible for maintenance work.
• Copper or steel connecting pipes may be used. Plastic pipes may only be used if they conform to DIN
16893, Series 2. The hot water pipes must be thermally insulated.
• The specific resistance of the water must be at least 1100 Ωcm at 15 °C. The specific resistance can
be asked for with your water distribution company.
Dimensions in mm
MADEINGERMANY
177
294
100
Upper edge of the wash basic approx. 850 Lower edge of the unit approx. 1200
Upper edge of the shower cabin approx. 1950
Dimensions in mm (Installation example)
0
MADEIN GERMANY
Direct connection: Supply for
multiple outlets
Wall mounted mixer: Supply for one sink Direct connection: Supply for outlet

P.8 P.9

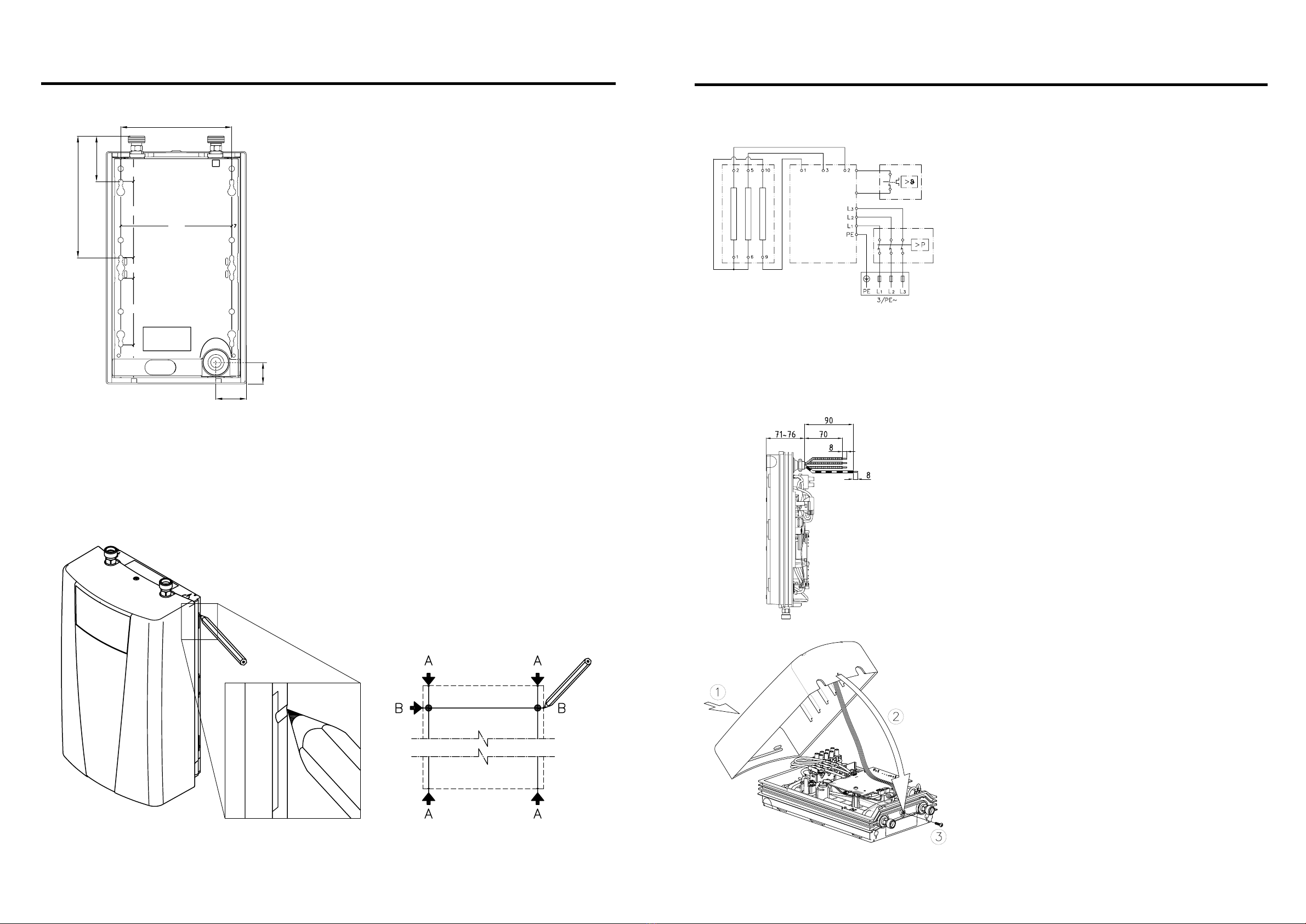

8. Electrical Connection
7. Installation
Mounting the appliance
1. Thoroughly rinse the water supply pipes before
installation to remove soiling from the pipes.
2. Hold the appliance on the wall, and mark the
drill lines at top and bottom, right and left,
corresponding to the small notches at the edge
of the appliance hood (see bottom figure). The
alignment template (located on the back inside
cover of this manual) may be used for this purpose
alternatively.
3. Connect the top and bottom marks vertically with
each other (A-A).
4. Connect the right and left marks horizontally with
each other (B-B).
5. The intersections of these lines are the drill points.
6. Drill the holes using a 6 mm drill. Insert the
included dowels and screws. The screws have to
protrude 5 mm.
7. Hang up the appliance into the rear hanging
openings until it clicks into place.
Installing the appliance
1. Attach the water connection pipes to the appliance’s
water connection. Use the ½ inch seals.
2. Open and close the hot water tap until no more
air emerges from the pipe and all air has been
eliminated from the water heater.
80
70
140
7
57
153
84
41
26
28
96
140
2
1
4
5
3
Only by a specialist! Please observe:
• VDE 0100
• The installation must comply with current IEC or national
local regulations and any particular regulations,
specified by the local electricity supply company
• The rating plate and technical specifications
• The unit must be earthed!
Structural prerequisites
• The appliance must be installed via a permanent
connection. Heater must be earthed! A maximum
cable size must be observed: 6 mm2.
• The electric wiring should not be injured. After
mounting, the wiring must not be direct accessible.
• An all-pole disconnecting device (e.g. via fuses) with
a contact opening width of at least 3 mm per pole
should be provided at the installation end.
• To protect the appliance, a fuse element must be
fitted with a tripping current commensurate with
the nominal current of the appliance.
Electrical connection
Check that the power supply is switched off prior to
electrical connection!
Electrical connection with preinstalled power cable
The appliance is to be connected with the pre-installed
power cable to a terminal box. If necessary, use one of
the three predetermined breaking points for the cable
entry (at the right, left or top).
Alternative:
Electrical installation to a permanent connection
If, in case of particular local circumstances,
connecting to a permanent connection is the only
possibility, continue as follows.
1. Disassemble the pre-installed power cable.
2. Dismantle off the power cable so that you can insert
the cable with the cladding through the water splash
protection sleeve up to the cord grip into the appliance.
3. Lead the cable through the water splash protection
sleeve into the appliance so that one can securely
fix the cladding of the cable with the cord grip. If
necessary, use one of the three predetermined
breaking points for the cable entry (at the right, left
or top). The protective sleeve prevents water from
entering the appliance alongside the connection line.
The protection sleeve has to be used!
4. Mount the cord grip. The cord grip must be used!
5. Strip the cables and plug them in the connecting
terminals according to the wiring diagram. The
appliance must be earthed.
6. After successful electrical connection, fit the hood of
the unit. Make sure not to jam any cables between the
appliance hood and the base part of the appliance.
1. Electronic circuitry
2. Heating element
3. Safety pressure cut-out
4. Terminal strip
5. Safety thermal cut-out
Wiring diagram

P.10 P.11
9. Initial Operation9. Initial Operation
®

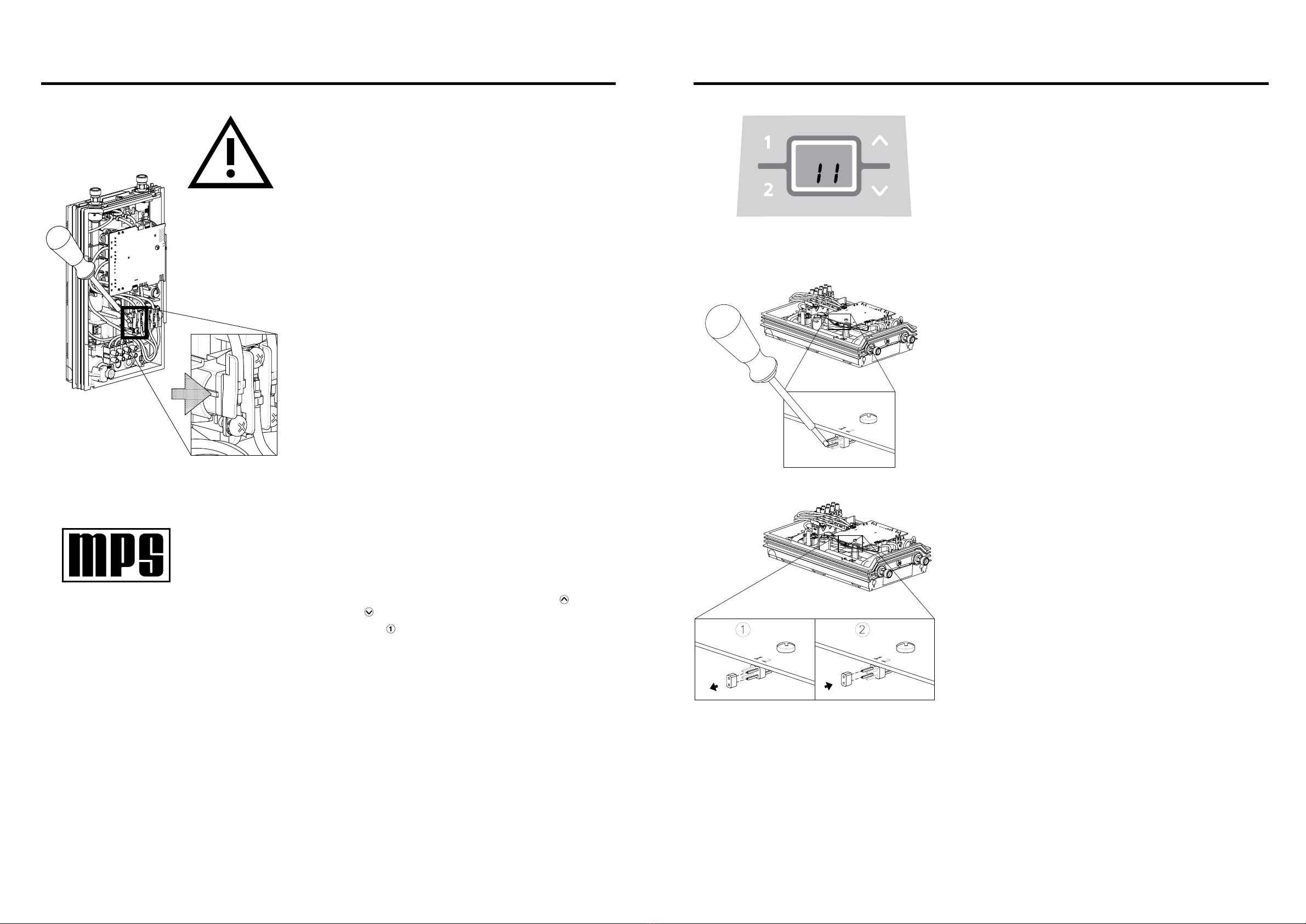

Multiple Power System:
The rated capacity (max. power
consumption) is 11 kW / 400 V
and can be changed internally to
13.5 kW.
MADE IN GERMANY
Before making the electrical connection, fill the
mains and the appliance with water by carefully
opening and closing the hot water tap in order to
vent completely. After every draining (e.g. after work
on the plumbing system or following repairs to the
appliance), the heater must be re-vented in this way
before starting it up again.
If the water heater cannot be put into operation, the
temperature cut-out or the pressure cut-out may have
tripped during transport. If necessary, reset the cut-out.
Selection of power rating
Only by authorised specialist, otherwise lapse of
guarantee!
Upon first connection of the appliance to the supply
voltage, select the maximum power rating. Only after
having set the power rating, the heater provides its
standard operation mode.
The maximum allowable power rating at installation
site depends on the local situation. It is imperative
to observe all data shown in the table “Technical
specifications”, in particular the required cable size
and fuse protection for the electrical connection.
Moreover, the electrical installation must comply with
the statutory regulations of the respective country
and those of the local electricity supply company
(Germany: DIN VDE 0100).
1. Switch on the power supply to the appliance. The
digital display on the appliance must light up.
2. When switching on the supply voltage for the
first time, the value “11“ flashes in the display.
If not, please carefully read the below note
“Reinstallation”.
3. Select the maximum allowable power rating
depending on the local situation via the up and
down arrow keys: 11 or 13 kW.
4. Press key to confirm the setting. The appliance
starts operating.
5. Mark the set power rating on the rating plate.
6. Open the hot water tap. Check the function of the
appliance.
7. After having set the maximum allowable power
rating, the heating element will be activated after
approx. 10 seconds of water flow.
8. Explain the user how the instantaneous water
heater works and hand over the operating
instructions.
9. Fill in the guarantee registration card and send it to
the Customer Service or use the online registration.
Remote control
The water heater’s temperature must be limited to 55
°C, if it is connected to a shower and controlled with
a remote control system. The service menu parameter
“Temperature Limit “(“tL”) must be set to a value less
or equal 55 °C, in consultation with the customer and
the lock level must be activated.
When the device is operated with preheated water, it
must be ensured that this temperature is limited to
55 °C as well.
Reinstallation
In case the appliance will be commissioned again
under different installation conditions than during
its initial operation, it may be necessary to adapt the
maximum power rating. A temporary short-circuit of
the two pins, e.g. with a screwdriver acc. to EN 60900
(see figure), will reset all heater parameters to works
setting and lock the heating.
Value “11“ flashes in the display until the maximum
power rating has been selected. This condition will
maintain when activating and deactivating the supply
voltage.
Lock Level
The operating mode of the appliance can be
restricted. The service menu can be used to configure
the appliance.
Activation of the lock level
1. Set required lock level in the service menu (refer
to chapter “Service menu” in this installing
instructions).
2. Disconnect the appliance from the power supply
(e.g. by switching off the fuses).
3. Move the jumper on the power electronics from pin
2 to pin 1 (see figure).
4. Put the appliance into operation again.
Deactivation of the lock level
1. Disconnect the appliance from the power supply
(e.g. by switching off the fuses).
2. Move jumper from pin 1 to pin 2.
3. Put the appliance into operation again.

P.12 P.13
10. How to Use10. How to Use
As soon as you open the hot water tap, the
instantaneous water heater switches on
automatically. When the tap is closed, the appliance
automatically switches off.
Temperature setting
You can set the required temperature gradually to a
lower or higher value with the arrow keys and .
The temperature changes by 1°C, in the convenience
zone between 35°C and 42°C by 0.5°C, if key is
pressed shortly one time. Pressing a key for a longer
time changes the temperature continuously.
Note: If temperature is set below 20°C with arrow
key the display shows “- -” and the appliance
switches off the heating function.
Note: If the water heater supplies a shower and is
connected to a remote control system, the maximum
temperature was reduced during initial operation.
This limitation cannot be exceeded.
Programme buttons
The two programme buttons allow to quickly select
the preset temperature. When pressing a programme
key, the preset temperature is selected and displayed.
The factory setting for programme is 35°C and for
programme it is 48°C. You can assign your own
settings for the programme keys:
• Prolonged pressing of the programme key stores
the previously selected temperature. The display
changes from “P1” or “P2” to the newly stored
temperature value. This newly set temperature
is now available to you each time you press the
corresponding program key.
MADE IN GERMANY
Set temperature
1
–1 °C +1 °C
Select preset temperature
A1 A2
B1 B2
Store temperature
2
Press
≥3 sec
Display of new value
(e.g. 43 °C)
Set required
temperature
(e.g. 43 °C)
4 3
1
Convenience zone 35.0.. 42.0°C
1
–0.5 °C +0.5 °C
Temperature limitation
This instantaneous water heater is equipped with an
optional temperature limiting function. This scalding
protection is deactivated in the factory setting.
• Switch on: Select the limit temperature, then press
and simultaneously for at least 3 sec. The
display briefly confirms the activation by “HI“.
• Switch off: press program key and
simultaneously for at least 3 sec. The display briefly
confirms the deactivation by “- -“.
Note: By activation of the temperature limit also the
programme keys are affected. Therefore, the fixed
values of the programme keys must be checked
after changing the temperature limitation.
Reset to factory setting
All factory settings can be recalled:
• Press and and simultaneously. The display now
counts backwards from “10“ to “00“ in second
intervals. The appliance is reset at value “00“ - if
you stop pressing the keys earlier, you will cancel
the process.
+
Reset
1
Press + hold!
Reset completed
3
2
+
Press
≥3 sec
12
Scalding protection off
Confirmation
of deactivation
3
Confirmation
of activation
Scalding protection on
+
Press
≥3 sec
1 2

P.14 P.15
10. How to Use10. How to Use
How to save energy
Set the exact temperature you need on the appliance
and open the hot water tap. Once you feel that the
water is too hot, do not add any cold water and,
instead, enter a lower temperature on the appliance.
If you were to add cold water, the water already
heated would cool down again and valuable energy
would be wasted. Moreover, the cold water added
in the tap is not covered by the control range of the
electronic circuitry, with the result that temperature
constancy is no longer guaranteed.
ECO mode
The symbol shows that the appliance works in
an energy saving mode (i.e. the momentary energy
consumption is subject to the selected temperature
and to the flow rate in the energy saving mode.
Power limit
If the full output of the instantaneous water heater
does not suffice to heat the tapped quantity of water,
this will be indicated by on the LCD (e.g. in winter
time, when opening several taps at once). When you
reduce the hot water flow rate, stops lighting
because the output of the appliance is sufficient to
reach the set temperature again. You can now use the
full output to fill larger containers, for instance.
Operation with solar systems
When operating with solar systems, e.g. an automatic
mixing tap must ensure that the maximum inlet
temperature is not exceed. If the inlet temperature
exceeds the setpoint, the icon on the digital display
indicates that the heating power is switched off.
Power limit
ECO mode
Unit provides no output
Venting after maintenance work
This instantaneous water heater features an automatic air bubble
protection to prevent it from inadvertently running dry. Nevertheless,
the appliance must be vented before using it for the first time. Each
time the appliance is emptied (e.g. after work on the plumbing system,
if there is a risk of frost or following repair work), the appliance must
be re-vented before it is used again.
1. Disconnect the instantaneous water heater from the mains (e.g.
via deactivating the fuses).
2. Unscrew the jet regulator on the outlet fitting and open the
cold water tap valve to rinse out the water pipe and avoid
contaminating the appliance or the jet regulator.
3. Open and close the hot water tap until no more air emerges from
the pipe and all air has been eliminated from the water heater.
4. Only then should you re-connect the power supply again (e.g.
via activating the fuses) to the instantaneous water heater and
screw the jet regulator back in.
5. The appliance activates the heater after approx. 10 seconds of
continuous water flow.
Cleaning and maintenance
• Plastic surfaces and fittings should only be wiped with a damp
cloth. Do not use abrasive or chlorine-based cleaning agents or
solvents.
• For a good water supply, the outlet fittings (special tap aerators
and shower heads) should be unscrewed and cleaned at
regular intervals. Every three years, the electrical and plumbing
components should be inspected by an authorised professional
in order to ensure proper functioning and operational safety at
all times.
Your product was manufactured from high-quality, reusable
materials and components. Please respect in case of discarding
that electrical devices should be disposed of separately from
household waste at the end of their service life. Therefore, please
take this device to a municipal collection point that accepts
electronic scrap. Disposing it correctly will support environmental
protection and will prevent any potential negative effects on
human beings and the environment that could arise from
inappropriate handling of these devices at the end of their service
life. Please contact your local authority for further details of your
nearest designated collection point or recycling site.
Business customers: If you wish to discard electronic equipment,
please contact your dealer or supplier for further information.
11. Environment and Recycling

P.16 P.17
12. Service Menu12. Service Menu

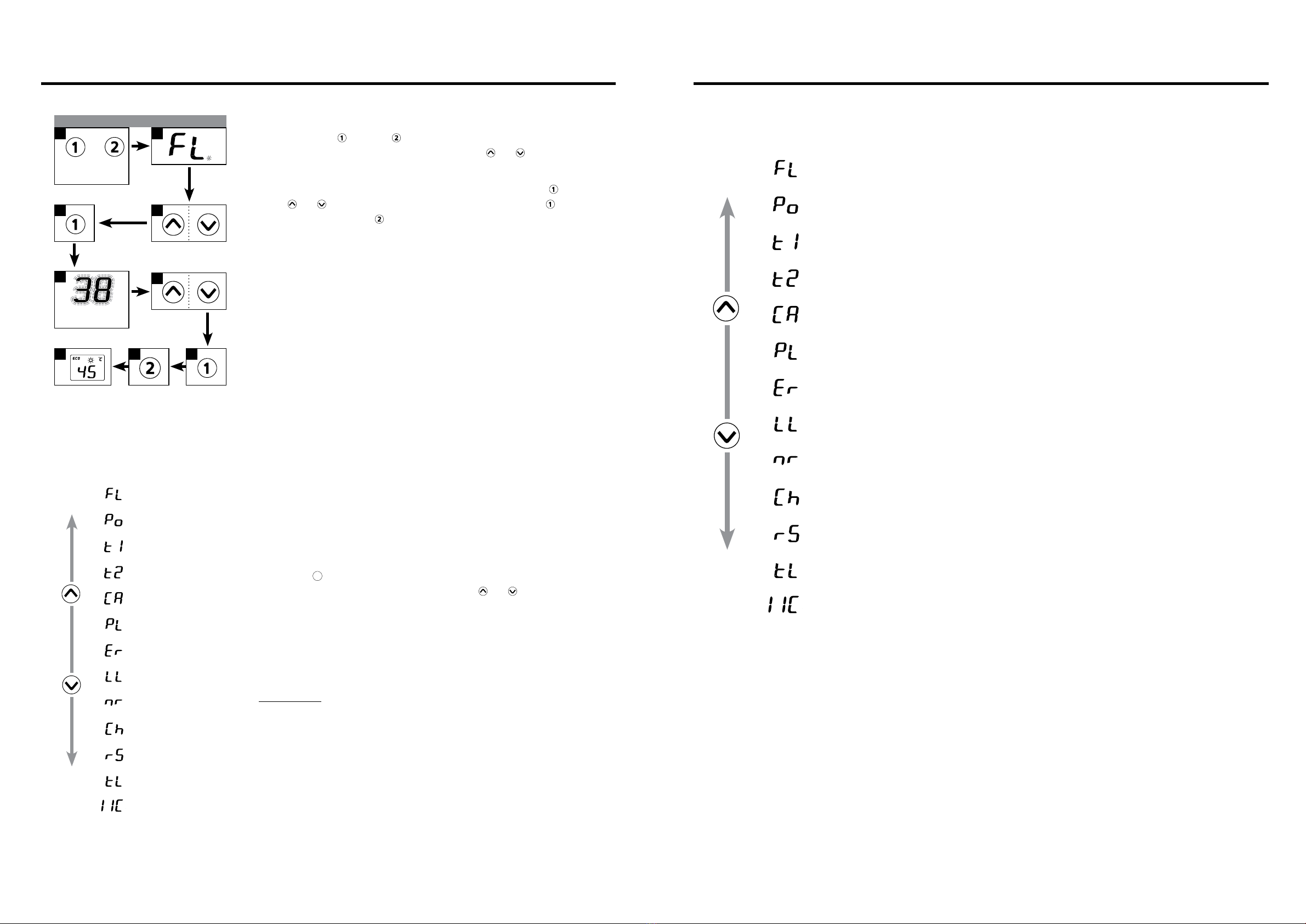

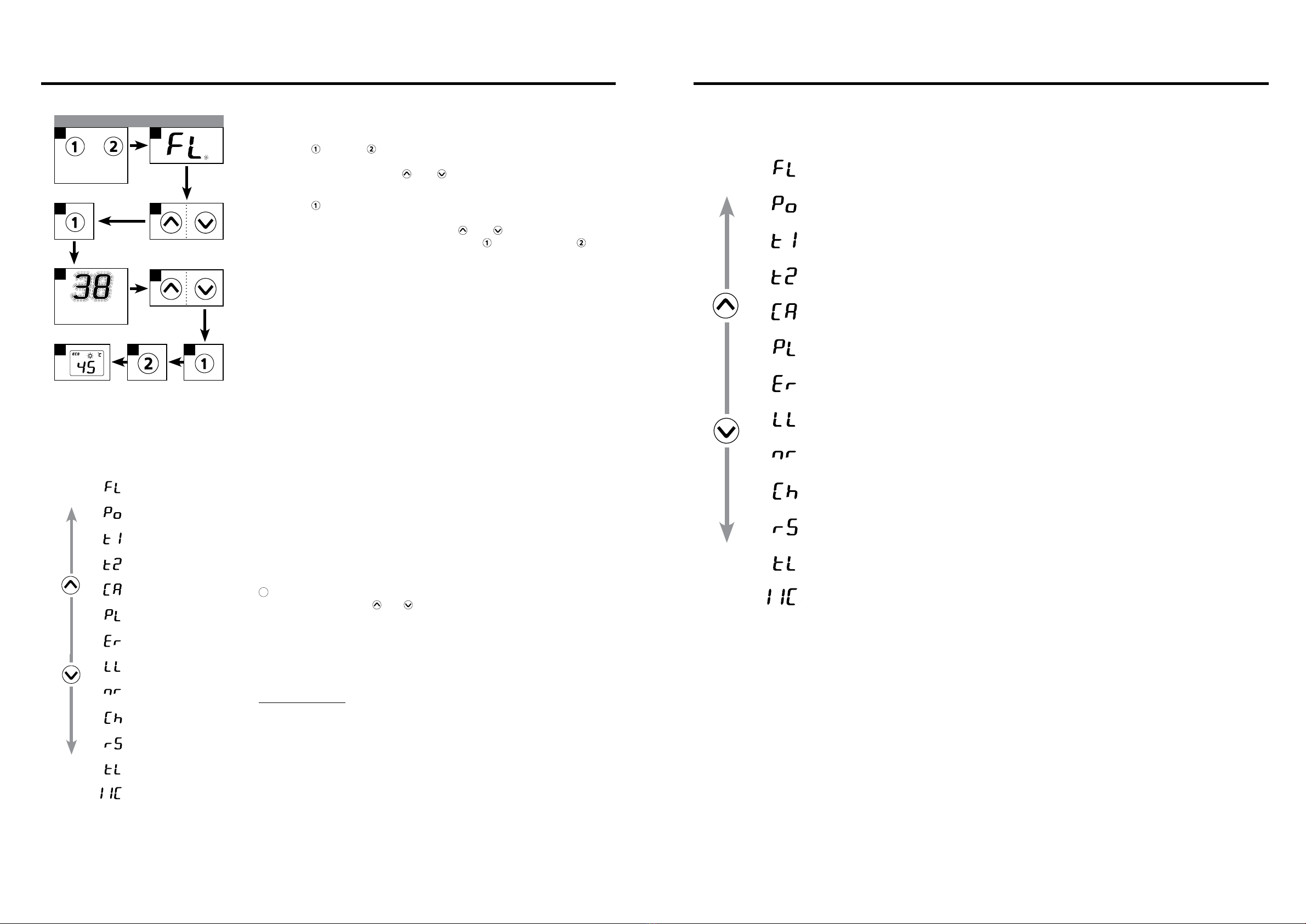

Menu item order of “Service menu“: “nr”: Software version
Information about installed software version.
“Ch”: Radio channel
(with wireless module only)
Information about the current radio channel of the
water heater and its remote control.
“rS”: Received strength
(with wireless module only)
Information about the current signal quality of the
remote control as percentage. Depending on the
distance between remote control and water heater
the value varies between 10% and 100%.
“tL”: Temperature limit
The maximum setable temperature can be reduced to
any value within the temperature limit.
The Lock Level must be activated by placing the
jumper to enable the limitation.
“IIC”: Signal
Information about the quality of the radio contact
when a diagnostic display is connected.
Flow
Power
Temp in
Temp out
Control value
Power limit
Diagnostics
Lock level
Software version
Radio channel
Received strength
Temperature limit
Signal
Enter service menu
2
8
4
7
5
3
6
9
+
1
Display flashes
Press
≥2 sec
The service menu offers an overview of system parameters and is
used for diagnostics.
Press key and key simultaneously for at least 2 seconds to call
up the service menu, the display confirms by “FL” and by a flashing
point. Using the arrow keys and , you can switch between the
individual menu items.
Press key to see the value of the currently selected menu. The
value flashes in the display. (The values of some menus can be
switched over by using the arrow keys and .) You will get back
to the drop-down-menu when pressing key again. With key
you will get back to the standard display (nominal value). After two
minutes without any key stroke the system automatically switches
back to the standard display.
Individual menu items as follows:
“FL”: Flow
Indication of current flow rate given in l/min.
“Po”: Power
Indication of current power consumption (kW).
“t1”: Temp in
Indication of inlet temperature (°C).
“t2”: Temp out
Indication of outlet temperature (°C).
“CA”: Control value
Indication of calibration value of the control system. Regular range: 40 – 60.
“PL”: Power limit
Indication of the current maximum power rating (kW) of the appliance.
“Er”: Diagnostics
Indication of the last ten diagnostic messages.
The error code is indicated by the first displayed value after pressing key
1(refer to “Abstract for Trouble-Shooting & Diagnostics” in the hood).
By using the arrow keys and the last 10 error codes are displayed
chronologically. Thereby the display indicates in turns the error numbers
from “0” to “9” and the corresponding error. The last error will be recorded
at position “0” and the former ones each shifted 1 position backwards.
“LL”: Lock level
The operating mode of the appliance can be restricted.
Setting Options:
“0” no restriction (factory setting)
“1” factory reset via key (countdown) not possible, parameters can be seen,
but not be modified in setup menu
“2” same as “1”, additionally the setup menu cannot be opened
“3” same as “2” additionally nominal value memory 1 and 2 not changeable
“4” same as “3”, additionally nominal value not changeable
Note: When the setting 1, 2, 3 or 4 was chosen, the system
parameters can no longer be modified in the service menu.
In order to modify these system parameters, it is necessary to
remove the jumper on the power electronics, as specified in the
chapter “Deactivation of the lock level”.
Flow
Power
Temp in
Temp out
Control value
Power limit
Diagnostics
Lock level
Software version
Radio channel
Received strength
Temperature limit
Signal
Enter service menu
2
8
4
7
5
3
6
9
+
1
Display flashes
Press
≥2 sec
Menu item order of “Service menu“:

P.18 P.19
13. Trouble-shooting and Service
This instantaneous water heater was manufactured conscientiously
and checked several times before delivery. Should malfunctions
nevertheless occur, it is usually only due to a bagatelle. First attempt
to switch the house fuses off and on again in order to reset the
electronics. Next, try to remedy the problem with reference to the
following table. In doing so, you will avoid unnecessary expense of
customer service assistance.
Repairs must only be
carried out by authorised
professionals.
If a fault in your appliance
cannot be rectified with
the aid of this table,
please contact the service
organisation of your importer
or the Central Customer
Service Department. Please
have the details of the
typeplate at hand.

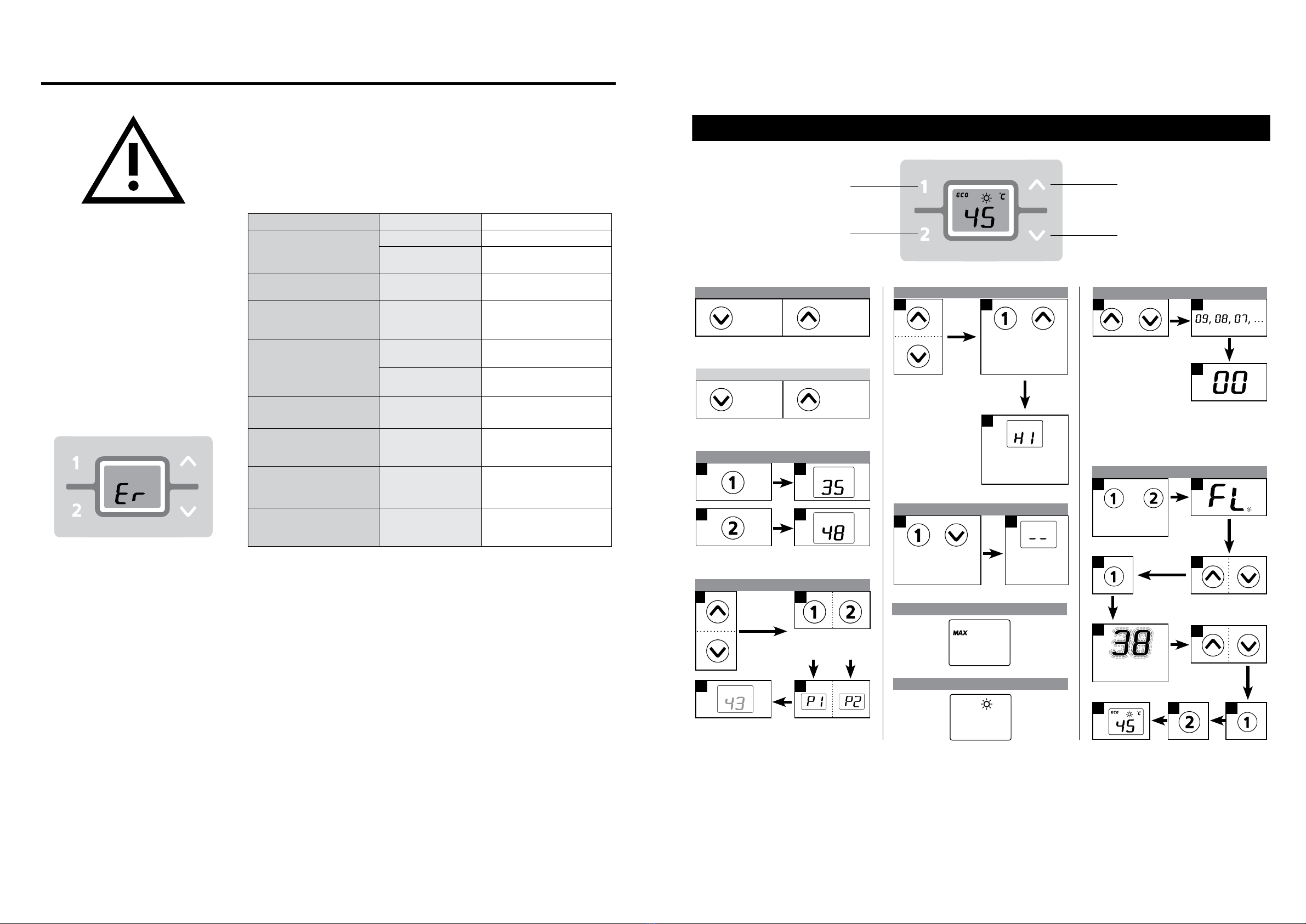

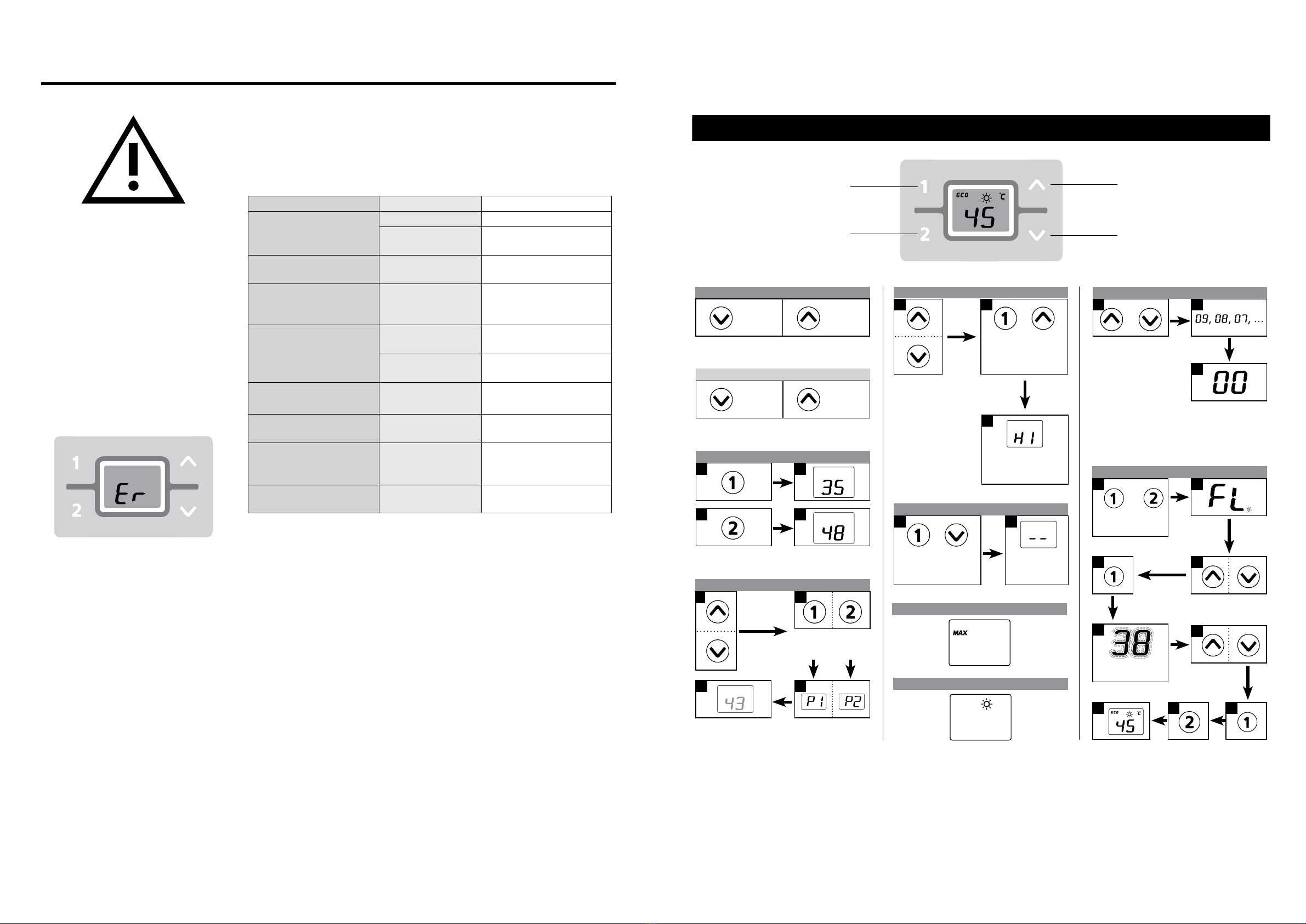

Quick reference guide
Arrow key down
Arrow key up
Programme button 1
Programme button 2
Power limit
+
Reset
1
Press + hold!
Reset completed
3
2
+
Press
≥3 sec
12
Scalding protection off
Confirmation
of deactivation
Unit provides no output
Set temperature
1
–1 °C +1 °C
Select preset temperature
A1 A2
B1 B2
Store temperature
2
Press
≥3 sec
Display of new value
(e.g. 43 °C)
Set required
temperature
(e.g. 43 °C)
4 3
1
Convenience zone 35.0.. 42.0°C
1
–0.5 °C +0.5 °C
3
Confirmation
of activation
Scalding protection on
+
Press
≥3 sec
1 2
Enter service menu
2
8
4
7
5
3
6
9
+
1
Display flashes
Press
≥2 sec
MADE IN GERMANY
Problem Cause Solution
Water stays cold, digital
display does not light up
Master fuse tripped Renew or activate fuse
Safety pressure cut-
out tripped Contact customer service
Water stays cold, digital
display does light up
Safety thermal cut-
out tripped Contact customer service
Display flashes error mes-
sage “Er“
Control system has
switched off
Switch fuse off and on. If
“Er“ still flashes contact
customer service
Flow rate of hot water too
weak
Outlet fitting dirty or
calcified
Clean shower head, jet
regulator or sieves
Fine filter dirty or
calcified
Let clean fine filter by a
specialist
Selected temperature is
not reached, “MAX“ lights
Water flow rate too
high
Reduce water flow rate at
the tap
Selected temp. is not
reached, “MAX“ does not
light
Cold water has been
added via the tap
Tap hot water only; set
temperature for use
Symbol “sun“ lights up
Inlet temperature
exceeding nominal
temperature
Reduce inlet temperature
Appliance heats, the dis-
play does not light
Display plug not
properly connected
Let fix correct position of
display plug by customer
service
MADE IN GERMANY
If the connection cable is damaged, it must be replaced with
an original spare cable from the manufacturer by an authorised
technician in order to avoid any hazards.
If you cannot rectify the fault with the aid of the troubleshooting
table, please contact the customer service.

P.21
外殼
單向閥
電子器件
進水管
流量感測器
接線端子
墊圈
控制台
螺絲和銷子
冷/熱水接頭
1. 概述 21
2. 安全說明 22
3. 熱水器說明 22
4. 技術規格 23
5. 尺寸 24
6. 典型安裝 24
7. 安裝 25
安裝地點 26
安裝熱水器 26
8. 電氣連接 27
接線圖 27
結構前提 27
於固定位置的電氣連接 27
9. 初始操作 28
額定功率選擇 28
遙控 29
重新安裝 29
功能許可權 29
10. 使用方法 30
溫度設定 30
程式按鈕 30
溫度限制 31
恢復出廠設置 31
節能方法 32
ECO模式 32
功率極限 32
相容太陽能系統 32
保養工作後的排空 33
清潔保養 33
11. 環境和回收利用 33
12. 服務功能表 34
13. 故障檢修 36
快速指南 37
訂購零部件時，務請說明熱水器型號和序列號。
底部部件
溫度感測器
裝置
配有溫度安全
保護器的加熱
元件
熱熔保護裝置
1. 概述
目錄

P.22 P.23
4. 技術規格
型號 CEX13 ELECTRONIC MPS®
歐盟能源效益標籤 A *)
額定功率 / 額定電流 11 / 13.5 kW (16 / 19.5 A)
選擇功率 (選擇電流) 11 kW (16A) 13.5 kW (20 A)
電氣連接 3 / PE 380..415V AC
所需最小電線尺寸 1.5 mm22.5 mm2
熱 水（公 升 / 分 鐘 ）最 大 值
∆t = 33 K 4.8 5.8 1)
額定容量 0.3 l
類型 1.2MPa (10 bar) 壓力類型
加熱系統 明線加熱系統 IES
®
水溫為15℃時的比電阻
導電性
≥ 1100 Ωcm
≤ 90.9 mS/m
出水口溫度 ≤ 70℃
啟動流速–最高流速 2.0 – 5.0 l/min 2)
壓力損耗 0.2 bar：2.5 l/min
1.3 bar：9.0 l/min 3)
溫度選擇 20 – 60℃
水管接頭 G ½"
重 量（裝 滿 水 後 ） 2.7kg
VDE防護等級 I
防護 / 安全類型 IP25
*) 報告內容根據歐盟第812/2013規章編繪
1) 混合水
2) 根據最佳溫升調節水流量
3) 無流量調節器
4) 最大電纜尺寸：6mm2
- 產品規格及設計如有變更，恕不另行通知。
- 中英文版本如有出入，一概以英文版為准。
- 本產品使用說明書以 www.germanpool.com 網上版為最新版本。
3. 熱水器說明
2. 安全說明
• 使用本款熱水器之前須確保其安裝正確且處於良好工作狀態。
• 本款熱水器僅可在家庭和封閉、無霜的房間使用，僅可用於加熱統一供應的飲用水。
• 本款熱水器禁止暴露於霜凍環境中。
• 本款熱水器須始終接地。
• 切斷總電源之前，任何情況下均勿拆下前蓋。
• 勿對熱水器、電路導線及水管進行技術改造。
• 請注意：水溫超過43℃即被視為熱水，對兒童而言尤其如此，使用者可產生灼傷感。熱水器使用
一段時間後，配件和龍頭均可能過熱。
• 凡在有適當監督或指導下，8歲或以上兒童及身體、感官或心理障礙者或經歷及知識不足者，亦可
使用本款熱水器。應對兒童進行妥善照管，避免其隨意觸碰熱水器。
• 禁止兒童在未經適當監督的情況下清潔或保養設備。
• 請仔細閱讀銘牌上的資訊。
• 若發生故障，立即斷開保險絲。若發生滲漏，立即切斷冷水供應。只有客戶服務部和經認可的專
業人員方可進行維修。
安裝或使用設備前請仔細閱讀本操作指引，並妥為保存。
安裝指引為合資格的設備安裝技師所用。操作指引為終端客戶所用。
用戶可登錄 www.germanpool.com.獲得最新的操作指引。
即熱式電熱水器CEX13由微處理器控制，為耐壓設計，分散提供
熱水，可接多個龍頭。
熱水器的電子控制裝置可根據所選擇的出水口溫度、進水口溫度
以及流速調節功耗，因此可精確達到設定溫度，並可在壓力波動
的情況下保持恒溫。用戶可通過鍵盤輸入所需出水溫度，設定數
值將顯示於顯示幕上。
最高入水溫度可達70℃，因此設備可相容太陽能加熱系統。

P.24 P.25
6. 典型安裝
6. 典型安裝
5. 尺寸
312
100
177
108
37
尺寸單位為：mm（毫米）
7. 安裝
必須遵守以下規定：
• EN 806
• 安裝期間須遵守所有相關法規以及當地供電和供水公司規定
• 銘牌及技術規格
• 請務必使用完好並適當的工具
安裝地點
• 熱水器僅可安裝在無霜房間內。禁止將熱水器暴露於結霜環境中。
• 本電熱水器適宜安裝于水槽下方，且水管接頭必須朝上。
• 熱水器符合保護類型IP25規定。
• 為避免出現熱損失，應儘量縮短即熱式電熱水器與觸點之間的距離。
• 為了便於進行維護保養工作，應在供水管線內安裝切斷閥。熱水器須便於進行維護保養工作。
• 可使用銅制或鋼制連接管。若使用塑膠管，必須符合德國工業標準（DIN)16893，2系列要求。熱水
管須為保溫設計。
• 水的比電阻在15℃時最低須達1100Ωcm。可向您所在地區的供水公司諮詢電阻率數值。
MADEIN GERMANY
MADEINGERMANY
177
294
100
水槽高度約850
底端距地面高度約1200
淋浴器距地面高度約1950
尺寸單位為：mm（毫米）（安裝示例）
0
MADEIN GERMANY
直接連接：適用於多個出水口
掛壁式混合型熱水器：適用於單個水槽 直接連接：適用於單個水槽

P.26 P.27
80
70
140
7
57
153
84
41
26
28
96
140
8. 電氣連接
7. 安裝
安裝熱水器
1. 安裝前徹底清洗供水管，清除管內汙物。
2. 將熱水器貼牆放置，標注頂部和底部以及左右兩邊
的鑽孔線，與熱水器防護罩邊緣的小孔對應（參見
下圖)。對齊樣板（本手冊封底內頁）可用於校準
熱水器位置。
3. 垂直連接頂部和底部標記（A-A)。
4. 水準連接左右兩邊標記（B-B)。
5. 鑽孔線的交叉點為鑽孔點。
6. 使用6mm鑽孔器鑽孔。插入銷子和螺絲。螺絲須
伸出5mm。
7. 將熱水器放入後掛開孔，然後將其滑入設定位置。
安裝熱水器
1. 在熱水器水管接頭處安裝連接水管。使用1/2英寸
密封墊。
2. 開關熱水龍頭，直至水管內無空氣逸出且熱水器
排出所有空氣。
2
1
4
5
3
僅專業人員方可操作！請注意：
•VDE 0100
•安裝過程須遵守國際電工委員會或國家地方現行
法規以及當地供電公司的相關規定。
•遵守銘牌和技術規格
•裝置必須接地！
結構前提
• 必須通過永久連接裝置安裝熱水器。熱水器必須
接地！請使用最大尺寸電纜：6 mm2。
• 不可損壞電線。安裝完成後，電纜需佈置妥當，
避免直接接觸。
• 安裝結束時，應提供全極斷開裝置（例如通過保
險絲），每極接觸開孔寬度須超過3mm。
• 為保護熱水器，須安裝保險絲，其脫扣電流應等
於熱水器額定電流。
電氣連接：
請在電氣連接之前檢查電源是否關斷！
採用預先安裝電纜的電氣連接
熱水器通過預先安裝電纜連線至終端盒。如果必
要，請使用三個預定中斷點的一個用於電纜引入裝
置（右、左或上）。
其他選擇：
利用永久連接進行電氣安裝
若受安裝環境限制，設備僅可永久連接時，請按下
述步驟進行：
1. 去掉電源線表皮。
2. 去掉電源線表皮，將帶有鍍層的電源線通過防濺式
保護套管插入熱水器的線纜接頭。
3. 將電源線通過防濺式保護套管插入熱水器，將電源
線鍍層與線纜接頭安全固定。如有必要，採用三個
預留中斷點之一（分別設在左邊、右邊及頂部）作
為線纜接入端。保護套管可防止水順著連接線進入
熱水器。必須使用保護套管！
4. 安裝線纜接頭。必須使用線纜接頭!
5. 對電線進行絕緣處理，參照接線圖將電線插入接
線端子。熱水器必須接地。
6. 成功進行電氣連接後，安裝設備防護罩。確保勿
將任何連接線卡在熱水器防護罩與基座之間。
1. 電路板
2. 加熱元件
3. 壓力保護裝置
4. 接線盒
5. 熱熔保護裝置
接線圖

P.28 P.29
®
MADE IN GERMANY
9. 初始操作
遙控
熱水器應用於淋浴且由遠端控制系統控制時，溫度
最高不得超過55℃。手冊上“溫度範圍”參數應設
定應不超過55℃，且必須鎖定，詳情可諮詢客服中
心。
當待加熱的水已被預熱，請確保入水口的水溫低於
55℃。
重新安裝
除首次運行外，熱水器在不同安裝環境中可能重
新啟動。在此情況下，可能需要改變最大額定功
率。兩個引腳之間短時短路（例如使用螺絲刀按照
EN60900）會使熱水器所有工作參數復位並鎖定加
熱。
顯示器閃爍數值“88”，直至選擇最大額定功率。
該狀況在啟動和關閉電源電壓期間保持不變。
功能許可權
熱水器運行模式可能受限。可使用服務功能表安裝
熱水器。
功能許可權啟動
1. 確定服務功能表中的所需功能許可權 (參見本安裝
說明書中的“服務功能表”章節)。
2. 切斷熱水器電源 (例如斷開保險絲)。
3. 將供電電路上的跳線從引腳1切換至引腳2 (參見
示意圖)。
4. 重新運行熱水器。
功能許可權取消
1. 切斷熱水器電源 (例如通過斷開保險絲)。
2. 將跳線從引腳1切換至引腳2。
3. 重新運行熱水器。
9. 初始操作
®
多電源系統：
額定容量（最大功耗）為
11kW/400V，可調至13.5kW。
進行電氣連接前，小心開關熱水龍頭，向總水管和
熱水器注水，使其徹底排空。每次排水後（例如維
護管道系統或修理熱水器之後），必須採用該方法
將熱水器重新排空後方可再次啟動。
電熱水器可能因在運輸過程中溫度保護或壓力保護
跳閘，導致不能正常啟動。必要時，可重定溫度或
壓力保護。
額定功率選擇
僅經認可的專業人員方可操作，否則安全保證失效!
首次將熱水器連接電源電壓後，請選擇最大額定功
率。設定額定功率後，熱水器的標準操作模式方可
使用。
安裝地點可允許的最大額定功率取決於現場情況。
必須遵守“技術規格”表中的所有資料規定，尤其
是電氣連接要求達到的電線尺寸和熔斷保護相關資
料。此外，進行電氣安裝工作期間必須遵守所在
國家和當地供電公司的相關法規 (德國：DIN VDE
0100)。
1. 打開熱水器電源。須確保熱水器的數字顯示器點
亮。
2. 首次打開電源電壓後，顯示器閃爍數值“88”。
否則，請認真閱讀以下“重新安裝”說明。
3. 根據當地情況，使用 和 按鍵選擇可允許的
最大額定功率：11或13kW。
4. 按下按鍵 ，確認設置。熱水器開始運行。
5. 在銘牌上標注已設定的額定功率。
6. 打開熱水龍頭。檢查熱水器功能。
7. 設定可允許的最大額定功率。水流約10秒鐘後，
加熱元件將被啟動。
8. 向用戶介紹即熱式熱水器的使用方法並提供操作
說明書。
9. 填寫登記保修卡並送到客戶服務中心，或者進行
網上登記。

P.30 P.31
10. 使用方法
溫度限制
本款即熱式電熱水器設有可選溫度限制功能。防燙
傷保護功能已在出廠設置中取消。
• 啟動：選擇極限溫度。同時按下程式鍵 和 至
少3秒鐘。顯示器即刻以“HI”確認啟動。
• 關閉：同時按下程式鍵 和 至少3秒鐘。顯示
器即刻以“_ _”確認取消。
說明：啟動溫度限值會對程式鍵構成影響。因此，
改變溫度限值後必須檢查程式鍵的固定值。
恢復出廠設置
所有出廠設置均可恢復：
• 同時按下 和 。現在，顯示器從“10”倒數
至“00”，逐秒遞減。熱水器重設值為“00”―
提前終止按鍵將取消該過程。
重新設定
長按
重設完成
+
1
3
2
按
≥ 3秒
防燙傷保護關閉
確認取消
+
12
確認啟動
防燙傷保護開啟
按
≥ 3秒
3
+
1 2
10. 使用方法
打開熱水龍頭後，即熱式電熱水器自動啟動。關閉
龍頭後，熱水器自動關閉。
溫度設定
您可使用 和 按鍵逐漸調低或調高所需溫度。
溫度每次變化1℃，在35℃和42℃之間的常用溫
區，若快速按鍵，溫度可變化0.5℃。延長按鍵時間
可連續改變溫度。
說明：若使用 按鍵將溫度設在20℃以下，顯示器
將顯示“__”，熱水器將關閉加熱功能。
說明：熱水器應用於淋浴且由遠端控制系統控制
時，啟動操作時，最高溫度值降低。不能超過溫度
範圍。
程式按鈕
可使用兩個程式按鈕快速選擇預設溫度。按下程式鍵
後，即選擇並顯示預設溫度。程式 和程式 的出
廠設定值分別為35℃和48℃。您可使用程式鍵自行設
定。
• 長時間按下程式鍵可儲存以往選擇的溫度。顯示
值從“P1”或“P2”變為新儲存的溫度值。現
在，您每次按下相應程式鍵後即可獲得新設定的
溫度。
MADE IN GERMANY
溫度設定
1
選擇預設溫度
儲存溫度
按
≥ 3秒
顯示新設定數值 (如43℃)
設定溫度
(如43℃)
35,0..42,0 °C常用溫區
1
–1 °C +1 °C
A1 A2
B1 B2
2
4 3
1
–0,5 °C +0,5 °C

P.32 P.33
10. 使用方法
保養工作後的排空
本款即熱式電熱水器設有自動氣泡保護裝置，可防止由於疏忽造
成幹燒現象。然而，必須在首次使用前排空熱水器。每次排空熱
水器後（例如由於維修管道系統、存在霜凍風險或進行維修後）
，須在再次使用前重新排空熱水器。
1. 關閉即熱式電熱水器的總電源（例：通過斷開保險絲）。
2. 卸下出水口配件上射流調節器的螺絲，打開冷水龍頭閥門，將
水管沖洗乾淨，避免污染熱水器和射流調節器。
3. 打開並關閉熱水龍頭，直至水管內無空氣逸出且熱水器排出所
有空氣。
4. 此後方可將即熱式電熱水器重新接通電源（例：通過啟動保險
絲）並擰上射流調節器的螺絲。
5. 水流持續約10秒後，熱水器啟動。
清潔保養
• 塑膠表面和配件僅可用濕布擦拭。請勿使用腐蝕性或含氯清
潔劑。
• 為確保穩定供水，應定期卸下出水口配件（噴流調節器和噴
頭）的螺絲並清洗配件。電氣和管道部件應由經認可的專業人
員每三年檢查一次，以此確保始終正常工作和運行安全。
我司產品均採用優質、可回收利用的物料或零件。丟棄電子設備
時應與生活垃圾分類處置，應將其運送至接收電子廢物的收集點
進行處理。有效分類有利於保護環境，可避免因電子產品的棄置
不當而對人類或環境造成不利影響。用戶可聯繫當地政府獲得附
近收集點或回收點的相關資訊。
對於商業用戶，棄置電子產品前可聯繫您的經銷商或供應商獲得
詳細資訊。
11. 環境和回收利用
10. 使用方法
節能方法
設定您需要的熱水器準確溫度，打開熱水龍頭。若
感到水溫過熱，切勿添加冷水，而應降低熱水器溫
度。若添加冷水，已加熱的水會重新冷卻，導致浪
費寶貴能源。此外，在水龍頭中添加冷水將造成電
子電路控制失效，從而導致無法保證溫度恒定。
標誌表示熱水器以節能模式工作 (即短時能耗由節能
模式下的選定溫度和流速決定)。
ECO模式
標誌表示熱水器以節能模式工作 (即短時能耗
由節能模式下的選定溫度和流速決定)。
功率極限
若即熱式電熱水器在全功率運行的情況下不足以將
水加熱至所需溫度，顯示器將顯示 （例如，
冬季一次性打開多個水龍頭的情況）。此時，可通
過降低水龍頭的熱水流速調節。降低流速後，顯示
燈熄滅，設備恢復，可有效提供所需出水溫度。此
時，用戶可提高水龍頭流速。
相容太陽能系統
與太陽能系統一同使用時，例如使用自動混合龍頭，
需保證不能超過最高入水溫度。入水溫度高於設定
值時，顯示幕顯示圖示 ，表示加熱系統已關閉。
ECO模式
功率極限
無輸出單元

P.34 P.35
12. 服務功能表
“服務功能表”條目順序 “nr”：軟件版本
關於已安裝軟件版本的資訊。
“Ch”：無線通道
（僅限無線模組）
關於熱水器及其遙控器當前無線通道的資訊。
“rS”：接收強度
（僅限無線模組）
關於遙控器當前信號品質的資訊，以百分比表示。
根據遙控器與熱水器之間的距離，該數值在10%至
100%之間變化。
“tL”：溫度範圍
最高可設定溫度可降低至在限值範圍內的任何溫
度。
功能許可權必須在安裝跳線限制溫度後才可啟動。
“IIC”：信號
關於連接診斷顯示器後無線通訊品質的資訊。
流量
功率
進水口溫度
出水口溫度
控制值
功率極限
診斷
功能許可權
軟件版本
無線通道
接收強度
溫度範圍
信號
服務功能表
顯示器閃爍
按
≥ 2秒
2
8
4
7
5
3
6
9
+
1
12. 服務功能表
服務功能表列有系統參數，供診斷期間使用。
同時按下按鍵 和按鍵 至少2秒鐘調用服務功能表，顯示器
以“FL”和閃點形式確認啟動。使用按鍵 和 在不同功能表
之間切換。
按下按鍵，觀察當前所選菜單數值。顯示器閃爍數值 (可使用
按鍵 和 切換至某些菜單的數值)。再次按下按鍵 後可回到
下拉菜單。按下按鍵 可回到標準顯示狀態 (標稱值)。若兩分
鐘內未按下任何按鍵，系統將自動切換回標準顯示狀態。
菜單條目如下：
“FL”：流量
顯示當前流速，單位：升/分鐘。
“Po”：功率
顯示當前功耗 (kW)。
“t1”：進水口溫度
顯示進水口溫度 (℃)。
“t2”：出水口溫度
顯示出水口溫度 (℃)。
“CA”：控制值
顯示控制系統的校準值。正常範圍：40–60。
“PL”：功率極限
顯示熱水器當前最大額定功率 (kW)。
“Er”：診斷
顯示最近十條診斷資訊。
按下按鍵 1 後，首次出現的數值顯示錯誤代碼 (參見防護罩上
的“故障檢查與診斷概要”)。使用按鍵 和 可按時間順序顯
示最近10條錯誤代碼。顯示器從“0”到“9”依次顯示錯誤號和
相應錯誤。最近一次錯誤記錄在“0”位置，以往錯誤每條移動1
個位置。
“LL”：功能許可權
可限制熱水器的運行模式。
設置選擇：
“0”無限制 (出廠設置)
“1”無法使用按鍵重設出廠值，可觀察到參數，但不可在設置菜單中修
改
“2”與“1”相同。此外，設置功能表無法打開
“3”與“2”相同。此外，標稱值記憶體1和2不可改變
“4”與“3”相同。此外，標稱值不可改變
說明：選擇設置“1”、“2”、“3”或“4”後，服務功能表中
的系統參數將不可修改。
若要修改系統參數，必須去除供電電路的跳線。“功能許可權取
消”部分已說明。
流量
功率
進水口溫度
出水口溫度
控制值
功率極限
診斷
功能許可權
軟件版本
無線通道
接收強度
溫度範圍
信號
服務功能表
顯示器閃爍
按
≥ 2秒
2
8
4
7
5
3
6
9
+
1
“服務功能表”條目順序

P.36 P.37
快速指南
程序按鈕1
程序按鈕2
功率極限
重新設定
長按
重設完成
按
≥ 3秒
防燙傷保護關閉
確認取消
無輸出單元
溫度設定
1
選擇預設溫度
儲存溫度
按
≥ 3秒
顯示新設定數值 (如43℃)
設定溫度
(如43℃)
35,0..42,0 °C常用溫區
1
確認啟動
防燙傷保護開啟
按
≥ 3秒
服務功能表
顯示器閃爍
按
≥ 2秒
+
1
3
2
+
12
–1 °C +1 °C
A1 A2
B1 B2
2
4 3
1
–0,5 °C +0,5 °C
3
+
1 2
2
8
4
7
5
3
6
9
+
1
MADE IN GERMANY
向下箭頭
向上箭頭
13. 故障檢修
德國寶在生產即熱式電熱水器CEX期間盡心盡責，並在發貨前檢驗
數次。通常不會發生嚴重故障。若發生故障，首先切斷並打開總保
險絲，以此重設電路。然後參考以下表格解決問題，從而避免產生
不必要的客服開支。
只有經認可的專業人員方可
進行維修。
若按照以上表格所列方法無
法排除熱水器故障，請聯繫
您的出口商的服務機構或佳
捷客戶服務中心。請記錄銘
牌詳細資訊。
問題 原因 解決方案
水溫一直處於低位；電子
顯示幕不亮
總保險絲跳閘 更換或接通保險絲
安全壓力保護器
跳閘 請聯繫客服中心
水溫一直處於低位；電子
顯示幕不亮
安全熱熔保護器
跳閘 請聯繫客服中心
顯示閃爍錯誤資訊“Er” 控制系統切斷
斷開後接通保險絲。若仍
閃爍“Er”，請聯繫客服
人員。
熱水流速過低
出水口配件變髒或
鈣化
清潔淋浴頭、射流調節器
或過濾網
精濾器變髒或鈣化 請專業人員清潔精濾器
未達到選擇溫
度，“MAX”亮 水流速度過高 降低龍頭水流速度
未達到選擇溫
度，“MAX”未亮
已通過龍頭添加
冷水
僅打開熱水龍頭；設置使
用溫度
標誌“sun”閃爍 進水口溫度超過標
稱溫度 降低進水口
設備發熱，顯示幕不亮 顯示幕插頭無正確
連接
通知客服，聯繫專業人士
固定插頭位置
MADE IN GERMANY
若連接電線有損壞，應通知合格技師更換原廠配送的備用連接線，
避免損壞設備或造成傷害。
若按照以上表格所列方法無法排除熱水器故障，請聯繫客服中心。

保用條款
此保用提供德國寶產品之機件在正常使用下壹年保用
(自購買日起計算)。
Warranty Terms & Conditions
Under normal operations, the product will gurantee a 1-year full
warranty provided by German Pool (effective from the date of
purchase).
1. Customer who fails to present original purchase invoice will
not be eligible for free warranty service.
2. Customer should always follow the operating
instructions. This warranty does not apply to:
- labour costs for on-site installation, check-up, repair,
replacement of parts and other transportation costs;
- damages caused by accidents of any kind (including
material transfer and others);
- operating failures resulting from applying incorrect voltage,
improper usage, and unauthorized installations
or repairs.
3. This warranty is invalid if:
- the purchase invoice is modified by an unauthorized party;
- the product is used for any commercial or industrial purposes;
- the product is repaired or modified by unauthorized
personnel, or unauthorized parts are installed;
- the serial number is modified, damaged or removed from
the product.
4. German Pool will, at its discretion, repair or replace any
defective part.
5. This warranty will be void if there is any transfer of
ownership from the original purchaser.
1. 未能出示購買發票正本者，將不獲免費維修服務。
2. 用戶應依照說明書的指示操作。本保用並不包括﹕
- 上門安裝、檢驗、維修或更換零件之人工以及
一切運輸費用﹔
- 因天然與人為意外造成的損壞 (包括運輸及其他)﹔
- 電源接合不當、不依說明書而錯誤或疏忽使用本
機所引致之損壞。
3. 於下列情況下，用戶之保用資格將被取消﹕
- 購買發票有任何非認可之刪改；
- 產品被用作商業或工業用途；
- 產品經非認可之技術人員改裝或加裝任何配件；
- 機身編號被擅自塗改、破壞或刪除。
4. 總代理有權選擇維修或更換配件或其損壞部份。
5. 產品一經被轉讓，其保用即被視作無效。
機身號碼 Serial No. :
購買商號 Purchased From :
發票號碼 Invoice No. :
購買日期 Purchase Date :
型號 Model No. :
另請填妥以下表格並與正本發票一併保存，以便維修時核對資料。用戶提供之所有資料必須正確無誤，否則免費保用將會無效。
Please fill out the form below. This information and the original purchase invoice will be required for any repairs. Warranty will be
invalidated if information provided is found to be inaccurate.
此保用只適用於香港及澳門 This warranty is valid only in Hong Kong and Macau
CEX13
客戶服務及維修中心 Customer Service & Repair Centre
Hong Kong
10/F, Kowloon Godown
1-3 Kai Hing Road, Kowloon Bay,
Kowloon, Hong Kong
Tel : [phone]
Fax : [phone]
Email : [email protected]
Macau
3/F, Edificio Industrial Pou Fung,
145 Rua de Francisco Xavier Pereira,
Macau
Tel : [phone]
Fax : [phone]
香港
九龍灣啟興道1-3號
九龍貨倉10樓
電話：[phone]
傳真：[phone]
電郵：[email protected]
澳門
澳門俾利喇街145號
寶豐工業大廈3樓
電話：[phone]
傳真：[phone]
*
貴戶須在購機十天內，以下列其中一種方式向本公司
登記資料，保用手續方正式生效﹕
1)
填妥本公司網頁內之
保用登記表格
www.germanpool.com/
warranty
2)
填妥保用登記卡，
郵寄至本公司。
* This warranty is not valid until customer registration information
is received by our Service Centre within 10 days of purchase
via one of the following means:
1) Visit our website and register
online:
www.germanpool.com/
warranty
2)
Complete all the fields on the
attached Warranty Card and
mail it back to our Customer
Service Centre.

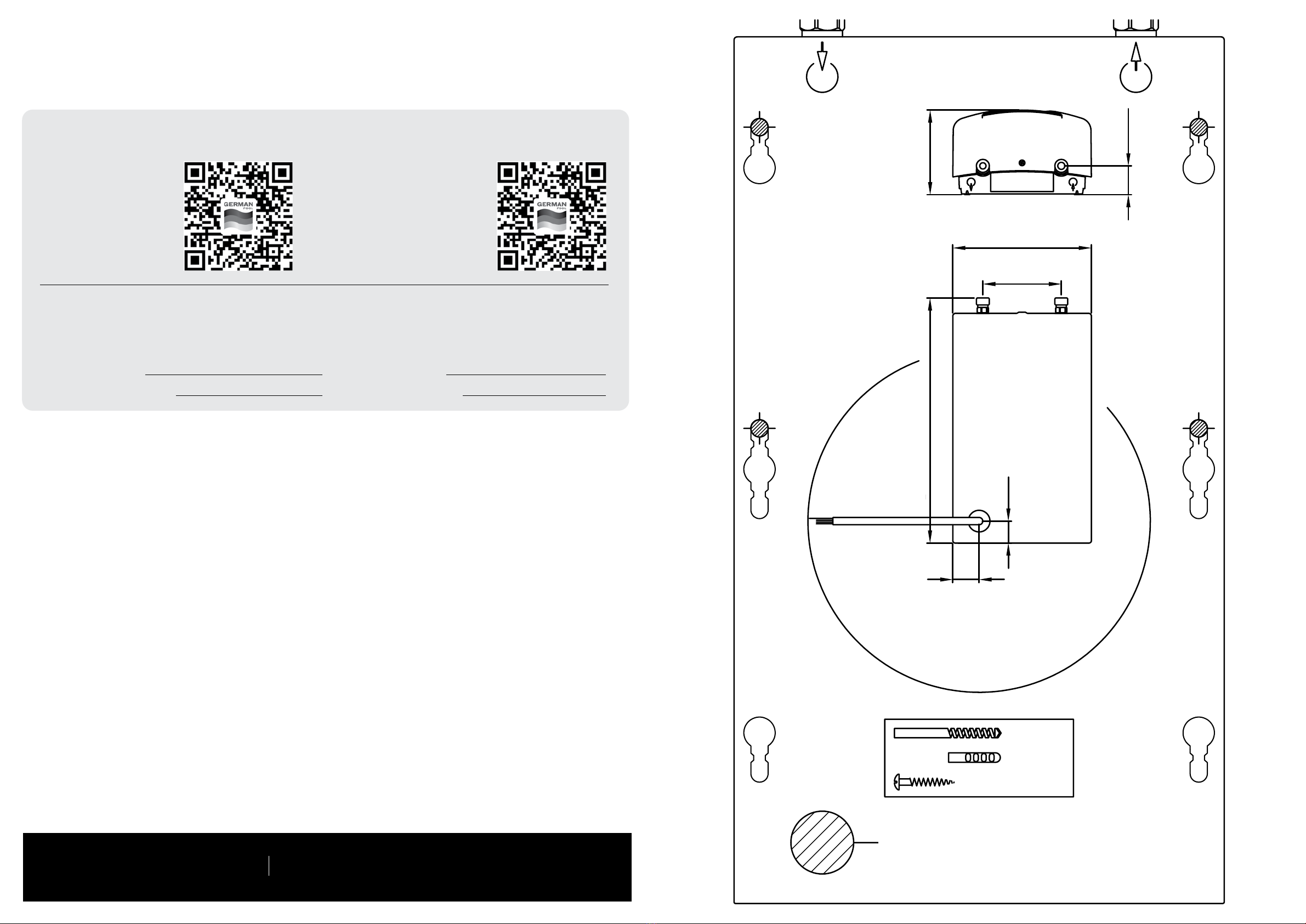

Kabeleinführung / Cable entry
4,2 × 38mm
Ø6mm
600mm max
8
7
312 108
37
177
100
Anschlussraum
Connection zone
