Trilogy®T2 standalone digital cylindrical
keyless door lock
DL2700 SERIES
#1 Best-selling access lock in its class, the
keyless electronic door lock – now with
more codes & power!
• Up to 100 3-5 digit codes, fingertip pro-
grammable: 1 master code, 10 managers,
90 basic users, 3 one-time service codes
• Durable BHMA Grade 1, all-metal vandal-
proof keypad, fingertip programmable
• Standalone keyless access installed in
under an hour; easily retrofits standard
knobsets
• Long life 5AA battery operated;
200,000 cycles, typ.
• Low battery alert; mechanical key
override; non-handed
• Choice of 7 architectural finishes includ-
ing standard US26D Satin chrome, US3
polished brass, and US5 Antique Brass
• Also available with 5 different
interchangeable core preps
• Outdoor version of above, -31˚ to
+151˚F, weatherproof models
Trilogy economical audit trail cylindrical
security lock
DL2800
• 1000 event audit trail log, time-stamped
by day, date, time and user
• 150 schedules: automatic lock/unlock,etc.
• 200 user codes: Master, manager, supervi-
sor and basic users. Also one-time service
code (3-6 digits)
• Weatherproof -31˚ to +151˚F
• 5AA Battery operated; 80,000 cycles, typ.
• Also, DL3000 Advanced version, with 300
user codes & 1600 event audit trail
Trilogy Privacy/Lock Down Pushbutton
–for restrooms, on-call rooms, file rooms,
fitting rooms, classrooms
DL4100 CYLINDRICAL PRIVACY LOCK
• Privacy Pushbutton – on inside door to
temporarily lock-out keypad codes
• Occupied and multi-status LED indicator,
flashes when time-settable privacy/locked
session is on
• Self-stick instructional signage, supplied
(bilingual Eng./Span.)
• 2000 PIN codes; 500 scheduled events;
40,000 audit trail
• Keypad or PC programming/reporting
• Weatherproof -31˚ to +151˚F
• 5AA battery operated; 60,000 cycles, typ.
• Mortise lock version, 4500 Series

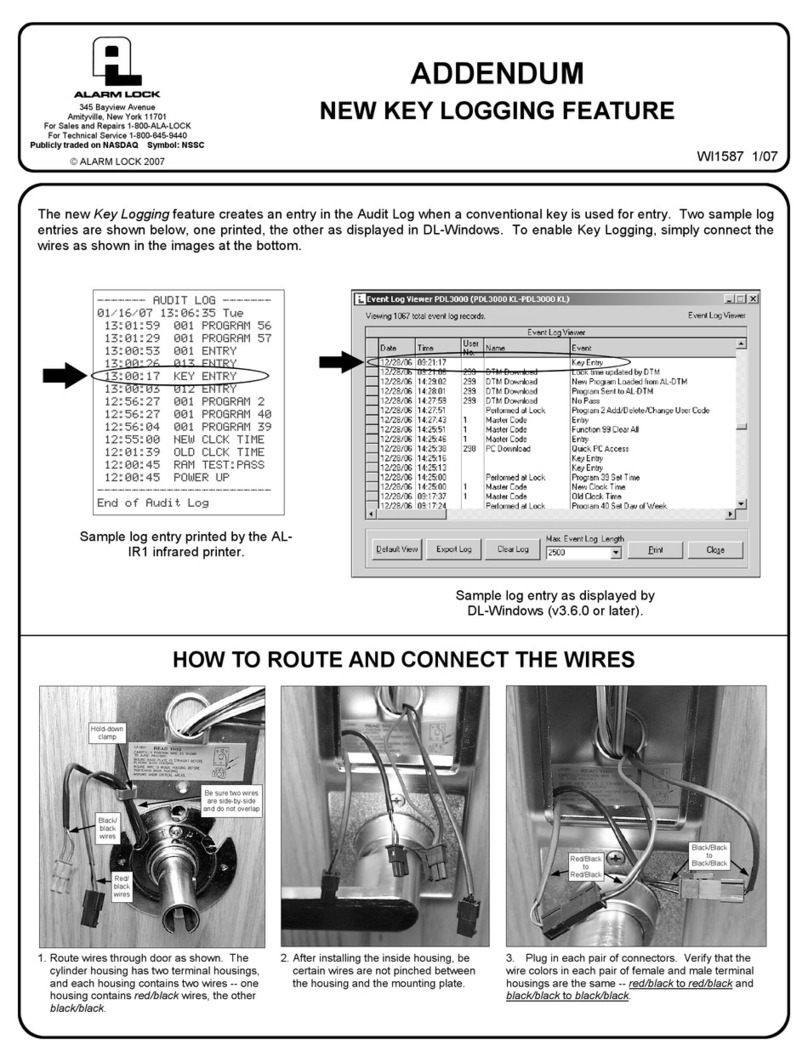

Trilogy Prox Lock With Audit Trail
PDL3000: TRILOGY CYLINDRICAL PROX
LOCK WITH AUDIT TRAIL
• 2000 user codes (3-6 digits) and/or
accepts HID®prox cards and keyfobs
• Multilevel security - Master; manager;
supervisor; basic users
• Easy Tap & Add batch ID card enrollment
mode allows many cards to be quickly
added without PC –also- downloadable
from PC or enroller tool
• 40,000 event audit trail log
• 150 scheduled events
• PC programming/reporting
• Quick passage mode
• Weatherproof -31˚ to +151˚F
• 5AA Battery operated; 60,000 cycles, typ.
Trilogy®
office
pharmacy
hospital retail airport schools
•
•
•
•
•
•
•
•
•
•
•
Trilogy economical audit trail cylindrical
security lock
DL2800
Trilogy
•
•
•
•
•
•
•
Trilogy economical audit trail cylindrical
security lock
DL2800
•
Trilogy
Trilogy
T2
#1 Best-Selling
Electronic Access
Lock in the USA
DL2700 Series
Grade 1
Retrofit Any Knobset
Audit Trail
Restrooms/Classrooms
ID Card Use
All Trilogys feature
no fee/license FREE
Windows-based
software

Trilogy high security mortise locks and
keyless gate locks with and without prox
DL3500 SERIES TRILOGY MORTISE PIN
LOCKS
• 300 User codes: Master, manager, super-
visor & basic users for keyless gate locks
• Fingertip or Windows PC-programmable
• Weatherproof -31˚ to +151˚F
• Real time clock enables up to 500 sched-
uled events and holiday schedules
• 40,000 Event audit trail provides a printed
time/date- stamped log of all electronic
activity
• Long-life 5AA batteries for 80,000 cycles,
typ. and low-battery alert
• 1 3/8” (3.5 cm) mortise cylinder supplied
• 40,000 event audit trail log
• 500 scheduled events, e.g., lock or unlock
• PC programming/reporting
• Quick passage mode
• Program data transferred to lock via PC
or module
• Classroom latch, available in right hand or
left handed lock model
PDL3500 SERIES TRILOGY MORTISE
PIN/PROX ID LOCKS
Built in HID prox reader, similar to above,
but with:
• 2000 user codes (3-6 digits) and/or HID
prox cards/fobs
• Multilevel security - Master; manager;
supervisor; basic users
• Easy Tap & Add batch prox ID card
enrollment mode allows many cards to be
quickly added without PC –also– down-
loadable from PC or prox enroller tool
• PC programming/reporting
• Quick passage mode
• Program data transferred to lock via PC
or module
• 5AA battery operated; 75,000 cycles, typ.
• Classroom latch, available in right hand or
left handed lock model
Trilogy Narrow Stile Pushbutton
aluminum door trim latch locks for
PIN or Prox ID card access
DL1200, DL1300, PDL1300
• DL1200 supports 100 3-5 digit PIN user
codes , fingertip programmable
• DL1300 supports 2000 users, PC
programming/reporting and features
40,000 event audit trail by user and
500 event schedule/real time clock
(e.g., lock/unlock by time)
• PDL1300 Prox-reader model of above,
supports 2000 Prox ID cards and/or PIN
users. Version of 1YND1 with built-in HID
Prox reader and tap-add enroller function
for ID inputting at the lock.
• Aluminum door retrofit outside trim for
Adams Rite®1850, 1950, 4710, 4070,
4730, 4900 Series and MS1850S and
MS1950S Series latch locks
• Add keyless convenience to mechani-
cal latch locks from Trilogy’s all-metal,
vandal-resistant 12-button keypad and/
or automatic timed-scheduled locking/
unlocking, PC programming & audit trail
with P/DL1300 Series
• Weatherproof -31˚ to +151˚F
• Long-life, battery-operated for 100,000
and 80,000 cycles respectively, typ. on
2 lithium 3V batteries, supplied;
low battery alert
• Key override mortise cylinder, 1-1/4"
supplied. (Supports 1-1/8", 1-1/4" and
1-3/8"). Backsets 31/32",1-1/8" and
1-1/2" ; Stile thickness 1-3/4"
• Non-handed; fully field-reversible
• US26D satin chrome or US10B Duronodic
TrilogyExit retrofits existing exit bars
and saves manpower on guard tours
Upgrade existing panic bars with Trilogy®
Exit pushbutton PIN code or Prox ID card
access. Get Trilogy convenience and set
un/lock schedules to save the manpower
required to physically dog-down doors, plus
get event logs of use. Use with panic exit
devices from most major manufacturers.
• ETDL Series support 2000 PIN code us-
ers, Yale, Sargent versions, respectively
• ETPDL Series Prox-reader model of
above, supports 2000 Prox ID cards and/
or PIN users. Built-in HID Prox reader and
tap-add enroller at the lock. Yale, Sargent
versions, respectively
• Clutch mechanism ensures long life and
durability
• Fingertip and/or Windows®PC
Programmable
• Real Time Clock for up to 40,000 Event
Time/Date-Stamped Audit Trail
• Up to 500 Lock/Unlock Schedules (with
Time Zone Support)
• Non-Handed; Fully Field Reversible
• Battery operated; uses 5 AA batteries
• Rim cylinder supplied; Choice of 7 finishes
• Retrofit Von Duprin®99, Corbin®ED5000
& Yale®, Dorma®9300, Arrow®3800,
Sargent®, Precision®1100 & Cal Royal®
9800
High Security Pin/Prox ID
Glass/Aluminum Doors
Exit Doors

Narrow Stile TrilogyExit keyfree conve-
nience and greater security for panic exit
devices on aluminum frame glass doors
Trilogy Narrow Stile Exit Trim retrofits
Arrow®, DCI®, Von Duprin®and Dorma®
panic exit bars - ideal for storefronts!
• DL1200ET supports 100 3-5 digit PIN
user codes, all-metal keypad,
programmable
• DL/PDL1300ET 2000 PINs or Prox IDs
(PDL) plus PC programming, auto-sched-
uling lock/unlock & audit trail
• Weatherproof -31˚ to +151˚F.
• 2 lithium 3V long-life, batteries for
100,000 & 80,000 cycles respectively, typ.
Trilogy Matching Weatherproof
PIN/Prox. ID Access Keypads
DK3000 & PDK3000
TRILOGY PIN & PIN/PROX ID KEYPADS
12/24VAC/DC Wall mount or single gang
box. Ideal for elevator banks, gates and for
use with electric strikes or mag locks. Match
fit and function with Trilogy Locks.
• 2000 users (PIN code or prox ID on PDL
model)
• 2 High-Current Rated 8A Relays for entry,
alarm zone shunting or lock release by
500 event real-time schedule
• Keypad or PC programmable
• 40,000 Event audit trail print to PC
• Timed Egress Input – Selectable door
open times 5, 10 or 15 seconds
• Tamper supervised (reportable to
alarm system)
• Remote release feature; request-to-exit
input
• Weatherproof -31˚ to 151˚F
Trilogy Networx™ communicate wire-
lessly via Ethernet or 802.11
• Wireless networking eliminates door-to-
door programming and audit trail queries
by communicating wirelessly via ethernet
or 802.11
• Systemwide global lockdown/unlock in
under 10 seconds from any lock or the
network’s PC
• Unsurpassed battery-life, exceeding 5
years
• Up to 2000 locks and a PC communicate
wirelessly, AES-encrypted thru 900MHz
bidirectional gateways
• No wiring; No repeaters; No hardwiring
to server; NO extra power supplies, No
access panels
• Remote Management via VPN-connection
• Networx locks share one common da-
tabase with original standalone Trilogy
locks and can operate as standalones until
networking is done
• 5,000 3-6 digit PIN users and/or HID prox
ID cards (PD-models), 500 scheduled
events (incldg program uploads) and
35,000 event log
• Models for all doors: Cylindrical (P/
DL6100 Series); Mortise (P/DL6500 Series)
locks & retrofit exit trim models for most
brands: Von Duprin, Corbin, Yale, Dorma,
Arrow, Sargent (ETDLN/PDLN)
