Albrecht digi-TV 202 User manual

digi-TV 202
User Manual

Important Safety Instructions and Caution
WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF POWER PLUG TO WIDE
SLOT OF AC OUTLET AND FULLY INSERT. (this applies only for USA versions)
l1. Read Instructions All the safety and operating instructions should be read before the
product is operated.
l2. Retain Instructions The safety and operating instructions should be retained for future
reference.
l3. Heed Warnings All warnings on the product and in the operating instructions should be
adhered to.
l4. Follow Instructions All operating and use instructions should be followed.
l5. Cleaning Unplug this product from the wall outlet before cleaning. Do not use liquid
cleaners or aerosol cleaners. Use a damp cloth for cleaning.
l6. Attachments Do not use attachments not recommended by the product manufacturer as
they may cause hazards.
- i -

l7. Water and Moisture Do not use this product near water-for example, near a bath tub, wash
bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.
l8. Accessories Do not place this product on an unstable cart, stand, tripod, bracket, or table. The
product may fall, causing serious injury to a child or adult, and serious damage to the product.
Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold
with the product. Any mounting of the product should follow the manufacturer's instructions, and
should use a mounting accessory recommended by the manufacturer.
l9. Carts and Stands The product should be used only with a cart or stand that is recommended by
the manufacturer.
l9A. A product and cart combination should be moved with care. Quick stops, excessive force, and
uneven surfaces may cause the product and cart combination to overturn.
l10. Ventilation Slots and openings in the cabinet are provided for ventilation and to ensure
reliable operation of the product and to protect it from overheating, and these openings must
not be blocked or covered. The openings should never be blocked by placing the product on a
bed, sofa, rug, or other similar surface. This product should not be placed in a built-in
installation such as a bookcase or rack unless proper ventilation is provided or the
manufacturer's instructions have been adhered to.
l11. Power Sources This product should be operated only from the type of power source indicated
on the marking label. If you are not sure of the type of power supply to your home, consult your
product dealer or local power company. For products intended to operate from battery power, or
other sources, refer to the operating instructions.
l12. Grounding or Polarization This product may be equipped with a polarized alternating-current
line plug (a plug having one blade wider than the other). This plug will fit into the power outlet
only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try
reversing the plug. If the plug should still fail to fit, contact your electrician to replace your
obsolete outlet. Do not defeat the safety purpose of the polarized plug (not for Europe).
Alternate Warnings This product is equipped with a three-wire grounding-type plug, a plug having a
third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If
you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet.
Do not defeat the safety purpose of the grounding-type plug (not for Europe) .
l13. Power-Cord Protection Power-supply cords should be routed so that they are not likely to be
walked on or pinched by items placed upon or against them, paying particular attention to cords
at plugs, convenience receptacles, and the point where they exit from the product.
l14. Protective Attachment Plug The product is equipped with an attachment plug having
overload protection. This is a safety feature. See Instruction Manual for replacement or
resetting of protective device. If replacement of the plug is required, be sure the service
technician has used a replacement plug specified by the manufacturer that has the same
overload protection as the original plug. (NOT FOR EUROPE!)
l15. Outdoor Antenna Grounding If an outside antenna or cable system is connected to the
product, be sure the antenna or cable system is grounded so as to provide some protection
against voltage surges and built up static charges. Article 810 of the National Electrical Code,
ANSI/NFPA 70, provides information with regard to proper grounding of the mast and
supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of
grounding conductors, location of antenna-discharge unit, connection to grounding electrodes,
and requirements for the grounding electrode. See drawing on next page.
l16. Lightning For added protection for this product during a lightning storm, or when it is left
unattended and unused for long periods of time, unplug it from the wall outlet and disconnect
the antenna or cable system. This will prevent damage to the product due to lightning and
power-line surges.
l17. Power Lines An outside antenna system should not be located in the vicinity of overhead
power lines or other electric light or power circuits, or where it can fall into such power lines or
circuits. When installing an outside antenna system, extreme care should be taken to keep from
touching such power lines or circuits as contact with them might be fatal.
l18. Overloading Do not overload wall outlets, extension cords, or integral convenience
receptacles as this can result in a risk of fire or electric shock.
l19. Object and Liquid Entry Never push objects of any kind into this product through openings as
they may touch dangerous voltage points or short-out parts that could result in a fire or electric
shock. Never spill liquid of any kind on the product.
- ii -

l20. Servicing Do not attempt to service this product yourself as opening or removing covers may
expose you to dangerous voltage or other hazards. Refer all servicing to qualified service
personnel.
l21. Damage Requiring Service Unplug this product from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
a) When the power-supply cord or plug is damaged,
b) If liquid has been spilled, or objects have fallen into the product,
c) If the product has been exposed to rain or water,
d) If the product does not operate normally by following the operating instructions. Adjust only
those controls that are covered by the operating instructions as an improper adjustment of
other controls may result in damage and will often require extensive work by a qualified
technician to restore the product to its normal operation,
e) If the product has been dropped or damaged in any way, and
f ) When the product exhibits a distinct change in performance this indicates a need for
service.
l22. Replacement Parts When replacement parts are required, be sure the service technician has
used replacement parts specified by the manufacturer or have the same characteristics as the
original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
l23. Safety Check Upon completion of any service or repairs to this product, ask the service
technician to perform safety checks to determine that the product is in proper operating
condition.
l24. Wall or Ceiling Mounting The product should be mounted to a wall or ceiling only as
recommended by the manufacturer.
l25. Heat The product should be situated away from heat sources such as radiators, heat registers,
stoves, or other products (including amplifiers) that produce heat.
- iii -

Precautions
On Safety
lDo not use wet hands to pull out the plug. It may cause electrical shock.
lIf the player does not work, please pull out the plug for safety. Contact us for further technical
support.
lBefore moving the player, please make sure the power adapter is disconnected from the wall
outlet.
lDo not move the player when playing. It may cause a fire or electrical shock.
lShould any solid object or liquid fall into the cabinet, unplug the player and have it checked by
qualified personnel before operating it any further.
lIf you are not going to use the player for a long while, be sure to disconnect the player from the
wall outlet. To disconnect the power adapter, grasp the plug itself; never pull the cord.
On Placement
lPlease keep a sufficient distance between the player and a radio set. A sufficient distance is also
needed between the player and any other devices with electromagnetic field.
lPlease place the player in a location with adequate ventilation to prevent heat build-up in the
player.
lDo not place the player on a soft surface such as a rug that might block the ventilation holes on
the bottom.
lDo not place the player in a location near heat sources, or in places subject to direct sunlight,
excessive dust, or mechanical shock.
lDo not place the player in a location exposed to cool air. Condensation may occur and cause the
player work incorrectly.
On Operation
lThe player may not work because of improper operation. The limited warranty does not cover
consequent losses that rise from improper usage.
lTurn off the player when you are watching regular TV program. It may cause a picture distortion.
lThe player will not work correctly when affected by exterior elements such as static electricity. In
such cases, pull out the power adapter and plug it back to the outlet again.
- iv -

Table of Contents
Parts of the Handheld TV ........................................... 1
Remote Control Operations........................................ 3
Remote Control Battery Installation ............................ 3
General Operating Instructions .................................. 4
Charging the Battery and connecting Power Adapter........5, 6
Basic Keys & Operations............................................... 7

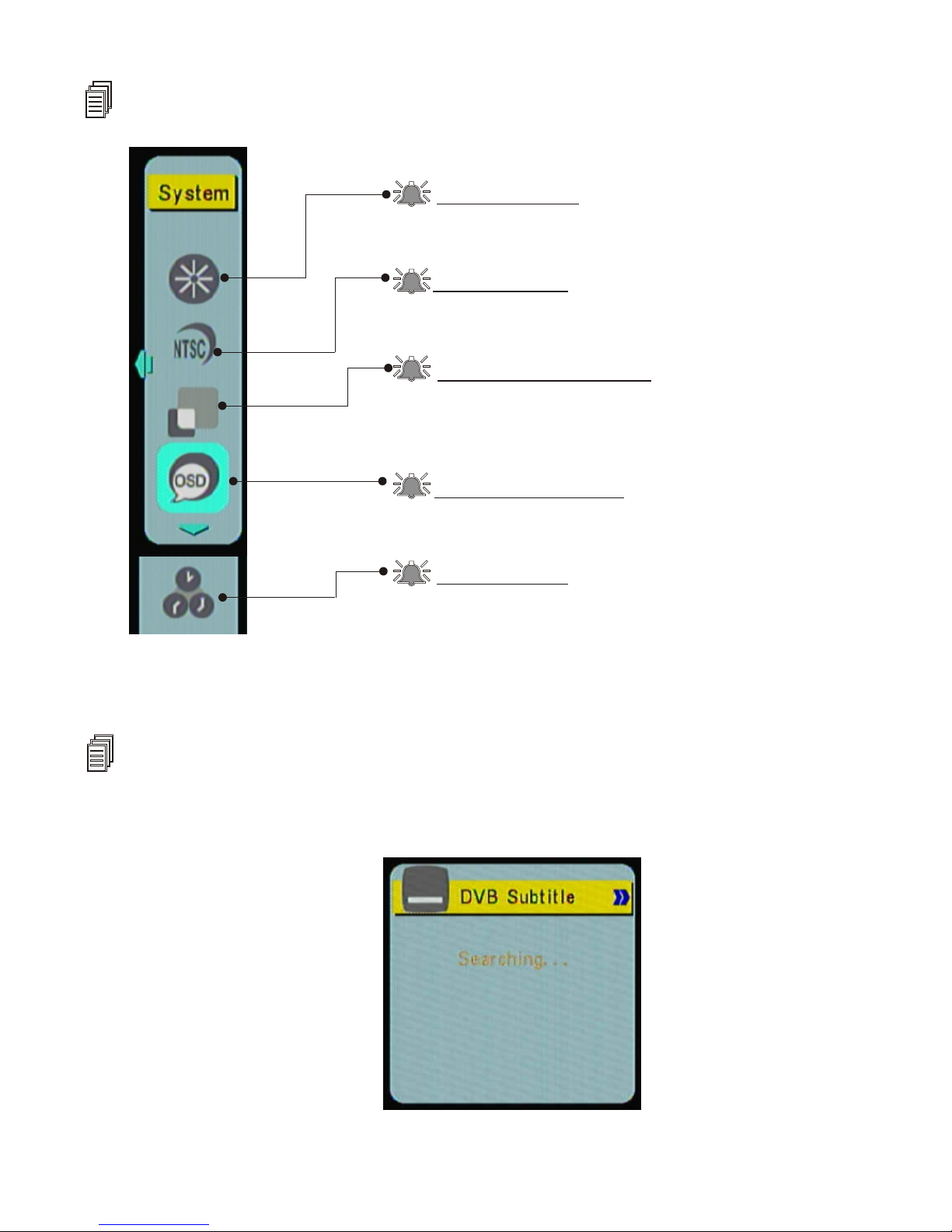

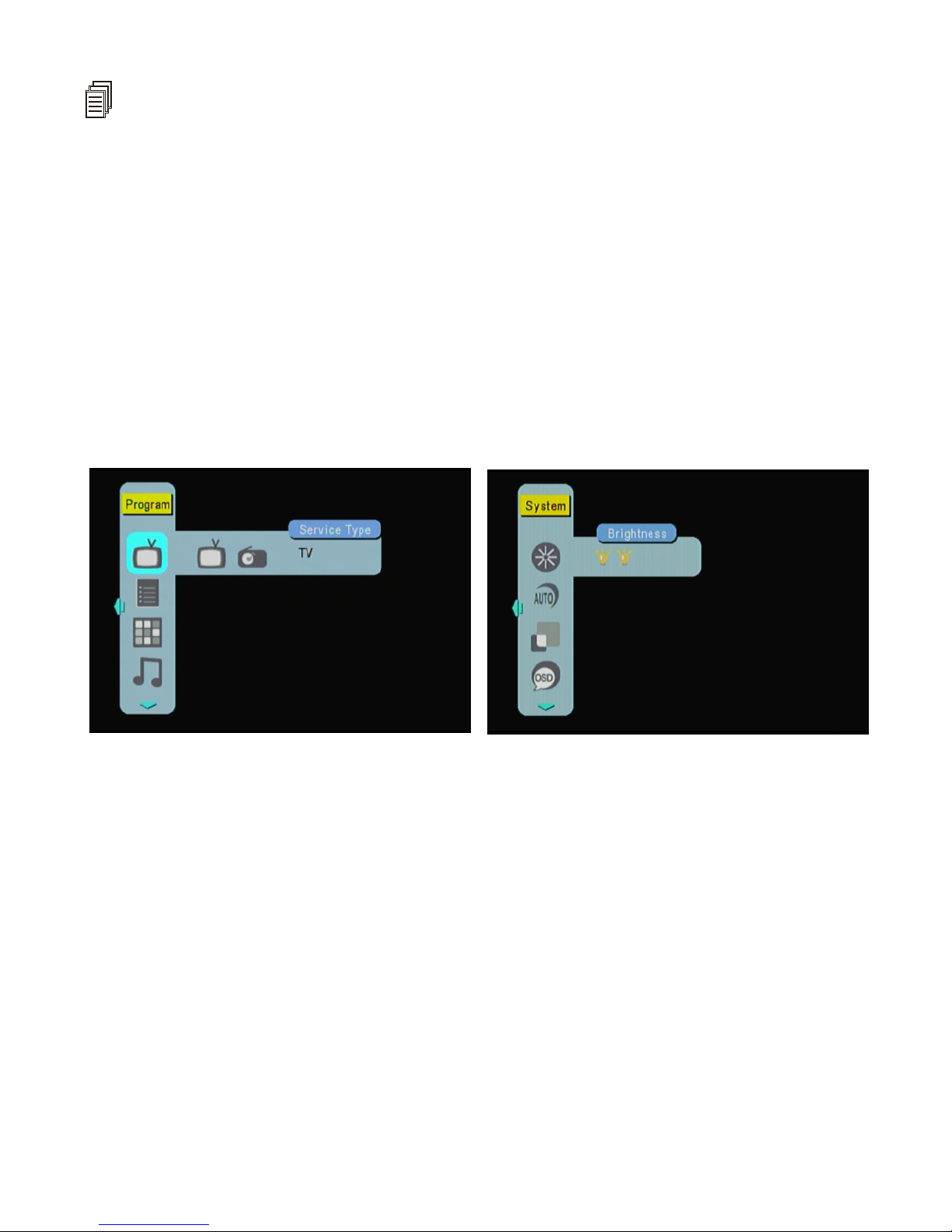

Menu Steps Description ............................................... 8

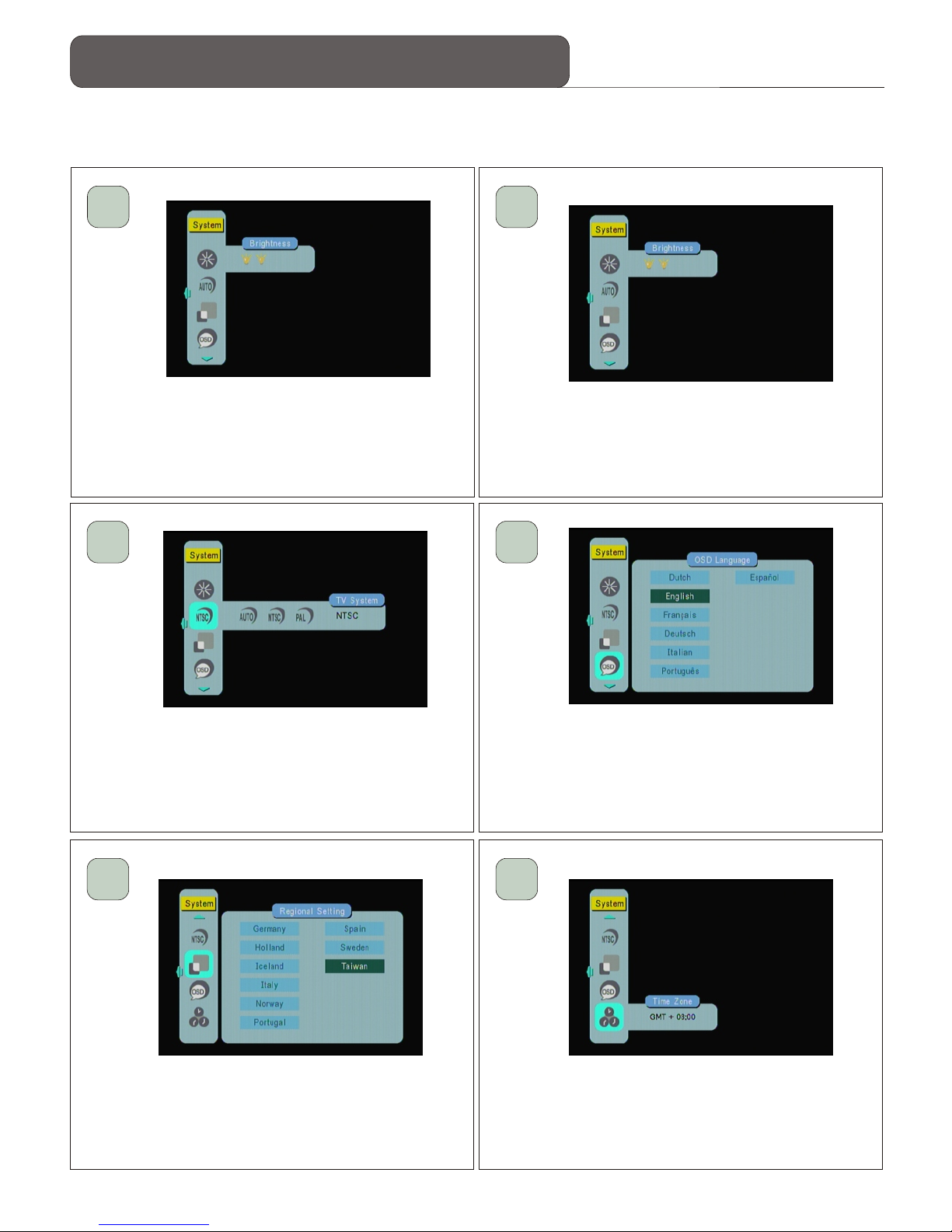

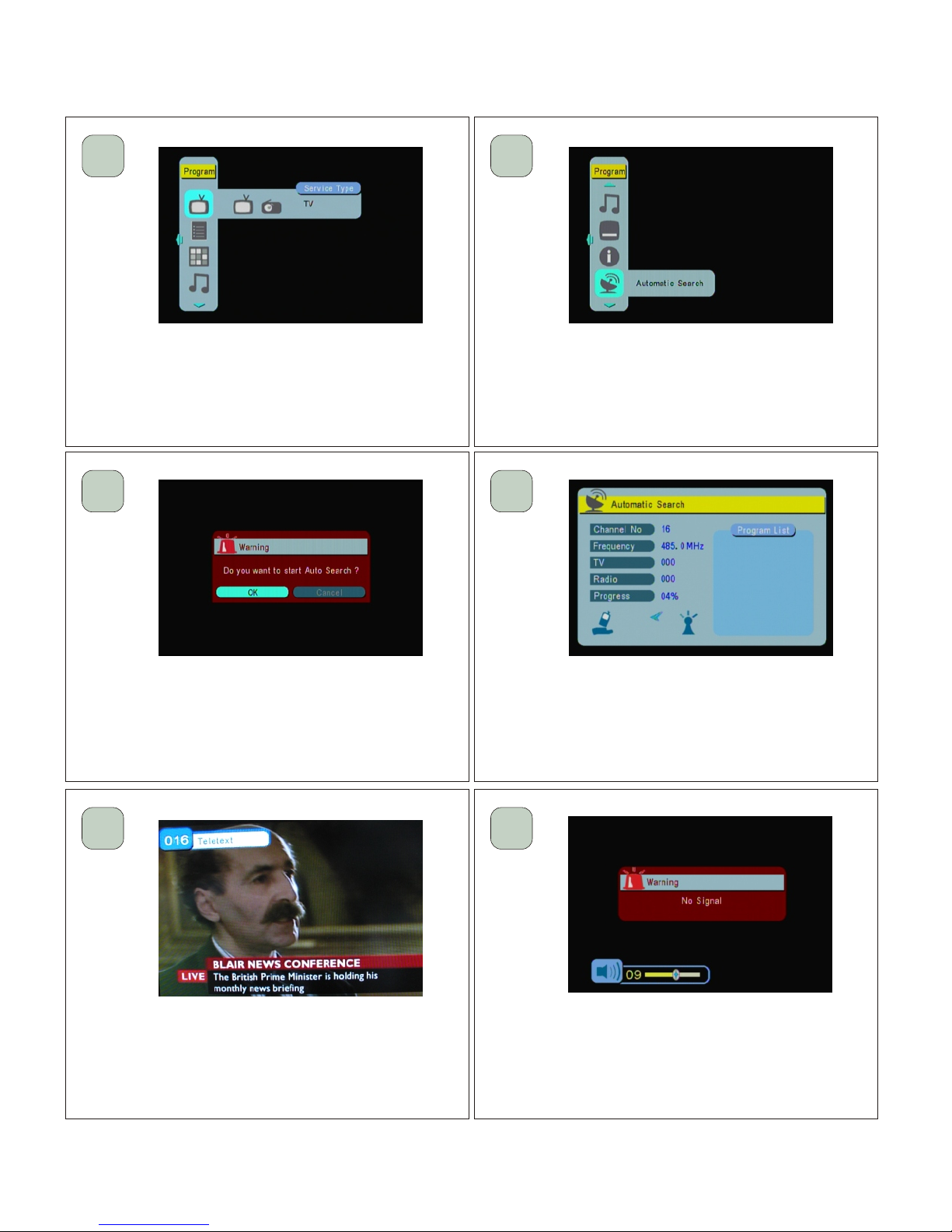

Setup & Channel Searching Steps .......................12 & 15
Connection to TV Set ............................................... 16
Trouble Shooting Q&A ..............................................17
Specification ...........................................................18

LCD panel
Antenna
Infrared remote sensor
Allow remote controller to navigate this unit.
Power LED
When the unit operates, the LED will glow green.
Battery LED
Battery status indicator. When the battery is getting low, the LED
will glow red. And after successfully charging, it will glow green.
Display on-off control button
Menu/Exit button
OK/Mute button
Multi selector (CH+(p)/CH-(q)/VOL+(u)/VOL-(t))
Speaker
Parts of the Handheld TV
vz{|~: Please refer to the page 9 for more detailed description.
- 1 -

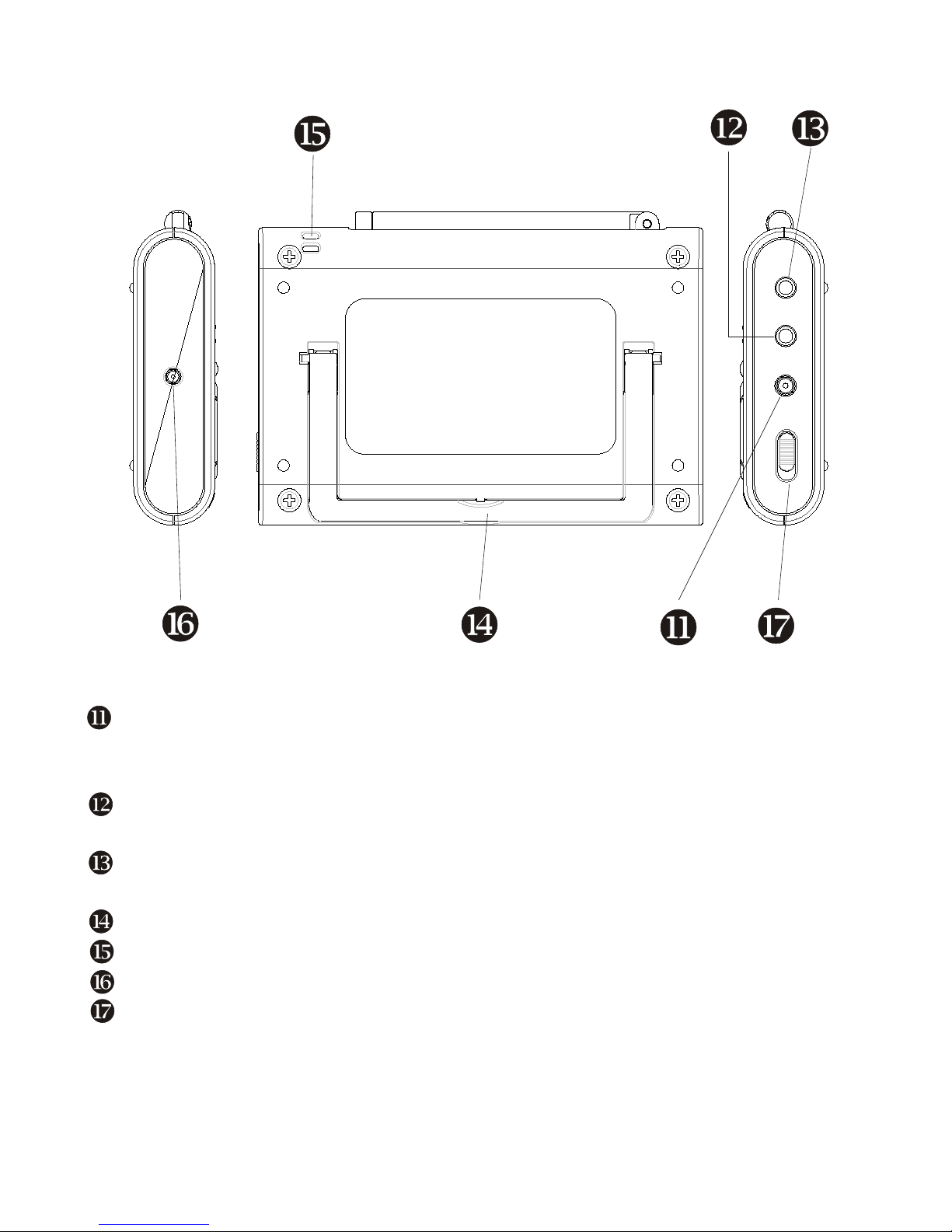

Video out connector
Output the video signal.
Earphone/Audio out connector (earphones not supplied)
Output the stereo audio signal.
Eyelet for TV strap
Holder
External antenna connector
Power switch
DC power connector
Connect with the AC/DC power adapter or the car cigarette
lighter power adapter (not supplied with unit).
- 2 -

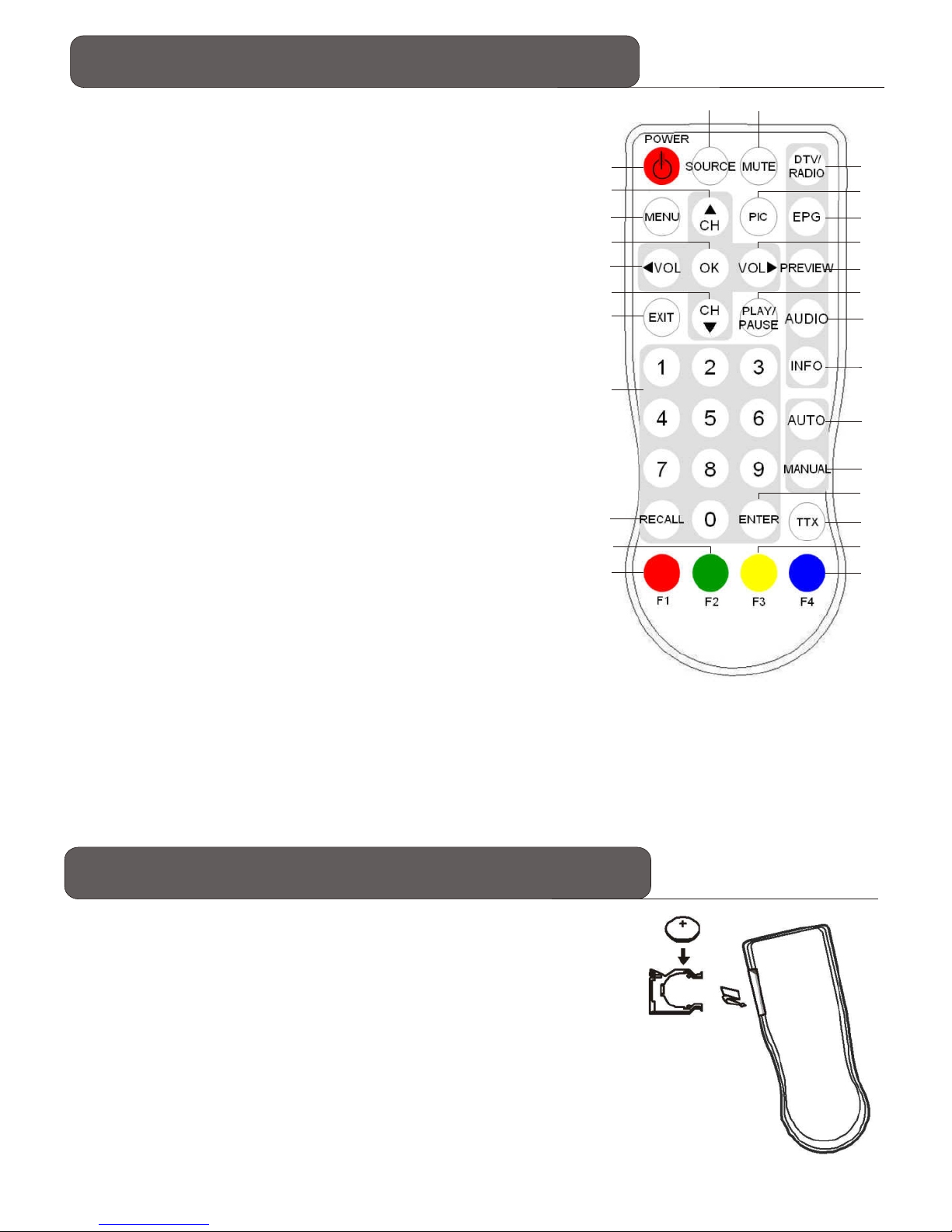

Remote Control Operations
(2)
(1) (13)
(14)
(15)
(16)
(17)
(18)
(19)
(20)
(21)
(23)
(24)
(25)
(26)
(27)
(22)
(4)
(3)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(1) SOURCE: no function
(2) POWER: power-on/stand-by selection
(3) Channel selection up or move the cursor up
(4) MENU: enter the setup menu
(5) OK: select the highlight item
(6) Volume down or move the cursor left
(7) Channel selection down or move the cursor down
(8) EXIT: exit the current setup
(9) Digital keys
(10)RECALL: return to the last selected channel
(11)Red button : sub-title key in the normal operation
mode or a hot key to go to the browsed Teletext
pages in teletext mode
(12)Green button : a hot key to go to the browsed
Teletext pages in the teletext mode
(13)MUTE: mute control
(14)DTV/Radio selection
(15)PIC: no function
(16)EPG: electronic program guide
(17)Volume up or move the cursor right
(18)PREVIEW: preview selected programs
(19)PLAY/PAUSE selection
(20)AUDIO: second language, and stereo selection
(21)INFO: DTV system information
(22)AUTO: automatic channel scanning
(23)MANUAL: manually select channels
(24)ENTER: enter the selected channel no.
(25)TTX: Teletext key to display Teletext (has to be supported by broadcaster)
(26)Yellow button : page up in the EPG mode or a hot key to go to the browsed
Teletext pages in the teletext mode
(27)Blue button: page down in the EPG mode or a hot key to go to the browsed
Teletext pages in the teletext mode
Remote Control Battery Installation
Before attempting to operate your remote
control, install the battery as described below.
(1) Turn the remote control face down.
(2) Press down on the ridged area of the battery
cover and slide it off.
(3) Slide another battery in.
- 3 -

General Operating Instructions
Turning the unit ON or OFF
Connecting to the earphone
Connecting to the external antenna
Earphone
plug
To turn on the system, slide the Power
switch on the top side of the unit to the
position labeled “ON”.
Insert the antenna plug into the
“Ext. ANT” jack on the other side
of the unit.
To turn off the system, slide the Power
switch on the top side of the unit to the
position labeled “OFF”.
Insert the earphone plug into the “ “
jack on the side of the unit.
Antenna plug
- 4 -
EXT.ANT

Connecting to the AC/DC power adapter
DC plug
AC plug
Insert the DC plug into the “ “ jack on the side of the unit.
Attach the AC plug to the AC outlet.
This unit contains built-in a rechargeable
battery. When the “Battery LED” lights in
red, the battery will stop supplying power
to the system. Then, you need to charge
the battery. Please follow the steps
below.
1. You can watch the TV and recharge
the battery simultaneously.
2. Connect the unit to the external power
source via AC/DC power adapter or car cigarette lighter adapter.
You can refer to the diagram below and in next page.
2. When the battery is being charged, the battery led will glow red.
3. “Battery LED” will turn green after the battery is full.
4. Charge your battery for a minimum of 4 hours to get fully charged.
Battery LED
Charging the Battery
- 5 -

NOTICE
．DO NOT, under any circumstances, use any other
model of AC adapter kit or car cigarette lighter adapter to
either charge the battery of this unit or supply power to this
unit. Failure to observe this precaution could result in
overheating or damage to this unit.
．After 300 recharging cycles, the capacity of the battery will be
reduced to 70%. Hence, after many times of recharging,
please consider replacing the battery.
．The battery may become hot during playing or charging.
．Recharge the battery at room temperature between
0°C and 40°C.
Connecting to the car cigarette lighter adapter
DC plug
Car cigarette lighter plug
Insert the DC plug into the “ “ jack on the side of the unit.
Attach the car cigarette lighter plug to the car’s cigarette
lighter power receptacle (12 V cars only).
- 6 -

Basic Operation
Press [CH+] button or [CH-]
button to select the TV/Radio
channel (VHF + UHF)
TV Channel selection
Press [VOL-] button or
[VOL+] button to adjust
the volume.
Volume adjustment
In menu mode, press [CH+] button and
[CH-] button to move cursor up and down.
Press [VOL-] button and [VOL +] button
to move cursor left and right.
Navigating the Menu
In menu mode, press this
button to make selection
Make selection
Press this button lasting 1
second to turn off or turn on
the panel back light.
Panel control
Press this button to mute
or restore the volume.
Mute control
Press this button to
enter or exit the menu
mode .
Menu
This section details the basic TV operations. Please note, that
this model allows VHF Band III and UHF Band IV and V reception.
KEY FUNCTION
- 7 -
MuteMute
O KO K
--
--
++
++

MENU
- 8 -
There are two pages of the menu, including program and system.
You can use [VOL-] button to select each page.
In the program page of the menu, you can highlight the service ty-
pe, program list, preview, audio channel, subtitle language,
program info, automatic search, or manual search to perform
TV program related operation.
And in the system page of the menu, you can highlight:
the brightness, TV system, regional setting, OSD language
and the time zone to adjust the system setting.
You can use [CH+] and [CH-] button to highlight the item and
press [VOL+] button and [VOL-] button to select your choice
and then press [OK] button to set the setting.

PROGRAM PAGE
Service Type
Preview
Audio Channel
Subtitle language
Automatic Search
Manual Search
Program info
Program List
Selection of either TV or Radio programs
To preview up to 9 selected channels
Selection of either master or secondary
language
To select a subtitle language available
from service providers
To search the program channels
automatically
To search the program channels
manually
To provide the TV program information
about the system parameters and
signal information
To show the information of all of the
available channels
- 9 -

SYSTEM PAGE
Brightness
Regional Setting
OSD Language
Time Zone
TV System
To adjust the brightness of the screen
To select the region where you are
located in
Selection of the OSD language
To set the time zone
To select the TV display format
SUBTITLE
If the system operator provides multi-language subtitle. You can
use [CH+] button and [CH-] button to select language and press
[OK] button.
- 10 -

PROGRAM LIST (EPG, Electronic Program Guide)
PREVIEW
Program List
Current program
name
Next on program
name
TV scene
It shows the information of all of the available channels. You can
use [CH+] button and [CH-] button to choose any channel, while
[VOL-] button and [VOL+] button are the keys to show the details
of the channel.
Preview up to 9 selected channels.
AUDIO
Master/secondary language selection. You can use [VOL-] button
and [VOL+] button to select the language you like to listen.
- 11 -

MANUAL SEARCH
PROGRAM INFORMATION
You can use [VOL-] button and [VOL+] button to select the desired
channel and press [OK] button to perform program searching.
The found programs will be appended to the program list.
It provides you the TV program information about the system
parameters and signal information. Press [MENU] button to exit
the screen.
Selected channel
Channel information
Signal information
System parameters
Signal information
Antenna selection information
- 12 -

First Time to Setup
When the first time this unit is turned on, please follow the following
steps to finish the initialization.
1
34
5 6
2
Press [MENU] button first and
then press [VOL-] button to enter
the menu for system configuration
selection.
Press [VOL+] button and highlight
your TV system output and press
[OK] button.
Press [VOL+] button and highlight
your OSD language and press
[OK] button.
Press [VOL+] button and highlight
your region and press [OK] button.
Press [VOL+] button to adjust the
brightness level of the display and
press [OK] button.
Time will automatically set by your
region. If you need to correct it,
press [CH+] button or [CH-] button
to adjust the time.
- 13 -

7
9
10
11 12
8
Back to the top of menu and press
[VOL-] button to enter program
menu screen.
Highlight the automatic search
item and press [OK] button.
Channel searching will take a few
minutes.
Highlight the OK item and press
[OK] button.
When the channel searching is
over, press [CH+] button or [CH-]
button to select the program.
You could press [VOL+] button or
[VOL-] button to adjust the volume.
- 14 -
