OmniSwitch 6865 Hardware Users Guide 1
About This Guide
Related Documentation
The following related documents can found at enterprise.alcatel-lucent.com/userguides:
• OmniSwitch CLI Reference Guide
• OmniSwitch AOS Switch Management Guide
• OmniSwitch AOS Network Configuration Guide
• OmniSwitch AOS Advanced Routing Configuration Guide
• OmniSwitch AOS Data Center Guide
• OmniSwitch AOS Specifications Guide
• OmniSwitch Transceivers Guide
Product Release Notes
Release Notes can be downloaded from the Customer Support website (account login required).
Customer Support
Web: support.esd.alcatel-lucent.com
Email: ebg_global_supportcent[email protected]

OmniSwitch 6865 Hardware Users Guide 2
1 Chassis and Power

OmniSwitch 6865 Hardware Users Guide 3
OmniSwitch 6865-P16X
The Alcatel-Lucent Enterprise OmniSwitch® 6865 series are Gigabit Ethernet (GigE) and 10 Gb Ethernet
(GigE) switches designed for demanding electrical and severe temperature environments.
OmniSwitch 6865-P16X (Side Mounted Power Supply Tray Shown)
OmniSwitch 6865-P16X Chassis Specifications
Fans None
Power Supplies 2 total (1 primary PSU and 1 optional backup PSU)
Rack Unit Dimensions 2 RU (Additional clearance is required for airflow,
see “Providing Air Flow and Minimum Recommended
Clearances” on page 20 for more information.)
Dimensions (WxHxD) 21.6 cm (8.5 in) x 8.81 cm (3.47 in) x 26 cm (10.24 in)
Weight 5.07 kg (11.18 lb)
Operating Temperature (TMRA) With airflow: -40°C to 74°C (-40°F to 165°F)
Without airflow: -40°C to 65°C (-40°F to 149°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Operating and Storage Humidity 5% to 95% non-condensing
Altitude 4000m/13,000 feet
75W HPoE Ports 4
30W PoE+ Ports 8
SFP Ports 2
1G/10G SFP+ Ports 2

OmniSwitch 6865 Hardware Users Guide 4

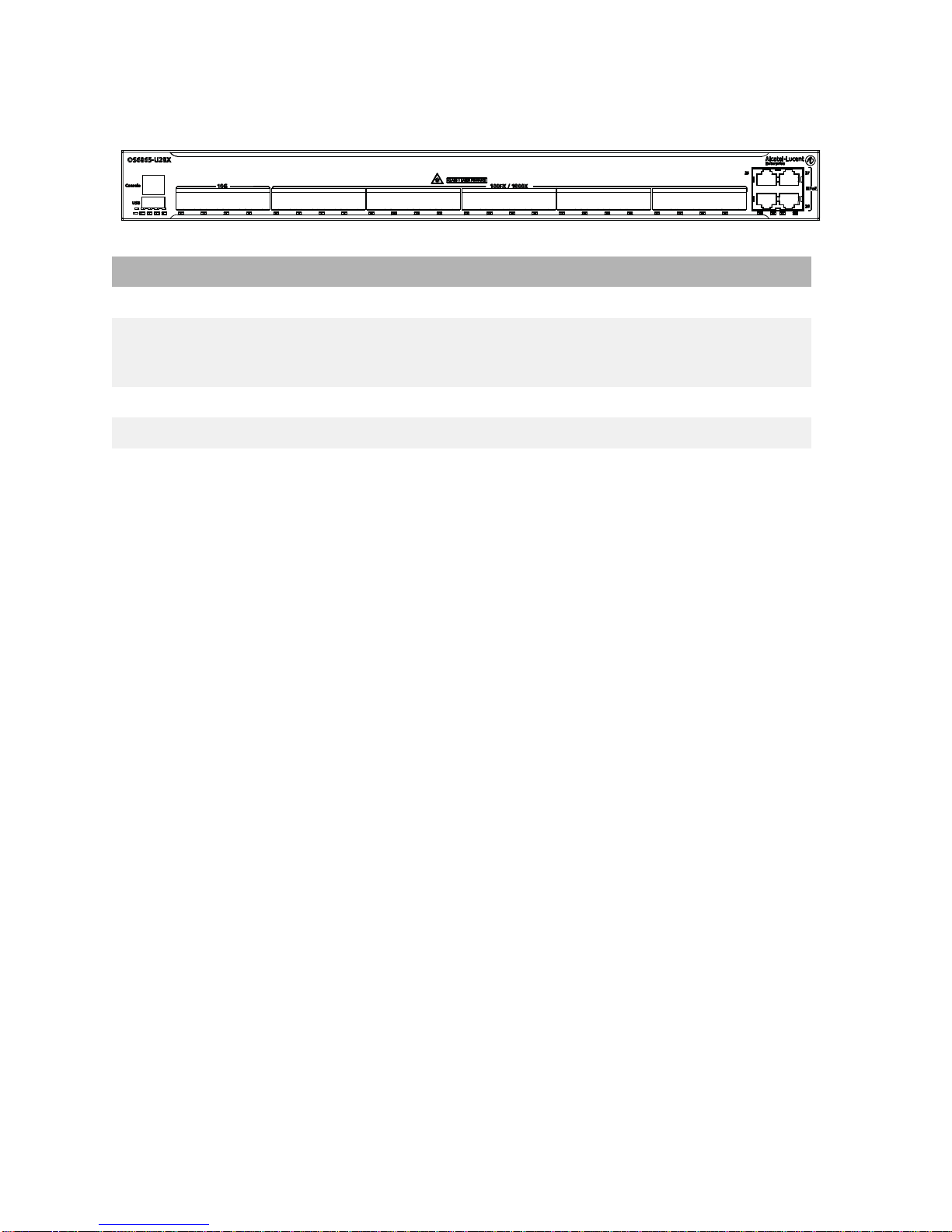

Chassis Front Panel
Note: For LED descriptions, refer to “System and Port LEDs” on page 33.
1588v2 Capability Supported
PoE Power Budget See “Power over Ethernet Budget” on page 40 for more
information.
Power Consumption (idle) 30W
Front Panel Descriptions (Left to Right)
Console (RJ45) For console or modem
USB Type A For storage devices that can download code or save configuration
information, such as flash-based pen drives or external hard
drives. For Maintenance Only.
Ports 1 and 2 Two (2) fixed SFP+ (1G/10G)
Ports 3 and 4 Two (2) 1000Base-X SFP
Ports 5 through 8 Four (4) 10/100/1000Base-T PoE+ (supporting 75W HPoE per port)
Ports 9 through 16 Eight (8) 10/100/1000Base-T PoE+ (supporting 30W PoE per port)
OmniSwitch 6865-P16X Chassis Specifications

OmniSwitch 6865 Hardware Users Guide 5
Chassis Rear Panel
Rear Panel Descriptions (Left to Right)
PS2 Power Supply Connector
PS1 Power Supply Connector
Grounding Block Chassis Ground

OmniSwitch 6865 Hardware Users Guide 6
OmniSwitch 6865-U12X
OmniSwitch 6865-U12X Chassis Specifications
Fans None
Power Supplies 2 total (1 primary PSU and 1 optional backup PSU)
Rack Unit Dimensions 2 RU (Additional clearance is required for airflow,
see “Providing Air Flow and Minimum Recommended
Clearances” on page 20 for more information.)
Dimensions (WxHxD) 21.6 cm (8.5 in) x 8.81 cm (3.47 in) x 26 cm (10.24 in)
Weight 5.17 kg (11.40 lb)
Operating Temperature (TMRA) With airflow: -40°C to 74°C (-40°F to 165°F)
Without airflow: -40°C to 65°C (-40°F to 149°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Operating and Storage Humidity 5% to 95% non-condensing
Altitude 4000m/13,000 feet
75W HPoE Ports 4
30W PoE+ Ports 0
SFP Ports 6
1G/10G SFP+ Ports 2
1588v2 Capability Supported
PoE Power Budget See “Power over Ethernet Budget” on page 40 for more
information.
Power Consumption (idle) 29W

OmniSwitch 6865 Hardware Users Guide 7
Chassis Front Panel
Note: For LED descriptions, refer to “System and Port LEDs” on page 33.
Front Panel Descriptions (Left to Right)
Console (RJ45) For console or modem
USB Type A For storage devices that can download code or save configuration
information, such as flash-based pen drives or external hard
drives. For Maintenance Only.
Ports 1 and 2 Two (2) fixed SFP+ (1G/10G)
Ports 3 through 8 Six (6) 100Base-FX/1000Base-X SFP
Ports 9 through 12 Four (4)10/100/1000Base-T PoE+ (supporting 75W HPoE per port)

OmniSwitch 6865 Hardware Users Guide 8
Chassis Rear Panel
Rear Panel Descriptions (Left to Right)
PS2 Power Supply Connector
PS1 Power Supply Connector
Grounding Block Chassis Ground

OmniSwitch 6865 Hardware Users Guide 9
OmniSwitch 6865-U28X
OmniSwitch 6865-U28X Chassis Specifications
Fans None
Power Supplies 2 total (1 primary PSU and 1 optional backup PSU)
Rack Unit Dimensions 1 RU (Additional clearance is required for airflow,
see “Providing Air Flow and Minimum Recommended
Clearances” on page 20 for more information.)
Dimensions (WxHxD) 43.75 cm (17.2 in) x 4.4 cm (1.73 in) x 26.88 cm (10.6 in)
Weight 6.28 kg (13.85 lb)
Operating Temperature (TMRA) With airflow: -40°C to 74°C (-40°F to 165°F)
Without airflow: -40°C to 65°C (-40°F to 149°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Operating and Storage Humidity 5% to 95% non-condensing
Altitude 4000m/13,000 feet
75W HPoE Ports 4
30W PoE+ Ports 0
SFP Ports 20
1G/10G SFP+ Ports 4
1588v2 Capability Supported
PoE Power Budget See “Power over Ethernet Budget” on page 40 for more
information.
Power Consumption (idle) 50W

OmniSwitch 6865 Hardware Users Guide 10
Chassis Front Panel
Note: For LED descriptions, refer to “System and Port LEDs” on page 33.
Front Panel Descriptions (Left to Right)
Console (RJ45) For console or modem
USB Type A For storage devices that can download code or save configuration
information, such as flash-based pen drives or external hard
drives. For Maintenance Only.
Ports 1 through 4 Four (4) fixed SFP+ (1G/10G)
Ports 5 through 24 Twenty (20) 100Base-FX/1000Base-X SFP
Ports 25 through 28 Four (4) 10/100/1000Base-T PoE+ (supporting 75W HPoE per port)

OmniSwitch 6865 Hardware Users Guide 11
Chassis Rear Panel
Rear Panel Descriptions (Left to Right)
PS2 Power Supply Connector
PS1 Power Supply Connector
Grounding Block Chassis Ground
Ports 29 and 30 QSFP+ VFL Ports

OmniSwitch 6865 Hardware Users Guide 12
Power Supplies
OS6865-BP - 180W AC Power Supply
OS6865-BP - 180W Power Supply
Description Modular AC power supply. Up to two (2) power supplies may
be installed.
Dimensions (H x W x L) 5.1 cm x 9.5 cm x 18.1 cm (2 in x 3.74 in x7.12 in)
Weight 1.36 kg (3.00 lbs)
Input Voltage / Current / Hz 100 VAC to 240 VAC / 3 A - 1.5 A / 50-60 Hz
Output Voltage / Current +56 VDC / 3.22 A
Fans 0
Front-of-Supply Component Descriptions (Left to Right)
Power Cord Connector
Thumb Screw
Grounding Block Power Supply Ground
Status LED Solid Green indicates normal operation
Rear-of-Supply Component Descriptions
DB-15 Connector (with Guide Pins)
Power Supply Front Power Supply Rear

OmniSwitch 6865 Hardware Users Guide 13
OS6865-BP-D - 180W/140W DC Power Supply
OS6865-BP-D 180W/140W DC Power Supply
Description Modular DC power supply. Up to two (2) power supplies may
be installed.
Dimensions (H x W x L) 5.1 cm x 9.5 cm x 18.1 cm (2 in x 3.74 in x7.12 in)
Weight 1.44 kg (3.17 lbs)
Input Voltage / Current -20 VDC to -28 VDC / 12A
-36 VDC to -72 VDC/ 6A
Output Voltage / Current -56V/2.5A (140W)
-56V/3.22A (180W)
Fans 0
Front-of-Supply Component Descriptions (Left to Right)
DC Power Connector See “DC Power Supply Connection” on page 14
Thumb Screw
Grounding Block Power Supply Ground
Status LED Solid Green indicates normal operation
Rear-of-Supply Component Descriptions
DB-15 Connector (with Guide Pins)
Power Supply Front Power Supply Rear

OmniSwitch 6865 Hardware Users Guide 14
DC Power Supply Connection
Connecting a DC Cable Harness to the Chassis Power Supply
When plugging in the cable, insert the connector end of the cable harness into the power supply
connector until it clicks firmly into place. This is an indication that the connector is secure and properly
seated. Secure the screws.
Connecting a DC Cable Harness to the DC Power Source
The other end of the cable harness is bare. Users must assemble and connect this end to the DC power
source or to a cable coming from the power source. In addition to following the important guidelines
listed below, be sure to consult manufacturer specifications for the DC power source before starting.
• Connect the power supply to a reliably grounded -24V or -48V DC SELV source.
• Use common DC return connections for the DC power supplies. The DC return terminal conductor
should be connected to the equipment frame.
• The branch circuit overcurrent protection must be rated 15A.
• Use two 12 AWG copper conductors.
• A readily accessible disconnect device that is suitably approved and rated shall be incorporated in
the field wiring.
CAUTION: Installation of a DC cable that is more than 3 meters in length is
subject to LOCAL CODES and AUTHORITIES. Please contact your electrician and
the Local AHJ (Authority Having Jurisdiction) to follow the Electrical Codes
before use of proper installation methods.
Twisted pair wire (red and black) for a DC power supply
Connecting a DC Power Source
The DC power supply contains a power connector with three (3) square slots for connecting the positive,
negative, and ground wires from a DC power source.
OmniSwitch DC Power Supply Connector
MIN 1 TURN PER 1.5
HALF TURN PER .75
Black
Red
Side Screws for Connector Removal
+ -

OmniSwitch 6865 Hardware Users Guide 15
A clamp inside each slot keeps the power wire tightly in place during operation. The DC power supply
connector has side screws that can be used to remove the connector if required.
Installing DC Power Source Wire Leads
These instructions describe how to connect your 3-wire DC power source to the power connector on your
DC power supply. A small flat-tip screwdriver and a wire stripper are required for this procedure.
1. Prepare the three (3) wires—12 gauge—that will plug into the power supply. First make sure they are
not plugged into the DC power source. Next, use a wire stripper to carefully strip between .24 and
.30 inches (6-7.5 mm) off the end of each wire, removing the outer insulation to expose the copper
core.
2. Open the clamp for the ground wire slot by inserting a small flat-tip screwdriver into the top of the
appropriate circular hole. Loosen the screw so that the clamp for the ground wire opens.
Opening Connector for Ground Wire
3. Insert the ground wire lead into the slot. The lead you insert must match the lead attached to the
DC power source. Push the wire in far enough such that it reaches the back wall of the connector,
about a half inch inside.
Warning. You must plug DC wire leads into the correct holes in the DC power connector. Use the
labels above the DC power connector as a guide to positive, negative, and ground connections. If
the wire leads are plugged into the wrong holes, the power supply will not work properly and
damage to the unit may result.
Attaching the Ground Wire
4. Tighten the clamp by tightening the screw above the slot into which you inserted the wire lead. The
wire lead should be securely attached inside the connector. You should be able to pull on the wire
and not dislodge it.
Warning. For both -24V and -48V input voltages, the positive (+) wire of the sourcing equipment,
such as a battery or rectifier, must be connected to the positive (+) terminal of the DC power
supply and the negative (-) wire of the sourcing equipment must be connected to the negative (-)
Clamp inside square hole will open
when screw is loosened in top cir-
cular hole.
Loosen Screw.
+ -
Ground Wire
+ -

OmniSwitch 6865 Hardware Users Guide 16
terminal of the DC power supply. This rule always applies to both -24V, and -48V input voltages,
regardless of the polarity signs shown on the power supply specification labels such as: -48V, +24V,
or -24V."
5. Repeat Steps 2 through 4 for the remaining positive and negative wire leads.
Correct Polarity Connections
DC Power Source
Switch Power Supply
