Alcatel-Lucent 1200 User manual

Alcatel-Lucent VPN Firewall Brick
®
Model 1200 Security Appliance
User’sGuide
032360-00 REV A
Issue1
June2008
Alcatel-Lucent - Proprietary
This document contains proprietary information of Alcatel-Lucent and
is not to be disclosed or used except in accordance with applicable agreements.
Copyright © 2008 Alcatel-Lucent
Unpublished and Not for Publication
All Rights Reserved
See notice on first age

Alcatel, Lucent, Alcatel-Lucent and the Alcatel-Lucent logo are trademarks of Alcatel-Lucent. All other trademarks
are the property of their respective owners.
The information presented is subject to change without notice. Alcatel-Lucent assumes no responsibility for
inaccuracies contained herein.
Copyright © 2008 Alcatel-Lucent. All Rights Reserved.
Notice
Every effort was made to ensure that this information product was complete and accurate at the time of printing.
However, information is subject to change.
Conformance statements
Federal Communications Commission (FCC) Notification and Repair Information This equipment has been tested and
found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency energy. If the equipment is
not installed and used in accordance with the guidelines in this document, the equipment may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference, in which case the user will be required to correct the interference at the expense of the user.
Alteration or modifications carried out without appropriate authorization may invalidate the user’s right to operate
the equipment.
Security statement
In rare instances, unauthorized individuals make connections to the telecommunications network through the use of
remote access features. In such an event, applicable tariffs require the customer to pay all network charges for
traffic. Lucent Technologies cannot be responsible for such charges and will not make any allowance or give any
credit for charges that result from unauthorized access.
Trademarks
VPN Firewall Brick is a registered trademark of Alcatel-Lucent.
Limited warranty
For terms and conditions of sale, contact your Alcatel-Lucent Account Team.
Ordering Information
The ordering number for this information product is 260-100-041
Thepartnumberforthisinformationproductis032360-00REVA
Technical Support
Alcatel-Lucent Customer Technical Support provides a technical assistance telephone number that is monitored 24
hours. For technical support (continental U.S.) call 1-866-582-3688 and select appropriate prompt. For international
support, please call [phone].
See notice on first age

Contents
Overview ................................................................................................................................................................... 11
Structure of hazard statements ......................................................................................................................... 22
Introduction .............................................................................................................................................................. 44
To Install a Model 1200 Brick Device ......................................................................................................... 99
To Change the SFP Module for a Model 1200 Brick Device Gigabit Only Port ................... 1212
Illustrations ............................................................................................................................................................. 1515
Specifications ........................................................................................................................................................ 1818
Safety Instructions ............................................................................................................................................... 2121
Laser Safety Guidelines .................................................................................................................................... 2424
Maintenance ........................................................................................................................................................... 2828
Air Filter ................................................................................................................................................................. 2929
To Perform a Hot Swap of a Power Module .......................................................................................... 3030
To Replace the Chassis Fan Filter ............................................................................................................... 3232
To Perform a Hot Swap of a Fan Unit ...................................................................................................... 3434
Index 39
...................................................................
iii

List of figures
Rack Mounting Brackets 10
SFP Module (Top, Bottom, Side, and Front Views) 13
Front View of 1200 Brick and 1200 HS Brick Devices 15
Rear View of 1200 Brick Device (AC version) 15
Rear View of 1200 HS Brick Device (AC version) 15
Rear View of 1200 HS Brick Device (DC version) 16
Rear Port View of 1200 Brick Device (AC version) 16
Rear Port View of 1200 HS Brick Device (AC and DC versions) 17
Hot Swap Power Module 31
Fan Filter Replacement 33
Brick Fan Units (Front View) 34
Brick Fan Units (Rear View) 35
Using Fan Filter Cover Hooks to Remove Fan Unit 37
Inserting the Replacement Fan Unit 38
...................................................................
v

Overview
.........................................................................................................................................................................................
Purpose
This document provides a detailed description of the Alcatel-Lucent VPN Firewall Brick®
Model 1200 Security Appliance, including:
•General information about the Brick device hardware and features
•Instructions on how to install the Brick device
•Illustrations of the Brick device hardware components and interfaces
•Detailed specifications
•Safety instructions
•Maintenance procedures
Contents
Structure of hazard statements 2
Introduction 4
To Install a Model 1200 Brick Device 9
To Change the SFP Module for a Model 1200 Brick Device
Gigabit Only Port 12
Illustrations 15
Specifications 18
Safety Instructions 21
Laser Safety Guidelines 24
Maintenance 28
Air Filter 29
To Perform a Hot Swap of a Power Module 30
To Replace the Chassis Fan Filter 32
To Perform a Hot Swap of a Fan Unit 34
...................................................................
1

Structure of hazard statements
.........................................................................................................................................................................................
Overview
Hazard statements describe the safety risks relevant while performing tasks on
Alcatel-Lucent products during deployment and/or use. Failure to avoid the hazards may
have serious consequences.

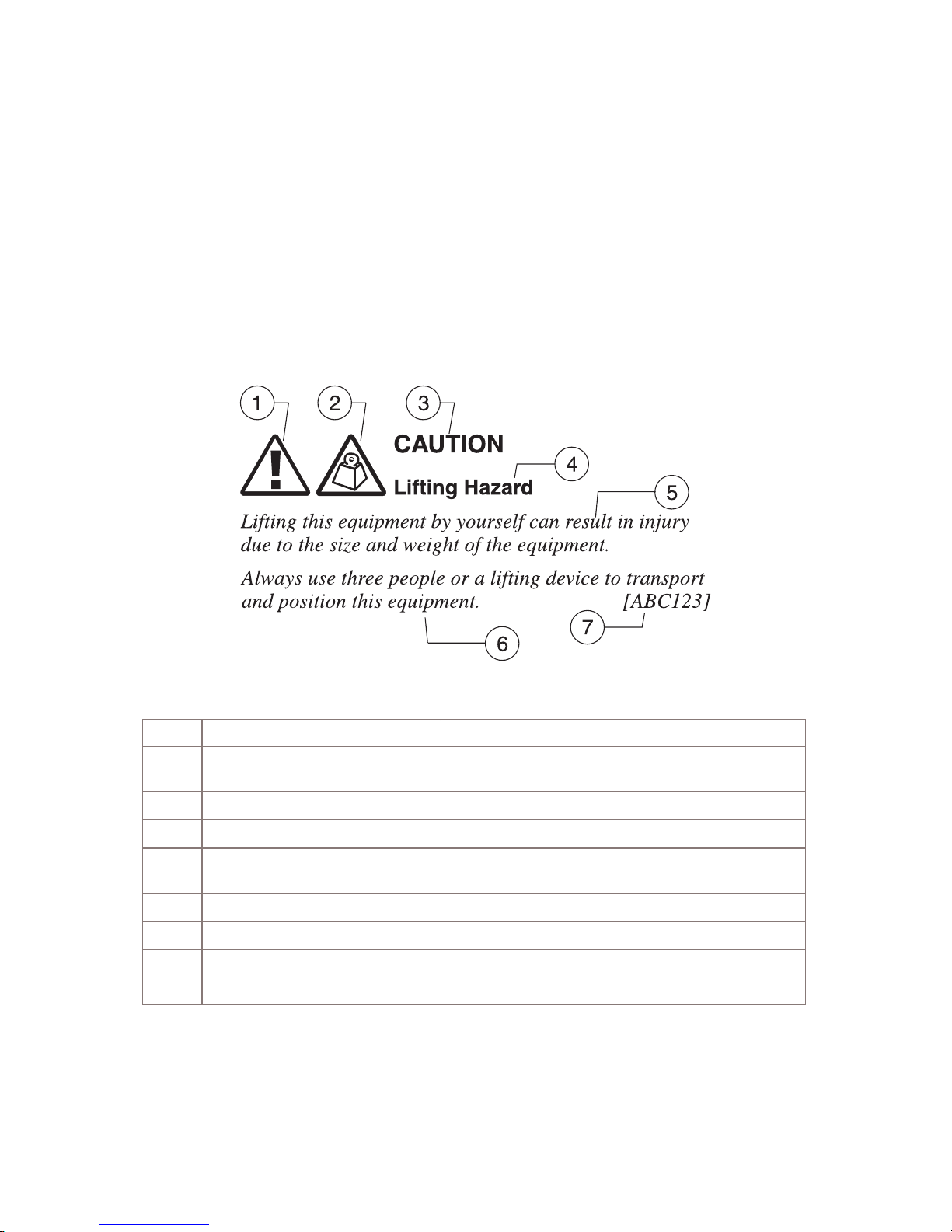

General structure
Hazard statements include the following structural elements:
Item Structure element Purpose
1 Personal-injury symbol Indicates the potential for personal injury
(optional)
2 Hazard-type symbol Indicates hazard type (optional)
3 Signal word Indicates the severity of the hazard
4 Hazard type Describes the source of the risk of damage or
injury
5 Damage statement Consequences if protective measures fail
6 Avoidance message Protective measures to take to avoid the hazard
7 Identifier The reference ID of the hazard statement
(optional)
...................................................................
2

Signal words
The signal words identify the hazard severity levels as follows:
Signal word Meaning
DANGER Indicates an imminently hazardous situation (high risk) which, if not
avoided, will result in death or serious injury.
WARNING Indicates a potentially hazardous situation (medium risk) which, if
not avoided, could result in death or serious injury.
CAUTION When used with the personal injury symbol:
Indicates a potentially hazardous situation (low risk) which, if not
avoided, may result in personal injury.
When used without the personal injury symbol:
Indicates a potentially hazardous situation (low risk) which, if not
avoided, may result in property damage, such as service interruption
or damage to equipment or other materials.
Structure of hazard statements
...................................................................
3

Introduction
.........................................................................................................................................................................................
General

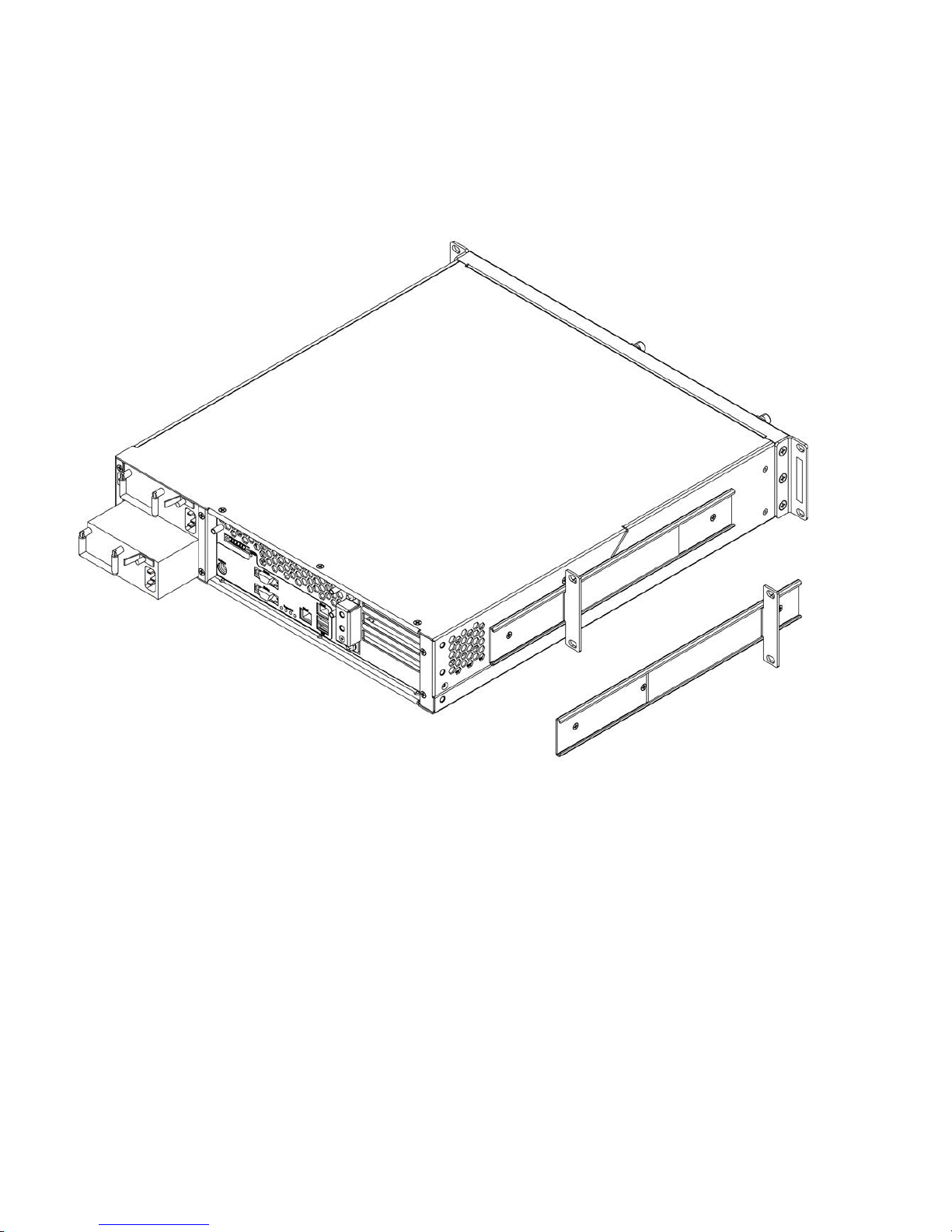

A Model 1200 Brick device measures approximately 17″(W)x19″(D) x 3.5″(H) and is
intended to be installed on a standard 19-inch rack. It comes with two optional
rack-mounting brackets that can be attached to the sides to secure it to the rack.
There are two basic Brick 1200 models:
•The 1200 Brick (AC version only)
•The 1200 HS Brick (AC and DC versions)
Ports
The following table summarizes the number and type of ports that are supported on each
Brick 1200 model:
Port Type 1200 Brick Device 1200 HS Brick Device
10/100/1000BaseTX 8 14
Gigabit only interfaces126
Notes:
1. The Gigabit only ports operate solely at the 1 Gigabit rate and are not 10/100/1000baseTX
auto-switchable. These ports are activated when the user inserts a Small Form-factor Pluggable
(SFP) module, which is ordered separately.
Power supply
The Model 1200 Brick device utilizes hot swappable mini-redundant power supplies for
both AC and DC versions.
Gigabit only interfaces
The Gigabit only ports on the Model 1200 Brick are configurable for copper/fiber
connections via Small Form-factor Pluggable (SFP) modules, which are sometimes referred
to as “mini-GBICs”.
The SFP module design is based on the GBIC interface, which is a standard for
transceivers that commonly use Gigabit copper Ethernet and fiber channels. The SFP is a
standard, hot swappable electrical interface that supports the full range of physical media,
from copper to optical fiber (multi mode or single mode) through the use of the appropriate
SFP module. These SFP modules can be easily interchanged, which allow networks to have
ports added or changed as the administrator wishes.
...................................................................
4
