Congratulations on the purchase of your FERREX® 900W Planer. When you open
your packaging, rst remove all items and check there are no parts damaged or
missing. If you nd anything wrong, do not operate the product until the parts
have been replaced or the fault has been rectied. Failure to do so could result in
serious personal injury.
Application
First time users or inexperienced operators pay particular attention to the
operation of the 900W Planer, including details of starting and stopping and
correct use of the 900W Planer on page 13-15, as well as the maintenance
instructions on page 16-19.
Intended use of the 900W Planer
It is exclusively intended for home use. It is not designed for trade or commercial
use.
This 900W Planer can be used for planing of rmly supported wooden materials,
such as beams and boards. It is also suitable for beveling edges and rebating.
Any other use or change to the appliance is deemed improper and poses a
signicant risk of accidents.

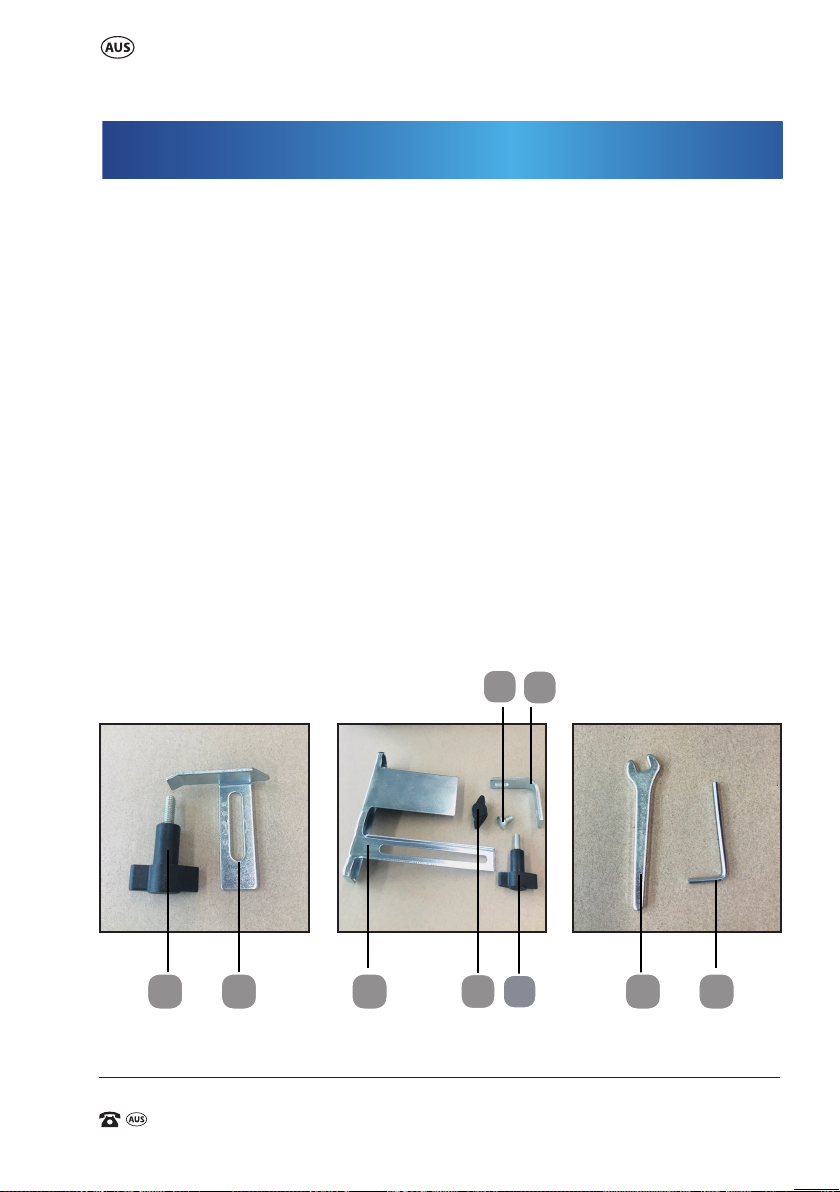

Contents of carton
1 x 900W Planer
1 x Parallel guide (not tted)
1 x Rebate guide (not tted)
1 x Dust bag
1 x 8mm Wrench
1 x 2.5mm Hex key
1 x Instruction Manual
1 x Warranty Card & details
Pack contents / parts
2
MODEL No.: PPL9001.A, PRODUCT No.: 704518

MODEL No.: TGT2001, PRODUCT No.: 70096
Description of symbols
The instruction manual, rating plate, or on the product itself, may show
these symbols. These represent important information about the product or
instructions on its use.
To reduce the risk of injury, user must read instruction manual
Wear hearing protection.
Wear eye protection.
Wear breathing protection.
Conforms to relevant standards for electrical safety and electromag-
netic compatibility.
Warning
Double insulation
36 Months Warranty
The box is recyclable at the kerbside.
The inserts are recyclable at the kerbside.
36
3
Box
2
MODEL No.: PPL9001.A, PRODUCT No.: 704518

MODEL No.: TGT2001, PRODUCT No.: 700069
MODEL No.: PPL9001.A, PRODUCT No.: 704518 MODEL No.: PPL9001.A, PRODUCT No.: 704518
General safety warnings
WARNING! Read all safety warnings, instructions, illustrations and
specications provided with this power tool. Failure to follow all
instructions listed below may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded)
power tool or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the
presence of ammable liquids, gases or dust.
Power tools create sparks
which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any
way. Do not use any adapter plugs with earthed (grounded) power
tools.
Unmodied plugs and matching outlets will reduce risk of electric
shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes,
radiators, ranges and refrigerators.
There is an increased risk of electric
shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep cord away from heat, oil, sharp edges
or moving parts.
Damaged or entangled cords increase the risk of electric
shock.
4

MODEL No.: PPL9001.A, PRODUCT No.: 704518 MODEL No.: PPL9001.A, PRODUCT No.: 704518
e) When operating a power tool outdoors, use an extension cord suitable
for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of
electric shock.
f) If operating a power tool in a damp location is unavoidable, use a
residual current device (RCD) protected supply.
Use of an RCD reduces
the risk of electric shock.
3) Personal safety
a)
Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use a power tool while you are tired
or under the inuence of drugs, alcohol or medication.
A moment of
inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection.
Protective equipment such as dust mask, non-skid safety shoes, hard hat,
or hearing protection used for appropriate conditions will reduce personal
injuries.
c) Prevent unintentional starting. Ensure the switch is in the o-position
before connecting to power source and/or battery pack, picking up or
carrying the tool.
Carrying power tools with your nger on the switch or
energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool
on.
A wrench or a key left attached to a rotating part of the power tool may
result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair,
clothing and gloves away from moving parts.
Loose clothes, jewellery or
long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and
collection facilities, ensure these are connected and properly used.
Use
of these devices can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to
become complacent and ignore tool safety principles.
A careless action
can cause severe injury within a fraction of a second.
5

4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your
application.
The correct power tool will do the job better and safer at the
rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and o. Any
power tool that cannot be controlled with the switch is dangerous and must
be repaired.
c) Disconnect the plug from the power source and/or the battery pack
from the power tool before making any adjustments, changing
accessories, or storing power tools.
Such preventive safety measures
reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow
persons unfamiliar with the power tool or these instructions to operate
the power tool.
Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving
parts, breakage of parts and any other condition that may aect the
power tool’s operation. If damaged, have the power tool repaired
before use.
Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools
with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with
these instructions, taking into account the working conditions and the
work to be performed.
Use of the power tool for operations dierent from
those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and
grease.
Slippery handles and grasping surfaces do not allow for safe
handling and control of the tool in unexpected situations.
5) Service
a) Have your power tool serviced by a qualied repair person using only
identical replacement parts.
This will ensure that the safety of the power
tool is maintained.
6) Recommendation
Recommendation that the tool always be used via a residual current
device having a rated residual current of 30mA or less.
6

Planer safety warnings
1. Wait for the cutter to stop before setting the tool down. An exposed
rotating cutter may engage the surface leading to possible loss of control
and serious injury.
Note: The above warning applies only to planers without an automatic
closing guard.
2. Hold the power tool by insulated gripping surfaces only, because the
cutter may contact its own cord.
Cutting a“live” wire may make exposed
metal parts of the power tool “live”and could give the operator an electric
shock.
3. Use clamps or another practical way to secure and support the
workpiece to a stable platform.
Holding the workpiece by your hand or
against the body leaves it unstable and may lead to loss of control.
7

900W Planer
AFTER SALES SUPPORT
e-mail: [email protected] 1300 889 028
MODEL No.: PPL9001.A • 02/2021 • 704518 (toll free)
AFTER SALES SUPPORT
(toll free)
900W Planer
e-mail: [email protected]1300 889 028
MODEL No.: PPL9001.A • 02/2021 • 704518
8
1. Hand grip areas
2. Lock-o button
3. On/o trigger
4. Dust extraction port x 2
5. Belt cover
6. Dust bag
7. Parallel guide
7a. Parallel guide body
7b. Locking screw
7c. Locking nut
7d. Angle bracket
8. Base plate
9. Parallel guide locking knob
10. Planing depth scale
11. Cutting depth adjustment knob
12. Dust extraction guide switch
13. Rebate guide locking knob
14. Rebate guide
15. 8mm Open-ended wrench
16. 2.5mm Hex key
17. Blade drum
18. Blade holder
19. M5 x 8mm Blade clamping
screw x3
20. Blade
21. M5 x 21mm Socket head screw
22. Baseplate stand (See Fig. C)
23. V-groove (See Fig. J1)
Parts List
13 14 7a 7b
7c 7d
915 16

900W Planer
AFTER SALES SUPPORT
e-mail: [email protected] 1300 889 028
MODEL No.: PPL9001.A • 02/2021 • 704518 (toll free)
AFTER SALES SUPPORT
(toll free)
900W Planer
e-mail: [email protected]1300 889 028
MODEL No.: PPL9001.A • 02/2021 • 704518
9
6
9
10
7
5
4
8
11
1
2
3
7a7b
7c
7d
12
13 14 17 18
19
20
21

900W Planer
AFTER SALES SUPPORT
e-mail: [email protected] 1300 889 028
MODEL No.: PPL9001.A • 02/2021 • 704518 (toll free)
AFTER SALES SUPPORT
(toll free)
900W Planer
e-mail: [email protected]1300 889 028
MODEL No.: PPL9001.A • 02/2021 • 704518
10
Assembly and Adjusting
WARNING: Danger of kickback! Apply the machine to the
workpiece only when switched on.

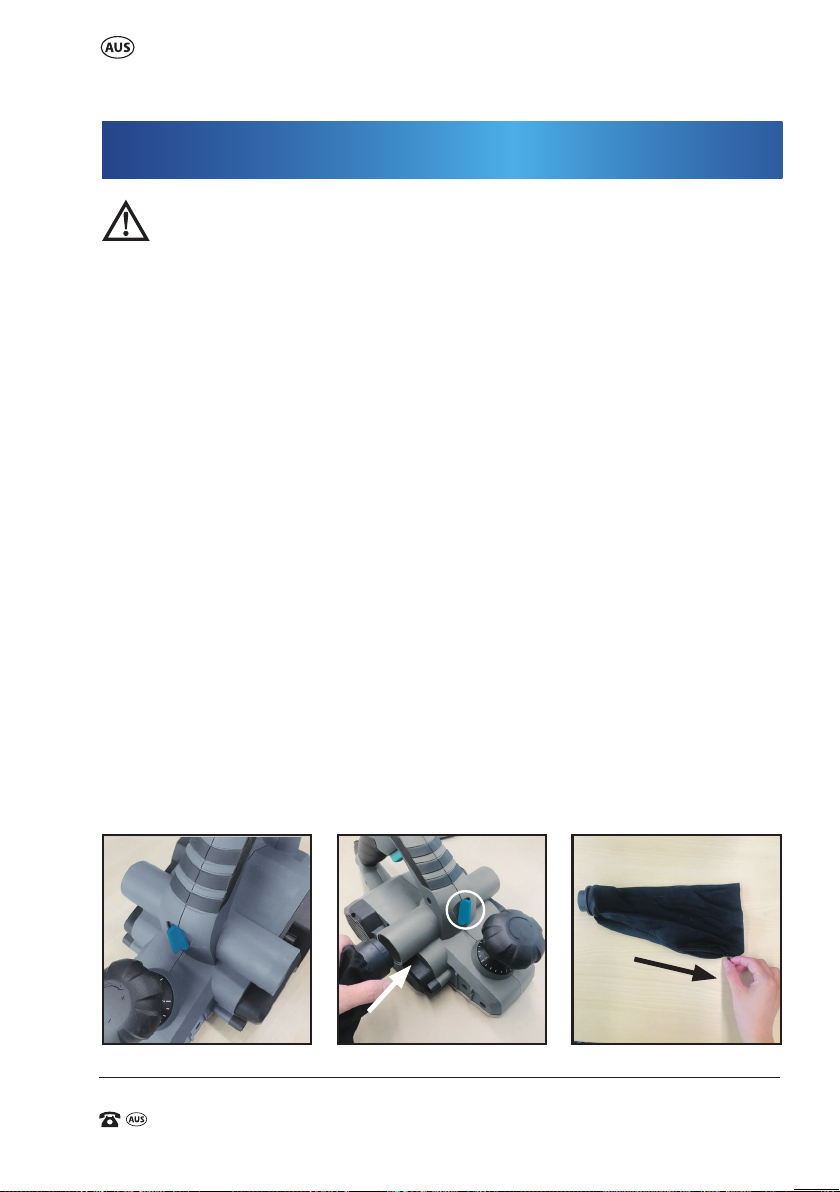

1. Dust extraction port (See Fig. A1)
This planer is equipped with two dust extraction ports (4), which may be
used with a dust bag (6) or a vacuum adapter (not supplied) to keep your
work environment cleaner.
- Fitting a dust bag (See Fig. A2)
Attach the dust bag (6) to the dust extraction port (4) for smaller jobs.
First select left or right dust extraction port (4) (Refer to Dust extraction
guide switch section), then align and slide the dust bag (6) into the dust
extraction port (4).
- Emptying the dust bag (See Fig. A3)
Empty the dust bag (6) by unzipping the bag and then gently tap the bag
to remove the dust.
NOTE: Wear a suitable dust mask, as there may be some residual airborne
dust particles.
- External dust extraction
The dust extraction port (4) which can be connected to the vacuum
adapter (not supplied), is best connected to a suitable external dust
extraction machine, such as a workshop dust-extraction system or a
household vacuum cleaner, for the ecient removal of dust and shavings.
A1 A2 A3

900W Planer
AFTER SALES SUPPORT
e-mail: [email protected] 1300 889 028
MODEL No.: PPL9001.A • 02/2021 • 704518 (toll free)
AFTER SALES SUPPORT
(toll free)
900W Planer
e-mail: [email protected]1300 889 028
MODEL No.: PPL9001.A • 02/2021 • 704518
11
2. Dust extraction guide switch (See Fig. B)
You can select the right or left side of the dust
extraction port (4) by turning the dust extraction
guide switch (12) to the left or right.
When viewing the planer as shown in Fig B,
moving the dust extraction guide switch (12) to
the left will cause chips to be discharged to the
right; moving it to the right causes chips to be
discharged the left.
3. Baseplate stand (See Fig. C)
By lifting up the rear of the planer, the baseplate
stand (22) will allow the planer to be set down
directly 10mm from the surface and protect the
cutting blades (20) from any damage and the
blades (20) from damaging the surface. When
planing, the stand (22) will be pushed away by the
end of the wood. Always check the stand (22) is
free to move on the base plate (8).
4. Parallel guide
- Assembling the parallel guide (See Fig. D1-D3)
Place the angle bracket (7d) on the parallel guide body (7a) as shown
in Fig. D1. Align and insert the locking nut (7c) from above of the angle
bracket (7d) through the hole of the angle bracket (7d) and the parallel
guide body (7a), then insert the locking screw (7b) from below the parallel
guide body (7a) into the end of the locking nut (7c). Firmly tighten the
locking screw (7b) by turning it clockwise.
B
C
D1 D2 D3
22

900W Planer
AFTER SALES SUPPORT
e-mail: [email protected] 1300 889 028
MODEL No.: PPL9001.A • 02/2021 • 704518 (toll free)
AFTER SALES SUPPORT
(toll free)
900W Planer
e-mail: [email protected]1300 889 028
MODEL No.: PPL9001.A • 02/2021 • 704518
12

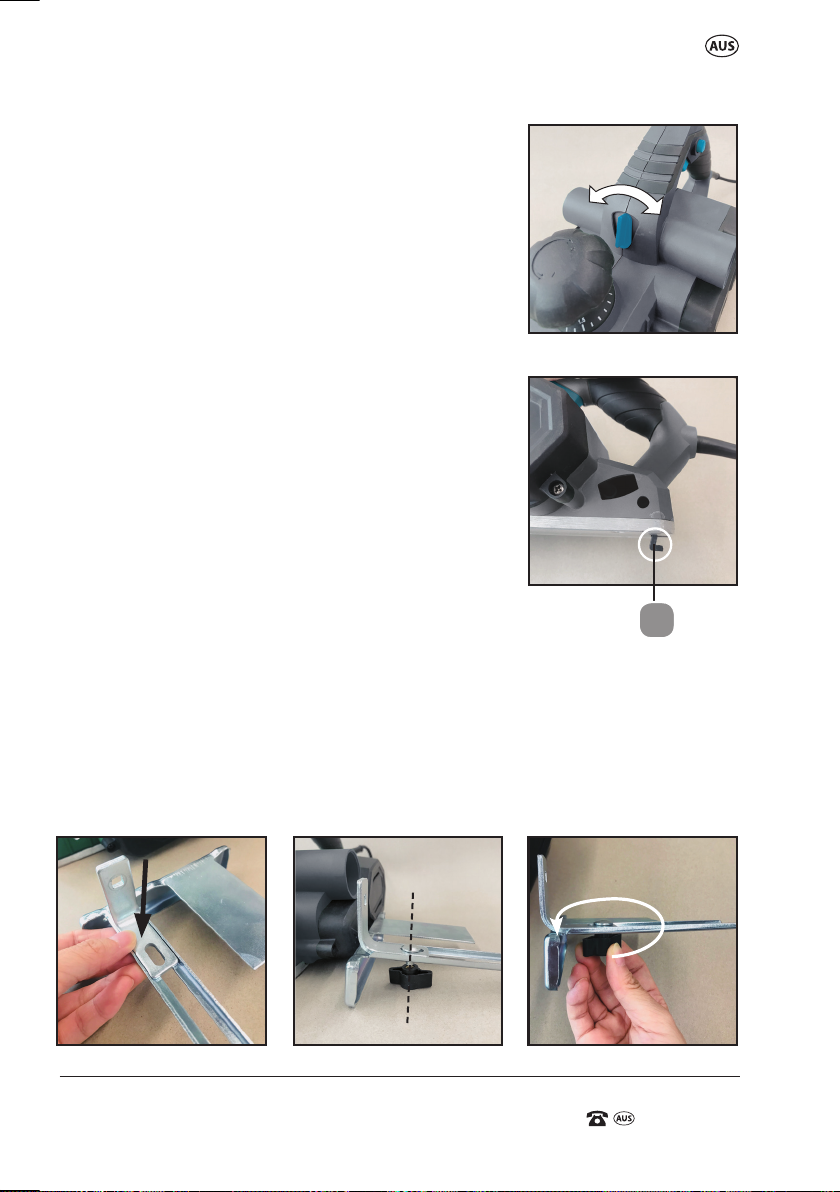

- Fitting the parallel guide onto the planer (See
Fig. D4)
Align and insert the parallel guide locking knob
(9) through the hole on the vertical part of the
angle bracket (7d) on the parallel guide (7), and
then insert into the hole located at the side of
the planer head. Firmly tighten the parallel guide
locking knob (9) by turning it clockwise.
NOTE: The parallel guide (7) should be tted on
the left side of the planer head.
- Adjusting the parallel guide (See Fig. D5)
Loosen the locking screw (7b) by turning it
anti-clockwise and slide the parallel guide (7)
forwards or backwards to the desired position.
Then securely tighten the locking screw (7b) by
turning it clockwise.

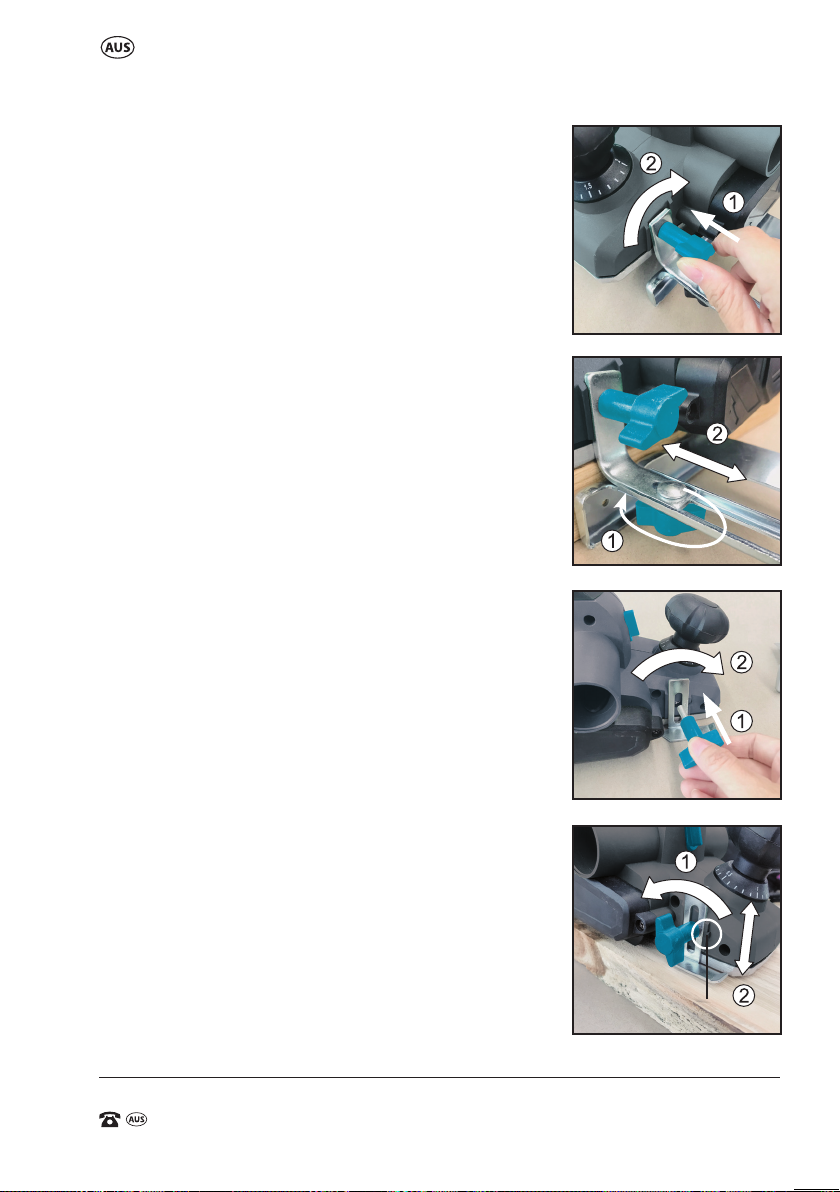

5. Rebate guide
The rebate guide (14) allows the user to set any
rebate depth from 0 to 11mm. For best results,
it is important that the blade (20) be properly
aligned with the front base. The width of the
rebate is controlled by the parallel guide (7).
- Fitting the rebate guide onto the planer (See
Fig. E1)
Align and insert the rebate guide locking knob
(13) through the slot on the rebate guide (14),
and then insert into the hole on the right side of
the planer head. Firmly tighten the rebate guide
locking knob (13) by turning it clockwise.
- Adjusting the rebate depth (See Fig. E2)
Place the planer on a at board, loosen the
rebate guide locking knob (13) by turning it anti-
clockwise, and slide the rebate guide (14) up and
down to set the desired rebate depth by aligning
E2
D5
D4
E1
a

900W Planer
AFTER SALES SUPPORT
e-mail: [email protected] 1300 889 028
MODEL No.: PPL9001.A • 02/2021 • 704518 (toll free)
AFTER SALES SUPPORT
(toll free)
900W Planer
e-mail: [email protected]1300 889 028
MODEL No.: PPL9001.A • 02/2021 • 704518
13
the rebate depth scale on the rebate guide (14) with the triangle symbol
(a). Tighten the rebate guide locking knob (13) by turning it clockwise.
6. Adjusting the cutting depth (See Fig. F1, F2)
The proper cutting depth should be determined
according to the hardness, gumminess or moisture
content of the material being cut, as well as the
feed rate.
Smaller cutting depth of 0-2 mm is best for most
surface planing or rebating. Rotate the cutting
depth adjustment knob (11) to set the required
cutting depth by aligning the number on the
planing depth scale (10) with the triangle symbol
as shown in Fig. F2.
The scale graduation on the cutting depth
adjustment knob is 0.5 mm. The clockwise rotation
increases the planing depth; the anti-clockwise
rotation reduces the planing depth. Always work
from a rough cut to a nish cut.
It is recommended that test cuts be made in scrap
wood after each adjustment to make sure that
desired amount of wood is being removed by your
planer.
NOTE: To protect blades during storage, transporting, etc., set blade depth
adjustment knob to 0.
Operation
WARNING: Before using your planer, be sure to read the
instruction manual carefully.
WARNING: Danger of kickback! Apply the machine to the
workpiece only when switched on.

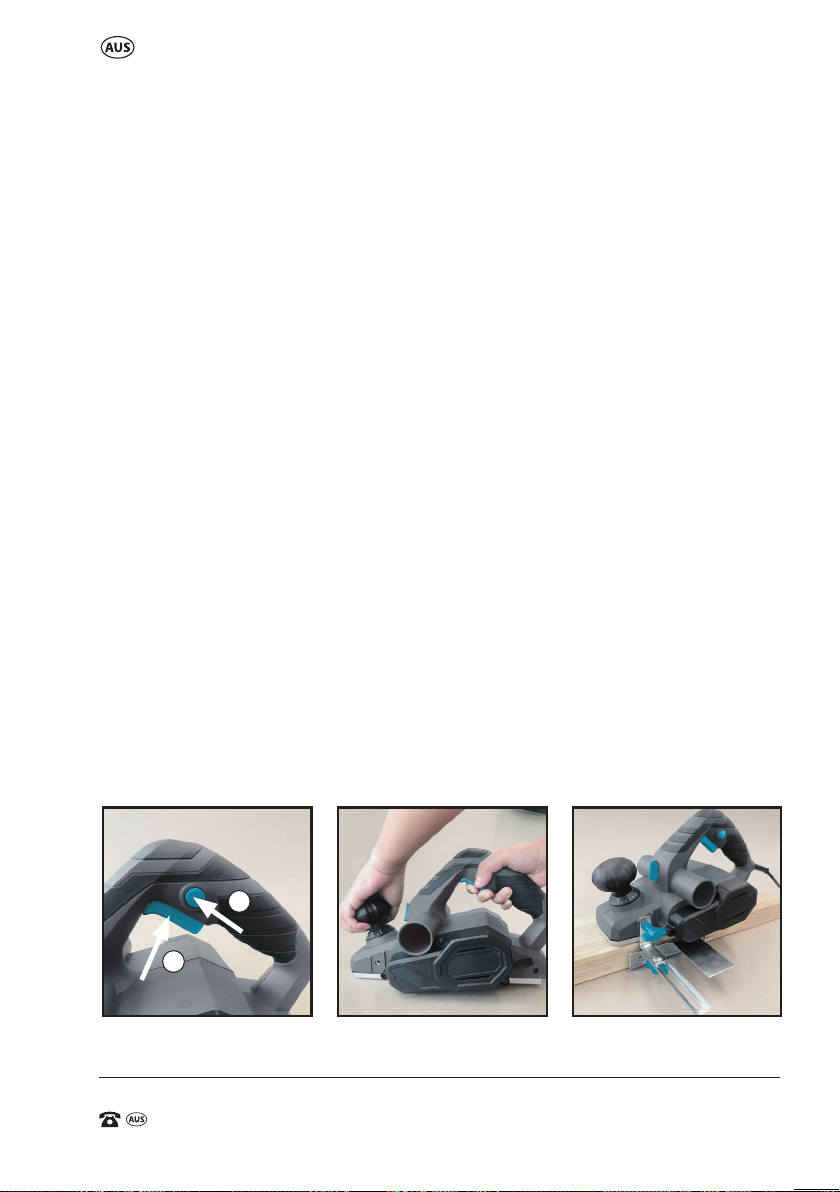

1. On/o trigger (See Fig. G)
The switch is locked o to prevent accidental starting. To start the planer,
connect the power plug to the mains socket, depress the lock o button
(2) then depress the on/o trigger (3). Then you can release the lock o
F1
F2

900W Planer
AFTER SALES SUPPORT
e-mail: [email protected] 1300 889 028
MODEL No.: PPL9001.A • 02/2021 • 704518 (toll free)
AFTER SALES SUPPORT
(toll free)
900W Planer
e-mail: [email protected]1300 889 028
MODEL No.: PPL9001.A • 02/2021 • 704518
14
button (2). The planer is working now. To switch o, just release the on/o
trigger (3).
2. Standard surface planing (See Fig. H)
Set the cutting depth as required. Clamp the workpiece securely on a
workbench. Connect the machine to the power outlet and hold the planer
rmly with both hands.
Position the front part of the base plate (8) at onto the work surface.
Make sure that the blades (20) are not touching the workpiece. Switch
the machine on and push the planer forward and it will cutting. Always
maintain all of the base plate (8) at on the work surface to prevent the
cutting blade (20) jumping. Move the planer evenly over the work surface.
For most applications 0-2mm max cutting depth will produce a good
surface nish. It is best to use small depths of cut and repeat the planing
process.
Be careful to avoid hitting nails during operation. It could nick, crack, or
damage blades. We suggest that you always keep an extra set of blades on
hand for replacement.
Replacement blades can be purchased from https://help.tools/

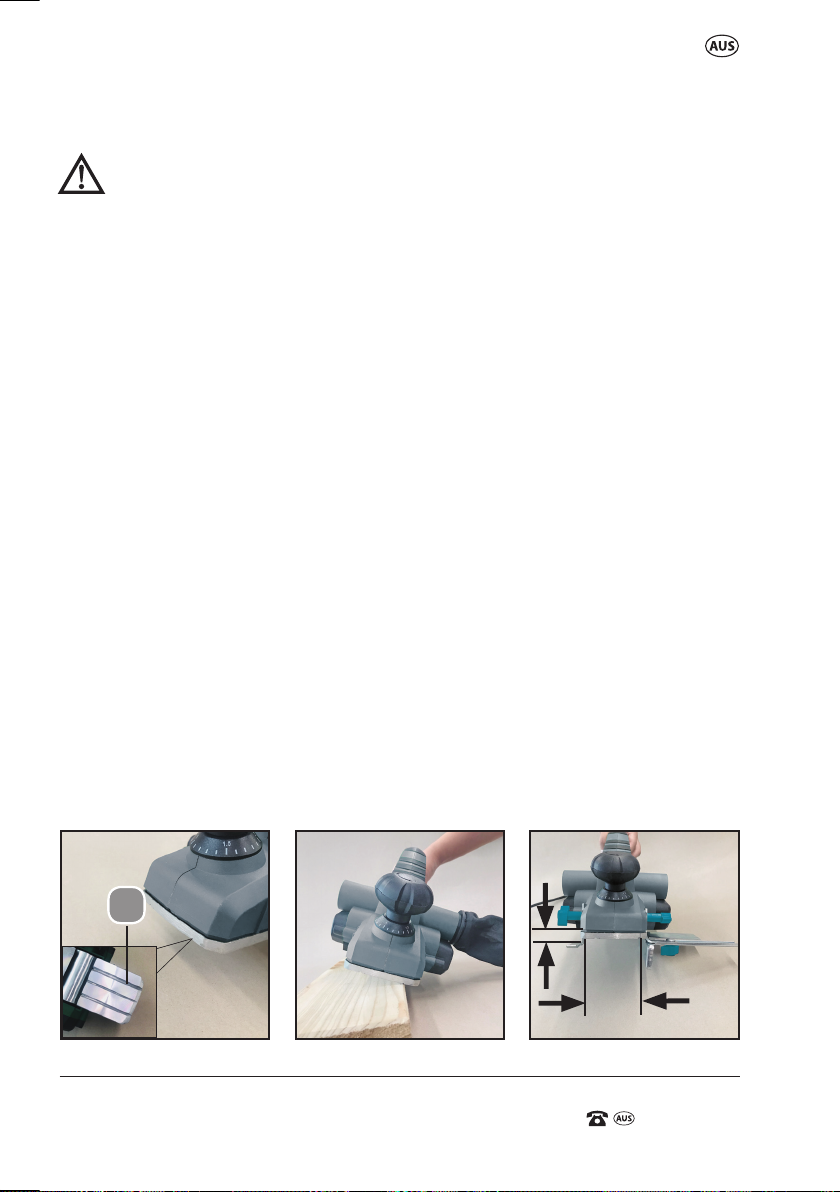

3. Planing with the parallel guide (See Fig. I)
The parallel guide (7) can be used to control the width of the cut or for
simply providing added stability and protection when cutting materials
that are up to 82 mm wide.
While using, the parallel guide (7) should be held rmly against the edge
of the workpiece.
GHI
1
2

900W Planer
AFTER SALES SUPPORT
e-mail: [email protected] 1300 889 028
MODEL No.: PPL9001.A • 02/2021 • 704518 (toll free)
AFTER SALES SUPPORT
(toll free)
900W Planer
e-mail: [email protected]1300 889 028
MODEL No.: PPL9001.A • 02/2021 • 704518
15
4. Edge chamfering (See Fig. J1, J2)
WARNING:
• Always use both hands on the tool for any operation; it assures to
maintain control and avoid the risk of serious personal injury.
• The workpiece must always be properly supported and clamped so
that both hands will be free to control the planer.
Using the V-groove (23) on the front base plate (8) you can make a chamfer
on the workpiece edge.
NOTE: It is recommended to do a test chamfer on a scrap piece of wood
before trying on your actual workpiece.
NOTE: Ensure your workpiece is clamped and supported near the edge.
Place the V-groove (23) over the edge of the workpiece to be chamfered.
Be sure the blades (20) are not touching the workpiece. Position the
V-groove (23) absolutely at on the edge to be beveled. Grasp the planer
rmly with both hands, switch the planer on and push the planer forward
with steady pressure on the front base. Guide the planer along the edge
and maintain a constant angle and pressure to produce a good nish.
Maintain downward pressure to keep your planer at at the beginning and
the end of the work surface.
5. Rebating (See Fig. K)
The width of a rebating cut (A) is adjustable by moving the parallel guide
(7). The depth of a rebating cut (B) is determined by moving the rebate
guide (14), and the number of passes made along the workpiece. Make
sure that the planer is guided with a lateral supporting pressure.
J1 J2 K
A
B
23

900W Planer
AFTER SALES SUPPORT
e-mail: [email protected] 1300 889 028
MODEL No.: PPL9001.A • 02/2021 • 704518 (toll free)
AFTER SALES SUPPORT
(toll free)
900W Planer
e-mail: [email protected]1300 889 028
MODEL No.: PPL9001.A • 02/2021 • 704518
16
Maintenance
WARNING: Ensure the device is
disconnected from the mains power
supply before attempting any maintenance.
Keep the outer case of the planer clean and
free from grease. Do not wash with water or use
solvents or abrasive. Use only mild soap and
damp cloth to clean the planer. Never let any
liquid get inside the planer. Never immerse any
part of the planer into a liquid.
If the supply cord is damaged, it must be replaced
by a qualied electrician or service agent.
1. Blade tting and changing (See Fig. L1-L8)
WARNING: Remove power cord from the
socket before carrying out any
adjustments or changing blades. Always put on
gloves when replacing blades.
The blade (20) has two cutting edges, which can
be reversed. When both cutting edges are dull,
the blade (20) must be replaced.
NOTE:
• Dull and worn blades (20) cannot be reground
and must be replaced.
• The planer blades (20) cannot be re-sharpened.
Do not attempt to sharpen or use re-sharpened
blades (20) of any kind.
• Use only blades (20) designated for use with
this model, as other blades (20) may cause
vibration, decrease performance and may not
clamp securely in the blade holder (18).
L3
L2
L1
L4

900W Planer
AFTER SALES SUPPORT
e-mail: [email protected] 1300 889 028
MODEL No.: PPL9001.A • 02/2021 • 704518 (toll free)
AFTER SALES SUPPORT
(toll free)
900W Planer
e-mail: [email protected]1300 889 028
MODEL No.: PPL9001.A • 02/2021 • 704518
17
- Removing the old blade
WARNING: Remove the plug from the
mains socket before undertaking any
maintenance tasks.
NOTE: Before removing the old blades (20), take
notice of the direction of cut as well as how the
tapered edge of the old blades (20) are oriented.
The tapered edge of the new blades (20) must be
in the same orientation as the original blades (20).
Place the planer upside down on a at surface.
Rotate the blade drum (17) until the blade (20)
and the clamping screws (19) are exposed. (See
Fig. L1) Loosen the three clamping screws (19)
using the 8mm wrench (15) provided. Push the
blade (20) sideways out of the blade holder (18)
with the tip of the wrench (or a screwdriver) and
then remove. (See Fig. L2-L5)
NOTE: There is no need to remove the blade
holder (18) as this can change the factory
settings for cutting blade height control.
NOTE: If a blade (20) cannot be pushed out easily
after loosening the screws (19), use a piece of
wood to break the blade loose from the blade
holder (18), with a short sharp blow. Then push
with a screwdriver to remove the blades. If
necessary, tap the piece of wood sharply with a
small hammer to break the blades loose.
- Installing a new blade
WARNING: Remove the plug from the
mains socket before undertaking any
maintenance tasks.
Before reinserting a new blade (20), always clean
both the blade (20) and the blade seat if dirty.
Place the planer upside down on a at surface.
Slide the blade (20) into the blade holder (18) in

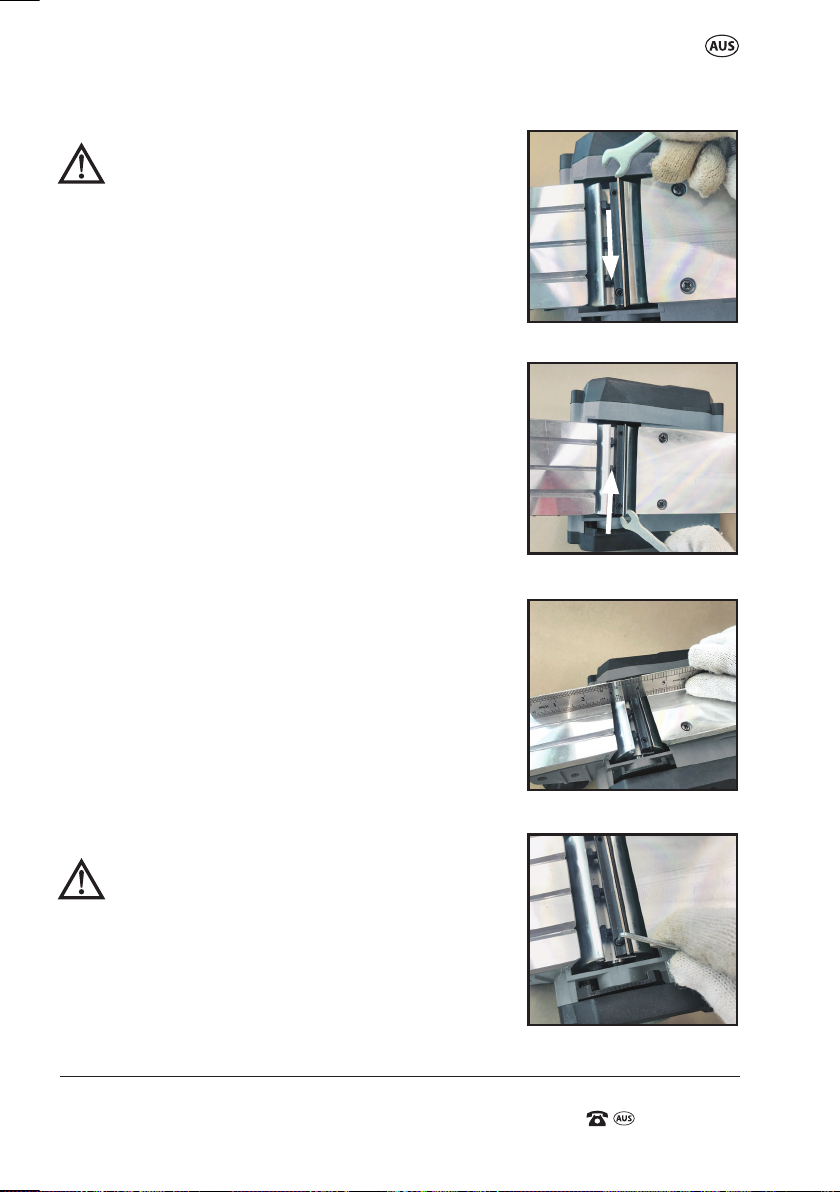

L6
L5
L7
L8
