ALDI FERREX HS-060E-30 User manual

FERREX'
30 W SOTDERING IRON SET
Original instructions

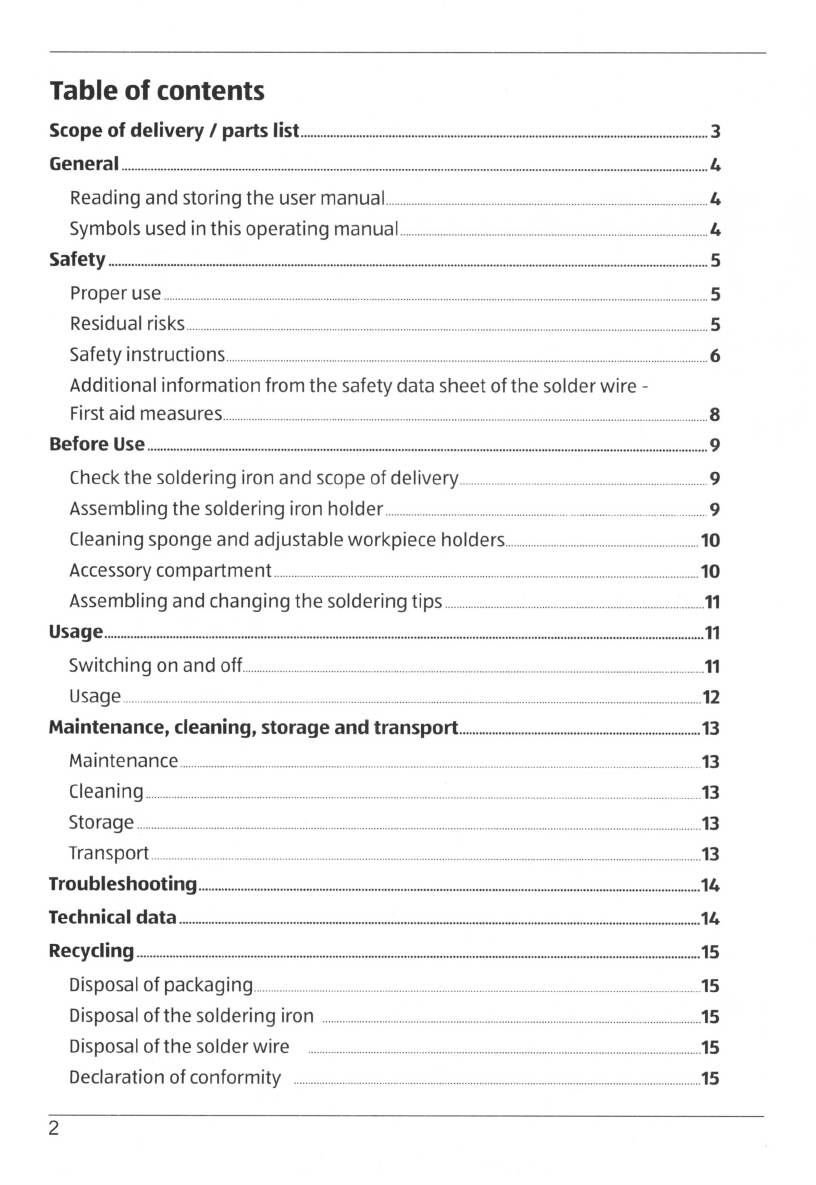

Table of contents
Reading and storing the user manual..
Symbols used in this operating manual
Additional information from the safety data sheet of the solder wire -
First aid measures
Check the soldering iron and scope of delivery .
Assembling the soldering iron holder
Cleaning sponge and adjustable workpiece holders.
Accessory compartment
Assembling and changing the soldering tips
Usage
.9
9
10
10
.11
11
Switching on and off
Usage
Maintenance, cleaning, storage and transport
Maintenance
Cleaning
Technical data
.11
12
13
13
13
Recycling.....
Disposal of packaging
Disposalof the soldering iron
Disposal of the solder wire
Declarationof conformity ... .
11.
1l+
15
15
15
15
15

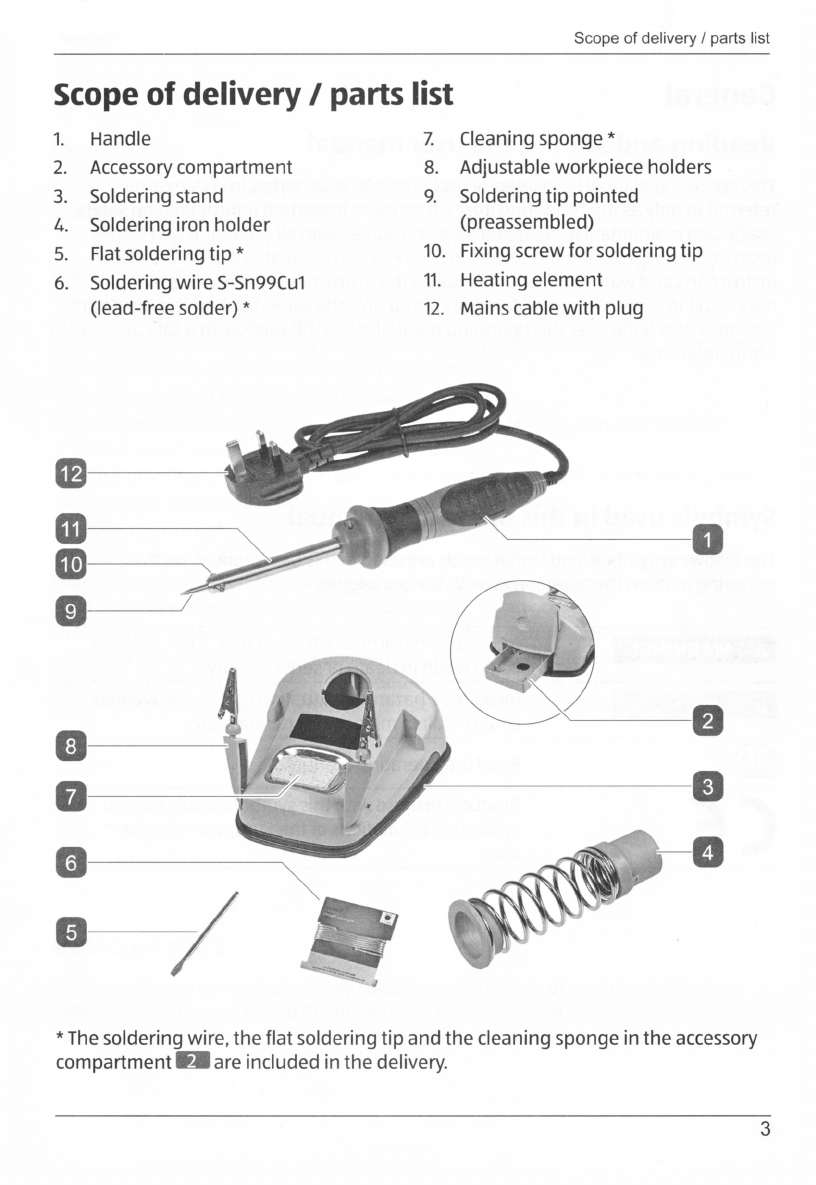

Scope of delivery / parts list
Scope of delivery I parts list
1. Handle
2. Accessorycompartment
3. Soldering stand
4. Soldering iron holder
5. Flat soldering tip *
6. Soldering wire S-Sn99Cu1
(lead-free solder) "
7.
8.
9.
10.
11.
12.
Cleaning sponge *
Adjustable workpiece holders
Soldering tip pointed
(preassembled)
Fixing screw for soldering tip
Heating element
Mains cable with plug
@--/
* The soldering wire, the flat soldering tip and the cleaning sponge in the accessory
compartmenttrlare included in the delivery.

General
General
Reading and storing the user manual
This operating manual is an integral part of this 30 W soldering iron (hereafter
referred to only as the "soldering iron"). lt contains important information on safety,
usage and maintenance. Please familiarise yourself with all operating and safety
instructions before using the soldering iron. Pay particular attention to the safety
instructions and warnings. Failure to follow the instructions given in this manual
may result in serious injury or damages. lf you give the soldering iron to a third party,
you must also hand over this operating manual. Keep this manual in a safe place for
future reference.
Symbols used in this operating manual
The following symbols and signal words are used in this user manual, on the
soldering iron, on the accessories or on the packaging.
lndicates a hazardous situation that, if not avoided,
could result in death or serious injury.
lndicates a hazardous situation that, if not avoided,
could result in minor or moderate injury.
Read the operating manual.
C€ Products marked with this symbol comply with all
applicable regulations of the European economic
area.

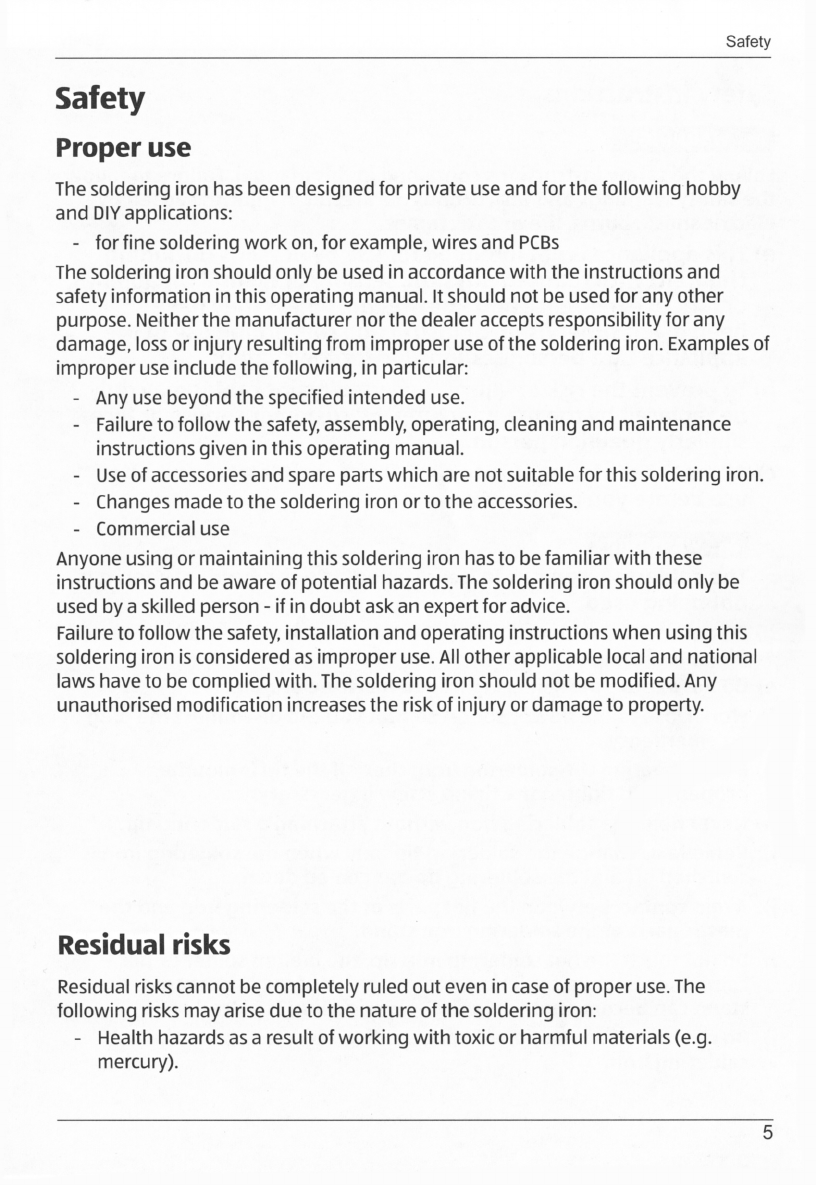

Safety
Safety
Proper use
The soldering iron has been designed for private use and for the following hobby
and DIY applications:
- for fine soldering work on, for example, wires and PCBs
The soldering iron should only be used in accordance with the instructions and
safety information in this operating manual. lt should not be used for any other
purpose. Neither the manufacturer nor the dealer accepts responsibility for any
damage, loss or injury resulting from improper use of the soldering iron. Examples of
improper use include the following, in particular:
- Any use beyond the specified intended use.
- Failure to follow the safety, assembly, operating, cleaning and maintenance
instructions given in this operating manual.
- Use of accessories and spare parts which are not suitable for this soldering iron.
- Changes made to the soldering iron or to the accessories.
- Commercialuse
Anyone using or maintaining this soldering iron has to be familiar with these
instructions and be aware of potential hazards. The soldering iron should only be
used by a skilled person - if in doubt ask an expert for advice.
Failure to follow the safety, installation and operating instructions when using this
soldering iron is considered as improper use. All other applicable local and national
laws have to be complied with. The soldering iron should not be modified. Any
unauthorised modification increases the risk of injury or damage to property.
Residual risks
Residual risks cannot be completely ruled out even in case of proper use. The
following risks may arise due to the nature of the soldering iron:
- Health hazards as a result of working with toxic or harmful materials (e.9.
mercury).

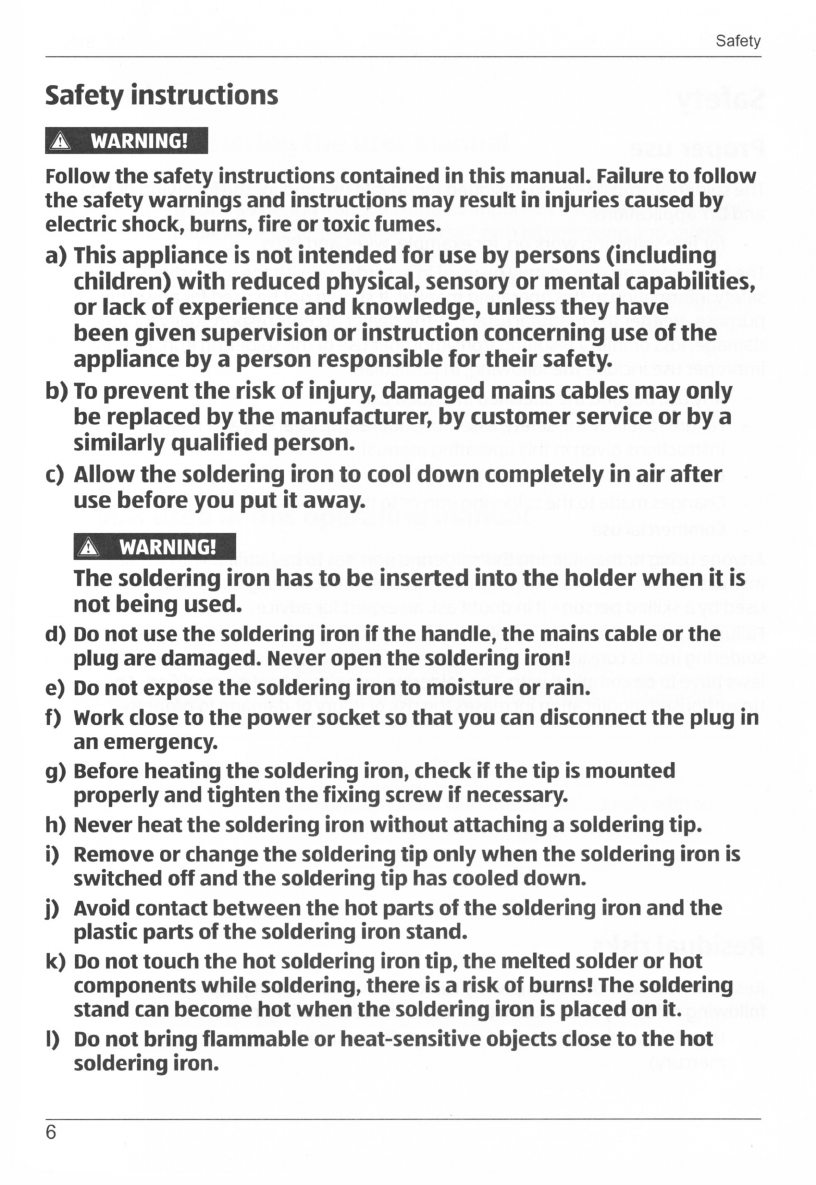

Safety instructions
EN@
Follow the safety instructions contained in this manual. Failure to follow
the safety warnings and instructions may result in injuries caused by
electric shock, burns, fire or toxic fumes.
a) This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
b) To prevent the risk of injury damaged mains cables may only
be replaced by the manufacturer, by customer service or by a
similarly qualified person.
c) Allow the soldering iron to cool down completely in air after
use before you put it away.
rNTq
rhe soldering iron has to be inserted into the holder when it is
not being used.
d) Do not use the soldering iron if the handle, the mains cable or the
plug are damaged. Never open the soldering iron!
e) Do not expose the soldering iron to moisture or rain.
f) Work close to the power socket so that you can disconnect the plug in
an emergency.
g) Before heating the soldering iron, check if the tip is mounted
properly and tighten the fixing screw if necessary.
h) Never heat the soldering iron without attaching a soldering tip.
i) Remove or change the soldering tip only when the soldering iron is
switched off and the soldering tip has cooled down.
j) Avoid contact between the hot parts of the soldering iron and the
plastic parts of the soldering iron stand.
k) Do not touch the hot soldering iron tip, the melted solder or hot
components while soldering, there is a risk of burns! The soldering
stand can become hot when the soldering iron is placed on it.
l) Do not bring flammable or heat-sensitive objects close to the hot
soldering iron.

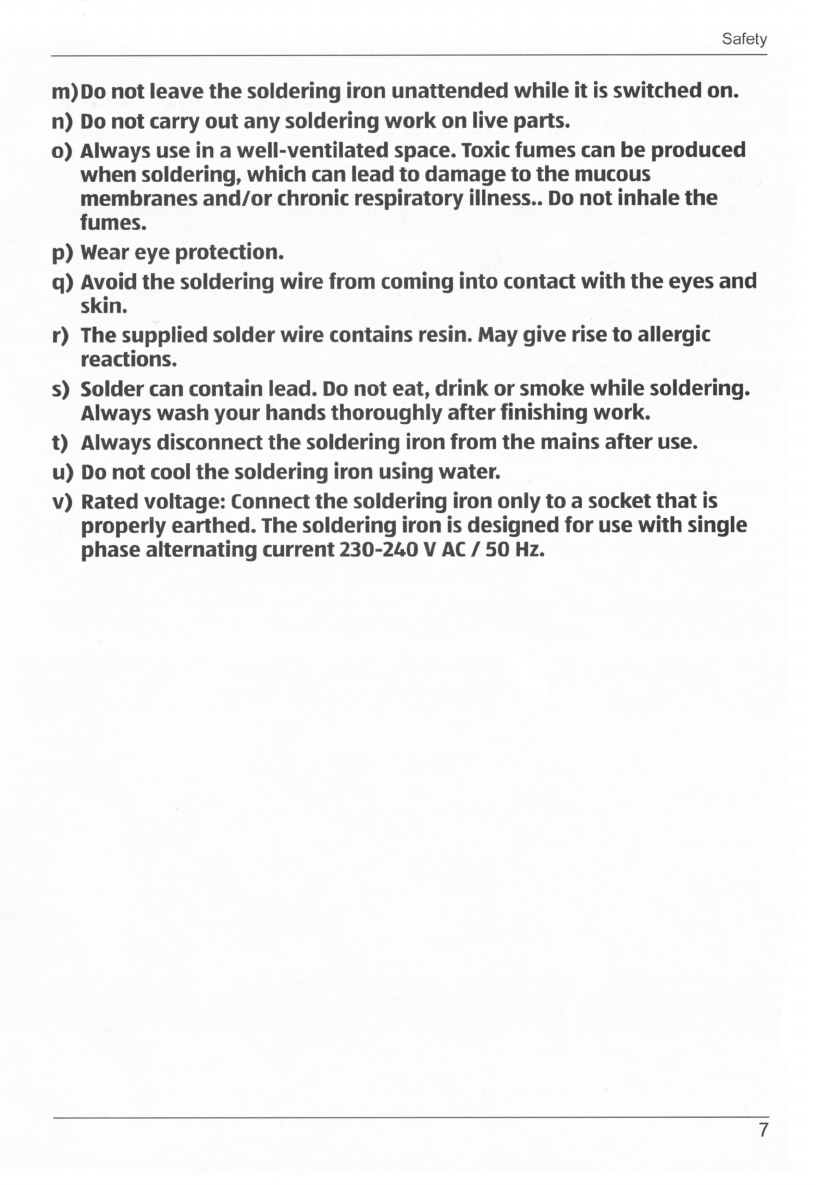

m)Do not leave the soldering iron unattended while it is switched on.
n) Do not carry out any soldering work on live parts.
o) Always use in a well-ventilated space. Toxic fumes can be produced
when soldering, which can lead to damage to the mucous
membranes and/or chronic respiratory illness.. Do not inhale the
fumes.
p) Wear eye protection.
q) Avoid the soldering wire from coming into contact with the eyes and
skin.
r) The supplied solder wire contains resin. May give rise to allergic
reactions.
s) Solder can contain lead. Do not eat, drink or smoke while soldering.
Always wash your hands thoroughly after finishing work.
t) Always disconnect the soldering iron from the mains after use.
u) Do not coolthe soldering iron using water.
v) Rated voltage: Connect the soldering iron only to a socket that is
properly earthed. The soldering iron is designed lor use with single
phase alternating current 23O-2t O V AC / 50 Hz.

Safety
Additional information from the safety data sheet of the
solder wire - First aid measures
After inhalation:
. Move those affected outdoors to fresh air. Do not leave them unattended. Call a
doctor immediately.
lf it comes into contact with skin:
. Wash the affected area immediately with water and soap and rinse it well. After
contact with the molten solder, coolthe area quickly with cold water. Do not pull
the solidified solder from the skin.
lf it comes into contact with eyes:
. Rinse the eye for several minutes under running water and consult a doctor.
lf swallowed:
. Consult a doctor immediately.
lleasures to be taken in case of accidental release
. Wear personal protective gear.
. Do not allow the product to get into drains or sources of water.
Storage
. Store the solder wire in a cool place.
. Do not store the solder wire together with acids.

Before Use
Before Use
Check the soldering iron and scope of delivery
a
a
Keep the packaging awayfrom children (choking hazard) and dispose of the
packaging in an eco-friendly manner.
Take the soldering iron and accessories out of the packaging.
Check whether the delivery is complete (see the chapter Scope of delivery /
Description of parts).
Check whether the soldering iron or the accessories are damaged.
Do not use the soldering iron if it is damaged or parts are missing. Contact the
service centre listed on the warranty card.
a
a
Assembling the soldering iron holder
. lnsertthesoldering iron holderof the
stand !l into the slot Il such that the
lower end of the spring Gl points to
the rear ofthe stand.
. Press the soldering iron holderfirmly
into the slot until the plastic tabs
engage audibly and perceptibly.

Before Use

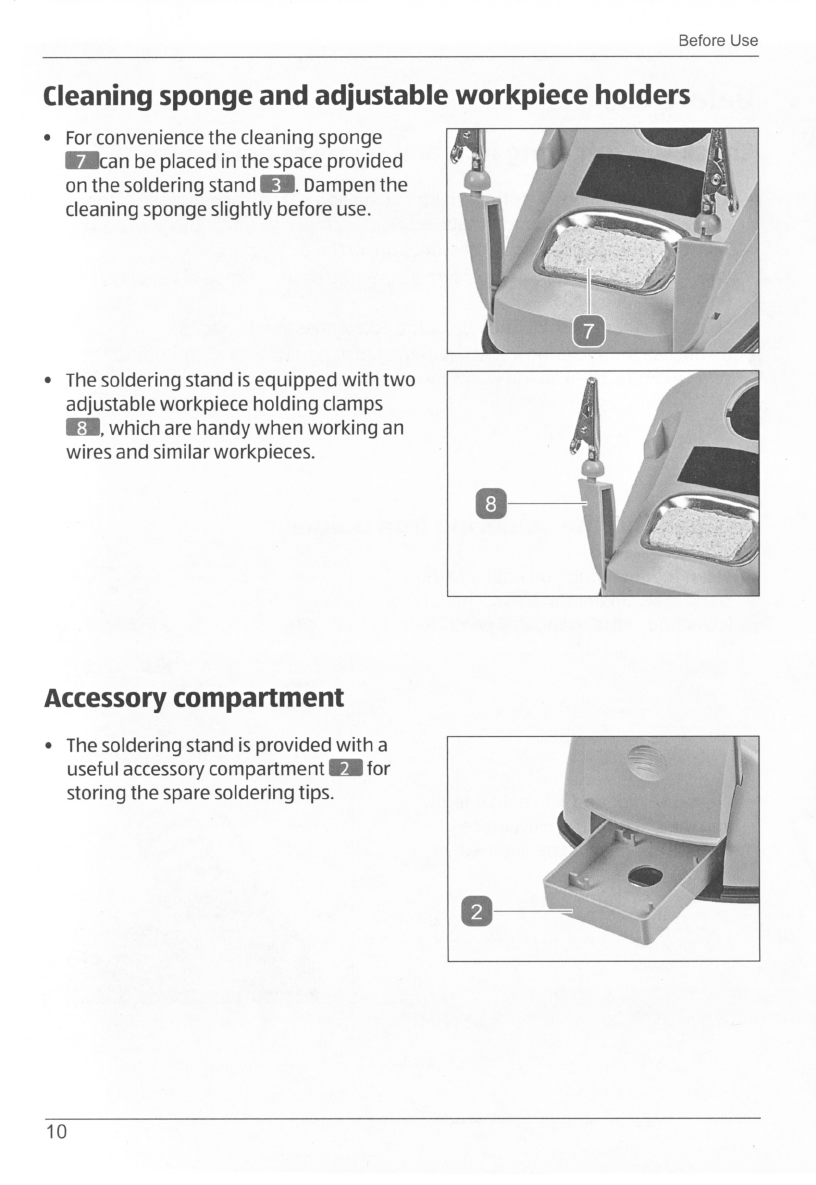

Cleaning sponge and adjustable workpiece holders
. For convenience the cleaning sponge
Ecan be placed in the space provided
on the soldering stand E. Dampen the
cleaning sponge slightly before use.
The soldering stand is equipped with two
adjustable workpiece holding clamps
El, which are handywhen working an
wires and similar workpieces.
Accessory compartment
. The soldering stand is provided with a
useful accessory compartment Il for
storing the spare soldering tips.
10

Usage
Assembling and changing the soldering tips
Disconnect the machine from the mains before performing any
maintenance or adjustments
Allow the soldering iron to cool down completely before replacing the
soldering tip.
Select a suitable tip for your application.
- The pointed soldering tip is particularly suitable for spot soldering and thin
cables.
- The flat soldering tip is particularly suitable for light electrical soldering work.
Loosen the fixing screw IEI on the
heating element IIl.
Remove the soldering tip El / El from
the heating element.
lnsert the desired soldering tip into the
heating element.
Then tighten the fixing screw again.
Usage
switching on and off
. lnsert the mains plug into the socket to switch on the soldering iron.
. Disconnect the mains plug to switch off the soldering iron.
@
I
11

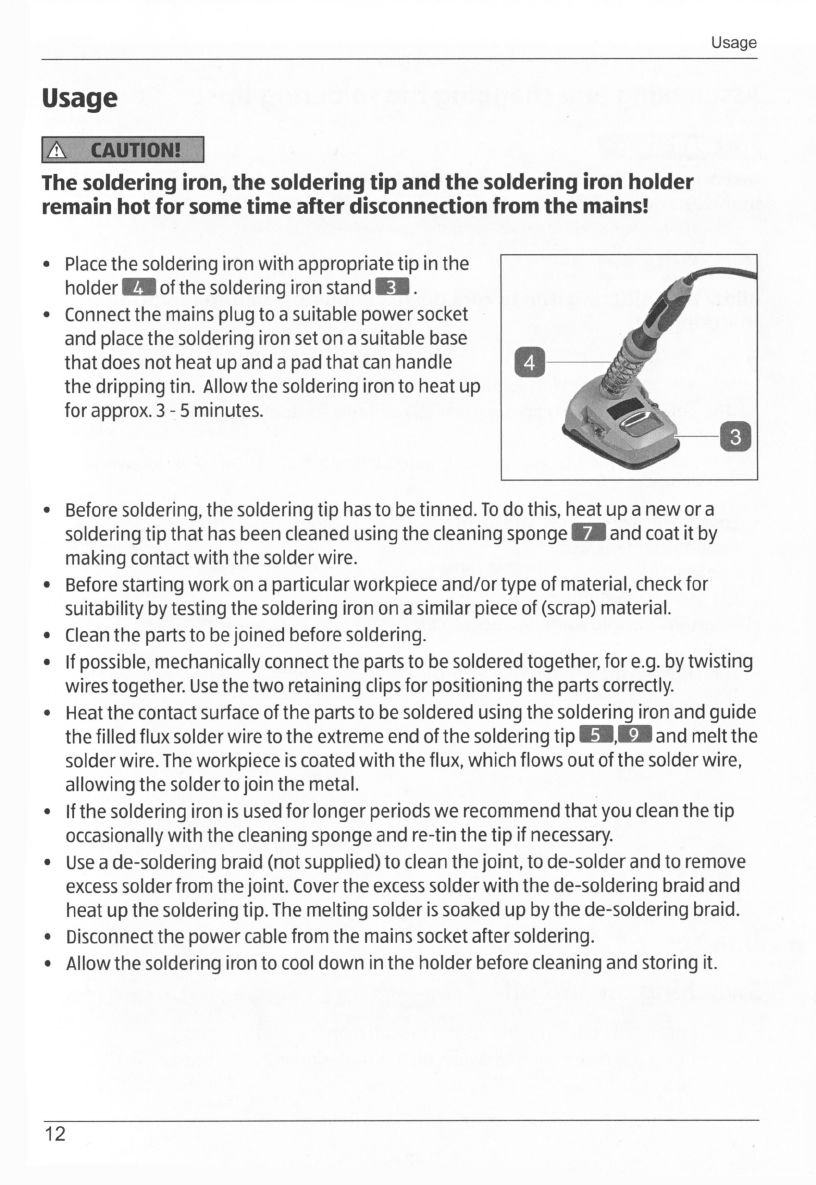

Usage
Usage
The soldering iron, the soldering tip and the soldering iron holder
remain hot for some time after disconnection from the mains!
Place the soldering iron with appropriate tip in the
holder !l of the soldering iron stand El .
Connect the mains plug to a suitable power socket
and place the soldering iron set on a suitable base
that does not heat up and a pad that can handle
the dripping tin. Allow the soldering iron to heat up
for approx. 3 - 5 minutes.
a
a
Before soldering, the soldering tip has to be tinned. To do this, heat up a new or a
soldering tip that has been cleaned using the cleaning sponge Z and coat it by
making contact with the solder wire.
Before starting work on a particular workpiece and/or type of material, check for
suitability by testing the soldering iron on a similar piece of (scrap) material.
Clean the parts to be joined before soldering.
lf possible, mechanically connect the parts to be soldered together, for e.g. by twisting
wires together. Use the two retaining clips for positioning the parts correctly.
Heat the contact surface of the parts to be soldered using the soldering iron and guide
the filled flux solder wire to the extreme end of the soldering tip E,El and melt the
solder wire. The workpiece is coated with the flux, which flows out of the solder wire,
allowing the solderto join the metal.
lf the soldering iron is used for longer periods we recommend that you clean the tip
occasionally with the cleaning sponge and re-tin the tip if necessary.
Use a de-soldering braid (not supplied) to clean the joint, to de-solder and to remove
excess solder from the joint. Cover the excess solder with the de-soldering braid and
heat up the soldering tip. The melting solder is soaked up by the de-soldering braid.
Disconnect the power cable from the mains socket after soldering.
Allow the soldering iron to cool down in the holder before cleaning and storing it.
o
a
12

Maintenance, cleaning, storage and transport
Maintenance, cleaning, storage and transport
Disconnect the soldering iron from the mains before performing any
maintenance or adjustments
Maintenance
The soldering iron is virtually maintenance free.
Only use spare parts / accessories from the manufacturer
Repairs should only be carried out by qualified technicians or by an authorised
service centre. Qualified technicians must have relevant training and experience,
be familiarwith the design and construction requirements of the soldering iron and
understand and follow the safety regulations.
Cleaning
Allow the soldering iron to cool down completely before cleaning. To
avoid damage, do not use aggressive cleaning agents, metal brushes
and sharp objects such as knives, etc.
Make sure that liquids do not get into the
soldering iron.
. Clean the soldering iron using a soft, slightly damp cloth if required. Ensure that no
moisture enters the device.
. Clean the soldering tips using the cleaning sponge included in the supply.
Storage
. Clean the soldering iron before storage.
. Keep the soldering iron and accessories in a safe, cool, dry and well-ventilated
place in its original packaging, out of the reach of children when it is not being
used.
. Do not store the solder wire together with acids.
Transport
. Use the original packaging and secure the soldering iron in place during
transport.
13

Troubleshooting
Troubleshooting
Problem Possible Gause Rectification
Soldering iron No power supply. Check that the mains supply (socket) functions
does not heat correctly. Ask a qualified person for advice if
up. necessary.
Mains cable or plug Get the mains cable replaced by the
defective. manufacturer or the manufacturer's
representative.
The Soldering tip is loose. Unplug the power cord from the mains outlet.
temperature Allow the soldering iron to cool down. Tighten
of the the fixing screw of the soldering tip.
soldering tip
is too low.
The solder Soldering tip is not hot Wait untilthe soldering iron is hot enough.
does not run enough.
smoothly on
the soldering
iron.
Allow the soldering iron to cool down
completely and check if the tip is loose. Tighten
the fixing screw if necessary.
Technical data
Model HS-060E-30
Mains connection 23O - 2t'O V- / 50 Hz
Rated power 30 W
Solder S-Sn99Cu'1 with flux core, melting temperature
(230-250 o C), diameter (1.5 mm)
Protection class I (the soldering iron has to be earthed)
The following original spare parts are available from the customer service department of
the manufacturer:
Part description Part number Art. No.
Soldering stand 6An8t*
Soldering tip (flat) 62tn85
Soldering tip (pointed) 962U86
14
62/n87
Soldering wire

Recycling
The digital form of this operating manual is also available from the service
department of the manufacturer.
X
I
Recycling
Disposal of packaging
Dispose of the packaging material according to the type of material and
according to any local regulations.
Disposal of the soldering iron
This symbol indicates that this product may not be disposed of together with
domestic waste in compliance with the (2012/19/EC) directive pertaining to
waste electrical and electronic devices (WEEE). This product should be handed
over at an designated collection point. This can occur, for example, by
returning it when a similar product is purchased or by handing it in at an
authorised collecting point for the recycling of waste electrical and electronic
equipment. Owing to potentially hazardous substances that are frequently
contained in waste electronic equipment, incorrect handling of waste
equipment may have a negative impact on the environment and on the
health of human beings. By disposing of this product correctly, you are also
contributing towards an efficient use of natural resources. lnformation on
collecting points for waste equipment can be obtained from your local
authority, the public waste disposal authority, an authorised institution for the
disposal of waste electrical and electronic equipment or the waste collection
services.
Disposal of the solder wire
Do not dispose it along with the household waste. Should not be allowed to get into
the drainage system. Dispose of any solder wire residue in accordance with the local
regulations applicable in your area.
Declaration of conformity
The EU declaration of conformity can be requested from the address mentioned in
the enclosed warranty card.
15

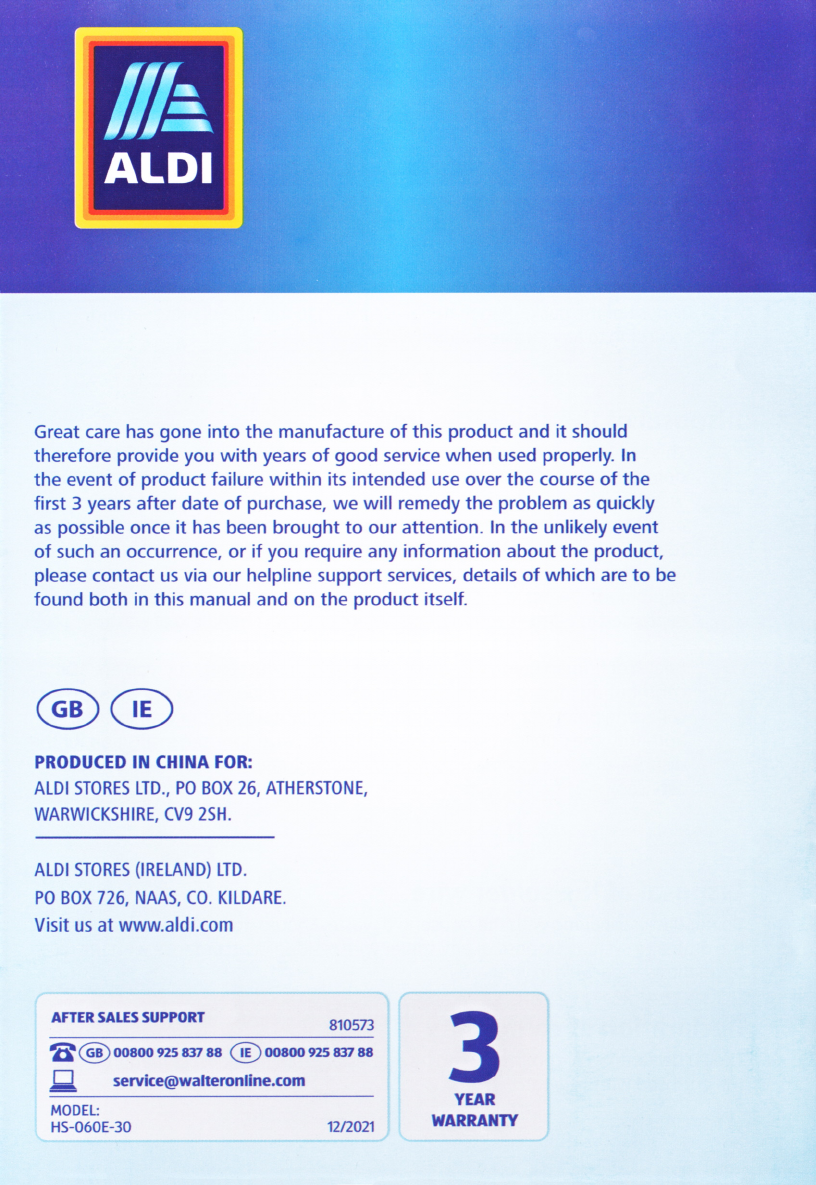

Great care has gone into the manufacture of this product and it should
therefore provide you with years of good service when used properly. ln
the event of product failure within its intended use over the course of the
first 3 years after date of purchase, we will remedy the problem as quickly
as possible once it has been brought to our attention. ln the unlikely event
of such an occurrence, or if you require any information about the product,
please contact us via our helpline support services, details of which are to be
found both in this manual and on the product itself.
@@
PRODUCED IT CHIITA FOR:
ALDI STORES [T0., PO BOX 26, ATHERSTONE,
wARWtCKSHtRE, CV9 25H.
ArDr SToRES (TRETAND) rrD.
PO BOX 725, NMs, CO. KILDARE.
Visit us at wvwv.aldi.com
AF|ERSAIISSI'PPOTT
$@ omm sat st I CE)mm gzs sr rr
trl [email protected]
MODEK
HS-060E-30 3
YEAN
UAnlAilrY
