Scope of delivery/device components
Securing clip
Tension lever
ON / OFF switch
Vibration rate preselection
Thread for additional handle
Tool holder
HCS plunge-cut saw blade (32 mm)
Segment saw blade (85 mm)
Sanding plate
Scraper (50 mm)
Sanding sheets
Additional handle
HSS plunge-cut saw blade (32 mm)
Extraction channel
Extraction adapter
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

300W multifunctional tool
6
GB IRE
www.coreservice.co.uk
AFTER SALES SUPPORT
IRE
GB [phone] [phone]
General information
Reading and storing the user manual
This user manual accompanies this 300W multifunctional tool. It contains
important information on start-up and handling.
For improved readability, the 300W multifunctional tool will be referred to
only as the “multifunctional tool” below.
Before using the multifunctional tool, read the user manual carefully. This particularly
applies to the safety notes. Failure to heed this user manual may result in severe
injury or damage to the multifunctional tool.
The user manual is based on the standards and rules in force in the European Union.
When abroad, you must also observe country-specific guidelines and laws.
Store the user manual for future use. Make sure to include this user manual when
passing the multifunctional tool on to third parties.
Proper use
The multifunctional tool is only designed for private users in connection with hobby
and DIY projects for the following purposes:
• sawing, cutting, scraping and sanding various materials in hard-to-reach
areas.
Any other applications are expressly prohibited and are deemed improper use.
Neither the manufacturer nor the retailer can accept any responsibility for injury,
loss or damage caused by misuse of this product of any kind. Examples of misuse are
given in the following non-exhaustive list:
• Using the multifunctional tool for other than the intended purposes;
• Failure to observe the safety instructions and warnings as well as the
assembly, operating, maintenance and cleaning instructions contained in
this user manual;
• Failure to comply with any regulations relating to accident prevention,
occupational medicine or safety, which specifically and/or generally apply to
the use of this multifunctional tool;
• Use of accessories and spare parts not intended for the multifunctional tool;
• Modifications to the multifunctional tool;
• Repairs of the multifunctional tool performed by parties other than the
manufacturer or a qualified professional;
• Use of the multifunctional tool for commercial or industrial applications as
well as in connection with the trades;
General information

300W multifunctional tool
7
GB IRE
www.coreservice.co.uk
AFTER SALES SUPPORT
IRE
GB [phone] [phone]
• Operation or maintenance of the multifunctional tool by persons not familiar
with how to handle the multifunctional tool and/or who are not aware of the
related risks.
Residual risks
Despite proper use, inconspicuous residual risks cannot be completely ruled out. The
following risks may arise due to the nature of the multifunctional tool:
• Projection of parts or breakage of the sanding surface, the fitted tool or the
material being processed pose a risk of severe injury or blindness if the
prescribed protective goggles are not worn,
• Contact with sharp or hot parts of the work piece or the fitted tool during
operation or while performing maintenance,
• Damage to hearing if the prescribed hearing protection is not worn,
• Inhalation of particles produced whilst sanding the material as well as the
surface being sanded or polished.
Explanation of symbols
The following symbols and signal words are used in this user manual, on the
multifunctional tool or on the packaging.
This signal symbol/word designates a hazard
with moderate risk, which may result in death or
severe injury if not avoided.
This signal symbol/word designates a hazard
with low risk that, if not avoided, may result in
minor or moderate injury.
This signal word warns against potential
damages to property.
Declaration of conformity (see chapter “Declaration of conformity”):
Products marked with this symbol meet all applicable Community
regulations for the European Economic Area.
A product placed on the United Kingdom market meets the UKCA Marking
requirements
Safety
WARNING!
CAUTION!
NOTICE!

300W multifunctional tool
8
GB IRE
www.coreservice.co.uk
AFTER SALES SUPPORT
IRE
GB [phone] [phone]

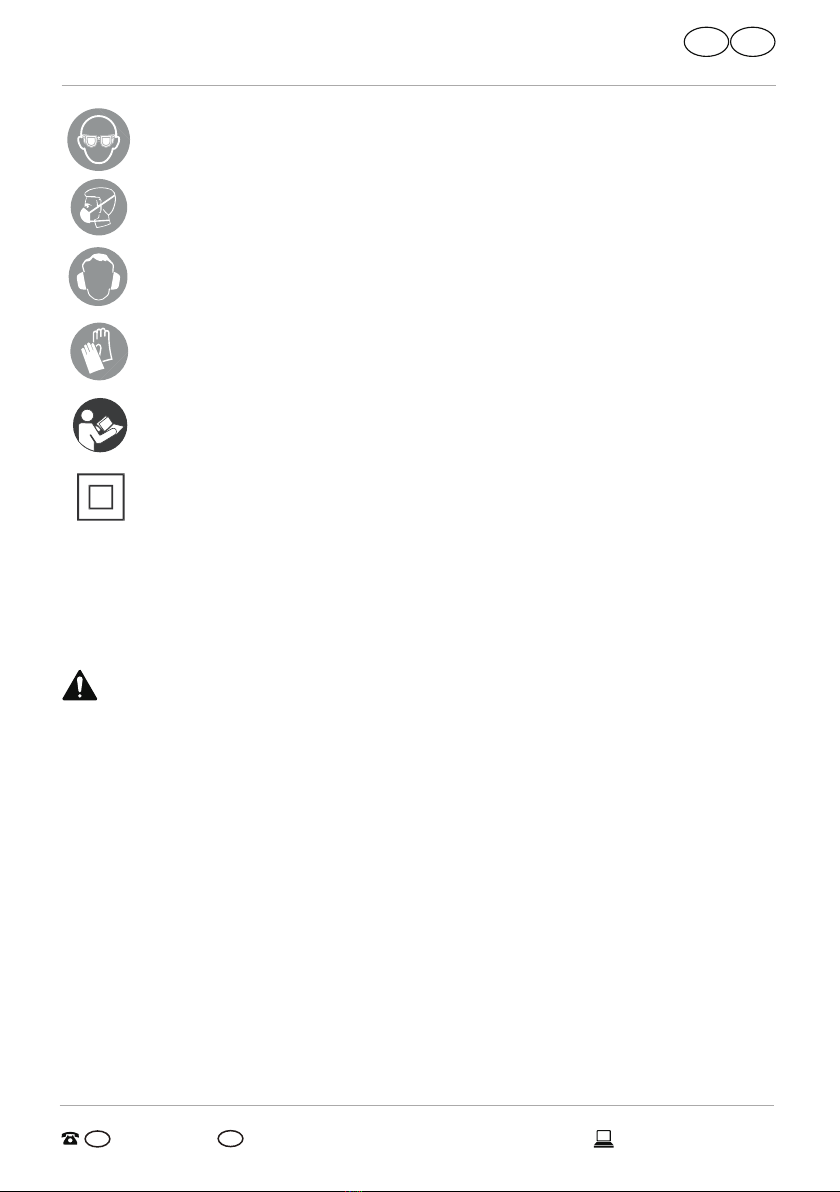

Wear protective goggles.
Wear a dust mask.
Wear ear protection.
Wear suitable protective gloves.
Read the user manual!
The multifunctional tool complies with protection class II.
Safety
General power tool safety instructions
WARNING Read all safety instructions and instructions.
Failure to follow the safety instructions and instructions may result in an electric
shock, fire and/or severe injury.
Save all warnings and instructions for future reference
The term “power tool” used in the safety instructions refers to mains-operated power
tools (with a power cable) and battery-powered power tools (cordless).
Work area safety
a) Keep your work area clean and well lit. Cluttered or dark areas invite
accidents.
b) Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
Safety

300W multifunctional tool
9
GB IRE
www.coreservice.co.uk
AFTER SALES SUPPORT
IRE
GB [phone] [phone]
Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any
way. Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable
for outdoor use. Use of a cord suitable for outdoor use reduces the risk of
electric shock.
f) If operating a power tool in a damp location is unavoidable, use a
residual current device (RCD) protected supply. Use of an RCD reduces the
risk of electric shock.
Personal safety
a) Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use a power tool while you are tired or under
the influence of drugs, alcohol or medication. A moment of inattention while
operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection.
Protective equipment such as dust mask, non-skid safety shoes, hard hat,
or hearing protection used for appropriate conditions will reduce personal
injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position
before connecting to power source and/or battery pack, picking up or
carrying the tool. Carrying power tools with your finger on the switch or
energizing power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A
wrench or a key left attached to a rotating part of the power tool may result in
personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair,
Safety

300W multifunctional tool
10
GB IRE
www.coreservice.co.uk
AFTER SALES SUPPORT
IRE
GB [phone] [phone]
clothing and gloves away from moving parts.
g) If devices are provided for the connection of dust extraction and
collection facilities, ensure these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to
become complacent and ignore tool safety principles. A careless action can
cause severe injury within a fraction of a second.
Power tool use and care
a) Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at the rate
for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any
power tool that cannot be controlled with the switch is dangerous and must
be repaired.
c) Disconnect the plug from the power source and/or remove the battery
pack, if detachable, from the power tool before making any adjustments,
changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow
persons unfamiliar with the power tool or these instructions to operate
the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding
of moving parts, breakage of parts and any other condition that may
affect the power tool’s operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and fitted tools etc. in accordance with
these instructions, taking into account the working conditions and the
work to be performed. Use of the power tool for operations different from
those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and
grease. Slippery handles and grasping surfaces do not allow for safe handling
and control of the tool in unexpected situations.
Service
a) Have your power tool serviced by a qualified repair person using only
identical replacement parts.
Safety

300W multifunctional tool
11
GB IRE
www.coreservice.co.uk
AFTER SALES SUPPORT
IRE
GB [phone] [phone]
Operational safety instructions for your multifunctional
tool
– Hold the multifunctional tool by the insulated handles when performing work
where there is a risk of the fitted tool being used coming into contact with
hidden power lines. Contact with a live line could also energise metallic parts of
the device and inflict an electric shock.
– Always wear protective goggles and a dust mask when sanding; especially
when sanding overhead.
– Wear ear protection.
– Wear protective gloves when changing the fitted tools. Fitted tools become hot
after prolonged use.
– Use the multifunctional tool only for dry sanding.
– Only use sand paper of the length that you need. Any paper protruding from the
sanding plate can cause serious injury.
– Never expose the multifunctional tool to high temperatures (heaters etc.) or to
the effects of the weather (rain etc.).
– Keep your hands away from the work area. Do not reach under the work piece.
There is a risk of injury resulting from contact with the saw blade or scraper.
– Grip the multifunctional tool with two hands and maintain a stable posture to
avoid the risk of serious injury. When working with the multifunctional tool,
always hold it firmly with both hands and provide for a secure stance.
– Only scrape materials that have not been moistened (e.g. wallpaper) and do not
scrape on a wet base.
– Adopt a stance that prevents injury in the event of slipping off the work piece.
– Only use fitted tools that are in proper technical condition.
– Fitted tools may become extremely hot. After making a cut, do not touch the
fitted tool and make sure that the multifunctional tool is kept in a safe place once
you have finished work.
– When working on masonry or ceilings, take note of the location of electric pipes
as well as water and sewage pipes.
– Never place the multifunctional tool or the accessories on or near hot surfaces
(e.g. radiators).
Safety

300W multifunctional tool
12
GB IRE
www.coreservice.co.uk
AFTER SALES SUPPORT
IRE
GB [phone] [phone]
Safety instructions for sanding paint
– Do not sand paints that contain lead. Determine whether the paint you intend
to sand contains lead before beginning work. Dust from paints containing lead
may cause lead poisoning.
– A special test or a commercial painting contractor can determine whether a paint
contains lead. If in doubt, you should wear a special dust mask to protect you
from fine particles containing lead. Ask a qualified professional about this.
– Sanding coats of paint containing lead, various types of wood and metals could
produce hazardous or poisonous dust. Coming into contact or inhaling the dust
may pose a risk to the operator or nearby persons. Wear suitable protective
equipment to protect yourself and nearby persons from coming into contact or
inhaling this dust. Normal dust masks do not provide proper protection.
– Do not allow children or pregnant persons to enter the room or work area where
you are sanding.
– Do not eat, drink or smoke while working. Clean your hands before you eat,
drink or smoke. Do not leave any food or beverages exposed as there is a risk of
dust accumulating in them.
– After sanding, thoroughly clean the surfaces of the work area.
Safety instructions for dust extraction
Dust from materials whose constituents include paint coats containing lead, some
types of wood, minerals and metal could be harmful to health. Coming into contact
or inhaling such dust could cause allergic reactions and/or respiratory illness on
the part of the user or persons in the immediate vicinity. Certain dusts such as oak
or beech dust are considered carcinogenic, particularly in combination with wood
treatment additives (chromate, wood preservatives).
– Use a dust extractor.
– Use a special extractor to extract types of dust, which are particularly harmful to
health, carcinogenic or dry.
– Make sure the work area is adequately ventilated.
– Wear a P2 dust mask (filter class) when performing work that produces dust.
If the multifunctional tool has a port for dust extractors and/or dust collectors,
connect the dust extractor to it.
– Observe the regulations in your country that apply to the materials you intend to
work on.
Safety

300W multifunctional tool
13
GB IRE
www.coreservice.co.uk
AFTER SALES SUPPORT
IRE
GB [phone] [phone]
– When disposing of dust, be particularly careful as the dust of some materials may
be explosive. Do not dispose of sanding dust in fire. Mixtures of dust particles
containing oil or water could spontaneously ignite over time.
Safety precaution for fire prevention
Keep an extinguisher on hand.
In the event of wood and paper fires: powder fire extinguisher (fire class ABC) or
foam fire extinguisher (fire class AB).
For electrical fires: carbon dioxide (CO2) fire extinguisher (fire class B).
Special safety precautions for persons with medical
implants
Every power tool generates an electromagnetic field during operation that may
interfere with the functioning of medical implants (e.g. pacemakers) under
unfavourable conditions.
Before working with the power tool:
• Consult a physician.
• Ask the manufacturer of your implant.
Preparation
Checking the multifunctional tool and pack contents
NOTICE!
Risk of damage!
If you are not cautious when opening the packaging with a sharp knife or other
pointed objects, you may damage the multifunctional tool.
− Be careful when opening.
1. Remove the packaging material.
2. Check whether the delivery is complete (see fig. A ).
3. Check whether the multifunctional tool or the accessories exhibit damage. If this
is the case, do not use the multifunctional tool. Contact the manufacturer at the
service address specified on the warranty card.
Preparation

300W multifunctional tool
14
GB IRE
www.coreservice.co.uk
AFTER SALES SUPPORT
IRE
GB [phone] [phone]
Familiarising yourself with the functional principle
The multifunctional tool does not rotate the fitted tool; instead, it oscillates it back
and forth.
Familiarising yourself with permissible materials
You can use the following tools to process the listed materials:
Plunge-cut saw blade
• Hard and soft woods
• Soft metal
Scraper
• Layers of paint and lacquer
• Synthetic coatings
• Flexible floor coverings, e.g. carpets, linoleum
Segment saw blade
• Hard and soft woods
Sanding plate
• Hard and soft wood surfaces
• Layers of paint and lacquer
Preparing the multifunctional tool
CAUTION!
Risk associated with oscillating moving parts!
If you accidentally switch the multifunctional tool on, you could injure
yourself on the moving parts that are oscillating.
− Before mounting accessories, disconnect the multifunctional tool
from the power supply.
Preparation

300W multifunctional tool
15
GB IRE
www.coreservice.co.uk
AFTER SALES SUPPORT
IRE
GB [phone] [phone]
Mounting tools
CAUTION!
Risk of injury!
If you mount the tools incorrectly and they are therefore able to
come into contact with your hand during use, there is a risk of injury.
– Do not mount the tools such that there is a possibility of them
coming into contact with your hand. For example: Ensure that the
blades are not pointing towards your hand.
Depending on the application, mount the tools listed below:
Plunge-cut saw blade
Example of use: Sawing slots (see fig. E).
Raise the tool release lever (fig. C),insert blade 7or 13 , align the saw blade hole
with the positioning pin on the chuck, and then tighten the quick clamp (fig. D) .
Scraper
Example of use: Removing coatings, lacquer coats or floor surfaces (see fig. E ).
Raise the tool release lever (fig. C),insert blade 10, align the saw blade hole with the
positioning pin on the chuck, and then tighten the quick clamp (fig. D)
Segment saw blade
Example of use: Flush cutting fitted door frames to length (see fig. E).
Raise the tool release lever (fig. C),insert blade 8, align the saw blade hole with the
positioning pin on the chuck, and then tighten the quick clamp (fig. D)
Sanding plate
Example of use: Grinding surfaces in inaccessible corners (see fig. E).
1. Raise the tool release lever (fig. C),insert blade 9, align the saw blade hole with
the positioning pin on the chuck, and then tighten the quick clamp (fig. D)
2. Place the sanding sheet 11 on the sanding plate so that they are aligned.
Push firmly so that the Velcro backing holds in place.
Place the accessories on the tool holder at any angle (see fig. F and fig. G).
Preparation

300W multifunctional tool
16
GB IRE
www.coreservice.co.uk
AFTER SALES SUPPORT
IRE
GB [phone] [phone]
Operation
Getting started
1. Make sure that the multifunctional tool has been properly prepared as described
in the chapter “Preparing the multifunctional tool”.
2. Connect the multifunctional tool to a mains socket.
3. Switch the extractor on.
4. Use the On/Off switch 3to switch the multifunctional tool on. (see fig. H)
5. Use the speed control 4to adjust the speed. (see fig. I) Set the speed control
to level 1 for low vibration (oscillation) and to level 6 for intense vibration
(oscillation). Make sure that you use the correct speed for the work material or
test various speeds on the work material to determine the correct one.
6. Hold the multifunctional tool up to the work piece. You can now process the
work piece.
Finishing work
1. Take the multifunctional tool out of the work piece.
2. Use the On/Off switch 3to switch the multifunctional tool off.
3. Pull the mains plug out of the socket.
Operation

300W multifunctional tool
17
GB IRE
www.coreservice.co.uk
AFTER SALES SUPPORT
IRE
GB [phone] [phone]
Cleaning and maintenance
WARNING!
Burn hazard!
Some tools become hot during operation. You could burn yourself.
− Always let them cool off completely before cleaning!
NOTICE!
Risk of short circuit!
Water that has penetrated the housing may cause a short circuit.
− Never submerge the multifunctional tool in water.
− Make sure that no water penetrates the housing.
NOTICE!
Risk of damage!
Improperly cleaning the multifunctional tool and the tools may lead
to damage.
– Do not use any aggressive cleaners, brushes with metal or nylon
bristles or sharp or metallic cleaning utensils such as knives, hard
scrapers and other similar objects.
After every use
1. Before cleaning, pull the mains plug out of the socket.
2. Let the tool cool off completely.
3. Wipe the housing off with a damp cloth if heavily soiled.
After every eight hours of operation
1. Use commercially-available universal oil to oil the moving parts of the tool holder
6.
Cleaning and maintenance

300W multifunctional tool
18
GB IRE
www.coreservice.co.uk
AFTER SALES SUPPORT
IRE
GB [phone] [phone]
Storage and transport
NOTICE!
Risk of damage!
Improper storage or transport of the multifunctional tool could
damage it.
– Store and transport the multifunctional tool in a clean, dry and
frost-free location. Always use the enclosed storage bag to store
and transport the multifunctional tool and the accessories. Other
storage locations and transport possibilities do not adequately
protect the multifunctional tool.
1. Make sure that the multifunctional tool and the accessories are completely dry.
2. Fold up the mains cord so that it does not knot or kink.
3. Place all accessories and especially the washer 10 , the Allen head screw 11
and the Allen wrench 12 back in the storage box to prevent the loss of accessory
parts.
Repairs
WARNING!
Risk of electric shock!
Repairs performed by the user or the use of unsuitable spare parts to repair the
device poses an increased risk of electric shock.
– Do not open the housing. In the event of a defect, only have the multifunctional
tool repaired by authorised qualified professionals. For this, contact the
manufacturer at the service address specified on the warranty card. Electric and
mechanical parts, which are essential for providing protection against sources of
danger, are contained in this multifunctional tool.
– Do not attempt to perform any repairs by yourself.
– If the connection line is damaged, you must – in order to avoid risks – have it
replaced by the manufacturer or its customer service representative.
Storage and transport

300W multifunctional tool
19
GB IRE
www.coreservice.co.uk
AFTER SALES SUPPORT
IRE
GB [phone] [phone]
Troubleshooting
Some problems may be caused by minor faults that you can fix yourself. To
do so, follow the instructions in the following table.
If it is still not possible to resolve the problem with the multifunctional tool,
contact After Sales Support.
Problem Possible cause Solution
1. The multifunction-
tool cannot be
switched on.
The socket has no
power.
– Check the socket by
connecting another device.
The mains plug
has not been inserted
properly.
– Check to make sure that
the mains plug is properly
seated.
The mains plug has not
been inserted in the
socket.
– Insert the mains plug in a
socket.
The On/Off switch 3
is stuck.
– Keep the On/Off switch clean
as described in the chapter
“Cleaning and maintenance”.
The mains plug/On/Off
switch is defective.
– Contact the After Sales
Support of the manufacturer.
There is dirt, wood
chips or other objects
located in the gap of
the tool holder.
– Pull the mains plug out of
the socket and clean the
gap of the tool holder with a
vacuum cleaner if necessary.
2. The tool holder
does not move after
switching on the
multifunctiontool.
The multifunctional tool
is defective.
– Contact the After Sales
Support of the manufacturer.
3. The oscillation/
speed can not
be increased or
decreased.
The speed control 4
is dirty.
– If necessary, clean the speed
control and the gap with a
vacuum cleaner.
Repairs

300W multifunctional tool
20
GB IRE
www.coreservice.co.uk
AFTER SALES SUPPORT
IRE
GB [phone] [phone]
Technical data
Product-specific data
Model number: CGN300D-1
Article number: 807615
Electrical data
Supply voltage: 230–240 V~
Mains frequency: 50 Hz
Power consumption: 300 W
Idle speed n0: 15000-21000 min-1
Physical data
Dimensions without accessories and cords: 285 × 70 × 100 mm
Weight without tools: 1.47kg
Technical data
