ALDI KAWWASHTL7A User manual

7KG TOP LOAD
WASHING MACHINE
KAWWASHTL7A & KAWWASHTL7B

Read Carefully and Keep for Future Reference
Read this user guide thoroughly before first use, even if you are familiar with this type of
product. The safety precautions enclosed reduce the risk of fire, electric shock and injury
when correctly adhered to.
Keep the user guide in a safe place for future reference, along with the completed warranty
card and purchase receipt. If applicable, pass these instructions on to the next owner of the
appliance.
Always follow basic safety precautions and accident prevention measures when using an
electrical appliance, including the following:
Warning
This heading indicates that there is a serious risk of injury if you do
not adhere to the warning(s).
Caution
This heading indicates that care should be taken to avoid injury to
persons or damage to property.
Electrical safety
•The appliance is rated 230-240V – 50Hz. Ensure the voltage supply at your home
corresponds to this.
•Only connect the washing machine to a grounded (earthed) electrical outlet.
•Do not insert any objects into the appliance.
•Do not kink or damage the power cord and position it out of the way so no one
steps on or places anything on the cord or against it.
•Do not overload the wall outlet. Overloading can result in fire or electric shock.
•If the power cord is damaged, contact Kogan.com for support.
•Never use this washing machine with a power adaptor or an extension cord.
•Unplug the washing machine from the power supply before cleaning, servicing,
performing maintenance or moving the appliance. Pull by the plug, not by the cord.
•After use, always unplug the appliance and turn off the water.
•Warning: All electrical work must be done in accordance with local and national
electrical codes as applicable and should be undertaken by licenced and qualified
persons only.
SAFETY & WARNINGS

Installation
•Install the washing machine on a flat surface to avoid overturning during use. If the
machine must be placed on carpet, make sure any ventilation openings in the base
are not obstructed.
•Install the washing machine so that there is a distance of at least 200mm between
the appliance enclosure and any external heat sources, such as appliances
containing heating elements.
•Connect the washing machine to the water mains using new hose sets. Do not
reuse old hose sets. The required water pressure is 0.03MPa (min.) to 0.8MPa
(max.).
•Ensure that all water and electrical connections are made by qualified personnel
only, observing local safety regulations and following the manufacturer’s
instructions.
•Improper installation may result in the risk of fire, electric shock and/or injury. We
assume no liability for any eventual damages caused by improper installation.
Usage conditions and restrictions
•The appliance is designed for private domestic use only. It is not suitable for
commercial or trade use. The appliance has a capacity (max. weight of dry wash
load) of 7kg.
•Do not operate the appliance outdoors.
•This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
•Children should be supervised to ensure they do not play with the appliance.
•Before loading the machine, always ensure no pet or young child has climbed into
it.
•Make sure all pockets of clothing to be washed are empty. Hard, sharp objects
such as coins, safety pins, bra wires, nails, screws or stones can cause extensive
damage to the appliance and block the pump.
•Any damage or malfunction resulting from foreign objects is not covered by your
warranty and may lead to expensive repairs. We assume no liability for any
eventual damages caused by improper or faulty use.

Cleaning and maintenance
•Before cleaning or performing maintenance, always unplug the appliance from the
power supply.
•Except for the filters that require regular cleaning, the unit has no user-serviceable
parts contained within. Do not attempt to repair, disassemble or modify it. Repairs
made by inexperienced or unqualified persons may cause injury and/or make more
serious repairs to the appliance necessary.

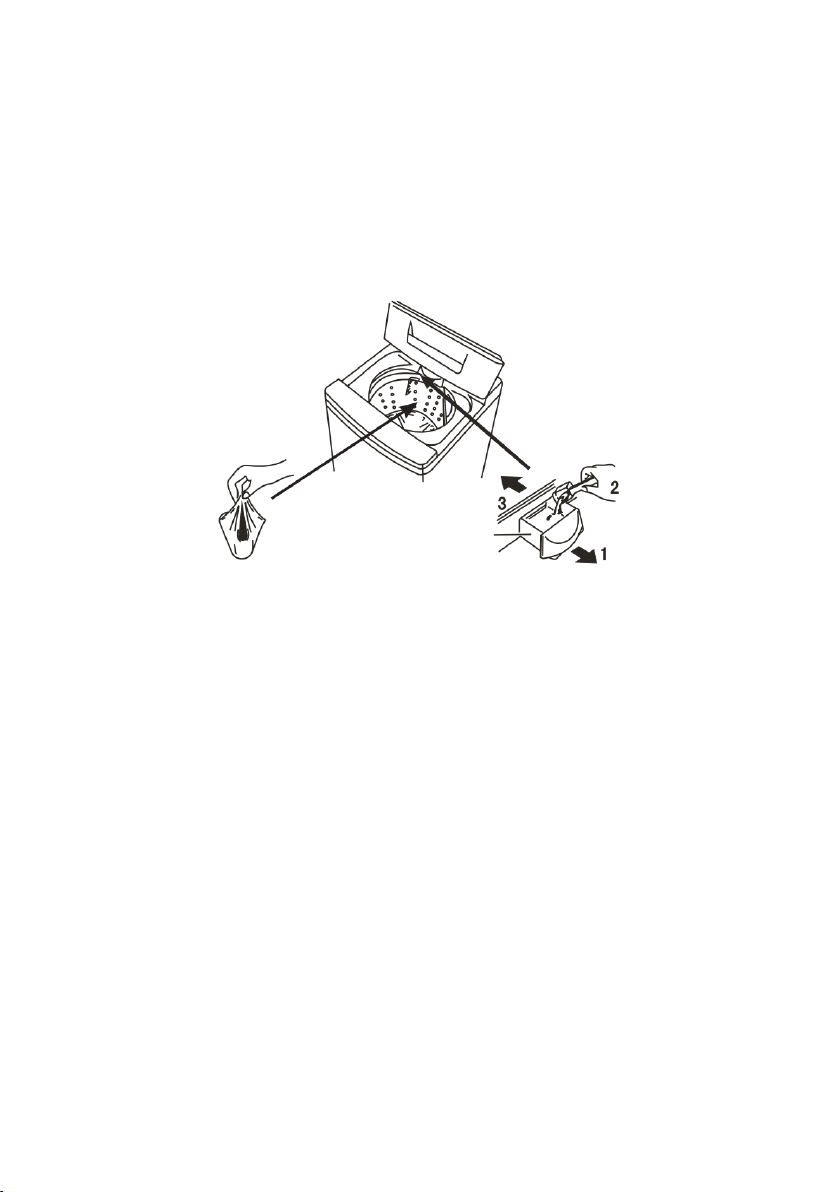

•CAUTION: After each wash, check and clean the lint filter inside the drum. Also
check and clean the lint filter at the rear of the machine next to the drain hose
outlet on a regular basis.
•This appliance should only be serviced by an authorised service centre and only
genuine spare parts should be used. Contact help.kogan.com for support.
Warnings
•Do not let children climb into the washing machine or peer into the rotating spin
barrel.
•Do not wash clothes that have residue of flammable materials.
•Do not use the appliance if the power cord or plug is damaged to avoid an electric
shock, short circuit or fire.
•Regularly clean the power plug to remove dust and dirt and avoid contact failure.
•Turn the machine off before pulling out the plug from the socket if the machine is
not in use.
•Do not place any lit candles or cigarettes on top of the washing machine.
•Insert the power plug securely.
•Use a 230-240V AC power source.
•To avoid electric shock, fire and malfunction, do not install this machine in a damp
place.
•Do not pull out or insert the plug with wet hands to avoid electric shock.
•Ensure the water inlet hoses are connected and the taps are turned on before
washing a load.
•Do not allow children to lay or sit on top of the washing machine.
•Do not change the power cord. If it needs changing, contact a qualified electrician
or call the after-sales support line.
•Do not wash jackets, raincoats, fishing coats and similar clothes in the washing
machine.
•Do not pull the power cord when removing the plug.
•The water temperature does not exceed 60°C when washing with warm water.

No. Description No. Description
1 Lid 6 Wash/spin tub
2 Control panel 7 Water supply hose connections
3 Housing 8 Drain pump filter
4 Detergent box 9 Drain hose connection
5 Lint filter 10 Adjustable leg (1)
Accessories
No. Description
11 Hot water supply hose
12 Cold water supply hose
13 Drain hose with elbow
Documentation (not shown) User guide
OVERVIEW
1
3
10
4
11
2
5
7
6
9
8
12
13
Front
Rear
Top
Accessories

Unpacking
•This product has been packaged to protect it against transportation damage. Keep
the original packaging carton in a safe place. It will help prevent any damage if the
product needs to be transported in the future. If it is to be disposed of, please
recycle it and all other packaging materials where possible.
•Plastic wrapping can be a suffocation hazard for babies and young children, so
ensure all packaging materials are out of their reach and disposed of safely.
•Unwind the power cord to its full length and inspect it for damage. Do not use the
appliance if the appliance or its cord has been damaged or is not working properly.
In case of damage, contact Kogan.com support for advice on examination, repair
or return of the damaged product.
•Read this manual to familiarise yourself with all the parts and operating principles
of the washing machine. Pay attention to the safety instructions on the previous
pages.
Installing the base cover
•Ensure the power cord is unplugged from the mains supply.
•Place some padding (such as a soft mat, blanket or thick towel) on the floor and
gently lay the washing machine on the padding, back side down. Take care not to
dent the housing.
•Insert the base cover into the hooks of the leg, pushing it straight until it reaches
into the back hooks.
•Fasten the base cover with the supplied screw(s).
•Carefully set the washer upright.
INSTALLATION
Back
Front
Leg
Base cover
Screw(s)

Levelling the washer
•Install the washer on a stable and level surface, in a dry location, out of sunlight.
•If levelling is necessary, adjust the adjustable leg (at the front right side of the
machine), as illustrated, below. The maximum permissible inclination of the
supporting surface is 2 degrees.
CAUTION: Installing the washer on a carpeted floor may cause vibration issues. If
you must install it on carpet, make sure not to block any ventilation openings on
the bottom of the washer.
Connecting the water inlet hoses
Install the water inlet hoses to your hot and cold water taps, as described below.
•Check and ensure that the sealing washers are firmly in place.
•Attach the straight end of the hose to your water taps. Make sure to attach the hot
water supply hose (with RED markings) to the hot water tap and the cold water
supply hose (with BLUE markings) to the cold water tap.
•Tighten the coupling nuts securely by hand, as illustrated below (the sealing
washer is part of and located inside the tap end).
Base of the washer
Lock nut
Adjustable leg
Up
Down
Tighten
Loosen
Twist
Tap
Sealing washer
Tap end
Inlet hose

•Attach the curved end of the hose to the corresponding inlet valve of the washer.
•Tighten the coupling nuts securely by hand, as illustrated below.
•Tighten the nut by turning it clockwise while holding the hose. (To detach the water
supply hose, turn the nut anticlockwise after turning the tap off.)
•Turn on the taps and check for leaks. Tighten the coupling nuts firmly if there is any
leakage. If your water pressure is strong, close the water tap completely, then open
it slightly.
Important:
•Both the hot water and cold water hoses must be connected to your taps.
•Make sure your hot water from the tap is no hotter than 60°C.
CAUTION:
•When tightening the clamping nut, take care not to damage the water inlet valve
joint. Apply force evenly and do not twist the water inlet valve.
•Use only the new (supplied) hoses with your new appliance. Do not use a hose from
an existing machine or one that has been used previously.
•In the event that the hoses are too short for your set-up, please seek advice from
your local washing machine store to purchase a longer hose.
Nut
Nut
Water inlet valve

Installing the drain hose
•The drain hose and drain pump filter are located at the rear of the machine.
•Pinching the two bands of the clamp on the drain hose, connect it to the drain hose
connection at the back of the washer.
•Insert the hose clips for the water drainage hose, into the mounting holes at the
rear of the washer. Turn the clips so you can lead the hose through the clips up the
back of the machine.
Drain pump with
lint filter
Drain hose
connection

•When the washer is in use, put the drain hose into a drain spout (or into a sink/tub),
as illustrated below.
CAUTION:
•While the washer is in use, ensure the height of the drain hose is at least 70cm,
otherwise the washer will not work properly or the water may flow out in the course
of washing. Ensure the drain hose is not higher than 1m above ground, otherwise
the washer will not drain water well.
•Never lay down the drain hose, as water will be discharged.
•Be sure the drain hose is properly routed so it will not kink or lift off the sink.
WARNING: This appliance must be earthed
•In the event of a malfunction or breakdown, earthing will reduce the risk of an
electric shock by providing a path of least resistance for the electric current.
•This appliance is equipped with a cord having an equipment-earthing conductor
and an earthing plug. The plug must be plugged into an appropriate outlet that is
installed and earthed in accordance with all local standards and requirements.
•Do not modify the plug under any circumstances. If the plug does not fit your
outlet, consult a licensed electrician and have the outlet changed.

Control Panel
1. Display:
The display shows the currently selected option. For example:
Status Display Result
During washing, it shows the time
remaining Remaining time is 20 minutes
When setting soak and wash
processes, this indicator shows the time
you set Washing time is 10 minutes
When setting the preset timer, it shows
when the washing will be finished
Finish washing 2 hours later
When an abnormal condition occurs, it
shows the warning code Water does not flow
2. Power ON/OFF button
•Press this button to switch the power on, press it again to switch it off.
•To change the program, press this button once and then once more.
•Power will be switched off automatically:
(a) 5 seconds after the end of a program
(b) After 10 minutes or inactivity, after the Power ON/OFF button has
been pressed
OPERATION
1
6
9
4
7
2
5
8
3

3. Start/Pause button
•Press this button to start operation.
•During operation, press this button to stop the washer temporarily, press it again to
restart it.
•You can also use this button to cancel the end buzzer, press and hold it for 4 seconds
until a beep has acknowledged the command.
4. Detergent indicators
•These scoop indicators show how much powder detergent to use.
•See “Detergent and load recommendations” for details.
5. Program button
•Press this button to select the desired wash program.
•The appropriate indicator light above will flash.
•To s et the child lock, press and hold this button for 4 seconds.
6. Process button
Press this button to cycle through the desired wash process: preset (delay timer), soak, wash
time, rinse time or spin time. The appropriate light above will flash.
7. Set button
•Press this button to confirm the desired operation.
•For example, to select rinse time, press Process until rinse indicator flashed, then
press Set to select the rinse time.
8. Temp button
Press this button to select the water temperature.
9. Water Level button
•Press this button to select the water level appropriate for your load size.
•Different water levels for washing and rinsing are optional.
Note:
For the NORMAL and HEAVY DUTY programs, the machine will automatically

Before you start washing
•Ensure the washer is stable and level. The inbuilt levelling indicator will help you
determine whether levelling is necessary. If so, adjust the adjustable leg (front right)
to stabilise the washer.
•Ensure the water inlet hoses are properly installed.
•Plug the machine into a nearby power point.
•Open the water taps.
•Ensure the drain hose is properly installed. Hang the upper end of the hose over the
laundry sink or into a drain spout.
•Before using the washing machine for the first time, run a complete cycle
without laundry items. Select the Normal program and run the machine until the
end of the program.
Normal usage
1. Before washing, remove any coins, keys and other hard items from pockets. Close
any zippers to prevent damaging your clothes and the wash tub. Brush dirt and
sand off clothes and turn pockets inside out.
2. Sort your washing into appropriate loads: whites, coloureds, cottons, delicates,
heavily soiled, etc. Place delicate items into a wash bag for protection.
3. Load your washing items uniformly in the tub.
4. Add washing detergent (see opposite for details).
5. Press the Power ON/OFF button.
6. Refer to the program selection guide and select a suitable wash program.
7. Close the lid and press the Start/Pause button. (If the washer lid is not closed
properly, the washer will sound an alarm and stop working before spinning.
8. At the end of the wash, remove your washing, unplug the power plug from the wall
outlet and close the water taps. Leave the lid open until the interior has dried.
Sensor: The machine will automatically choose the appropriate water power and level and
wash, spin and rinse times for the NORMAL and HEAVY-DUTY programs.

Program Suitable items
Default settings for wash processes
Wash time *
(minutes)
Rinse type
Spin time
(minutes)
Cotton **
Normally soiled cotton
clothing/items
Soak: 20
Wash: 15
4x Shower rinse 9
Normal
Lightly soiled clothing
and other items
5-12***
2x Water saver
rinse (20L-60L***)
5-6
Heavy
Duty
Heavily soiled cotton
clothing/items
7-14
2x Water saver
rinse (20L-60L***)
7-8
Quick
Less dirty clothes (daily
wash)
5
1x Water saver rinse
(20L-60L***)
3
Blanket Blanket or bulky items 12
2x Water saver
rinse (42L-60L***)
8
Delicate Delicate fabrics, lingerie 6
2x Water saver
rinse (30L-60L***)
2
* Total program times differ and depend on the weight of the wash load.
** The COTTON program has a fixed (default) setting of 60L of warm water; all other
programs have cold water as a default (water temperature is adjustable).
*** Times and quantities depend on the wash load and water level.

Detergent and load recommendations
•We suggest you use detergent in the following amounts recommended below. Too
little will give poor washing results, but too much will affect rinse performance and
may cause overflow of suds, which could interfere with machine operation.
CAUTION: Do not overfill detergent.
•Add detergent into the detergent box or put it directly into the tub.
•If you are using liquid detergent or bleach, dilute it appropriately and pour it
carefully into the hole on the top plate.
CAUTION: Do not pour bleach directly onto the washing load in the tub.
Water level
indicator
1 2 3 4 5 6 7 8
Water volume
(approx.)
20L 25L 30L 36L 42 L 48L 54L 60L
Detergent indicator
Amount of powder
detergent
10-25g 26-35g 36-50g 51-70g
Other detergent
amount
When using a liquid or concentrated detergent, follow the
recommendations on the detergent packaging for a top load
washing machine.

Customising a program
This washing machine is equipped with a fuzzy logic function that automatically chooses
certain wash cycle processes for the NORMAL and HEAVY-DUTY programs. You do not
have to adjust anything, however, if you want to adjust these values yourself, proceed as
follows:
1. Prepare your washing according to points 1 to 4 as mentioned in Normal Usage.
2. Press the Power ON/OFF button, then press the Program button to select the
washing program, e.g. NORMAL or HEAVY-DUTY.
3. Press the Process button to select the process and time you want to adjust. The
relevant indicator light will illuminate when the option is selected. Then press the
Set button and set the option.
4. Press the Water Levelbutton and choose an appropriate water level.
5. Close the lid and press the Start/Pause button for the washing program to start.
6. At the end of the washing program, a buzzer will sound to alert you that the
program has finished before the power is shut off automatically.
7. Close the water taps and unplug the power plug from the wall outlet.
Note:
If you want to use a customised program on a regular basis, you can program it
to the machine’s memory for easy access the next time you want to use the
same program. See ‘Memory function’, for instructions.

Blanket program
Use this program for washing blankets or other bulky items. It will automatically select the
highest water level (60L), but you can adjust this manually down to 42L according to the size
of your bulky item(s).
1. Press the Power ON/OFF button and open the washer lid.
2. Press the Program button repeatedly until the indicator for the BLANKET program
flashes.
3. Dissolve an appropriate amount of washing detergent with a little lukewarm water,
then pour the detergent solution directly into the tub of the washing machine.
4. Fold up the blanket and put it into the washing tub, as illustrated below.
5. Close the washer lid.
6. Press the Start/Pause button for the washing program to start.
7. At the end of the washing program, a buzzer will sound to alert you that the
program has finished before the power is shut off automatically.
8. Close the water taps and unplug the power plug from the wall outlet.
9. We recommend cleaning the lint filter after washing a blanket.
Selecting a wash cycle process
On occasion you may want to select a single wash cycle process (or two processes) instead
of a complete program. For example, you may want to spin clothes that got wet from rain
while hanging on the line or rinse and spin clothes washed by hand.
•To set a spin cycle only, set the SOAK, WASH and RINSE options to “0” and then
select a SPIN time (from 0-9 minutes). Then proceed as described opposite.
•To set a rinse and spin cycle, set the SOAK and WASH time to “0”, then select a
RINSE option (from 1 to 4) and then the SPIN time (from 0-9 minutes). Then
proceed as described opposite.
Fold in 2 by
the long side
Fold 4 times in
the same
di ti
Roll up the blanket.
Put into the wash tub
with the edge
dd
Note:
If you notice that the blanket floats up during the wash, press the Start/Pause
button, the washer will stop working temporarily. Push the blanket down and
press the Start/Pause button again to continue washing.

Preset timer (delayed washing)
This washing machine has a 0-24 hour preset function, which you can set to determine the
time when the washing program will finish. (It is, in effect, similar to a ‘delayed start’ function,
but you set the time period after which you want the wash to finish rather than to start.)
1. Put your washing in the machine, loading items uniformly in the tub.
2. Press the Power ON/OFF button.
3. Select the required Program.
4. Press the Process button until the PRESET indicator light flashes, then press the
Set button to select the desired time period (in hours) for the wash to finish.
5. Select the water level, if necessary.
6. Add any detergents.
7. Close the washer lid and press the Start/Pause button.
8. After setting the preset, the corresponding light will illuminate and all other lights
will be switched off about one minute later. From this time on until the preset time
only the Power ON/OFF and Set buttons will respond when pressed.
9. To check the preset program, press any button (except for the Power ON/OFF
button); the program will be indicated for 5 seconds. During these 5 seconds you
can press the Water Level button and set the water level.
10. To cancel the preset, shut off the power.
11. To change the preset time, first cancel the preset, then set it again.
Note:
This function is not available for the COTTON, DELICATE and QUICK programs.
To avoid water leakage when using this function, ensure the water taps are open,
the drain hose is properly installed and the washing load and detergent are properly
prepared.

Adding detergent to a preset wash
When using the delayed wash, do not add detergent directly to the wash tub.
•Powder detergent: either put powder detergent into the detergent box or, if you
prefer to put it directly into the wash tub, wrap the powder in a small cloth.
•Liquid detergent and bleach: pour liquid detergent or bleach into the hole on the
top plate. Do not pour it directly into the tub as it may cause discolouration of your
washing.
•Close the lid and press the Start/Pause button.
Load sensor (fuzzy control)
For the NORMAL and HEAVY-DUTY programs, the machine automatically detects the
weight of your wash load and selects the appropriate water level, wash and spin time and
rinse type. For the QUICK program, the machine will automatically choose the water level.
You do not have to set these values; however, if you want to adjust them yourself, see
“Preset Timer” for how to customise processes.
Hot / cold / warm water wash
This top load washing machine must be connected to both a cold and a hot water tap. You
can then set it to use either just cold water for a cold-water wash or just hot water for a hot
water wash or both hot and cold water for a warm water wash.
To select the wash temperature, press the Temperature button.
•Cold wash: the corresponding indicator light is off.
•Warm wash: the corresponding indicator light is on.
•Hot wash: the indicator light is flashing.
