aleen Music Tel-60 User manual

Music Tel
-60
Installation
Manual

Release 1 December 2002
MusicTel 60 –Music On Hold
Installation Manual

NOTICE
This manual describes the MusicTel-60 System, Release 1.
Additional copies of this manual may be obtained from Aleen Technologies.
Reproduction of this manual or parts thereof without written permission from Aleen
Technologies is strictly prohibited.
Aleen Technologies reserves the right to modify the hardware and software described in
the manual without prior notice. However, changes made to the hardware or software
described do not necessarily render this publication invalid.
WARRANTY
In the event that the product proves to be defective in workmanship or materials within a
period of one year from date of shipment, Aleen Technologies shall repair or replace the
product at its discretion. Transportation will be the responsibility of the dealer/distributor.
Under no circumstances shall Aleen Technologies be liable for consequential or
special damages, loss of revenue or user/dealer expenses arising out of or in
connection with, the use or performance of the product, whether based on contract,
tort or any other legal agreement.
The following shall void the above warranty: malfunctions resulting from fire, accident,
neglect, abuse or acts of God; use of improper electrical power; or repair of, tampering
with or alteration of the product by anyone other than Aleen Technologies authorized
personnel.

MusicTel-60 Installation Manual a
TABLE OF CONTENTS
1....INTRODUCTION............................................................................ 1-1
2....DESCRIPTION.................................................................................2-1
2.1 Physical Description 2-1
2.2 Unpacking 2-2
3....INSTALLATION..............................................................................3-1
3.1 Recording Instructions 3-1
3.2 Physical Installation 3-2
3.3 MOH Playback Level 3-3
4....SPECIFICATIONS...........................................................................4-1
4.1 Recording Cable 4-1
4.2 Audio Cable 4-2
4.3 Technical Specification 4-3

1-1MusicTel-60 Installation Manual
1.INTRODUCTION
The MusicTel-60 is a digital music-on-hold player. It is built with absolutely no
mechanically moving parts. MusicTel-60 allows 60 seconds of stored music in a non-
volatile memory. Recording is performed by connecting the MusicTel-60 to an external
audio device.
Figure 1-1MusicTel-60 General View
The MusicTel-60 has the following features:
•High quality recording.
•60 seconds of recording time.
•Non-volatile memory.
•Built-in speaker monitor and test button.
•Simple operation and maintenance.

MusicTel-60 Installation Manual 2-1
2.DESCRIPTION
2.1Physical Description
The functional components of the MusicTel-60 are located on its front panel. The LEDs
and buttons are located on the top panel.
recording
test
Figure 2-1.MusicTel-60 Top Panel

Description
2-2MusicTel-60 Installation Manual
Volume Level
9VDC
RJ-11 Audio
In / Out

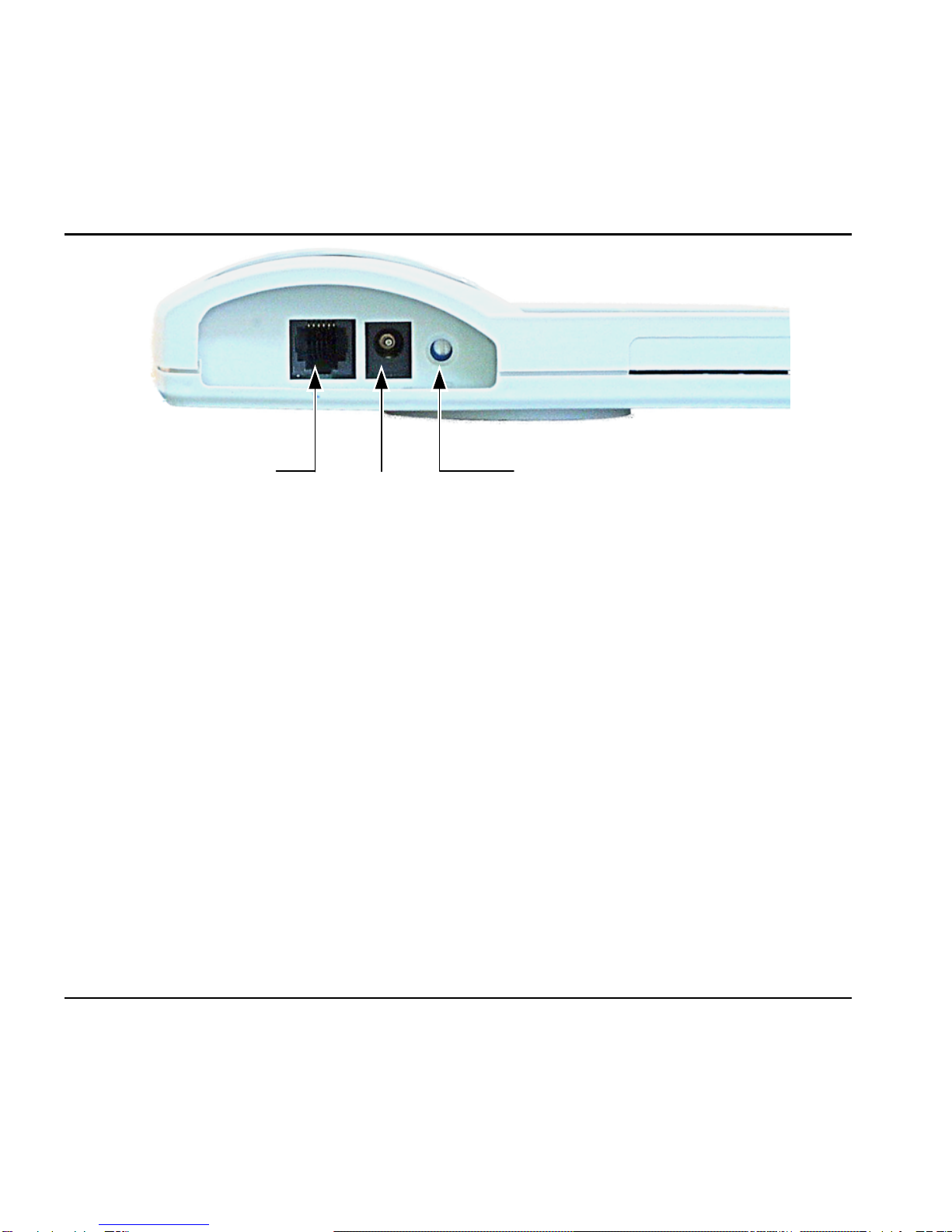

Figure 2-2.MusicTel-60 Front Panel
2.2Unpacking
The package includes the following components:
1.MusicTel-60.
2.Power adapter.
3.Audio cable (Standard RJ-11 cable).
4.Recording cable.
5.Packet, containing 2 screws and 2 wall plugs.
If any of these components are damaged or missing, please contact your local Aleen
Technologies dealer.

MusicTel-60 Installation Manual 3-1
3.INSTALLATION
The MusicTel-60 is delivered with pre-recorded music. New music can be recorded
before mounting the MusicTel-60 on the wall and before connecting it to the PBX. If no
new music is to be recorded, proceed with installation as described in Paragraph 3.2.
3.1Recording Instructions
To record music on the MusicTel-60, a special Recording cable must be used (provided).
Record new music on the MusicTel-60 by following these instructions:
1.Plug the 9VDC adapter jack into the MusicTel-60 power supply connector. Next,
connect the 9VDC adapter to the mains power supply.
2.Connect the Recording cable (enclosed in the packaging) to the RJ-11 socket on the
front panel of the MusicTel-60 (see Figure 2-2).
Next, connect the Recording cable to the music source device (CD player, tape etc.),
as described in Figure 3-1 below.
Audio
Device
Recording Cable
RJ-11
Socket
Line-out or
Phones
Figure 3-1.Connecting the Recording Cable

Installation
3-2MusicTel-60 Installation Manual
3.To start recording, press the Play button on the CD player, and the button of the
MusicTel-60, simultaneously. The recorded music will be heard through the speaker
of the MusicTel-60.
4.To stop the recording, press the button again.
5.Test the recording by pressing the button on the MusicTel-60.
6.Disconnect the Recording cable from the music source device and the MusicTel-60.
3.2Physical Installation
Install the MusicTel-60 according to the following steps:
1.Use a drill and the wall plugs to place the two screws, and mount the MusicTel-60
close to the PBX.
2.Connect the Audio cable to the MusicTel-60 and to the MOH (Music On Hold) jack
in the PBX, as described in Figure 3-2 below.
Audio Cable
PBX
(MOH Socket
)
RJ-11
Socket
Figure 3-2. Connecting the Audio Cable
test
rec
rec

Installation
MusicTel-60 Installation Manual 3-3
Note:
The Music-Tel 60 should be connected to a special MOH input on the PBX only.
3.3MOH Playback Level
MOH (Music On Hold) playback level must be tested to ensure it is recorded at adequate
levels.
To test MOH volume levels:
1.Call the PBX from an external line.
2.Put the call on ‘Hold’. The MOH should now be heard.
3.Adjust the MOH audio levels by adjusting the volume level potentiometer, located
on the front panel of the MusicTel-60 (see Figure 2-2).
4.End the call.

4-1MusicTel-60 Installation Manual
4.SPECIFICATIONS
4.1Recording Cable
RJ-11 pins 1,2 –Audio In.
Connected to the P.L. plug, which connects to the music source device (CD player etc).
RJ-11 pin 5,6 –Short-Circuited.
The short-circuit is applied at the P.L. end of the recording cable (see Figure 4-1).
RJ 11
(MusicTel-60
SHORT
AUDIO
1
2
3
4
5
6
P.L. Jack
Figure 4-1.Recording Cable

Specifications
MusicTel-60 Installation Manual 4-2
4.2Audio Cable
RJ-11 (MusicTel-60) pin 3,4 –Audio Out.
The audio cable is connected to the MusicTel-60 and to the MOH (Music On Hold) jack
in the PBX.
RJ 11
(MusicTel-60)
1
2
3
4
1
2
3
4
RJ 11
(PBX)
Figure 4-2.Audio Cable

Specifications
4-3MusicTel-60 Installation and Programming Manual
4.3Technical Specifications
Recording Time
60 seconds.
DC Power Source (included)
Input: 110/220VAC, 50/60Hz. Output: 9VDC / 800mA.
Output Impedance
600 , 2Vpp Max.
Dimensions
6”x 5.7”x 1.18” (HxWxD) 15.25cm x 14.5cm x 3cm (HxWxD)
Weight
1.4lb., 675gr. (boxed).

Aleen Technologies
www.aleentech.com
