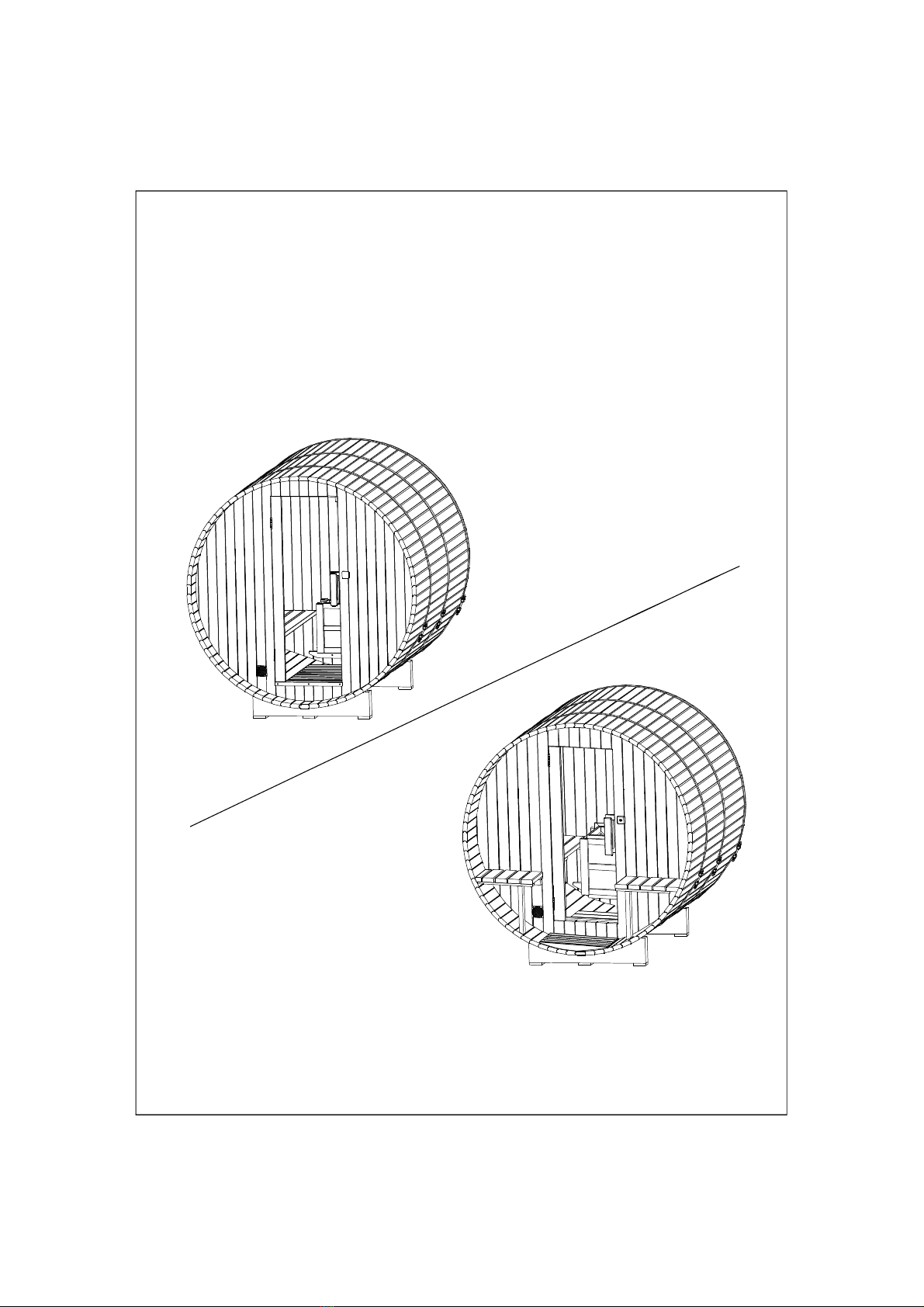

Aleko B4 Series User manual

ALEKO® Outdoor Barrel Sauna
www.AlekoProducts.com
User s Manual'
B4/B5/B6/B8
Series without canopy
B4C/B5C/B6C/B8C
Series with canopy

Introduction：
1. Tools we provided
Plastic Hammer 1×
2. Tools you need to prepare
Power Drill 1 × Adjustable Wrench 2 × Tape 1× Bar Level 1×
3. All parts list
- 2 -
Instructions before assembly
1.
2.
3.
4.
At least two people are required to assemble the sauna.
Assembly location: check whether the ground or platform is horizontal, and
slight slope will not affect the assembly and use of sauna, but if the slope is
evident, a pad is needed to keep the sauna level.
All screw heads to assemble sauna must be completely inserted into wood to
avoid scratching skin during use. If you want to assemble accessories provided
by other companies to the sauna, try to avoid metal accessories, or insulate them.
Please find qualified electricians to install the electrical elements in sauna.
B4 B4C B5 B5C B6 B6C B8 B8C
1Suggested
Heater Pcs
2Bucket 4L Pcs 1 1 1 1 1 1 1 1
3Sauna
Stones kg 20 20 20 20 20 20 20 20
4Thermometer
/Hygrometer Pcs 1 1 1 1 1 1 1 1
5
Explosion-
proof Lamp
Holder
Pcs 1 1 1 1 1 1 1 1
6Sand timer Pcs 1 1 1 1 1 1 1 1
7Glass glue Pcs 3 3 3 3 3 3 3 3
4.5kw/6.0kw
Accessories package List
Model/ numbers
NO
.Component Unit
Glass Glue Gun 1× Pencil × 1

1
2
3
45
6
7
8
9
10
11
No. Name Quantity
1
2
3
4
5
6
Stave
Front Wall
Base
Outside bench
Outside Floor
66
1
2
1
2-5
No. Name Quantity
7
8
9
10
11
12
Heater fence
Backrest (Optional)
Inside bench
Floor
Back Wall
Sauna Heater (Optional)
1
2-6
1-3
1
4.5~6KW
2
Sequences and Contents of Sauna Assembly
1
2
3
4
5
7
、
、
、 …
………………………………………………………………………
……………………………………………………
………………………………………………………………………
……………………………………………………
……………………………………………………………………
…………………………………………………
……………………………………………………………
、 ……………………………………………………………
……………………………………………………………………
、 …………………………………………………………
、 ………………………………………………
4
5
6
7
8
9
9
11
12
11 16
、
、
、
、
、
6
810
9
10
Base Assembly
Front and Back Wall Assembly
Top Assembly
Stainless steel bands Assembly
Bench Assembly
Heater and Lamp Holder Assembly
Accessories Assembly
Instructions
Instructions before Use
Bitumen-roof Assembly
Recommendations and Suggestions
- 3 -
Bench Feet 2
12
Wooden Components of Sauna

Ⅰ. Base Assembly
Placement of base
Place the base shown in the figure, and adjust it in horizon by pads
(beneath the base).
(2)Bottom stave assembly
Take out the stave with drain hole and cable hole in the middle of the base, place
other stave in the same level with this one, and fix the end to the base with screws.
Note: Use stave with preset screw holes.
(1)
①
①
②
Insert other stave to the edge of the base, gently tap them with a rubber hammer to
make them tightly packed and check to ensure the distance of front and back bases
from the edge of stave is 150mm. (shown in Figure 2
Ensure all cross slots are aligned and apply glass glue. (shown in Figure 2
②)
③)
Firstly it must be fasten the stave to the base by screws at two ends.
③ Use screws to fasten the inserted staves onto the base. All the screws should be with
countersink processing. (Figure 2 ④)
warning: this step must be used after step4. Steel Strip Assembly. ③
Tools :
- 4 -
Figure 2
With Canopy
(mm)
Without Canopy
(mm)
200 150
150
150
150
150
200
200
200
200
Center line
W h e n u s i n g t h e p l a s t i c f e e t ,
no need to use the pad under the base

2. Front and Back Wall Assembly

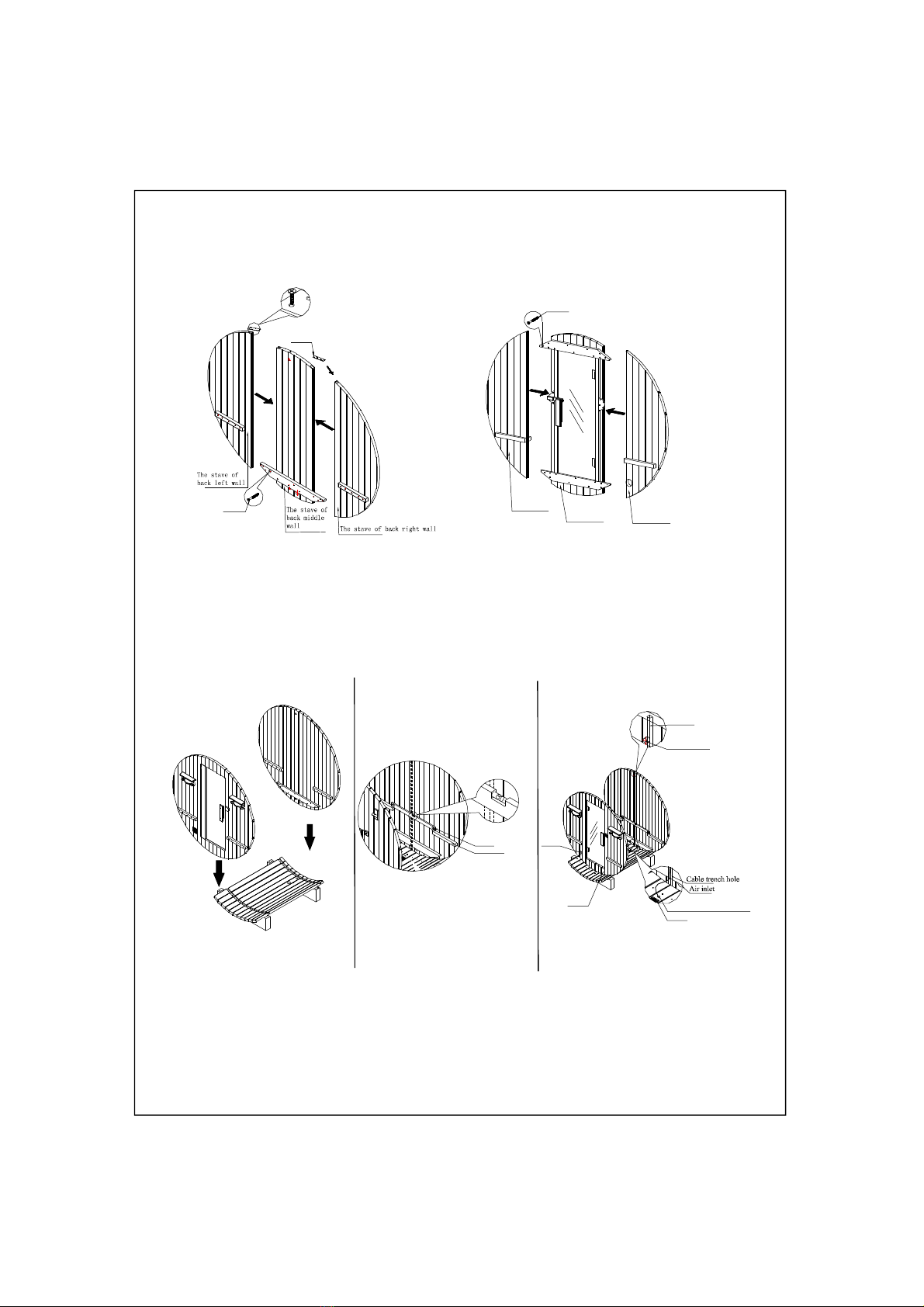

Assembly front and back wall as shown in Figure 4.(1)
（(1)Insert back wall to the cross slots of the back wall on the base, and front wall to the
cross slots of front wall. (Figure 5)
Place the level bar to the cross bracket of front and back walls to measure if walls are
horizontal.
Pay attention to placement of front and back walls inside and outside to check if they
are consistent with Figure 5 and vertical.
Wire in/out refers to the wiring figure.
①
②
③
Front Wall
Figure 5
- 5 -
Back Wall
①②③
ST5x50
The stave of
front middle
wall
The stave of
front right
wall The stave of
front left
wall
ST5x50
ST5*30fastening
stainless steel sheet
The level bar shows
the levelness
Level bar
Bracket of bench inside
Vent
Drain hole
Cable hole: lights and sauna
heater cable goes out from there.
Cable hole of the light
Lead slot
Front

3. Top assembly
Apply glass glue along the edge of front and back walls. Figure 6 A1 shows stave must be
assembled before the glass glue dries.
Assemble the rest to both sides of sauna bottom up until to the half
of front and back walls. Tap each stave with a rubber hammer and fasten it to front and back
walls with screws. (shown in Figure 6)
Go on assembling staves without screw holes up to the top of sauna. To assemble the final
stave on the top, please see (show in Figure 7)
(1)
(2)
(1)
staves with screw holes
Figure6
Figure7
- 6 -
ST5 x 50
A1
Center line
Stave
Front wall (back wall)
Stave without screw holes
Stave with screw holes
Top assembly

- 7-
4. Steel Strip Assembly
Each steel strip consists of one long and one short steel strip.
. (Shown in Figure 8)
You can refer to assembly position of
bands lock, and we suggest in the position similar as clock at 4 O'clock or 8 O'clock direction.
(4)After assembling all steel bands,
(1)
(2)Use the fat bolts and nuts to connect one of the end of the long
belt and the short belt together
(3)Then assemble the connected bands on sauna room Use pencil and measuring tape
to make marks of the distance on the sauna room
tighten them up, but not too tight with space left for
adjustment later
.
,
,
Figure 8
Steel strip+M12x18
0
Figure of steel strip Assemblying
Steel strip + M12 X180
Position at 4 O'clock or 8
O'clock
！The bands in the middle should
be equally divided by 1-5 strips and
are freely assembled by customers:
we suggest customers bundle up at the
spacing of 500-1000mm.
！The two stainless steel
bands in front and back must
completely cover screw holes
for front and back wall assembly.
The steel strip lock should be in symmetry
(namely at 4 O'clock or 8 O'clock)

5. Bench Assembly

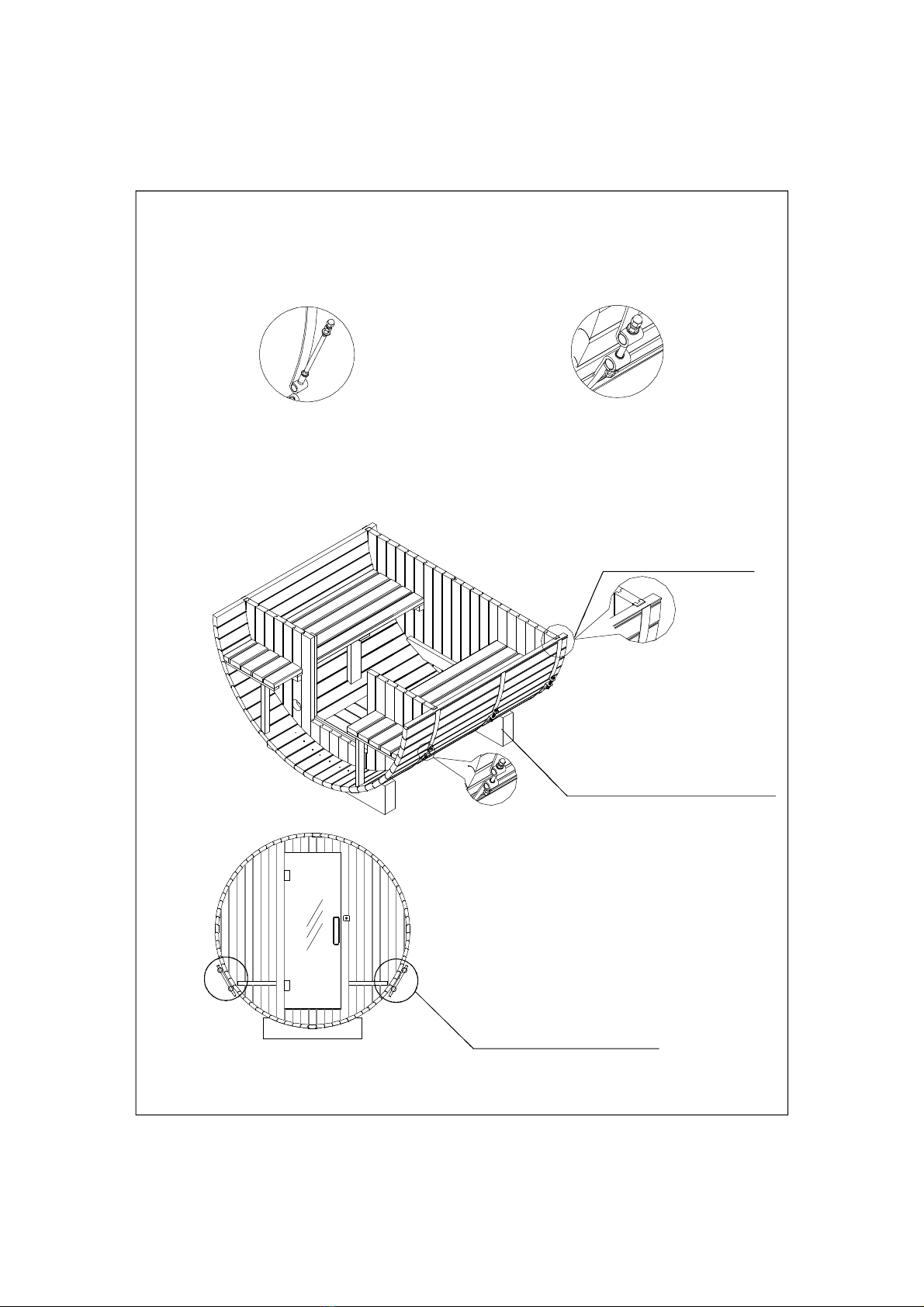

Place bench straight on the bracket of front and back walls to make screw holes of the bench
on the bracket of front and back wall, and fasten the benches by screws. (shown in Figure 9)
Assembly supports as shown in Figure 9.
Note: no need to assemble outside bench for the sauna series without canopy)
(1)
(2)
(
- 8 -
Figure 9
ST5x40
Bench inside
For series with canopy
ST5x40

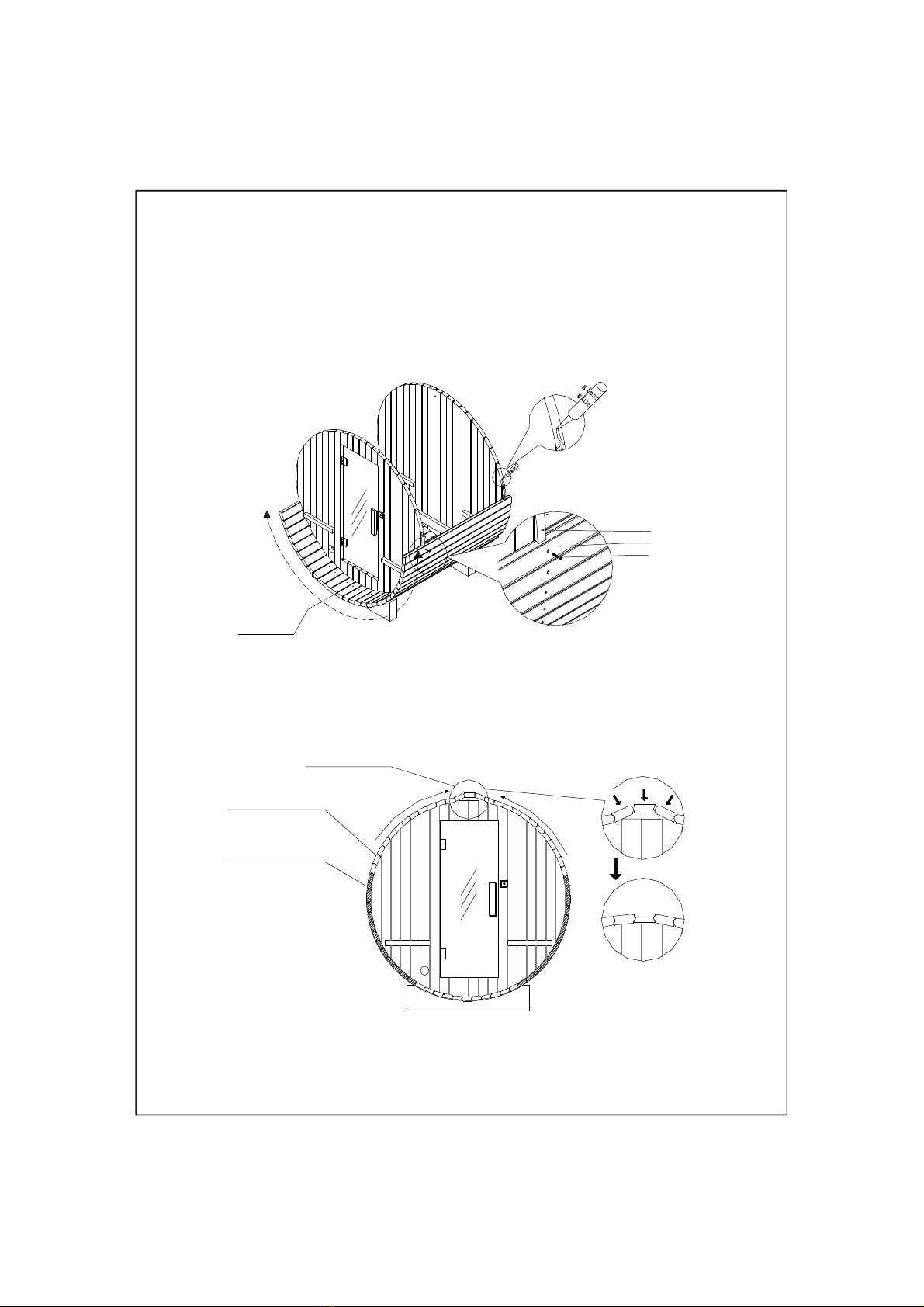

6. Heater and Lamp Base Assembly
(shown in Figure 10)
(2)The lamp base should be assemblyed on the top bracket of back wall. (shown in Figure 10)
(3)
(4)Assembly methods of heater fence (as shown in the Figure).
Other accessories: heate r fence, cup holder, robe hook, floor (shown in Figure 11)
(1)Install the heater against the back end between the benches at both sides, and it
should be on the support bar at the bottom of the back end.
Only qualified electricians are permitted for ins talling the electric wire of the heater
and the lamp holder. Choose the wire and bulb in compliance with local electricity
standard.
、7
Sauna light
Sauna heater holder
Sauna heater
Sauna heater fence
ST5*50
2
1
Outside Floor
Floor
Figure 10
Figure 11
- 9 -
ST5X30
5Sauna heater fence

Instructions before use
1. A member of the high blood pressure, heart disease, high blood pressure do not
sauna.
2. Who has a cold should not be sauna. because the sauna room hidden cryptococcus
bacteria can enter human body through respiratory tract, such as easy to cause
pneumonia, etc.
3. Do not sauna when overwork and can't sleep in sauna room. People with poor
muscle tone when they are tired, reduce the stimulation of cold and hot resistance
ability, easy to cause collapse when sauna.
4. Do not sauna when on an empty stomach, lest cause cardiovascular collapse.
Should not be sauna after overstrain brain or strenuous exercise, it can cause brain
anemia or shock.
5. It is not suitable for sauna not after half an hour feast, because the high
temperature make the skin vasodilation , blood backflow in great quantities, which
affects the blood supply of the digestive organs, interfere with digestion and
absorption of food.
6. Do not sauna after drinking. After heavy drinking, it can make the brain systems
at the mercy of the function to drop, at this time if sauna, under the effect of alcohol, a
amount of sweat will make human body caused by rapid filtration syncope.
7. Do not wear jewelry when sauna, like jade, necklaces, watches, etc are easy
absorption of heat may be burn the skin.
8. Do not apply cosmetics, because it can block pore, prevent sweat evaporation.
9. Sauna is not suitable for the elderly, sitting in a sauna room, the body sweat more,
the blood becomes sticky, it is easy to form thrombus, cause of various
cardiovascular diseases. Especially the elderly, their body temperature regulating
center not too sensitive, so not suitable for sauna.
10. Sauna should not be too long, if too long, excessive sweating can make the person
to exhaustion; temperature is too high, can be difficulty breathing. In general, in the
sauna room should be come out every 5-10 minutes. Setting temperature
personalized, it is recommended that the dry steam temperature between 60 to 80
make the person feels more moderate.
11. Do not immediately come with cold air after sauna, prevent big difference
temperature cause vascular contractions induced stroke.
12. Go with partner sauna, should be timely supplement moisture, do not wait until
thirsty to drink.
13. Keep awake when sauna, if have shortness of breath, dizziness and other
symptoms should immediately stop sauna, lie down in a better air circulation place,
drink some cold boiled water, not drink too low water temperature .
14. Do not get up too fast and too hard, be sure slow up and adequate rest.
℃
℃
9. Instructions before Use
- 10 -

- 11 -
10. Instructions
Maintenance instructions
(1) Turn on sauna heater, setting desired temperature, normally 60 -80 (in the area
between bench surface and your head). Start with low temperature and increase it
according to endurance of your body when you are in a sauna for the first time.
Before the sauna, take off clothes, glasses, jewelries, cell phones and other
belongings, and then take a simple shower or spa.
The average sauna period for each time is around 5-15 minutes.
After a sauna, you can take a bath in a swimming pool or take a shower to cool your
body for 10-20 minutes.
After re-entering the sauna, you may find there are drops formed by vapor on sauna
stones. If water drops to the ground, it means you are overusing the sauna.
At least rest for 20 minutes after the last time in sauna. First take a shower with soap
and warm water, then with cool water to close skin pores. Put on clothes after your
body temperature completely lowers. ( children must be companied by parents)
Suggestions:
(1) Paint the surface of sauna annually. You can choose the wood wax coating service
provided by our company when purchasing the product.
Put a carpet before the door to keep the floor clean.
Brush obstinate stains on the sauna with sandpaper for daily maintenance.
Replace sauna stones after over 500 hours in normal use.
℃ ℃
(2)
(3)
(4)
(5)
(6)
(2)
(3)
(4)

Bitumen roof (Optional)
Assembly instruction
- 12-

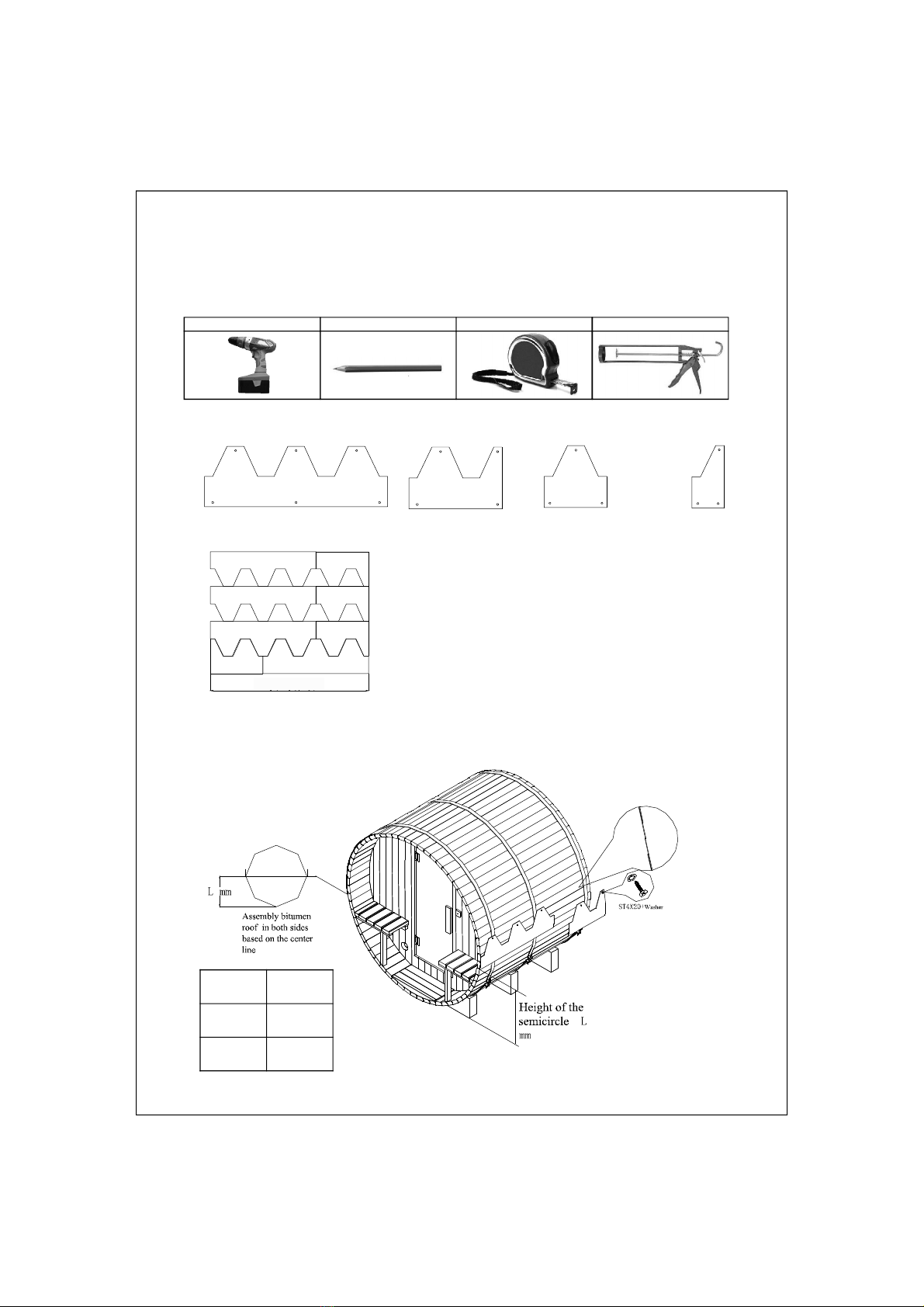

Ⅱ. Instructions for assembly bitumen roof
Take off the rear thin film of bitumen roof before Assembly.

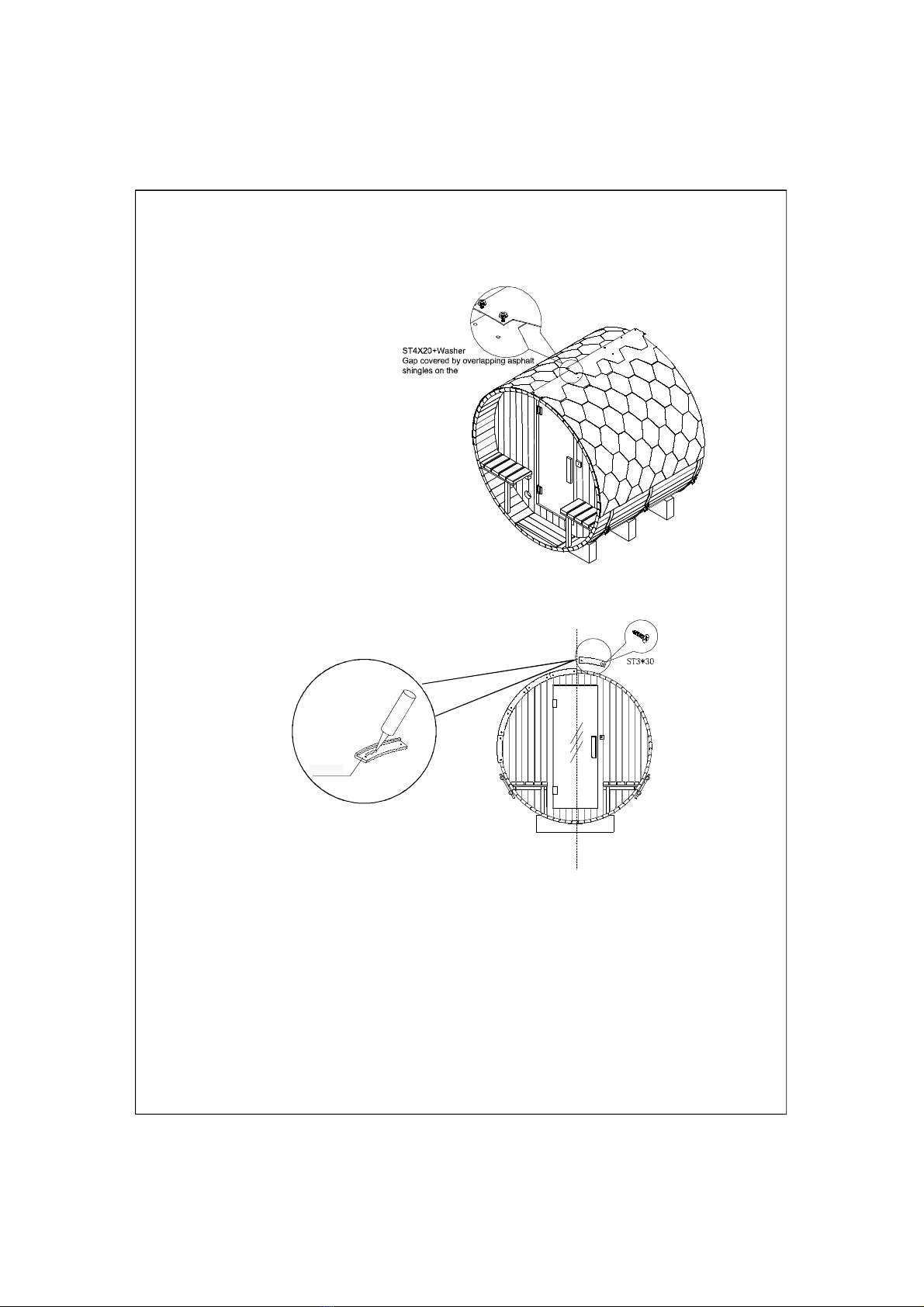

Assembly from the center line upwards, and the teeth of the first-layer tiles should be face
up. As shown in Figure 1, fasten it to the upper semicircle of the sauna by screws with washer.
Tiles should be tightly linked to each other.
(1)
(2)
- 13-
11.Tools for assembly bitumen roof
Prepare the following tools before assembly
1 . Tools you need to prepare
Power Drill 1 × Pencil ×1 Tape 1× Glass Glue Gun× 1
Figure 1
Screw positions and quantity of bitumen roofs
Standard component 1000X330
6 screws required
Standard component 1/2
4 screws required
Standard component 1/3
3 screws required
Standard component 1/4
3 screws required
6feet
7feet 1070mm
870mm
Distance
Specifications
According to the tot al length of sauna

Figure 2
（ ）3 The teeth of the second-layer tiles should be Assembled downwards, covering the
first layer tiles and fasten them with screws. (shown in Figure 2)
（ ）
（ ）
4
5
The teeth of the third-layer tiles should be downwards, and the teeth connect to
form a hexagon. (as shown Figure 3)
Repeat the second, third step to Assembly other tiles up to the top. The steps for tiles
on the other side are the same. Assembly tiles on both sides to cover the top, leaving
space less then 50mm or overlapping.
Figure 3
- 14 -
Figure 4

（ ）7 Start to tightly Assembly decoration board symmetrically from vertical center line,
apply glass glue first, then fasten with screws (as shown in Figure 6). Assembly the
decoration board in the front and back of sauna.
Figure 5
（ ）6 Cover tiles on both sides with tiles in the top middle. Tiles on the top cover each other
and are fastened with screws. (as shown in Figure 5)
Figure 6
- 15 -
Decoration
board
Glass glue

12. RECOMMENDATIONS AND SUGGESTION FOR SAUNA
(1)It is recommended to paint (wood wax, tung oil) on external wooden parts of sauna to
prevent corrosion, crack and tarnish.
Suggestions: after assembling sauna, wash interior twice a day for 2-3 days.
It is suggested to lay a carpet before the door to prevent abrasion and dirt.
Pay attention to maintenance, electricity and fire of sauna.
(2)
(3)
(4)
- 16 -
Figure 7
www.AlekoProducts.com
