DESCRIPTION
The 6603A multi-purpose fluid sprayer is an industrial quality sprayer manufactured with highly resistant materials for
use with animal and vegetable oils, hydrocarbon based solvents, lubricants and petroleum products in applications
such as brake cleaning, tar removal from vehicle bodies and tools, machinery and motor cleaning, lubricant application,
degreasing, waterproofing and de-waxing fluids. It is not however suitable for use with acids.
The easily accessed and wide filling opening provides a real benefit for safe and minimal spill filling of up to 1.45 litres
of fluid and its ergonomic design makes it a pleasure to use.
Designed with one of the most user friendly pull/push handles the 6603A also features a 2.5 bar safety valve with
depressurisation option, strong translucent tank with level indicator, protective valve chamber sleeve and adjustable
conical nozzle.
A must for all automotive workshops, construction sites and industry in general, the 6603A multi-purpose fluid sprayer
available from Alemlube is ideal for a wide range of cleaning activities and protective fluid applications.
Visit our website at www.alemlube.com.au or www.alemlube.co.nz
Multi-Purpose Fluid Sprayer
6603A
OWNER’S TECHNICAL MANUAL
NSW/ACT
TEL: [phone]
FAX: [phone]
QLD/PNG
TEL: [phone]
FAX: [phone]
VIC/TAS
TEL: [phone]
FAX: [phone]
WA
TEL: [phone]
FAX: [phone]
SA/NT
TEL: [phone]
FAX: [phone]
NZ
TEL: [phone]
FAX: [phone]
Total capacity 1.5 Litres
Useful capacity 1 Litre
Net weight 0.46 kg
Gross weight 0.60 kg
Maximum pressure 2.5 bar - 42 psi
Litres/min 3 bar: 0.50 L/min
Joints and materials resistant to oils and most hydrocarbons
and solvents
2.5 bar safety valve
Large filling aperture
Ergonomic design
Strong translucent tank with level indicator
Protective sleeve for valve chamber
Easy assembly and disassembly for maintenance
4
3
2
1
5º
30º
MAX.
1L
X 15
CLICK
TECHNICAL SPECIFICATIONS

Visit our website at www.alemlube.com.au or www.alemlube.co.nz
NSW/ACT
TEL: [phone]
FAX: [phone]
QLD/PNG
TEL: [phone]
FAX: [phone]
VIC/TAS
TEL: [phone]
FAX: [phone]
WA
TEL: [phone]
FAX: [phone]
SA/NT
TEL: [phone]
FAX: [phone]
NZ
TEL: [phone]
FAX: [phone]
19
6603A Multi-Purpose Fluid Sprayer
APPLICATION
Industrial sprayer especially manufactured with highly resistant materials for use with animal and vegetable oils,
hydrocarbon-based solvents, lubricants and petroleum products in applications such as: brake cleaning, tar
removal from vehicle bodies and tools, machinery and motor cleaning, lubricant application; cleaning of car interiors,
degreasing, wood treatments, waterproofing and de-waxing vehicles etc.
Given the great variety of products in the market, Alemlube cannot guarantee the universal validity of its equipment.
In any case, we recommend using certified chemicals.
SETTING UP & SPRAYING
1. Once the tank has been filled to the maximum level of 1 litre, screw the lid back on and pressurise the tank
using a pumping action 15 times.
2. To commence spraying, press the handle as you go and offset pressure loss by giving more strokes.
3. When refilling, depressurise the device to open by pulling the safety valve.
MAINTENANCE
1. After each use depressurise the sprayer and clean it with water.
2. In the event of a nozzle blockage, clean it with water and do not use metallic objects.
3. In order to prolong the life of the joints, regularly apply some drops of oil or grease on the moving parts.
4. To access the valve chamber (165), remove the cylinder guard by pulling it firmly.
5. To access the rod’s O-ring (603), unscrew the piston and remove it until the O-ring is visible.
USES AND SECURITY REGULATIONS
1. Always follow the instructions and dosages on the packaging labels that the manufacturer recommends for the
chemical product to be used.
2. In order to avoid any swallowing of the product, do no eat, drink or smoke whilst handling the cleaning treatments.
3. Do not use the spray on any person, animal or electric installation.
4. Do not use the treatment when there is strong wind or extreme heat.
5. In case of poisoning, seek medical advise, taking the labelling of the chemical product with you.
6. Do not dump product or cleaning residues near water bodies, wells, etc... that will be utilised for use by
– human or animal consumption.
7. Use appropriate safety equipment, mask, goggles, gloves, footwear etc in order to avoid contact of chemical
products with skin, eyes and mouth.
8. Read the instructions for the sprayer before its use. Do not modify the sprayer. Do not connect it to an external
pressure source (manual use only). Do not obstruct or strike the safety valve. Do not use the sprayer if it is
damaged, deformed or altered from its original shape. Store the sprayer protected from frost and fierce heat
(between 5º and 30º C).
9. Air pressure may be a dangerous factor, utilise the sprayer with caution.

Visit our website at www.alemlube.com.au or www.alemlube.co.nz
NSW/ACT
TEL: [phone]
FAX: [phone]
QLD/PNG
TEL: [phone]
FAX: [phone]
VIC/TAS
TEL: [phone]
FAX: [phone]
WA
TEL: [phone]
FAX: [phone]
SA/NT
TEL: [phone]
FAX: [phone]
NZ
TEL: [phone]
FAX: [phone]
19
165
603
653
1069
1068
443
098
1070
Nº CODE. QTY DESCRIPTION
TEKSAGDNUOR1099.61.32.2890
165 8.38.05.314.1 1 CHAMBER VALVE
KNAT1103.17.71.8344
603 2.23.99.439.16 1 ROUND GASKET Ø15
653 8.28.27.320 1 TUBE WITH FILTER
1068 8.17.74.305 1 PROTECTOR CILINDRO
1069 8.17.74.601 1 M-12 ADAPTER WITH
ADJUSTABLE CONICAL NOZZLE
1070 8.17.74.801 1 COMPLETE CHAMBER
8.17.74.200 1 INSTRUCTION SHEET
8.17.74.201 1 PACKAGING

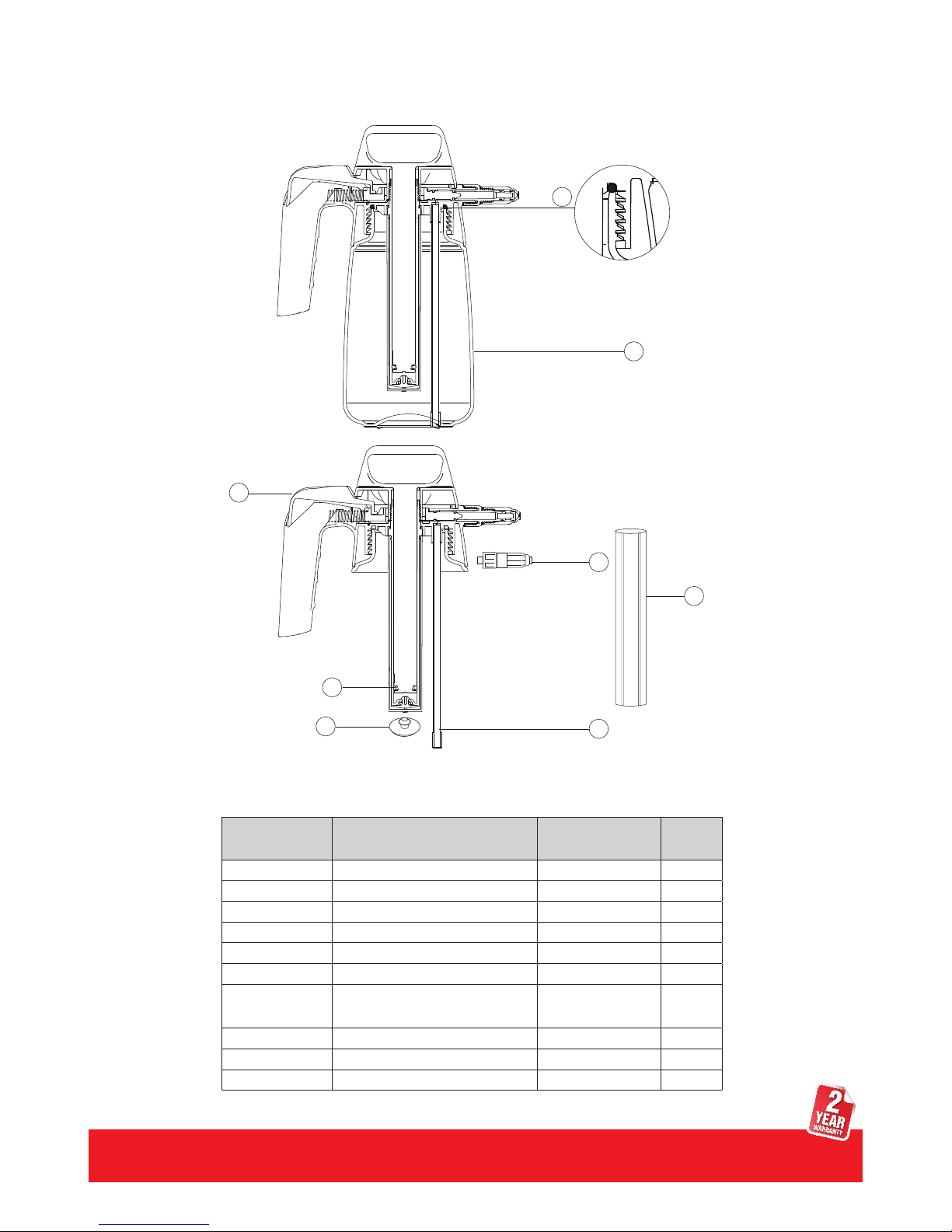

Parts and Drawing Breakdown For
6603A Multi-Purpose Fluid Sprayer
Ordering Spare Parts 6603A Spare Parts List
Item No. Part No. Description Qty
098 6603A-2.23.16.990 Round Gasket 1
165 6603A-8.38.05.314.1 Chamber Valve 1
443 6603A-8.17.71.301 Tank 1
603 6603A-2.23.99.439.16 Round Gasket ø15 1
653 6603A-8.28.27.320 Tube with lter 1
1068 6603A-8.17.74.305 Cylinder Guard 1
1069 6603A-8.17.74.601 M-12 Adapter
with adjustable
conical nozzle
1
1070 6603A-8.17.74.801 Complete chamber 1
6603A-8.17.74.200 Instruction sheet 1
6603A-8.17.74.201 Packaging 1
