Alert 500S LCD User manual

1

2
3
TABLE OF CONTENTS
A. REMOTE TRANSMITTER OPERATION ........................................................................................ 5
B. 2-WAY LCD REMOTE CONTROL TRANSCEIVER OPERATION ONLY................................................ 6
C. LED DISPLAY ........................................................................................................................... 6
D. CHIRP INDICATOR .................................................................................................................... 6
E. PARKING LIGHT........................................................................................................................ 6
F. SYSTEM OPERATION CONDITION ............................................................................................ 7
G. ACTIVE ARMING - ARM & LOCK .............................................................................................. 7
Ajar Warning
Silent Arming / Disarming
Shock Sensor By-Pass
Noiseless Mode
Hidden Alarm Function
H. PASSIVE ARMING..................................................................................................................... 8
Passive Arming with Passive Door Locking
Passive Arming By-Pass
I. ACTIVE DISARMING - UNLOCK & DISARM ................................................................................ 9
Clear the Flashing Icon
Tamper Disarming
Pathway Illumination
Two Steps Door Unlock
Automatic Re-Arm
J. DISARMING WITHOUT A TRANSMITTER ................................................................................. 10
Overrides the Alarm without Password Pin Code
Overrides the Alarm With Password Pin Code
K. VALET MODE ......................................................................................................................... 11
Enter Valet Mode
Exit Valet Mode
Remote Valet Mode
L. CAR LOCATOR ........................................................................................................................ 11
M. PANIC FUNCTION ................................................................................................................... 12
N. TRIGGER THE SYSTEM ........................................................................................................... 12
Clear TheTrigger Icons and Melody Sound
INSTALLATION TIPS AND ACCESSORIES
For most vehicles we have a T-Harness available to make remote starter installation quicker and
easier. To order call 800-659-0764 or visit us online at www.directwholesale.net.
Additional remote transmitters can be purchased through direct wholesale at www.directwhole-
sale.net.
For a full list of Bulldog Security accessories visit our web site at www.bulldogsecurity.com.
Your Bulldog Security remote starter is equipped with an interactive install cd and installation
kit.The kit will consist of a computer friendly test light, wire ties and a roll of tape. Use only the
computer friendly test light or volt meter when testing and probing wires.
ForTechnical assistance www.bulldogsecurity.com can provide a detailed wiring diagram for your
vehicle including additional helpful install tips.
JBS Technologies
225 Technology Way
Steubenville, OH 43952

4
5
O. ANTI CAR- JACKING................................................................................................................ 13
Active Car Jacking
Passive Anti Car Jacking
Trigger The Anti Car Jacking Mode
Override The SystemTo Turn O Anti Car Jacking
P. SYSTEM’S TRIGGER CHECK ..................................................................................................... 14
Q. SYSTEM’S STATUS CHECK ...................................................................................................... 14
R. DRIVER PAGING (OPTIONAL) ................................................................................................. 15
S. DOME LIGHT CONVENIENCE DELAY & SUPERVISION ............................................................... 15
T. IGNITION CONTROLTHE DOOR LOCK/UNLOCK......................................................................... 16
U. TRUNK RELEASE (CHANNEL 3) OUTPUT ................................................................................. 16
V. CHANNEL 4 TIMER CONTROL OUTPUT .................................................................................... 16
W. POWER ON MEMORY ............................................................................................................. 16
LCD REMOTE TRANSCEIVER
A. BATTERY REPLACEMENT ....................................................................................................... 17
B. THE REMOTE LCD ICONS WITH FUNCTION .............................................................................. 17
C. PROGRAMMING OF THE LCD REMOTE TRANSCEIVER .............................................................. 18
1. Screen Lamp ON
2. Clear the Flash Icon and Melody Sound
3. Stop theTrigger Melody Sound
4. Vibration/Melody Mode
5. Low Battery Indication
6. Set Up Fixed Count Down (Parking) Timer
D. TIMER SETTING ..................................................................................................................... 20
1. Timer Setting.
2. Alert Alarm Timer Setting
3. Count DownTimer Setting
OPERATION
A.TRANSMITTER OPERATION:
Transmitter
Button System Function Remark
Lock Doors & Arm System
– Arm and Delete The 2 Stage Shock
Sensor. Press twice within 3 seconds
– – Arm and Noiseless Mode Press within 3 seconds
– Arm System and Hidden Alarm Function Press within 3 seconds
+ Silent Arming / Disarming Ignition in“o”position
+
(2-second)
Active Anti Car-Jacking Mode Ignition in“on”position press and
hold for 2 seconds
Unlock Doors & Disarm System
– Two Steps Door Unlock & Disarm System Press twice within 3 seconds
(2-second) Trunk Release (Channel 3) Press and Hold for 2 seconds
– Passive Arming By-pass While the system Disarmed
– – Remote Control Entry/Exit Valet Mode While the system Disarmed, Press
within 3 seconds
+ Channel # 4 Timer Output
✱Car Locator
✱
(3-second) Panic function Press and Hold for 3 seconds

6
7
B. 2-WAY LCD REMOTE CONTROL TRANSCEIVER OPERATION ONLY
Transceiver Button System Function Remark
F – (C) System’sTrigger Check Press within 3 seconds
F – F – (C) System’s Status Check Press within 3 seconds
F – (≈)Optional Driving Pager Press within 3 seconds
F – (1 second) LCD screen lamp turns on for
5 seconds Press and hold for 1 second
F – F – F
Clear the Flashing Icon and
Melody Sound on the LCD
Screen Transmitter
Press within 3 seconds
C. LED INDICATORS
LED Status LED Status
O Disarmed 2 ashes... pause Zone 2 /Trigger on Trunk/Hood
Slow ash Armed 3 ashes... pause Zone 3 /Trigger on Door Switch
Fast ash Passive
arming 4 ashes... pause Zone 4 /Trigger on Shock Sensor
On (solid) Valet mode 5 ashes... pause Zone 5 / Trigger on Ignition Switch
D. CHIRP INDICATORS E. PARKING LIGHT
Chirp Function Parking Light Function
1 chirp Arm 1 ash Arm
2 chirps Disarm 2 ashes Disarm
3 chirps Ajar
Warning 3 ashes Disarm / Triggered
4 chirps Disarm / Trig-
gered 12 ashes Car locator
6 chirps Car locator
F. SYSTEM OPERATING CONDITION
Siren,
Horn
Parking
Light LED Doors Starter Dome Light
1. Arming 1 or 3
Chirps 1 Flash Slow Flash Locking Disable
2. Disarming 2 or 4
Chirps
2 or 3
Flashes
Fast Flash
or O
Un-
locking
Turns on for
30 -second
3. Trigger Alarming Flashes Slow Flash Disable Flashes
4. Panic Alarming Flashes Flashes
5. Car-
Jacking Alarming Flashes Disable Flashes
6. Car Locator 6 Chirps 12 Flashes

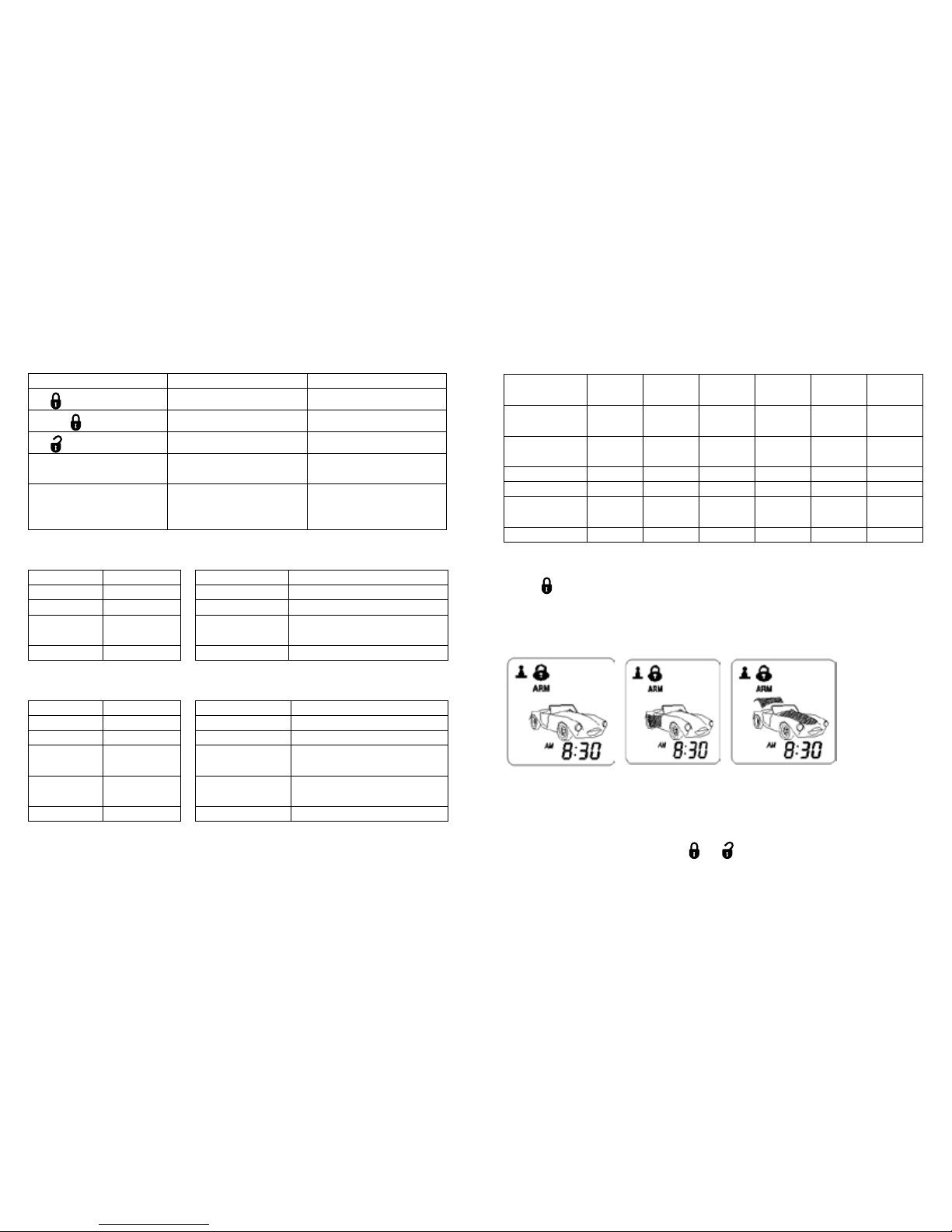

G. ACTIVE ARMING - ARM & LOCK:
1. Press button on the transmitter.
2. The siren will chirp once and parking light will ash once indicating that the system is now
armed.The vehicle doors will lock upon arming when interfaced with the security system.
System Arm Door Ajar Trunk / Hood Ajar
Clear The Flashing Icon: Press the Fbutton 3 times within 3 seconds will clear the ashing icon
on the LCD screen transceiver.
AJAR WARNING: If the siren sounds 3 chirps, then you have left a door, trunk, or hood lid ajar.
(See Alarm Feature“I - 3 Programming”)
SILENT ARMING / DISARMING: Press the and buttons at the same time on the transmit-

8
9
ter will arm or disarm your security system, No chirp sound will be heard, arm / disarm conrma-
tion will be through the vehicles parking lights only.
SHOCK SENSOR BY-PASS: Press the button on the transmitter twice within 3 seconds will
arm the security system, by-pass the shock sensor. The system will chirp one additional time
to conrm the sensor bypass mode was activated.The sensor bypass feature is programmed to
activate for one arming cycle only. The security system will return to normal operation during the
next arming cycle.
NOISELESS MODE: Press button once the siren chirps once, The system is armed. Press the
button twice more within 3 seconds:The siren chirps once again, the system is now in Noiseless
mode; On this mode trigger, the zone 4 shock sensor, the trigger timer will be reduced from 30
seconds to 15 seconds.
The noiseless feature is programmed to activate for one arming cycle only. The security system will
return to normal operation during the next arming cycle.
HIDDEN ALARM FUNCTION: Press the button rst; within 3 seconds press the button to
activate the hidden alarm function. The security system will arm and with“Hidden Alarm Func-
tion”.The siren / horn will be silenced even if the sensor is triggered in the armed status.
H. PASSIVE ARMING (See Feature“II - 2” Programming)
Active arming / disarming is controlling your security system via the remote transmitter. This secu-
rity system is equipped with an optional Passive Arming feature, which allows the security system
to arm 30 seconds after the last door is closed. Operation is as follows.
1. Turn the ignition to the“OFF”position and exit the vehicle.
2. After all entrances are closed, the security system LED will ash fast for 30 seconds. If you
reopen any door / hood / trunk, the security system LED will stop ashing. It will begin ashing
again once the vehicle all entrances are closed.
3. After 30-second timer has elapsed, the security system will automatically“ARM”.The siren will
chirp [1] time and the parking lights will ash [1] time.
PASSIVE DOOR LOCKING: (See Feature “II - 2” Programming)
The vehicle doors will automatically lock after passive arming cycle has been completed.
PASSIVE ARMING BY-PASS: While the system disarmed, Press the button twice, the security
will respond with [1] chirp and LED will turn“ON”. The security system will remain in this tempo-
rally state for as long as you wish. To exit passive by-pass, press the transmitter or button
and the system will return to normal status.

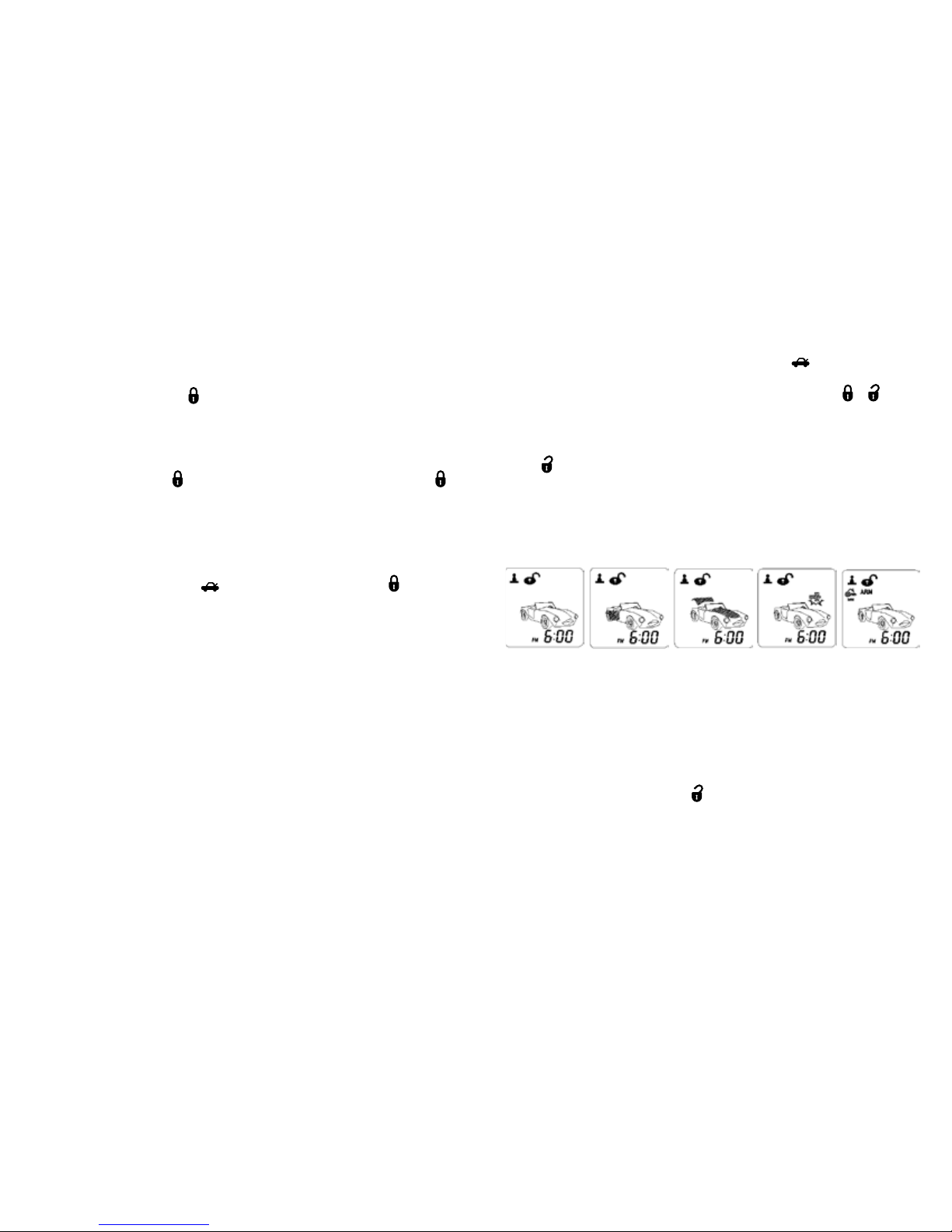

I. ACTIVE DISARMING - UNLOCK & DISARM:
1. Press button on the transmitter.
2. The siren will chirp twice and parking light will ash twice to indicating that the security sys-
tem is now disarmed. The vehicle doors will unlock and dome light will turn on for 30 seconds
upon disarming when interfaced with the security system.
System Disarm Doors Trigger Trunk/Hood
Trigger
Shock Sensor
Trigger Ignition Trigger
CLEAR THE FLASHING ICON: Press the Fbutton 3 times within 3 seconds will clear the ashing
icon on the LCD screen transceiver.
TAMPER DISARMING: If alarm triggered, upon disarm the system, siren chirp 4 times, parking
light ash 3 times.
PATHWAY ILLUMINATION (See Alarm Feature“II - 4” Programming):This feature turns the
parking light“ON”for 30 seconds upon a unlock signal and for 10 seconds upon the lock signal.
TWO STEP DOOR UNLOCK:This feature will independently unlock the drives door only when
disarming the security system. Pushing the button on the transmitter a second time within 3
seconds will unlock the entire vehicle.
AUTOMATIC RE-ARM (See Feature “I - 2” Programming): If this feature is selected, the security
system will automatically re-arm itself 60 seconds after disarming with remote transmitter.
Automatic rearm will cancel if any door is opened before the 60 seconds timer has elapsed.

10
11
J. DISARMING WITHOUT A TRANSMITTER
OVERRIDE THE ALARM WITHOUT PASSWORD PIN CODE: (Factory Default Setting)
The Override function may be used if the remote transmitter is lost or inoperative.
1. Enter the vehicle and turn the ignition switch to‘ON’position. (Alarm will sound.)
2. Within 10 seconds push and release the valet switch
The alarm will stop sounding and enter the disarm mode.You can now start and operate the
vehicle normally.
OVERRIDE THE ALARM WITH PASSWORD PIN CODE: (Alarm Feature IV - 2 Programming)
If the valet switch easily found, and defeated, this security system allows the consumer to
program a password pin code. Oering a higher level of security.
1. Enter the vehicle and turn the ignition switch to‘ON’position. (Alarm will sound.)
2. Within 5 seconds, enter your chosen rst digit by pressing and releasing the Valet Switch.
3. Within 15 seconds after the last entered press, turn the Ignition Switch“OFF”then “ON”.
4. Within 15 seconds, enter your chosen second by pressing and releasing the Valet Switch.
5. Turn the ignition switch“OFF”position.
[4] Chirps form siren/horn, [3] ash from parking light and LED will turn o to indicate the system
was disarmed.
Note 1:You must override the alarm within 60 seconds. If not, the system will automatically
re-arm.
EXAMPLE: To Override The System With The Password Code 83, you would;
1. Enter the vehicle and turn the ignition switch to‘ON’position. (Alarm will sound.)
2. Within 5 seconds, Press and Release theValet Switch 8 times
3. Within 15 seconds of the last entered 10ths digit, Press the Ignition Switch“O”then “ON”.
4. Within 15 seconds, Press and Release theValet Switch 3 times
5. Turn the Ignition Switch to“O”position.
[4] Chirps from siren/horn, [3] ashes from parking light and LED will turn o to indicate the
system was disarmed.
K. VALET MODE: (System in Disarm or Valet mode)
The valet switch allows you to temporarily bypass all alarm function, eliminating the need to hand
your transmitter to parking attendants or garage mechanics.When the system is in valet mode, all
alarm function is bypassed, however the remote panic feature and remote door locks will remain
operational. To use the valet mode, the system must rst be disarmed either by using you remote
transmitter, or by operating the Manual override sequence.
Enter Valet Mode:
1. From the disarmed condition, turn the ignition to“ON”position.
2. Push and hold valet switch for 2 seconds until the LED turns on. The
LED wills remain on as long as the system is in‘valet mode’.
Exit Valet Mode:
1. Return to normal operation, turn ignition‘on’.
2. Push and hold valet switch for 2 seconds,The LED will turn o
indicating the system is exiting the valet mode.
REMOTE VALET: (System in Disarm orValet mode)
Press and release button on the transmitter three times within 3
seconds to enter / exit valet mode.
A parking ash to conrm enters valet mode and two parking lights
ashing to conrm exit valet mode.
L. CAR LOCATOR
Press the ✱ button to activate the car locator function. The siren
will chirp 6 times.The parking light will ash 12 times, for you to easily
locate your car.
Remote Door Lock
Remote Door Unlock

12
13
M. PANIC FUNCTION: (See Alarm Feature V - 4 Programming)
The transmitter can be used as a remote panic switch to manually trigger
the alarm in case emergency.
1. Press and hold the ✱button for 3 second.The alarm will immediately
sound.
2. During panic mode, the normal function of this transmitter button will
be suspended. The and buttons can be used to lock and unlock
the doors (if the option is installed), however once the button is
pressed, the vehicle’s starter disable device, (where installed) will be
disabled allowing the vehicle to start.
3. To stop the alarm, press and hold the ✱button on the transmitter again for 3 seconds. Also
if any transmitter button other than ✱or or button is pressed and released, the panic
mode will be turned o immediately.
4. If the button is not pressed, the alarm will automatically stop after 30 seconds.
N. TRIGGER THE SYSTEM
When armed, your vehicle is protected as follows:
1. Light impacts will trigger the warn-away signal. A long chirp from siren/horn.
2. Heavy impacts / Doors open / Hood open / Trunk open /Turn on the ignition key will trigger the
programmed sequence.
The starter disable relay (if installed) prevents the vehicle’s starter from cranking. The siren, horn,
parking lights, and dome light will turn on to alert you of an intrusion for 30 seconds.Then it will
stop and automatic reset and re-arm. If the one of sensors or detectors still activate the alarm
system, it will sound a maximum of 6 times of 30 seconds cycles.
Trunk/Hood
Trigger Doors Trigger Shock Sensor Trigger Ignition Trigger Warn-away Trigger
STOP THE MELODY SOUND ONLY: While triggering the alarm the LCD screen will alert user
through melody sound and ashing trigger icon, press any button on the LCD remote transceiver
to stop melody sound only
CLEAR THE FLASHING ICON AND MELODY SOUND: While triggering the alarm the LCD screen
will alert user through melody sound and ashing trigger icon, press the F button 3 times within 3
seconds will clear the ash icon and stop melody sound on the LCD screen transceiver.
NOISE ABATEMENT CIRCUIT: Your system has“Noise Abatement Circuit”. It prevents annoying
repetitive trigger sequences due to faulty door pin switches or environmental condition such as
thunder, jackhammers airport noise, etc.
Here’s how“Noise Abatement Circuit”works:The alarm triggers ve times. Each time, the same
sensor or switch is triggering the alarm.“Noise Abatement Circuit”will interpret this pattern of
triggers as false alarm. After the fth trigger,“Noise Abatement Circuit”ignores, or by pass, that
sensor or switch until the other sensor or switch is triggered.
Doors (Hood/Trunk) are covered by“Noise Abatement Circuit”dierently: If the alarm is triggered
by an open door for six full cycles (three minutes), the doors will be bypassed until the trigger
ceases.
O. ANTI CAR-JACKING:
Warning: If you don’t need the anti car- jacking function in this alarm system, be sure to set car
jacking feature“OFF”.This system is default setting all car-jacking“OFF”. (See Alarm Feature I - 4
Programming.)
ACTIVE ANTI CAR JACKING:
1. Press and hold the transmitter and buttons at the same time for 2 seconds while the vehicle’s
ignition is ON. The parking lights will turns on for 1.5 seconds to indicate the system enters the
car-jacking mode.
2. Once the system in car-jacking mode, If you are forced from the vehicle, the system will be
trigger when the door is opened and closed while the ignition is“ON”.
PASSIVE ANTI CAR- JACKING:
1. Turn the ignition switch to“ON”position; the system enters the car-jacking mode.

14
15
2. Once the system in car-jacking mode, If you are forced from the vehicle, the system will trigger
when the door is opened and closed while the ignition is“ON”.
TRIGGER THE ANTI CAR -JACKING MODE:
a). 50 seconds after the system has been triggered. The siren will start chirping for 15
seconds.
b). During this 15 seconds period of chirping, you will be alerted to push the valet switch
once to turn o the car-jacking feature. If not, it will enter second timer car jacking.
c). 65 seconds after the system has been triggered.The siren starts alarming and the parking
light starts ashing.
d). 90 seconds after the system has been triggered
1. The siren still alarming and the parking light ashing, and
2. The starter disable will activate to prevent the vehicle from starting.
3. It will remain active until the vehicle’s battery power exhausted.
OVERRIDE THE SYSTEM TO TURN OFF ANTI CAR- JACKING:
Turn the ignition switch from OFF to ON, and within 10 seconds push valet switch, the siren will
stop and the system disarmed
Note: If you use password pin code to double protect the vehicle security, you will need to use it to
completely disarm the system.
P. SYSTEM’S TRIGGER CHECK
(For two-way transceiver operation only)
Press the transceiver F button rst, within 3 seconds press (C)
button. It responds with one melody sound and all trigger’s records will
immediately displayed on the LCD screen.
Q. SYSTEM’S STATUS CHECK
(For two-way transceiver operation only)
When you want to check the system’s present status through the LCD
screen, Press the transceiver Fbutton twice, within 3 seconds press
(C) button. It responds with one melody sound, the LCD screen should
be illuminated.
R. DRIVER PAGING
(For two-way transceiver operation only)
It is useful the event that someone wants to page the driver of the parked
vehicle.
Indoor Driving Paging
Under the ignition switch“o”condition, press and hold the valet switch for 2 seconds to page the
driver, one chirp sound shall be emitted from the vehicle and the paging melody sound continues
you Remote LCD transceiver and“ ”indication ashes on the LCD screen.
Outdoor Driving Paging
If someone tries to page you by tapping the paging (knock) sensor (optional) which is usually
mounted on the bottom part of front window, the paging melody sound continues sounding from
your Remote LCD transceiver and“ ” indication ashes on the LCD screen.
1. Press the transmitter Fbutton rst, within 3 seconds press (≈) button to activate outdoor
driver paging function, It responds with chirps of the vehicle, a melody sound and“ ”
indication ashes on the LCD screen to conrm the function is on.
2. When tapping the paging (knock) sensor, one chirp sound shall be emitted from the vehicle
and the paging melody sound continues sounding from your Remote LCD transceiver and
“ ” indication ashes on the LCD screen.Turn on the ignition switch; OR press the but-
ton to arm the system; OR press the button to disarm the system, this outdoor driver paging
function will exit.
S. DOME LIGHT CONVENIENCE DELAY & SUPERVISION
The alarm with a unique feature which will turn on your vehicle dome light as following:
1. Upon disarming, the interior lights will remain on for 30 seconds.
2. If the vehicle is intruded, the interior light will ash for the same duration as the siren.
Note:Turn ON the ignition switch or arm the alarm will turn o the dome light.

16
17
T. IGNITION CONTROL POWER DOOR LOCK SAFETY SYSTEM
(See Feature II - 3 Programming).
1. Turn the ignition switch on and close all vehicle’s doors. After 3 seconds, the system will
automatically lock the central locking system.
2. Turn the ignition switch o.The system will automatically unlock the central locking system.
U. TRUNK RELEASE (Factory default setting) /
CHANNEL 3 TIMER CONTROL OUTPUT
(See Alarm Feature III - 3 Programming)
Press and hold the button on transmitter for two seconds to
remote control the trunk release or other electric devices.
Channel 3 is user-programmable timer output. You may program the built-in timer to send a
ground signal for any time interval between 1 second and 2 minutes. For instance, this timer
output may be used to turn on the headlight, power window or sunroof.
Note: Factory default setting at 1 second pulse grounded for trunk release output.
V. CHANNEL 4 TIMER CONTROL OUTPUT
(See Alarm Feature III- 4 Programming)
Press the transmitter and buttons at the same time to active Channel
4 function. Channel 4 is user-programmable timer output.You may
program the built-in timer to send a ground signal for any time inter-
val between 1 second and 2 minutes. For instance, this timer output
may be used to turn on the headlight, power window or sunroof.
Note: Factory defaults setting at momentary output.
W. POWER ON MEMORY
This security system is equipped with circuitry that will allow the unit to remember its alarm state
if the power is lost and then reconnected.
LCD REMOTE TRANSCEIVER
Note: If the system is interfered by stronger radio frequency around, sources of high voltage elec-
tric power or such Obstacles like tall buildings and so on, the transmission range may get shorter
as the system uses low output power frequency.
A. BATTERY REPLACEMENT:
A 1.5V type AAA Alkaline battery powers the Remote Transceiver. When the power of the battery
weakens a icon shall be displayed on the LCD screen.When the old battery is replaced to new
one, there will be beep sounds indicate the power is up and the clock on the LCD screen returns
to AM12:00 after displaying all the icons. Correct the time by pressing for 3 seconds before using
(See Timer Setting).
Note : Press the button two times when the battery compartment is empty, then
insert the new battery.
B. THE REMOTE LCD ICONS WITH FUNCTION
Door Lock
Your vehicle doors are locked Door Unlock Your vehicle doors are unlocked
and the system is Disarmed
ARM Armed Mode
Your vehicle is in armed mode
Valet Mode
All the function shall be temporar-
ily on hold

18
19
Remote Transmission
You are transmitting the signal to
control unit
In - Range Indicator
Your are within the remote control
range.
Door Open Warning
Doors are illegally opened (Zone 3)
Trunk/Hood Trigger
Trunk or Hood is illegally opened
(Zone 2)
Shock Sensor Trigger
Trigger on Shock Sensor (Zone 4)
Warn Away Trigger
Trigger on Shock Sensor (Zone 1)
Time Monitor Alert Alarm
You have set morning call alarm
Count Down Timer
Reminder when time is up for
parking
SAVE Power Save Mode
Save the battery power
Vibration Mode
Remote Control vibrates when the
system is triggered
Button Lock
Disable the transmission function
temporarily
Driver Paging
Someone is paging you in front of
your vehicle
Low Battery
You have to replace the battery of
remote control.
C. PROGRAMMING OF THE LCD REMOTE TRANSMITTER:
Transmitter Button Description Operation
F(1 second) LCD screen lamp turns on for
5 seconds
Press and hold for 1 second
1 melody sound to conrm
enters
F(3 seconds) Timer Programming Mode Press and hold for 3 seconds
2-melody sounds to conrm
enter
F - F - F Clear the Flashing Icon and
Melody Sound on the LCD
Screen Transmitter
Press within 3 seconds
F - (2-second) Melody / Vibration ( ) Mode Press within 3 seconds
F - (2-second) Program Count Down (Parking)
Timer (10-Minute / 20M / 30
M /1Hour /1.5H / 2.0H)
Press within 3 seconds to cycle
*leave the buttons starting
count down then ashes
1. Screen Lamp ON: Press and hold the Fbutton one second, with one melody sound and the
LCD screen lamp will turns on for 5 seconds
2. Clear the Flash Icon and Melody Sound: Press the Fbutton 3 times within 3 seconds will
clear the ash icon and melody sound on the LCD screen transceiver
3. Stop The Trigger Melody Sound: While triggering the alarm the LCD screen will alert user
through melody sound and ashing trigger icon, press any button on the LCD remote transmit-
ter to stop melody sound only.
4. Vibration / Melody Mode: It is useful when you are in a noisy place and
dicult to hear beep sound from the remote control as the remote control
in this mode, vibrates itself if your security system is triggered.
Press the Fbutton rst, within 3 seconds press and hold the button
for 2 seconds to select the mode of vibration or melody, the icon
will displayed on the LCD screen to show the LCD remote transceiver is on
vibration mode.
5. Low Battery Indication: When the power of the battery weakens, it has two short“beep”
sound and ash icon while pressing the button of the LCD screen transceiver.
6. Set Up Fixed Count Down (Parking) Timer:
1. Press the Fbutton rst, within 3 seconds press and hold the button for 2 seconds, the
LCD screen will shows icon and timer (ie. 0:10) ,
2. Press the button again showing next order time on the screen ( ie.0:20), press it again
(ie.0:30)…..and so on.
3. Leave the buttons starting count down then icon ashes
Note:
1. The count down period is xed as 10 minutes, 20 minutes, 30 minutes, 1 hour, 1.5 hours and
2 hours maximum.
2. When count down timer showing 0:00 means to turn o the timer.
3. Press F button for real time indication when the timer is counting down.

20
21
7. Out Of Range Indication: If this feature is selected, the security system will automatically
check the range every 20 minutes after armed.
1. If user is within the range, the icon will display on the LCD screen.
2. If user is out of range, it has ve short“beep”sounds and the icon will disappear on the
LCD screen.
D. TIMER SETTING:
Transceiver Button Description PressTransceiver Button
1 Press & Hold the F
button for 3 seconds
Timer Setting (Hour)
*Flashes digit for adjusting ✱ for –and for +
Press the Fbutton once Time setting (Minute)
*Flashes digit for adjusting
✱ for –and for +
2 Press the Fbutton once. Alert Alarm Time Setting (Hour)
*Flash digit for adjusting ✱for –and for +
Press the Fbutton once Alert Alarm Time Setting (Minute)
*Flashes digit for adjusting ✱ for –and for +
Press the Fbutton once Alert Alarm Setting ON / OFF ✱ for OFF and
for ON
3 Press the Fbutton once Count DownTimer Setting (Hour)
*Flashes digit for adjusting
(Max.19 hours 59 minutes)
✱ for –and for +
Press the Fbutton once Count downTimer Setting (Minute)
*Flashes digit for adjusting
✱ for –and for +
Press the Fbutton once Count downTimer Setting ON / OFF ✱ for OFF and
for ON
EXIT: Press and hold the Fbutton for 2 seconds or leave it for 10 seconds, the system will exit the
programming mode.
1. Timer Setting: Example to AM10:30
1. Press & hold the F button for 3 seconds, with two-melody sound and the“Hours”digit
ashes for adjusting.
2. Press the or button to decrease or increase the“Hour”digit until AM10:xx
3. Press the F button once again then the“Minute”digit ashes for adjusting.
4. Press the or button to decrease or increase the“Minutes”digit until AM 10:30
5. Press the F button for 2 seconds with one-melody sound to conrm exit the timer
program mode.
2. Alert Alarm Timer Setting: Example to PM 6:30
1. Press & hold the button for 3 seconds, with two-melody sound and the“Hours”digit ashes
for adjusting.
2. Press the F button twice, the LCD screen will shows icon and“Hours”digit is ashes
for adjusting.
3. Press the or button to decrease or increase the“Hour”digit until PM 6:xx
4. Press the F button once again then the“Minutes”digit ashes for adjusting.
5. Press the or button to decrease or increase the“Minutes”digit until PM 6:30
6. Press the F button once again then icon ashes for alert alarm“ON / OFF”setting
7. Press the button to start the“Alert Alarm Timer”, and the“ON”icon will show on the
LCD screen.
8. Press the button to stop the“Alert Alarm Timer”, and the“OFF”icon will show on the
LCD screen.
9. Press F button for 2 seconds with one-melody sound to conrm exit the timer
program mode.
3. Count Down Timer (Parking) Setting: Example Set count down
timer at 2:30
1. Press & hold the F button for 3 seconds, with two-melody sound and the“Hours”digit
ashes for adjusting.

22
23
2. Press the F button 5 times, the LCD screen will shows icon and“Hours”digit is ashes
for adjusting.
3. Press the or button to decrease or increase the“Hour”digit until 2:xx
4. Press the F button once again then the“Minutes”digit ashes for adjusting.
5. Press the or button to decrease or increase the“Minute”digit until 2:30
6. Press the F button once again then icon ashes for alert alarm “ON / OFF”setting
7. Press the button to start the count down timer, and the“ON”icon will show on the
LCD screen.
8. Press the button to stop the count down timer, and the“OFF”icon will show on the
LCD screen.
9. Press the F button for 2 seconds with one-melody sound to conrm exit the timer
program mode.
Note: Maximum is 19 hours.
500S OP /MAR. 30, 2000
6876 V.A

24
