The car is equipped with a soft top
fig. 1 that can be removed manually
and combines ease of use and total
protection against weather agents.
The soft top can be stored in a suitable
container inside the luggage
compartment after having been
removed.
To remove the soft top, proceed as
follows:
❒release the two central locking
devices A fig. 2 inside the car by
rotating them by ¼ turn anti-
clockwise;
1A0L0200
❒at the side of the car, with the door
open, press the rail downwards to
de-tension the soft top, then move
the two side devices B fig. 3
inwards and lift the soft top end part
releasing it from the retainers;
❒package the first side of the soft top
rolling it up to the centre line;
❒proceed in the same way for the
other side of the soft top;
❒remove the soft top with both sides
rolled and store it in the suitable
container inside the luggage
compartment.
2A0L0201
To position again the soft top on the
car, proceed as follows:
❒open the doors;
❒take the soft top from the luggage
compartment and place it in the
centre line; the front side can be
recognised by the presence of the
safety visor fig. 2;
❒unroll the soft top by inserting it
under the spoiler ensuring its correct
position;
3A0L0202
This supplement includes some content on the Alfa 4C Spider version only.
For anything not dealt with refer to the Quick Guide and the Owner Handbook on the DVD.

2
❒rotate the rail upwards and insert
the soft top centring side pins into
the related seats
fig. 4 present on the vehicle, taking
care to first insert the front pin and
then the rear one;
❒operate on the lateral devices
B towards the inside fig. 5 and turn
the rail downwards;
4A0L0203c
❒leave the handles and complete the
rail rotation pressing it until you hear
the closing click of the lock;
❒check that the devices B are
completely closed fig. 6;
❒proceed in the same way for the
other side of the soft top;
5A0L0220c
❒position the two central devices
A fig. 2 in the suitable seats inside
the car and rotate them by ¼ turn
clockwise to lock them.
Check the correct insertion of the
pins into their seats and make sure
the grab ring is in horizontal
position. The fixing is carried out
correctly and the soft top is ensured
only when the ring is located in a
horizontal position (not vertical,
or at 45°).
WARNINGS
❒It is advisable to install the soft top
after parking the car.
The closed top effectively protects
the car from rain and from theft.
❒Do not attach devices for
transporting luggage to the soft top.
6A0L0221c

3
❒Do not use pointed objects to
remove ice that may form on the
soft top;
❒Do not place objects on the soft
top, as they could fall causing
damage or injury.
❒It is advisable to cover the top with
a protective sheet if the car is left
parked in the open for a long time.
❒Do not keep the soft top folded for a
long time: this could cause folds
and creases in the fabric.
❒Do not store the soft top in its
compartment when very dirty or
wet, to avoid any mildew or
damage.
❒with soft top installed, when
travelling over
130 km/h the aerodynamic comfort
may not be optimal.
WASHING/CLEANING
THE SOFT TOP
3) 4) 5) 6) 7) 8)
Use of specific products is
recommended for washing the soft top
cloth.
The soft top fabric is treated with a
special water-repellent and
waterproofing product.
The water-repellent properties will
degrade in time with exposure to the
weather elements. Observe the
following instructions for washing:
it is recommended to wash by hand.
Remove as much dirt from the surface
of the soft top with a soft brush or
vacuum cleaning before washing it.
This operation will considerably
improve the final result.
In lack of specific products, use water
and mild soap applied with a sponge
(preferably in the shade) for washing.
Rinse the soft top with clean water
after having eliminated all the stains.
Leave the car in the shade after
washing avoiding direct sunlight.
Waterproofing the top
9) 10)
Use specific waterproofing products for
fabric soft-tops.
WARNING
1) Before starting the car make
sure the soft top is correctly
locked.
2) It is recommended not to
remove/install the soft top
with people sitting in the car,
as the soft top could fall in
the passenger compartment
while it is moved.
3) Be careful while installing/
removing the soft top to
prevent any damage or
injury.
4) Keep children away from the
area in which the soft-top is
folding while installing/
removing it.

4
Soft top internal fabric
Remove dust with a soft brush.
Avoid using hard brushes made of
synthetic material to prevent damaging
the fabric beyond repair.
Clean the surface with a microfibre
cloth or soft sponge dipped in a
solution of water and mild soap.
Clean the entire surface, including the
zones where cleaning is not needed, to
prevent haloes or staining.
Use common, car care mild stain
removers for more stubborn stains.
Apply by blotting (never rubbing)
directly on the area of the stain.
SCHEDULED
SERVICING
During each scheduled servicing
operation and anyway every 12
months, check operation of the soft top
locks.
IMPORTANT
1) Never open the soft top in
presence of snow or ice to
prevent damage.
2) Loads may not be secured on
the roof.
3) Bird droppings and plant
resins must be washed off
the soft top immediately as
they can damage its fabric.
4) Never use high-pressure
washing systems.
5) When using steam washers
or high-pressure water
washers, maintain a suitable
distance and do not exceed a
maximum temperature of
60°C. Damage, alterations
and water infiltration may
occur if the distance is too
small or if pressure is too
high.
6) If a water jet is used, direct
away from the edges of the
fabric and the windscreen
surround to prevent water
infiltration.
7) Never use alcohol, petrol,
chemical products,
detergents, stain removers,
wax, solvents and "wash and
polish" products.
8) Rinse immediately to remove
soap to prevent stains and
blots. Repeat the operation if
needed.
9) Follow the instructions on the
waterproofing product
container for perfect results.
10) The rubber seals of the soft
top must be washed with
water only. If you notice that
seals are dry or sticking,
apply talcum powder or
products specifically for
rubber (silicone spray).

5
BULB REPLACEMENT
To replace the dipped/main beam
headlight bulb for versions with Xenon
headlights and versions with Bi-LED
headlights (for versions/markets, where
provided) contact a dedicated Alfa
Romeo Dealership.
To replace the bulbs for the
dipped/main beam headlights for
versions with halogen headlights and
for the direction indicators open the
corresponding protective flaps, fig. 8,
on the inner wheel arch that can be
located by steering the wheel
completely.
REPLACING AN
EXTERIOR BULB
FRONT LIGHT CLUSTERS
These contain the bulbs for the side
lights/daytime running lights (DRL),
dipped beam headlights, main beam
headlights and direction indicators.

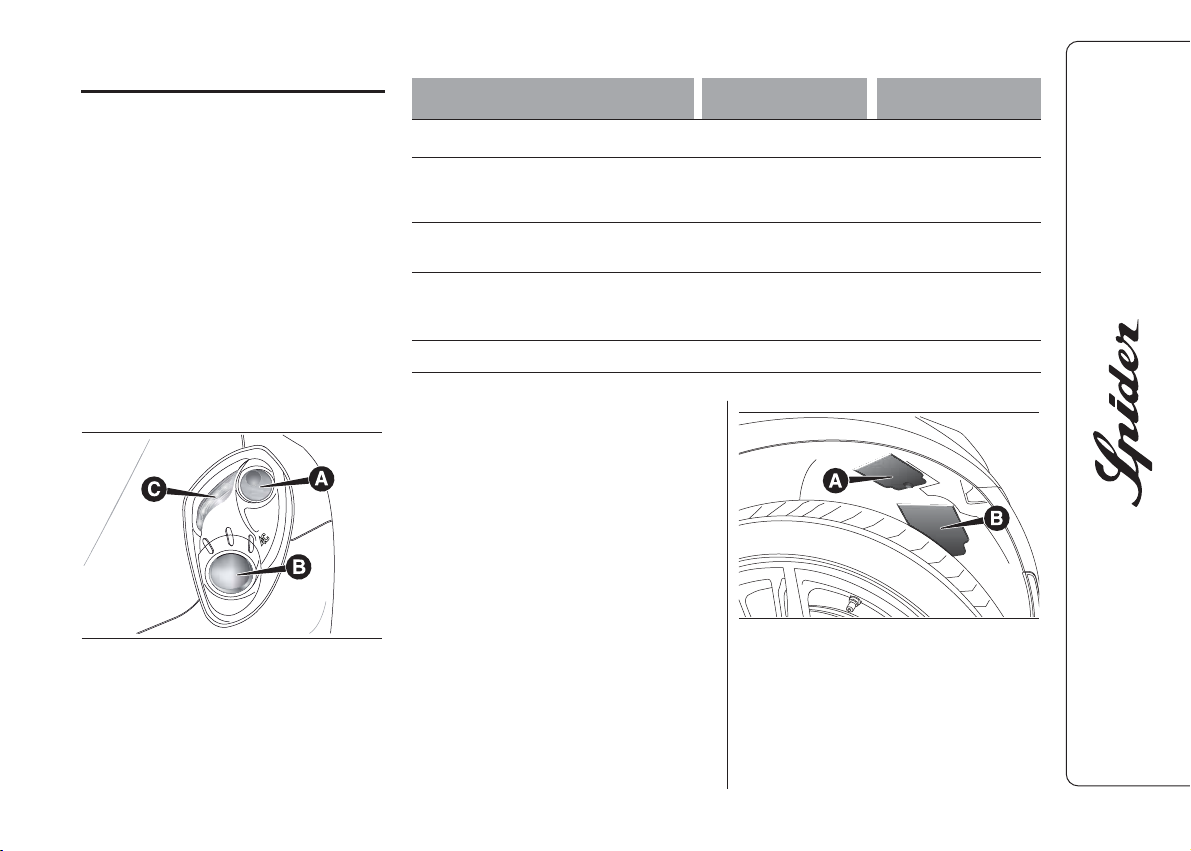

The bulbs are arranged as follows in
fig. 7:
A Direction indicators
B Dipped/main beam headlights
C Side lights/daytime running lights
7A0L0195
BULB TYPE
BULBS TYPE POWER
Direction indicators PY24W 24W
Dipped/main beam headlights
(versions with Xenon headlights) D5S –
(for versions/markets, where provided)
Dipped/main beam headlights
(versions with halogen headlights) HIR 2 55W
Dipped/main beam headlights
(versions with Bi-LED headlights)
(for versions/markets, where provided) LED –
Side lights/Daytime running lights LED –
A - direction indicator bulb protective
flap
B - dipped/main beam headlight bulb
protective flap
8A0L0092

6
❒rotate the bulb B fig. 10 to release it
from the retainers and remove it;
❒replace the bulb making sure it is
correctly locked;
❒close the protective flap A fig. 8.
Side lights/daytime running
lights (DRL)
These are LEDs. For the replacement
contact a dedicated
Alfa Romeo Dealership.
10 A0L0197
Dipped/main beam headlights
(versions with halogen headlights)

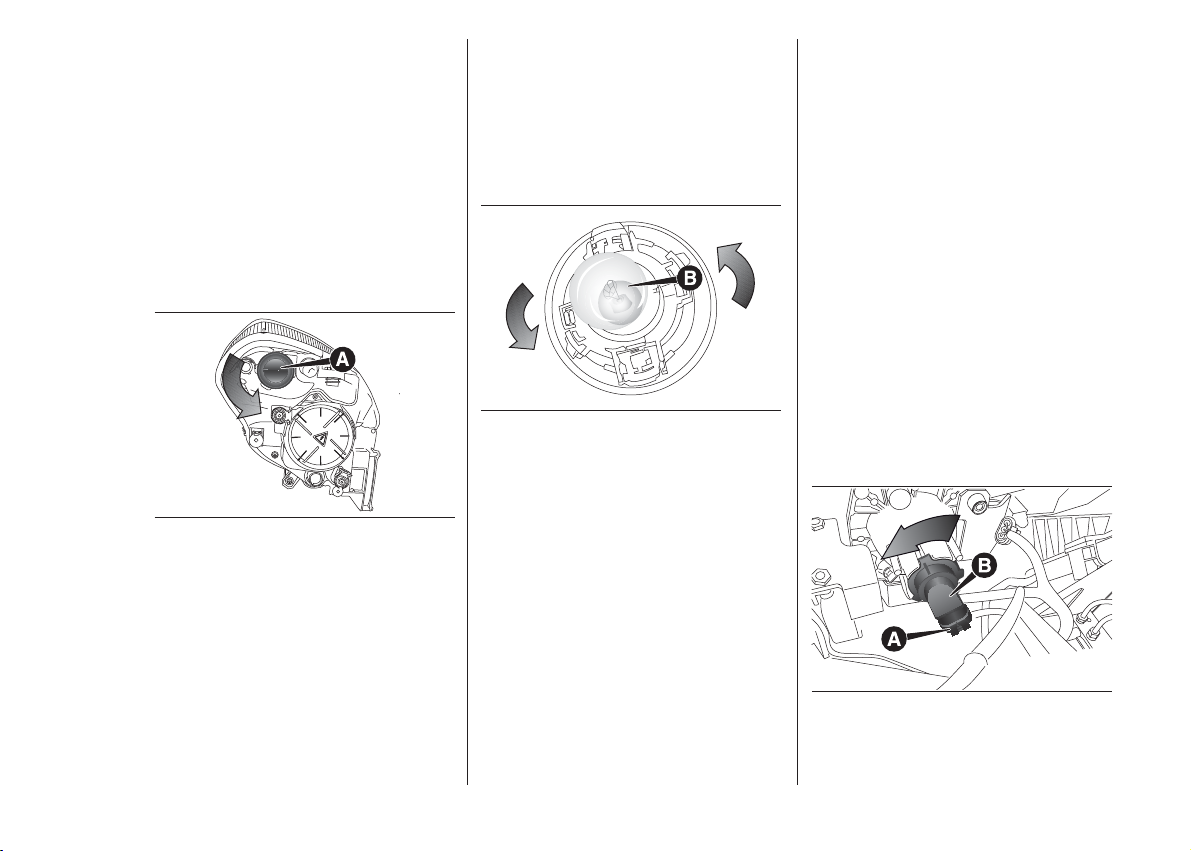

To replace the bulb, proceed as
follows:
❒steer the wheel completely;
❒open the protective flap B fig. 8 by
rotating the fixing screw;
❒take out the electric connector
A fig. 11 and then rotate the bulb
holder B anti-clockwise and
remove it;
❒remove the bulb and replace it;
❒refit the new bulb, making sure that
it is locked correctly, and reconnect
the connector A;
❒close the protective flap B fig. 8.
11 A0L0093
Direction indicators
To replace the bulb, proceed as
follows:
❒steer the wheel completely;
❒open the protective flap A fig. 8 by
rotating the fixing screw;
❒rotate the plug A fig. 9
anti-clockwise and remove the bulb
holder;
9A0L0196

7
Versions Engine code Bodywork versions
1750 Turbo Petrol 960A1000 961DXB1A 00
ENGINE CODE - BODYWORK VERSIONS
Versions Top speed (km/h) Acceleration from 0-100 km/h (sec.)
1750 Turbo Petrol 257 4.5
PERFORMANCE
TECHNICAL SPECIFICATIONS

8
General information 1750 Turbo Petrol
Type code 960A100
Cycle Otto
Number of cylinders and position 4 in line
Piston diameter and stroke (mm) 83 x 80.5
Total capacity (cm3)1742
Compression ratio 9.25 ± 0.25
Maximum power (EEC) (kW) 177 (*)
Maximum power (EEC) (HP) 240
– corresponding engine speed (rpm) 6000
Maximum torque (EEC) Nm 350 (*)
Maximum torque (EEC) (kgm) 35.7
– corresponding engine speed (rpm) 2100 ÷ 4000
Spark plugs NGK ILKAR7D6G
Fuel Unleaded petrol 98 RON or 95 RON (EN 228 Specification)
(*) Values obtained using 98 RON unleaded petrol.
ENGINE

9
Versions 1750 Turbo Petrol
Unladen weight (with all fluids, fuel tank 999
filled to 90% and without optional equipment)
Payload including the driver: (*) 215
Maximum permitted loads (**)
– front axle: 541
– rear axle: 747
– total: 1220
Towable loads (kg)
– braked trailer: 0
– unbraked trailer: 0
Maximum load on roof: 0
Maximum load on ball joint (braked trailer): 0
(*) If special equipment is fitted, the unladen vehicle weight increases, thus reducing the specified payload within the maximum permitted
loads.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment within the maximum permitted loads.
WEIGHTS

10
A B C D E F G H L
3990 864 2380 746 1189 1639 1868 1606 2090
DIMENSIONS
Dimensions are expressed in mm and refer to the vehicle equipped with its standard-supplied tyres.
Height is measured with vehicle unladen.
LUGGAGE COMPARTMENT VOLUME Unladen capacity (V.D.A. standards): = 110 dm3
12 A0L0205

11
Versions Urban Extra-urban Combined
1750 Turbo Petrol 10.1 5.1 6.9
FUEL CONSUMPTION
The fuel consumption figures given in the table below are determined on the basis of the type-approval tests laid down by
specific European Directives.
The following procedures are used to measure the fuel consumption:
❒urban cycle: cold starting followed by driving that simulates urban use of the car;
❒extra-urban cycle: driving that simulates extra-urban use of the car, with frequent acceleration in all gears; the speed varies
from 0 to 120 km/h;
❒combined consumption: this is calculated with a weighting of about 37% urban cycle consumption and about 63% extra-
urban consumption.
IMPORTANT The type of route, traffic situations, weather conditions, driving style, general conditions of the car, trim
level/equipment/accessories, load, climate control system, roof rack, other situations that affect air drag may lead to different
fuel consumption levels than those measured.
Fuel consumption according to the current European directive (litres/100 km)
Versions CO2emissions as per the European directive in force (g/km
1750 Turbo Petrol 161
CO2EMISSIONS
CO2emission levels, shown in the following table, refer to combined fuel consumption.

MOPAR
TECHNICAL SERVICES - SERVICE ENGINEERING
FCA Italy S.p.A. - Largo Senatore G. Agnelli, 3 - 10040 Volvera - Torino (Italia)
Print No. 530.06.137 - 1 Edition - 05/2015
All rights reserved. Reproduction, even partial, without written authorisation from
Fiat Group Automobiles S.p.A. is prohibited.
SERVICE
INDEX
REMOVABLE SOFT TOP ................................................1
WASHING/CLEANING THE SOFT TOP .............................3
SCHEDULED SERVICING ..............................................4
REPLACING EXTERIOR .................................................5
TECHNICAL SPECIFICATIONS......................................7
ENGINE CODE - BODYWORK VERSIONS ........................7
PERFORMANCE ...............................................................7
ENGINE ............................................................................8
WEIGHTS .........................................................................9
DIMENSIONS..................................................................10
FUEL CONSUMPTION ....................................................11
CO2EMISSIONS.............................................................11

Alfa Services
ENGLISH
COP ALFA 4C SUPP GB 02/02/15 09:18 Pagina 1
