Alfa Romeo RADIONAV User manual

RADIONAV
604_31_872 Radio Nav MiTo GB 2ed 8-10-2009 10:55 Pagina 1

2
page intentionally left blank
604_31_872 Radio Nav MiTo GB 2ed 8-10-2009 10:55 Pagina 2

INDEX
3
AF function ................................................................ 25
REG function .............................................................. 25
Specific radio menu ..................................................... 25
CD/CD MP3 FUNCTIONS
CD/CD MP3 play ........................................................ 26
CD/CD MP3 stop/pause .............................................. 26
CD/CD MP3 eject ....................................................... 26
Selecting a track from the list ....................................... 26
Select next/previous track ........................................... 26
Track fast forward/rewind ............................................ 26
Specific CD/CD MP3 menu .......................................... 27
MEDIA PLAYER FUNCTIONS
(only in presence of Blue&MeTM)
Launching Media Player mode ....................................... 28
Controls available ........................................................ 28
Media Player specific menu .......................................... 29
NAVIGATION
Warnings ................................................................... 30
Map display ............................................................... 31
Entering destination ..................................................... 31
Information during navigation ....................................... 32
Main navigation menu ................................................. 32
Insert destination ........................................................ 33
Stops management ..................................................... 36
TIPS, CONTROLS AND GENERAL INFORMATION
ADVICE ...................................................................... 5
GENERAL INFORMATION ............................................... 8
CONTROLS.................................................................. 10
Steering wheel controls ................................................ 14
MAIN OPERATION ........................................................ 16
Switching the system on/off ........................................ 16
Main menu ................................................................ 17
Audio ........................................................................ 17
Navigation ................................................................. 17
Personal destinations ................................................... 17
Traffic Info (TMC/TMC Premium) .................................. 17
MyCar ....................................................................... 18
Configurations ............................................................ 18
Audio ........................................................................ 18
AUDIO
Volume adjustment ...................................................... 19
Mute/Pause function .................................................. 19
“Audio settings” menu ................................................ 20
Selecting audio source ................................................. 21
RADIO FUNCTIONS
Radio station tuning ..................................................... 22
Preferred radio stations................................................. 23
TA function ................................................................. 24
PTY function ............................................................... 24
604_31_872 Radio Nav MiTo GB 2ed 8-10-2009 10:55 Pagina 3

4INDEX
CONFIGURATIONS
Display ...................................................................... 50
Sounds ..................................................................... 51
“My Car” options ........................................................ 52
Date & time ............................................................... 54
Language .................................................................. 54
SD Card management ................................................. 54
OPERATING PROBLEMS
Operating faults .......................................................... 56
Problems due to overheating ........................................ 56
Insert diversion ........................................................... 36
Map options ............................................................... 37
Navigation options ...................................................... 39
Launch navigation ....................................................... 40
Specific navigation menu ............................................. 41
TRAFFIC INFO
Traffic information (TMC/TMC Premium) ........................ 42
Choose TMC/TMC Premium station ............................... 44
TMC/TMC Premium reception status .............................. 44
MY CAR
Maintenance info ........................................................ 45
“My Car” functions status ............................................ 45
TRIP COMPUTER
Introduction ............................................................... 46
Trip Computer specific menu ......................................... 46
TELEPHONE SYSTEM (only in the presence of
Blue&MeTM system)
Telephone information display ....................................... 47
Specific telephone menu .............................................. 48
Spot messages menu .................................................. 49
604_31_872 Radio Nav MiTo GB 2ed 8-10-2009 10:55 Pagina 4

TIPS,CONTROLS AND GENERAL INFORMATION
5
TIPS
ROAD SAFETY
Learn how to use the various system func-
tions before setting off.
Care the instructions for the Radionaviga-
tor carefully before setting off.
The car is equipped with a Radionavigator
designed with the specifications of the pas-
senger compartment in mind and personal-
ized to fit in with the style of the dashboard.
To increase protection against theft, the Ra-
dionavigator has a protection system that
only allows it to be used on the vehicle in
which it has originally been fitted.
The instructions for use are given below and
we recommended reading them carefully
and always keeping them to hand (for ex-
ample, in the glove compartment).
RECEPTION CONDITIONS
Reception conditions change constantly
while driving. Reception may be interfered
with by the presence of mountains, build-
ings or bridges, or when you are far from
the broadcaster.
IMPORTANT The volume may be increased
when receiving traffic bulletins.
If the volume is too loud this
can be dangerous. Adjust the
volume so that you can still hear
background noises (e.g. horns, am-
bulances, police vehicles, etc.).
604_31_872 Radio Nav MiTo GB 2ed 8-10-2009 10:55 Pagina 5

6TIPS,CONTROLS AND GENERAL INFORMATION
IMPORTANT NOTES
If there is a problem, the system should on-
ly be checked and repaired at an Alfa Romeo
Authorized Workshop.
If the temperature is particularly low, the dis-
play may take a while to reach optimum
brightness.
If the car is stopped for a while and the out-
side temperature is low, the Radionavigator
may go into “thermal autoprotection” mode
stopping to work until the temperature in
the passenger compartment reaches accept-
able levels.
CD
Dirt, scratches or any distortions on CDs
could cause problems when playing and
poor sound quality. Follow this advice for op-
timum conditions:
❍ only use branded CDs:
❍ clean every CD thoroughly removing any
fingermarks or dust using a soft cloth.
Hold CDs by the outside and clean them
from the middle outwards;
❍ never use chemical products for clean-
ing (e.g. sprays or anti-static products or
thinners) because they can damage the
surface of the CD;
❍ after listening to them place CDs back
in their casings to avoid damage to
them;
CARE AND MAINTENANCE
Observe the following precautions to ensure
the system is fully operational:
❍ the monitor is sensitive to scratching, liq-
uid detergents and UV rays;
❍ liquids that get inside could damage the
system irreparably.
Only clean the front and the display with a
soft, clean, dry, anti-static cloth. Cleaning
and polishing products could damage the
surface.
Avoid pointed or rigid objects
coming into contact with the
display and do not touch it. Whilst
cleaning, do not exert pressure on
the display.
Do not use alcohol or similar
products to clean the Radion-
avigator display or surround.
604_31_872 Radio Nav MiTo GB 2ed 8-10-2009 10:55 Pagina 6

TIPS,CONTROLS AND GENERAL INFORMATION 7
❍ do not expose CDs to direct sunlight,
high temperatures or dampness for long
periods;
❍ do not stick labels on the surface of the
CD and do not write on the recorded sur-
face using pens or pencils.
❍ do not use CDs that are very scratched,
flawed, distorted, etc. Using discs like
this will result in malfunctions or dam-
age to the player.
The use of original CD supports is required
for the best quality audio production . Cor-
rect operation is not guaranteed when
CD-R/RW media are used that were not cor-
rectly burned and/or with a maximum ca-
pacity above 650 MB.
IMPORTANT Do not use the protective
sleeves sold for CDs or discs with stabilizers,
etc. because they could get stuck in the in-
ternal mechanism and damage the disc.
IMPORTANT If copy protected CDs are used,
it may take a few seconds beore the system
starts playing them. The CD player cannot
be guaranteed to play all protected discs.
The presence of copy protection is often in
small letters or may be difficult to read on
the cover of the actual CD and it may say
something like, for example, “COPY CON-
TROL”, “COPY PROTECTED”, “THIS CD CAN-
NOT BE PLAYED ON A PC/MAC”, or identi-
fied through the use of symbols, such as, for
example:
IMPORANT The CD player is able to read
most of the compression systems currently
on the market (e.g.: LAME, BLADE, XING,
FRAUNHOFER) but, following the develop-
ment of those systems, the playback of all
compression formats is not guaranteed.
IMPORTANT If a multisession disc is loaded,
only the first session will be played.
604_31_872 Radio Nav MiTo GB 2ed 8-10-2009 10:55 Pagina 7

8TIPS,CONTROLS AND GENERAL INFORMATION
GENERAL
INFORMATION

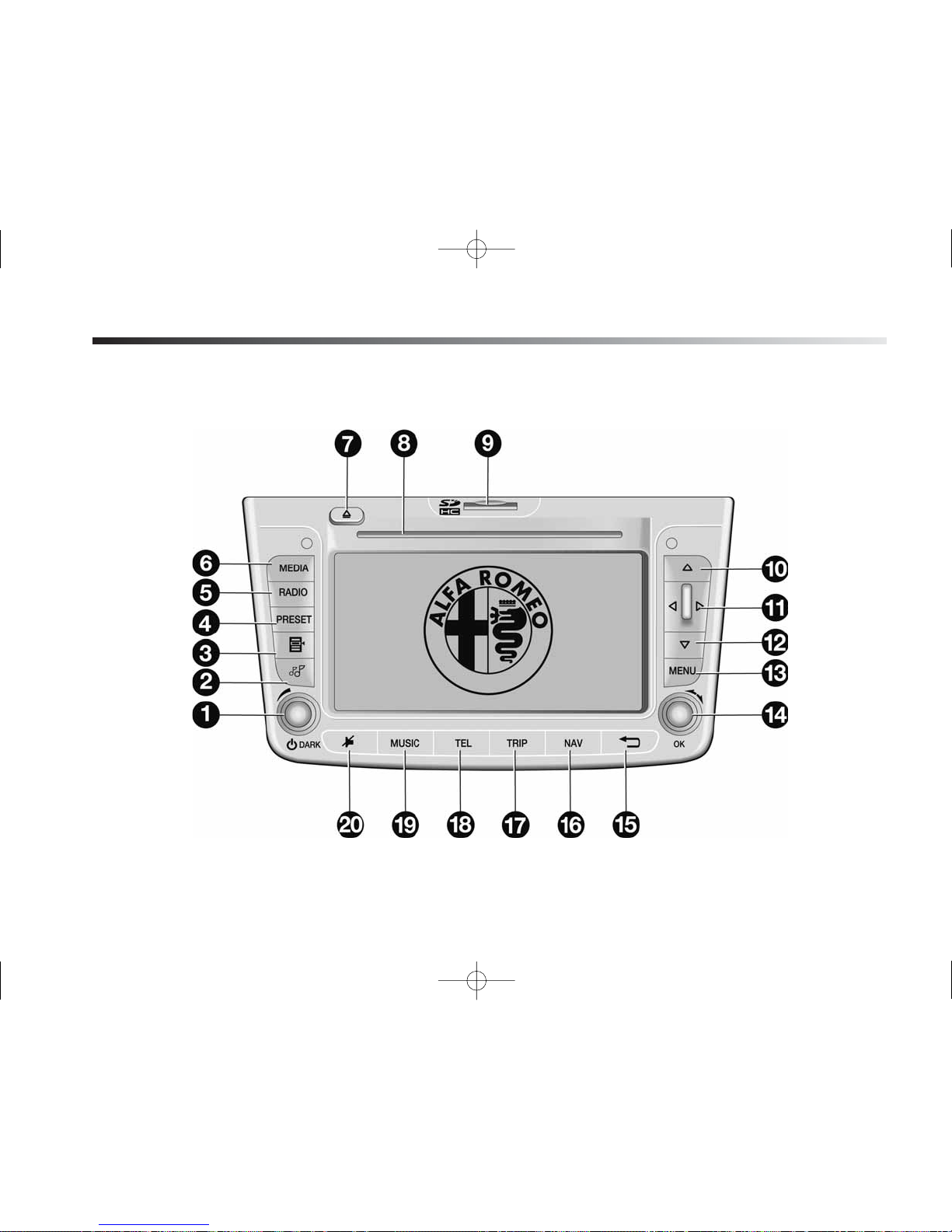

The Radionavigator consists of:
❍ radio system;
❍ Audio CD and CD MP3 player;
❍ SD Card reader;
❍ 6.5” TFT colour monitor;
❍ controls on the steering wheel (where
provided).
RADIO SYSTEM
General specifications
❍ Power: 4x25W;
❍ 5 predefined band graphic equalizer;
❍ Audio source settings adjustment menu
and possible outside interfaces (Media
Player);
❍ Controls on the steering wheel (where
provided);
❍ Speed dependent volume adjustment
(SVC function).
Radio tuner specifications
❍ RDS;
❍ RDS - TMC/TMC Premium (Traffic Mes-
sage Channel);
❍ EON (Enhanced Other Network);
❍ TA (Traffic Announcements)
❍ Tuning on bands: AM, FM;
❍ Possibility of programming:
– 18 FM stations (6 of which can be
memorized through autostore);
– 12 AM stations (6 of which can be
memorized through autostore);
❍ possibility of selecting programmes via
PTY (on FM bands only);
❍ “List” function (display of list of all ra-
dio stations available).
604_31_872 Radio Nav MiTo GB 2ed 8-10-2009 10:55 Pagina 8

TIPS,CONTROLS AND GENERAL INFORMATION 9
AUDIO SYSTEM
General specifications
❍ Bass/Treble;
❍ Balance;
❍ Loudness correction;
❍ Automatic volume correction;
❍ Music ambient: 5 curve predefined
equalizer.
CD/CD MP3 PLAYER
The Radionavigator has a CD player capa-
ble of reading Audio CDs and CD MP3s.
CD specifications
❍ Track sequence programming
❍ Random play
❍ Track repeat
❍ Skip track
❍ “List” function (display of available
tracks)
CD MP3 specifications
❍ Introscan
❍ Random play
❍ Track repeat
❍ Skip track
❍ List function: display of list of available
folders and tracks
NOTE The maximum number of MP3
tracks in a folder is 255, if there are
more, only the first 255 will be consid-
ered.
SD CARD READER
The Radionavigator is equipped with an
SD card reader that can read/manage
original SD cards using SPI technology
containing the navigation maps.
NOTE SD-HC cards are available for this
car.
604_31_872 Radio Nav MiTo GB 2ed 8-10-2009 10:55 Pagina 9

10 TIPS,CONTROLS AND GENERAL INFORMATION
CONTROLS
fig. 1
A0J0145m
604_31_872 Radio Nav MiTo GB 2ed 8-10-2009 10:55 Pagina 10

TIPS,CONTROLS AND GENERAL INFORMATION 11
Some controls have various functions that depend on the system application activated at the time.
The activation of the function selected is controlled, in some cases, by how long the button is pressed (short or long press) as described
in the table below:
Button
1 – g /DARK
2 – O
3 – h
4 – PRESET
5 – RADIO
6 – MEDIA
Short button press
(less than 2 seconds)
Button press: DARK function system/activation on
Turn knob: volume adjustment
Audio Menu display
Radio mode: display of the list of radio stations on the band selected
CD mode: display of list of tracks on the CD
CD MP3 mode: display of list of folders and tracks
Access to the menu to select and store the favourite radio stations
Radio mode activated: radio band selection (FM1, FM2, FM
AST , AM)
Radio mode not activated: display of specific menu and selection of
radio bands (FM1, FM2, FM
AST , AM)
Source selection: Media Player or CD
Long button press
(more than 2 seconds)
Button press:
system switching on/off
–
Radio mode: station list update
(press for more than 5 seconds)
–
Radio mode:
activation of AutoSTore function
–
604_31_872 Radio Nav MiTo GB 2ed 8-10-2009 10:55 Pagina 11

12 TIPS,CONTROLS AND GENERAL INFORMATION
Button
7 – ˚
8
9
10 –
N
11 –  / 
12 – O
13 – MENU
Short button press
(less than 2 seconds)
Ejection of audio CD or CD MP3
Audio CD or CD MP3 housing
SD card housing
Radio mode: frequency increase (FM or AM mode)
CD MP3 mode: selection of next folder
Map mode: scroll map upwards
Media Player mode: selection of next genre/author/album/folder/playlist
depending on the selection mode activated at the time
Radio mode: search for first radio station that can be tuned into with
lower/higher frequency than starting point (FM or AM mode)
CD/CD MP3/Media Player mode: previous/next track selection
Map mode: scroll map to left/right
Radio mode: frequency decrease (FM or AM mode)
CD MP3 mode: previous folder selection
Map mode: scroll map downwards
Media Player mode: selection of previous genre/author/album/folder/playlist
depending on the selection mode activated at the time
Main menu display
Long button press
(more than 2 seconds)
–
–
–
–
–
–
Access to navigation simulation function
604_31_872 Radio Nav MiTo GB 2ed 8-10-2009 10:55 Pagina 12

TIPS,CONTROLS AND GENERAL INFORMATION 13
Button
14 – OK
15 –
N
16 – NAV
17 – TRIP
18 – TEL
19 – MUSIC
20 – &
Short button press
(less than 2 seconds)
Button press: specific menu opening
Confirm selection
Turn knob: menu items selection
Exit selection
Navigation map display
TRIP data display
Telephone data display
(only if Blue&MeTM system is present)
Music information display
Audio function activation/deactivation
Long button press
(more than 2 seconds)
–
System reset
(if pressed for more than 8 seconds)
–
–
–
–
–
604_31_872 Radio Nav MiTo GB 2ed 8-10-2009 10:55 Pagina 13

14 TIPS,CONTROLS AND GENERAL INFORMATION
CONTROLS ON THE STEERING WHEEL (where provided) fig.2
fig. 2 A0J0269m
The controls for the main Radionavigator functions are replicated on the steering wheel to make things easier.
The activation of the function selected is controlled, in some cases, by how long the button is pressed (short or long press) as described
in the table below.
604_31_872 Radio Nav MiTo GB 2ed 8-10-2009 10:55 Pagina 14

TIPS,CONTROLS AND GENERAL INFORMATION 15
Button
&
If Blue&MeTM is present
&/ESC
+
–
SRC
If Blue&MeTM is present
SRC/OK
N
O
If Blue&MeTM is present
‘
If Blue&MeTM is present
ß
/MENU
Short button press
(less than 2 seconds)
Activates/deactivates Audio functions
Activates/deactivates Audio functions (see dedicated supplement)
Turn up volume
Turn down volume
Change audio source activated
Change audio source activated and confirm selection
(see dedicated supplement)
Audio source activated:
Radio mode: select next radio station
CD/CD MP3/Media Player mode: select next track
Audio source activated:
Radio mode: select previous radio station
CD/CD MP3/Media Player mode: select previous track
“Voice commands” activation
Telephone and Menu functions activation
Long button press
(more than 2 seconds)
–
–
Continuous increase in volume
Continuous decrease in volume
–
–
–
–
–
–
604_31_872 Radio Nav MiTo GB 2ed 8-10-2009 10:55 Pagina 15

16 TIPS,CONTROLS AND GENERAL INFORMATION
MAIN FUNCTIONS
The Radionavigator features four applications
(Audio, Telephone, Trip Computer and Nav-
igation) and a general menu. The four ap-
plications are activated by pressing the MU-
SIC, TEL, TRIP, NAV buttons. Press the MENU
button to activate the Menu.
NOTE The Telephone application is only present
with the Blue&MeTM system.
All the applications have a specific Menu that
can be activated by pressing the OK but-
ton/knob.
The system also signals the following by
means of messages in the display:
❍ the presence of any problems/faults;
❍ information on the application activat-
ed/information on the status of the car.
To interact with the messages displayed, use
the OK button/knob or press button
N
to remove the message from the display.
SWITCHING THE SYSTEM
ON/OFF
The system is switched on by turning the ig-
nition key to the MAR position and switch-
es off when the ignition key is turned to the
STOP position.
The system can always be turned on/off by
pressing the (ON/OFF) button 1- fig. 1.
If the system is turned on with the engine
switched off, it will automatically switch off
after about 20 minutes.
Dark mode (display dark)
With the system on, if the (ON/OFF) but-
ton 1 - fig. 1 is pressed briefly, the DARK
mode is activated: the display will go out,
but the system remains on and working.
604_31_872 Radio Nav MiTo GB 2ed 8-10-2009 10:55 Pagina 16

TIPS,CONTROLS AND GENERAL INFORMATION 17
MAIN MENU
Press the MENU button to display the Main
menu fig. 3.
Turn the OK button/knob to select the de-
sired function. Then, press the actual knob
to access the Menu selected.
NOTE For more details on each of the func-
tions described below, refer to the relevant
chapter.
AUDIO
This Menu makes it possible to change the
audio source options (the only audio sources
that can be selected are those available for
the system):
❍ CD can only be selected if a music CD
is inserted (audio or MP3);
❍ USB is only available if the
Blue&MeTM system is present and a
USB memory stick with music tracks has
been inserted.
NAVIGATION
This Menu allows a destination to be entered
and navigation and map display options to
be set.
PERSONAL DESTINATIONS
The personal destinations ambient makes it
possible to manage a list of preferred pres-
onal destinations which can be added to,
modified or deleted from the system.
TRAFFIC INFO
(TMC/TMC Premium)
This displays traffic information received in
real time via the TMC/TMC Premium ser-
vice provided by several radio stations.
This Menu makes it possible to en-
able/disable the service and to set filters.
The filters are designed to define the area
of interest which the system will take into
consideration for traffic messages, filtering
those not considered important.
Note
The TMC Premium Service is available in
Italy, France, Germany and the UK. Only the
radio navigators sold in one of these coun-
tries are enabled to receive the service.
TMC Premium is provided by:
fig. 3 A0J2006g
604_31_872 Radio Nav MiTo GB 2ed 8-10-2009 10:55 Pagina 17

18 TIPS,CONTROLS AND GENERAL INFORMATION
fig. 4 A0J2008g
MYCAR
This makes it possible to display the when
the next Service is due and the status of the
car settings.
NOTE When this Menu is selected it is only
possible to display the status of the car set-
tings, the item “CONFIGURATION” must se-
lected to change them and then “MyCar op-
tions” from the Main menu.
AUDIO
Press the MENU button to display the Audio
menu (fig. 4).
The Audio menu makes it possible to man-
age:
– the RDS radio with FM/AM reception;
– the Compact Disc player;
– the MP3 Media Player;
– the audio adjustments.
CONFIGURATION
After having activated this Menu, select the
desired item by turning the OK button/knob
and then press the actual knob to confirm.
If the button is pressed or after about 30 sec-
onds if no selection is made, the screen will
disappear from the display.
604_31_872 Radio Nav MiTo GB 2ed 8-10-2009 10:55 Pagina 18

AUDIO
19
This Menu makes it possible to adjust the
audio settings for the radio, the CD, the
Media Player (if connected) and the
audio adjustments for the speakers.
Pressing the MUSIC button activates the dis-
play of information for the audio source be-
ing listened to. Pressing the OK button/knob
gives access to the specific audio source
menu being listened to. Pressing the &
button briefly activates the “Mute” function.
VOLUME ADJUSTMENT
To adjust the volume, turn the knob 1 - fig.1.
The volume can be adjusted to a maximum
level of 40. When the system is turned off
and then turned back on, the volume will
be set at a level of 20.
With the MUTE function, when the knob
1- fig. 1 is turned, the MUTE function is de-
activated.
MUTE/PAUSE FUNCTION
To activate the Mute/Pause function, press
the &button or the &/ESC button on
the steering wheel briefly.
The Mute/Pause function is deactivated in
the following cases:
❍ by pressing the MEDIA button;
❍ by pressing the RADIO button;
❍ by pressing the PRESET button (in radio
mode only);
❍ by pressing the O button;
❍ by pressing the N / O /  /  buttons;
❍ by pressing the SRC or N / O button on
the steering wheel;
❍ by opening the Audio adjustments Menu
in the main menu;
❍ by searching manually for a radio sta-
tion frequency;
❍ by activating the PTY function;
❍ by selecting a radio station or music
track from a list;
❍ by selecting the SCM, RDM or RPT func-
tion (the latter is only available in CD
MP3 mode);
❍ by selecting the PRG function (in CD
mode only).
604_31_872 Radio Nav MiTo GB 2ed 8-10-2009 10:55 Pagina 19
