Alinko DJ-S45 CQ User manual

ALINCO, INC.
UHF FM TRANSCEIVER
DJ-S45 CQ/T/E
Instruction Manual
Thank you for purchasing this ALINCO FM transceiver.
This instruction manual contains important safety and
operating instructions.
Please read it carefully before using the transceiver and
be sure to keep it for future reference.

1
Contents
NOTICE / Compliance Information Statement .....................3
Before Operating the Transceiver .........................................5
1.Functions and Features.......................................................6
1-1 Standard Accessories ..............................................................6
2.Accessories ..........................................................................7
2-1 Attaching and Detaching Accessories.....................................7
2-1-1 Antenna( only).............................................7
2-1-2 Hand Strap ......................................................................7
2-1-3 Belt Clip..........................................................................7
2-2 Setting Batteries ......................................................................8
2-3 Lithium Ion Battery Pack........................................................8
2-4 Battery Level Indicator ...........................................................9
3.Control Functions...............................................................10
3-1 Names and Operations of the Transceiver Controls .............10
3-2 Key Operations......................................................................12
3-3 Display ..................................................................................14
4.Basic Operations................................................................15
4-1 Turning the Power ON..........................................................15
4-2 Adjusting the Audio Volume ................................................15
4-3 Operating Modes...................................................................16
4-4 LPD (VFO) Mode .................................................................16
4-4-1 Frequency Setting .........................................................17
4-5 PMR Mode( only) ..............................................17
4-5-1 Frequency Number Setting...........................................17
4-6 Memory Mode.......................................................................18
4-6-1 Memory Channel Programming ...................................18
4-6-2 Selecting a Memory Channel .......................................19
4-6-3 Clearing a Memory Channel Data ................................19
4-6-4 Programmable Items to Memory Channel....................20
DJ-S45 CQ
DJ-S45 T/E
Contents

2
4-7 Receiving ..............................................................................20
4-7-1 Adjusting Squelch Level ..............................................20
4-7-2 Monitor Function..........................................................21
4-8 Transmitting ..........................................................................21
4-8-1 Switching of Transmission Output Level
( only) ........................................................22
5.Parameter Setting Mode ...................................................23
5-1 Selectable Parameters............................................................23
5-2 Selecting the Setting Mode ...................................................28
6.Advanced Operations ........................................................30
6-1 Scanning................................................................................30
6-1-1 LPD (VFO) Scan ..........................................................31
6-1-2 PMR Scan( only) .......................................31
6-1-3 Memory Scan................................................................32
6-1-4 Skip Channel.................................................................32
6-1-5 Tone Scan .....................................................................33
6-2 Repeater( only)...................................................33
6-3 Key Lock...............................................................................34
6-4 Tone Call (Tone Burst) .........................................................35
6-5 Channel Display Mode..........................................................35
7.Selective Communicating .................................................36
7-1 LPD (VFO) Tone Squelch ....................................................36
7-2 PMR Tone Squelch( only) .................................38
8.Cloning / Packet Operation...............................................39
8-1 Cloning..................................................................................39
8-2 Packet Operation( only) .....................................42
9.Maintenance and Reference .............................................43
9-1 Resetting................................................................................43
9-2 Options ..................................................................................44
10.Specifications ...................................................................45
DJ-S45 T/E
DJ-S45 CQ
DJ-S45 T/E
DJ-S45 CQ
DJ-S45 T/E
Contents

3
NOTICE / Compliance Information Statement
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
Tested to Comply
With FCC Standards
FOR HOME OR OFFICE USE
Information in this document is subject to change without notice
or obligation. All brand names and trademarks are the property of
their respective owners. Alinco cannot be liable for pictorial or
typographical inaccuracies. Some parts, options and/or
accessories are unavailable in certain areas. Changes or
modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the
equipment.
DJ-S45 T
NOTICE / Compliance Information Statement

4
UHF FM Transceiver DJ-S45 T
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Manufacturer:
ALINCO, Inc Electronics Division
Shin-Dai Bldg 9F, 2-6, 1 Chome
Dojimahama, Kita-ku, Osaka 530-0004 JAPAN
Conformity Information
In case the unit you have purchased is marked with a CE symbol,
a copy of relative conformity certificate or document can be
reviewed at http://www.alinco.com/usa.html.
Copyright © 2005 All rights reserved. No part of this document
may be reproduced, copied, translated or transcribed in any form
or by any means without the prior written permission of Alinco.
Inc., Osaka, Japan, English Edition Printed in Japan.
DJ-S45 CQ
DJ-S45 E
NOTICE / Compliance Information Statement

5
Caution
The use of transceiver in the following places is prohibited.
•Aboard aircraft •In airports •In ports •Within or near the
operating area of business wireless stations or their relay
stations.
Before using the transceiver in any of the above places, obtain
any necessary permission from the proper authorities, and be
mindful of the local laws that govern radio operation.
Points to Note for Using an External Power Supply
•When the power is supplied from a cigarette socket of a car, use
the cigarette lighter cable (EDH-33).
•Turn the power off when connecting or disconnecting the DC
cable.
•When using a commercial external antenna, install the antenna
ground not to become common with the ground of the external
power supply.
•This DC jack supports 3.0~6.0VDC, 2A or more external power
source. Please use an appropriate, reliable power supply, and
be mindful to the polarity (+ positive center).
•Use of non-genuine accessories will void ALINCO's factory
warranty.
■
Before Operating the Transceiver

6
1. Functions and Features
39 different Tone Squelch function (CTCSS)
TOT (Time Out Timer) function
Tone Call function (ALT, 1750, 2100, 1000, 1450Hz)
Reception Bell (Beeper) function
3 types of Scan function (VFO, Memory, Tone)
4 types of Scan function (LPD (VFO),
Memory, Tone, PMR)
Cable Cloning
Rain Proof
1-1 Standard Accessories
・Belt Clip (with a screw)
・Hand Strap
・Instruction Manual
The accessory status may vary depending on the versions. Please
consult with your local dealer for details.
■
■
DJ-S45 CQ
DJ-S45 T/E
■
■
■
■
■
1.Functions and Features
1
Caution
Insert the rubber covers properly and firmly into the jacks of
the external speaker, microphone, and power supply.
Connecting optional accessories to the transceiver disables
the rainproof function.
The is rainproof but NOT water resistant.
Therefore, NEVER rinse nor immerse it in water.
DJ-S45 CQ/T/E

7
2. Accessories
2-1 Attaching and Detaching Accessories
2-1-1 Antenna( only)
1. Hold the antenna by its base and turn it
clockwise until it stops.
Check to be sure the antenna is securely
connected.
2. Turn the antenna counter-clockwise to
detach it.
2-1-2 Hand Strap
1. Attach the hand strap in the upper slot at
the rear of the transceiver as shown in the
illustration.
2-1-3 Belt Clip
1. Put the belt clip on the back of the
transceiver.
2. Turn the screw clockwise until it stops.
Check to be sure the clip is securely
installed.
3. Turn the screw counter-clockwise to
detach the belt clip.
Belt clip
Hand strap
DJ-S45 T/E
2.Accessories
2
Caution
The takes fixed type antenna due to a legal
requirement. NEVER try to detach it.
DJ-S45 CQ

8
2-2 Setting Batteries

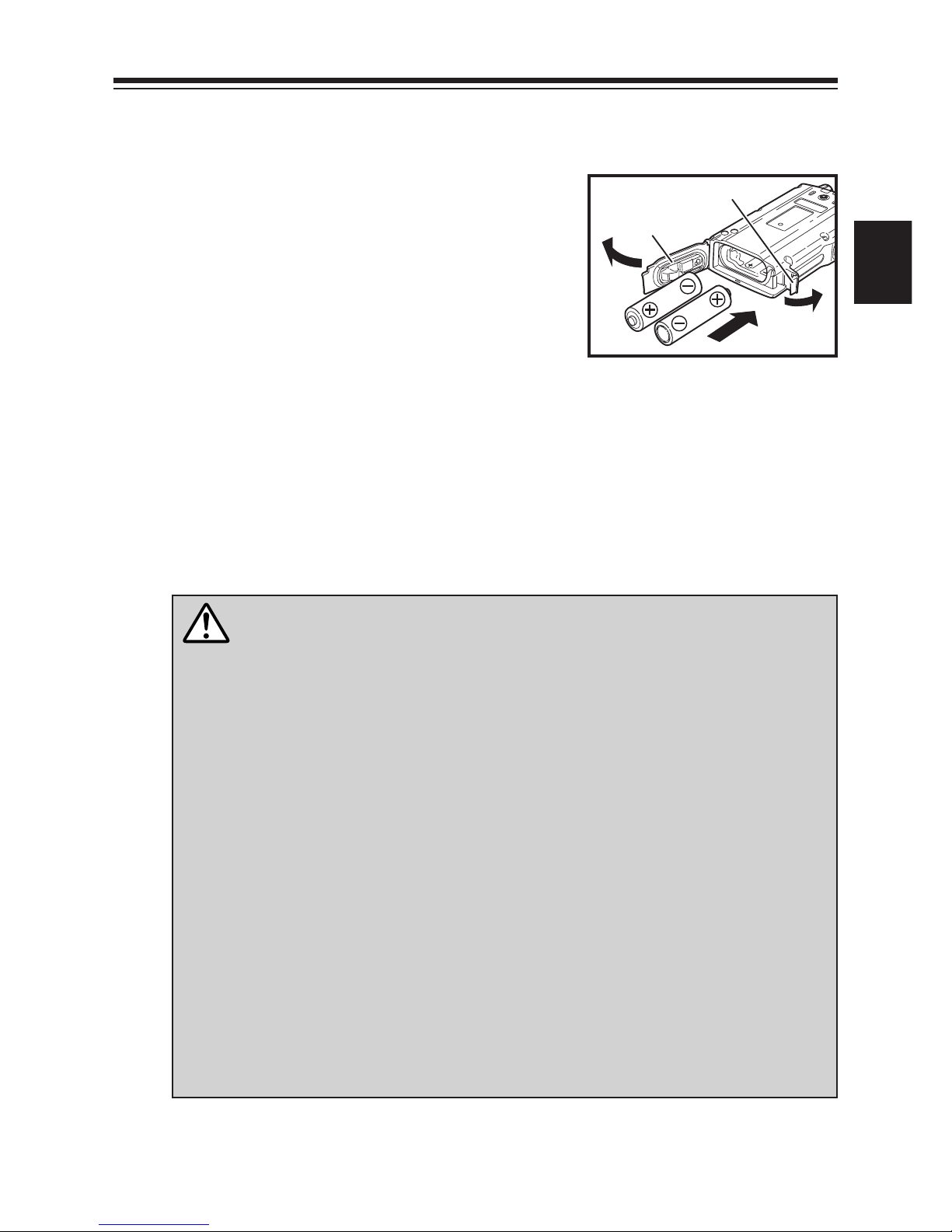

1. Open the cover latch and then open the
cover.
2. Set two commercially available AA
batteries in the +/- orientation marked at
the internal front side.
3. Close the cover and then fix it with the
cover latch.
2-3 Lithium Ion Battery Pack [EBP-60] (Option)
Please refer to the instruction manual that comes with the battery pack
for operating and charging procedures.
Cover latch
Cover
2.Accessories
2
Caution
•Manganese batteries are not recommended as they may
decrease the transmission output level.
•Be sure to observe proper orientation of the batteries
polarity (+/-).
•Latest generation dry cells such as "Oxiride" batteries can
be used.
•Ni-MH rechargeable cells are also usable. Please carefully
read instructions of its manufacturer to properly use them.
•Regardless of the type of battery you use, please:
1.Never mix the type, brand, or different status of use.
2.Never remove protective materials around cells.
3.Clean the contacts with a dry cloth once in a while to
obtain best performance.
4.Respect all the instructions given by battery
manufacturer for safe and proper use.

9
2-4 Battery Level Indicator
•Battery consumption level may change
depending on the surrounding temperature
or the frequency of use.
•Even if the battery icon appears to indicate
the necessity of charging the battery, it can
be used further if the usage is only for low
output transmission or reception.
•The default setting of the battery pack type
is "bAt-1" which is for AA type cells.
When using Lithium Ion battery pack,
select the battery type setting to "bAt-2" in
the Setting mode (page 26, ITEM No.16) to
correctly indicate the battery level icon.
Reference : Due to the amplification circuitry used in this unit to
obtain high output with only 2 batteries, it may
happen that the unit cannot be turned on when the
battery voltage is getting low (while the low-battery
icon is on the display), but not completely
discharged yet. This is not a defect but we
recommend that:
•When the low-battery icon appears, recharge or
replace the batteries.
•When the low-battery icon appears, try not to turn
off the radio until fully use up the battery power.
When they are completely discharged the display
will turn off.
*When the battery level
becomes low, the battery icon
appears.
Charge or replace the battery.
Battery icon
2.Accessories
2

10
3. Control Functions
3-1 Names and Operations of the Transceiver Controls
Top and Front Views
No.
①

②

③

④

⑤
⑥




⑦
⑧
⑨
Name
Power/Volume Dial
MIC Connector
SP Connector
RX/TX Lamp
Speaker
F key
Display (LCD)
Keypad
Microphone
Functions
Switches power ON/OFF, and also adjusts
the audio volume.
For connection of the optional external
microphone (2k Ω) with 2.5 ø stereo plug.
For connection of the optional external
speaker(8 Ω) with 3.5 ø monophonic plug.
Illuminates green when the squelch opens
and red when transmitting.
A thin speaker is built in.
Use this key in combination with other keys to
access various functions of the transceiver.
Holding this key for 2 seconds activates the
Setting mode where various settings are
possible.
Refer to "Display" in this manual (page 14).
Refer to "Key Operations" (page 12).
Speak into microphone from a distance of
approx. 5cm at normal tone of voice.
①
①
④
⑤
⑥
⑦
⑧
⑨
②③
■
3.Control Functions
3

11
Side Views
No.
⑩
⑪


⑫


⑬






⑭
Name


SMA Antenna Connector
PTT (press to talk) key
MONI key
DC-IN
Functions
Undetachable fixed type antenna.
Install the included antenna. Choose an
antenna which has low SWR (standing Wave
Ratio) if you purchase one.
While this key is held down, the transceiver
transmits. When the key is released, the
transceiver returns to the receive mode.
When this key is pressed, the squelch opens
and you can hear received signals. The
squelch also opens when the tone squelch is
set. If this key is pressed while "F" appears,
the Key Lock function is activated. Pressing
this key, while the PTT key is pressed and
held, transmits the tone call signal.
Terminal for connecting an external power
supply. Connect the optional cigarette lighter
cable EDH-33 for mobile operation. Use a
stable power supply with 3.0~6.0VDC, with a
capacity of 2A or more.
DJ-S45 CQ
DJ-S45 T/E
⑩ ⑩
⑪
⑫
⑬
⑭
Antenna side Dial side
■
3.Control Functions
3

12

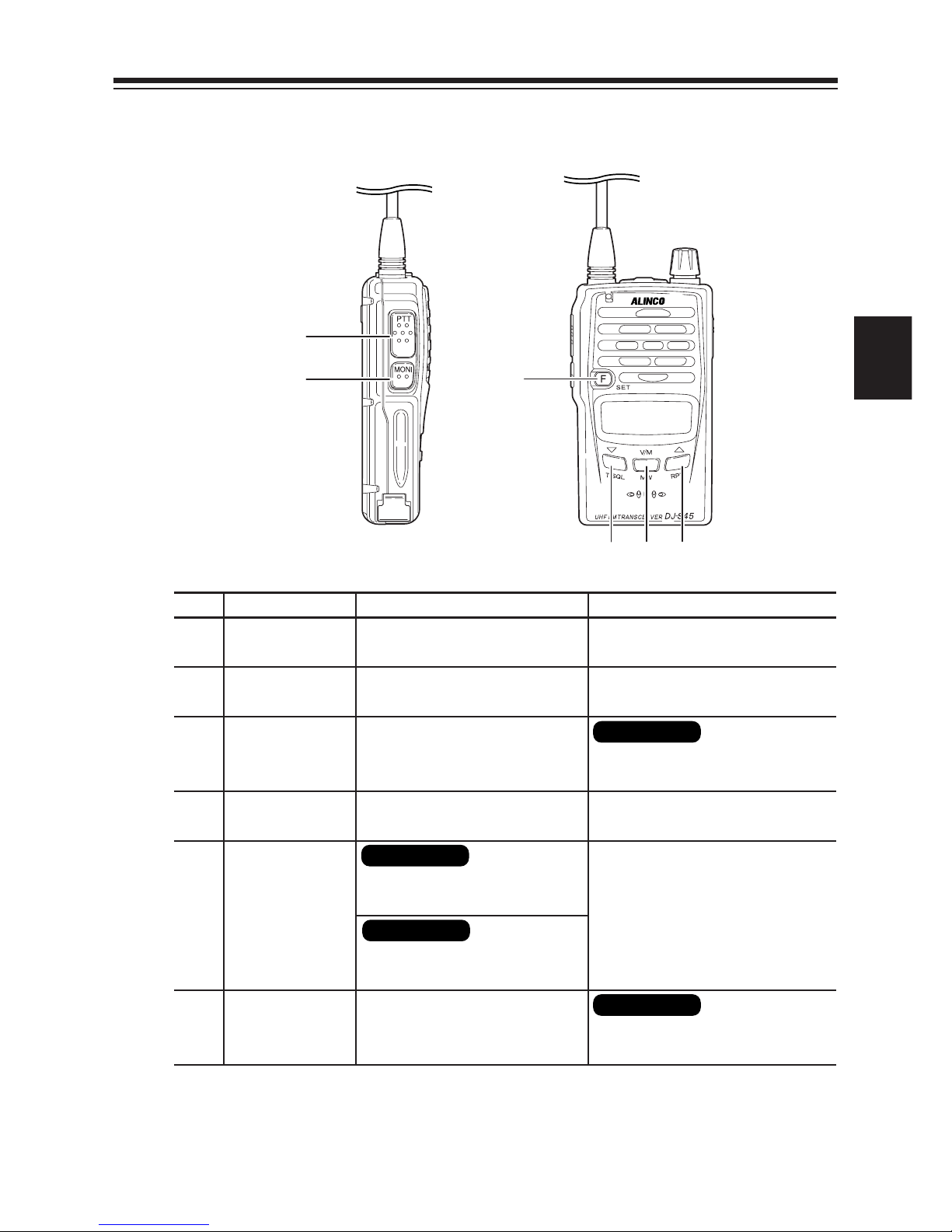

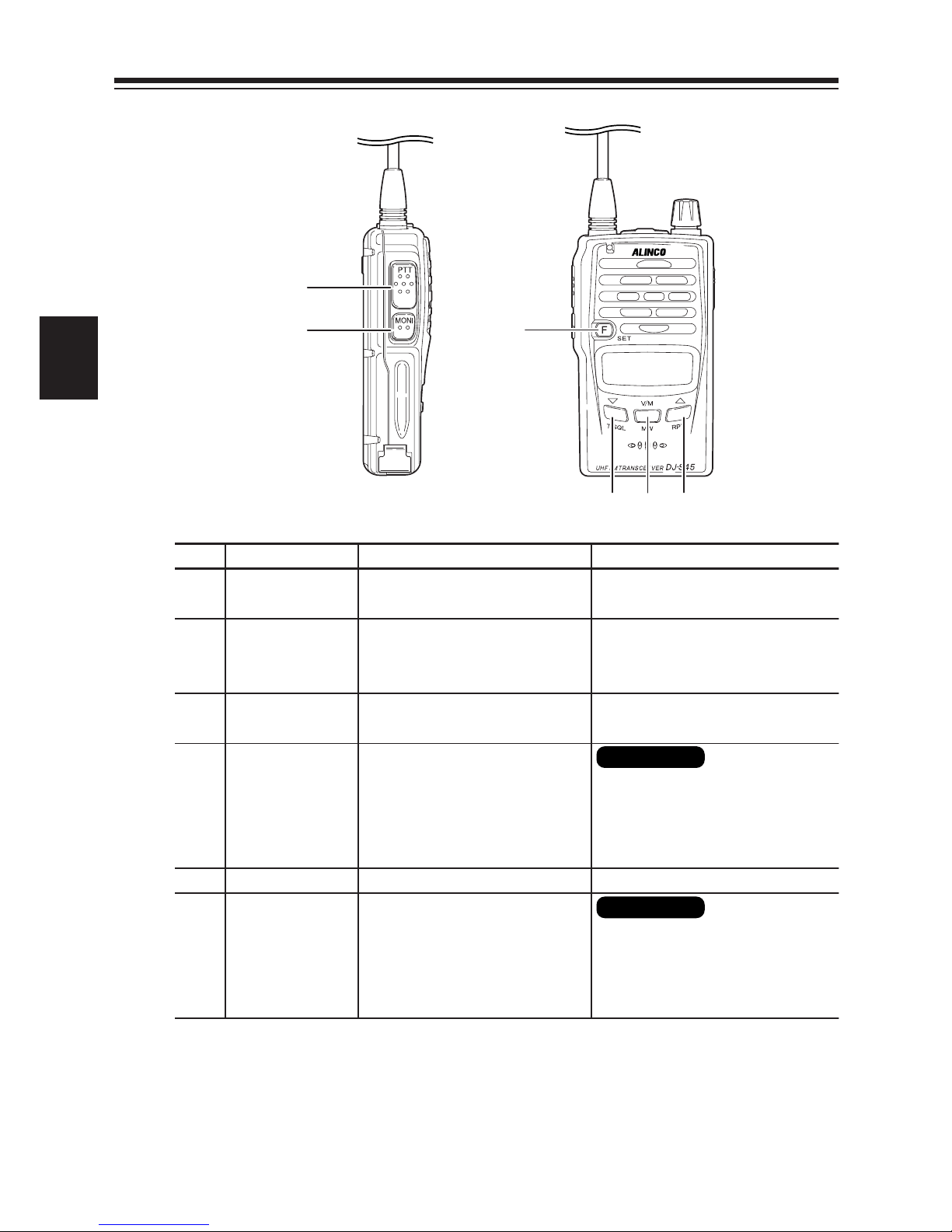

3-2 Key Operations
No.
①

②

③


④

⑤





⑥
Name
PTT
MONI
F/SET
▼/T SQL
V/M / MW
▲/RPT
Independent operation
Transmits or completes the
setting in the Setting mode.
Activates the monitoring
function.
Accesses Various functions.
Decreases the frequency
and memory channels.

Switches VFO/Memory
modes.

Switches LPD (VFO)/PMR/
Memory modes.
Increases the frequency
and memory channels.
DJ-S45 CQ
DJ-S45 T/E
After pressing F key
Switches the key lock
ON/OFF (page 34).

Adjusts the frequency in
1MHz step(page 17).
Sets the tone squelch function
(page 36~38).
Programs memory channels
(page 18).

Sets the repeater functions
(page 33~34).
DJ-S45 T/E
DJ-S45 T/E
①
②
⑥
③
⑤④
3.Control Functions
3

13
No.
①

②


③

④




⑤
⑥
Name
PTT
MONI
F
▼/T SQL
V/M / MW
▲/RPT
Pressed for a while
Enables transmission while
holding.
Activates the monitor
operation while holding
(page 21).
Activates the Setting mode
(page 28).
Pressed shorter than 2 sec.,
starts downward scanning,
and pressed longer than 2
sec., decreases the value
continuously (page 30~33).
Pressed shorter than 2 sec.,
starts upward scanning,
and pressed longer than 2
sec., increases the value
continuously (page 30~33).
During transmission
Transmits tone call signal
(page 21).
Sets the transmission output
level low (page 22).
Sets the transmission output
level high (page 22).
DJ-S45 T/E
DJ-S45 T/E
①
②
⑥
③
⑤④
3.Control Functions
3

14
3-3 Display
*Unexplained icons are not used on this transceiver.
No.
①
②
③
④
⑤
⑥
⑦
⑧

⑨

⑩
⑪
⑫
⑬
⑭

⑮
⑯
⑰
⑱
Name Indication
Appears when the F key is pressed.
Appears when keys are locked.
Indicates the shift (+/-) direction.
Appears when the tone encode (ENC) is set.
Appears when the tone squelch is set.
Appears when the bell function is ON.
Blinks during memory writing mode.
Indicates memory No. in the Memory mode and setting
No. in the Setting mode.
Indicates the receiving level and the transmission output.
Indicates the frequency and various setting status.
Appears when the repeater function is set.
Appears when transmission output level is high.
Appears when transmission output level is low.
Divides MHz and kHz of the frequency. Blinks during
scanning operation.
Appears while the Auto-Power-Off function is ON.
Appears while the Battery-Save function is ON.
Appears when the remaining battery level is low.
Appears when the squelch opens.
DJ-S45 T/E
DJ-S45 T/E
DJ-S45 T/E
①②
⑪⑫⑬⑮⑯⑰⑱
③
④
⑤⑥
⑦
⑧ ⑨
⑭⑩
3.Control Functions
3

15
4.Basic Operations
4
4. Basic Operations
4-1 Turning the Power ON
Rotate the dial clockwise.
To turn the power OFF, rotate the dial counter-clockwise until it
clicks.
4-2 Adjusting the Audio Volume
To increase:Rotate the dial clockwise.
To decrease:Rotate the dial counter-clockwise.
When you do not hear any audio because the
squelch is closed, press and hold the MONI
key and adjust the volume to the suitable
level by listening to the white-noise.
The Squelch level can be adjusted in "Adjusting Squelch Level" (page
20).
Dial
Audio volume
increases
Audio volume
decreases
Dial
Caution
The dial also performs adjusting the audio volume. Therefore,
do not rotate it far, otherwise the audio may be too loud.

16
4-3 Operating Modes
The has two operating modes; VFO and Memory.
The has three operating modes; LPD (VFO), PMR and
Memory.
Switching among modes
Every time you press the V/M key, you can
change the operating mode as shown in the
diagram.
4-4 LPD (VFO) Mode
The factory setting is the LPD (VFO) mode.
LPD (VFO) mode
PMR Memory
VFO Memory
LPD (VFO)
DJ-S45 T/E
DJ-S45 CQ
■
DJ-S45 CQ
DJ-S45 T/E
4.Basic Operations
4

17
4-4-1 Frequency Setting
When keys are pressed, the frequency increases and decreases
in tuning steps.
Adjusting the Frequency in 1MHz Steps( only)
Press the F key twice, and then the MHz
figure of the display blinks.
Press keys while the figure is
blinking to adjust the frequency in the 1MHz
increments.
4-5 PMR Mode( only)
The frequencies of PMR channels have
already been programmed accordingly.
4-5-1 Frequency Number Setting
1. Switch to the PMR mode by pressing the V/M key.
When keys are pressed, the channel increases and decreases by
one channel.
▲/▼
PMR mode
DJ-S45 CQ
▲/▼
DJ-S45 T/E
■
▲/▼
4.Basic Operations
4

18
4-6 Memory Mode
The Memory mode is used to call up on a previously programmed
frequency. This transceiver has 100 memory channels (0~99CH).

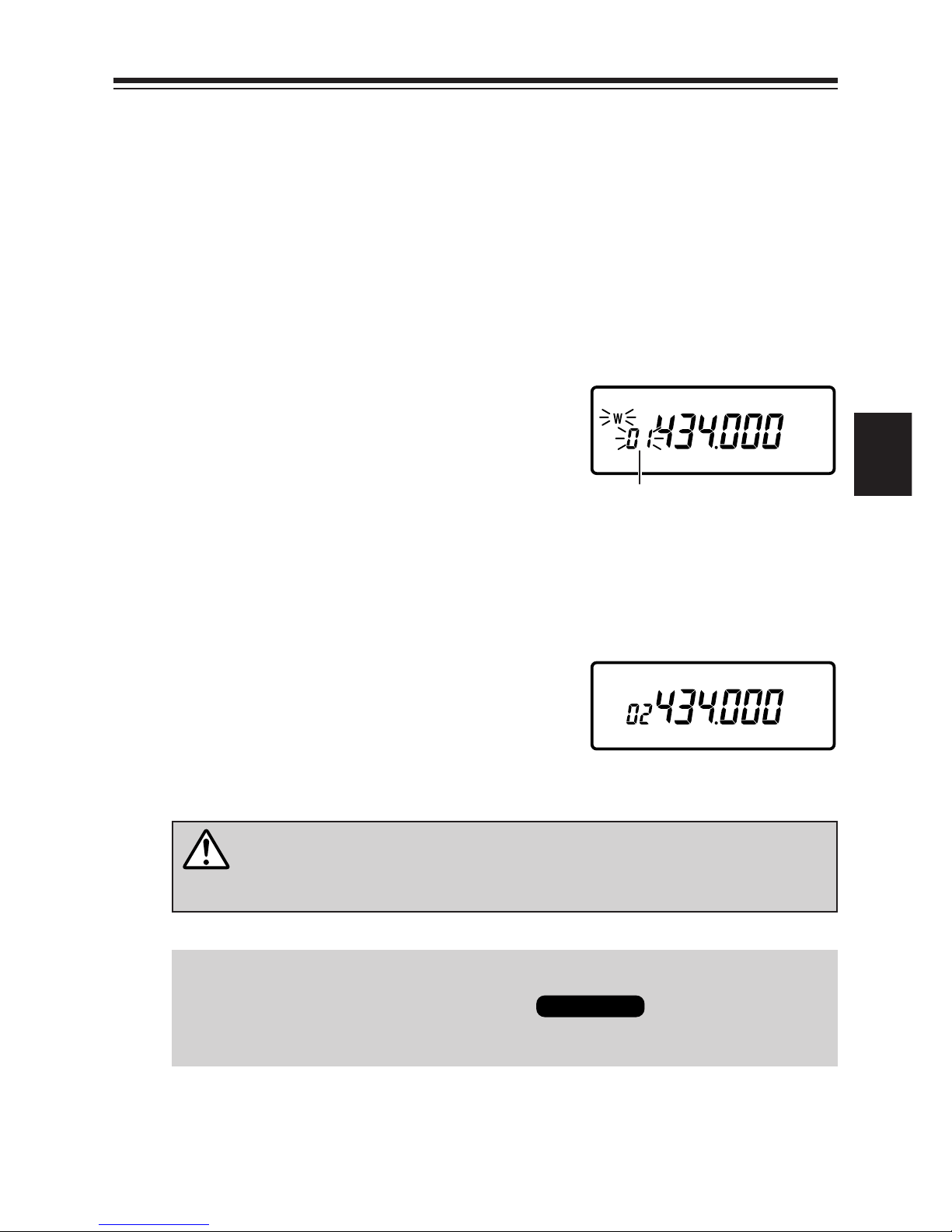

4-6-1 Memory Channel Programming
1. Switch to the LPD (VFO) or PMR mode by pressing the V/M key.
2. Select the desired frequency or channel.
3. Press the F key, and then press the V/M
key while the "F" icon appears.
The memory channel No. and the "W"
icon blinks.
4. Select a memory channel to program by pressing the keys.
Blinking memory channel No. indicates that the channel is not
programmed yet. Illuminating memory channel No. indicates that
the channel is already programmed.
5. Press the V/W key while the "W" icon
blinks.
The selected frequency or channel is
programmed to the memory channel.
▲/▼
Memory Channel No.
4.Basic Operations
4
Caution
Re-editing the memory will overwrite the current data.
Reference : You can also program channels from the PMR mode
if you purchased the . Its procedure is
the same as the LPD (VFO) mode.
DJ-S45 CQ

19
4-6-2 Selecting a Memory Channel
1. Switch to the Memory mode by pressing
the V/M key. The memory channel No.
appears on the display.
The Memory mode is not activated if
there is no preprogrammed data in the
Memory channels.
By pressing keys, memory No.
increases and decreases by programmed
channels in numerical order.
4-6-3 Clearing a Memory Channel Data
1. Switch to the Memory mode by pressing the V/M key.
2. Press the F key, and then press the V/M
key while the "F" icon appears.
Memory channel No. appears and the
"W" icon blinks on the display.
3. Select a memory channel you wish to clear by pressing the keys.
On a programmed channel, "memory channel No." is displayed steadily
(without blinking).
4. Press the F key again, and then press the
MW key while the "F" icon appears.
The pre-set data is cleared.
▲/▼
▲/▼
Memory mode
4.Basic Operations
4
