OPERATING INSTRUCTIONS AND SERVICE MANUAL
FOOTBALL SCOREBOARD
MODEL MP-7454 WITH MP-5000 CONTROL
EFFECTIVE S.N.18,725, July, 2004

TABLE OF CONTENTS
1. General Information
1.1 Description
1.2 Identification
1.3 Damage
1.4 Damage Claim Procedure
2. Installation
2.1 General Information
2.2 Installation
2.3 Electrical Connection
3. Control Console Operation
3.1 Scoreboard Power
3.2 Control Console Display
3.3 Control Console Power
3.4 Initializing Scoreboard
3.5 Time Setting and Control
3.6 Team Scores
3.7 Horn (Optional)
3.8 Yards to Go, Ball On, Down, and Quarter
3.9 Dimmer
3.10 Track Operation
4. Maintenance and Troubleshooting
4.1 Introduction
4.2 Test Equipment
4.3 Troubleshooting
4.4 Troubleshooting Guide
5. Replacement Parts List
5.1 Scoreboard Display Parts
5.2 Controller Assembly
6. Diagrams

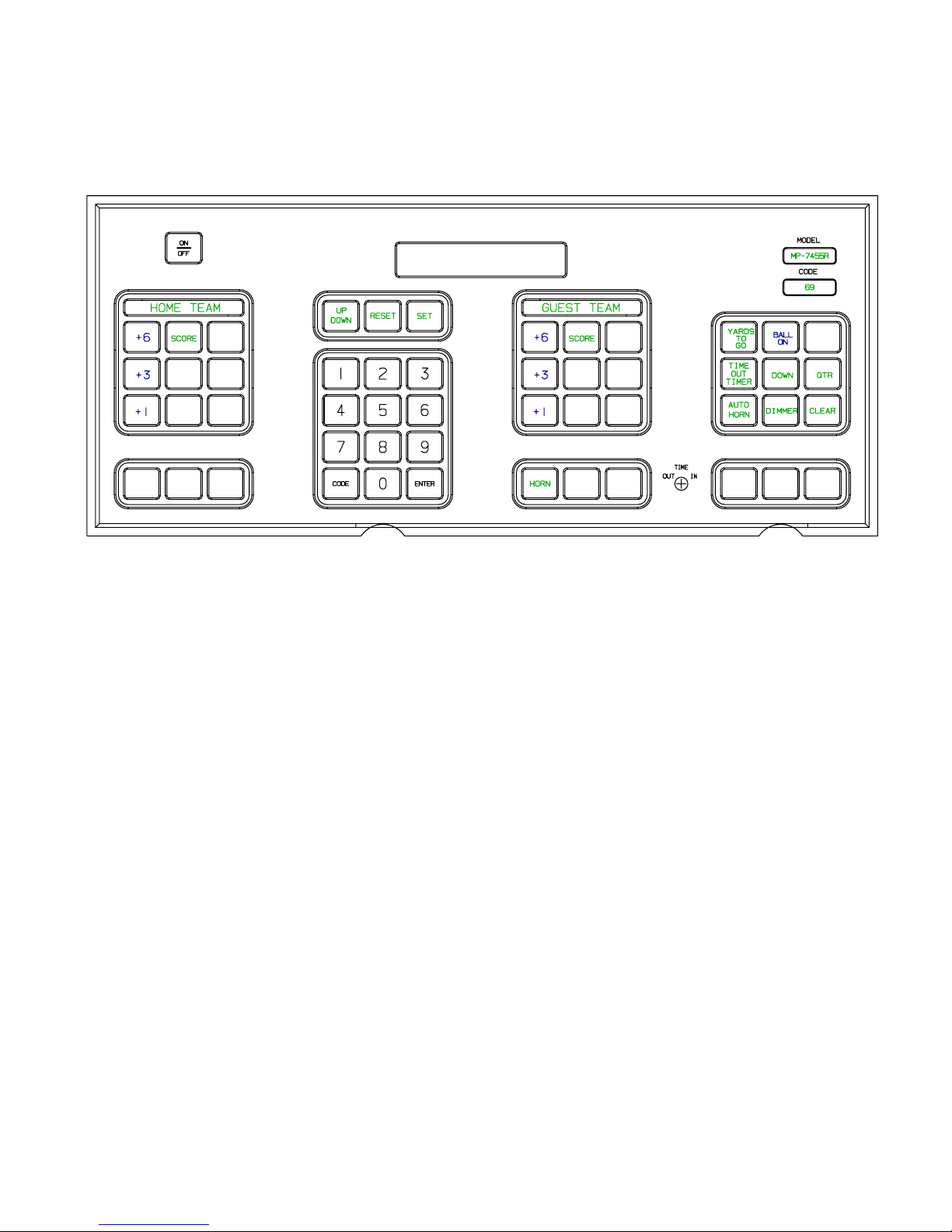

6.1 Control Console Keyboard Layout (Slipsheet)

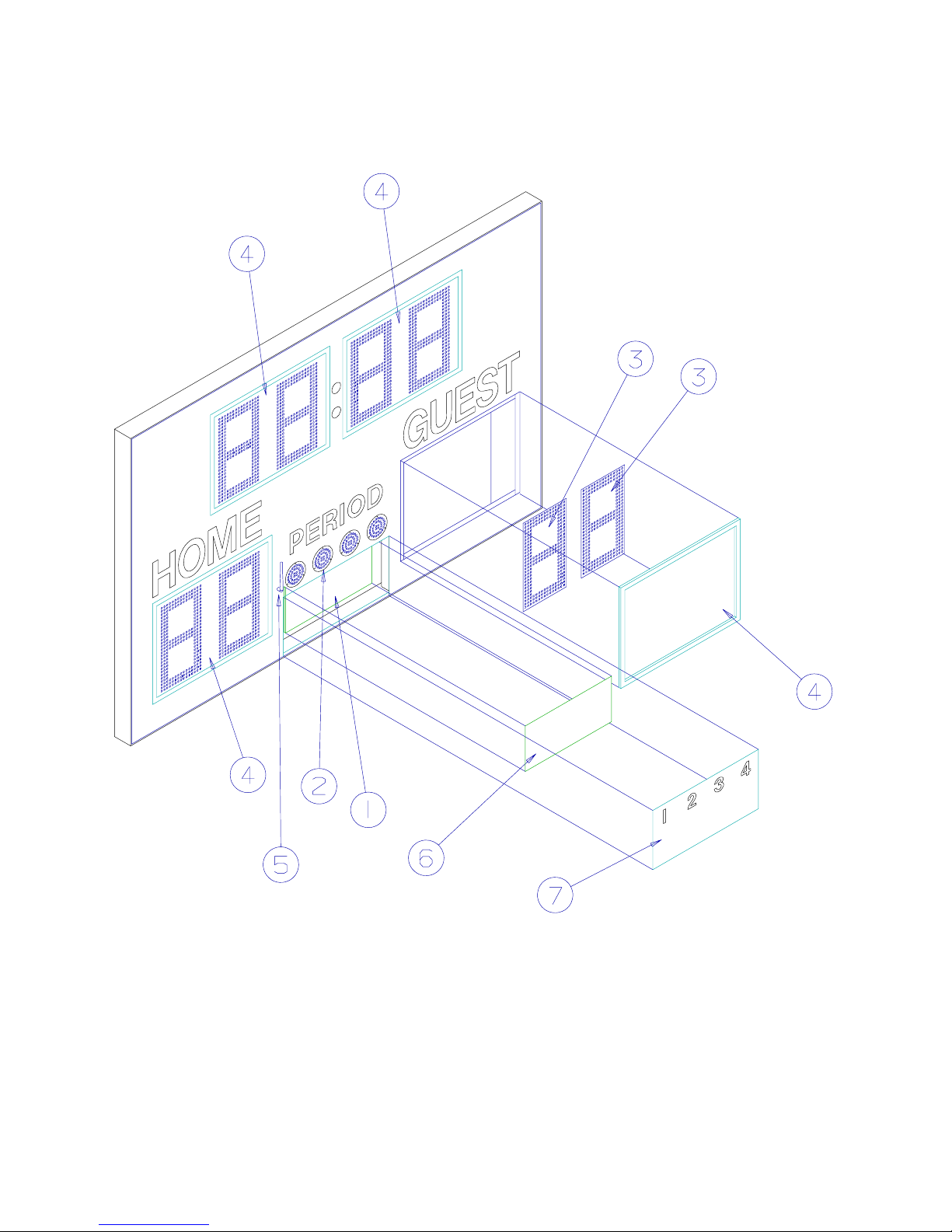

6.2 Scoreboard Layout with Floating Time Control
6.3 Power Wiring
6.4 Controller Assembly Wiring and Layout
6.5 Microprocessor 5 x 9 Lamp Pattern (8 Bit)
6.6 Figuregram Wiring Diagram
6.7 Conversion Placards for Baseball (B-13168)
6.8 Installation Drawings
2

1. GENERAL INFORMATION
1.1 DESCRIPTION
Your All-American scoreboard has been carefully inspected and tested before leaving
the factory. It is possible, however, that components may be loosened or forced out of
adjustment in transit. If this occurs, follow the troubleshooting guide (section 4). If
equipment then fails to operate, contact immediately:
ALL-AMERICAN Service Department
EVERBRITE LLC
P.O. Box 100
Pardeeville, WI 53954
Telephone: [phone]
Toll Free: 800-356-8146
[email protected]
Parts being returned for repair are to be sent to:
ALL-AMERICAN Service Department
EVERBRITE LLC
401 S. Main Street
Pardeeville, WI 53954
NOTE
If you need to send parts in for repair, please call the ALL AMERICAN
service department for a returned goods authorization (RGA) number.
1.2 Identification
ALL-AMERICAN uses a 5 digit serial number for scoreboard identification. The serial
number tags are located on the back of the control console and the lower right hand corner
on the face of the scoreboard display. When contacting the factory for assistance it is
important that the model number and serial numbers are known.
1.3 Damage
Upon receipt, check for visible damage. If this occurs, or if damage is found after
shipment has been accepted, follow the damage claim procedure.
3

1.4 Damage Claim Procedure
An instruction sheet is enclosed advising the consignee in case of damage in transit.
If damage is noted at the time of delivery, consignee must obtain an 'Inspection of Bad
Order' from the delivering carrier. In order to process your claim, this must be
properly filled out with a complete statement of all damage and it must be signed by the
carrier.
If damage is discovered after delivery, you should call the delivery company. Have
them make out a Concealed Damage Report. Fifteen days after delivery are allowed,
so this should be done promptly or it is impossible to process this claim.
Advise EVERBRITE corporation of necessary replacement parts, or repairs. Consignee
will be invoiced and then should file a claim with the carrier to recover charges. To
file your claim follow this procedure:
(A) Cost of replacement parts or repair charges are invoiced to the carrier by the
consignee.
(B) The following documents, properly filled out, plus invoice, are
forwarded to the trucking company in support of your claim:
(a) Original bill of lading
(b) Original paid freight bill
(c) Certified copy of original invoice
(d) Standard form for presentation of loss and damage claim
2. INSTALLATION
2.1 General Information
Shipping papers accompany each scoreboard. Check carefully to see that you receive
the following:
1 ea Soccer Display
1 ea Control Console
1 ea Service Manual
1 ea Mounting Hardware Package
1 ea Junction Box, Press Box
Cable (if ordered)
Horn (if ordered)
4

2.2 Installation
Select the location best suited for visibility by the majority of spectators. Preferred
position is facing east or north to avoid direct sunlight on the face of the scoreboard,
if day games are played.
For permanent mounting to uprights, see the enclosed installation drawing in
Section 6.
Consult Section 6 for scoreboard wiring.

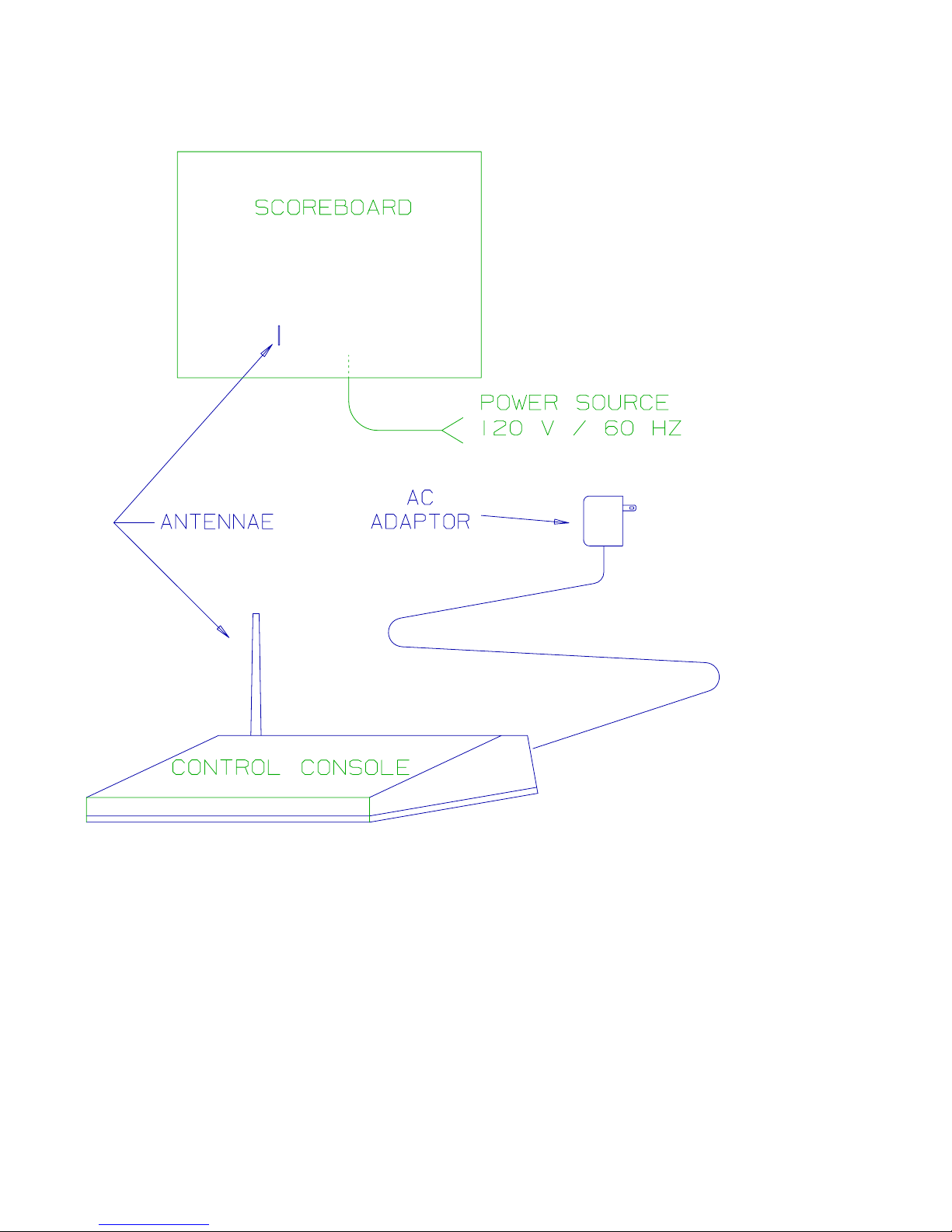

2.3 Electrical connections
The MP-7454 scoreboard requires one 120 VAC 20 AMP circuit.
IMPORTANT !!!
To protect the control from damage, it is advisable to disconnect the control
and store in a dry secure area when not in use.
NOTE
This equipment is UL and NRTL approved and complies with the requirements in
part 15 of the FCC rules for a class A computing device. Operation of this
equipment in a residential area may cause unacceptable interference to radio
and television reception, requiring the operator to take whatever steps are
necessary to correct the interference.
3. CONTROL CONSOLE OPERATION
3.1 Scoreboard Power
Turn on the branch circuit to the scoreboard. The Home and Guest scores will show
"0".
3.2 Console Display
The Liquid Crystal Display module displays the scoreboard information entered from
control console. The following information is displayed continuously: Time, Home and
Guest scores, Yards To Go, Ball On, Down, Quarter, and Auto Horn Enable.
3.3 Console Power
Plug the power adaptor into the control console and into a 120 VAC wall outlet.
5

Push ON/OFF once to turn the console on.
Push ON/OFF a second time to shut the console off.
When first turned on; the console display should show as follows:
MULTI-SPORT CONTROL
MP-7000 V 2.00.A 2003
3.4 Initializing Scoreboard
Enter the two digit code (17) shown in the lower left corner of the keyboard as in
the following example:
Push
CODE 1 7 ENTER .
When the proper code has been entered, the console display will show as follows.
0 Q :00 0
& 0 on 0 H
The scoreboard display will now show :00 in the time section.
3.5 Setup
The
SETUP key will step through a list of options.
Press
YES/NO , or make Numeric Entries to make changes.
Pushing
ENTER without any other input skips to the next item.
Pushing
CLEAR exits setup, and all changes are kept.
Accurate time will be kept without power to the scoreboard for up to 2 months.
Select brightness level for the scoreboard digits by pushing 1-8 and ENTER .
Select game time period. Example, 800 and press ENTER for 8 minutes.
Select time outs allowed. Example, 3 and press ENTER for 3 time outs.
6

Select automatic horn for end of period. Example, Yes/No and press ENTER .
Select set time of day clock. Example, press 2 1 5 ENTER for 2:15.
The scoreboard will display the time of day after game time use, if desired.
Accurate time will be kept without power to the scoreboard for up to 2 months.
3.6 Timing
The main game time period is set in the "SETUP" program, however this time period
may be changed or edited using the EDIT TIME key.
To change the period time; Push EDIT TIME , the desired time, then ENTER .
To reset the period time to the original setting; Push TIME RESET . To change the
time period directional mode for counting up or down; Push UP/DOWN .
When in the Up mode, an arrow up symbol is displayed next to the time on the LCD
display. If in the Down mode, there is no arrow displayed.
3.7 Team Scores
The Home and Guest Scores can be changed in five different ways.
(A) To add 1 to the existing score: Push +1 .
(B) To directly enter or correct a score: Push Home or Guest SCORE ,
followed by the desired number, then ENTER .
Example: Present Home Score is 15. Change the score from 15 to 23.
Push:Home SCORE 2 3 ENTER .
(E) To clear the score: Push SCORE CLEAR .
3.8 Horn (Optional)
The horn will blow for 1/2 second each time HORN is pressed.
The horn will blow automatically at the end of each period for 2 seconds.
The automatic horn function may be disabled by using the AUTO HORN key.
7

An 'H' is displayed on the LCD when this function is enabled.
3.9 Period
Entries to the above function is made in the same manner as direct entry for Team
Scores.
3.10 Track Operation
For track operation, use Code 82. The timer will now count up from zero
When in the track mode, the console LCD will display two timers. If you want to know
the split times push SPLIT . The bottom timer will stop so that you can read the
time. Now if you push RESUME , the timer will show what the top timer shows,
and resume timing.
The 1/10 second digit will work with the track code but not with the football code.
WARNING
120 VAC wires are exposed whenever the cover over the controller assembly is
removed from the scoreboard. Use extreme caution during troubleshooting or repair.
To avoid possible damage to equipment or personal injury, always turn off the main
power before removing the cover or replacing assemblies.
4. MAINTENANCE AND TROUBLESHOOTING
4.1 Introduction
This section gives maintenance and troubleshooting information. Included are
troubleshooting guides for typical scoreboard malfunctions. If the cause of a
problem cannot be determined, please contact the Customer Service Department.
4.2 Test Equipment
A simple analog or digital voltmeter will be sufficient for all user repairable
problems. Printed circuit boards requiring troubleshooting should be returned to the
factory.
8

4.3 Troubleshooting
Whenever possible, follow the troubleshooting guides prior to contacting the
Customer Service Department. If a problem not described in the guides exists, contact
the customer service department immediately. Read through the appropriate
troubleshooting section before beginning a repair. Refer to the diagrams in chapter 6 as
an aid in troubleshooting scoreboard malfunctions.
4.4 Troubleshooting Guides
(A) Scoreboard doesn't light and console doesn't work:
(a) Check that the main power switch is turned on and providing power to the
scoreboard.
(b) Check to see that the green Led is lit on each power supply.
(c) Check for 24 VDC at the power supply terminals.
(d) Check the 110 VAC power connections and voltages at the scoreboard.
(e) Replace any defective or blown fuses.
(f) Check for 12 to 16 VDC on the red and black wires at the data cable terminal
block.
(g) Contact the Customer Service Department.
(B) Scoreboard digits don't light, but the console works:
(a) With the main power switch "off"; remove the cover over the controller
assembly.
(b) Check all connections.
(c) Turn the main power "on".
(d) If the scoreboard still doesn't light, check the items in section (A), power supply
voltage and fuses.
(e) Check if LED D1 on the receiver board is lit. If not, check that the receiver board
is plugged into the power supply board, then contact the customer service
department.
(f) Check to see that the LED on the first driver board (closest to receiver) is flashing.
If not, check the data cable connections (orange and grey wires) from the receiver
to the drivers, and check to be sure that the power connection to the driver board
is OK.
(g) If the driver board LED is still not flashing, connect a different driver board to the
receiver (first in line). If the LED is now flashing, the first driver board should be
replaced. Otherwise the problem is on the receiver board.
9

(C) The scoreboard digits light but the console doesn't work.
(a) For a cable connected system, check for 12 to 16 VDC between the red and black
wires in the junction box . For wireless consoles, check the output of the wall
transformer by unplugging it from the console, putting the + meter lead into the
center cavity of the power plug and touching the meter lead to the metal shell. The
reading should be at least 10 VDC.
(b) If the voltage is 10 V or more, turn on and code in the console, even though it may
not appear to be working. Listen for beep sounds when pressing the keys, and see
if the scoreboard responds at all. If the scoreboard is radio controlled, go to section
D, step c. Otherwise contact customer service with results or see Advanced
Troubleshooting, section C.
(c) If the voltage from step a is zero, measure the voltage on the red and black wires
at the terminal block inside the scoreboard. If the voltage is still zero, go to section
A, step c. Otherwise check the cable to the junction box for continuity.
(d) Refer to advanced troubleshooting, section B to connect the console directly to the
receiver board.
(D) The scoreboard digits light, the console works, but there is no control of the
scoreboard.
(a) If the scoreboard is a cabled system, check for 1 to 4 volts AC on the green and
white wires at the junction box (console on and coded in). Then go to step f.
(b) With wireless consoles, be sure that the battery (if so equipped) is fully charged,
or better still, use the wall transformer to power the console.
(c) Check the LED on the radio adapter board inside the scoreboard. If it is lit, turn
the console off. This LED should go out about 5 seconds later. Turning the console
on again should relight the LED.
(d) Bring the console within 10 to 25 feet of the scoreboard and test again. If the radio
adapter LED now works, check and tighten antenna connections as necessary, both
in the scoreboard and in the console. CAUTION: the antenna connection at the
radio can be easily broken. Push or pull the connector STRAIGHT on or off!
(e) Check to see if D1 is lit. If not, check that the receiver board is plugged into the
power supply board, then contact the customer service department.
(f) With the console turned on and coded in, check to see that LED D2 on the receiver
board is flashing. If not, refer to Advanced Troubleshooting for instructions on
connecting the console directly to the scoreboard or contact customer service.
(g) Starting with the driver board closest to the receiver, check to see that the LED on
each driver board is flashing. If not, check the data cable connections (orange and
grey wires) from the receiver to the drivers, and check to be sure that the power
connection to the driver board is OK.
10

(E) The scoreboard works, but some lights stay on all the time
(a) With the main power "OFF", disconnect (and tag) the suspect digit from the driver
board. Plug a known good digit into that position on the driver card. Do Not Plug
the Suspect Digit into any other location!
(b) Turn the power back on. If the good digit shows the same problem as the original
digit, there is a problem on the driver PCB assembly. See the replacement parts
list for the proper replacement part or refer to Advanced troubleshooting, section
A to swap another driver board into that position. There may also be a problem
with the digit or its cabling, continue with step c.
(c) Check the digit and cable assembly for shorts to the scoreboard frame and to the
+ and - power leads.
(d) Plug the suspected bad digit into another output position. USE the SAME driver
board (A bad digit may be the cause of a driver board failure). If the same lights
remain on, replace the digit and driver board.
(F) The scoreboard works, but some lights do not come on.
(a) If only part of a digit works, e.g. a 0 looks like a U, go to step f.
(b) If one or more of the digits are completely blank, check the LED on the
corresponding driver board.
(c) If the LED is blinking, check the power connection at the opposite end of the board
for 24 VDC. If not, check the power and data cable connections on the driver
board.
(d) Plug the blank digit into a known good driver board position. If it is still blank,
check for broken wires or bad connections in the digit cable. Replace the digit if
the cabling is OK.
(e) If the digit now works, see the replacement parts list for the proper replacement
driver board or refer to Advanced troubleshooting, section A to swap another driver
board into that position.
(f) Disconnect the suspect digit and plug a known good digit into that driver
location.
(g) If the good digit shows the same problem, see the replacement parts list for the
proper replacement driver board or refer to Advanced troubleshooting, section A
to swap another driver board into that position.
(h) If the good digit is working, check for a broken wire or bad connection on the 10
pin connector.
(i) Contact customer service for the proper replacement digit.
4.5 Advanced Troubleshooting
In emergency situations (Tournament begins in an hour), the following steps may help
to make the scoreboard usable in a temporary fashion. These procedures are best
performed by someone who has experience working on electronic equipment. If
possible, consult with customer service before proceeding.
11

(A) All of the driver boards in a 7000 series scoreboard are interchangeable. However,
each board has an address programmed inside its microcontroller chip. The chip from
the board being replaced must be put into the new board for proper operation.
Example: The scoring driver of a football board has a problem. The Ball On/Yards
To Go driver can be used in its place. (Ball on and yards to go will not be usable
until a new driver board is received from the factory).
(a) Remove power from the scoreboard.
(b) Take the bad driver board out and set it aside. Put the replacement driver in
position.
(c) Remove the processor chip from the new driver.
(d) Carefully take the processor chip out of the old driver board and install it in the
replacement board. Be sure the notched end of the chip is aligned correctly.
(e) Put the processor chip from the new board into the defective driver board so it
doesn't get lost.
(f) Reconnect power, data, and the display cables to the new driver board.
(B) Direct connection of consoles to scoreboards can be done to ensure that the
electronics is working properly. For radio controlled systems, skip to step h.
(a) For a hardwired system, the cover of the junction box with the connector and wire
pigtail can be used. Open the junction box and disconnect the connector wires at
the terminal block.
(b) Take the cover plate/connector assembly up to the scoreboard. Attach the red and
black wires to the matching positions on the terminal block. Disconnect the red and
black data cable wires (that go to the junction box).
(c) Attach the green and white wires from the cover plate connector to the terminals
on the lightning protector board where the same colored wires connect to the
receiver board.
(d) Disconnect the data cable (to the junction box) green and white wires from the
lightning protector board. Mark the board so that the wires can be put back on the
correct terminals.
(e) Test the system. If it works, move the green and white wires from the cover plate
connector to the other two terminals on the lightning protect board.
(f) Test again. If the scoreboard works, there is a problem in the data cable somewhere
between the scoreboard and the junction box. If not, the lightning protector board must
be replaced.
(g) The data cable can be checked by re-installing the junction box cover plate and
connecting both green wires to one of the green wire terminals on the lightning
board, and doing the same with the white wires. While the scoreboard will operate
with the lightning protect board bypassed in this fashion, it should be fixed as soon
as possible, since the board also protects the electronics in the scoreboard from
other sources of potentially damaging interference.
(h) Radio controlled consoles may be connected directly to the scoreboard through the
12 pin radio connectors. Remove the radios and interface boards.
12

(i) Using 22 gauge solid wire, connect pin 10 of the console connector to pin 10 of
the scoreboard receiver board connector. Also connect pin 2 of the console
connector to pin 6 on the receiver board connector.
(j) Powering the console from the battery or wall cube, the system should operate.
This eliminates any radio related communication problems.
NOTE !: if it is necessary to operate the scoreboard this way, keep the 2 wires as
short as possible (10 ft. max), since there is no protection on these lines and
damage to the scoreboard or console could result from static or other outside
sources.
(C) Console problems
(a) Power is OK, but console does not turn on: check that the keypad connector is
plugged into the main board in the console.
(b) Console beeps, but has no display: check the ribbon cable between the main
console board and the display module.
(c) Erratic operation, abnormal display: check the socketed IC chips to be sure that
they are well seated.
13

5. REPLACEMENT PARTS LIST
5.1 Scoreboard Display Parts
1
figure 1
DISPLAY ASSEMBLY
14

REPLACEMENT PARTS LIST (MP-7454)
fig.& MFG PART REF VENDOR
index NUMBER DESCRIPTION DES PART #
1- 000000 Display, MP-7454 000000
1-1 000000 Controller Assembly, W/ 2 Drivers A2 000000
*****SEE DETAIL FIGURE 2*****
1-2 152022 Window Assy, double digit 18"
1-3 EL00709P Digit, 18" Red EL00709P
1-4 MM00770P Indicator, 4" Round, Period, Red MM00770P
1-5 000000 Rain Shield 000000
1-6 000000 Service Door 000000
151748 Control Console, 151748
151788 Transmitter PCB Assembly A1 151788
500042 Membrane Keypad 500042
151740 Cable Assy, 25' 151740
930894 Connector, 6C Male Hirose P1 RM12BPG-6P
151915 Press Box Junction Box, 7000 series 151915
151073 Plate, Connector Mounting 151073
930895 Connector, 6 Pin Female J1 RM12BRD-6S
150508 Cable, MP-40 Control YR21233
15

5.2 Scoreboard Controller Assembly Parts
2
figure 2
CONTROLLER ASSEMBLY
REPLACEMENT PARTS LIST (MP-7454) Controller Assembly
fig.& MFG PART REF VENDOR
index NUMBER DESCRIPTION DES PART #
2- 000000 Controller Assembly A2 000000
2-1 150635 Receiver PCB Assembly A3 150635
*** PROGRAM 3MP-CNT-V00***
2-2 EL00852P Driver PCB Assembly, 4 Position A4-A6 EL00852P
2-3 152000 Voltage Reduction PCB Assembly A9 152000
2-4 701011 Fuse, 5A 250V F1-F3 MTH-5
2-5 701137 Terminal Block, 7C TB1 670-7
2-6 BL00059P Power Supply, 24V/300W A10-A12BL00059P
2-7 EL00551P Fan, 24V/40CFM 3" EL00551P
2-7 705723 Spacer, P.C.Board LCBS-6-01
16

6. DIAGRAMS
6.1 Control Console Keyboard and Slipsheet Layout
3
figure 3
CONSOLE KEYBOARD
17

6.2 Scoreboard System Layout
4
figure 4
SYSTEM LAYOUT
18

6.3 Junction Box Wiring
5
CONTROLLER ASSEMBLY
19

6.4 Controller Assembly Wiring
6
CONTROLLER ASSEMBLY
20
