Allegion 8310-877 User manual

75.5933.04 ALLEGION HMSS 20190723 Page 1 of 12

8310-877HEADER-MOUNTEDSAFETYSENSOR

Presence sensor w/monitoring

ENGLISH

1. End caps

2. Lenses

3. Center eye shield

4. LED

Speciﬁcations are subject to change without prior notice.

All values measured in speciﬁc conditions.

Installation height (variable): 9’ 0” maximum (recommended: 6’ 6” – 8’ 0”)

Mounting angles

HMSS only:

HMSS w/Spacer:

5°, 10° (factory default setting: 5°)

0°, 5°, 10°

Power supply: 12 – 24 VAC / VDC ±10%

Monitoring request input: 12 – 30 VDC required (polarity-sensitive)

min. pulse width: 10 ms (active low)

Frequency: 50 – 60 Hz

Output: max. voltage at contacts: 60 VDC / 125 VAC

max. current at contacts: 1 A

max. switching power: 30 W (DC), 60 VA (AC)

Relay hold time: 0.5 – 9 seconds

Operating temperature: -22 – 140 °F

Immunity: Immune to electrical and radio frequency interference

Cable length: 4’

Weight: 1 lb 11 oz (765 g)

Dimensions: 12” (W) x 2” (H) x 2” (D)

(300.35 mm x 49.50 mm x 48.00 mm)

Material: Aluminum and ABS plastic

Housing color: Black, anodized aluminum

DESCRIPTION

TECHNICAL SPECIFICATIONS

Page 2 of 12 75.5933.04 ALLEGION HMSS 20190723

INSTALLATION TIPS

• The sensor should be mounted securely to avoid extreme vibrations.

• The sensor should be mounted above the door on the swing side.

• The sensor should be mounted ﬂush with bottom of door header.

• Do not cover the sensor.

• Avoid moving objects and light sources in the detection ﬁeld.

SINGLE-DOOR APPLICATIONS:

Sensor must be mounted at center of door opening.

If this is not possible, the unit may be installed off-center. Pattern

location must be altered for proper detection ﬁeld placement (see

PATTERNS section). Avoid potentially problematic mounting locations

(e.g. directly over a door arm).

DUAL-EGRESS APPLICATIONS:

One sensor should be mounted over each swing path, with at least 40"

of separation between the two (measured from midpoint of each sensor).

SIMULTANEOUS PAIR APPLICATIONS:

Sensor must be mounted at center of door opening.

• The door control unit and the header cover proﬁle must be correctly grounded.

• Only trained and qualiﬁed personnel are recommended for installation and set-up of the sensor.

• Following installation, always test for proper operation (according to ANSI 156.10) before leaving

the premises.

• The warranty is invalid if unauthorized repairs are made or attempted by unauthorized personnel.

SAFETY

Per ANSI 156.10:

When the HMSS is prevented from providing a safety signal to the control during the closing cycle, an

additional sensor, sensors, or photo beam shall be used on the swing side to stop the door, or continue

to close the door, or slow the reopening. For new installations of power operated door systems all

presence sensors used for safety shall be monitored whereas existing installations using presence

sensors for safety may be monitored, and monitoring is not mandatory.

75.5933.04 ALLEGION HMSS 20190723 Page 3 of 12

HMSS Spacers are required for HMSS installations with one or both of the following circumstances:

• reveal (i.e. distance from door face to HMSS mounting surface) is less than 3 inches

• DMSS is also used

Disregard this sub-section and proceed to "Sensor Preparation"if a Spacer is not required for this application.

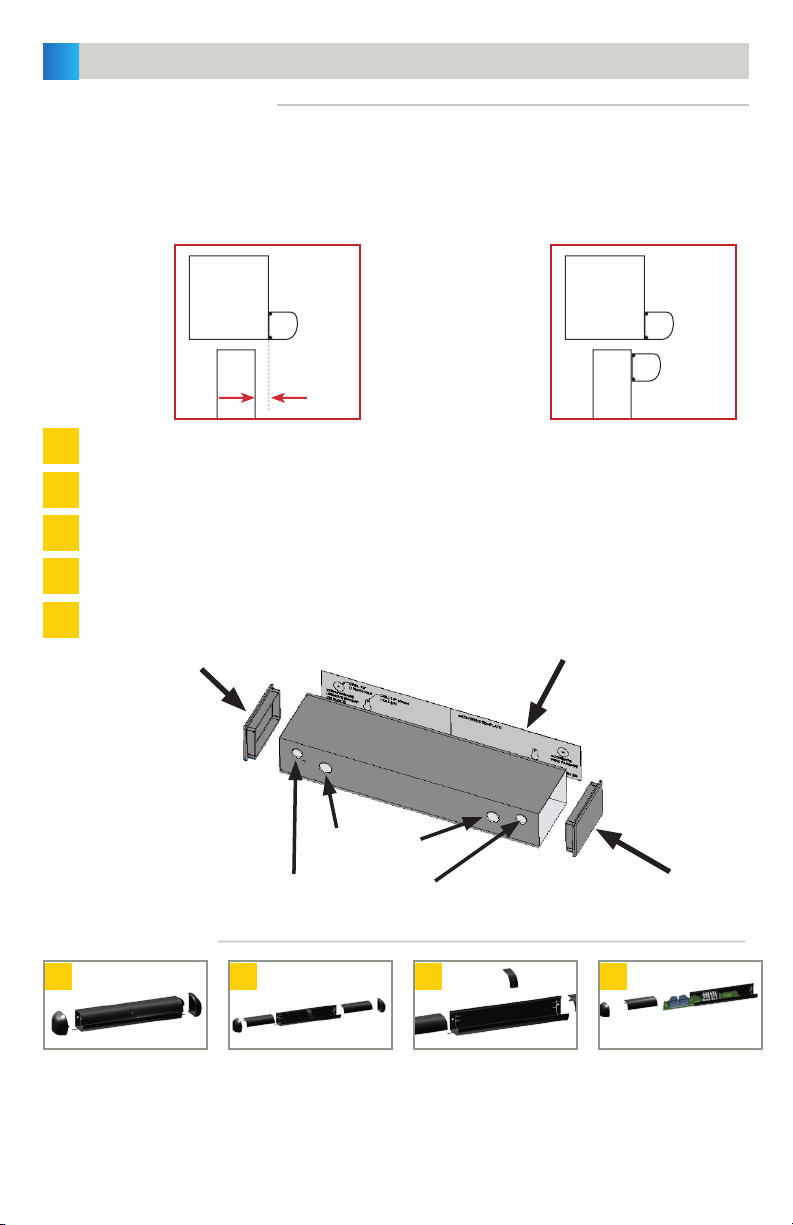

HMSS SPACER INSTALLATION

MECHANICAL INSTALLATION

REVEAL: WITH DMSS:

Door

Header

Door

Face

HMSS

Door

Header

Door

Face

HMSS

DMSS

Apply the Spacer mounting template to the desired location.

Drill pilot holes for mounting and wire passage.

Partially drill the 2 mounting screws into the pilot holes.

Remove the left end cap of the Spacer for wiring harness routing.

Slide extrusion over mounting screws and hand-tighten the screws to secure to the block.

EXTRUSION

MOUNTING TEMPLATE

WIRE PASSAGE HOLES

MOUNTING

SCREW HOLES

END CAP

SENSOR PREPARATION

Remove both end caps

from the sensor by

unscrewing each Phillips-

head screw.

Slide out each lens at

its respective end of the

sensor.

Pull out the center eye

shield from the top, while

rotating out. Do this

carefully, to avoid damage

to the light tube on the

inner side of the shield.

Slide the PCB out of the

extrusion and set aside.

Page 4 of 12 75.5933.04 ALLEGION HMSS 20190723

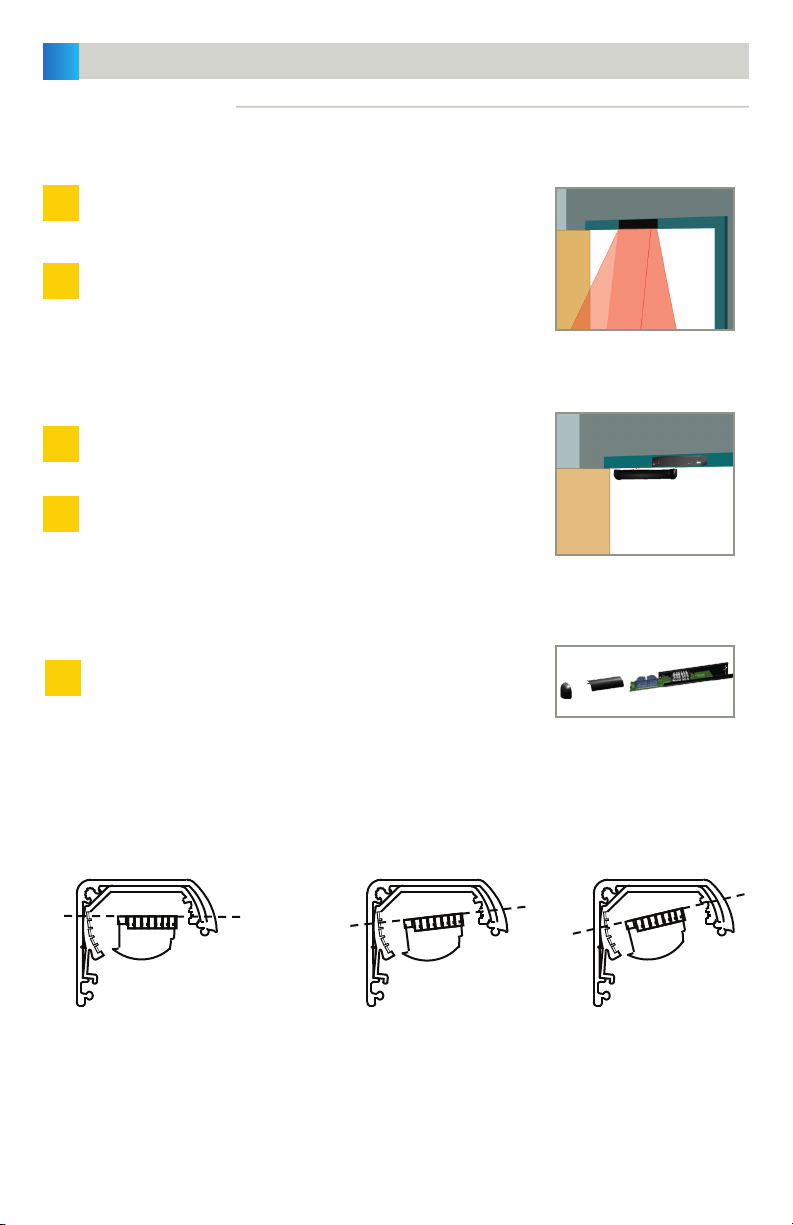

SENSOR INSTALLATION

Align the sensor with the chosen location and attach the sensor

using the two self-drilling screws (provided with kit). A pilot hole

in the header may be necessary to ease screw installation.

If the sensor is mounted directly to the header and the cabling will

pass directly through the header, drill a 1⁄2" wire passage hole next

to the left-side end cap. Ensure that the hole location aligns with

the end cap cut-out.

Route harness through wire passage hole while aligning the sensor

with the Spacer.

Attach the sensor to the Spacer using the two self-drilling screws

(provided with the kit).

Slide the circuit board back into the extrusion.

ANGLE ADJUSTMENTS:

MOUNTING TO SPACER:

REPLACE THE CIRCUIT BOARD:

MECHANICAL INSTALLATION (cont.)

0°

Should only be used when the sensor is

mounted to a Spacer block or sofﬁt above

the door that extends out from the face

of the safety side of the door. This would

improve the detection ﬁeld location across

the threshold area of the doorway.

5° (FACTORY DEFAULT)

For most applications, it is recommended

that the unit be powered and walk-tested

at this angle. After walk-testing, the

detection ﬁeld may be altered by adjusting

the angle (see directions below).

10°

Make any necessary angle adjustments after installation. Use the images below to aid in choosing angles.

Angles must match for each clip on the same PCB.

MOUNTING DIRECTLY TO DOOR FRAME/HEADER:

75.5933.04 ALLEGION HMSS 20190723 Page 5 of 12

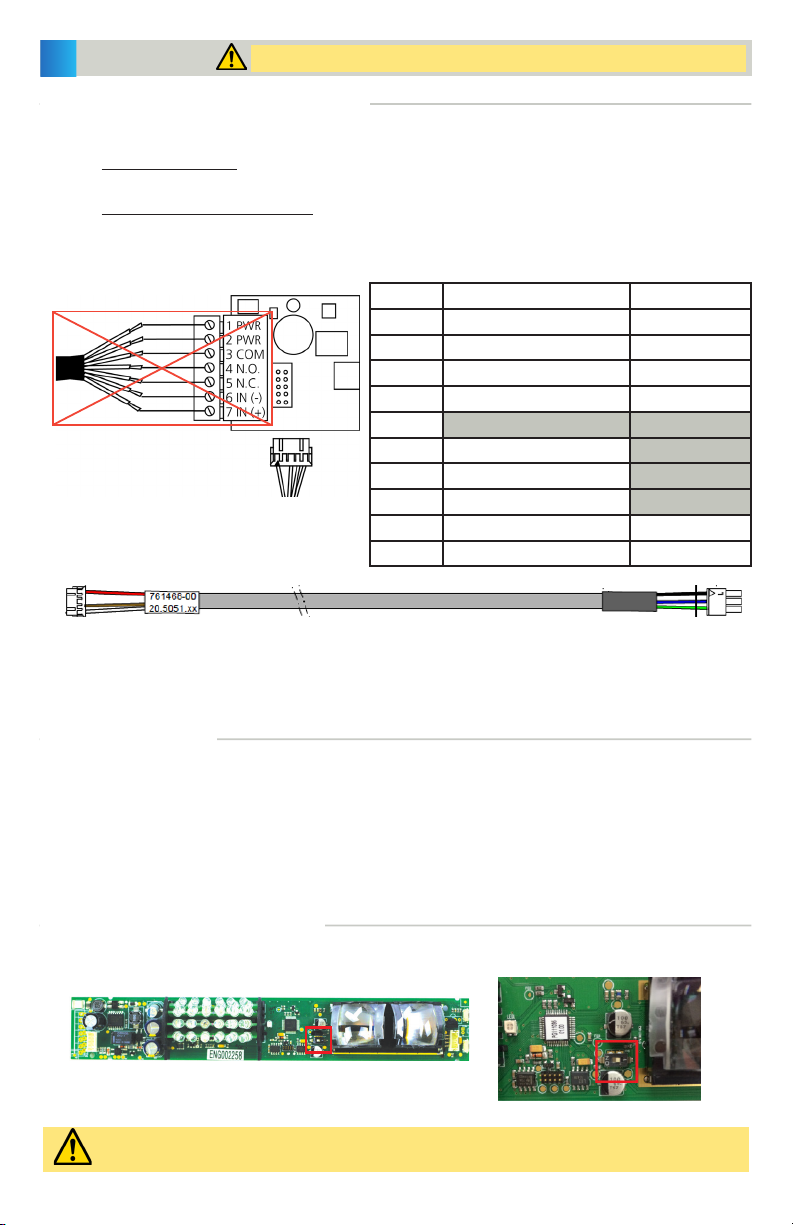

WIRING TO MONITORED DOOR CONTROLS

WIRING TO MODULES

MONITORING DIP SWITCH POSITION

WIRING Shut off all power going to the header before attempting any wiring procedures.

Replace lenses, eye shield, and end caps before proceeding.

a. Use the cable provided and wiring diagram 75.5546 to make the electrical connections.

• Senior Swing operator: Connect the white 10-pin connector to the HMSS sensor, and connect the

black 6-pin connector to the controller P1 plug. DO NOT USE the 7-pin terminal. See below.

• All other Allegion power operators: Remove the black 6-pin connector and strip the wires to make

connection to the controller’s terminal strip.

b. Verify that the monitoring DIP switch is set to off (see below).

Once wired, feed the free end of the cable through the wire passage hole (page 3, step 8), and into the

header. Pull the cable completely through and route it to the location of the automatic door control.

Monitoring may not be used if wiring to a BEA module; therefore, the DIP switch must be switched off.

Refer to the respective User’s Guide for the product with which you are interfacing.

Ensure a dedicated power source of 12 or 24 VAC / VDC ±10%.

10-pin connector

(connect to sensor

where shown)

Remove this connector

for non-Senior-Swing

operator installations

The monitoring DIP switch is in the OFF position by default.

Monitoring OFF = switch positioned to the right

Monitoring ON = switch positioned to the left

10-PIN CONNECTOR

Position Connection Wire Color

1 12 – 24 VAC/VDC ±10% WHITE

224 VAC/VDC ±10% BLACK

3Common BROWN

4Normally Open BLUE

6Normally Closed

7Monitoring (+)

8Monitoring (-)

9Data (+) RED

10 Data (-) GREEN

Page 6 of 12 75.5933.04 ALLEGION HMSS 20190723

3POWER-UP

With the door in the closed position,

apply 12 – 24 VAC / VDC ±10% to the

sensor. LED will ﬂash green until set-up

is successful in "door closed" position.1

Activate the door to the "fully open"

position. LED will ﬂash green again and the

sensor will execute a "door open" set-up.

1 2

NOTES:

1. If the door control requires a Learn cycle upon powering, it is recommended to allow the doors to complete a Learn cycle

before applying power to the sensor.

75.5933.04 ALLEGION HMSS 20190723 Page 7 of 12

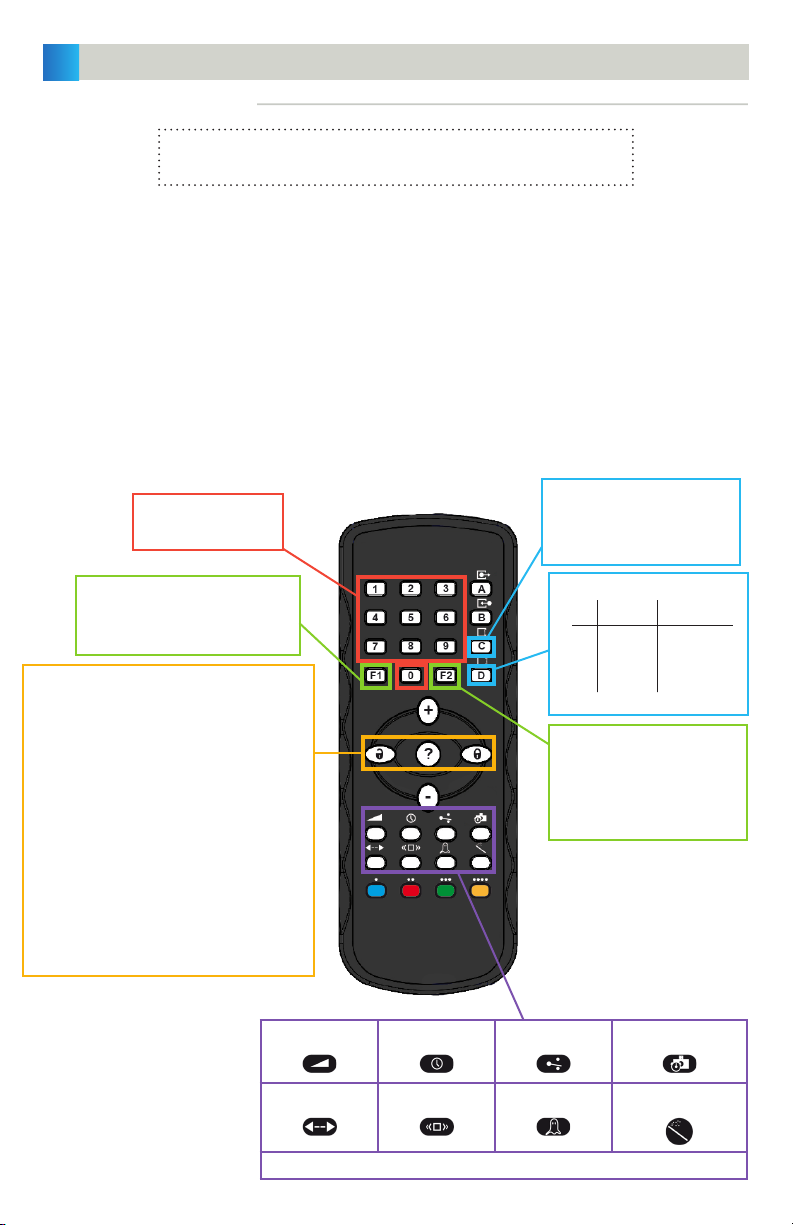

4PROGRAMMING THE SENSOR

ALL functions are programmable using the remote control.

Use of the remote control should be within 10 – 15 feet of the sensor.

REMOTE CONTROL SET-UP

NUMBER KEYS (0 –9)

assign value for given

function

INTERFACE

1: New Style

2: LO21 – Old Style (LO21B/K/P/S/U,

LO-LINX, MC15, DP-HUB)

UNLOCK / INQUIRE / LOCK

To UNLOCK the sensor:

Press UNLOCK key once. Red LED ﬂashes slowly. If

ﬂashing fast, see Note below.

To LOCK the sensor:

Press LOCK key twice OR press once, then enter

a 4-digit lock code. If less than 4 digits, press

lock again after the last digit. LED goes out when

complete.

To INQUIRE the sensor:

Unlock sensor, press desired function key, then

press INQUIRY key – number of green ﬂashes

corresponds to the value.

NOTE: If sensor is locked, and code is unknown,

power sensor off and then back on. Press UNLOCK

key within 60 seconds. Re-lock with 0000 (default

code). Sensor will unlock with one press of UNLOCK

key when set to 0000.

DOOR CONTROL

1: Normal (LED in normal mode)

2: Door permanently open

(red LED on)

3: Door permanently closed

(red LED off)

INFRARED FREQUENCY

Mode Frequency

normal

quiet

low

high

low

high

See Quiet Mode note on next page.

MODES OF OPERATION

0: Normal

1: MP Mode

2: Record Mode

Sensitivity Hold Time Output Conﬁg Auto-Learn Time

Pattern Width Pattern Depth Immunity Set-up

see next page for speciﬁc parameter settings

"Door Closed" and "Door Open" patterns are independently adjustable. It is necessary to adjust the pattern

for a closed door, and then to adjust the pattern again when the door is open. The following functions may be

independently adjusted for each door position:

• Sensitivity

• Pattern width

• Pattern depth

The following functions apply to both "Door Closed" and "Door Open" positions:

• Auto-Learn time

• Immunity (“medium” and “high” affect interpretation of objects in detection ﬁeld relative to background;

Learn time is unaffected)

• Frequency

• Output conﬁguration

• Door control mode

• Hold time

• Interface type

Page 8 of 12 75.5933.04 ALLEGION HMSS 20190723

4PROGRAMMING THE SENSOR (cont.)

Speciﬁc Parameter Settings

REMOTE CONTROL SET-UP (cont.)

NOTES:

QUIET MODE: The QUIET mode uses a different pulsing pattern to avoid interference with other infrared systems. The NORMAL

mode transmits more energy and detects in a slightly crisper fashion.

PATTERN WIDTH & DEPTH: When pattern width or depth is changed, a set-up of the new pattern size will automatically be triggered

once a value key has been pressed.

THRESHOLD: The Threshold is always OFF when the door is closed.

AUTOMATIC SET-UP: When performing an automatic set-up (set-up key pressed twice), the sensor will begin to ﬂash green during

the door-closed position, and will continue to do so until the door is activated to the open position. The LED will then go out and

the door will close. The LED will ﬂash green again at the closed position until a set-up is complete. Upon the next activation, the

sensor will launch another set-up for the open-door position, and will begin normal operation thereafter.

PARAMETER SETTING

Sensitivity 0(min) 9(max) default 7 = door open

default 6 = door closed

Hold Time 0 (0.5 s) 9 (9 s)

Output Conﬁguration 1: Normally Open Relay

2: Normally Closed Relay

Auto-Learn Time 0: 30 seconds

1: 1 minute

2: 2 minutes

3: 3 minutes

4: 5 minutes

5: 7 minutes

6: 10 minutes

7: 15 minutes

8: 10 seonds

9: Inﬁnity (no learn)

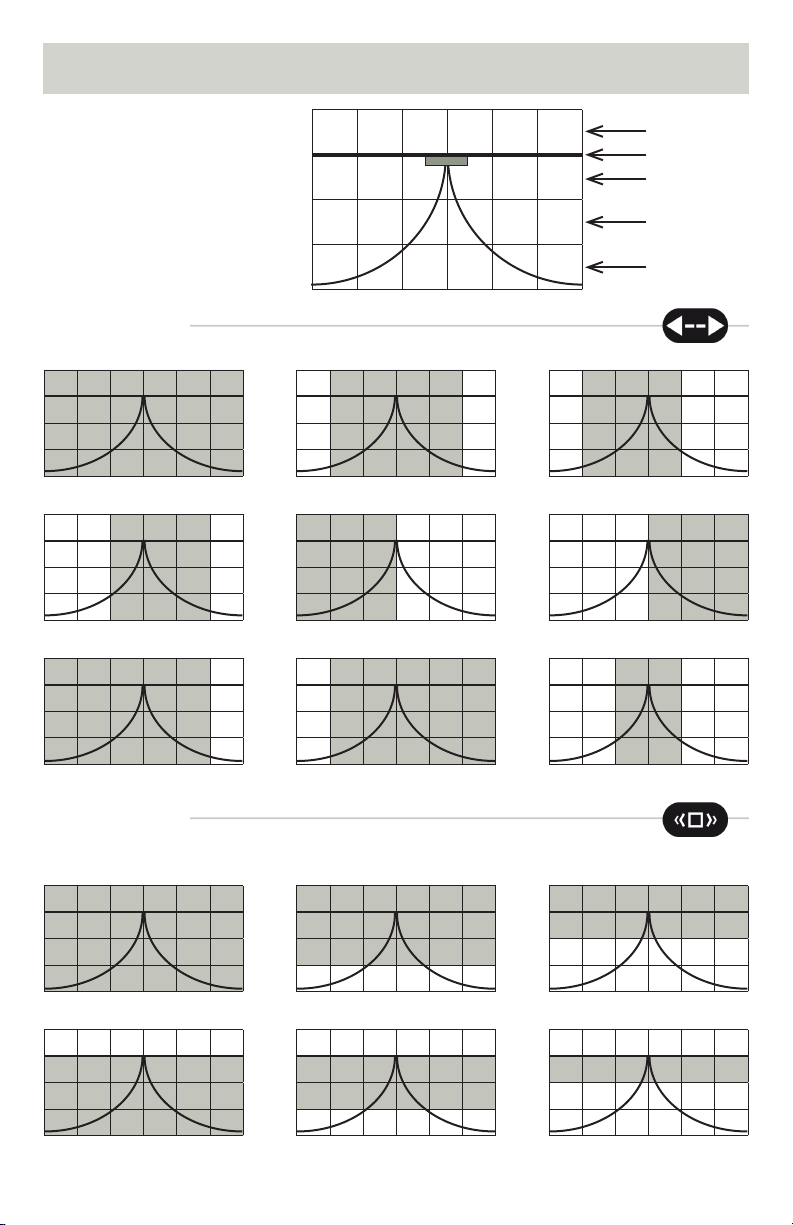

Pattern Width 1: Wide (closed door)

2: Middle (open door)

3: Asymm. left narrow

4: Asymm. right narrow

5: Narrow left

6: Narrow right

7: Asymm. left wide

8: Asymm. right wide

9: Center narrow

See notes below for Pattern Width or Depth.

Pattern Depth 1: Deep – threshold ON

2: Medium – threshold ON (open)

3: Limited – threshold ON

4: Deep – threshold OFF

5: Medium – threshold OFF (closed)

6: Limited – threshold OFF

See notes below for Pattern Width, Pattern Depth, and Threshold.

Immunity 1: Low (normal)

2: Medium – Rain (disregards more ﬂoor disturbances)

3: High – Snow (disregards greatest ﬂoor disturbances)

Set-up

launch a quick set-up

restore factory defaults

launch a closed-door set-up

launch an open-door set-up

See Automatic Set-up note.

1. Ensure that the two sensors are installed with < 40" of separation between the two (measured from midpoint of each sensor).

2. Place doors in Hold Open position. Unlock the sensor and set open door Pattern Depth to 5 (medium pattern). IR threshold

will be off while in this door position. Be sure to change the setting on BOTH sensors.

3. Change IR frequency on one sensor to "2".

4. If in an application with high-gloss ﬂoors or multiple doors installed in vestibules, change to different frequency.

Change one sensor to "3", and then change the other sensor to "4".

Reducing Cross-Talk in Dual-Egress Applications

75.5933.04 ALLEGION HMSS 20190723 Page 9 of 12

Only the following functions are programmable using push-buttons:

• Sensitivity

• Output conﬁguration

• Auto-learn time

• Pattern width

• Pattern depth

PUSH-BUTTON SET-UP

Press PB1 for less than 2 seconds. LED will ﬂash green for 10 seconds and the sensor will execute the

appropriate set-up for the current door position. The green LED ﬂashes at a slower rate if interruptions

are detected in the ﬁeld. Press PB1 to re-launch.

Press PB1 for more than 2 seconds to change the parameters.

To choose the parameter, press either PB1 or PB2, and the LED will ﬂash red (indicating the parameter)

and then ﬂash a speciﬁc number of green blinks (indicating the current parameter setting). See chart

below for reference.

NOTES:

* Pressing PB1 will toggle between parameters.

* Pressing PB2 will toggle between range of adjustments for that particular parameter.

* The value returns to the lowest setting when PB2 is pressed again after reaching the highest adjustment.

* Zero value = no LED ﬂash

* To exit, wait 20 seconds or press PB1 for more than 2 seconds.

When ﬁnished with manual set-up, replace the right end cap.

Red LED

Status Parameter Description Green LED Status

1 ﬂash 1Sensitivity (door open) 0 – 9 ﬂashes (default = 7)

2 ﬂashes 2Sensitivity (door closed) 0 – 9 ﬂashes (default = 6)

3 ﬂashes 3Output conﬁguration 1 – 2 ﬂashes (default = 1)

4 ﬂashes 4Auto-Learn time 0 – 9 ﬂashes (default = 0)

5 ﬂashes 5Pattern width (door open) 0 – 9 ﬂashes (default = 2)

6 ﬂashes 6 Pattern width (door closed) 0 – 9 ﬂashes (default = 1)

7 ﬂashes 7 Pattern depth (door open) 1 – 6 ﬂashes (default = 1)

8 ﬂashes 8 Pattern depth (door closed) 1 – 6 ﬂashes (default = 1)

4PROGRAMMING THE SENSOR (cont.)

PB1

PB2

LENS

Page 10 of 12 75.5933.04 ALLEGION HMSS 20190723

WIDTH & DEPTH PATTERNS

(all pattern sizes are approximations)

Row 1 (spots 1 –6) remain on even during the "closed-door"position.

When the sensor is mounted at 7 feet

high, each block in the charts shown

represents 14" x 14".

Always walk-test the pattern to

ensure compliance with all applicable

standards.

1: WIDE

1: DEEP

4: ASYM RIGHT NARROW

4: DEEP WITHOUT ROW 1

7: ASYM LEFT WIDE

2: MIDDLE

5: LEFT NARROW

5: MIDDLE WITHOUT ROW 1

8: ASYM RIGHT WIDE

3: ASYM LEFT NARROW

1st row of IR

threshold

2nd row of IR

3rd row of IR

4th row of IR

3: LIMITED

6: RIGHT NARROW

6: LIMITED WITHOUT ROW 1

9: CENTER NARROW

WIDTH PATTERNS

DEPTH PATTERNS

123456

7 8 9 10 11 12

13 14 15 16 17 18

19 20 21 22 23 24

123456

78910 11 12

13 14 15 16 17 18

19 20 21 22 23 24

123456

7 8 9 10 11 12

13 14 15 16 17 18

19 20 21 22 23 24

123456

7 8 9 10 11 12

13 14 15 16 17 18

19 20 21 22 23 24

123456

7 8 9 10 11 12

13 14 15 16 17 18

19 20 21 22 23 24

123456

7 8 9 10 11 12

13 14 15 16 17 18

19 20 21 22 23 24

123456

7 8 9 10 11 12

13 14 15 16 17 18

19 20 21 22 23 24

123456

7 8 9 10 11 12

13 14 15 16 17 18

19 20 21 22 23 24

123456

7 8 9 10 11 12

13 14 15 16 17 18

19 20 21 22 23 24

123456

7 8 9 10 11 12

13 14 15 16 17 18

19 20 21 22 23 24

123456

7 8 9 10 11 12

13 14 15 16 17 18

19 20 21 22 23 24

123456

7 8 9 10 11 12

13 14 15 16 17 18

19 20 21 22 23 24

123456

7 8 9 10 11 12

13 14 15 16 17 18

19 20 21 22 23 24

123456

7 8 9 10 11 12

13 14 15 16 17 18

19 20 21 22 23 24

123456

7 8 9 10 11 12

13 14 15 16 17 18

19 20 21 22 23 24

123456

7 8 9 10 11 12

13 14 15 16 17 18

19 20 21 22 23 24

75.5933.04 ALLEGION HMSS 20190723 Page 11 of 12

TROUBLESHOOTING

Sensor will not set up

upon intial powering

Improper input voltage Check terminals 1 and 2 for proper voltage (12 – 24 VAC / VDC

± 10%).

Sensor is in detection Ensure ﬁeld of detection is clear during set-up and all lenses are installed

on sensor. If detection is encountered upon initial set-up, the HMSS will

continuously ﬂash green at ±2 Hz.

Permanent stationary objects are extremely close to the sensor. Ensure

that the detection ﬁeld clear and the sensor is mounted properly (using the

HMSS Spacer, if necessary).

Potential interferences from

high-intensity lighting

Ensure no high-intensity lighting is in the immediate area of the sensor.

Change to a different frequency.

Data type mismatch (old/

new)

Verify that the data matches type LO21 or EDPS.

Door will not open once

set-up is complete

Sensor is in detection (red

LED is on)

Verify no changes in detection ﬁeld made since set-up. If permanent

changes have occurred, launch a new set-up and re-test door (CAUTION:

THERE MAY BE NO SAFETY ON THE DOOR WHEN THIS TEST IS

PERFORMED).

Improper wiring Remove output wires from the sensor. For controls using N.C. circuits, twist

together the relay wires.

Activate the door control. If the door opens, the fault exists with sensor

or related wiring. If door does not open, the fault may exist with the door

control or its related wiring.

Safety beams are in

detection

Disconnect green and blue wires from LO21 to the door control safety

and common terminals. If door opens when triggered, fault lies within

the lockout safety beam set, or possibly with the LO21. Refer to the LO21

troubleshooting procedures in the respective manual.

Improper relay output

conﬁguration

Ensure proper relay output setting.

Sensor repeatedly

re-Learns environment

with each door position

Improper data from lockout

device

1) Allow door to open in automatic mode. Unlock sensor and launch a set-

up by pressing the Set-Up key, followed by the number 2. If the sensor LED

returns to red and does not begin ﬂashing green, improper data exists.

2) If unsuccessful, allow the door to close. Unlock sensor and launch a set-

up by pressing the Set-Up key, followed by the number 2. If the sensor LED

ﬂashes green, the lockout module needs replaced.

Refer to respective lockout User’s Guide for troubleshooting.

Data polarity at sensor is

incorrect

Verify that the negative wire from the lockout (white) is connected to

terminal 6, and the red/white wire from the lockout is connected at terminal

HELPFUL HINT: If faulty data is suspected, simply power the door to the

open position (by activation OR with the use of a “hold open” switch).

While the door is open, unlock the sensor and press the Set-Up key,

followed by the number 2. If the sensor LED returns to red and does not

begin ﬂashing green, improper data exists. Refer to respective lockout

User’s Guide for troubleshooting.

Sensor is not reacting to

remote control

RC batteries are dead Replace batteries.

Too much distance between

sensor and RC

Move closer to sensor during programming.

Data type mismatch (old/

new)

Verify data matches type LO21 or EDPS.

Unknown Attempt manual programming procedure (page 7).

Visible Monitoring

Indication LED does

not ﬂash

Monitoring installation /

set-up error

Verify monitoring is active in door control (active low).

Sensor malfunction Replace sensor.

Monitoring DIP switch

is OFF

Verify DIP switch poisiton (must be switched to the left).

Visible Monitoring

Indication LED ﬂashes

continuously

The DIP switch is set to ON Place the monitoring DIP switch to the right (OFF).

Page 12 of 12 75.5933.04 ALLEGION HMSS 20190723

Do not leave problems unresolved. If a satisfactory solution cannot be achieved after

troubleshooting a problem, please contact Allegion at 1-877-671-7011. If you must wait

for the following workday to call Allegion, leave the door inoperable until satisfactory

repairs can be made. Never sacriﬁce the safe operation of the automatic door or gate for

an incomplete solution.

For more information, visit www.allegion.com.

The sensor manufacturer cannot be held responsible for incorrect installations or inappropriate adjustments of the sensor/device; therefore, the sensor

manufacturer does not guarantee any use of the sensor outside of its intended purpose.

The sensor manufacturer strongly recommends that installation and service technicians be AAADM-certiﬁed for pedestrian doors, IDA-certiﬁed for

doors/gates, and factory-trained for the type of door/gate system.

Installers and service personnel are responsible for executing a risk assessment following each installation/service performed, ensuring that the sensor
