Allett C 34 Guide

BY
OPERATORS & PARTS MANUAL
English version
Turfmech Machinery Limited
Hangar 5, New Road, Hixon, Stafford, ST18 0PJ, United Kingdom
Tel: [phone]
Fax: [phone]
[email protected]
www.allett.co.uk

2

3
ATTENTION
THIS SYMBOL MEANS
BE ALERT!
YOUR SAFETY IS INVOLVED
READ THIS MANUAL BEFORE USING AN ALLETT C34 CYLINDER MOWER.
IT IS ESSENTIAL THAT OPERATORS STUDY IT FOR THEIR OWN SAFETY.

4
Contents
Introduction.................................................................................................... 6
Model type and serial number. .............................................................. 6
EC conformity information............................................................................ 7
EC Declaration of Conformity....................................................................... 8
Safety Precautions......................................................................................... 9
Training ................................................................................................. 9
Preparation ......................................................................................... 10
Operation ............................................................................................ 11
Maintenance and storage.................................................................... 12
Decal positions ............................................................................................ 13
Operation – base machine .......................................................................... 14
SAFETY NOTICE................................................................................ 14
Operator controls ................................................................................ 14
Adjusting the handle bars.................................................................... 15
Parking brake ...................................................................................... 15
Starting the engine .............................................................................. 15
Stopping the engine ............................................................................ 16
Engaging forward travel ...................................................................... 17
Transporting the machine ................................................................... 17
Loading a driven cartridge................................................................... 18
Loading a non-driven cartridge............................................................ 18
Removing a cartridge .......................................................................... 18
Operation – cartridges................................................................................. 19
SAFETY NOTICE................................................................................ 19
Cleaning the mower ............................................................................ 20
Adjusting the bottom blade.................................................................. 20
Adjusting the height of cut................................................................... 23
Cylinder and bottom blade grinding/reconditioning ............................. 25
Operation – other cartridges....................................................................... 25
Maintenance schedule................................................................................. 26
Maintenance ................................................................................................. 28
SAFETY NOTICE................................................................................ 28
Daily checks/maintenance .................................................................. 30
Checking engine oil level.......................................................... 30
Checking the air cleaner condition ........................................... 30
Check your fuel level. ............................................................... 30
Checking belt/chain guards ...................................................... 31
Checking the cutting cylinder.................................................... 31
Testing the parking brake ......................................................... 31
Testing the ignition on/off switches........................................... 32
Weekly maintenance ........................................................................... 33

5
Check fastener torques ............................................................ 33
Cleaning the fuel sediment bowl............................................... 33
Bi-weekly maintenance ....................................................................... 34
Checking the chains and belts.................................................. 34
Yearly maintenance ............................................................................ 35
Replacing the spark plug .......................................................... 35
Replacing air filter elements ..................................................... 35
Replacing the engine oil ........................................................... 35
Miscellaneous maintenance ....................................................................... 36
Adjusting cable tensions ..................................................................... 36
Changing the drive belts ..................................................................... 36
Storage ......................................................................................................... 37
Preparing the machine ........................................................................ 37
Preparing the engine........................................................................... 37
Removing from storage....................................................................... 38
Specification – Base machine .................................................................... 40
Specification – Cartridges........................................................................... 41
Cutting rates................................................................................................. 41
MODEL C34:- Front Roller Assembly BOM (FIG 1) ................................... 43
MODEL C34:- Countershaft Assembly Engine Side BOM (FIG 2A) ......... 47
MODEL C34:- Countershaft Assembly Brake Side BOM (FIG 2B) ........... 50
MODEL C34:- Kickstand Assembly BOM (FIG 3) ...................................... 52
MODEL C34:- Handle Bar Assembly BOM (FIG 4)..................................... 54
MODEL C34:- Lower Handle Bar Assembly BOM (FIG 5) ......................... 56
MODEL C34:- Rear Roller Assembly BOM (FIG 6) .................................... 58
MODEL C34:- Main Frame Assembly BOM (FIG 7A)................................. 60
MODEL C34:- Main Frame Assembly BOM (FIG 7B)Error! Bookmark not defined.
MODEL C34:- Grass Box Assembly BOM (FIG 8)...................................... 47
Notes............................................................................................................. 70

6
Introduction
The C34 mower is a petrol engine powered self propelled machine with a belt and chain driven
differential rear roller and a belt driven cutting cylinder.
The C34 mower is a product of exceptional quality and is designed solely for cutting high quality
turf. Use in any way other than that stated is considered contrary to the intended use. Compliance with
and strict adherence to the conditions of operation, service and repair as specified in this manual also
constitute essential elements of the intended use.
The way in which the C34 mower is operated and maintained will have a profound effect on its
performance and reliability.
A C34 mower should be operated, serviced and repaired only by persons who are familiar with its
particular characteristics and who are acquainted with the relevant safety procedures
The safety precautions outlined in this manual and all other generally recognised regulations on
safety must be observed at all times.
Any arbitrary modifications carried out to a C34 mower may relieve Turfmech Machinery Limited of
liability for any resulting damage or injury.
This manual is based on information available at the time of publication.
Turfmech Machinery Limited reserve the right to amend product specifications without prior
notification.
Model type and serial number.
The model can be found in two places:
1. On the top cover of the mower.
2. On the serial number plate located on the right side of the mower chassis.
The serial number can be found on the serial plate.
ENTER YOUR INFORMATION BELOW
Model:
Serial Number:

7
EC conformity information
Noise levels
Operator’s daily personal noise exposure:
Turfmech Machinery Limited has no control over site conditions, duration of use, state of maintenance or
adjustment of the SQRL. All of these factors will affect the operator’s daily personal noise exposure level
(L
EP,d
).
Under typical working conditions operators could be exposed to a daily personal noise exposure level in
excess of 98 dB(A) L
EP,d
.
Sound power level:
The maximum sound power level is 98 dB(A) measured in accordance with EC Directive 2000/14/EC.
Ear protectors with good attenuation in the 63 – 8000 Hz frequency range should be used.
Employers of personnel using the C34 mower are advised to read and understand the HSE publication
‘Noise at Work: Guidance for employers on the control of noise at work regulations 2005’ as the operator’s
daily personal noise exposure level could be above the ‘First Action Level’.

8
EC Declaration of Conformity
Turfmech Machinery Limited, Hangar 5, New Road, Hixon, Staffordshire, ST18 0PJ, England declare that
the off-highway pedestrian controlled debris collection equipment:
Model C34
Category Pedestrian controlled fine turf mower
Type Cylinder
Engine Manufacturer Honda
Speed of rotation 3600 RPM
Complies with the provisions of Directive 98/37/EC Essential Health and Safety Requirements Relating to
the Design and Construction of Machinery and Safety Components.
Also Directive 89/336/EEC amended by 92/31/EEC Electromagnetic Compatibility.
Also Directive 2000/14/EC Noise emission in the environment by equipment for use outdoors.
Standards used BS EN 836:1997, BS EN ISO 12100:2003 parts 1 and 2.
Authorised signature
J.C.Archer
Engineering Director
01-07-08
Technical documentation kept at Turfmech Machinery Limited, Hangar 5, New Road, Hixon, Staffordshire,
ST18 0PJ, England.

9
Safety Precautions
Training
READ THIS MANUAL BEFORE USING THE C34 MOWER. IT IS ESSENTIAL THAT
OPERATORS STUDY IT FOR THEIR OWN SAFETY.
THE FOLLOWING PRECAUTIONS MUST BE TAKEN TO HELP PREVENT ACCIDENTS. A
CAREFUL OPERATOR WHO USES COMMON SENSE IS THE SAFEST OPERATOR.
Read the instructions carefully. Be familiar with the controls and the proper use of the equipment.
Learn how to stop the mower quickly in an emergency.
Never allow children or people unfamiliar with these operating instructions to use the mower or its
attachments. Local regulations may restrict the age of the operator.
Be alert while people, especially children, or animals are nearby.
Bear in mind that the operator is responsible for accidents or hazards occurring to other people or
their property.
Do not attempt to ride on the mower or carry passengers.
All operators should seek and obtain professional and practical instruction. Such instruction should
emphasise:
-The need for care and concentration while working with the C34 mower.
-The need to slow down when making tight turning manoeuvres, particularly on slopes. Failure
to take adequate care can affect stability leading to loss of control of the mower.
-Control of a machine sliding on a slope will not be regained by the application of the brake. The
main reasons for loss of control on a slope are:
-Insufficient grip between roller and ground.
-Being driven too fast.
-Lack of awareness of ground conditions.

10
Preparation
While operating the equipment always wear substantial footwear and long trousers. Do not operate
the equipment when barefoot or wearing open sandals.
Ear protection should be worn when the engine is running.
Eye protection should be worn whilst mowing.
Thoroughly inspect the area that is to be cut and remove all objects which are likely to cause
damage to the machine.
Never operate the mower unless all belt and chain guards are correctly in place and securely
fastened.
Before use check the bottom blade and cylinder. Replace or sharpen if necessary
Petrol is highly flammable, therefore:
-Store fuel in containers specially designed for this purpose.
-Refuel outdoors only and do not smoke while refuelling.
-Add fuel before starting the engine. Never remove the cap from the fuel tank or add petrol while
the engine is running or while the engine is hot. Allow the engine to cool for at least two
minutes before refuelling. Be aware that the engine exhaust silencer will remain hot for some
time after the engine is switched off.
-Do not attempt to start the engine if petrol is spilled or a smell of petrol is present. Move the
machine away from the area of spillage and avoid creating any source of ignition until the petrol
vapours have dissipated.
-Always use fresh fuel.
-Replace the fuel tank cap securely.

11
Operation
Do not operate the engine in a confined space where dangerous carbon monoxide fumes can
collect.
Mow only in daylight or in good artificial light.
Before starting the engine, disengage drive to the cutting cylinder and the rear drive roller and
engage the parking brake.
Watch out for traffic when crossing or near roadways.
Always disengage drive to the cylinder before travelling over any surface other than grass.
When using the mower, never direct the discharged material towards bystanders or allow anyone
near the machine whilst it is in operation.
Never operate a mower with defective guards.
Do not attempt to increase the factory set maximum speed of the engine. Operating an engine at
excessive speed will lead to increased wear and tear and increases the risk of injury.
Before leaving the operator position:
-Disengage drive to the rollers.
-Disengage drive to the cylinder.
-Engage the parking brake.
-Switch the on/off switch on the handlebars to the OFF position.
Engage the parking brake, disengage drive to the cutting cylinder, switch off the engine and ensure
the cylinder is completely stationary:
-Before releasing blockages.
-Before checking, cleaning or working on the machine.
-After striking a foreign object inspect the mower for damage and rectify any problems before
continuing.
-Before refuelling.
-Before making cutter head adjustments.
If the machine starts to vibrate abnormally STOP immediately and check the machine over.
Never park the machine on a slope.
Reduce the throttle setting during run out
ALWAYS KEEP HANDS AND FEET WELL AWAY FROM A ROTATING CUTTING
CYLINDER.

12
Maintenance and storage
Always wear thick gloves when manually rotating a cutting cylinder.
Check that all nuts, bolts and screws are sufficiently tight so as to ensure that the equipment is in
safe working condition.
To reduce the risk of fire, keep the engine and exhaust area free of grass, leaves and other debris.
Wipe off excess grease.
Frequently check fuel lines and fittings for cracks or leaks and replace if necessary.
Replace worn or damaged parts.
Ensure that all safety decals are properly secured and in good condition.
Never work on the equipment while the engine is running.
Take care to prevent entrapment of the fingers between moving blades and fixed parts during
maintenance activities.
Allow the engine and exhaust to cool before storing in any enclosure.
If the fuel tank has to be drained this should be done outdoors.
Always chock the roller when the mower is being left in storage
Health and Safety at Work Act
In accordance with section 6 of the Health and Safety at Work Act 1974 the C34 has been designed and
constructed so that, in so far as is reasonably practical, it will not endanger the safety and health of those
working with it. This is, however, subject to the equipment being properly used and maintained according
to the conditions stated in this manual and elsewhere, which have been found necessary as a result of the
research and testing of Turfmech Machinery Limited and Allett.

13
Decal positions
Description - Large Allett logo
Location - Grass box
Quantity - 1
Description - Small Allett logo
Location - Handle bars
Quantity - 1

14
Operation – base machine
SAFETY NOTICE
WARNING - PREVENT ACCIDENTS
Before operating the C34 mower it is essential that:
-The operator reads and understands this manual.
-The daily maintenance checks have been properly carried out and the equipment is in good
working order.
-The operator is equipped with and wearing appropriate safety clothing and equipment. It is
strongly recommended that eye and ear protection is used. Failure to do so could result in risk
to health and safety.
-The area to be mown is thoroughly inspected and all objects which are likely to cause damage
to the machine or endanger the operator or bystanders are removed.
WARNING - PREVENT ACCIDENTS
Operate safely on slopes:
-By following safe working practices.
-By understanding and following the relevant safety precautions outlined in this manual. Refer –
Safety Precautions.
WARNING - PREVENT ACCIDENTS
Never attempt to start the mower indoors. Always move the mower to a well ventilated area before
starting.
WARNING - PREVENT ACCIDENTS
Remember – a careful operator who uses common sense is the safest operator.

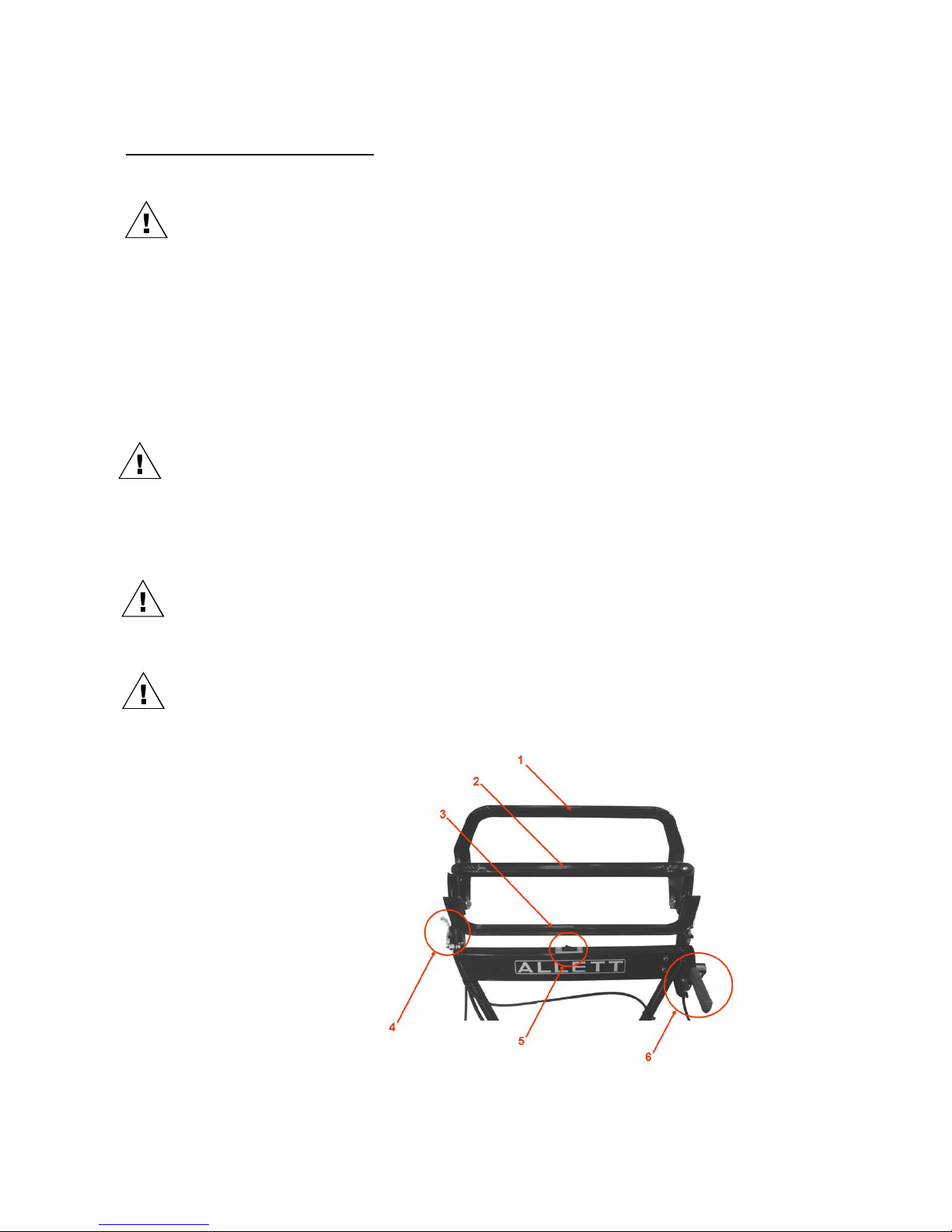

Operator controls
1. Rear roller drive clutch.
2. Handle bar.
3. Cutting cylinder drive clutch
4. Engine throttle control.
5. On/off switch.
6. Parking brake.

15
Adjusting the handle bars
•Loosen the four bolts
at the base of the
upper handle bar.
•Move the handle bar
into the desired
position.
•Tighten the four bolts.
Parking brake
•To engage the parking brake, pull the red lever
rearwards.
•Tighten the lock handle by rotating it clockwise in order
to hold the brake lever in place.
Starting the engine
Before starting the engine:
-Check engine oil level – refer to the Honda engine manual for the recommended oil
specification.
-Check fuel level – clean around the fuel filler cap before removing it. Do not overfill the tank.
The fuel filler cap must be firmly secured in order to prevent fuel leakage during operation.
-Always use clean, fresh unleaded petrol. Purchase fuel in quantities which can be used within
30 days. Never mix oil with petrol.
-Carry out the daily checks found on page 29-31.
•Ensure that the drives to the rear roller and cutting cylinder are disengaged.
•Check that the parking brake is engaged.

16
•Switch the on/off switch on the handle bars to ON.
•Check that the engine on/off switch is set to ON.
•Set the engine throttle to the half way position.
•Ensure that the fuel shut-off off tap (2) is set to the ON position.
•Set the choke (1) to the OFF position.
•Pull the starter handle (3).
If the engine fails to start within 3 pulls:
•Move the choke to the ON position.
•After the engine has started wait a few seconds then return the
choke to the off position.
•Allow the engine to warm up before starting to use the mower.
Stopping the engine
•To stop the engine, turn the on/off switch on the handlebars to OFF.
•The engine can also be stopped by turning the engine mounted on/off switch to the OFF position.
•If either of these measures do not stop the engine it is possible to stop it by moving the fuel shut-off
tap to the OFF position. Note that the engine will not stop straight away.
1
2
3

17
Engaging forward travel
•Start the engine.
•Set the engine throttle to the half way position.
•Push the drive clutch forwards.
•Travel speed depends on engine speed. Adjust the travel
speed by adjusting the engine throttle lever to the
desired position.
Transporting the machine
•Ensure that the trailer meets all Road Traffic Act requirements.
•Secure the mower on the trailer, positioning it adjacent to the trailer headboard.
•Ensure that the mower parking brake is engaged.
•Ensure that the fuel shut-off tap is set to the OFF position.
WARNING – on long journeys check the mower regularly so as to ensure that it is still
securely tied onto the trailer.

18
Loading a driven cartridge
•Before loading the cartridge ensure that the
locking knob on the side of the mower chassis is
loosened off by rotating it anti-clockwise.
•Carefully lift the cartridge using the two red
handles and then lower it onto the support rails
on the inside of the mower chassis.
•Slide the cartridge to the right until the power
transmission plate on the cartridge is almost in
contact with the drive plate on the mower. Line up
the holes on the cartridge power transmission plate
with the studs on the drive plate.
•When lined up push the cartridge all the way to the
right (when facing the mower).
•Finally, rotate the locking knob clockwise to secure
the cartridge.
Loading a non-driven cartridge
•Before loading the cartridge ensure that the locking
knob on the side of the mower chassis is loosened off
by rotating it anti-clockwise.
•Carefully lift the cartridge using the two red handles
and then lower it onto the support rails inside the
mower chassis.
•When the cartridge is securely resting on the guide
rails slide it all the way to the right (when facing the
mower).
•Finally, rotate the locking knob clockwise to secure the
cartridge.
Removing a cartridge
•Reverse the procedure described above.

19
Operation – cartridges
SAFETY NOTICE
WARNING - PREVENT ACCIDENTS
Always wear the correct personal protective equipment when operating the C34 mower:
-Overalls.
-Heavy boots.
-Safety glasses.
-Ear protection.
WARNING - PREVENT ACCIDENTS
Never clean/unblock the mower when the engine is running. Always stop the engine, engage the
parking brake and wait until the cylinder has completely stopped rotating.
WARNING - PREVENT ACCIDENTS
Check that all of the belt guards are attached and are in a satisfactory condition. If any are missing
replace before starting the mower.
WARNING - PREVENT ACCIDENTS
Do not engage the drive to the cutting cylinder unless the mower is moving forward on a grass
surface.
WARNING - PREVENT ACCIDENTS
Always wear gloves when manually turning the cutting cylinder.
WARNING - PREVENT ACCIDENTS
Never put your hands or feet near a moving cutting cylinder.

20
Cleaning the mower
When cleaning the mower avoid pressure washing. Use low pressure water or compressed air.
After pressure washing it is important that the cylinder bearings are purged of water. This can be done by
applying a small amount of grease using a hand pump. Note that over-greasing will damage the seals
Damage caused by over greasing is not covered by the Turfmech Machinery Limited warranty.
Adjusting the bottom blade
WARNING - PREVENT ACCIDENTS
Always wear gloves when handling the cylinder.
•Tilt the mower backwards.
•Hold a thin piece of paper between the edge of the bottom blade and the cutting cylinder.
•Turn the cutting cylinder slowly.
•If the blade is set properly the paper should cut cleanly along its full length. If it does not then
proceed as described below.
• Locate the two bottom blade adjusters.
These are positioned at the front of the mower just under the grass deflector flap as shown.
