Alliance Laundry Systems NK100 User manual

Installation Instructions
www.comlaundry.com
NetMaster
Network
NK100, NK101 and NK120
Part No. 505942R1
September 2001

© Copyright 2001, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without
the expressed written consent of the publisher.
505942 1
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Table of
Contents
Getting Started........................................................................................ 3
Use with NK100, NK101, NK120 ..................................................... 3
NetMaster Coin Network Adaptable Store Sample Order................. 4
Accessory List ............................................................................. 4
Optional Recommended Accessory List ..................................... 4
NetMaster Coin Networked Store Sample Order............................... 4
Accessory List ............................................................................. 4
Optional Recommended Accessory List ..................................... 4
Accessories Obtained from Local Electronic Supply Store ........ 4
NetMaster CardMate Networked Adaptable Store Sample Order..... 5
Accessory List ............................................................................. 5
**CSC Accessory List................................................................. 5
**CVC Unit and Accessories...................................................... 5
**CVC Optional Recommended Accessory List ........................ 5
NetMaster CardMate Networked Store Sample Order ...................... 6
Accessory List ............................................................................. 6
**CSC Accessory List................................................................. 6
**CVC Unit and Accessories...................................................... 6
**CVC Optional Recommended Accessory List ........................ 6
Optional Recommended Accessory List ..................................... 6
Accessories Obtained from Local Electronic Supply Store ........ 7
Installation............................................................................................... 9
A. Interface PC and Machines ...................................................... 9
B. Interfacing a Laptop to Machines............................................. 9
C. Connecting the Machines to the PC and Each Other ............. 10

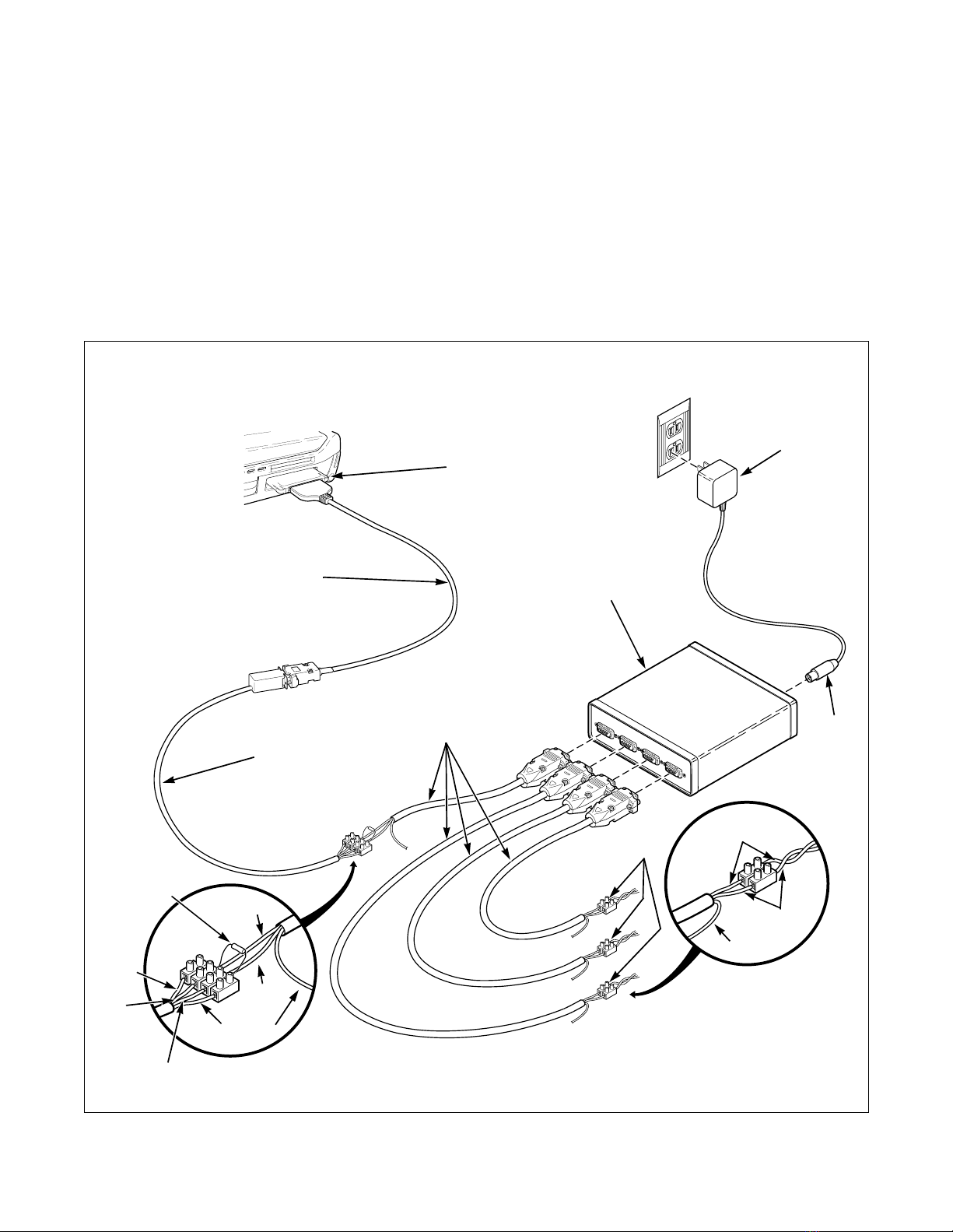

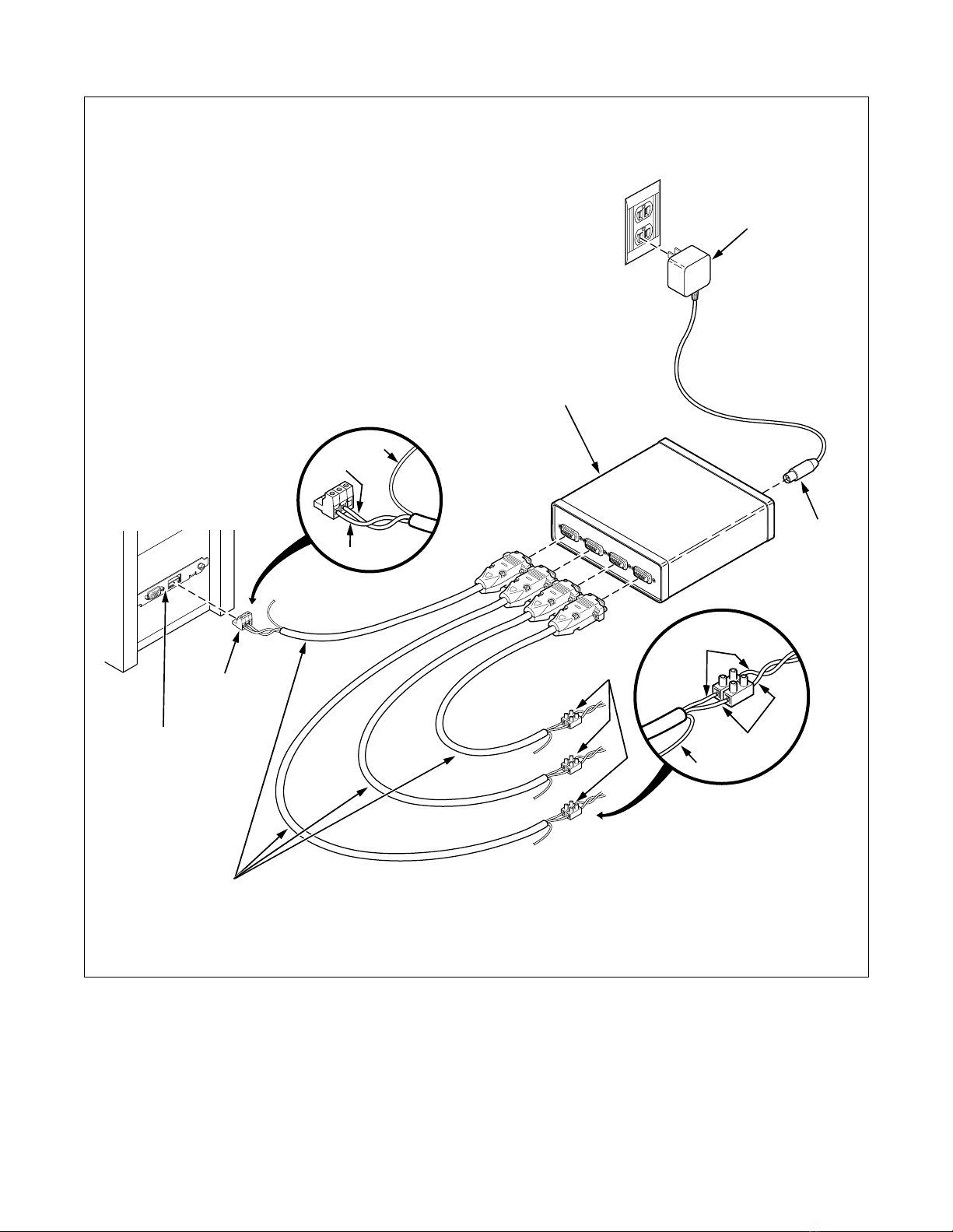

D. Connecting the Repeater to the PC ........................................ 12
E. Connecting the Repeater to a Laptop ..................................... 14
F. Tests ....................................................................................... 14
Troubleshooting.................................................................................... 15
Error Codes ...................................................................................... 15
Network Interface Boards ................................................................ 17
Card Reader...................................................................................... 18
Card Insertions not recognized by the card reader........................... 19
EC:19......................................................................................... 19
EC:20 – Error Reading Card ..................................................... 20
EC:26 – Card Write Error.......................................................... 20
Other Errors ............................................................................... 20
Network Board Service.................................................................... 22
Commonly Used Abbreviations: ............................................... 22
Network Board LED.................................................................. 22
Network Board Operating LED Test ............................................... 22
Network Board Communicating LED Test...................................... 22
Network Board to Front-End Control Communication Problems ... 22
Network Board to PC Communication Problems............................ 23

2505942
© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT

505942 3
© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Getting Started
Use with NK100, NK101, NK120
NOTE: Have a computer specialist install the network board into the PC.
Part Description Part Number Suggested Source Comments
NetMaster Base
Software Suite 200768 Alliance Laundry
Smartcard Software
Suite 200771 Alliance Laundry Card store only
Management Reader CM1087 Alliance Laundry Card store only
Multipurpose Card 200671 Alliance Laundry Card store only
Transaction Access
Card 200817 Alliance Laundry Card store only
Network Kit for PC NK100 Alliance Laundry Includes board and data connector
Network Kit for Laptop NK101 Alliance Laundry Includes board and cables
Black/Red Twisted Pair 781816PFO-2Z American Electronic Wire
Co. 847-541-7500 18 AWG, Tinned copper for 600 volts and 105 degrees C, manufactured to UL1015
Data Connector 210155 Alliance Laundry PC only
Network Interface
Connector 210099 Alliance Laundry Provided with machine
Netmaster Software
Suite 200770 Alliance Laundry Windows 98 or greater to run the program
Terminating Resistor 210162 Alliance Laundry 120 Ohm, 1/2 Watt
Bias Resistor 210163 Alliance Laundry 560 Ohm, 1/4 Watt
Barrier Terminal Strip 210161 Alliance Laundry Beau C-15 series 8-circuit
Network Repeater Kit NK120 Alliance Laundry For 124 to 249 machines or greater than
4,000 feet of network length

4505942
Getting Started
© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
NetMaster Coin Network Adaptable Store Sample Order
NetMaster Coin Networked Store Sample Order
Accessory List
Qty Model No. Description Comments
1 EDC100 Micro-Wand Kit EDC108 –Micro-Wand with infra-red adapter cup.
CM1086 –9-volt rechargeable battery.
CAC203 –Charger/Interface cup enables communication
with computer and recharges battery.
CAC302 –Transformer/power cord supplies power for
recharging battery).
1 CAC202 9 Pin Cable with 25 Pin
Adapter Links the Micro-Wand and a computer for data transfer.
1 200768 NetMaster Base Software
Suite Program used to generate reports.
Optional Recommended Accessory List
Qty Model No. Description Comments
1 CAC104 Homebase/Battery
Charger Provides complete communications and battery charging/ service center, connection to the computer not required.
Accessory List
Qty Model No. Description Comments
1 200770 Network Software Suite Software used to program networked machines, replaces
Micro-Wand.
1 200768 NetMaster Base Suite Program used to generate reports.
*1 NK100 Desktop Network Card Communicates from computer to networked machines.
*1 NK101 Laptop Network Card Communicates from computer to networked machines.
*The type of network card ordered would depend on the type of computer the store owner is using. These cards
need to be installed by a professional.
Optional Recommended Accessory List
Qty Model No. Description Comments
1 NK120 Repeater Used to network store with 125-249 units.
Accessories Obtained from Local Electronic Supply Store
Qty Description Comments
Twisted Pair Wire, 18 AWG tinned copper Connects networked machines and PC.
1 Computer
1 Wire Cutters/Stripper and a Small
Screwdriver

505942 5
Getting Started
© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
NetMaster CardMate Networked Adaptable Store Sample Order
**Alliance Laundry Systems suggests having at least 2 Card Add Valve Stations. The type and quantity of
Card Add Valve Stations would depend on preferences of the store owner.
Accessory List
Qty Model No. Description Comments
2000 200672P User cards Run laundry equipment, between 2000 and 3000 cards are
recommended.
1 S/SITECRDP Master Card Sets site code for CSC and CVC.
1 200771 Smart Card Software
Suite Program multi-purpose cards. Also read and change value to user cards.
7 200671 Multi-Purpose Card Can be used to collect data, program or for diagnostics.
1 CM1087 Management reader Used to read, add valve, and service user and multi-purpose
cards.
1 200817 SCTM Card Used to access Transaction Module of Smart Card Suite.
1 200768 NetMaster Base Software
Suite Program used to generate reports.
**CSC Accessory List
Qty Model No. Description Comments
1 S/CSC/AVR2 CSC Base Unit With bill acceptor, card reader and recharge balance
function.
1 CSC/CDK CSC Card Dispenser
**CVC Unit and Accessories
Qty Model No. Description Comments
1 CVC/BASE/R1 CardMate Value Center
Base Unit With card reader.
1 CM1077 CVC Bill Acceptor To purchase cards and recharge balance.
1 CVC/CDK CVC Card Dispenser
**CVC Optional Recommended Accessory List
Qty Model No. Description Comments
1 CVC/STAND CVC Stand For floor mounting of the CVC unit. Not needed if mounted
to the wall.
1 CVC/PRK CVC Printer Kit Allows for printing of receipts which is required for credit
card transactions.
1 CVC/PRK/PAPER Thermal Roll Paper Kit For CVC printer (6 rolls).

6505942
Getting Started
© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
NetMaster CardMate Networked Store Sample Order
Accessory List
Qty Model No. Description Comments
2000 200672P User cards Run laundry equipment, between 2000 and 3000 cards are
recommended.
1 S/SITECRDP Master Card Sets site code for CSC and CVC.
1 200768 NetMaster Base Software
Suite Program used to generate reports.
1 200770 Network Software Suite Software used to run the network. Replaces functions of the
Micro-Wand.
1 200771 Smart Card Software
Suite Includes Transaction Modules that can read and add value to user cards.
1 CM1087 Management Reader Used to read, add valve, and service user and multi-purpose
cards.
1 200817 SCTM Card Used to access Transaction Module of Smart Card Suite.
*1 NK100 Desktop Network Card Needed to communicate from computer to networked
machines.
*1 NK101 Laptop Network Card Needed to communicate from computer to networked
machines.
**CSC Accessory List
Qty Model No. Description Comments
1 S/CSC/AVR2 CSC Base Unit With bill acceptor, card reader and recharge balance
function.
1 CSC/CDK CSC Card Dispenser
**CVC Unit and Accessories
Qty Model No. Description Comments
1 CVC/BASE/R1 CardMate Value Center
Base Unit With card reader.
1 CM1077 CVC Bill Acceptor To purchase cards and recharge balance.
1 CVC/CDK CVC Card Dispenser
**CVC Optional Recommended Accessory List
Qty Model No. Description Comments
1 CVC/STAND CVC Stand For floor mounting of the CVC unit. Not needed if mounted
to the wall.
1 CVC/PRK CVC Printer Kit Allows for printing of receipts which is required for credit
card transactions.
1 CVC/PRK/PAPER Thermal Roll Paper Kit For CVC printer (6 rolls).
Optional Recommended Accessory List
Qty Model No. Description Comments
7 200671 Multi-Purpose Card Can be used to colect date, program or diagnostics (network
replaces).
1 NK120 Repeater Used to network store with 125-249 units.
1 PC Anywhere Connects your home computer to your store computer.
Bought at local store.

505942 7
Getting Started
© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
*The type of network card ordered would depend on the type of computer the store owner is using. These cards
need to be installed by a professional.
**Alliance Laundry Systems suggests having at least 2 Card Add Valve Stations. The type and quantity if Card Add
Valve Stations would depend on preferences of the store owner.
Accessories Obtained from Local Electronic Supply Store
Qty Description Comments
Twisted Pair Wire, 18 AWG tinned copper Connects networked machines and PC.
1 Computer When Alliance Laundry Systems promotion ends.
1 120 Ohm termination Resistor Used on the last machine in the network.
1 Wire Cutters/Stripper and a Small
Screwdriver

8505942
© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Notes

505942 9
© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Installation
A. Interface PC and Machines
1. The Data Connector should be attached to the
network board on the back of the PC. The PC
must be Pentium 166 or better, have 32 mb
RAM minimum, a CD drive, a mouse and
Windows 98 or higher.

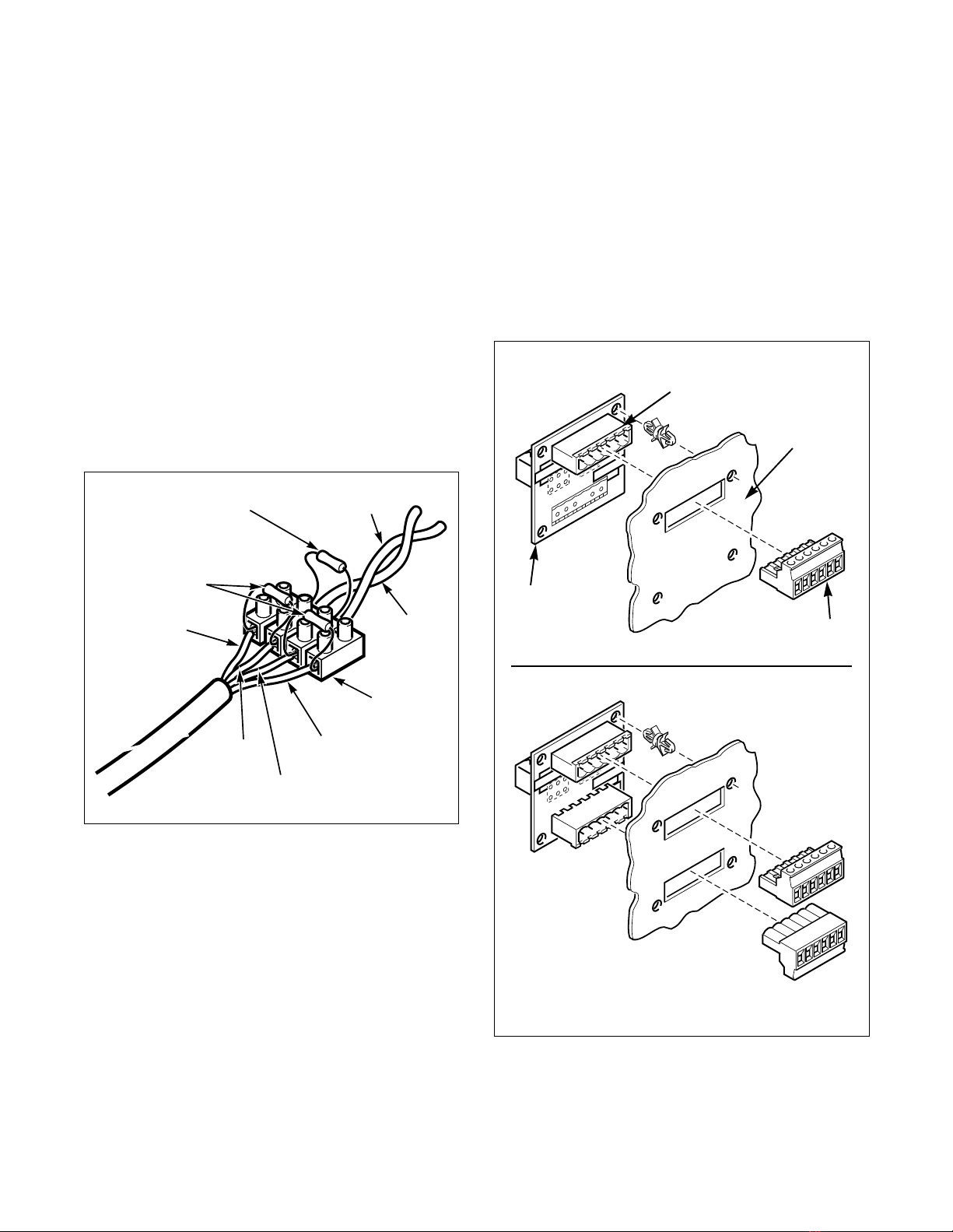

2. Carefully strip 1/4" of the insulation from the
black and red twisted pair wire. If too little
insulation is stripped, and insulation is inside
the connector, the network will not
communicate. If too much is stripped, the wires
will short. Refer to Figure 5.
3. The black/red twisted pair (Alliance Laundry
Systems recommends using American
Electronic Wire Co. part number 781816PFO -
2Z) wires should be connected to slots 1 and 2
(red from 1, black from 2). Refer to Figure 6.
B. Interfacing a Laptop to Machines
1. Attach the RS-485 cable to the Network Card
and insert the card into the PCMCIA Slot on the
laptop.
2. Attach the network cable to the RS-485 cable.
3. Carefully strip 1/4" of the insulation from the
black and red twisted pair wire. If too little
insulation is stripped, and insulation is inside
the connector, the network will not
communicate. If too much is stripped, the wires
will short. Refer to Figure 5.
4. Place a 120 Ω1/2 Watt terminating resistor and
2 560 Ω1/4 Watt bias resistors into the terminal
strip. Refer to Figure 3.
NOTE: One of the 560 Ω 1/4 Watt bias resistors
connects between the white and red wires of the
network cable. The other 560 Ω1/4 Watt resistor
connects between the black and green wires of the
network cable.
Figure 1
NETWORK
BOARD
DATA
CONNECTOR
BLACK AND RED
TWISTED PAIR
WIRE
BLACK
RED
Figure 2
COM112N
NETWORK
CABLE TERMINAL
STRIP
RS-485
CABLE
NBS-20
CARD
COM112N

10 505942
Installation
© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
5. Run the wires of the network cable into the
different circuits of the terminal strip and hold
them in place while tightening the screws on
top of the strip. Refer to Figure 3.
6. Carefully strip 1/4" of the insulation from the
black and red twisted pair wire. If too little
insulation is stipped, and insulation is inside the
connector, the network will not communicate.
If too much is stripped, the wires will short.
Refer to Figure 5.
7. Place the black and red twisted pair wire into
the terminal strip and hold the wires in place
while tightening the screw on top of the
terminal strip (connect black wire to black wire
and red wire to red wire). Refer to Figure 3.
NOTE: The 120 Ω1/2 Watt terminating resistor
connects between the red and black wires of the
twisted pair network wiring.
C. Connecting the Machines to the
PC and Each Other
(For up to 124 machines or 4,000 feet of
network length)
1. Run the black/red twisted pair wire to the first
machine to be connected. Follow whatever
sequence is most convenient for store layout.
Be sure you have DISCONNECTED the PC or
laptop before you begin wiring.
2. Locate the network board header on the back of
the machine. refer to Figure 4
NOTE: Stacked units will have two connectors.
Figure 3
COM1201N
TERMINAL
STRIP
WHITE
120 Ω1/2 WATT
TERMINATING
RESISTOR
RED
BLACK
GREEN
RED
BLACK
560 Ω1/4 WATT
BIAS RESISTOR
Figure 4
6
H3
H1
LOWER
UPPER/SINGLE
54321
123456
123456
123456
6
H3
H1
LOWER
UPPER/SINGLE
54321
123456
123456
CONTROL3a
NETWORK
INTERFACE
BOARD
BACK OF
MACHINE
SINGLE UNITS
STACKED UNITS
CONNECTOR
(210099)
NETWORK
BOARD
HEADER

505942 11
Installation
© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
3. Carefully strip 1/4" of the insulation from the
black and red twisted pair wire. If too little
insulation is stripped, and insulation is inside
the connector, the network will not
communicate. If too much is stripped, the wires
will short. Refer to Figure 5.
4. Remove the connector (part number 210099)
from the literature packet or kit.
5. Insert the wire into the connector. The red
incoming wire goes into slot 1 and the black
incoming wire goes into slot 2. Check that only
wire, not insulation is inside the connector.
Incorrect installation could result in the
network not communicating. Secure the wires
in place by tightening the screws on top of the
connector. refer to Figure 6
6. Cut an ample length of wire to reach the next
machine’s connector. The wire should be long
enough to move the machine for maintenance,
but not so long as to interfere with normal
operation. refer to Figure 7
7. Strip 1/4 if the insulation and place the red
outgoing wire into slot 4 and black outgoing
into slot 5. Follow the same procedure in step 5.
8. Connect the wired connector to the Network
Board Header. Refer to Figure 7.
9. Run the wire to the next machine and follow
steps 3-8 until all machines have been
connected. Refer to Figure 7.
10. On the final machine, wires should be run into
slots 1 and 2 as on all previous machines. A 120
Ohm, 1/2 Watt terminating resistor should be
placed in slots 4 and 5 to terminate the
connection at the end of the network. Refer to
Figure 7.
NOTE: It is recommended that some type of
terminal strip be used when connecting banks of
machines onto a network. This should be done so
that a bank of machines can easily be bypassed in
the network for purposes such as debugging
network problems. A barrier block (such as part
number 210161) may be used for this purpose.
Figure 5
C867i
BLACK
RED
Figure 6
123456
C758i
CORRECT
123456
C866i
INCORRECT

12 505942
Installation
© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
D. Connecting the Repeater
to the PC
Refer to Figure 8
1. Attach one of the 210150 Network Cables to
segment 1 of the repeater.
2. Connect the RED and BLACK wires of that
Network Cable to the terminal strip coming
from the computer (RED to RED and BLACK
to BLACK). Do not connect the GREEN wire.
3. When repeater is used with a desktop PC, the
bias resistor in the repeaater must be removed.
Open the repeater and remove jumpers J3 and
J4. Refer to the manual included with the
repeater for specific instructions.
NOTE: Ensure that only the bias resistors that
correspond to segment one (PC connection) are
removed.
4. Connect one of the 210150 Network Cables to
segment 2 of the repeater.
5. Connect the RED and BLACK wires of that
Network Cable to the terminal strip going out to
one leg of the network (RED to RED and
BLACK to BLACK). Do not connect the
GREEN wire.
6. Terminate the last machine on this leg with a
120 Ohm 1/2 Watt resistor.
NOTE: Up to 124 nodes may be connected to any
given segment coming off the repeater. A total of
250 nodes may be connected to the network.
7. Repeat steps 4 –6 for the remaining 2 segments
as required. There is no need to connect a cable
or a terminating resistor to an unused segment
on the repeater.
8. Connect the bayonet style connector of the wall
adapter to the 12 VDC input on the repeater.
9. Connect the wall adapter to a 120 VAC 60 Hz.
outlet.
Figure 7
6
H3 LOWER
UPPER/SINGLE
54321
123456
6
H3 LOWER
UPPER/SINGLE
54321
123456
6
H3 LOWER
UPPER/SINGLE
54321
123456
CONTROL1
SINGLE UNIT
6
H3 LOWER
UPPER/SINGLE
54321
123456
6
H3 LOWER
UPPER/SINGLE
54321
123456
6
H3 LOWER
UPPER/SINGLE
54321
123456
123456123456 123456
CONTROL2
STACKED UNIT
TERMINATING
RESISTOR
NOTE: For stacked units, wire must be run from
the top connector to the bottom connector before
moving on to the next machine.

505942 13
Installation
© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
To Connect Repeater to PC
Figure 8
COM210N
NETWORK
CABLE
(210150)
TERMINAL
STRIP
WALL
ADAPTER
(120 VOLT)
NBS-42
CARD
COM210N
REPEATER
GREEN
BLACK
RED
RED
BLACK
GREEN
DATA
CONNECTOR
12 VOLT
DC

14 505942
Installation
© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
E. Connecting the Repeater
to a Laptop
NOTE: If connecting the repeater to a laptop, a
terminating resistor must be used. Refer to the
section on “Interfacing a Laptop to Machines” on
page 5. Refer to Figure 9.
F. Tests
Once the network has been wired, run the
following tests to ensure proper installation.
1. Power off all machines before test.
2. Check for continuity of 2 wires running from
the central PC.
a. Disconnect the wires from the PC
b. Check for 120 Ω± 20%. A much higher
reading indicates an open circuit. This is
caused by a break in the network. A much
lower reading indicates a short in the
network, which means the network is only
communicating to a certain point in the
network.
To Connect Repeater to Laptop
Figure 9
COM1047N
NETWORK
CABLE
(210165)
TERMINAL
STRIP
WALL
ADAPTER
(120 VOLT)
NBS-20
CARD
BLACK
RED
BLACK
GREEN
12 VOLT
DC
REPEATER
NETWORK
CABLE
(210150)
RED
GREEN
BLACK
WHITE
120 Ω
1/2 WATT
TERMINATING
RESISTOR
RS-485
RED

505942 15
© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Troubleshooting
Error Codes
Display Machine Error Description Error Cause Error Condition Exit
“EI:xx”All IR Communication Errors: Error ends after several
seconds
:00 - General communication error - Communication problem
:01 - Bad transmission - Communication problem
:02 - Device timeout - Communication problem
:03 - Invalid command code - Wrong machine type
:04 - Expecting upload request - Communication problem
:05 - Invalid or out-of-range data - Wrong machine type
:06 - Invalid data code - Wrong machine type
:07 - Error writing to RTC - Control failure
:08 - Error writing to EEPROM - Control failure
:09 - CRC-16 error - Communication problem
:0A - Invalid machine type - Wrong machine type
:0F - Invalid wakeup or IR disabled - Communication problem or
IR is disabled
“EC:xx”All Card Reader Communication Errors: Error ends after several
seconds (unless specified
differently)
:00 - General communication error - Communication problem
:02 - Timeout error - Communication problem
:03 - Invalid command code - Wrong machine type
:05 - Invalid or out-of-range data - Wrong machine type
:06 - Invalid data code - Wrong machine type
:09 - Corrupted data error - Communication problem
:0A - Invalid machine type - Wrong machine type
:19 - No Card Reader communication - Communication problem Good communication ends
error
:20 - Unreadable card - Bad card/dirty contacts
:21 - Security ID mismatch - Card ID mismatch
:22 - Site code mismatch - Card site code mismatch
:23 - Card maximum value exceeded - Value on card over max
:24 - Insufficient memory on card - Card’s memory full
:25 - Card reader malfunction - Bad card reader
:26 - Card write error - Bad card
:27 - Diagnostic test card write failure - Bad card reader
:28 - Diagnostic test card read failure - Bad card reader
:29 - Diagnostic test memory test
failure - Bad card reader
:2A - Diagnostic test card interface
failure - Bad card reader
:2b - Diagnostic test flash checksum
failure - Bad card reader
:2C - Bad Biberon or non-Biberon
device - Bad card reader
:2d - Firmware update failed, s/w
intact - Firmware load failed
:2E - Firmware update failed, s/w not
intact - Bad firmware in reader Loading valid FW ends error
:2F - Firmware updated, but s/w not
intact - Bad firmware in reader Loading valid FW ends error

16 505942
Troubleshooting
© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
:30 - Timeout waiting for Biberon
insertion - Bad firmware in reader
:31 - Hotlisted card inserted into the
reader - Card hotlisted After control destroys card, the error is cleared
:50 - Loyalty purse read error - Bad card
:56 - Loyalty purse write error - Bad card
Right-
most
dp lit
All - Network communication error - Communication problem Error ends at good
communication
“Err”All - Coin error - Invalid coin pulse(s) Error ends after several
seconds
“Alrm”All - Breakin alarm error - Service door or coin vault
switches Error ends after several seconds
“OFF”All - Breakin alarm shutdown error - Service door or coin vault
switches Cycle power to clear error
“E:FL”Topload
Frontload
WX
- Fill error - Maximum fill time exceeded Cycle power to clear error
“E:dr”Topload
WX
- Drain error - Maximum drain time
exceeded or water sensed at
end of a spin step
Cycle power to clear error
“E:SP”Frontload
WX
- SPI communications error - Internal communication
problem Cycle power to clear error
“E:OP”Dryer
WX
- Open temperature sensor error - Bad sensor or wiring Cycle power to clear error
“E:SH”Dryer
WX
- Shorted temperature sensor error - Bad sensor or wiring Cycle power to clear error
“E:dL”Frontload
WX
- Door lock error - Unable to lock or unlock the
loading door Error cleared when door lock condition is corrected
“E:dO”Frontload
WX
- Door open error - Door opened during a
running cycle Cycle power to clear error
“E:Ub”Frontload
WX
- Unbalance error - Unable to balance a load Error cleared after EOC (FL)
Error cleared after 1 min.
(WX)
“E:dF”WX - Motor failure error - Motor failure Cycle power to clear error
“E:HT”WX - Heater error - Maximum heat time
exceeded Cycle power to clear error
“E:Pr”WX - Pressure switch sequence error - Pressure switches out of
sequence Cycle power to clear error
Error Codes (continued)
Display Machine Error Description Error Cause Error Condition Exit

505942 17
Troubleshooting
© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Network Interface Boards
Wire Break - Any time there is a wire break on the
network, all machines on the opposite side of the break
from the Central PC will become unable to
communicate with the Central PC. Also,
communication may become less reliable for those
nodes which are still on the network, since the
terminating resistor on the end of the network has been
separated from the network.
Short on the Line or on the Network Board - If
there is ever a short on the network, the entire network
may be unable to function. However, if the short is on
the far end of the network, those nodes closest to the
Central PC may be able to communicate with the
Central PC to some degree.
Shorts may be isolated by removing the RS-485 cable
from the PC, and putting an Ohm-meter on the cable.
Next, remove a series of machines at the end of the
network, and check the meter. If there is no longer a
short, the short is somewhere in the chain of machines
removed from the network. If there is still a short, move
the break in the network close to the Central PC until a
location is found where the short can be eliminated. By
repeating this process of elimination, a short in either
the cable or on a network board may be isolated.
Wires Flipped on the Network - Correct polarity
must be observed when installing machines on the
network. If a machine is installed with the wrong
polarity at either the input or output (but not both) at the
connecting terminals, all machines further down the
series will be unable to communicate with the Central
PC. If, however, both the input and output are wired
incorrectly, only that machine will be unable to
communicate. If the wires at the card on the PC are
flipped, none of the machines will be able to
communicate with the Central PC.
NOTE: Both shorts or flipped wires will cause
numerous errors on the central PC, including
“Protocol Errors”and numerous “Unable to
Connect”messages.
Nodes on the Same Address - If two or more nodes
share the same address, there will be intermediate
levels on the network, which may be observed with an
oscilloscope. These intermediate levels will occur
whenever the Central PC commands a response from
the address at which there are multiple nodes. In most
cases, the Central PC will not be able to communicate
successfully with any of the devices at this address. In
some cases, however, if two nodes share the same
address with one close to the Central PC and the other
on the opposite end of the network, the node closest to
the PC may be able to overpower the other, and
complete a valid communication. The one at the far
end, in this case, will not be able to communicate at all
with the Central PC.
NOTE: Nodes on the same address will cause
numerous errors on the central PC, including
“Protocol Errors”and numerous “Unable to
Connect”messages.
Jabbering Node - In this condition, a node on the
network is transmitting erratically. If the node is
transmitting constantly, this condition may bring down
the entire network. In other cases, it may transmit
periodically. If this is the case, some communications
will be able to get through, until the node begins
jabbering again. A jabbering node may be detected by
disconnecting the network from the PC and monitoring
the network with an oscilloscope. Since the PC initiates
all communications, the scope should show no
communications once the PC is removed. If the scope
indicates that there is communication occurring,
individually remove each node from the network and
use the scope to check for communication from that
node.
NOTE: Jabbering nodes will cause numerous
errors on the central PC, including “Protocol
Errors”and numerous “Unable to Connect”
messages.

18 505942
Troubleshooting
© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Card Reader
NOTE: Errors marked with an "X" remain on the display until the error condition is cleared. All other
errors are displayed temporarily, for approximately 2 seconds.
Display Error Description Corrective Action
EC:00 - x See EC:19 See sheet on EC:19.
EC:02 Communication Time-Out If transaction did not go through, try again.
EC:03 Invalid Command Code If received with a cash value card, try again. Otherwise, card
contains an invalid command.
EC:05 Invalid or Out-of-Range data Make sure data on programming card is for the current machine.
EC:06 Invalid Data Code Make sure data on programming card is for the current machine.
EC:09 CRC error Try again.
EC:0A Invalid machine type Make sure data on programming card is for the current machine.
EC:19 - x No Card Reader Communication See section on EC:19.
EC:20 Unreadable card See section on EC:20.
EC:21 Security code ID mis-match Use a card with a security code equal to that in the machine.
EC:22 Site Code mis-match Use a card with a site code equal to that in the machine.
EC:23 Card Max value exceeded Use a card with a value less than the card max value programmed in
the reader.
EC:24 Insufficient memory on card Download card contents and clear card to do further collects.
EC:25 Card reader malfunction Try again. Card reader may need to be replaced.
EC:26 Card write error See sheet on EC:26.
EC:27 Diagnostic test card write error Try again. Card reader may need to be replaced.
EC:28 Diagnostic test card read error Try again. Card reader may need to be replaced.
EC:29 Diagnostic test memory test error Try again. Card reader may need to be replaced.
EC:2A Diagnostic test card interface error Try again. Card reader may need to be replaced.
EC:2B Diagnostic test flash checksum error Try again. Card reader may need to be replaced.
EC:2C Bad Biberon or non-Biberon device Firmware must be reloaded into reader with a Biberon.
EC:2D Firmware update failed, software intact See firmware loading.
EC:2E - x Firmware update failed, software not
intact See firmware loading.
EC:2F - x Firmware updated, but software not
intact See firmware loading.
EC:30 Time-out waiting for Biberon insertion See firmware loading.
EC:31 Hotlisted card inserted into the reader Card inserted into the reader was on the hotlist. Card destroyed.
