Allied Scientific Pro SRI-MD-3000 User manual

Spectral Irradiance Meter
SRI-MD-3000
user manual

2
SRI-MD-3000
Contents
Appearance Introduction......................................................... 4
Packing Contents............................................................................. 5
Product Features......................................................................... 6
Measurement Introduction............................................................. 7
Setting Items.................................................................................. 8
Save File......................................................................................... 1
SRI-MD-3 computer software installation steps..................... 11
Transferring Data With PC Connection......................................... 12

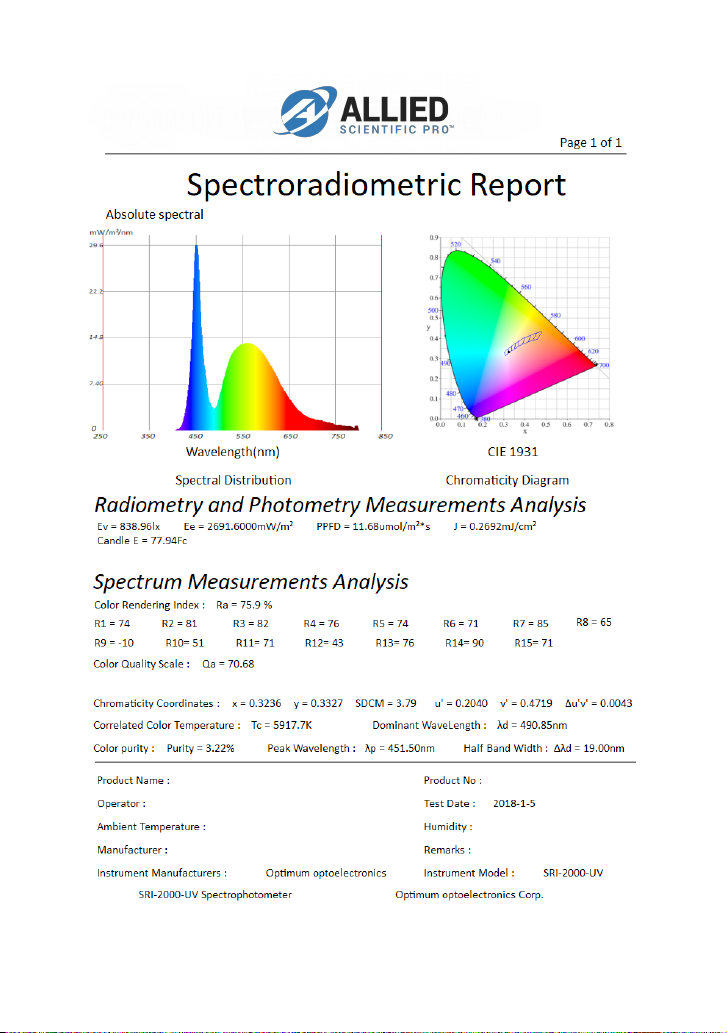

Spectroradiometric Report................................................. 13
Measuring Capabilities................................................................... 14
Power Indicator Light....................................................................... 15
GAMMA Test Report................................................................ 16
Shanghai Institute of Metrology Test Report................................ 17
Product Specification.................................................................. 18

4
SRI-MD-3000

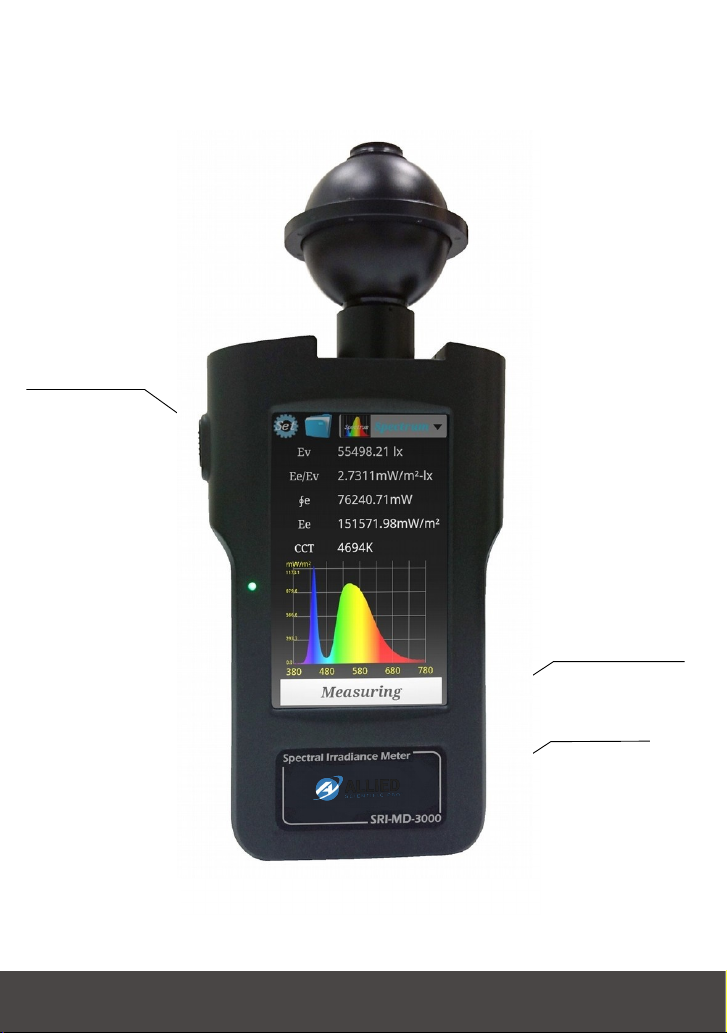

Power Switch
5 mm intgrating
sphere light collector
Mini USB port
Power Jack
Appearance Introduction

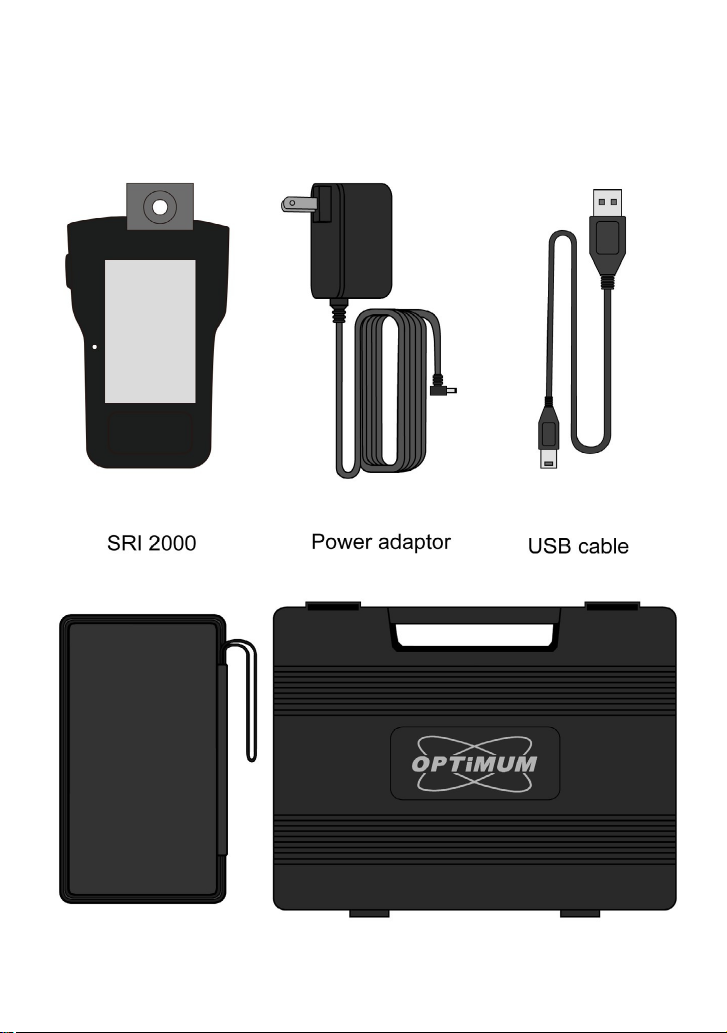

Packing Contents

6
SRI-MD-3000

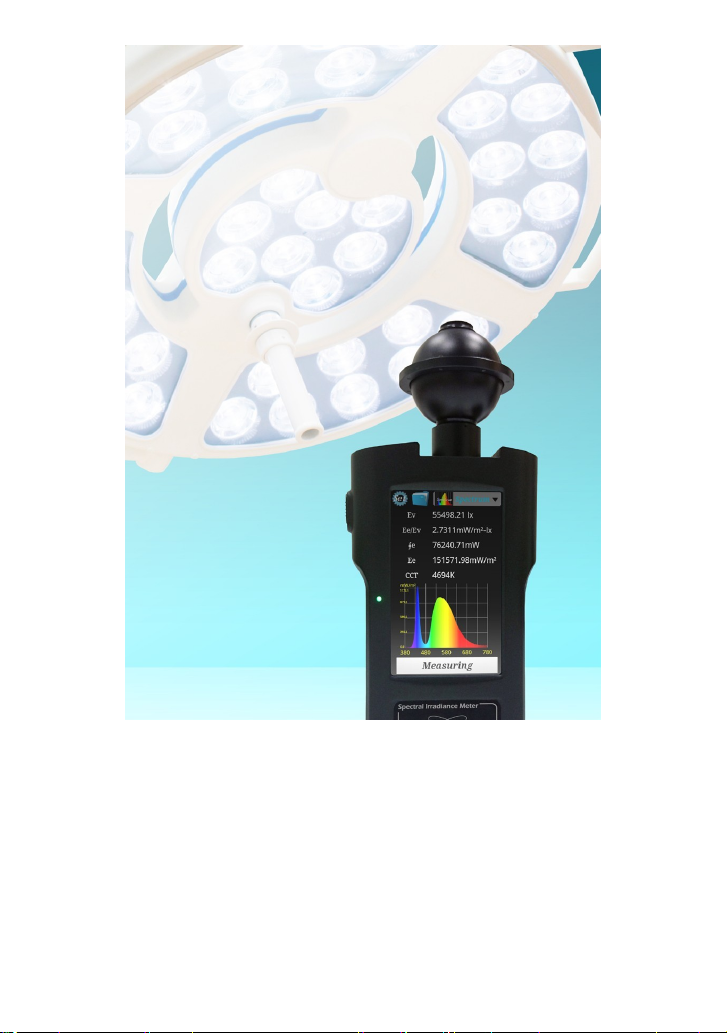

Product Features
Meet Medical lamp specification.
Fast booting level, can perform instant measurement,
no unnecessary action,measurement result is real
time display.
Using integrating sphere as light entrance port,consist
perfect consine effect at different angel.
Unique long focal length, high precision spectrometer
for measurement.
Connect to PC to transfer and remote operation
contral.
Measurement result is real time display.
Simple operation with accurate measurement,R1-R15
measurement are clearly shown.
A wide range of Illuminance, up to 5 lx illumination
can be measured.
Spectral irradiance resolution .5nm,half bandwidth
resolution 1. nm.
Save up to 5 files.
Conncet to PC to export the data by USB
Can be output as Excel file.
Formal report output.
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆

Measurement Introduction
1. Press "measuring" begin to make
measurements.
2. At appropriate distance then press power
switch.
3. Measured data will display on the screen.

8
SRI-MD-3000

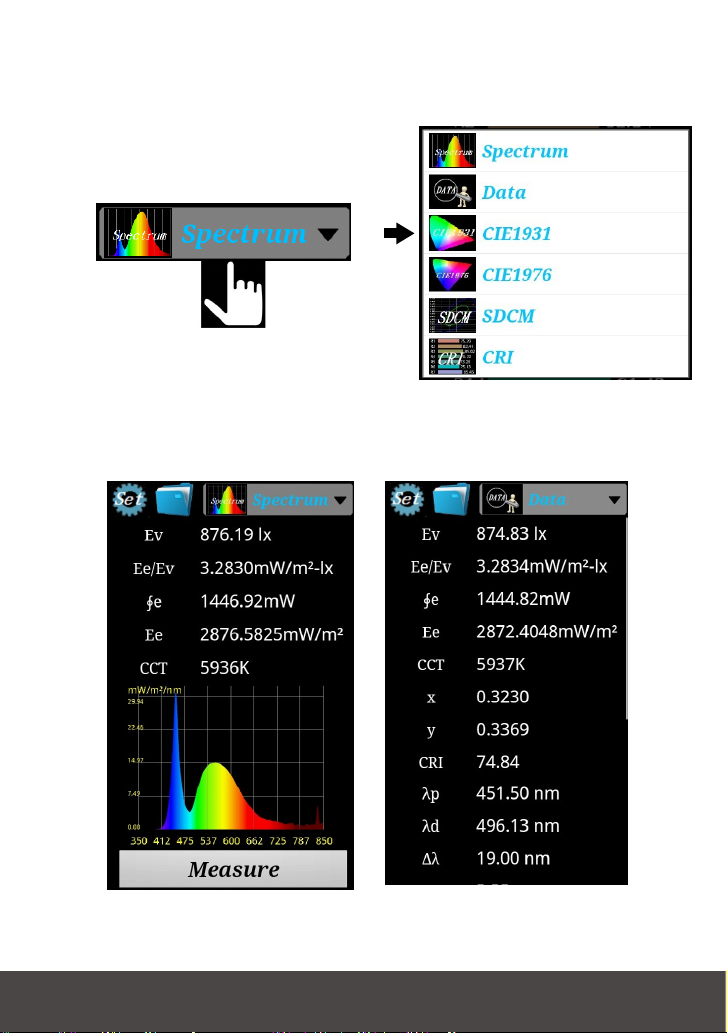

Spectrum DATA
Fast switching the screen shown to follow, read all the
information.
Fast Boot level,can perform instant measurement, no
unnecessary action,measurement result is real time
display.

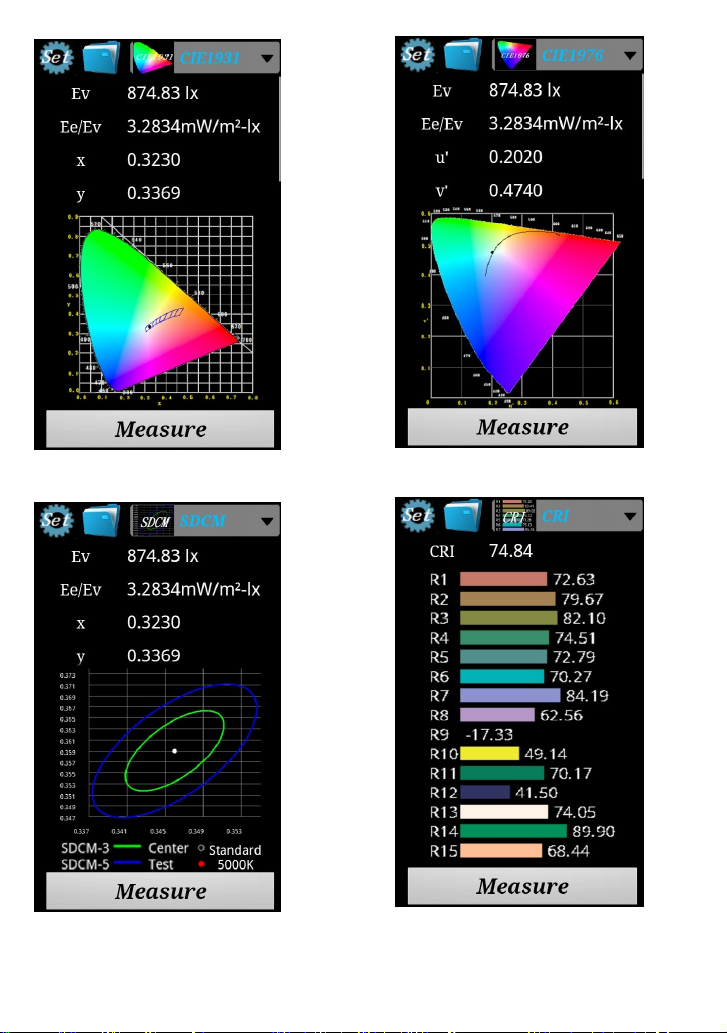

CIE – 1931 CIE - 1976
SDCM CRI(R1-
R15

10
SRI-MD-3000

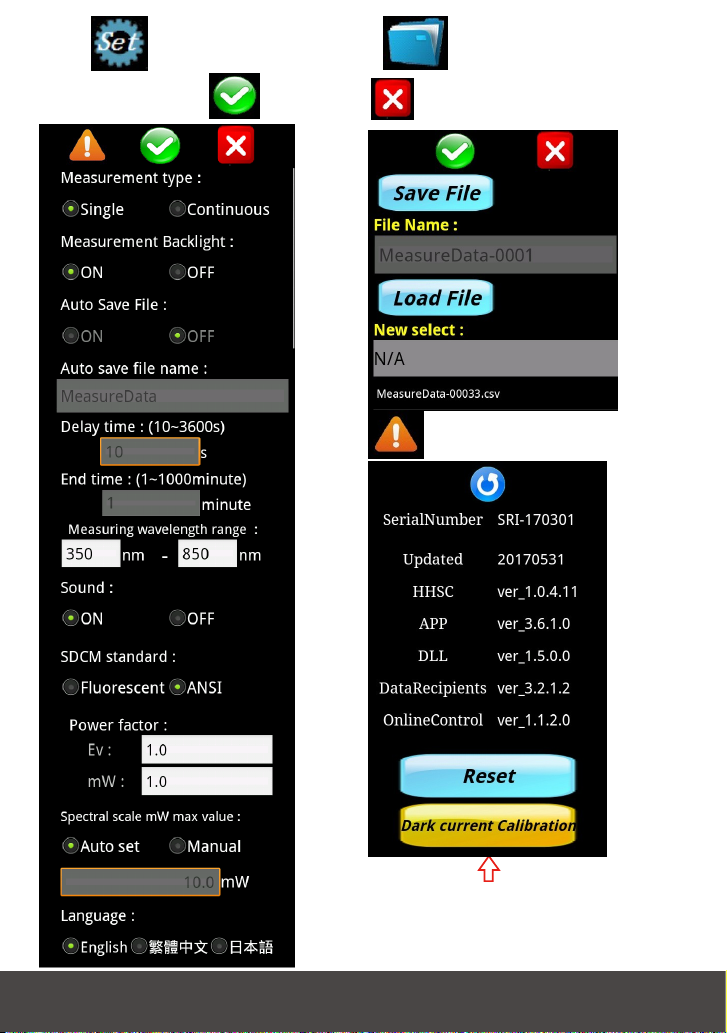

Set Icon Save Icon
System
Information
Dark current Calibration ：
Please follow the message
instructions, and complete Dark
current Calibration.
Save
Settings Cancel

SRI-MD-3 computer software installation steps
Software and Drive installation process, please refer Disc
Drive
1.Install dotNetFx4 _Full_x86_X64.
2.Please complete SRI-MD-3 operating system,
connected to mini USB cable, click Driver folder selected
computer system vision then installation the driver.
3.Confirm Driver is installed successfully.
(Please back to windows than check driver manager.)
4.Installation software SRI-MD-3 Data Recipients_ver_X_
X_X_X.

12
SRI-MD-3000

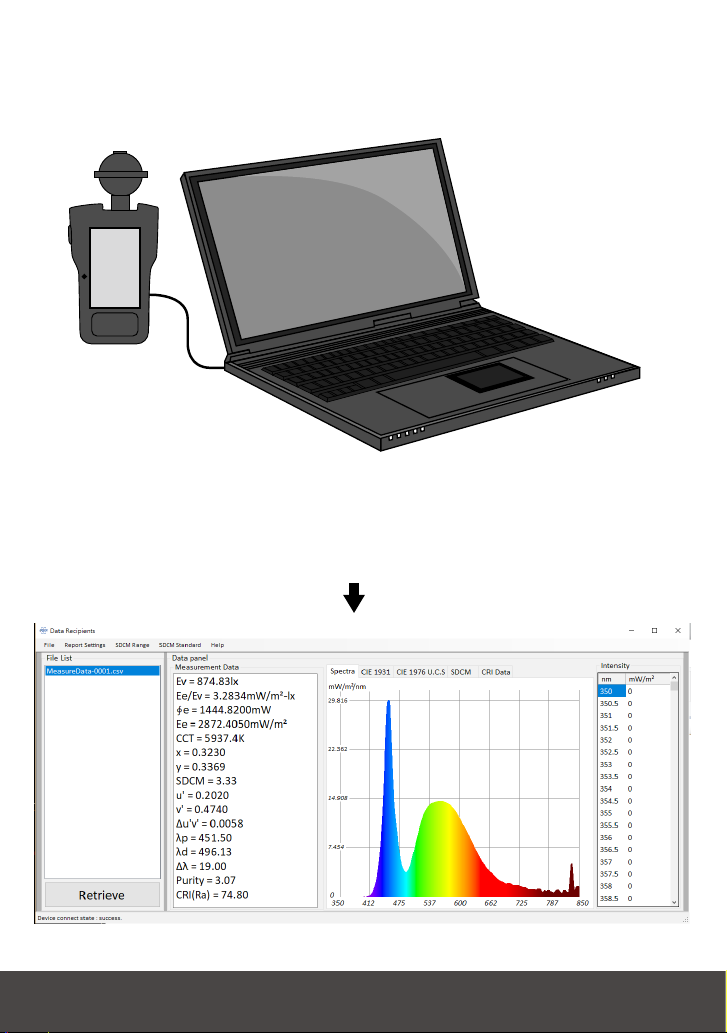

Export Data to PC
1. Use USB cable to connect SRI-MD-3 and PC.
2. Install the software.

Output data can be printed into a formal report.

14
SRI-MD-3000
◆Illuminance / Lux
◆Spectral Irradiance
◆C.I.E Chromaticity Coordinates
(C.I.E 1931 , C.I.E 1976 , SDCM)
◆Peak Wavelength
◆ Dominant Wavelength
◆Correlated Color Temperature; CCT ( in Kelvins )
◆Color Rendering Index; Ra ( Rendering Average )
◆mW/m2 , mW , mW/m2-lx
Power Indicator Light
Red : Charging
Green : Power on
Blue : Low battery
Yellow : Power on and charging
Cyan : Power on and low battery
White : Power on and low battery charging
Measuring Capabilities

※This product is used the new lithium battery,please refer to
the following Cautions and charging:
1. The new Lithium batteries have no memory effect, can be charged on
any time, The battery is charged before it has been exhausted, battery life
will be longer.
2. The user should charge when the cyan light is on (about 3 ~ 4 hours
remaining power - depending on the use of the situation), do not let the
machine forced off before charging, otherwise it will reduce battery life,If
the power is not enough to force shutdown, turn OFF the switch and then
charge it.
3. If the machine is forced to shut down before the power is charging, may
occur:
(1) Flash red light: Please re-plug the adapter to continue charging.
(2) Machine can not boot: As the battery protection mechanism is
enabled, to be consecutively charged about 2.5 hours before stand-alone
use, for emergency use is connected to the adapter before the boot.
4. It is recommended that the machine be turned off when charging.
5. Continuous charging about six hours later, the charging protection
mechanism will automatically power off, if the battery is not fully charged
at this time, please re-plug the adapter to continue charging, if the
battery is fully charged, the charge indicator (red) will automatically turn
Off.
6. When charging, you must use the adapter provided by OPTIMUM, do
not
use other adapters or methods to charge the product, so as to avoid the
damage of the circuit.
7. Do not connect the mini-USB while the machine is on or off, otherwise
itwill not be able to open or close, mini-USB no charge function, please
usethe adapter to charge.
8. If the above precautions are not followed and the charging method
causes damage, it is not within the scope of the machine warranty.

18
SRI-MD-3000
PRODUCT SP CIFICATION
CCD Sony linear array Sensor,2048 pixels Spectrometer
0mm integrating sphere as light entrance port
14 ± 0.1 mm
Detector Type
Cosine Receptor Diameter
Measurement Range
Wavelenght Range
Exposure Time Range 1 ~ 4000 ms
Capture Mode Single/Continuous
Integrating Mode Auto
Digital Resolution 16 bits
Dark Calibration Auto
Stray Light 0.001%
FWHM 1nm
Wavelenght Data Increment 0. nm
Wavelength Accuracy
Source A / other light source
(Illuminance at 200 lx and higher)
in CIE 1931
Illuminance Accuracy
Color Accuracy
Color Repeatability
CCT Accuracy
CRI Accuracy @ Ra
±2% / ±4%
±0.001 / ±0.003
±0.0003 / ±0.000
±1% / ±2%
±0.8% / ±1. %
± 0.3 nm
Display " LCD 480X800 Touch Panel
Max. files storage Up to 00000 Files
Battery Operation Time Up to 6 hours continuous use
Battery 3400 mAh / Rechargeable lithium ion battery
Date Output Interface mini-USB 2.0
Data Format Microsoft Excel compatible
Weight (with Battery) 660 g ± 20 g
Size(mm) 200(L)×92(W)×30(H)
Operating Temperature Range 0 ~ 0° C
Measuring Capabilites
1. Illuminance / Lux9 . mW/m
2
2. Spectral Irradiance
3. C.I.E Chromaticity Coordinates
(1)C.I.E 1931 (x,y) Coordinates
(2)C.I.E 1976 U.C.S (u',v') Coordinates
4. Peak Wavelength
. Dominant Wavelength
6. Correlated Color Temperature; CCT ( in Kelvins )
7. Color Rendering Index; Ra ( Rendering Average )
8. SDCM for ANSI standard
1 0 lx ~ 600000 lx / 00 mW/m
2 ~ 2100000 mW/m 2
3 0 ~ 8 0 nm
