Allied AVT Prosilica GE User manual

Technical Manual
AVT GigE Vision Cameras
V2.0.4
15 October 2014
Allied Vision Technologies GmbH
Taschenweg 2a
D-07646 Stadtroda, Germany
AVT Prosilica GE

Prosilica GE Technical Manual V2.0.4
2
Legal notice
For customers in the U.S.A.
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a residential environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio communica-
tions. However, there is no guarantee that interferences will not occur in a particular installation.
If the equipment does cause harmful interference to radio or television reception, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and the receiver.
• Use a different line outlet for the receiver.
• Consult a radio or TV technician for help.
You are cautioned that any changes or modifications not expressly approved in this manual could
void your authority to operate this equipment. The shielded interface cable recommended in this
manual must be used with this equipment in order to comply with the limits for a computing
device pursuant to Subpart A of Part 15 of FCC Rules.
For customers in Canada
This apparatus complies with the Class A limits for radio noise emissions set out in the Radio Inter-
ference Regulations.
Pour utilisateurs au Canada
Cet appareil est conforme aux normes classe A pour bruits radioélectriques, spécifiées dans le
Règlement sur le brouillage radioélectrique.
Life support applications
These products are not designed for use in life support appliances, devices, or systems where mal-
function of these products can reasonably be expected to result in personal injury. Allied Vision
Technologies customers using or selling these products for use in such applications do so at their
own risk and agree to fully indemnify Allied Vision Technologies for any damages resulting from
such improper use or sale.
Trademarks
Unless stated otherwise, all trademarks appearing in this document of Allied Vision Technologies
are brands protected by law.
Warranty
The information provided by Allied Vision Technologies is supplied without any guarantees or
warranty whatsoever, be it specific or implicit. Also, excluded are all implicit warranties concern-
ing the negotiability, the suitability for specific applications or the non-breaking of laws and pat-
ents. Even if we assume that the information supplied to us is accurate, errors and inaccuracy may
still occur.
Copyright
All texts, pictures and graphics are protected by copyright and other laws protecting intellectual
property. It is not permitted to copy or modify them for trade use or transfer, nor may they be used
on websites.
Allied Vision Technologies GmbH 10/2014
All rights reserved.
Managing Director: Mr. Frank Grube
Tax ID: DE 184383113
Headquarters:
Taschenweg 2a
D-07646 Stadtroda, Germany
Tel: [phone]
Fax: [phone]
e-mail: [email protected]

Prosilica GE Technical Manual V2.0.4
3
Contents
Contacting Allied Vision Technologies ................................................... 5
Introduction ............................................................................................................ 6
Document history............................................................................................................ 6
Conventions used in this manual ........................................................................................ 7
Styles ....................................................................................................................... 7
Symbols.................................................................................................................... 8
Precautions.................................................................................................................... 8
Cleaning optics............................................................................................................... 9
Identifying debris ....................................................................................................... 9
Locating debris .......................................................................................................... 9
Color cameras with IR filter ........................................................................................... 9
Cleaning with air....................................................................................................... 10
Contact cleaning....................................................................................................... 10
Conformity ..............................................................................................................11
Specifications .......................................................................................................12
Prosilica GE680/680C..................................................................................................... 12
Prosilica GE1050/1050C ................................................................................................. 14
Prosilica GE1650/1650C ................................................................................................. 16
Prosilica GE1660/1660C ................................................................................................. 18
Prosilica GE1900/1900C ................................................................................................. 20
Prosilica GE1910/1910C ................................................................................................. 22
Prosilica GE2040/2040C ................................................................................................. 24
Prosilica GE4000/4000C ................................................................................................. 26
Prosilica GE4900/4900C ................................................................................................. 28
Camera attribute highlights ........................................................................30
Filters ........................................................................................................................31
Camera dimensions ..........................................................................................32
Prosilica GE C-Mount (adjustable): GE680/680C .................................................................. 32
Prosilica GE C-Mount (adjustable)..................................................................................... 33
Prosilica GE F-Mount: GE2040/2040C ................................................................................ 34
Prosilica GE large format F-Mount: GE4000/4000C, GE4900/4900C.......................................... 35
Tripod adapter.............................................................................................................. 36
C-Mount flange focal distance.......................................................................................... 37
Adjustment of C-Mount .............................................................................................. 37
Lens protrusion for C-Mount cameras ............................................................................ 38
F-Mount flange focal distance.......................................................................................... 39
Adjustment of F-Mount .............................................................................................. 39

Prosilica GE Technical Manual V2.0.4
4
Camera interfaces .............................................................................................40
Status LEDs .................................................................................................................. 40
Gigabit Ethernet port ..................................................................................................... 41
Camera I/O connector pin assignment ............................................................................... 42
I/O definition ............................................................................................................... 43
Camera power .......................................................................................................... 43
Isolated IO GND ........................................................................................................ 43
RxD RS-232 and TxD RS-232 ....................................................................................... 43
Input triggers .......................................................................................................... 43
Output signals.......................................................................................................... 44
Video iris................................................................................................................. 45
Reserved ................................................................................................................. 45
Camera I/O connector internal circuit diagram .................................................................... 46
Camera I/O connector external circuit example ................................................................... 47
In 1, Out 1 external circuit example .................................................................................. 48
Trigger timing diagram................................................................................................... 49
Notes on triggering ................................................................................................... 49
Firmware update.................................................................................................51
Resolution and ROI frame rates ................................................................52
Prosilica GE680............................................................................................................. 52
Prosilica GE1050 ........................................................................................................... 53
Prosilica GE1650 ........................................................................................................... 53
Prosilica GE1660 ........................................................................................................... 54
Prosilica GE1900 ........................................................................................................... 54
Prosilica GE1910 ........................................................................................................... 55
Prosilica GE2040 ........................................................................................................... 55
Prosilica GE4000 ........................................................................................................... 56
Prosilica GE4900 ........................................................................................................... 56
Prosilica GE model comparison ........................................................................................ 57
Description of the data path........................................................................58
Prosilica GE: monochrome cameras ................................................................................... 58
Prosilica GE: color cameras.............................................................................................. 58
Additional references ......................................................................................59
Index...........................................................................................................................60

Prosilica GE Technical Manual V2.0.4
5
Contacting Allied Vision Technologies
Contacting Allied Vision Technologies
Info

•Technical information:
http://www.alliedvisiontec.com
•Support:
[e-mail]
Allied Vision Technologies GmbH (Headquarters)
Taschenweg 2a
07646 Stadtroda, Germany
Tel: [phone]
Fax: [phone]
e-mail: [e-mail]
Allied Vision Technologies Canada Inc.
101-3750 North Fraser Way
Burnaby, BC, V5J 5E9, Canada
Tel: [phone]
Fax: [phone]
e-mail: [e-mail]
Allied Vision Technologies Inc.
38 Washington Street
Newburyport, MA 01950, USA
Toll Free number +1 877-USA-1394
Tel: [phone]
Fax: [phone]
e-mail: [e-mail]
Allied Vision Technologies Asia Pte. Ltd.
82 Playfair Road
#07-02 D’Lithium, Singapore 368001
Tel: [phone]
Fax: [phone]
e-mail: [e-mail]
Allied Vision Technologies (Shanghai) Co. Ltd.
2-2109 Hongwell International Plaza
1602# ZhongShanXi Road, Shanghai 200235, China
Tel: [phone]
Fax: [phone]
e-mail: [e-mail]

Prosilica GE Technical Manual V2.0.4
6
Introduction
Introduction
This AVT Prosilica GE Technical Manual describes in depth the technical speci-
fications of the Prosilica GE camera family including dimensions, feature over-
view, I/O definition, trigger timing waveforms, and frame rate performance.
For information on software installation read the AVT GigE Installation Man-
ual. For detailed information on camera features and controls specific to the
Prosilica GE refer to the AVT GigE Camera and Driver Features and AVT GigE
Camera and Driver Attributes documents.
Document history
www

AVT Prosilica GE literature:
http://www.alliedvisiontec.com/us/support/downloads/
product-literature/prosilica-ge.html
Version Date Remarks
V2.0.0 2011-Jul-14 New Manual - SERIAL status
V2.0.1 2013-Jul-05 • Renamed Camera IO signals
•ReworkedCleaning optics section
• Reworked the spectral plots and Frame rate vs.Height graphs
• Updated the RoHS directive
• Updated the exposure control values in the Specifications chapter
•AddedStatus LEDs section
• Updated the pixel format naming according to the GenICam naming con-
vention
• Added frame rate formulas in the Resolution and ROI frame rates chapter
• Added VIMBA SDK link in Additional references section
• Updated AVT recommended cabling to category 6 or higher in the Gigabit
Ethernet port section
• Added contact information for Allied Vision Technologies (Shanghai) Co.
Ltd.
• Updated the links to AVT GigE Installation Manual
•AddedlinkstoAVT GigE Camera and Driver Features document
to be continued on next page
Table 1: Document history

Prosilica GE Technical Manual V2.0.4
7
Introduction
Conventions used in this manual
To give this manual an easily understandable layout and to emphasize import-
ant information, the following typographical styles and symbols are used:
Styles
continued from last page
V2.0.2 2013-Oct-02 • Added optical flange focal distance and maximum lens protrusion informa-
tion on page 37
• Added a note on locking screw cables on page 41
• Updated Cleaning optics section
• Updated vertical binning values in the Specifications chapter
• Updated Table 12 on page 31
• Updated links for AVT PvAPI SDK
V2.0.3 2013-Nov-26 • Added chapter Description of the data path on page 58
• Updated the Index
V2.0.4 2014-Oct-15 • Replaced the optical flange focal distance section with the following sec-
tions:
– C-Mount flange focal distance
– F-Mount flange focal distance
• Added description of power barrel connector on page 43
• Updated datapath diagram for Prosilica GE: color cameras
•AddedProsilica GE C-Mount (adjustable): GE680/680C
• Updated Prosilica GE tripod mount mechanical drawing
• Truesense references renamed to OnSemi
Style Function Example
Bold Programs, inputs, or
highlighting important
information
bold
Courier Code listings etc. Input
Upper case Register REGISTER
Italics Modes, fields Mode
Parentheses and/or blue Links (Link)
Table 2: Styles
Version Date Remarks
Table 1: Document history

Prosilica GE Technical Manual V2.0.4
8
Introduction
Symbols
Precautions
Note

This symbol highlights important information.
Caution

This symbol highlights important instructions. You have to fol-
low these instructions to avoid malfunctions.
www

This symbol highlights URLs for further information. The URL
itself is shown in blue.
Example:
http://www.alliedvisiontec.com
Caution

Do not disassemble the camera housing. Warranty is void if
camera has been disassembled.
This camera contains sensitive internal components.
Caution

Keep shipping material.
Poor packaging of the product may cause damage during ship-
ping.
Caution

Verify all external connections.
Verify all external connections in terms of voltage levels,
power requirements, voltage polarity, and signal integrity
prior to powering the device.
Caution

Cleaning.
This product can be damaged by some volatile cleaning agents.
Avoid cleaning the image sensor unless absolutely necessary.
Please see instructions on optics cleaning in this document.

Prosilica GE Technical Manual V2.0.4
9
Introduction
Cleaning optics
Identifying debris
Debris on the image sensor or optical components appears as a darkened area
or smudge on a camera image. Do not confuse this with a pixel defect which
appears as a distinct point.
Locating debris
First determine whether the debris is on the sensor glass, IR filter (if used), or
lens. The farther away the debris is from the sensor, the blurrier the debris
appears on a camera image.
Stream a live image from the camera using a uniform target, such as a piece of
paper. To determine if the debris is on the camera lens, rotate the lens indepen-
dent of the camera. If the spot moves, the debris is on the lens. Otherwise, the
debris is on the IR filter (if used) or sensor glass.
Color cameras with IR filter
Prosilica GE color cameras are equipped with an IR filter. With no lens or lens
cap on a camera, the IR filter is exposed and debris can accumulate on it. This is
the most probable location for debris. It should not be necessary to remove the
IR filter for cleaning. Clean the outside of the IR filter glass using the tech-
niques explained in the next section.
Caution

Do not exceed environmental specifications.
See environmental specifications limits in the Specifications
chapter of this document. Special care must be taken to main-
tain a reasonable operating temperature. If the camera is oper-
ated in temperatures higher than the specified range, the
camera should be mounted on a heat sink.
Caution

AVT does not warranty against any physical damage to the sen-
sor/filter/protection glass or lenses. Use utmost care when
cleaning optical components.
Caution

Do not touch any optics with fingers. Oil from fingers can
damage fragile optical coatings.

Prosilica GE Technical Manual V2.0.4
10
Introduction
If it is determined that the debris is on the inside surface of the filter glass, or
on the sensor glass, IR filter removal is necessary. Depending on the manufac-
turing date of your Prosilica GE camera, the IR filter may be slot type, or pinhole
type. Slot type filters can be removed using a small flat head screw driver. Pin-
hole type filters require a pin spanner wrench for removal.
Cleaning with air
Blow directly on the contaminated surface with moderate pressure, clean com-
pressed air.
View a live image with the camera after blowing. If debris is still present, repeat
the process until it is determined that the particulate cannot be dislodged. If
this is the case, proceed to the contact cleaning technique.
Contact cleaning
Only use this method if the above air cleaning method does not sufficiently
clean the surface. Use 99% pure isopropyl alcohol and clean cotton swabs. Wet
the swab in the alcohol. Quickly wipe the optics in a single stroke. Prolonged
exposure of alcohol on the swab can cause the swab glue to loosen and transfer
to the optic glass. Do not reuse the same swab. Repeat this process until the
debris is removed. If this process fails to remove the debris, contact AVT.
Note

A pin spanner wrench suitable for IR filter removal is available
for purchase from AVT.
AVT P/N: E9020001
Caution

Do not exceed 6 bar (90 psi). If using canned air, approxi-
mately ~ 4.8 bar (70 psi) when full, do not shake or tilt the
can, as extreme changes in temperature due to sudden cold
air can crack the optic glass.

Prosilica GE Technical Manual V2.0.4
11
Conformity
Conformity
Allied Vision Technologies declares under its sole responsibility that all stan-
dard cameras of the AVT Prosilica GE family to which this declaration relates
are in conformity with the following standard(s) or other normative docu-
ment(s):
• CE, following the provisions of 2004/108/EG directive
• FCC Part 15 Class A
• RoHS (2011/65/EU)
We declare, under our sole responsibility, that the previously described AVT
Prosilica GE cameras conform to the directives of the CE.
Note: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential environment. This equipment generates radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. Any modifications not expressly
approved in this manual may void your authority to operate this equipment.

Prosilica GE Technical Manual V2.0.4
12
Specifications
Specifications
Prosilica GE680/680C
Feature Specification
Resolution 640 x 480
Sensor OnSemi KAI-0340
Type CCD Progressive
Sensor size Type 1/3
Cell size 7.4 μm
Lens mount C (adjustable)
Max frame rate at full resolution 205 fps
A/D 12 bit
On-board FIFO 32 MB
Bit depth 8/12
Mono formats GE680: Mono8, Mono12, Mono12Packed
GE680C: Mono8
Color formats BayerGR8, BayerGR12, BayerGR12Packed, RGB8Packed, BGR8Packed,
RGBA8Packed, BGRA8Packed, RGB12Packed, YUV411Packed
Exposure control 25 μs to 53.7 s; 1 μs increments
Gain control 0 to 34 dB
Horizontal binning 1 to 8 columns
Vertical binning 1 to full resolution
TTL I/Os 1 input, 3 output
RS-232 1
Voltage requirements 5–16 VDC: Cameras SN: 02-XXXXA-XXXXX, 02-XXXXB-XXXXX
5–25 VDC: Cameras SN: 02-XXXXC-XXXXX
Power consumption Typical < 4.5 W (@ 12 VDC); (full resolution and maximal frame rates)
Mass 169 g (without lens)
Body dimensions (L x W x H) 80 x 51 x 39 mm (including connectors, w/o tripod and lens)
Operating temperature 0 to +50 °C ambient temperature (without condensation)
Storage temperature -10 to +70 °C ambient temperature (without condensation)
Trigger latency 1.2 μs
Trigger jitter ±10 ns
tpd 90 ns
Operating humidity 20 to 80% non-condensing
Hardware interface standard IEEE 802.3 1000BASE-T, 100BASE-TX
Software interface standard GigE Vision Standard 1.2
Regulatory CE, FCC Class A, RoHS (2011/65/EU)
Table 3: Prosilica GE680/680C camera specifications

Prosilica GE Technical Manual V2.0.4
13
Specifications

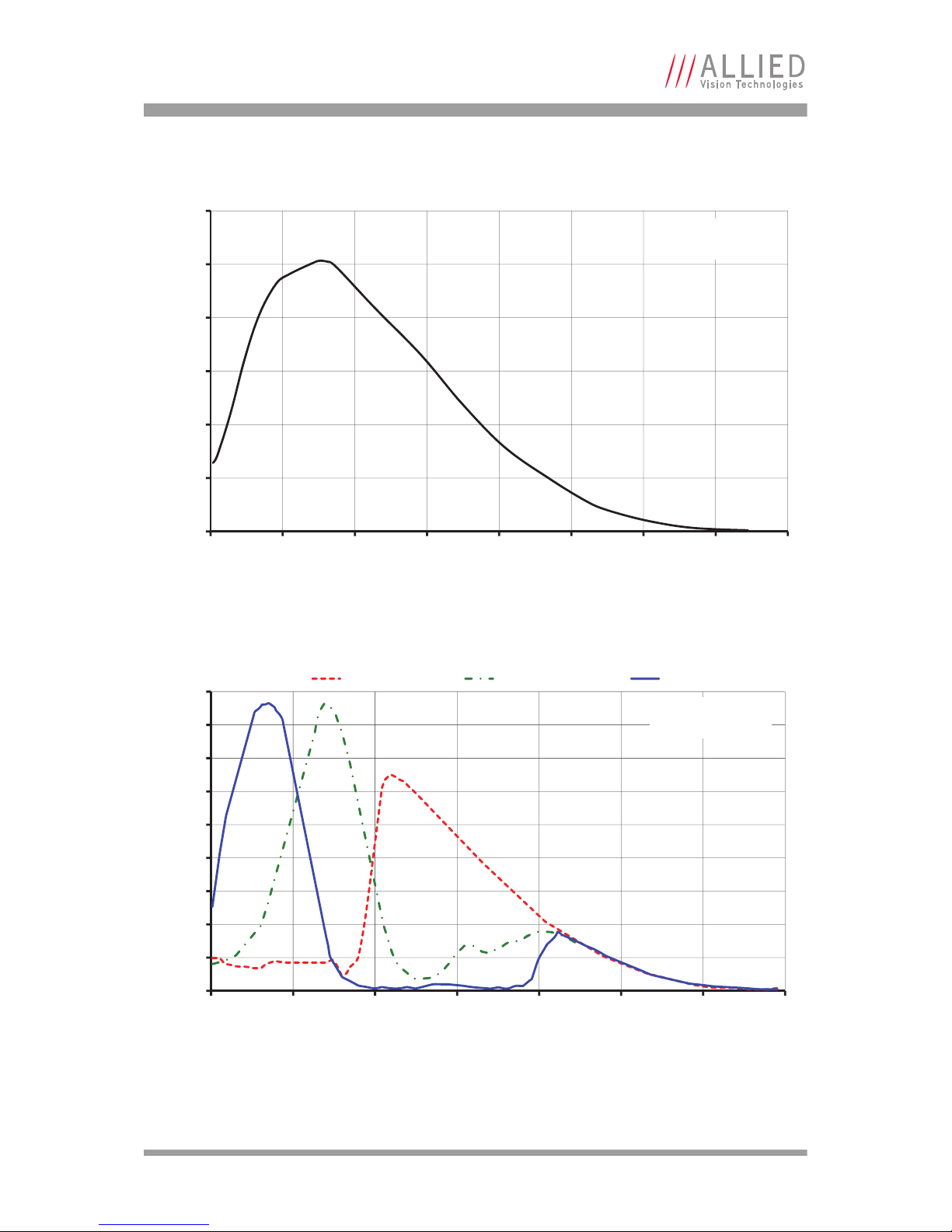

Figure 1: Prosilica GE680 monochrome spectral response
Figure 2: Prosilica GE680C color spectral response (without IR cut filter)
0%
10%
20%
30%
40%
50%
60%
300 400 500 600 700 800 900 1000 1100
Quantum Efficiency
Wavelength [nm]
Measured with
clear cover glass
0%
5%
10%
15%
20%
25%
30%
35%
40%
45%
300 400 500 600 700 800 900 1000 1100
Quantum Efficiency
Wavelength [nm]
Measured with
clear cover glass
Red Green Blue

Prosilica GE Technical Manual V2.0.4
14
Specifications
Prosilica GE1050/1050C
Feature Specification
Resolution 1024 x 1024
Sensor OnSemi KAI-01050
Type CCD Progressive
Sensor size Type 1/2
Cell size 5.5 μm
Lens mount C (adjustable)
Max frame rate at full resolution 59 fps
A/D 12 bit
On-board FIFO 32 MB
Bit depth 8/12
Mono formats GE1050: Mono8, Mono12, Mono12Packed
GE1050C: Mono8
Color formats BayerGR8, BayerGR12, BayerGR12Packed, RGB8Packed, BGR8Packed,
RGBA8Packed, BGRA8Packed, RGB12Packed, YUV411Packed
Exposure control 10 μs to 53.7 s; 1 μs increments
Gain control 0 to 34 dB
Horizontal binning 1 to 8 columns
Vertical binning 1 to full resolution
TTL I/Os 1 input, 3 output
RS-232 1
Voltage requirements 5–16 VDC: Cameras SN: 02-XXXXA-XXXXX, 02-XXXXB-XXXXX
5–25 VDC: Cameras SN: 02-XXXXC-XXXXX
Power consumption Typical < 5 W (@ 12 VDC); (full resolution and maximal frame rates)
Mass 178 g (without lens)
Body dimensions (L x W x H) 80 x 51 x 39 mm (including connectors, w/o tripod and lens)
Operating temperature 0 to +50 °C ambient temperature (without condensation)
Storage temperature -10 to +70 °C ambient temperature (without condensation)
Trigger latency 5 μs
Trigger jitter ±10 ns
tpd 90 ns
Operating humidity 20 to 80% non-condensing
Hardware interface standard IEEE 802.3 1000BASE-T, 100BASE-TX
Software interface standard GigE Vision Standard 1.2
Regulatory CE, FCC Class A, RoHS (2011/65/EU)
Table 4: Prosilica GE1050/1050C camera specifications

Prosilica GE Technical Manual V2.0.4
15
Specifications
Figure 3: Prosilica GE1050 monochrome spectral response
Figure 4: Prosilica GE1050C color spectral response (without IR cut filter)
0%
10%
20%
30%
40%
50%
60%
350 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100
Quantum Efficiency
Wavelength [nm]
Measured with AR
coated cover glass
0%
5%
10%
15%
20%
25%
30%
35%
40%
45%
400 500 600 700 800 900 1000 1100
Quantum Efficiency
Wavelength [nm]
Measured with AR
coated cover glass
Red Green Blue

Prosilica GE Technical Manual V2.0.4
16
Specifications
Prosilica GE1650/1650C
Feature Specification
Resolution 1600 x 1200
Sensor OnSemi KAI-2020
Type CCD Progressive
Sensor size 1 inch
Cell size 7.4 μm
Lens mount C (adjustable)
Max frame rate at full resolution 32 fps
A/D 12 bit
On-board FIFO 32 MB
Bit depth 8/12
Mono formats GE1650: Mono8, Mono12, Mono12Packed
GE1650C: Mono8
Color formats BayerGR8, BayerGR12, BayerGR12Packed, RGB8Packed, BGR8Packed,
RGBA8Packed, BGRA8Packed, RGB12Packed, YUV411Packed
Exposure control 50 μs to 53.7 s; 1 μs increments
Gain control 0 to 34 dB
Horizontal binning 1 to 8 columns
Vertical binning 1 to full resolution
TTL I/Os 1 input, 3 output
RS-232 1
Voltage requirements 5–16 VDC: Cameras SN: 02-XXXXA-XXXXX, 02-XXXXB-XXXXX
5–25 VDC: Cameras SN: 02-XXXXC-XXXXX
Power consumption Typical < 5 W (@ 12 VDC); (full resolution and maximal frame rates)
Mass 169 g (without lens)
Body dimensions (L x W x H) 80 x 51 x 39 mm (including connectors, w/o tripod and lens)
Operating temperature 0 to +50 °C ambient temperature (without condensation)
Storage temperature -10 to +70 °C ambient temperature (without condensation)
Trigger latency 5 μs
Trigger jitter ±10 ns
tpd 90 ns
Operating humidity 20 to 80% non-condensing
Hardware interface standard IEEE 802.3 1000BASE-T, 100BASE-TX
Software interface standard GigE Vision Standard 1.2
Regulatory CE, FCC Class A, RoHS (2011/65/EU)
Table 5: Prosilica GE1650/1650C camera specifications

Prosilica GE Technical Manual V2.0.4
17
Specifications
Figure 5: Prosilica GE1650 monochrome spectral response
Figure 6: Prosilica GE1650C color spectral response (without IR cut filter)
0%
10%
20%
30%
40%
50%
60%
250 400 550 700 850 1000 1150
Quantum Efficiency
Wavelength [nm]
0%
5%
10%
15%
20%
25%
30%
35%
40%
45%
400 450 500 550 600 650 700 750 800 850 900 950 1000
Quantum Efficiency
Wavelength [nm]
Red Green Blue

Prosilica GE Technical Manual V2.0.4
18
Specifications
Prosilica GE1660/1660C
Feature Specification
Resolution 1600 x 1200
Sensor OnSemi KAI-2050
Type CCD Progressive
Sensor size 2/3 inch
Cell size 5.5 μm
Lens mount C (adjustable)
Max frame rate at full resolution 34.6 fps
A/D 12 bit
On-board FIFO 32 MB
Bit depth 8/12
Mono formats GE1660: Mono8, Mono12, Mono12Packed
GE1660C: Mono8
Color formats BayerGR8, BayerGR12, BayerGR12Packed, RGB8Packed, BGR8Packed,
RGBA8Packed, BGRA8Packed, RGB12Packed, YUV411Packed
Exposure control 10 μs to 53.7 s; 1 μs increments
Gain control 0 to 34 dB
Horizontal binning 1 to 8 columns
Vertical binning 1 to full resolution
TTL I/Os 1 input, 3 output
RS-232 1
Voltage requirements 5–16 VDC: Cameras SN: 02-XXXXA-XXXXX, 02-XXXXB-XXXXX
5–25 VDC: Cameras SN: 02-XXXXC-XXXXX
Power consumption Typical < 5 W (@ 12 VDC); (full resolution and maximal frame rates)
Mass 178 g (without lens)
Body dimensions (L x W x H) 80 x 51 x 39 mm (including connectors, w/o tripod and lens)
Operating temperature 0 to +50 °C ambient temperature (without condensation)
Storage temperature -10 to +70 °C ambient temperature (without condensation)
Trigger latency 5 μs
Trigger jitter ±10 ns
tpd 90 ns
Operating humidity 20 to 80% non-condensing
Hardware interface standard IEEE 802.3 1000BASE-T, 100BASE-TX
Software interface standard GigE Vision Standard 1.2
Regulatory CE, FCC Class A, RoHS (2011/65/EU)
Table 6: Prosilica GE1660/1660C camera specifications

Prosilica GE Technical Manual V2.0.4
19
Specifications
Figure 7: Prosilica GE1660 monochrome spectral response
Figure 8: Prosilica GE1660C color spectral response (without IR cut filter)
0%
10%
20%
30%
40%
50%
60%
350 450 550 650 750 850 950 1050 1150
Quantum Efficiency
Wavelength [nm]
Measured with AR
coated cover glass
0%
5%
10%
15%
20%
25%
30%
35%
40%
45%
400 500 600 700 800 900 1000 1100
Quantum Efficiency
Wavelength [nm]
Measured with AR
coated cover glass
Red Green Blue

Prosilica GE Technical Manual V2.0.4
20
Specifications
Prosilica GE1900/1900C
Feature Specification
Resolution 1920 x 1080
Sensor OnSemi KAI-2093
Type CCD Progressive
Sensor size 1 inch
Cell size 7.4 μm
Lens mount C (adjustable)
Max frame rate at full resolution 30 fps
A/D 12 bit
On-board FIFO 32 MB
Bit depth 8/12
Mono formats GE1900: Mono8, Mono12, Mono12Packed
GE1900C: Mono8
Color formats BayerGR8, BayerGR12, BayerGR12Packed, RGB8Packed, BGR8Packed,
RGBA8Packed, BGRA8Packed, RGB12Packed, YUV411Packed
Exposure control 50 μs to 53.7 s; 1 μs increments
Gain control 0 to 34 dB
Horizontal binning 1 to 8 columns
Vertical binning 1 to full resolution
TTL I/Os 1 input, 3 output
RS-232 1
Voltage requirements 5–16 VDC: Cameras SN: 02-XXXXA-XXXXX, 02-XXXXB-XXXXX
5–25 VDC: Cameras SN: 02-XXXXC-XXXXX
Power consumption Typical < 5 W (@ 12 VDC); (full resolution and maximal frame rates)
Mass 169 g (without lens)
Body dimensions (L x W x H) 80 x 51 x 39 mm (including connectors, w/o tripod and lens)
Operating temperature 0 to +50 °C ambient temperature (without condensation)
Storage temperature -10 to +70 °C ambient temperature (without condensation)
Trigger latency 5 μs
Trigger jitter ±10 ns
tpd 90 ns
Operating humidity 20 to 80% non-condensing
Hardware interface standard IEEE 802.3 1000BASE-T, 100BASE-TX
Software interface standard GigE Vision Standard 1.2
Regulatory CE, FCC Class A, RoHS (2011/65/EU)
Table 7: Prosilica GE1900/1900C camera specifications
