Introduction
1. Introduction
Features
The M4856-P battery pack has the following features:
Photovoltaic system: This battery pack is designed for household photovoltaic systems.
Battery management system (BMS): The battery packs built-in BMS monitors its operation
and prevents the battery from operating outside design limitations.
Expandability: This battery pack can be easily expanded by adding expansion battery packs.
Specifications
Figure 1 M4856-P Appearance
1: LED Display
2: Switch Button
Safety Introduction
Manual keeping
This manual contains important information about operating the system. Before operating,
please read it very carefully.
The system should be operated in strict accordance with the description in the manual, in
case that it causes damages or loss to equipment, personnel and property.
This manual should be kept carefully for maintenance and reparation.
Operator Requirements
The operators should get a professional qualification, or trained.
The operators should be familiar with the whole storage system, including compositions
and working principles of the system.
The operators should be familiar with the Product Instruction.
1
2

______________________________________________________________________
Alpha ESS Co., Ltd.
Page 6 of 29
Your Smart Energy
Introduction
While maintaining, the maintainer is not allowed to operate any equipment until all the
equipment has been turned off and fully discharged.
Protection of Warning Sign
The warning sign contains important information for the system to operate safely, and it is
strictly prohibited to be torn or damaged. Ensure that the warning sign is always clear. The
signs should be replaced immediately when damaged.
It indicates a hazardous situation which, if not avoided, could result in death or serious
injury!
Danger of high voltage and electric shock!
Do not punctur, impact, mutilate this unit or put it into the fire. It can lead explosion.
Please wash your hands after using the battery.
Warning: hazards due to batteries.
The installation and maintenance work should be handled with professional person/s,
who is/are knowlegeable about batteries.
Installation and maintenance reference to this installation and maintenance manual.
Do not expose to sparks or flame
Keep out of reach of children

______________________________________________________________________
Alpha ESS Co., Ltd. Page 7 of 29
Your Smart Energy
Introduction
The product must not be disposed of in household waste;
Dispose of it through environmentally friendly collection centres.
Setting of Warning Sign for Safety
While instructing, maintaining and repairing, in case of preventing unrelated personnel
nearby to cause incorrect operation or accident, the opinions below should be followed:
Obvious signs should be set at front switch and rear-level switch in case of accidents
caused by false switching.
Warning signs or tapes should be set near operating areas.
The system must be reinstalled after maintenance or operation.
Measuring Equipment
For ensuring the electrical parameters to match requirements, related measuring
equipment are required when the system is being connected or tested.
Ensure that the connection and use matches specification in case of electric arc or shock.
Moisture Protection
It is very likely that moisture may cause damages to the system.
Repair or maintaining activities in wet weather should be avoided or limited.
Operation After Power Failure
The battery system belongs to energystorage system, and it keeps fatal high voltage even
the DC side is disconnected. Therefore, touching the output of the battery is strictly
prohibited.
The Inverter maintains fatal voltage even both the DC or AC side are disconnected, so it
must be tested by multimeter for safety before operation.
Battery Safety Datasheet
1.3.8.1 Hazard Information
Classification of the hazardous chemical
Lithium Iron Battery is Exempt from classification according toAustralian WHS regulations.

______________________________________________________________________
Alpha ESS Co., Ltd.
Page 8 of 29
Your Smart Energy
Introduction
Other hazards
This product is a Lithium Iron Phosphate Battery with certified compliance under the UN
Recommendations on Transport of Dangerous Goods, Manual of Tests and Criteria, Part
III, sub-section 38.3. For the battery cell, chemical materials are stored in a hermetically
sealed metalcase, designed to withstand temperatures and pressuresencountered during
normal use. As a result, during normal use, there is no physical danger of ignition or
explosion and chemical danger of hazardous materials' leakage. However, if exposed to a
fire, added mechanical shocks, decomposed, added electric stress by misuse, the gas
release vent will be operated. The battery cell case will be breached at the extreme.
Hazardous materials may be released. Moreover, if heated strongly by the surrounding fire,
acrid or harmful fume may be emitted.
1.3.8.2 Safety Datasheet
The detailed information please refer to the provided battery safety datasheet, which is
provided with the battery product.
General Precautions
WARNING
Risk of chemical burns from electrolyte or toxic gases.
During standard operation, no electrolyte shall leak from the battery pack and no toxic gases shall
form. Despite careful construction, if the Battery Pack is damaged or a fault occurs, it is possible that
electrolyte may be leaked or toxic gases formed.
Do not install the system in any environment of temperature below -10°C or over 50°C and
in which humidity is over 85%.
Do not touch the system with wet hands.
Do not put any heavy objects on top of the system.
Do not damage the system with sharp objects.
Do not install or operate the system in potentially explosive atmospheres or areas of high
humidity.
Do not mount the inverter and the battery pack in areas containing highly flammable
materials or gases.
If moisture has penetrated the system (e.g. due to a damaged enclosure), do not install or
operate the system.
Do not move the system when it is already connected with battery modules.

______________________________________________________________________
Alpha ESS Co., Ltd. Page 9 of 29
Your Smart Energy
Introduction
Secure the system to prevent tipping with restraining straps in your vehicle.
The transportation of AlphaESS M4856-P must be made by the manufacturer or an
instructed personal. These instructions shall be recorded and repeated.
A certified ABC fire extinguisher with minimum capacity of 2kg must be carried along when
transporting.
It is totally prohibited to smoke in the vehicle as well as close to the vehicle when loading
and unloading.
For the exchange of a battery module, please request for new hazardous goods packaging
if needed, pack it and let it be picked up by the suppliers.
In case of contact with electrolyte, rinse the affected areas immediately with water and
consult a doctor without delay.
CAUTION:
Risk of injury through lifting or dropping the system.
The battery is heavy. There is risk of injury if the battery is lifted incorrectly or dropped during transport
or when attaching to or removing from the wall.
Lifting and transporting the inverter and battery must be carried out by more than 1 people.

______________________________________________________________________
Alpha ESS Co., Ltd.
Page 10 of 29
Your Smart Energy
Introduction
Parts List
Liability Limitation
Any product damage or property loss caused by the following conditions AlphaESS does
not assume any direct or indirect liability.
Product modified, design changed or parts replaced without AlphaESS
authorization;
Changes, or attempted repairs and erasing of series number or seals by non
AlphaESS technician;
System design and installation are not in compliance with standards and
regulations;
Failure to comply with the local safety regulations (VDE for DE, SAAfor AU);
Transport damage (including painting scratch caused by rubbing inside
packaging during shipping). A claim should be made directly to shipping or
insurance company in this case as soon as the container/packaging is unloaded
and such damage is identified;
Failure to follow any/all of the user manual, the installation guide and the
maintenance regulations;
Improper use or misuse of the device;
Insufficient ventilation of the device;
The maintenance procedures relating to the product have not been followed to
an acceptable standard;
Force majeure (violent or stormy weather, lightning, overvoltage, fire etc.);
Damages caused by any external factors.

______________________________________________________________________
Alpha ESS Co., Ltd. Page 11 of 29
Your Smart Energy
Installation
2. Installation
This Manual introduces the basic steps how to install and operateAlphaESS M4856-P.
M4856-P is a sealed component with no access to battery terminals or cell components
within module.
M4856-P contains a Bi-pole DC isolator, which conforms to IEC 60947. It has been
operated in all live conductors
NOTE: please pay attention for unpacking the battery, the worst case
is that some components could be damaged.
Installation Site and Environment
General
The externals enclosure’s material is SPCC. The material thickness is 1.0 mm.
The M4856-P has two versions, one is indoor, and another is outdoor. This M4856-P
(indoor version) can only be installed in an indoor location. ThisM4856-P (outdoor version)
can be installed in an outdoor or an indoor location.
Where battery systems are installed within a room, shall be located so that access to the
batteryisnotobstructed bythe structureof the building,fixturesandfittingswithinthe room.
M4856-P adopts natural ventilation. The location should be clean, dry and adequately
ventilated. The room’s entry doors and panels shall open in the direction of egress and
allow unobstructed access to the battery for installation and maintenance purposes.
The following location are not allowed for installation:
habitable rooms;
in ceiling spaces;
wall cavities;
on roofs not specifically deemed suitable;
areas of access/egress;
under stairways;
under access walkways;
sites where the freezing point is reached, like garages, carports or other places;
sites with humidity and condensation over 85%;
sites which are salty and where humid air can penetrate;
earthquake areas –additional security measures are required here;
sites that are higher than 3000 meters above the sea level;
sites with explosive atmosphere;

______________________________________________________________________
Alpha ESS Co., Ltd.
Page 12 of 29
Your Smart Energy
Installation
sites with direct sunlight;
sites with extreme change of ambient temperature;
wet rooms;
sites with highly flammable materials or gases; or
sites with a potentially explosive atmosphere;
Restricted Locations
The battery system shall not be installed —
(a) in restricted locations, as defined for switchboards in AS/NZS 3000;
(b) within 600 mm of any hot source, such as water unit, gas heater, air conditioning unit
or any other appliance.
(c) within 600 mm of any exit;
(d) within 600 mm of any window or ventilation opening;
(e) within 900 mm of access to 240 Vac connections; and
(f) within 600 mm of side of other equipment.
A M4856-P installed in any corridor, hallway, lobby or the like leading to a fire exit shall
ensure sufficient clearance from the M4856-P for safe egress and no less than 1 m.
A M4856-P is considered a source of ignition and therefore shall not be installed within
hazardous area for gas cylinders containing heavier than air gasses and gas relief vent
terminal as defined in AS/NZS 3000.
Barrier to habitable rooms
To protect against the spread of fire to habitable rooms, where the M4856-P is mounted
on, placed against a surface of a wall or structure that has a habitable room on the other
side, the wall or structure shall be a suitably non-combustible barrier. If the mounting
surface itself is not madeof a suitably non-combustible material, a non-combustible barrier
may be placed between the M4856-P and the surface of a wall or structure.
Where the M4856-P is located on or within 300mm of the wall or structure separating it
from the habitable room, the barrier shall extend —
(i) 600 mm beyond the vertical sides of the M4856-P;
(ii) 1200 mm above the M4856-P; and
(iii) to the extent of the bottom of the M4856-P.

______________________________________________________________________
Alpha ESS Co., Ltd. Page 13 of 29
Your Smart Energy
Installation
Where the top of the M4856-P is within 1200 mm of the ceiling or structure above the
M4856-P, the ceiling or structure surface shall be suitably non-combustible for an area of
600 mm past the extremities of the M4856-P.
M4856-P shall be mounted with the highest point no greater than 2.2 m above the floor or
platform.
Installation
Step 1: open the battery package.
Note: The box must be placed in the direction of the label and only remove the
packaging in upwards direction. Removing the packaging in other directions is wrong.
Step 2: Pull off the buckle located in the middle of the bottom.
Pull the top two guide rods to remove the front panel.

______________________________________________________________________
Alpha ESS Co., Ltd.
Page 14 of 29
Your Smart Energy
Installation
Step 3: Use a screwdriver to assemble the
battery mounting brackets onto the battery
back panel.

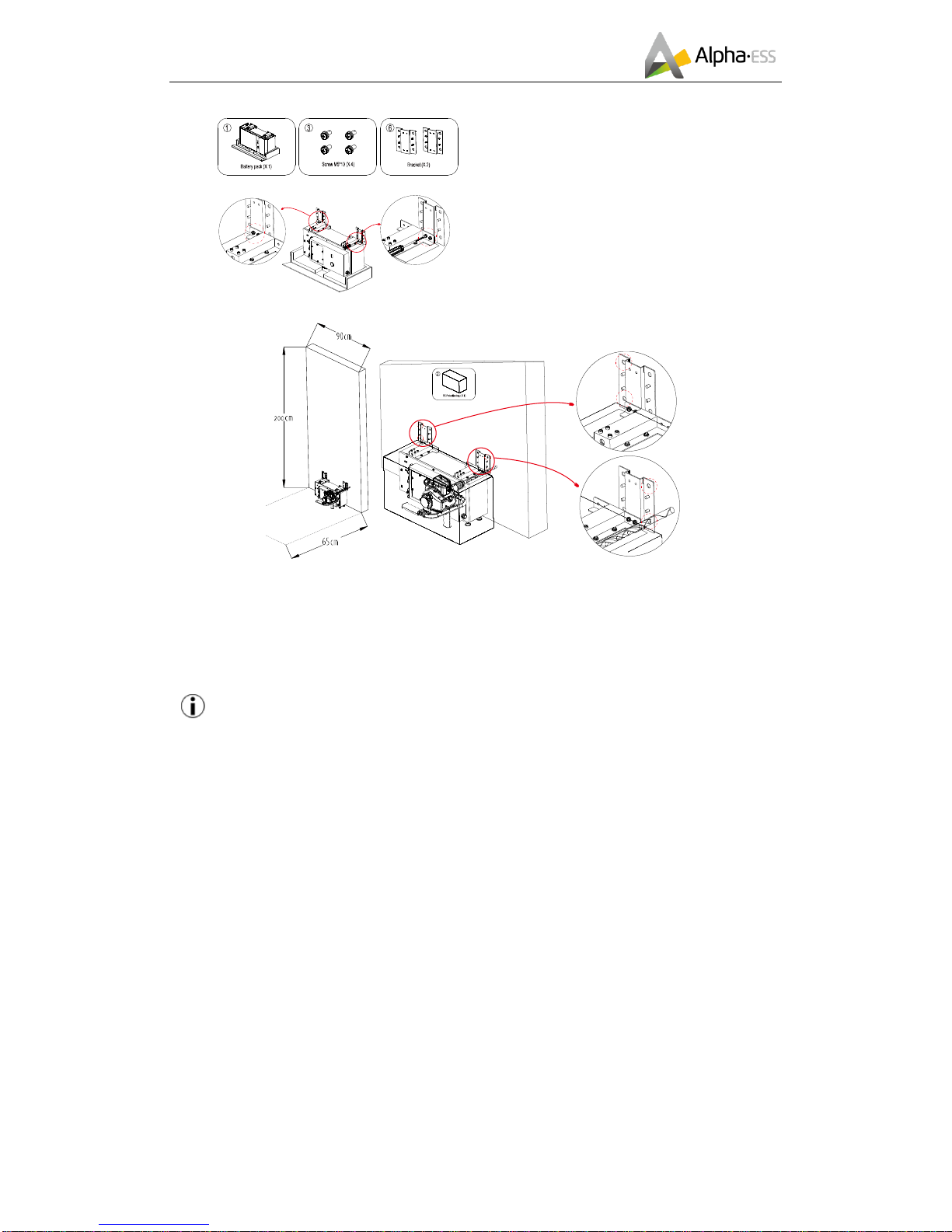

Step 4: Push the battery firmly against the wall and use a level to confirm the position of the
battery. Please drill four holes (two on each side) directly on the wall at the marking positions
of the brackets with an impact drill (bit φ 8.0mm, length 20cm) and the depth of each hole should
be about 7 cm.
Note: 1: Check installation space.
2: Pack the PE bag on the battery to block out the dust before drilling.

______________________________________________________________________
Alpha ESS Co., Ltd. Page 15 of 29
Your Smart Energy
Installation
Step 5: Insert the expansion tube into the drilled hole. Pass the expansion screw through the
gasket and lock with a screwdriver. M4856-P is stackable with maximum of 4 batteries in
one row.
Step 6.1: Battery power cable connection sequence:
Go through the waterproof cap→go through the sealing ring→go through the joint, fixed to
the copper bar with M5 nut inside of the battery.
Step 6.2:Battery
communication cable
connection sequence:
The RJ45 connector of the
communication cables shall go
through the waterproof cap → go
through the sealing ring→go
through the joint and be inserted in
to the COM port inside of the
battery.
1. The waterproof connector is rotated counterclockwise
according to the installation procedure to remove the plug.
2. Use a screwdriver to remove the maintenance cover
before wiring.
3. All air switches are set to disconnect at the factory.
Please check before wiring.
4. The waterproof joint seal should be confirmed whether
it is inserted into the plastic claw ring during installation.

______________________________________________________________________
Alpha ESS Co., Ltd.
Page 16 of 29
Your Smart Energy
Installation
Step 7: Please connect the positive poles one battery to another with red power cables as the
above figure shows.

______________________________________________________________________
Alpha ESS Co., Ltd. Page 17 of 29
Your Smart Energy
Installation

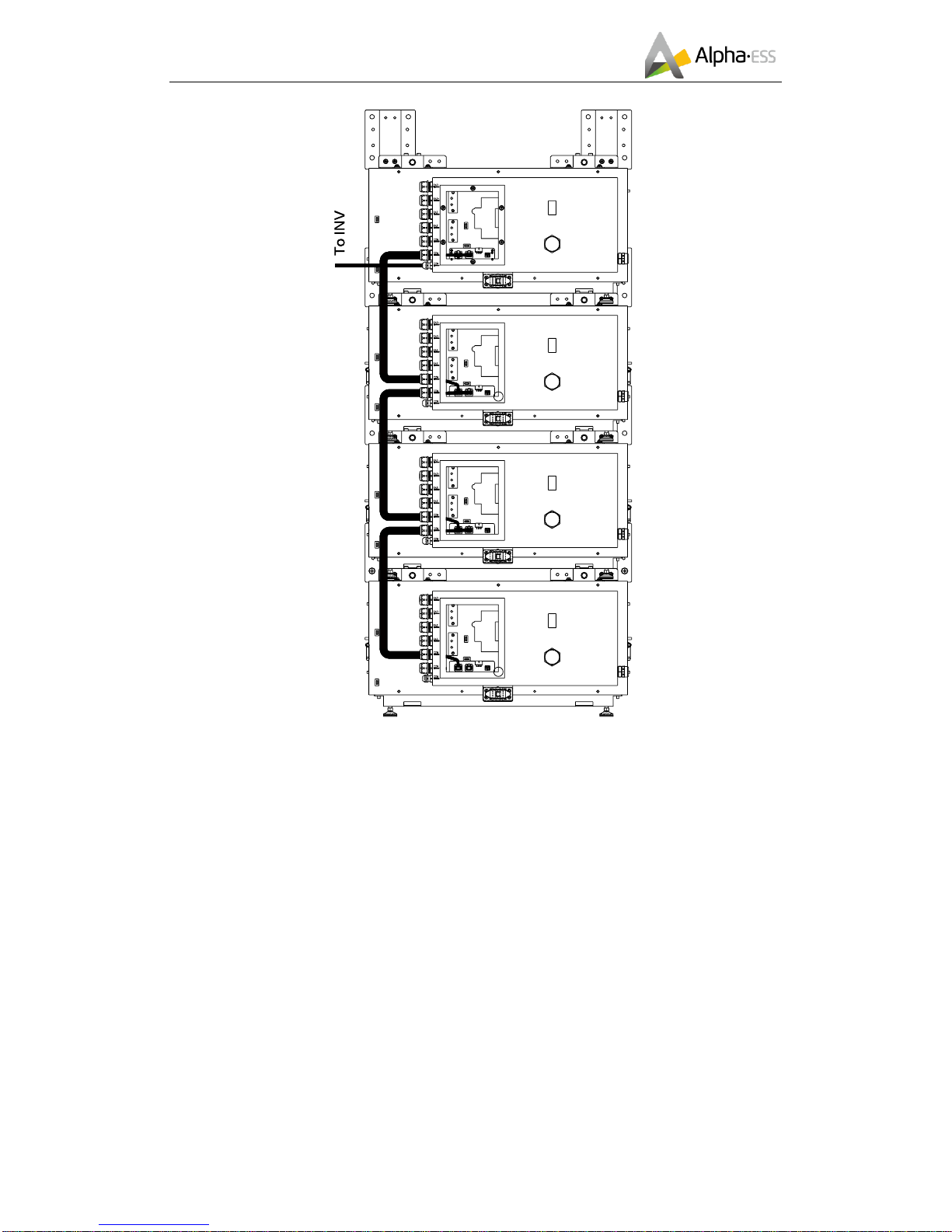

Step 8: Please connect the negative poles one battery to another with black power cables as
the above figure shows.

______________________________________________________________________
Alpha ESS Co., Ltd.
Page 18 of 29
Your Smart Energy
Installation
Step 9: Please connect the communication ports one battery to another with the communication
cables as the above figure shows.
Table of contents
Other Alpha ESS Camera Accessories manuals
