Alpine KTX-H100 User manual

IMPRINT SOUND MANAGER KIT FOR PXA-H100
KTX-H100
I/\UDYSSEY]
MULTEQ XT
I
I
I
I
I
I
I
•
II
•
ALPINE ITALIA S.p.A.
Viale
C. Colombo 8, 20090 Trezzano
Sui Naviglio (MI), Italy
Phone [phone]
ALPINE ELECTRONICS
DE ESPANA, SA
Portal de Gamarra 36, Pabell6n, 32
01013 Vitoria (Alava)-APDO 133, Spain
Phone [phone]
ALPINE ELECTRONICS (BENELUX)
GmbH
Leuvensesteenweg 510-B6,
1930 Zaventem, Belgium
Phone [phone]
'j')~)f"(:J \7-~71'JQ'~~~tt
T141-0031
*;r-.ma6) 11~[91i&EBl-1-8
~~~~~ 03-5496-8231
•mp i~ lifj -=r;
f~m 19: ~ lW i~ I'm i~ ~~tq~ 8A -=r; 0
• IfXmmBJU!~
C~mO)imIL ~ < C5~(1j
<tcc!L'o
•ANVANDARHANDLEDNING
Innan du anvander
utrustningen bar du
lasa igenom denna anvandarhandledning.
•PYKOBO,I:J:CTBO
no 3KCnJlYATAll,1111
n poqTllTe HaCTOSl1l..l,ee pyKOBOACTBO
rrepeA HaqaJIOM MCrrOJIh30BaHMSI
o6opYAoBaHMSI.
• {~m~fffi
~a@m$~.2M~~~@m~fffio
ALPINE ELECTRONICS GmbH
Frankfurter Ring 117, 80807 MOnchen,
Germany
Phone [phone]
ALPINE ELECTRONICS
OF U.K. LTD.
Alpine House
Fletchamstead Highway, Coventry CV4
9TW, U.K.
Phone [phone]
•
ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD.
161-165 Princes Highway, Hallam ALPINE ELECTRONICS FRANCE S.A.R.L.
Victoria 3803, Australia (RCS PONTOISE B338
101 280)
Phone [phone], Rue de la Belle Etoile,
Z.1. Paris Nord II,
B.P. 50016, 95945 Roissy Charles de
Gaulle Cedex, France
Phone [phone]
ALPINE ELECTRONICS OF AMERICA, INC.
19145 Gramercy Place, Torrance,
California 90501, U.S.A.
Phone 1-800-ALPINE-1 (1-800-257-4631)
ALPINE ELECTRONICS OF CANADA, INC.
777 Supertest Road, Toronto,
Ontario M3J 2M9, Canada
Phone 1-800-ALPINE-1 (1-800-257-4631)
•OWNER'S MANUAL
Please read before using this
equipment.
•BEDIENUNGSANLEITUNG
Lesen Sie diese Bedienungsanleitung
bitte vor Gebrauch
des Gerates.
•ISTRUZIONI
PER LUSO
Si prega di leggere prima
di utilizzare
il attrezzatura.
•MODE D'EMPLOI
Veuillez lire avant d'utiliser
cet
appareil.
•MANUAL DE OPERACION
Lealo
antes de utilizar este equipo.
SUZHOU CRESTEC PRINTING CO., LTD.China
596-598 Chang Jiang Road, Suzhou, Jiangsu, P.R.China
Designed by ALPINE Japan
Printed
in China (Y)
68-12118Z61-A

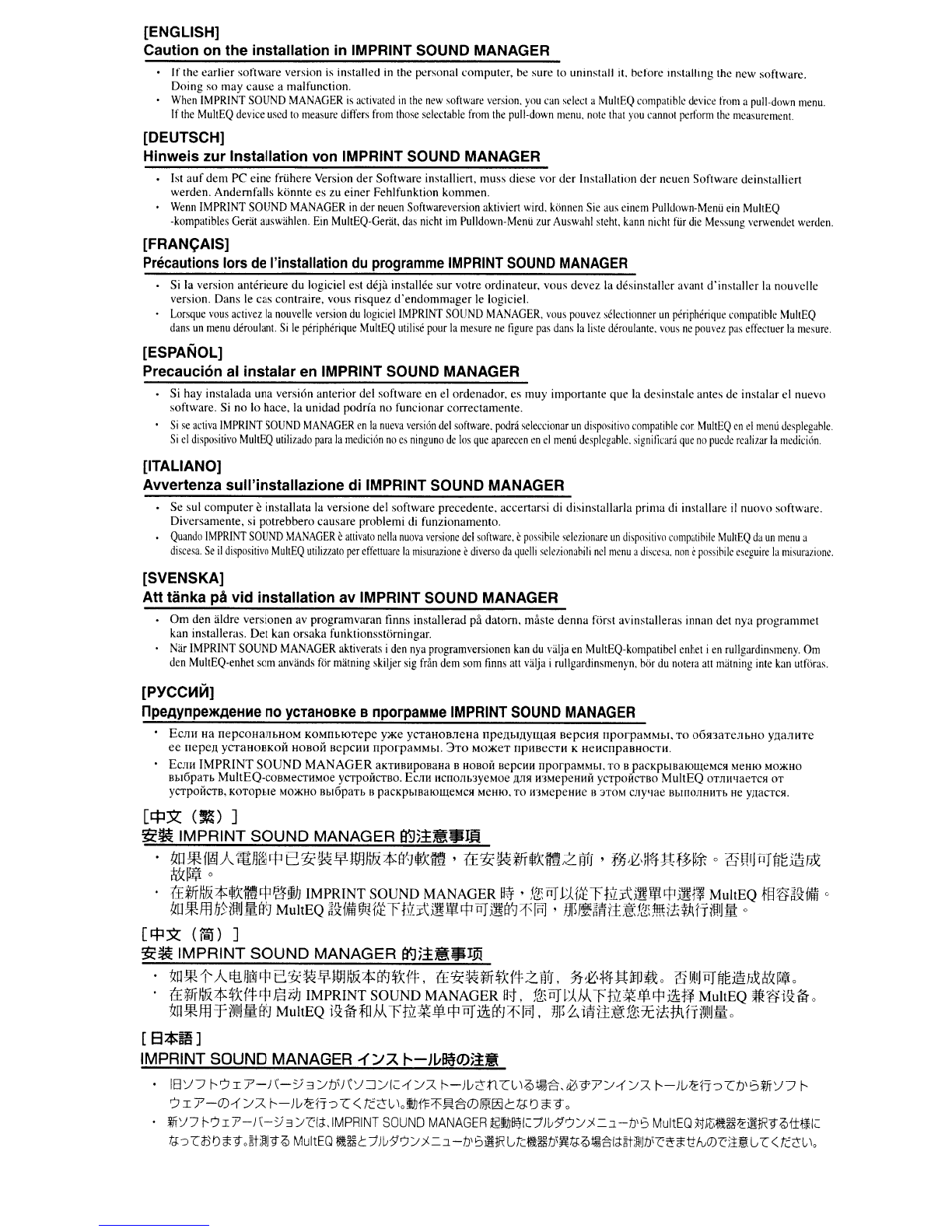

[ENGLISH]
Caution
on the installation in IMPRINT SOUND MANAGER
If the earlier software version is installed in the personal computer, be sure to un install it. before installing the new software.
Doing so may cause amalfunction.
When IMPRINT SOUND MANAGER is activated in the new software version. you can select a MultEQ compatibk device from a pull-down menu.
If the MultEQ device used to measure differs from those selectable from the pull-down menu. note that you cannot perform the measurement.
[DEUTSCH]
Hinweis zur Installation von IMPRINT SOUND MANAGER
1st aufdcm PC cine frtihere Version der Software installien. muss diese vor der Installation der neuen Software deinstalliert
werden. Andemfalls konnte cs zu ciner Fehlfunktion kommen.
WennlMPRINT SOUND MANAGER in der neuen Softwareversion aktivierl wird. konnen Sic aus einem Pulldown-Menu ein MultEQ
-kompatibles Gerat auswahlen. Ein MultEQ-Gerat. das nicht im Pulldown-Menu zur Auswahl stehl. kann nichl fUr die Messung verwendet werden.
[FRANCAIS]
Precautions lors
de "installation du programme IMPRINT SOUND MANAGER
Si la version anterieure du logiciel est deja installee sur votre ordinateur. vous devez la desinstaller avant d'installer la nouvelle
version. Dans Ie cas contraire. vous risquez d'endommager Ie logiciel.
Lorsque vous activez la nouvelle version du 10gicieJ IMPRINT SOUND MANAGER. vous pouvez selectionner un peripherique compatible MultEQ
dans un menu deroulant. Si Ie peripherique MultEQ utilise pour la mesure ne figure pas dans la lisle deroulanle. vous ne pOUVel pas effectuer la mesure.
[ESPANOL]
Precauci6n al
instalar en IMPRINT SOUND MANAGER
Si hay instalada una version anterior del software en el ordenador. es muy importante que la desinstale antes de instalar el nuevo
software. Si no 10 haee, la unidad podria no funcionar correetamente.
Si se activa IMPRINT SOUND MANAGER en la nueva version del software. podni seleecionar un dispositivo compatihle con MultEQ en el menu desplcgable.
Si el dispositivo MultEQ utilizado para la medicion no es ninguno de los que aparecen en el menu desplegable. signilicara que no puede realizar la medici()n.
[ITALIANO]
Avvertenza
sull'installazione di IMPRINT SOUND MANAGER
Se suI computer einstallata la versione del software preeedente. accel1arsi di disinstallarla prima di installare il nuovo software.
Diversamente, si potrebbero causare problemi di funzionamento.
Quando IMPRINT SOUND MANAGER e atlivato neJl~ nuova versione del software, e possibile selczionare un dispositivo compalihile MultEQ da un menu a
discesa. Se il dispositivo MultEQ utilizzato per cffettuare la misurazione e diverso da ~uelli selezionabili nel menu a discesa. non c possibilc eseguire la misurazionc.
[SVENSKA]
At! tanka pll vid installation av IMPRINT SOUND MANAGER
Om den aldre versionen av programvaran linns installerad pa dalom. maste denna mrst avinstalleras innan det nya programmet
kan installeras. Del kan orsaka funktionsstorningar.
Nar IMPRINT SOUND MANAGER aktiverats i den nya pragramversionen kan du valja en MultEQ-kompatibcl cnhet i en rullgardinsmeny. Om
den MultEQ-enhel som anvands for matning skiljer sig fran dem sam linns all valja i rullgardinsmenyn. bor du notera all matning inte kan utforas.
[PYCC~~]
npeAynpe>K,QeHMe no yCTaHoBKe BnporpaMMe IMPRINT SOUND MANAGER
Ecnn Ha nepeOHaJJbHOM KOMllblOTepe y)l(e yCTaHoBneHa npe~bl~YII\a51 BepCI151 nporpaMMbl. TO 06S13aTenbHO y~am1Te
ee nepe)\ YCTaHOBKOH Honoii nepcnn nporpaMMbl. :::lTO MO)l(eT npttBeCTI1 K HettcnpaBHOCTlI.
Ecntt IMPRINT SOUND MANAGER aKTttBl1pOBaHa B HOBoii BepCHtt nporpaMMbI. TO B paCKpbIBalOtl.\eMClI MeHIO MOJKIlO
Bbl6paTb MuItEQ-coBMecTHMoe yCTpoiicTBo. ECJII1 ttCIlOJIb3yeMoe )\JJlI 113MepeHttii yCTpoiicTBo MultEQ OTJJII'IaeTCli OT
yeTpoiiCTB, KOTOpbte MOJKHO Bbl6paTb B pacKpbIBalOtl.\eMC51 MeHK). TO IBMepeHtte B 3TOM CJIy'lae BLlnOJJlHlTh He YJlaCTCli.
[ep3Z (~) ]
~~ IMPRINT SOUND MANAGER ~5±~~rlj
!lD*I~A~ij~r:pe3C~!f!-MIi&*ft-J",):e ' l:E3C$H.iTfAMizjfij , m;Q,~~~f¥~* 0 ~~IJPJ~b§1JX
~~ij 0
tnfilt&:$:i\i.XlI'i=I@ifJ IMPRINT SOUND MANAGER (f.f , !~nrl:)i:£Tf.v:rt~lfl'i=I~f~ MultEQ f§~~)i:fim 0
!la*Jtlf.j~illIJ.1IEn MultEQ ~)i:fRfifiitt~£Tf.v:rt~lfl'i=Inr~En=frnJ ' JJB~~ff11,\i!iI~1mit¥Miillljfi 0
[lfJ3Z (mi) ]
~~ IMPRINT SOUND MANAGER t¥J5±~$IYi
~*~A@~~B~~¥m~*~tt~, rr~.ffitt~2M. *~MK~.o~~nr~m~~.o
. rrffi~*~xltj:~J6i;1] IMPRINT SOUND MANAGER 01. f$"ijn~M TtL~!fJ-~mtf MultEQ *E:i&flro
lID*fflr71JlIJilEfJ MuhEQ j)i:-flrfOM TtL~.!f!- ~nr mEfJ::frnJ, ~p i, ilhlg!&::;J[ittJtfiW!IJil 0
[S:<$:m]
IMPRINT SOUND MANAGER -( /;7. "-)[,1Iij0)5:£~
1E3~)"7 i'? I y-j(-:J 3/b')C:;::::J::JIL:-{:J;;Z i'-)[;c-:t1"Cl '.Q~'8, !.~\9?:J-{:J;;Z i'-)[;~fTJ "C1J'S¥fi~7 i'
r) I y-(lH /;;Z i'-)[;~1'TJ "C < rC:C-l 'oiJJ1'F1'~'80)J:iji~ctcJ:1J *90
Wi~7 i'':) Ir-H-:J3 :;c/,UMPRINT SOUND MANAGER ~l!J~1;::7JlJ5"Si/Y:=.J.-1J\S MultEQ ~~li!~~~tR9.Ql±ml;::
1(1:::> "CSIJ *9 ,gj-]IJ9.Q MultEQ li!~c: 7)1/)1':):; Y:=::t -1J\S~jR LJrLli!~1Ji~1(I:.Q1,lJJ13'1d:gj-]IJ1Jic~*trIuO)c;.uH.J"C <rcc.-l \,

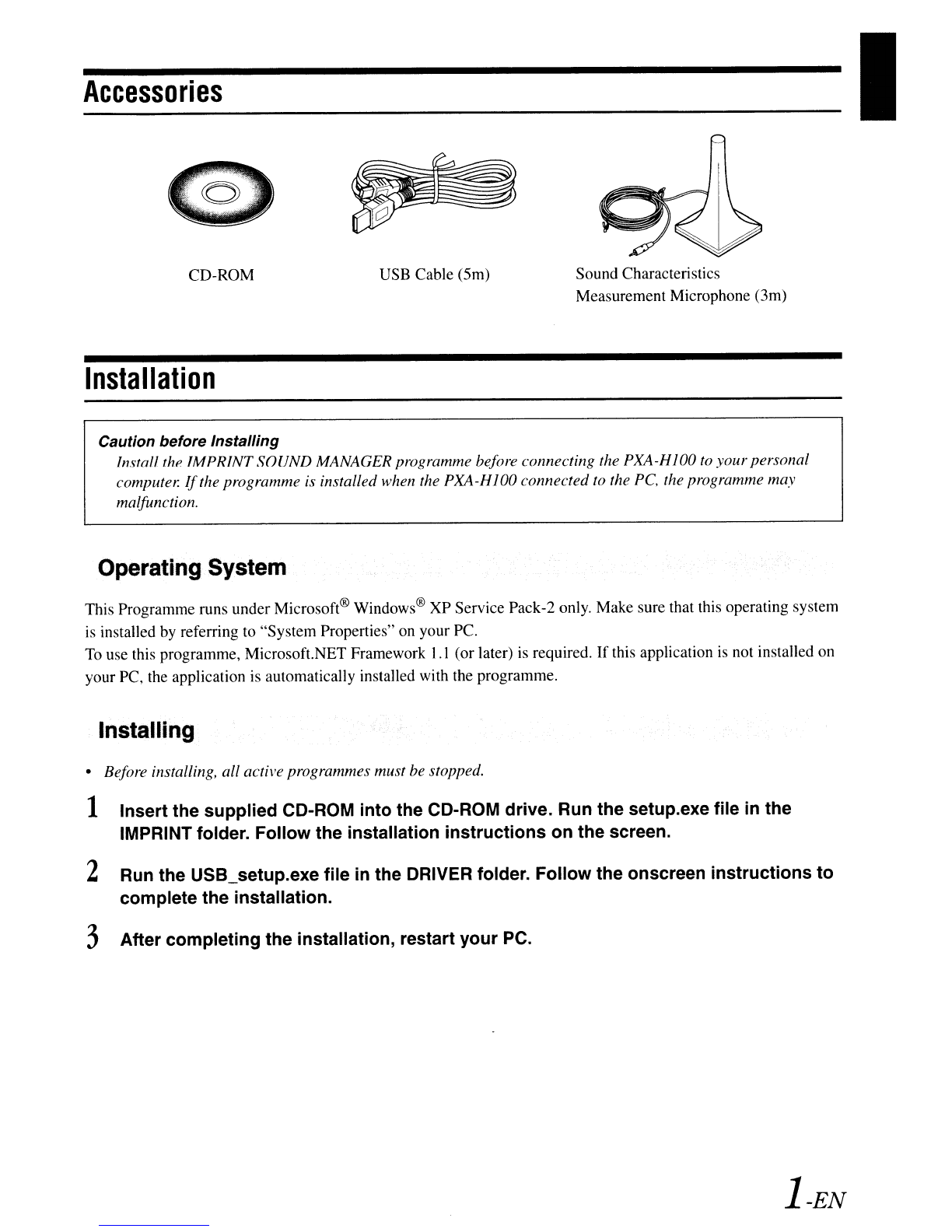

Accessories
CD-ROM
Installation
USB Cable (5m) Sound Characteristics
Measurement Microphone (3m)
I
Caution before Installing
Install the IMPRINT SOUND MANAGER programme before connecting the PXA-H100 to yow'personal
computer./fthe programme is installed when the PXA-HIOO connected to the pc, the programme may
malfunction.

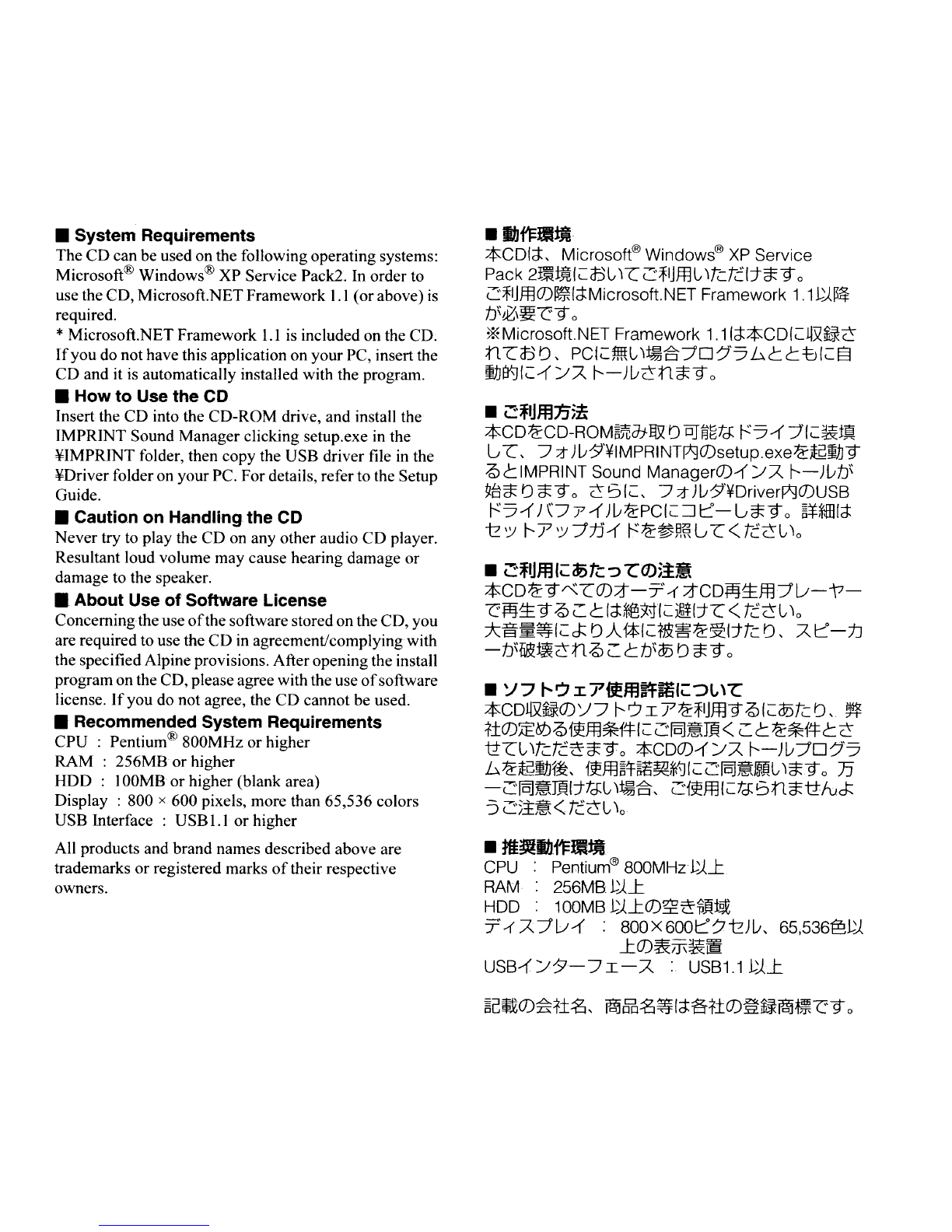

Operating System
This Programme runs under Microsoft® Windows® XP Service Pack-2 only. Make sure that this operating system
is installed by referring to "System Properties" on your Pc.
To use this programme, Microsoft.NET Framework 1.1 (or later) is required. If this application is not installed on
your PC, the application is automatically installed with the programme.
Installing
•Before installing, all active programmes must be stopped.
1Insert the supplied CD-ROM into the CD-ROM drive. Run the setup.exe file in the
IMPRINT folder. Follow the installation instructions on the screen.
2Run the USB_setup.exe file in the DRIVER folder. Follow the onscreen instructions to
complete the installation.
3After completing the installation, restart your PC.
i-EN

Connections
Before calibrating MultEQ, all other system connections must be
complete and functional.
1Install the IMPRINT compatible Alpine head unit (sold after November, 2007) and
PXA-H100 into the vehicle.
•Make the correct connection. For details, refer to the Owner's Manual of PXA-H100.
.2After completing all system connections, make sure that sound is output from all
speakers.
3Connect the USB Cable and Microphone to the PXA-H100.
4Connect the USB Cable to aUSB port of your PC.
Head Unit with IMPRINT
Ai-NET Cable
Sound
Characteristics
Measurement
Microphone
• POWER •*
#'.'!Ii.i.
*
o0
/W#/1LPINE
00
111-
.... to MlC
))) «(("
... TOHU
IMPRINT
~J
~".TOPC
USB Cable
*Refer the Owner's Manual of the IMPRINT audio processor PXA-H I 00 (sold separately) to
connect the cable.
•Be sure the Imprint device is powered up before connecting the USB Cable to a Pc. Failure to do so may result
in communication error and measurement may not he possible.
2-EN

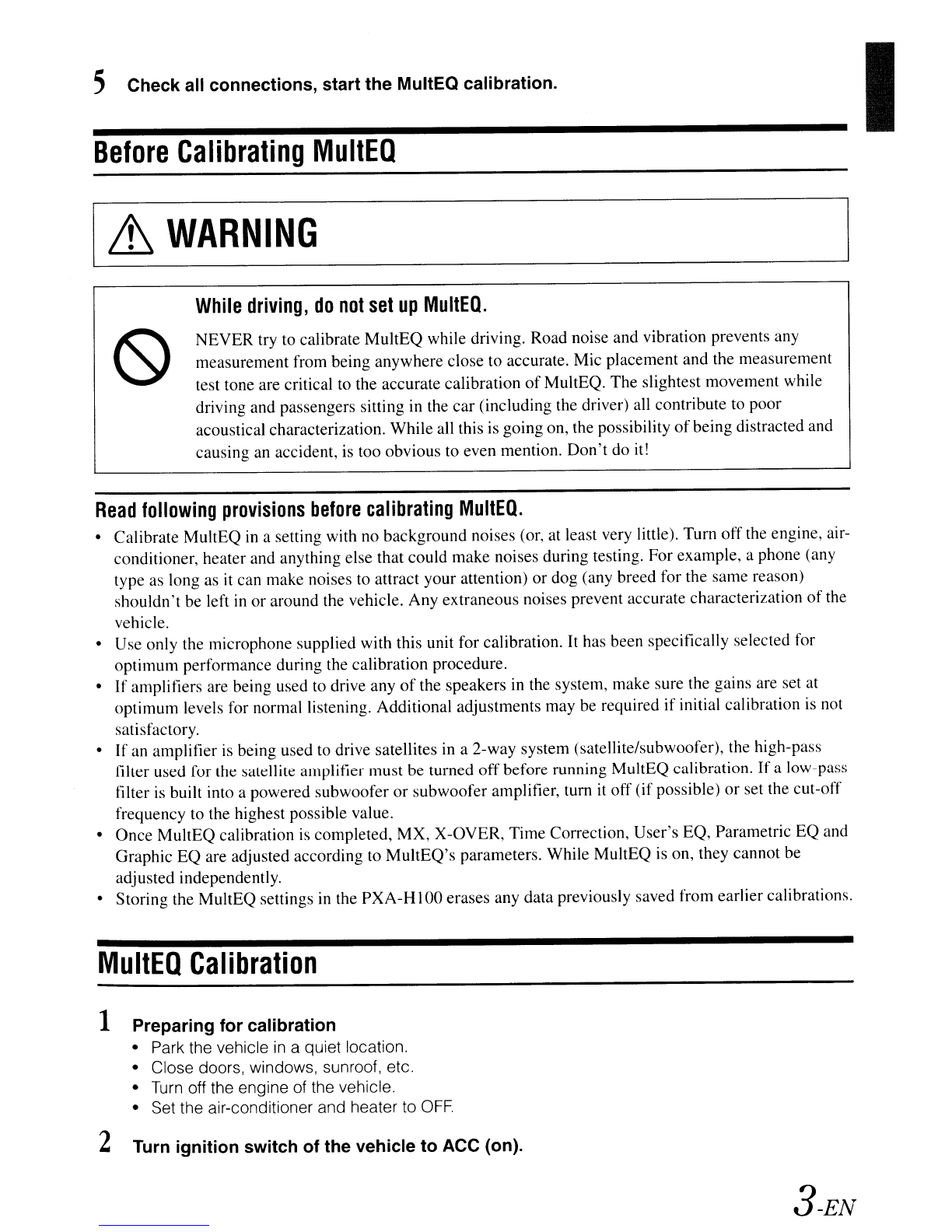

5Check all connections, start the MultEQ calibration.
Before Calibrating MullEQ
I ~ WARNING
While driving, do not set up MuItEQ.
NEVER try to calibrate MultEQ while driving. Road noise and vibration prevents any
measurement from being anywhere close to accurate. Mic placement and the measurement
test tone are critical to the accurate calibration
of MultEQ. The slightest movement while
driving and passengers sitting in the
car (including the driver) all contribute to poor
acoustical characterization. While all this is going on, the possibility
of being distracted and
causing an accident, is too obvious to even mention.
Don't do it!
Read following provisions before calibrating MuItEQ.
•Calibrate MultEQ in asetting with no background noises (or, at least very little). Turn off the engine, air-
conditioner, heater and anything else that could make noises during testing. For example, aphone (any
type as long as it can make noises to attract your attention) or dog (any breed for the same reason)
shouldn't be left in or around the vehicle. Any extraneous noises prevent accurate characterization of the
vehicle.
•Use only the microphone supplied with this unit for calibration.
It has been specifically selected for
optimum performance during the calibration procedure.
•
If amplifiers are being used to drive any of the speakers in the system, make sure the gains are set at
optimum levels for normal listening. Additional adjustments may be required
if initial calibration is not
satisfactory.
•
If an amplifier is being used to drive satellites in a2-way system (satellite/subwoofer), the high-pass
filter used for the satellite amplifier must be turned
off before running MultEQ calibration. If alow-pass
filter is built into apowered subwoofer
or subwoofer amplifier, turn it off (if possible) or set the cut-off
frequency to the highest possible value.
•
Once MultEQ calibration is completed, MX, X-OVER, Time Correction, User's EQ, Parametric EQ and
Graphic
EQ are adjusted according to MultEQ's parameters. While MultEQ is on, they cannot be
adjusted independently.
•Storing the MultEQ settings in the
PXA-H I 00 erases any data previously saved from earlier calibrations.
MultEQ Calibration
1Preparing for calibration
•Park the vehicle in aquiet location,
•Close doors, windows, sunroof, etc,
•
Turn off the engine of the vehicle.
•Set the air-conditioner and heater to
OFF.
2Turn ignition switch of the vehicle to ACC (on).
3-EN
I

• If an air-conditioner or heater is turned on, turn it off. Measurement should not be performed if air-conditioner
or heater noise is present.
3Activate IMPRINT Sq,UND MANAGER installed on the PC, and then select PXA·H100.
•Strictlv obsen'e the Warnings and Cautions written by the manufacturers (~fyour PC and peripheral equipment.
•
We do not accept responsibility for data lost due to the incorrect operation of the 1M PRINT SOUND
MANAGER.
We recommend you to back-up your important data regularly.
4Place the Measurement Microphone in the vehicle according to the IMPRINT SOUND
MANAGER on screen instructions. Start the measurement.
•Pe/form PC operation outside the vehicle.

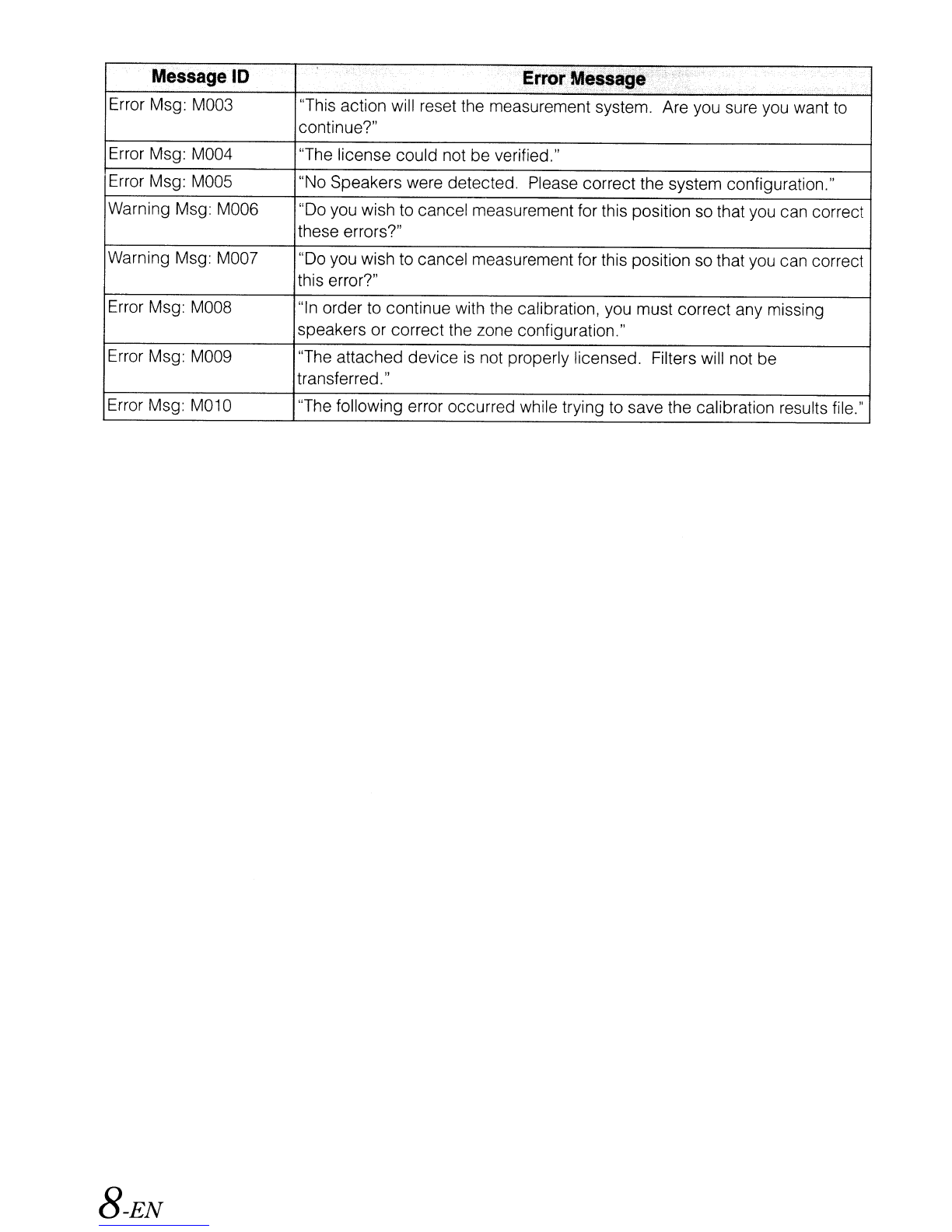

•Ilall error occurs during calibration. refer to the "Message List" at the end
of this manual to help resolve the
problem. Close the dialog box by double-clicking the
OK button to exit the programme.
5From the IMPRINT SOUND MANAGER screen, double-click the Area Selection to be
measured.
6Follow the IMPRINT SOUND MANAGER on screen display for placement of the
calibration microphone.
Place the microphone in avertical position, at ear level (a camera tripod is useful for
this purpose).
4-EN

7When microphone placement is complete, get out of the vehicle, and close all doors,
windows and sunroof. Then, start measurement
by double-clicking the Measure
button on the IMPRINT SOUND MANAGER screen. Do not open the doors until
"Complete" is displayed on the screen and signal sound is output from the speakers
and sound characteristics are measured
in the vehicle. If noise enters from outside
during measurement, "Error" will be displayed on the screen. If displayed, measure
again by double-clicking the
Measure button.
I
o Peljonn PC operation outside the vehicle.
oRell1ol'ing the microphone during calibration ma}' cause an error.
8After measuring the first microphone position, move the microphone to the next
location indicated by the on the screen graphic. Repeat the procedure
in step 7
following the on screen instructions.
oPre!,onning measurementfrom two locations in the car should be su./ficient. If you want to finish (titer two
measuremelltlocations, double-clicking the Result button,
and move to the Tw'!?et Curl'e setting.
oFor more precise measurement, 6measurement locations are available; however, it will take approx. 20 minutes
until all MultEQ measurements have been completed.
In this case, be sure to peljrmn MultEQ measurement
with the vehicle connected to a
car battery charger.
9After all desired mic position measurements are complete, double-click the Result
button to make the Target Curve selection. This curve sets the overall sound
characteristics of the system. Select the
Target Curve Select from the on screen
choices.
oThe measurement data cannot be stored on the PC hard disc, but can be memorized in the PXA -H100.
5-EN

10 After selecting aTarget curve, double-click the Send Filter button to transfer the
settings to the PXA-H100. Choose either
Curve Memory 1or Curve Memory 2to
store
in PXA-H100 memory.
• You can slOre two curve settings for one measurement result.
11 If you are not satisfied with the measurement result, you can start from the procedure
in step 7 by double-clicking the He-Measure button.
• I(you fJelform the measurement again using the Re-Measure button, note that the previously stored settings ill
the PXA-H100 will be cleared and replaced by the new one.
12 When the memory setting is complete, click xon the right side of the screen and
double-clicking
OK on the EXIT screen to close the IMPRINT SOUND MANAGER
programme.
13 After you have finished the MultEQ calibration, disconnect the USB Cable from the
PXA-H100.
14 Now, relax and enjoy the fruits of your labour with the newly, IMPRINT optimized
system. By turning MultEQ on and off with this just calibrated Alpine head unit, the
benefits of calibration are obvious.
For details on operating this IMPRINT compatible Alpine head unit, refer to its Owner's Manual.
About Trademark
•Audyssey MultEQ XT is aregistered trademark of Audyssey Laboratories Inc.
•Microsoft and Windows are trademarks,
or registered trademarks of Microsoft Corporation in the United
States and/or other countries.
6-EN

Message List
Message 10 Error Message
Error Code: EOO1
"MultEQ Error: The channel has been marked as undetected, and will be
skipped."
Error Code:
EOO2 "MultEQ Error: The bass management configuration selected is not
supported by the device. Please consult the manufacturer's manual to
determine avalid configuration."
Error Code:
EOO3
"MultEQ Error: The speaker configuration specified is not valid. Please
consult the manufacturer's manual to determine avalid configuration."
Error Code:
EOO4 "MultEQ Error: Communication with the device failed. Please check the
connection and try again."
Error Code:
EOO5 "MultEQ Error: The device is not properly licensed."
Error Code:
EOO6
"MultEQ Error: Device in use, try again in afew moments."
Error Code:
EOO? "MultEQ Error: The Maximum level was reached, without achieving an
adequate signal. Please decrease the ambient noise and try again."
Error Code:
EOO8
"MultEQ Error: The hardware sample format or bit depth is not supported."
Error Code:
EOO9 "MultEQ Error: The action was cancelled by the user."
Error Code: E010 "MultEQ Error: The system was unable to calculate afilter for this response.
Please try your measurements again.
If this problem persists, contact
technical support."
Error Code:
E011 "MultEQ Error: The system was unable to determine the delay (speaker to
microphone distance). Measure this value manually."
Error Code: E012 "MultEQ Error: The system may have been unable to determine the delay
(speaker distance). Numbers given for this value should
be checked
manually."
Error Code: E013 "MultEQ Error: The input signal
is too low. Check that the microphone is
connected to the selected input, and check that the gain on the preamp or
audio hardware input channel
is properly set."
Error Code: E014 "MultEQ Error: The measured signal was too
low, even though output was
raised
to the maximum available amplitude. Decrease ambient noise, and
start over."
Error Code: E015 "MultEQ Error: The measured background noise exceeded allowable
tolerances"
Error Code: E016 "MultEQ Error:
An unspecified error has occurred."
Error Code:
-1
MEASURE CANCEL
Error Code:
-2
MEASURE COMMAND ERROR
Error Code:
-3 FL SPEAKER NO DETECT
Error Code: -4 H.U NOISE MEASURE
START ERROR
Error Code: -5 H.U MEASURE START ERROR
Error Msg: MOO1 "The MultEQ Pro application failed to communicate with the device. Please
check the ALPINE Device configuration and try again."
Error Msg:
MOO2 "The device is not properly licensed."
7-EN
I

Message 10
ErrorM~ss8gi; .c.
" ':c. ' .. , ./:
.
Error Msg: MOO3
"This action will reset the measurement system. Are you sure you want to
continue?"
Error Msg:
MOO4
"The license could not be verified."
Error Msg:
MOOS
"No Speakers were detected. Please correct the system configuration."
Warning Msg
MOO6
"Do you wish to cancel measurement for this position so that you can correct
these errors?"
Warning Msg:
MOO?
"Do you wish to cancel measurement for this position so that you can correct
this error?"
Error Msg:
MOOS "In order to continue with the calibration, you must correct any missing
speakers or correct the zone configuration."
Error Msg:
MOOg
"The attached device is not properly licensed. Filters will not be
transferred."
Error Msg: M010 "The following error occurred while trying to save the calibration results file."
8-EN
