NANO PERFORMANCE MIXER User manual

·PERFORMANCE ·
MIXER
Quick guide

Thank you for choosing PERFORMANCE MIXER
for your Eurorack System.
NANO Modules - València 2023 ©
Powering up
Turn off the power of your modular synthesizer.
Double check the power cord polarity. If you plug the module backwards you might
damage its electronic circuits.

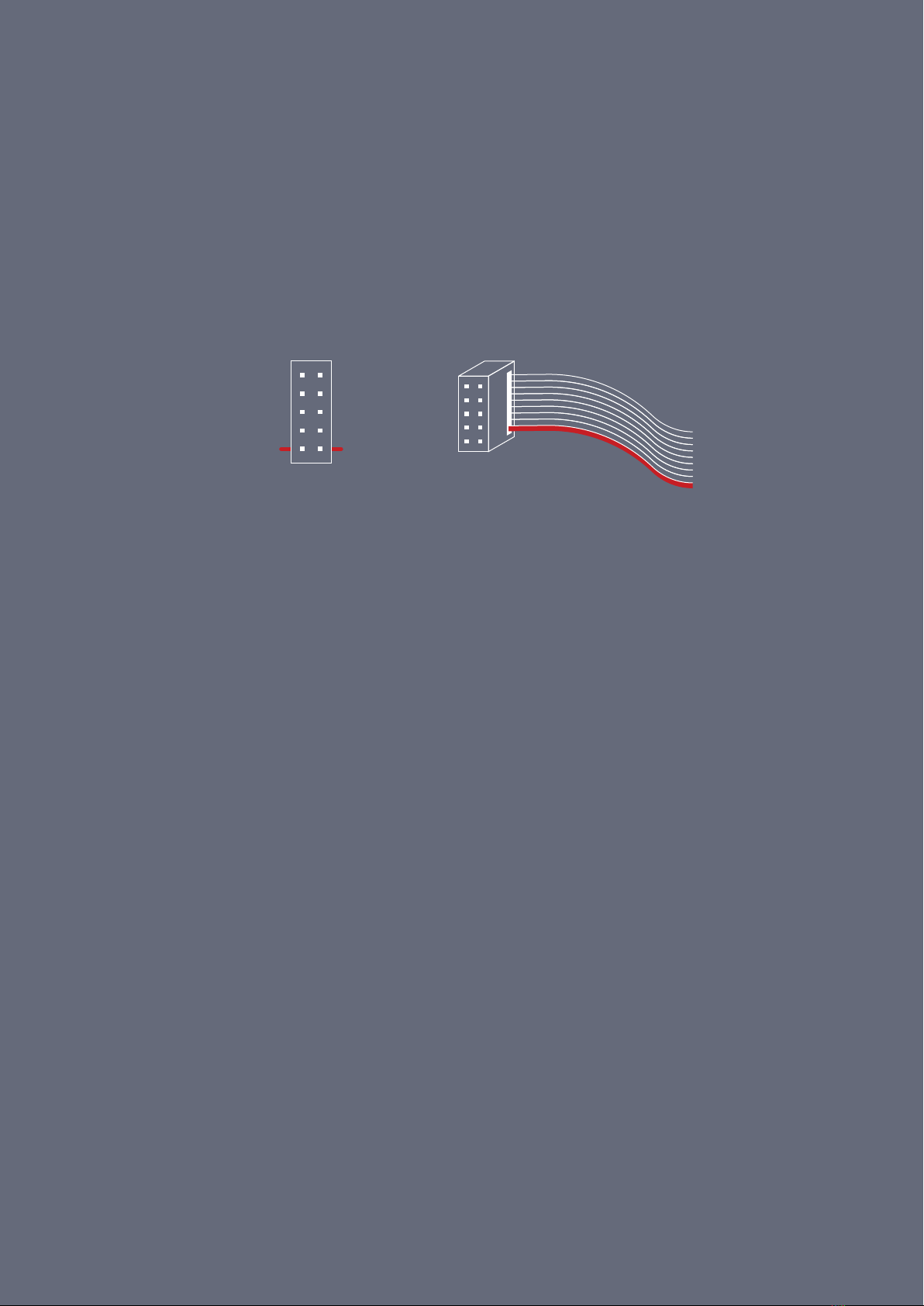

If you flip over your PERFORMANCE MIXER, you will find the “RED” mark at the PCB
power connector, which must match the colored line on the ribbon cable.
Once you have checked all the connections, you can turn on your modular system.
If you notice any anomalies, turn your system off right away and check again your
connections.
1.
2.
3.
4.
REDRED
· PERFORMANCE MIXER ·

The PERFORMANCE MIXER is the core of your modular setup, designed to mix
and shape your audio signals. It offers individual Volume control for each channel,
letting you adjust how loud each sound is in the mix. The mixer also has Panning, so
you can place sounds in different parts of the stereo field.
There are 2 Auxiliary Sends on the mixer, which can be set to either PRE or POST
VCA, allowing you to route channel signals to external effects. It also includes two
Stereo Returns with their own volume controls. The mixer features Clickless Mute
controls for each channel, making it easy to turn sounds on and off without changing
volume settings.
A unique feature is the Cue bus, really useful for setting up tracks before they go live,
especially in live performances, or even for routing channels for external processing.
The mixer includes a Phone amplifier for direct monitoring of the main mix, the cue
bus, or a blend of both. This makes the Performance Mixer a versatile tool for both
live shows and studio work.
Each channel comes with a Knob Recording function. This lets you record and
replay adjustments you make with the knobs, adding a personal touch to your
performances or recordings.
Additionally, the mixer has a Master Volume adjust for the main mix, giving you
overall control of the output level. This is especially useful for ensuring your final mix
is balanced and at the right volume.
Description
NANO Modules - València 2023 ©
· PERFORMANCE MIXER ·

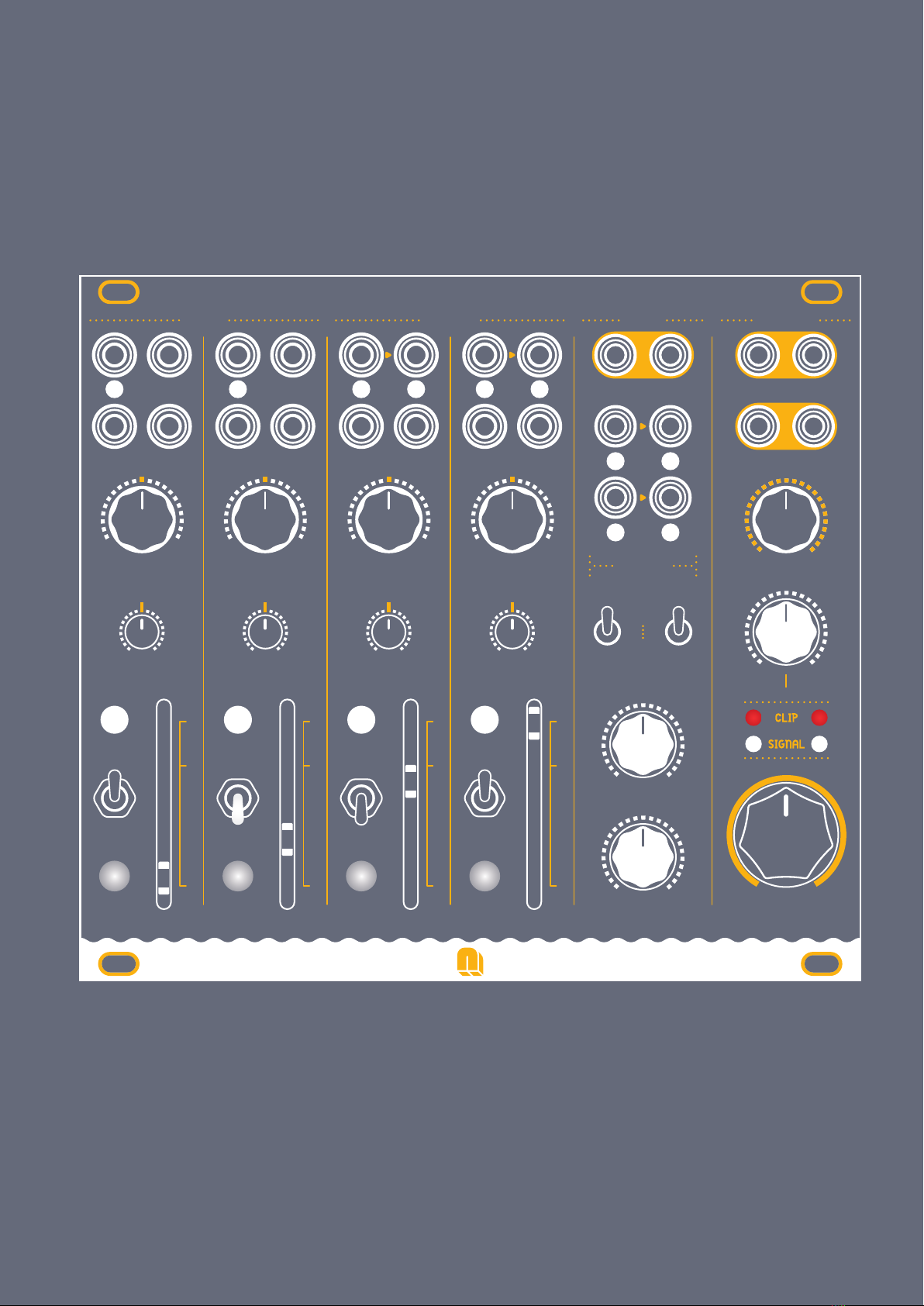

Layout · General view
This image will clarify the function of each of the elements of the module.
RL
PHONESCUE
L RX
X Y
SENDS
L RY
RETURNS
· PERFORMANCE MIXER ·
0 0 00
1AUX
VOL PAN
2AUX
VOL VOLPAN BAL VOL BAL
L R4L R3
AUX
X Y
AUX
X Y
AUX
X Y
AUX
X Y
PAN
L R
PAN
L R
BAL
L R
BAL
L R
POST
PRE
POST
PRE
X Y
X
Y
PHONES
CUE MIX
MASTER
MASTERMONO STEREO AUX
REC
MUTE
CUE
REC REC REC
CUE CUE CUE
MUTE MUTE MUTE
NANO Modules - València 2023 ©
· PERFORMANCE MIXER ·

Layout · MONO Channels
Channels 1 · 2
Volume, Panning and Auxiliary send
controls with CV for each function.
Knob recording (REC), CUE bus and MUTE
function are operated through the switches.
MONO CHANNELS
21
Audio Input
CV Volume
Aux Potentiometer
REC Button
MUTE Button
CV Aux
CV Pan
Pan Potentiometer
Volume Fader
CUE Switch
Monitor and preview audio
signals before they are sent to
the main output
Record knob movements and
play them back for volume /
pan / aux automations.
*More info in page 2
Instantly silence or mute
specific channels.
0V = -inf gain
5V = max gain
If CV Aux is connected,
it acts as an offset.
If CV Volume is connected,
it acts as an attenuator.
-5V = max left
0V = center
5V = max right
-5V = max send to X
0V = not sending
5V = max send to Y
If CV Pan is connected,
it acts as an offset.
00
1AUX
VOL PAN
2AUX
VOL PAN
AUX
X Y
AUX
X Y
PAN
L R
PAN
L R
MONO
REC
MUTE
CUE
REC
CUE
MUTE
NANO Modules - València 2023 ©
· PERFORMANCE MIXER ·

NANO Modules - València 2023 ©
· PERFORMANCE MIXER ·

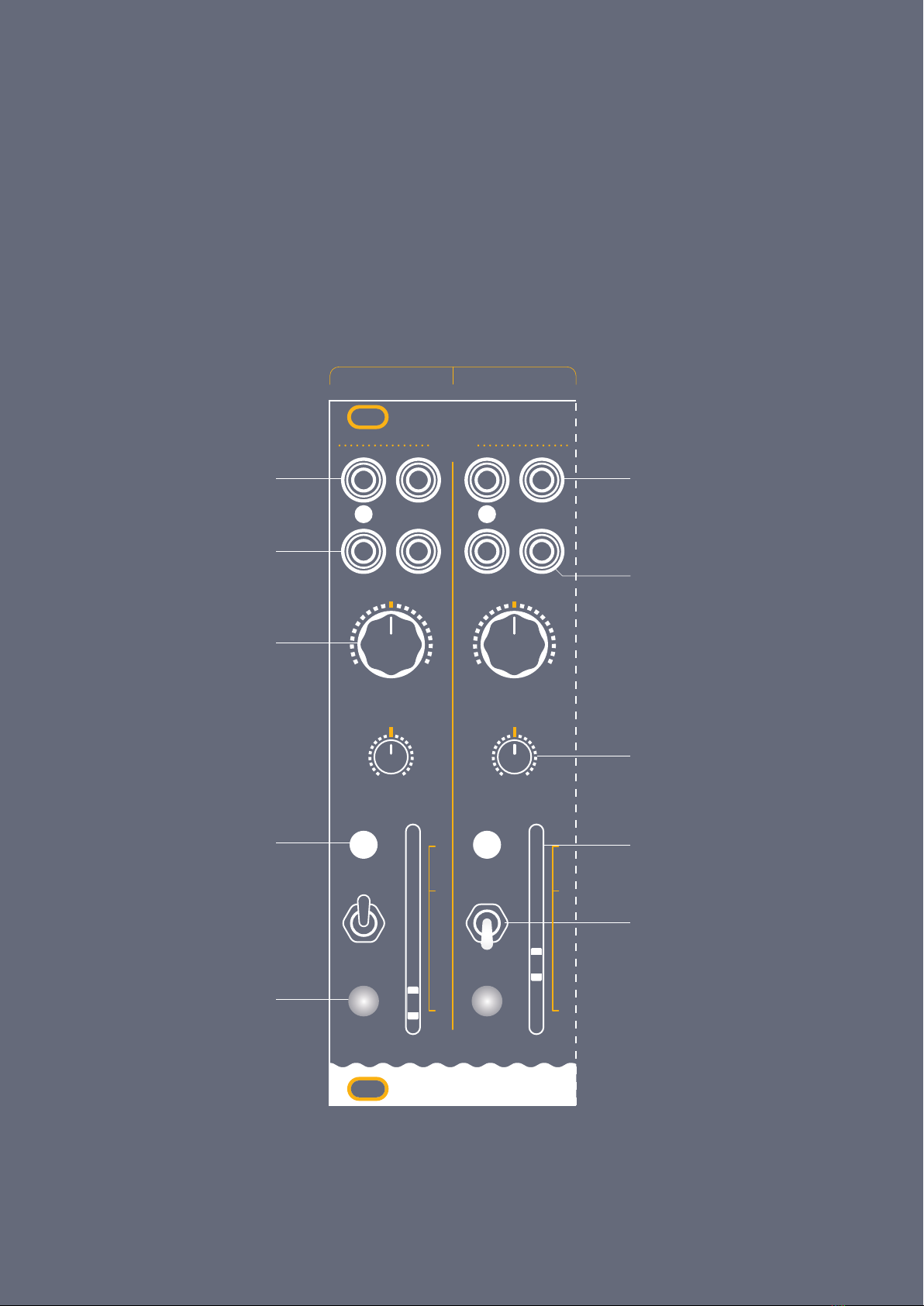

Layout · STEREO Channels
· PERFORMANCE MIXER ·
0 0
VOL BAL VOL BAL
L R4L R3
AUX
X Y
AUX
X Y
BAL
L R
BAL
L R
STEREO
REC REC
CUE CUE
MUTE MUTE
Left Input
CV Volume
Aux Potentiometer
Audio Input
CV Pan
Right Input
Balance
Potentiometer
STEREO CHANNELS
43
REC Button
MUTE Button
Volume Fader
CUE Switch
Channels 3 · 4
Same as MONO Channel, but the CV for the
AUX function is replaced by the right (R)
audio input.

NANO Modules - València 2023 ©
· PERFORMANCE MIXER ·

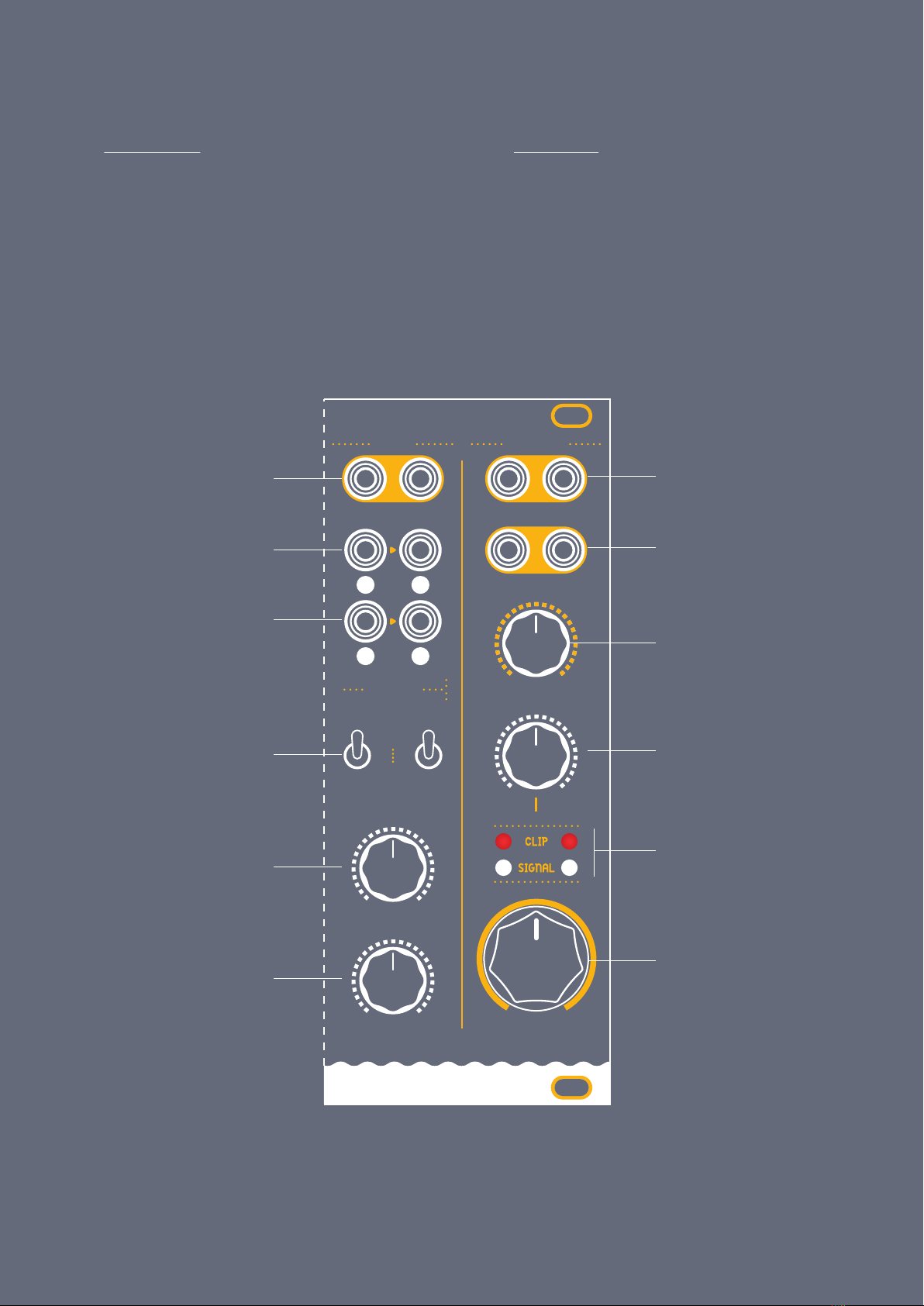

Layout · AUXILIAR & MASTER
RL
PHONESCUE
L RX
X Y
SENDS
L RY
RETURNS
POST
PRE
POST
PRE
X Y
X
Y
PHONES
CUE MIX
MASTER
MASTERAUX
OUTPUTS
Aux Sends
X Return Inputs
Y Return Inputs
Pre | Post Selector
X Return Volume
Y Return Volume
OUTPUTS
Stereo L/R
OUTPUTS
Cue | Phones
Headphone Volume
CUE | MIX Adjust
LED Indicators
Master Volume
AUXILIAR &MASTER
L normalled to R.
AUX send is taken after
or before the channel's
fader & mute.
Select the audio source
for the PHONES output
between CUE and MIX
(Master).
L normalled to R.
AUXILIAR
2 Mono Sends (X & Y) with pre-fader /
post-fader selector for each channel.
2 Stereo Returns with volume adjust.
MASTER
Master volume adjust for the main outputs
with vu-meter for checking the signal levels.
Headphone output with volume and
cue/mix blending knob.

NANO Modules - València 2023 ©
· PERFORMANCE MIXER ·
Knob Recording Feature
Easily record and loop the movements of AUX,
PAN and VOLUME controls on each channel,
adding depth and dynamism to your sound.
Up to 12 seconds for each parameter.
• How to record
Just press the REC button and then move the
desired knobs to start recording.
If the REC button is pressed and the knob
position is changed, the program will write
the knob movement on to a buffer. When the
REC button is released the module will
reproduce the buffer in loop.
• How to delete
To delete a recording, press REC + MUTE
and move the selected knob to be
de-automated.
• MUTE LED
The light on the MUTE button not only shows
whether each channel is muted or not, but
also gives information about the status of its
Knob Recording function:
REC + MUTE during 2 seconds
Delete all recordings of the channel
REC + MUTE during 3 seconds
Delete all mixer recordings
REC

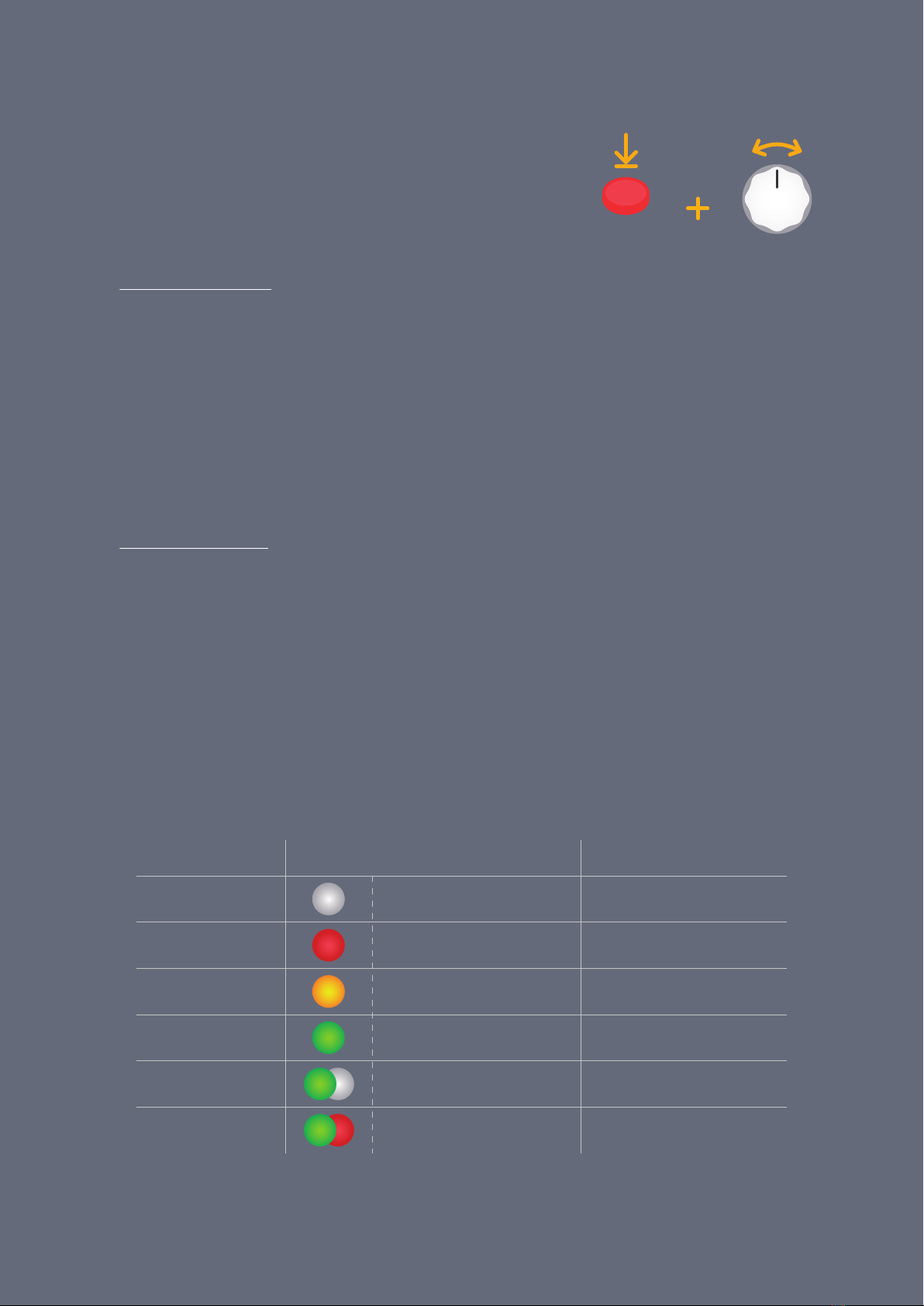

Fig.1 Image of how to record a parameter
Fig.2 Explanation table for MUTE LED
OFF
FIX RED
FIX ORANGE
BLINKING GREEN
RED-GREEN
FIX GREEN
Normal functioning
None
ACTION COLOUR CHANNEL STATUS
Press MUTE
Press REC
Press REC +
Move parameter
Release REC
after recording
Press MUTE while
reproducing
Mute Channel
Ready to record
Recording
Reproducing
Mute while reproducing

Compliance
This device complies to the EU guidelines and is manufactured RoHS conforming
without use of led, mercury, cadmium and chrome. Nevertheless, this device is special
waste and disposal in household waste is not recommended.
This device meets the requirements of the following standards and directives:
• EMC: 2014/30/EU
• EN 55032. Electromagnetic compatibility of multimedia equipment.
• EN 55103-2. Electromagnetic compatibility - Product family standard for audio, video,
audio-visual and entertainment lighting control apparatus for professional use.
• EN 61000-3-2. Limits for harmonic current emissions.
• EN 61000-3-3. Limitation of voltage changes, voltage fluctuations and flicker in
public low-voltage supply systems.
• EN 62311. Assessment of electronic and electrical equipment related to human
exposure restrictions for electromagnetic fields.
• RoHS2: 2011/65/EU
• WEEE: 2012/19/EU
NANO Modules - València 2023 ©
· PERFORMANCE MIXER ·

This product is covered by 2 years of guarantee on purchased goods, which begins
when you receive your package.
• This guarantee covers
Any defect in the manufacturing of this product.
Replacement or repair, as decided by NANO Modules.
• This guarantee does not cover
Any damage or malfunction caused by incorrect use , such as, but not limited to:
-Power cables connected backwards.
-Excessive voltage levels.
- Unauthorized mods.
-Exposure to extreme temperature or moisture levels.
Please contact our customer service - jor[email protected] - for a return
authorization before sending the module. The cost of sending a module back for
servicing is paid for by the customer.
Guarantee
Dimensions 28HP 142,2x128,5mm
Current 200 mA +12V / 125 mA -12V / 0 mA +5V
Output Signals ±10V
Impedance Input 10k – Output 10k
Materials PCB and Panel – FR4 1,6mm
Depth 40mm including connectors (Skiff friendly)
Modules are designed and assembled in València.
Technical Specifications
Bravo!
You have learned the basic
fundamentals of your PERFORMANCE
MIXER.
If you have any doubts, please feel free
to contact us.
nano-modules.com/contact
Contact
