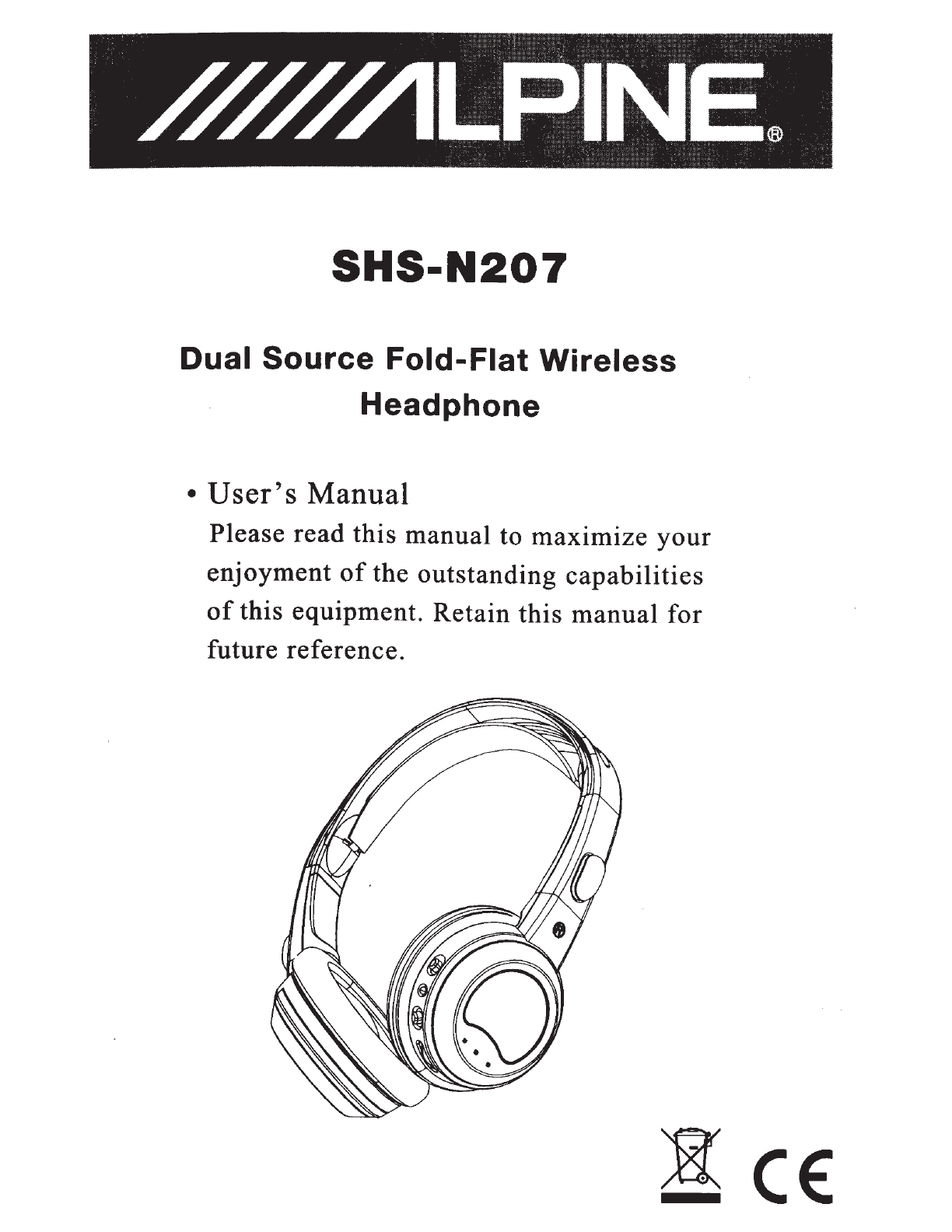

Alpine SHS-N207 User manual

SHS-N207
Dual Source
Fold-Flat
Wireless
Headphone
•
User's
Manual
Please read this manual to maximize
your
enjoyment
of
the outstanding capabilities
of
this equipment. Retain this manual for
future reference.
l!
CE

INTRODUCTION
Dual Source Fold-Flat Wireless Headphone allows you to fold the
earpieces flat for
easy storing. This system frees you from the tangle
of headphone wires
and lets you enjoy movies, video games or T.V.
without tangle of cables around you. To ensure the best performance
ofyour system, please
read this manual carefully.
FEATURES
• Fold-Flat Easy Storage Design
• Automatic Level Control prevents input signal overloading
•
Dual Source Selection (A I B)
• Comfort Fit Design (Children -Adults)
•
For use with Alpine Overhead and Headrest Monitor Package
• Automatic Power
OFF
After afew minutes without a signal source, the powerto the
headphones will automatically turn itself
OFF
SPECIFICATIONS
• Wireless Type: Infrared • Driver Unit:
40mm
• Input Voltage: 2V-3.5V • FM System Carrier Frequency:
•
M.P.O: < 80mW
• Frequency Response: 20Hz-20KHz
• Distortion: <1.5%
A
CH: R-CH 2.8±10MHz
L-CH 2.3±10MHz
B
CH: R-CH 3.8+10MHz
L-CH 3.2±10MHz
CONTENTS
1-Dual Source Fold-Flat Headphone (SHS-N207)
2 - AAA Batteries
1- Owner's
Manual
EXPLANATION OF CONTROLS (Fig.1)
Headphone Receivers 1
1) SOURCE AlB SWITCH
L 5
2) BATTERY COVER
3) VOLUME CONTROL
4) POWER SWITCH
5) POWER INDICATOR LED
R

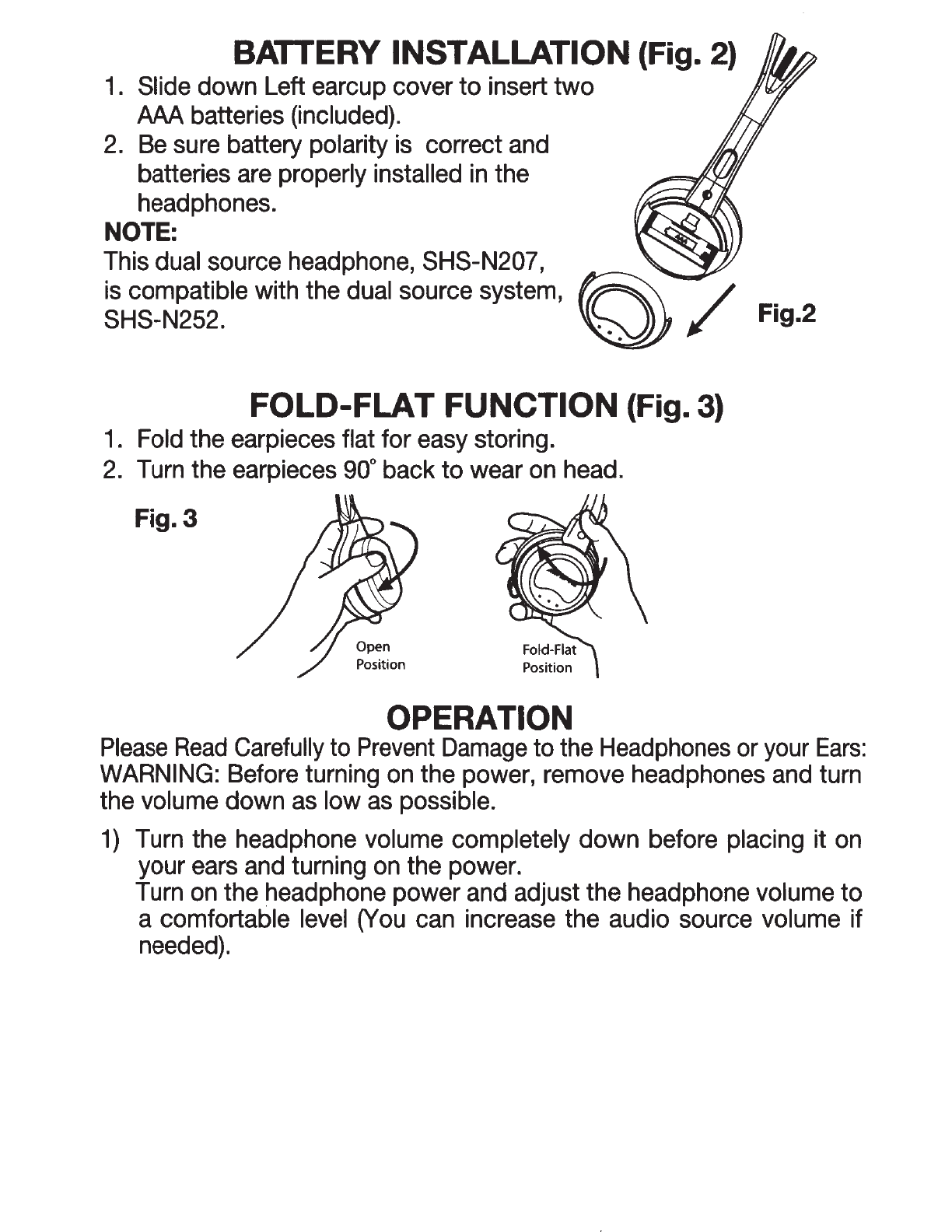

BATTERY INSTALLATION (Fig. 2)
1. Slide down Left earcup cover to insert two
AAA batteries (included).
2. Be sure battery polarity is correct and
batteries are properly installed in the
headphones.
NOTE:
This dual source headphone, SHS-N207,
is compatible with the dual source system,
(S)) /
SHS-N252. ..
.
FOLD-FLAT FUNCTION (Fig. 3)
1. Fold the earpieces flat for easy storing.
2. Turn the earpieces
90° back to wear on head.
Fig. 3
Open
Position
OPERATION
Fig.2
Please Read Carefully to Prevent Damage to the Headphones or your Ears:
WARNING: Before turning on the power, remove headphones and turn
the volume down as low as possible.
1) Turn the headphone volume completely down before placing it on
yourears and turning on the power.
Turn on the headphone power and adjust the headphone volume
to
a comfortable level \( ou can increase the audio source volume if
needed).

WARNING
Failure to heed the following instructions can result in serious injury or
death.
THE DRIVER MUST NOT USE HEADPHONES WHILE DRIVING. This
headphone system is designed for use by the vehicle's passengers only. Use
of headphones while driving can inhibit the driver's ability to hear emergency
vehicles and other warnings. This can result in an accident causing serious
injuries
or death.
VIDEO PRODUCTS MUST BE INSTALLED
SO THAT THE DRIVER
CANNOT WATCH TVNIDEO UNLESS THE VEHICLE IS PARKED. It is
dangerous (and illegal
in many states) for the driver to watch the TV Nideo
while driving. Ifthe product is not installed correctly, the TVNideo can cause
a distraction, causing the driverto look away from the road ahead. This could
result
in an accident and serious injuries or death to the driver and
passengers.
DO NOT OPERATE
ANY FUNCTION THAT TAKES YOUR ATTENTION
AWAY FROM SAFELY DRIVING YOUR VEHICLE. Any function that
requires your prolonged attention should only be performed aftercoming to a
complete stop. Always stop the vehicle
in a safe location before performing
these functions. Failure to do so may result
in an accident.
KEEP SMALL OBJECTSSUCH AS BATTERIES OR SCREWSOUTOF THE
REACH OF CHILDREN. Swallowing them may result
in serious injury. If
swallowed, consult a physician immediately.
DO NOT DISASSEMBLE OR
AL TEA. Doing so may result in an accident, fire
orelectric shock.
USE THIS PRODUCT FOR MOBILE 12V APPLICATIONS. Use for other
than its designed application may result
in fire, electric shock or other injury.
DO NOT EXPOSE THIS PRODUCTTO RAIN OR MOISTURE Doing so may
result
in fire of electric shock.
ALWAYS USE CAUTION WHEN ADJUSTING THE HEADPHONEVOLUME.
Using headphones at high volume can lead
to hearing damage in both
children and adults.
DISPOSE OF
ALL BATTERIES PROPERLY. Please check with your local
recycling or hazardous waste authorities.

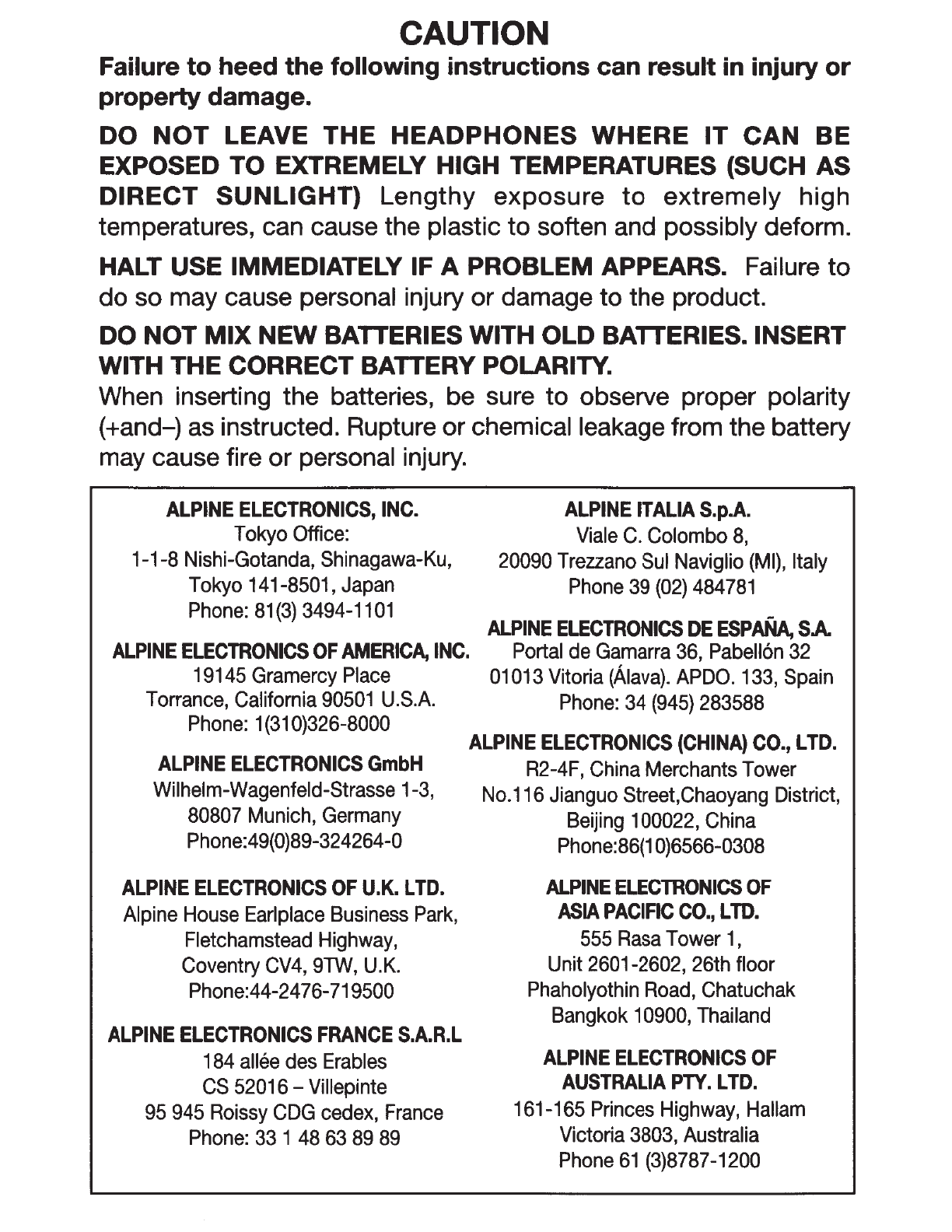

CAUTION
Failure to heed the following instructions can result in injury or
property damage.
DO NOT LEAVE THE HEADPHONES WHERE IT CAN BE
EXPOSED TO EXTREMELY HIGH TEMPERATURES (SUCH AS
DIRECT SUNLIGHT} Lengthy exposure to extremely high
temperatures, can cause the plastic
to soften and possibly deform.
HALT USE IMMEDIATELY IF A PROBLEM APPEARS. Failure
to
do so may cause personal injury or damage to the product.
DO NOT
MIX NEW BATTERIES WITH OLD BATTERIES. INSERT
WITH THE CORRECT BATTERY POLARITY.
When inserting the batteries, be sure
to observe proper polarity
(+and-) as instructed. Rupture orchemical leakage from the battery
may cause fire
or personal injury.
ALPINE ELECTRONICS, INC.
Tokyo Office:
1-1-8 Nishi-Gotanda,
Shinagawa-Ku,
Tokyo 141-8501 , Japan
Phone: [phone]
ALPINE ELECTRONICS OF AMERICA, INC.
19145 Gramercy Place
Torrance, California 90501 U.S.A.
ALPINE IT ALIA S.p.A.
Viale C. Colombo 8,
20090 Trezzano Sui Naviglio (MI), Italy
Phone [phone]
ALPINE ELECTRONICS DE ESPANA, S.A.
Portal de Gamarra 36, Pabell6n 32
01013 Vitoria (Aiava). APDO. 133, Spain
Phone:[phone]
Phone: [phone]
ALPINE ELECTRONICS (CHINA) CO., LTD.
ALPINE ELECTRONICS GmbH
Wilhelm-Wagenfeld-Strasse 1-3,
80807 Munich, Germany
Phone:[phone]
ALPINE ELECTRONICS OF U.K. L TO.
Alpine House Earlplace Business Park,
Fletchamstead Highway,
Coventry CV4, 9TW, U.K.
Phone:[phone]
ALPINE ELECTRONICS FRANCE S.A.R.L
184 allee des Erables
CS 52016 -Villepinte
95 945 Roissy CDG cedex, France
Phone: [phone]
R2-4F, China Merchants Tower
No.116 Jianguo Street,Chaoyang District,
Beijing 100022, China
Phone:[phone]
ALPINE ELECTRONICS OF
ASIA PACIFIC CO., LTD.
555 Rasa Tower 1,
Unit 2601-2602, 26th floor
Phaholyothin Road, Chatuchak
Bangkok 1 0900, Thailand
ALPINE ELECTRONICS OF
AUSTRALIA PTY. LTD.
161 - 165 Princes Highway, Hallam
Victoria 3803, Australia
Phone [phone]

LIMITED WARRANTY
ALPINE ELECTRONICS OF AMERICA, INC. (
11
Aipine
11
), is dedicate~
to quality craftsmanship and is pleased to offer this Warranty. We
suggest that you read it thoroughly. Should you have any
questions, please contact your Dealer
or contact Alpine at one of
the telephone numbers listed below.
PRODUCTS COVERED:
This Warranty covers Car Audio Products and Related Accessories
(
11
the product
11
). Products purchased in the Canada are covered
only
in the Canada. Products purchased in the U.S.A. are covered
only
in the U.S.A.
LENGTH OF WARRANTY:
This Warranty is in effect for one year from the date of the first
consumer purchase.
WHO IS COVERED:
This Warranty only covers the original purchaser of the product,
who must reside
in the United States, Puerto Rico orCanada.
WHAT IS COVERED:
This Warranty covers defects in materials or workmanship (parts
and labor)
in the product.
WHAT IS NOT COVERED:
This Warranty does not cover the following:
CD Damage occurring during shipment of the product to Alpine for
repair (claims must be presented
to the carrier).
(2) Damage caused by accident or abuse, including burned voice
coils caused
by over-driving the speaker (amplifier level is
turned up and driven into distortion or clipping). Speaker
mechanical failure (e.g. punctures, tears or rips). Cracked or
damaged LCD panels. Dropped
or damaged hard drives.
@ Damage caused by negligence, misuse, improper operation or
failure to follow instructions contained in the Owner•s manual.
@ Damage caused by act of God, including without limitation,
earthquake, fire, flood, storms orother acts of nature. Any cost
orexpense related
to the removal orreinstallation ofthe product.
@ Service performed by an unauthorized person, company or
association.

@ Any product which has the serial number defaced, altered or
removed.
(/) Any
product which has been adjusted, altered or modified
without Alpine•s consent.
@ Any
product not distributed by Alpine within the United States,
Puerto Rico
or Canada.
® Any product not purchased from an Authorized Alpine Dealer.
e HOW TO OBTAIN WARRANTY SERVICE:
CD You are responsible for delivery of the product to an Authorized
Alpine Service Center
or Alpine for repair and for payment of
any initial shipping charges. Alpine will, at its option, repair or
replace the product with a new or reconditioned product
without charge. If
the repairs are covered by the warranty, and
if the product was shipped to an Authorized Alpine Service
Center
or Alpine, Alpine will pay the return shipping charges.
(2) You should provide a detailed description of the problem(s) for
which service is required.
@ You must supply proof of your purchase of the product.
@ You must package the product securely to avoid damage
during shipment.
To prevent lost packages it is recommended
to use a carrier that provides a tracking service.
e HOW WE LIMIT IMPLIED WARRANTIES:
ANY IMPLIED WARRANTIES INCLUDING FITNESS FOR USE AND
MERCHANTABILITYARE LIMITED
IN DURATION TO THE PERIOD
OF THE EXPRESS WARRANTY SET FORTH ABOVE AND NO
PERSON IS AUTHORIZED TO ASSUME FOR ALPINE ANY OTHER
LIABILITY
IN CONNECTION WITH THE SALE OF THE PRODUCT.
e HOW WE EXCLUDE CERTAIN DAMAGES:
ALPINE EXPRESSLY DISCLAIMS LIABILITY FOR INCIDENTAL
AND CONSEQUENTIAL DAMAGES CAUSED BY THE PRODUCT.
THE TERM
.. INCIDENTAL DAMAGES .. REFERS TO EXPENSES OF
TRANSPORTING THE PRODUCT TO THE ALPINE SERVICE
CENTER, LOSS OF THE ORIGINAL PURCHASER•s TIME, LOSS
OF THE USE OF THE PRODUCT, BUS FARES, CAR RENTALS OR
OTHERS COSTS RELATING TO THE CARE AND CUSTODY OF
THE PRODUCT. THE TERM
.. CONSEQUENTIAL DAMAGES ..
REFERS TO THE COST OF REPAIRING OR REPLACING OTHER

PROPERTY WHICH IS DAMAGED WHEN THIS PRODUCT DOES
NOTWORK
PROPERLY.

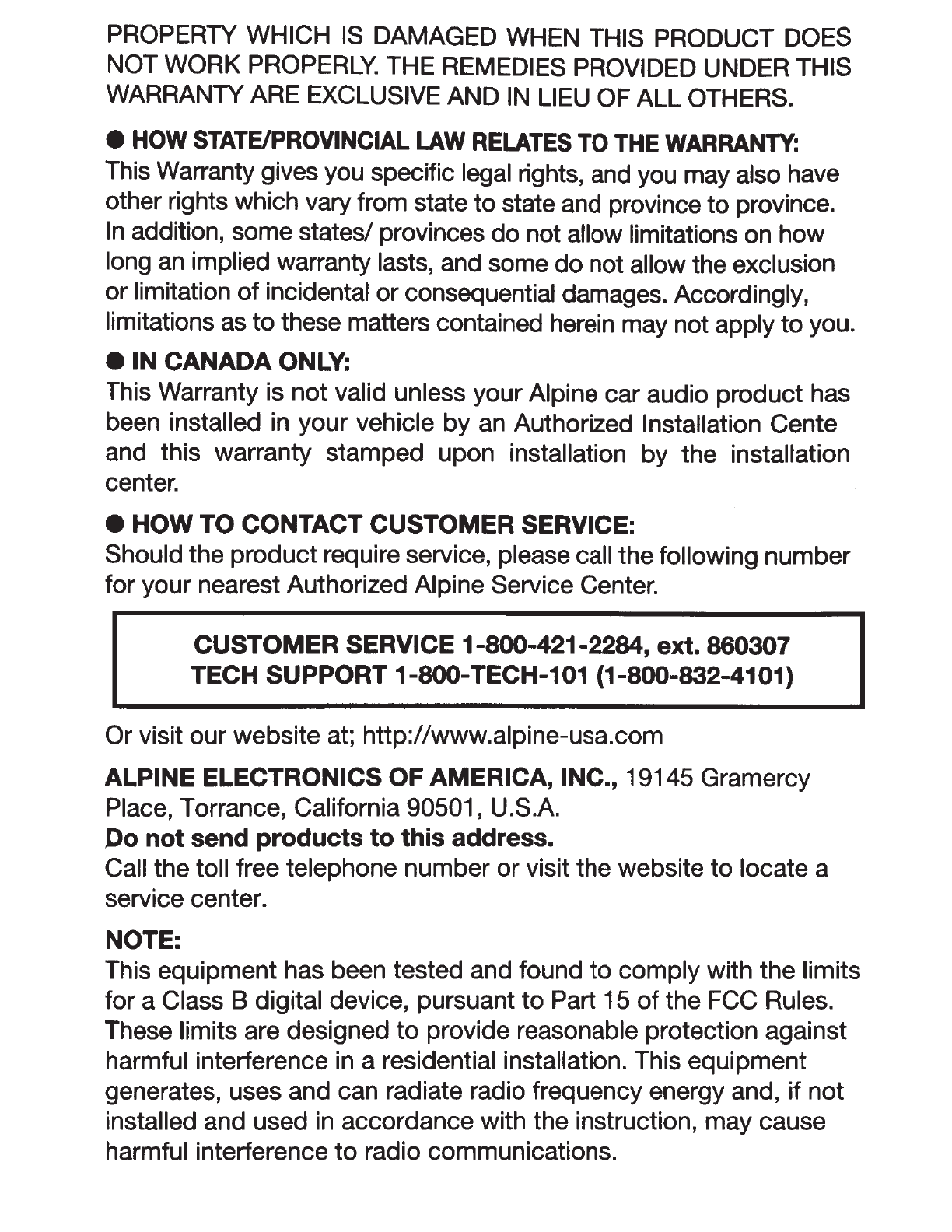

THE REMEDIES PROVIDED UNDER THIS
WARRANTY ARE EXCLUSIVE AND
IN
LIEU OF ALLOTHERS.
e
HOW
STATE/PROVINCIAL
LAW
RELATES
TO
THE
WARRANTY:
This Warranty gives you specific legal rights, and you mayalso have
other rights which vary from state
to
state and province
to
province.
In
addition, some states/ provinces
do
not allow limitations on how
long
an
implied warranty lasts, and some do not allow the exclusion
orlimitation
of
incidental orconsequential damages. Accordingly,
limitations as
to
these matters contained herein may not apply
to
you.
e IN
CANADA
ONLY:
This Warranty is
not
valid unless yourAlpine car audio product has
been installed in your vehicle
by
an Authorized Installation Cente
and this warranty stamped upon installation
by
the installation
center.
e
HOW
TO CONTACT CUSTOMER SERVICE:
Should theproductrequire service, please call the following number
for
your nearest Authorized Alpine Service Center.
CUSTOMER SERVICE 1-800-421-2284,
ext.
860307
TECH SUPPORT 1-800-TECH-101 (1-800-832-4101)
Or visit our website at;
http:/
/www.alpine-usa.com
ALPINE ELECTRONICS OF AMERICA, INC., 19145 Gramercy
Place, Torrance, California 90501, U.S.A.
Po
not
send
products
to
this
address.
Call the toll free telephone number
or
visit the website
to
locate a
service center.
NOTE:
This equipment has been tested and found
to
comply with the limits
for a Class 8 digital device, pursuant
to
Part 15
of
the FCC Rules.
These limits are designed
to
provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if
not
installed and used in accordance with the instruction, may cause
harmful interference
to
radio communications.
