CNK200 Cable-Nook®Interconnect Box User’s Guide
400-0111-007
1
Welcome!
We greatly appreciate your purchase of the CNK200 Cable-Nook
Interconnect Box. We are sure you will find it reliable and simple to use.
Superior performance for the right price, backed by solid technical and
customer support is what Altinex has to offer.
We are committed to providing our customers with Signal Management
Solutions
®
to the most demanding audiovisual installations at competitive
pricing and we welcome you to join the ranks of our many satisfied
customers throughout the world.
1. Precautions and Safety Warnings
Please read this manual carefully before using your CNK200 Cable-Nook
Interconnect Box. Keep this manual handy for future reference. These safety
instructions are to ensure the long life of your CNK200 and to prevent fire
and shock hazards. Please read them carefully and heed all warnings.
1.1 General
Qualified ALTINEX service personnel or their authorized
representatives must perform all service.
1.2 Installation
For best results, place the CNK200 Cable-Nook Interconnect Box in a
dry area away from dust and moisture.
To prevent fire or shock, do not expose this unit to water or moisture.
Do not place the CNK200 in direct sunlight, near heaters or
heat-radiating appliances, or near any liquid. Exposure to direct
sunlight, smoke, or steam can harm internal components.
Handle the CNK200 carefully. Dropping or jarring can damage the
unit.
Never place fingers inside the openings in the back of the unit. This
action could cause serious injury because of the sharp edges inside.
Do not place heavy objects on top of the CNK200.
Install all cables according to the instructions.
1.3 Cleaning
Clean surfaces with a dry cloth. Never use strong detergents or solvents such
as alcohol or thinner. Do not use a wet cloth or water to clean the unit.
1.4 FCC Notice
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and if not installed and used in accordance with
instructions found herein, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
Any changes or modifications to the unit not expressly approved by
Altinex, Inc. could void the user’s authority to operate the equipment.
2. Installation Procedures
WARNING: Altinex recommends using an experienced professional to make the table cutout. Before starting, go to the Altinex website at www.altinex.com
and download the latest table cutout requirements, templates, and detailed installation instructions with diagrams.
Step 1. Cut an opening into the table for the CNK200. Use the template and measurements provided on the Altinex website. The CNK200 is designed to fit
tabletops 0.5 - 3.5 in (13-89 mm) thick.
Step 2. Insert the CNK200 into the table cutout and secure it to the table using the
brackets and thumb screws provided.
Step 3. Prepare cables for use with the CNK200. When using retaining brackets to
hold cables in place, it is important to adjust the retaining brackets close
enough together to prevent the cables from falling, but loose enough to
allow the cables to be pulled up easily. The cables should be long enough to
be pulled up through the CNK200 and reach the equipment.
If using preconfigured or customizable sectional plates, the cables need only
be long enough to mate with the cables/connectors on the plates.
Step 4. If desired, bundle like cables together using a protective sheath, meshed
sleeve, etc. Leave the free ends of the cables long enough for making
connections to the equipment on the table.
Step 5. Route the cables through the bottom of the unit to the top. Use the cable
clamps provided to neatly route and secure the cables to the bottom of the
table.
3. Limited Warranty/Return Policies
Please see the Altinex website at www.altinex.com for details on warranty and return policies.

CNK200 Interconnect Box User’s Guide
400-0111-007
2
4. Technical Specifications
Specifications are subject to change. See www.altinex.com for up-to-date information.
Features/Description CNK200
Inputs
Video/Audio
n/a
Outputs
Video/Audio
n/a
Compatibility
Cable-Nook Standard and
Customizable Plates CN5000 Series, CNK-IP-100 Series
Snap-In Connectors All Altinex Snap-In
Connectors
Accessories Included
Mounting Hardware Thumb Screws (2),
Mounting Brackets (2)
Table 1. CNK200 General
Mechanical CNK200
Hole Sets 23
Minimum Table Thickness 0.5 in (13 mm)
Maximum Table Thickness 3.5 in (89 mm)
Housing Dimensions
Height 4.7 in (119 mm)
Width 6.0 in (153 mm)
Depth 4.7 in (119 mm)
Bezel Dimensions (surface)
Width 7.9 in (200 mm)
Depth 6.5 in (166 mm)
Color: CNK200
CNK200S Black Brushed Aluminum
Material Aluminum
TOperating 10C-35C
TMaximum 50C
Humidity 90non-condensing
MTBF (calculations) 40,000 hrs (min.)
Table 2. CNK200 Mechanical

CNK200 Interconnect Box User’s Guide
400-0111-007
3
5. About Your CNK200
Installs easily into tabletop
Convenient access to cables
Simple, cost-effective interconnect solution
Fits table surfaces 0.5 - 3.5 in (13 - 89 mm) thick
The CNK200 is a simple, effective way of hiding/storing multimedia cables and connectors and is designed for boardrooms and conference rooms. Cables remain
connected to a presentation system enabling the user to access connections to AC power, video, audio, and other media sources.
The cables connected to the presentation system underneath the surface can be accessed from the CNK200 by either pulling the cables up and out of the top of
the unit (using retaining brackets) or by plugging external cables into sectional plates installed in the CNK200.
Retaining brackets secure cable ends where the brackets can be adjusted to fit a wide variety of cable sizes. Cables are pulled out from the top of the CNK200
when needed and then fed back down under the table when no longer required. The weight of the cables helps to feed the slack through the unit and the cable
ends are kept from falling by the retaining brackets.
The CNK200 sectional plates allow for diverse connector configurations. Available plates include combinations of audio, video, computer, and AC power
connectors, providing extensive flexibility in a convenient package. The sectional plates connect permanently to the presentation system.
The CNK200 Cable-Nook is designed for use with tables ranging from half an inch to 3.5 in thick. The height of the interior shelf can also be adjusted for
different depths. The CNK200 comes in a standard matte black color. The CNK200S comes in brushed aluminum .

CNK200 Interconnect Box User’s Guide
400-0111-007
4
6. Application Diagrams
Diagram 1: Typical Setup

CNK200 Interconnect Box User’s Guide
400-0111-007
5
Diagram 2: Dimensions Top and Front

CNK200 Interconnect Box User’s Guide
400-0111-007
6
Diagram 3: Side View Dimensions

CNK200 Interconnect Box User’s Guide
400-0111-007
7
Diagram 4: Twenty-Three (23) Hole Sets
The CNK200 can be customized for virtually any configuration required. Inside, there are 23 hole sets available for installing preconfigured plates, customizable
plates, or retaining brackets for holding cables.
In some cases, it is desirable to have the cables reside in the Cable-Nook instead of requiring the user to provide their own cables. In this case, retaining brackets
can be positioned to keep cables installed under the table from falling below the Cable-Nook’s interior shelf. The user simply pulls out the cable(s) needed and
connects them to a laptop, iPod, etc.
Shown below are some typical plate options with retaining brackets. See our website at www.altinex.com for a complete list of available plates and customizable
snap-in connectors.

CNK200 Interconnect Box User’s Guide
400-0111-007
8

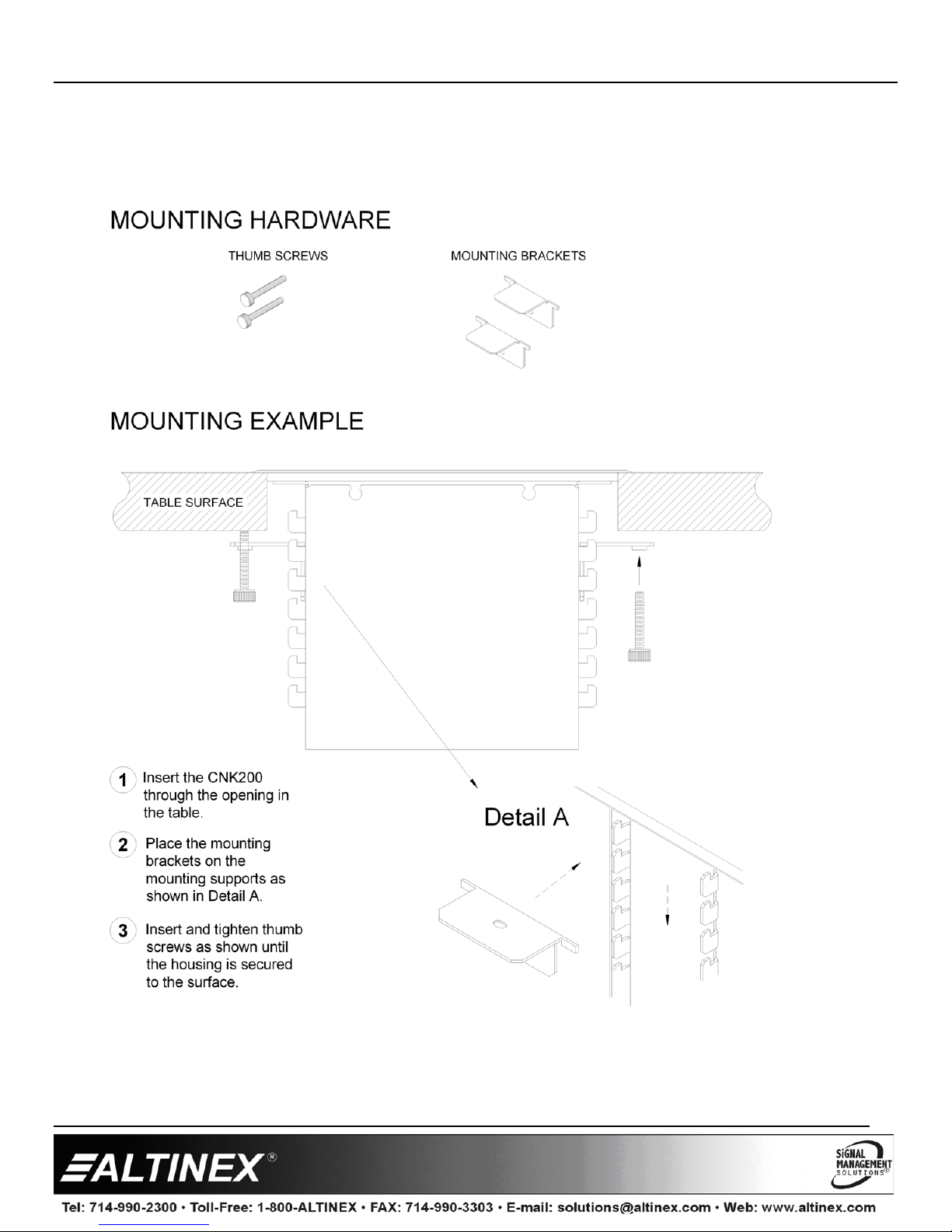

Diagram 5: Mounting

CNK200 Interconnect Box User’s Guide
400-0111-007
9
7. Operation
7.1 Accessing the CNK200
The CNK200 cover opens easily and remains open until all the cables are
connected. The cover should be closed with the cables routed through the
curved opening to prevent damage to the unit and to prevent liquids from
entering the opening.
Additionally, the cover should be closed when not in use to prevent liquids
or other debris from damaging the unit.
7.2 Power/Signal Connections
Connect external devices to the appropriate connector from the CNK200.
Remember, the devices plugged into the AC power connectors should not
draw more than the rated values of the cables and/or circuit.
8. Troubleshooting Guide
The CNK200 supplied was carefully tested and no problems were detected.
However, we would like to offer the following suggestions:
Please make sure that the highest quality network cables are used.
Make sure that no cable or power cord is damaged or pinched. If there has
been damage, do not use the CNK200. Please call the Altinex
Customer Service Department at [phone] to have the unit
repaired.
