Altius ATSDB-SCA22 User manual

ATSDB-SCA22
SmArT DOOrBELL
USEr mAnUAL

2
We hope you enjoy your purchase!
ALTIUS products are carefully designed and
produced to the highest standards of performance
and safety, backed by our comprehensive 1 Year
Warranty.
This user manual will provide all the information
required for you to setup and use your new product.
WELCOmE

3
COnTEnTS
Welcome 2
General Safety Warnings 4
Product Overview 8
Operation 9
Settings 19
Troubleshooting 20
Specications 22
Compliance and Responsible
Disposal 23

4
GEnErAL SAfETy WArninGS
This product complies with Australian Safety
Standard AS/NZS 62368.1 to ensure the safety
of the product.
imPOrTAnT
Location
Location: Make sure the location for the product is well
ventilated, and away from damp and cold, protected
from overheating and away from direct sunlight, away
from moisture drips or splashes and protected from
excessive dust or grease.
Other electronic products may cause interference with
your smart doorbell. Try installing your smart doorbell
as far away from these electronic devices as possible:
wireless routers, radios, mobile phones, intercoms,
room monitors, televisions, personal computers,
kitchen appliances and cordless telephones.
Heat: Do not place the product set near heat sources
(eg. radiators, stoves, electrical equipment, ampliers).
Water: Do not place containers with liquids (eg. vases)
or with small metallic objects on top of the product.
Fire: Do not place any naked ame sources (eg. lit
candles, cigarettes) on the product.

5
Children: Supervise young children to ensure they do
not play with the product. This product is not a toy,
please keep out of reach of children.
Ensure the doorbell is securely mounted to avoid theft.
Avoid direct exposure to sunlight and rain.
Cleaning and Maintenance
Unplug or turn o the product before cleaning it.
Cleaning: Only use a soft, dry cloth for cleaning the
product; do not use a damp cloth. Never clean with
industrial strength polish, wax, benzene, paint thinner,
air freshener, lubricant, detergent or other chemicals.
Wipe o any moisture, dirt or dust on the power plug
pins with a clean, dry cloth.
Safe Battery Handling and Usage
The Doorbell should be kept out of direct sunlight
The Doorbell should be placed in a sheltered location
where it will not be directly exposed to the weather.
The doorbell MUST not be located in a position where
it will be directly exposed rain or water.
Repair: If the Chime requires repair, contact the After
Sales Support line; never disassemble or modify the
chime unit or attempt to service it yourself.

6
The chime is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction by a person responsible for their safety.
Young children should be supervised to ensure they do
not play with the Doorbell or chime. Close supervision
is always necessary when any appliance is used by or
near children.
The Chime is designed for indoor use in dry places
only.
Batteries can EXPLODE, CATCH FIRE, and/or CAUSE
BURNS if disassembled, punctured, cut, crushed, short
circuited, incinerated, exposed to water, re, or high
temperatures.
Only use batteries supplied with the product. If you
are unsure about whether a replacement battery or
charger is compatible, contact customer support.
DO NOT use this battery pack for anything other than
its intended purpose.
DO NOT use a battery pack if its case appears
damaged, swollen, or compromised.
DO NOT disassemble, crush, puncture, short external
contacts, or dispose of in re or water

7
DO NOT expose the battery to re or temperatures
greater than 60°C. Do not place the battery next to
areas which may become hot. Examples include, but
are not
limited to, on or near a heater, cooking surfaces,
cooking appliances or replace.
DO NOT place the battery pack in a pocket, bag, or
other receptacle containing metal objects, such as
keys, jewelery, or tools.
DO NOT store the battery pack with hazardous or
combustible material. Store in a cool, dry, ventilated
area.
ALWAYS keep the battery pack away from children.
DO NOT load the battery pack backwards. MAKE SURE
the battery compartment is empty and free of any
moisture or loose debris before inserting the battery.
Follow local guidelines to dispose of used battery
packs.
Do not drop or cause an impact to the Chime or
Doorbell unit.

8

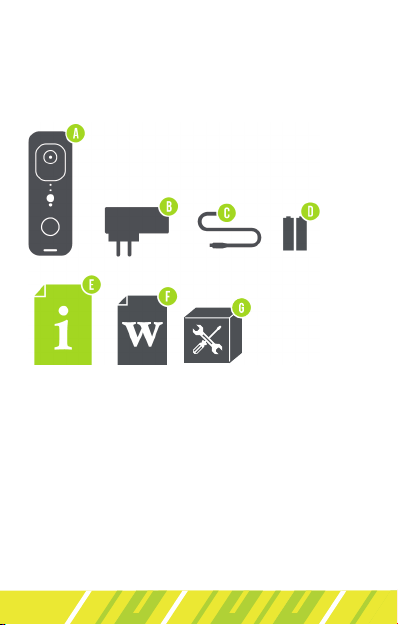

A. Smart Doorbell
B. Indoor Chime
C. Micro USB Cable
D. Rechargeable Lithium Batteries (2)
E. User Manual
F. Warranty Card
G. Installation Kit
What’s in the box:
PrODUCT OvErviEW

9
OPErATiOn
firST TimE USE
Take out the supplied lithium rechargeable batteries,
remove the protection sheet on the batteries and
insert according to the polarity markings (+/-) inside
the battery compartment on the back of the product.
Ensure the batteries are correctly aligned and properly
pushed into place.
Insert the supplied micro USB cable to the micro USB
charging port on the back of the product and the
other end to a power source. Charge for 8 hours.

10
TUyA SmArT APP
Search for the Tuya Smart app in the
app store to download, or scan the
QR code below.
1. Note: your mobile phone must support Android
OS 5.0 or IOS 10.0 or above. You must also
be connected to a mobile network or Wi-Fi
connection. When connecting to the Tuya Smart
app for the rst time, the WiFi connection must
be 2.4GHz. 5GHz Wi-Fi connection cannot be
supported on rst time connection.
rEGiSTrATiOn AnD LOGin
Open the app and select “Sign Up” to register. If you
already have an account, press “Log In”.

11
COnnECT DOOrBELL TO APP
1. Tap on the “+” icon or “Add Device”.
2. Select “Security & Sensors” from the categories.
3. Select “Smart Camera”.
1
2
3
4. After inserting the batteries as described on
page 9, you will hear a notication indicating
that the doorbell is now ready to begin pairing.
The LED light will ash blue. Tap “next step” on
the app.
5. Find the name of your Wi-Fi network, enter you
password and select “Conrm.”
45

12
67
8
Note: ensure to turn on
push notications on your
smart phone. On your smart
phone, enable to Tuya Smart
app to turn on and receive
notications.
6. Tap “Continue”, then use the doorbell the scan
the QR code that will appear on the screen.
7. After you hear a sound, tap “I heard a prompt”.
8. Once the doorbell has
connected to Wi-Fi,
tap “Done”. Setup is
now complete and
your doorbell is now
connected to the app.
Note: Tuya Smart app screens may dier due to
application updates and improvements.

13
1
2
3
5
4
6
8
9
10
11
12
13
14
15
16
17
18
19
20
7

14
1. Resolution: tap to change between SD and
HD resolution
2. Battery % indicator
3. Turn microphone on/o
4. Screenshot current video (requires micro SD
card (not included) inserted into the doorbell)
5. Full screen display
6. Gallery: view captured screenshot (requires
micro SD card (not included) inserted into
the doorbell)
7. Playback saved les on your micro SD card
8. Press to talk
9. Adjust volume
10. Message: receive the record of motion
detection
11. Settings
12. Switch between 4:3/16:9 display
13. Mute/unmute sound
14. Record video (requires micro SD card (not
included) inserted into the doorbell)
15. Change theme colour mode
16. Turn night mode on/o
17. Press to ring the alarm on the doorbell
18. Button management: add or remove the
button icon
19. Features: switch back to feature screen
20. Cloud storage (subscription fee required)

15
COnnECTinG THE DOOrBELL TO CHimE
First, ensure the doorbell is
connected to your phone.
1. Plug in the chime to a
power source.
2. Press the Tune button on
the chime, there are many
dierent tunes built-in.
3. Press and hold the volume
control button until the LED
indicator lights up blue.
4. Press the call button on the
doorbell.
5. Press the call button again,
the tune will play to the tune
you have selected.
Note: the doorbell is only compatible with the
supplied indoor chime. If the indoor chime is not
plugged in, notications for the doorbell will be shown
on the Tuya Smart app.

16
Front
Front
Back
Side
1. Lens
2. Microphone
3. LED Indicator
light
4. Motion sensor
5. Call button
6. Speaker
7. Reset button
8. Micro USB charging port
9. Micro SD card slot
10. Battery compartment
11. Security screw hole
18
9
10
11
2
3
6
4
7
1. LED
Indicator
2. Tune
3. Volume
control
2
3
1
5

17
inSTALLATiOn KiT
A. Allen key
B. Mansory plugs (5)
C. Wall Mount screws (5)
D. Case screws (2)
A B C D
inSTALLATiOn
Tools required: to complete the installation you will
need:
A. Pencil
B. Philips Head Screwdriver
C. Power Drill
D. Hammer
1. Use the allen key (A) to unscrew the back plate
of the doorbell.
2. Using the back plate as template, mark 5 holes.
3. On the marked holes, drill holes into the wall.
Then wedge the mansory plugs (B) into the
holes, gently tap each plug with a hammer until
they are ush with the wall.
WARNING: Mount the doorbell as far away from any
water source and direct sunlight.
WARNING: DO NOT attache the wall mount to a
hollow wall or decorative cardboard.
WARNING: do not drill into mortar joints. Please pay
attention to electrical lines and also the location of gas
and water lines when drilling holes.
AB
CD

18
4. Hold the back plate against the wall and align the
holes in the plate to the holes drilled into the wall.
5. Screw the back plate to the wall with the wall
mount screws (C) and then tighten the screws.
6. Slide the doorbell into the back plate. You will hear
a click sound indicating it is securely locked in.
Note: it is recommended to check the live preview to
nd the best height to mount the doorbell.
The Doorbell should be placed in a sheltered location
where it will not be directly exposed to the weather.
Do not install in a position where the tting can be
easily accessed by children or the inrm.

19
SETTinGS
Device
Information
View device ID, IP address etc.
Tap to Run and
Automation
To turn on smart scenes and run
automations
Purchase VAS Purchase Value added service such as
cloud storage
FAQ &
Feedback
Check FAQ (frequently asked questions)
& submit feedback to the provider.
Share Device Share device to other users.
Add to Home
Screen
Add shortcut at your desktop or smart
phone.
Remove Device Remove device from the app.
PLAyBACK SAvED fiLES
On the app, select the playback icon (only available
when a micro SD card is inserted in the doorbell). You
can view the previous saved recordings.

20
TrOUBLESHOOTinG
PrOBLEm SOLUTiOn
Doorbell
cannot
connect to app
• Ensure doorbell is on (light
indicator should be on).
• Disable rewalls on all
devices.
• Remove the app and
re-install.
• Reset the doorbell using
the reset button and
reconnect to the app.
Video stream
is poor and/
or resolution is
not clear
• Ensure Wi-Fi connection
speed meets minimum
requirement: 1Mbps for
480P, 2Mbps for 720P and
4Mbps for 1080P.
• Clean the doorbell lens.
