Alto-Shaam HSM-38/3S Installation and operating instructions

MN-28755 • 11/11
printed i n u.s.a.
Heated Glass Shelf
Merchandiser
Model:
HSM-38/3S
HSM-48/5S
  •InstallatIon
 •operatIon
•MaIntenance
W164 N9221 Water Street • P.O. Box 450 • Menomonee Falls, Wisconsin 53052-0450 USA
PHONE: [phone] • 800.558.8744
USA/CANADA
FAX: [phone] • 800.329.8744
U.S.A. ONLY
www.alto-shaam.com

Delivery ............................................................................. 1
Unpacking ......................................................................... 1
Safety Procedures and Precautions................................... 2
Installation
Installation Requirements and Leveling ........................ 3
Clearance Requirements.............................................. 3
Weights........................................................................ 3
Dimension Drawings .................................................... 4
Options and Accessories.............................................. 4
Product Capacity.......................................................... 4
Electrical Specifications ............................................... 6
User Safety Information................................................ 7
Before Initial Use ......................................................... 7
Operating Instructions
Operation Instructions .................................................. 8
General Holding Guidelines.......................................... 9
Care and Cleaning
Cleaning and Preventative Maintenance .................... 10
Protecting Stainless Steel Surfaces............................ 10
Cleaning Agents......................................................... 10
Cleaning Materials ..................................................... 10
Equipment Care and Cleaning.................................... 11
Sanitation
Sanitation/Food Safety ............................................... 12
Internal Food Product Temperatures .......................... 12
Service
Exterior Service Views & Parts Lists ..................... 13-18
Electronic Components & Parts Lists .................... 19-21
Wire Diagrams
Always refer to the wire diagram(s) included with the unit
for most current version.
Warranty
Transportation Damage and Claims ............. Back Cover
Limited Warranty.......................................... Back Cover

HSM inStallation/operation/Service Manual pg. 1
DELIVERY
This Alto-Shaam appliance has been
thoroughly tested and inspected to ensure only
the highest quality unit is provided. Upon
receipt, check for any possible shipping damage
and report it at once to the delivering carrier.
See Transportation Damage and Claims section
located in this manual.
This appliance, complete with unattached
items and accessories, may have been delivered
in one or more packages. Check to ensure that all
standard items and options have been received
with each model as ordered.
Save all the information and instructions
packed with the appliance. Complete and return
the warranty card to the factory as soon as
possible to ensure prompt service in the event of a
warranty parts and labor claim.
This manual must be read and understood
by all people using or installing the equipment
model. Contact the Alto-Shaam Tech Team Service
Department if you have any questions concerning
installation, operation, or maintenance.
NOTE: All claims for warranty must include the
full model number and serial number of
the unit.
UNPACKING
1. Carefully remove the
appliance from the
carton or crate.
NOTE: Do not discard the
carton and other
packaging material
until you have
inspected the unit
for hidden damage
and tested it for
proper operation.
2. Read all instructions in this manual carefully
before initiating the installation of this appliance.
DO NOT DISCARD THIS MANUAL.
This manual is considered to be part of the
appliance and is to be provided to the owner
or manager of the business or to the person
responsible for training operators. Additional
manuals are available from the Alto-Shaam
Tech Team Service Department.
3. Remove all protective plastic film, packaging
materials, and accessories from the appliance
before connecting electrical power. Store any
accessories in a convenient place for future use.
®
®

pg. 2 HSM inStallation/operation/Service Manual
CAUTION
Used to indicate the presence of a hazard that
can or will cause minor personal injury, property
damage, or a potential unsafe practice if the
warning included with this symbol is ignored.
CAUTION
Used to indicate the presence of a
hazard that can or will cause minor or
moderate personal injury or property
damage if the warning included with
this symbol is ignored.
DANGER
Used to indicate the presence of
a hazard that WILL cause severe
personal injury, death, or substantial
property damage if the warning
included with this symbol is ignored.
WARNING
Used to indicate the presence of
a hazard that CAN cause personal
injury, possible death, or major
property damage if the warning
included with this symbol is ignored.
1. This appliance is intended to cook, hold
or process foods for the purpose of human
consumption. No other use for this appliance is
authorized or recommended.
2. This appliance is intended for use in commercial
establishments where all operators are
familiar with the purpose, limitations, and
associated hazards of this appliance. Operating
instructions and warnings must be read and
understood by all operators and users.
3. Any troubleshooting guides, component views,
and parts lists included in this manual are for
general reference only and are intended for use
by qualified technical personnel.
4. This manual should be considered a permanent
part of this appliance. This manual and all
supplied instructions, diagrams, schematics,
parts lists, notices, and labels must remain with
the appliance if the item is sold or moved to
another location.
NOTE: Used to notify personnel of
installation, operation, or
maintenance information that is
important but not hazard related.
SAFETY PROCEDURES
AND PRECAUTIONS
Knowledge of proper procedures is essential to the
safe operation of electrically and/or gas energized
equipment. In accordance with generally accepted
product safety labeling guidelines for potential
hazards, the following signal words and symbols
may be used throughout this manual.
NOTE
For equipment delivered for use
in any location regulated by the
following directive:
DO NOT DISPOSE OF ELECTRICAL
OR ELECTRONIC EQUIPMENT WITH
OTHER MUNICIPAL WASTE.

HSM inStallation/operation/Service Manual pg. 3
This appliance, complete with unattached items
and accessories, may be delivered in one or more
packages. Check to insure that all accessories that
were ordered have been received with the unit.
Lift the appliance from
the pallet with a fork lift
truck positioned at the
back of the appliance.
Care must be taken
when moving this unit
into place because of
its glass components,
and it tends to be top
heavy. The five-shelf
merchandiser has heavy
duty swivel casters with
brakes.
Alto-Shaam heated shelf units are designed for the
purpose of maintaining hot food at a temperature
for safe consumption. The unit must be installed
on a level surface in a location that will permit the
equipment to function for its intended purpose
and allow adequate access for proper cleaning and
maintenance. Level the appliance from side to side
and back to back with the use of a spirit level.
Do not install near a cold air source as a freezer,
air conditioning vents, or in any area where
outside air fluctuation can affect performance. This
appliance must not be affected by steam, grease,
dripping water, high temperatures, or any other
adverse conditions.
In order to maintain NSF standards, counter models
must be sealed at bottom by NSF approved sealant,
or equipped with casters or 4" (102mm) legs to
provide minimum unobstructed space beneath the
unit. Floor units must also be sealed at bottom or
have casters or 6" (152mm) legs to provide minimum
unobstructed space beneath the unit. Warranty will
become null and void if these directions are not
followed.
SITE INSTALLATION
INSTALLATION
CLEARANCE REQUIREMENTS
4" (102mm) at back of unit
WEIGHT HSM-38/3S - THREE SHELF UNIT
net 335 lb (152 kg)
ship 595 lb (270 kg)
crate dimensions: lxwxh
36" x46" x65"
(914mm x 1168mm x 1651mm)
WEIGHT HSM-48/5S - FIVE SHELF UNIT
net 540 lb (245 kg)
ship 965 lb (438 kg)
crate dimensions: lxwxh
45" x52" x87"
(1143mm x 1321mm x 2210mm)
DANGER
IMPROPER INSTALLATION,
ALTERATION, ADJUSTMENT,
SERVICE, OR MAINTENANCE COULD
RESULT IN SEVERE INJURY, DEATH,
OR CAUSE PROPERTY DAMAGE.
READ THE INSTALLATION,
OPERATING AND MAINTENANCE
INSTRUCTIONS THOROUGHLY
BEFORE INSTALLING OR SERVICING
THIS EQUIPMENT.
CAUTION
TO PREVENT PERSONAL INJURY,
USE CAUTION WHEN MOVING OR
LEVELING THIS APPLIANCE.
®

pg. 4 HSM inStallation/operation/Service Manual
INSTALLATION
48-1/4" (1224mm)
75-5/8" (1919mm)
4-1/8" (104mm)
8" (203mm)
Electrical Connection
27-1/4" (692mm)
1/16" (7mm)
7-7/8"
(200mm)
4" (102mm)
21-5/8"
(549mm)
SITE INSTALLATION
OPTIONS & ACCESSORIES
Custom Panel Colors
Black or Burgundy Available
Pass-through Design
Rear Sliding Doors Available
HSM-48/5S
PRODUCT CAPACITY - HSM-48/5S
150 lb (68 kg) maximum
each shelf
Ten (10) chicken boats with dome cover

HSM inStallation/operation/Service Manual pg. 5
38" (968mm)
51-1/2" (1307mm)
4" (100mm) - Legs extend up to 4"
7-1/16" (179mm)
7-1/16"
(179mm)
27-5/16" (694mm)
6-7/16" (162mm)
6-3/8" (160mm)
9-5/16"
(235mm)
INSTALLATION
SITE INSTALLATION
HSM-38/3S
OPTIONS & ACCESSORIES
Cabinet
Burgundy 5002703
Brushed Stainless Steel 5004919
Black 5004920
Custom Panel Colors
Burgundy or Black Available
Pass-through Design
Rear Sliding Doors Available
PRODUCT CAPACITY - HSM-38/3S
72 lb (33 kg) maximum
each shelf
Eight (8) chicken boats with dome cover

pg. 6 HSM inStallation/operation/Service Manual
An identification tag is permanently mounted on
the cabinet.
Permanent wiring or electrical outlets for this
appliance must be installed by a licensed electrician
in accordance with local, country, or national codes.
This appliance must be connected to a dedicated
circuit: (see below)
HSM-38/3S –– 20 Amp circuit
HSM-48/5S –– 30 Amp circuit
Always position the appliance so the power supply
cord is easily accessible in case of emergency. Plug
the unit into a properly grounded receptacle ONLY.
Arcing will occur when connecting or disconnecting
the unit unless all controls are in the OFF position.
INSTALLATION
ELECTRICAL
DANGER
ENSURE POWER SOURCE
MATCHES VOLTAGE STAMPED
ON APPLIANCE NAMEPLATE.
ELECTRICAL, HSM-38/3S THREE SHELF UNIT
voltage phase cycle/hz amps kW cord, no plug
208-240 (aGcY) 1 60 10 5.7 nema 6-20P
at 208 1 60 10.8 2.3 20A-250V
at 240 1 60 12.5 3.0 recommended
mus t be on it’sown 20amp circuit
230 1 50 11.8 2.7 cord, no pluG
ELECTRICAL, HSM-48/5S FIVE SHELF UNIT
voltage phase cycle/hz amps kW cord, no plug
208-240 (aGcY) 1 60 24 5.7 nema l6-30P
at 208 1 60 20.6 4.3 30A-250V
at 240 1 60 24 5.7 recommended
mus t be on its own 30 amp circuit
380-415 3 50 10 5.7 cord, no pluG
Wire diagrams are included in the literature
package supplied with the unit.
Hard wired models:
Hard wired models must be equipped with a
country certified external allpole disconnection
switch with sufficient contact separation.
If a power cord is used for the connection of the
product an oil resistant cord like H05RN or H07RN
or equivalent must be used.
NOTE:
CE approved appliances must be
connected to an electrical circuit that is
protected by an external GFCI outlet.
For CE approved units: To prevent an electrical
shock hazard between the appliance and other
appliances or metal parts in close vicinity, an
equalization-bonding stud is provided. An
equalization bonding lead must be connected to
this stud and the other appliances / metal parts
to provide sufficient protection against potential
difference. The terminal is marked
with the following symbol.
DANGER
To avoid electrical shock, this
appliance MUST be adequately
grounded in accordance with local
electrical codes or, in the absence of
local codes, with the current edition
of the National Electrical Code ANSI/
NFPA No. 70. In Canada, all electrical
connections are to be made in
accordance with CSA C22.1, Canadian
Electrical Code Part 1 or local codes.

HSM inStallation/operation/Service Manual pg. 7
This appliance is intended for use in commercial
establishments where all operators are familiar
with the purpose, limitations, and associated
hazards of this appliance. Operating instructions
and warnings must be read and understood by all
operators and users.
Before Initial Use:
Before operating the merchandiser, clean it with a
damp cloth and mild soap solution. Glass cleaner
can be used on the glass.
Special Instructions:
1. Do not allow liquids or food to come in direct
contact with the glass shelves.
2. Use hand protection when handling hot items.
3. Be certain only hot foods in appropriate heat
tested containers are used.
4. It is recommended that plastic or paper
containers be used. Pans or dishes can scratch
the glass.
5. Be careful not to overheat as this may cause
some containers to melt.
6. Do not stack containers.
Heating Characteristics
The heated upper glass surface provides even heat
transfer to hot food in heat tested containers that
are held in direct contact with the glass top.
USER SAFETY INFORMATION
To avoid personal injury and damage to
the unit, treat glass with care.
Remember –– glass can shatter.
CAUTION
METAL PARTS OF THIS EQUIPMENT
BECOME EXTREMELY HOT WHEN
IN OPERATION. TO AVOID BURNS,
ALWAYS USE HAND PROTECTION
WHEN OPERATING THIS APPLIANCE.
INSTALLATION

pg. 8 HSM inStallation/operation/Service Manual
OPERATION
1. Check that the unit is connected to the
appropriate power source.
2. Slide open the control panel. Press
power and light switches on.
3. Turn thermostat(s) to a predetermined
number and preheat for 30 minutes.
Each shelf has its own thermostat control
numbering from 0 to 10. When the thermostat is
turned clockwise to the determined number, the
indicator light will illuminate and will remain
lit as long as the shelf is calling for heat.
The indicator light will go OUT when the
temperature on the glass top reaches the set
number determined by the operator. It will
then cycle “oN/off” at this holding point.
The shelves will hold a steady even heat as
assigned. The user must determine what set
point can be used regarding each food item
held on its corresponding shelf. It is
recommended that a similar food product be
placed on each shelf.
Always use the top shelf for the highest heat
assignment, and the bottom shelf for the lowest
heat assignment.
The proper temperature range for the food
being held will depend on the food type,
the packaging, and the quantity of product.
When holding food for prolonged periods, it
is advisable to periodically check the internal
temperature of each item to assure maintenance
of the proper temperature range.
4. Load prepackaged hot foods into the
merchandiser.
Before loading food into the unit, use a pocket-
type meat thermometer to make certain all
products have reached an internal temperature
of 160° F (71°C) or higher. If any food product
is not at proper serving temperature, use a Halo
Heat cooking and holding oven or Combitherm
Oven to bring the product within the correct
temperature range.
5. Occasionally stir or rotate foods
as needed.
Wipe spills immediately to assure maximum
eye appeal and minimize end-of-the-day
cleanup.
on/off switch light switch bottom shelf 2nd shelf 3rd shelf 4th shelf top shelf
from bottom from bottom from bottom
on/off switch light switch bottom shelf middle shelf top shelf
HSM-48/5S - Five Shelf

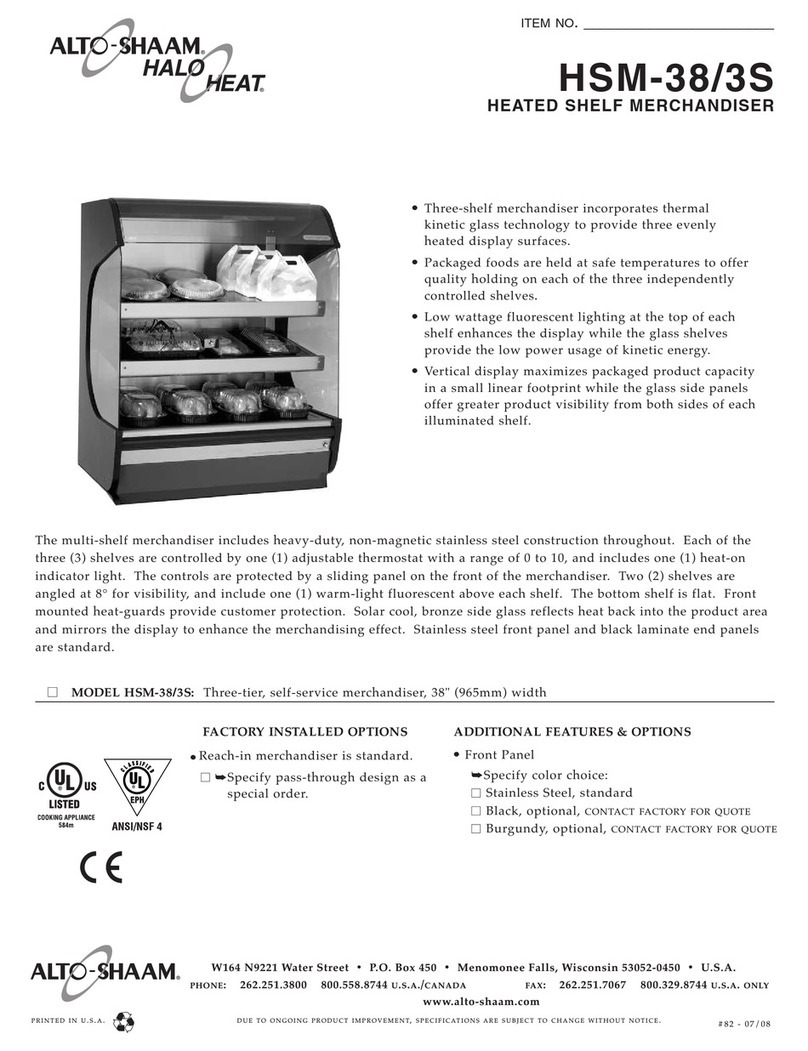

HSM-38/3S - Three Shelf

HSM inStallation/operation/Service Manual pg. 9
OPERATION
GENERAL HOLDING GUIDELINES
Chefs, cooks and other specialized food service
personnel employ varied methods of cooking. Proper
holding temperatures for a specific food product
must be based on the moisture content of the
product, product density, volume, and proper serving
temperatures. Safe holding temperatures must also be
correlated with palatability in determining the length
of holding time for a specific product.
Halo Heat maintains the maximum amount of product
moisture content without the addition of water,
water vapor, or steam. Maintaining maximum
natural product moisture preserves the natural
flavor of the product and provides a more genuine
taste. In addition to product moisture retention, the
gentle properties of Halo Heat maintain a consistent
temperature throughout the cabinet without
the necessity of a heat distribution fan, thereby
preventing further moisture loss due to evaporation
or dehydration.
When product is removed from a high temperature
cooking environment for immediate transfer into
equipment with the lower temperature required
for hot food holding, condensation can form on the
outside of the product and on the inside of plastic
containers used in self-service applications. Allowing
the product to release the initial steam and heat
produced by high temperature cooking can alleviate
this condition. To preserve the safety and quality of
freshly cooked foods, however, a maximum of 1 to 2
minutes must be the only time period allowed for the
initial heat to be released from the product.
This appliance is equipped with a thermostat
indicating a range of between 0 and 10. Use a metal-
stemmed thermometer to measure the internal
temperature of the product(s) being held. Adjust the
thermostat setting to achieve the best overall setting
based on internal product temperature.
HOLDING TEMPERATURE RANGE
MEAT FAHRENHEIT CELSIUS
BEEF ROAST — Rare 130°F 54°C
BEEF ROAST — Med/Well Done 155°F 68°C
BEEF BRISKET 160° — 175°F 71° — 79°C
CORN BEEF 160° — 175°F 71° — 79°C
PASTRAMI 160° — 175°F 71° — 79°C
PRIME RIB — Rare 130°F 54°C
STEAKS — Broiled/Fried 140° — 160°F 60° — 71°C
RIBS — Beef or Pork 160°F 71°C
VEAL 160° — 175°F 71° — 79°C
HAM 160° — 175°F 71° — 79°C
PORK 160° — 175°F 71° — 79°C
LAMB 160° — 175°F 71° — 79°C
POULTRY
CHICKEN — Fried/Baked 160° — 175°F 71° — 79°C
DUCK 160° — 175°F 71° — 79°C
TURKEY 160° — 175°F 71° — 79°C
GENERAL 160° — 175°F 71° — 79°C
FISH/SEAFOOD
FISH — Baked/Fried 160° — 175°F 71° — 79°C
LOBSTER 160° — 175°F 71° — 79°C
SHRIMP — Fried 160° — 175°F 71° — 79°C
BAKED GOODS
BREADS/ROLLS 120° — 140°F 49° — 60°C
MISCELLANEOUS
CASSEROLES 160° — 175°F 71° — 79°C
DOUGH — Proofing 80° — 100°F 27° — 38°C
EGGS —Fried 150° — 160°F 66° — 71°C
FROZEN ENTREES 160° — 175°F 71° — 79°C
HORS D'OEUVRES 160° — 180°F 71° — 82°C
PASTA 160° — 180°F 71° — 82°C
PIZZA 160° — 180°F 71° — 82°C
POTATOES 180°F 82°C
PLATED MEALS 140° — 165°F 60°— 74°C
SAUCES 140° — 200°F 60° — 93°C
SOUP 140° — 200°F 60° — 93°C
VEGETABLES 160° — 175°F 71° — 79°C
THE HOLDING TEMPERATURES LISTED ARE SUGGESTED GUIDELINES ONLY. ALL
FOOD HOLDING SHOULD BE BASED ON INTERNAL PRODUCT TEMPERATURES.
ALWAYS FOLLOW LOCAL HEALTH (HYGIENE) REGULATIONS FOR ALL INTERNAL
TEMPERATURE REQUIREMENTS.

pg. 10 HSM inStallation/operation/Service Manual
CARE AND CLEANING
PROTECTING STAINLESS STEEL SURFACES
It is important to guard against corrosion
in the care of stainless steel
surfaces. Harsh, corrosive,
or inappropriate chemicals
can completely destroy the
protective surface layer
of stainless steel. Abrasive
pads, steel wool, or metal implements will abrade
surfaces causing damage to this protective coating
and will eventually result in areas of corrosion.
Even water, particularly hard water that contains
high to moderate concentrations of chloride, will
cause oxidation and pitting that result in rust
and corrosion. In addition, many acidic foods
spilled and left to remain on metal surfaces are
contributing factors that will corrode surfaces.
Proper cleaning agents, materials, and
methods are vital to maintaining the appearance
and life of this appliance. Spilled foods should be
removed and the area wiped as soon as possible
but at the very least, a minimum of once a day.
Always thoroughly rinse surfaces after using a
cleaning agent and wipe standing water as quickly
as possible after rinsing.
CLEANING AGENTS
Use non-abrasive cleaning products designed for
use on stainless steel surfaces. Cleaning agents
must be chloride-free compounds and must not
contain quaternary salts. Never use hydrochloric
acid (muriatic acid) on stainless steel surfaces.
Always use the proper cleaning agent at the
manufacturer's recommended strength.
Contact your local cleaning supplier for
product recommendations.
CLEANING MATERIALS
The cleaning function can usually be accomplished
with the proper cleaning agent and a soft, clean
cloth. When more aggressive methods must be
employed, use a non-abrasive scouring pad on
difficult areas and make certain to scrub with the
visible grain of surface metal to avoid surface
scratches. Never use wire brushes, metal scouring
pads, or scrapers to remove food residue.
CLEANING AND PREVENTIVE MAINTENANCE
CAUTION
TO PROTECT STAINLESS STEEL
SURFACES, COMPLETELY AVOID
THE USE OF ABRASIVE CLEANING
COMPOUNDS, CHLORIDE BASED
CLEANERS, OR CLEANERS
CONTAINING QUATERNARY SALTS.
NEVER USE HYDROCHLORIC ACID
(MURIATIC ACID) ON STAINLESS
STEEL. NEVER USE WIRE
BRUSHES, METAL SCOURING
PADS OR SCRAPERS.
N
O
W
I
R
E
B
R
U
S
H
E
S
N
O
S
T
E
E
L
P
A
D
S
N
O
S
C
R
A
P
E
R
S

HSM inStallation/operation/Service Manual pg. 11
The cleanliness and appearance of this unit will
contribute considerably to
operating efficiency and
savory, appetizing food.
Good equipment that is
kept clean works better and
lasts longer.
CLEAN THE UNIT
THOROUGHLY
AFTER EACH USE
1. Turn lights and adjustable thermostat(s) to the
“OFF” position. Disconnect unit from power
source, and let cool.
2. Remove, cover or wrap, and store food product
under refrigeration.
3. Do not clean the glass when hot.
The glass should be cleaned regularly with
fresh warm water, a mild detergent, and a
clean, non-abrasive cloth. Glass cleaner
can be used.
4. Clean other interior components with a damp
cloth or sponge and any good commercial
detergent at the recommended strength.
5. Spray heavily soiled areas with a water
soluble degreaser and let stand for 10 minutes,
then remove soil with a plastic scouring pad.
6. Clean control panel, vents, handles, and gaskets
thoroughly since these areas harbor food debris.
NOTE:
Avoid the use of abrasive
cleaning compounds, chloride
based cleaners, or cleaners
containing quaternary salts.
Never use hydrochloric acid
(muriatic acid) on stainless
steel.
7. Rinse surfaces by wiping with sponge and clean,
warm water.
8. Remove excess water with sponge and wipe dry
with a clean cloth or air dry.
9. Interior can be wiped with a sanitizing solution
after cleaning and rinsing. This solution must
be approved for use on food contact surfaces.
10. To help maintain the protective film coating on
any polished stainless steel, clean the exterior
of the cabinet with a cleaner recommended
for stainless steel surfaces. Spray the cleaning
agent on a clean cloth and wipe with the grain
of the stainless steel.
Always follow appropriate state or local health
(hygiene) regulations regarding all applicable
cleaning and sanitation requirements for
foodservice equipment.
CARE AND CLEANING
DANGER
AT NO TIME SHOULD THE INTERIOR
OR EXTERIOR BE STEAM CLEANED,
HOSED DOWN, OR FLOODED WITH
WATER OR LIQUID SOLUTION OF
ANY KIND. DO NOT USE WATER JET
TO CLEAN.
SEVERE DAMAGE OR
ELECTRICAL HAZARD
COULD RESULT.
WARRANTY BECOMES VOID IF
APPLIANCE IS FLOODED
DANGER
DISCONNECT UNIT FROM
POWER SOURCE BEFORE
CLEANING OR SERVICING.

pg. 12 HSM inStallation/operation/Service Manual
Food fl avor and aroma are usually so closely related that
it is diffi cult, if not impossible, to separate them. There
is also an important, inseparable relationship between
cleanliness and food fl avor. Cleanliness, top operating
effi ciency, and appearance of equipment contribute
considerably to savory, appetizing foods. Good equipment
that is kept clean, works better and lasts longer.
Most food imparts its own particular aroma and many
foods also absorb existing odors. Unfortunately, during
this absorption there is not distinction between GOOD
and BAD odors The majority of objectionable fl avors and
odors troubling food service operations are caused by
bacteria growth. Sourness, rancidity, mustiness, stale or
other OFF fl avors are usually the result of germ activity.
The easiest way to insure full, natural food fl avor is
through comprehensive cleanliness. This means good
control of both visible soil (dirt) and invisible soil
(germs). A through approach to sanitation will provide
essential cleanliness. It will assure an attractive
appearance of equipment, along with maximum effi ciency
and utility. More importantly, a good sanitation program
provides one of the key elements in the prevention of
food-borne illnesses.
A controlled holding environment for prepared foods is
just one of the important factors involved in the prevention
of food-borne illnesses. Temperature monitoring and
control during receiving, storage, preparation, and the
service of foods are of equal importance.
The most accurate method of measuring safe temperatures
of both hot and cold foods is by internal product
temperature. A quality thermometer is an effective tool for
this purpose, and should be routinely used on all products
that require holding at a specifi c temperature.
A comprehensive sanitation program should focus on
the training of staff in basic sanitation procedures. This
includes personal hygiene, proper handling of raw foods,
cooking to a safe internal product temperature, nd the
routine monitoring of internal temperatures from receiving
through service.
Most food-borne illnesses can be prevented through
proper temperature control and a comprehensive
program of sanitation. Both these factors are important
to build quality service as the foundation of customer
satisfaction. Safe food handling practices to prevent food-
borne illness is of critical importance to the health and
safety of your customers.
HACCP, an acronym for Hazard Analysis (at) Critical
Control Points, is a quality control program of operating
procedures to assure food integrity, quality, and safety.
Taking steps necessary to augment food safety practices
is both cost effective and relatively simple. While HACCP
guidelines go far beyond the scope of this manual,
additional information is available by contacting:
CENTER FOR FOOD SAFETY AND APPLIED
NUTRITION FOOD AND DRUG ADMINISTRATION
1-888-SAFEFOOD
INTERNAL FOOD PRODUCT TEMPERATURES
HOT FOODS
DANGER ZONE 40° TO 140°F (4° TO 60°C)
CRITICAL ZONE 70° TO 120°F (21° TO 49°C)
SAFE ZONE 140° TO 165°F (60° TO 74°C)
COLD FOODS
DANGER ZONE ABOVE 40°F (ABOVE 4°C)
SAFE ZONE 36° TO 40°F (2° TO 4°C)
FROZEN FOODS
DANGER ZONE ABOVE 32°F (ABOVE 0°C)
CRITICAL ZONE 0° TO 32°F (-18° TO 0°C)
SAFE ZONE 0°F or below (-18°C or below)
SANITATION

HSM inStallation/operation/Service Manual pg. 13
SERVICE
13
24
13
12
12
26
26
14
7
28
8
18
25
19
17
22
20
13
11
11
6
29 13
10
22
16
3
23
30
1
24
24
24
4
15
3
24
14
1
2
13
5
16
24
2
HSM-48/5S Shown
EXTERIOR SERVICE VIEW A
Part numbers and drawings are subject to change without notice.

pg. 14 HSM inStallation/operation/Service Manual
SERVICE
MODEL > HSM-38/3S HSM-48/5S
ITEM DESCRIPTION PART NO. QTY PART NO. QTY
1BASE GLASS PANEL SEPARATOR 1003446 1 1002831 1
2BASE PANEL SHELF FT/BK TRIM 1003439 2 1002833 2
3BASE PANEL GLASS RT/LF TRIM 1002834 2 1002834 2
4INSULATION PANEL 1003501 1 1003932 1
5FRAME RT TOP SUPPORT BRACKET 1004336 1 1004336 1
6FRAME LF TOP SUPPORT BRACKET 1004337 1 1004337 1
7BRACKET, RETAINER, GFCI — — 1009427 1
8PANEL, CIRCUIT BREAKER — — 5002006 1
9GFCI HOUSING, HSM-38 (not SHown)5003681 1 — —
10 INNER WALL PANEL ASSEMBLY 5003665 1 5002408 1
11 BLOCK, TERMINAL, POWER BK-34069 1 BK-34069 2
12 BLOCK, TERMINAL, SENSOR BK-34070 1 BK-34070 2
13 1/2" HOLE BUSHING BU-3006 4 BU-3006 4
14 3/4" WHITE SNAP BUSHING BU-3008 6 BU-3008 12
15 1" HOLE BUSHING BU-33619 2 BU-33619 3
16 3/8" BLACK HOLE BUSHING BU-3419 10 BU-3419 2
17
CORDSET 208-240V
230V
380-415V
CD-3607
CD-33490
—
9 FT
CD-3304
—
CD-3304
9 FT
18 GFCI BASE, 50 AMP, 120/240V SERIES 1 CI-34104 1 CI-34104 1
19 GFCI, 50 AMP, 120/240V. SERIES 1 CI-34105 1 CI-34105 1
20 CASTER, 3", SWIVEL W/BRAKE — — CS-24351 4
21 FEET, 4", ADJUSTABLE, HSM-38 (not SHown)FE-27153 4 — —
22 FRAME FR-26267 1 FR-26268 1
23 1.000" THICK YELLOW BOARD INSULATION IN-22265 22sqft IN-22265 24sqft
24 RIVET, BLIND, #44,STNLS RI-2100 54 RI-2100 48
25 10-32 X 1 1/2" PHIL SCREW 18-8 S/S SC-2162 2 SC-2162 2
26 SCREW 6-32 X 1/4" PAN HD — — SC-22500 8
27 SCREW 6-32 X 3/8" RD HD, HSM-38 (not SHown)SC-23455 4 — —
28 8-32 X 1/4" PHIL SCREW SC-2459 1 SC-2459 1
29 SCREW,10-32 X1/2, NF PHIL TRUSS SC-2661 12 SC-2661 8
30 3/16" X 1/2" FOAM TAPE TA-25621 12 FT TA-25621 12 FT
DANGER
ENSURE POWER SOURCE
MATCHES VOLTAGE STAMPED
ON APPLIANCE NAMEPLATE.
DANGER
LOCK-OUT OR POST
BREAKER PANEL UNTIL
SERVICE WORK HAS
BEEN COMPLETED.
EXTERIOR PARTS LIST A

HSM inStallation/operation/Service Manual pg. 15
SERVICE
14
12
8
18
10
4
2
5
19
11
3
9
15
20
6
19
17
13
1
16
7
HSM-48/5S Shown
EXTERIOR SERVICE VIEW B
Part numbers and drawings are subject to change without notice.

pg. 16 HSM inStallation/operation/Service Manual
SERVICE
MODEL > HSM-38/3S HSM-48/5S
ITEM DESCRIPTION PART NO. QTY PART NO. QTY
1
RT LOWER SIDE PANEL StainleSS Steel
black
burgundy
1005706
1005707
1003447
1
1005473
1004668
1002780
1
2
LF LOWER SIDE PANEL StainleSS Steel
black
burgundy
1005708
1005709
1003448
1
1005474
1004669
1002781
1
3
FRONT COVER PANEL StainleSS Steel
black
burgundy
1005710
1005711
1003441
1
1010928
1010927
1010926
1
4BASE GLASS COVER PANEL 1003445 1 1002832 1
5BUMPER RIGID BASE 1003454 1 1003452 1
6SHELF RT END SUPPORT BRACKET 1005421 2 1005421 4
7SHELF LF END SUPPORT BRACKET 1005422 2 1005422 4
8SHIM, SHELF 1006253 4 1006253 8
9
CANOPY SPOT StainleSS Steel
black
burgundy
5004558
5004559
5002540
1
5004423
5003639
5002003
1
10 SHELF ASSEMBLY W/ HEATED GLASS 5004498 2 5004409 4
11 BUMPER TOP, BLACK BM-26261 3 FT BM-26261 4 FT
12 CLAMP ASSEMBLY CM-26878 1 CM-26879 1
13 1100W HEATED GLASS GL-26512 1 GL-25860 1
14 FRONT CURVED GLASS GL-26275 1 GL-26081 1
15 10-32 THREADED INSERT HG-22672 16 HG-22672 32
16 RECEPTACLE RP-34160 6 RP-34160 12
17 SCREW,8-32 X 1, NC PHILLIPS PAN SC-2069 5 SC-2069 3
18 10-32 X 3/4 PAN HD SC-2071 16 SC-2071 32
19 8-32 X 1/4" PHIL SCREW SC-2459 64 SC-2459 14
20 SCREW,10-32 X1/2,NF PHIL TRUSS M/S,18-8 SS SC-2661 12 SC-2661 36
EXTERIOR PARTS LIST B
DANGER
ENSURE POWER SOURCE
MATCHES VOLTAGE STAMPED
ON APPLIANCE NAMEPLATE.
DANGER
LOCK-OUT OR POST
BREAKER PANEL UNTIL
SERVICE WORK HAS
BEEN COMPLETED.

HSM inStallation/operation/Service Manual pg. 17
SERVICE
15
4
10
19
8
3
5
12
17
14
16
4
3
16
18
15
9
2
7
11
1
HSM-48/5S Shown
EXTERIOR SERVICE VIEW C
Part numbers and drawings are subject to change without notice.

pg. 18 HSM inStallation/operation/Service Manual
SERVICE
MODEL > HSM-38/3S HSM-48/5S
ITEM DESCRIPTION PART NO. QTY PART NO. QTY
1PANEL, COVER, LOWER BACK 1003444 1 1002785 1
2UPPER BACK COVER PANEL W/ VENTS 1003443 1 1002786 1
3BOTTOM END GLASS CLIP HOLDER 1002820 2 1002820 2
4TOP END GLASS CLIP HOLDER 1002839 2 1002839 2
5FRONT SLIDE COVER PANEL 1003903 1 — 1
6FRONT SLIDING PANEL (NOT SHOWN) 1003904 1 1010815 1
7FORMICA SIDE ATTACHMENT BRACKET 1003955 2 1003901 2
8SHELF FRONT COVER 1005626 2 1005420 4
9RT SIDE END GLASS GL-26273 1 GL-25945 1
10 LF SIDE END GLASS GL-26272 1 GL-25951 1
11 1.000" THICK YELLOW BOARD INSULATION IN-22265 22 FT IN-22265 16 FT
12 KNOB, STAINLESS, SLIDING PANEL KN-26379 1 KN-26379 1
13 RATING TAG LABEL LA-26348 2 LA-26348 2
14
LAMPS, FLORESCENTS, SOFT WHITE 208-240V
230V
380-415V
LP-34156
LP-33822
LP-33822
3
LP-33822
LP-33822
LP-33822
10
15 FORMICA SIDE PANEL PE-26274 2 PE-26068 2
16 SCREW, M2.9X9, 5MM, PAN SC-22305 4 SC-22305 4
17 8-32 X 3/8" TRUSS HEAD SC-22378 12 SC-22378 6
18 M6 X 45 FLAT HEAD SC-24019 12 SC-24019 12
19 8-32 X 1/4" PHIL SCREW SC-2459 64 SC-2459 45
EXTERIOR PARTS LIST C
DANGER
ENSURE POWER SOURCE
MATCHES VOLTAGE STAMPED
ON APPLIANCE NAMEPLATE.
DANGER
LOCK-OUT OR POST
BREAKER PANEL UNTIL
SERVICE WORK HAS
BEEN COMPLETED.
