Altrad BELLE RPX 35 User manual

1
870/10024/2
12/18
BELLE
RPX35
• Spare Parts Book
• Pièces Détachées
Operators Manual
Manuel De L'Opérateur
GB
F
30
4
17

2
Managing Director - On behalf of BELLE GROUP (SHEEN) UK.
Le Directeur Général - Pour le compte de la SOCIETE BELLE GROUP (SHEEN) UK.
Director Gerente - En nombre de BELLE GROUP (SHEEN) UK.
Director-Geral - Em nome de BELLE GROUP (SHEEN) UK.
Algemeen Directeur - Namens BELLE GROUP (SHEEN) UK.
Administrerende direktør – På vegne af BELLE GROUP (SHEEN) UK.
PRODUCT TYPE ................. TYPE DE PRODUIT.............. TIPO DE PRODUCTO..........
MODEL................................. MODELE............................... MODELO ..............................
SERIAL No........................... N° DE SERIE........................ N° DE SERIE........................
DATE OF MANUFACTURE. DATE DE FABRICATION ..... FECHA DE FABRICACIÓN..
SOUND POWER LEVEL NIVEAU DE PUISSANCE NIVEL DE POTENCIA
MEASURED / SONORE MESUREE / ACÚSTICA MEDIDO /
....................(GUARANTEED) ............................(GARANTIE) ..................(GARANTIZADO)
WEIGHT............................... POIDS................................... PESO....................................
We, Belle Group Sheen UK, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, GB, hereby certify that if the product described within this certificate is bought from an
authorised Belle Group dealer within the EEC, it conforms to the following EEC directives: 2006/42/CE (This directive replaces directive 98/37/EC), Electromagnetic
Compatibility Directive 2004/108/CE (as amended by 89/336/EEC, 92/31/EEC & 93/68 EEC). The Waste Electrical and Electronic Equipment (WEEE) 2002/96/CE, the
low voltage directive 2006/95/CE, BS EN ISO 12100-1:2003 Safety of machinery and associated harmonised standards, where applicable. Noise emissions conform to
directives 2000/14/EC Annex VI & 2005/88/EC, for machines under article 12 the notified body is AVT Reliability, Unit 2 Easter Court, Europa Boulevard, Warrington,
Cheshire, WA5 7ZB, GB.
Noise Technical files are held by Ray Neilson at the Belle group Head Office address which is stated above.
Nous soussignés, Belle Group Sheen UK, Sheen, Nr Buxton, Derbyshire, SK17 0EU, GB, certifions que si le produit décrit dans ce certificat est acheté chez un
distributeur autorisé Belle Group au sein de la CEE, il est conforme aux normes CEE ci-après: 2006/42/CE (Cette norme remplace la norme 98/37/CE), Norme
compatible pour l'électromagnisme 2004/108/CE (modifié par 89/336/EEC, 92/31/EEC & 93/68 EEC). Les déchets électriques, et d’équipement électronique 2002/96/CE,
caractéristiques basse tension 2006/95/CE, BS EN ISO 12100-1:2003 Norme de sécurité des machines et des critères associés et configurés, si applicable. Les
émissions de bruit sont conformes à la directive 2000/14/EC Annexe VI et 2005/88/EC pour machines , article 12, l’objet mentionné est AVT Reliability, Unit 2 Easter
Court, Europa Boulevard, Warrington, Cheshire, WA5 7ZB, GB.
Bruit des fichiers techniques sont détenues par Ray Neilson à l'adresse du groupe Belle Siège qui est indiqué ci-dessus.
La Sociedad, Belle Group Sheen UK, Sheen, Nr. Buxton, Derbyshire, SK 17 OEU, GB, por el presente documento certifica que si el producto descrito en este
certificado es comprado a un distribuidor autorizado de Belle Group en la CEE, este es conforme a las siguientes directivas: 2006/42/CE de la CEE (Esta directiva
sustituye a la Directiva 98/37/CE), Directiva 2004/108/CE sobre Compatibilidad Electromagnética (según enmiendas 89/336/EEC, 92/31/EEC & 93/68 EEC). Los
residuos eléctricos y electrónicos (RAEE) 2002/96/CE, Directiva sobre Bajo Voltaje 2006/95/CE, BS EN ISO 12100-1:2003 de Seguridad de Maquinaria y Niveles
armonizados estándares asociados donde sean aplicables. Emisión de Ruídos conforme a la Directiva 2000/14/CE Anexo VI y 2005/88/ECpara máquinas bajo artículo
12 la mencionada unidad está AVT Reliability, Unit 2 Easter Court, Europa Boulevard, Warrington, Cheshire, WA5 7ZB, GB.
Archivos de ruido técnicos están en manos de Ray Neilson en la dirección del grupo Belle Sede de la que se ha dicho.
O signatário, Belle Group Sheen UK, Sheen, Nr Buxton, Derbyshire, SK 0EU, GB, pelo presente, declara que se o produto descrito neste certificado foi adquirido a
um distribuidor autorizado do Belle Group em qualquer país da UE, está em conformidade com o estabelecido nas seguintes directivas comunitárias: 2006/42/CE (Esta
directiva substitui a Directiva 98/37/EC), Directiva de Compatibilidade Electromagnética 2004/108/CE (conforme corrigido pelas 89/336/EEC, 92/31/EEC & 93/68 EEC).
O Eléctrico de Desperdício e Equipamento Electrónico (DEEE) 2002/96/CE, a directiva de baixa voltagem 2006/95/CE, BS EN ISO 12100-1:2003 Segurança da
maquinaria e às normas harmonizadas afins se aplicáveis. As emissões de ruído respeitam e estão dentro das directivas para máquinas 2000/14/EC Anexo VI &
2005/88/EC, artigo 12, sendo o organismo notificado AVT Reliability, Unit 2 Easter Court, Europa Boulevard, Warrington, Cheshire, WA5 7ZB, GB.
Arquivos de ruído técnicos são detidos por Ray Neilson no endereço Escritório Belle grupo Cabeça que é dito acima.
Ondergetekende, Belle Group Sheen UK, Sheen, Nr. Buxton, Derbyshire, SK17 OEU, GB, verklaren hierbij dat als het product zoals beschreven in dit certificaat is
gekocht van een erkende Belle Group dealer binnen de EEG, het voldoet aan de volgende EEG richtlijnen: 2006/42/CE (Deze richtlijn vervangt Richtlijn 98/37/EC),
Electromagnetische Compatability Richtlijn 2004/108/CE (geamendeerd door 89/336/EEC, 92/31/EEC & 93/68 EEC). De afgedankte elektrische en elektronische
apparatuur (AEEA) 2002/96/CE, de Laagspannings Richtlijn 2006/95/CE, BS EN ISO 12100-1:2003 Veiligheid van Machines en hieraan gekoppelde geharmoniseerde
Standaarden, waar deze van toepassing is. Geluidshinder te voldoen aan de richtlijnen 2000/14/EG en 2005/88/EG bijlage VI, voor toestel onder stuk 12 naar de notified
troep zit AVT Reliability, Unit 2 Easter Court, Europa Boulevard, Warrington, Cheshire, WA5 7ZB, GB.
Lawaai Technische dossiers zijn in handen van Ray Neilson op de Belle groep hoofdkantoor adres, dat staat boven.
Vi, Belle Group Sheen UK, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, GB, erklærer hermed, at hvis det i dette certifikat beskrevne produkt er købt hos en autoriseret
Belle Group forhandler i EU, er det i overensstemmelse med følgende EØF-direktiver: 2006/42/CE (Dette direktiv erstatter direktiv 98/37/EF), 2004/108/EØF (som ændret
ved 89/336/EEC, 92/31/EØF & 93/68 EØF), Affald af elektrisk og elektronisk udstyr (WEEE) 2002/96/CE, lavspændingsdirektivet 2006/95/CE, BS EN ISO 12100-1:2003
Maskinsikkerhed og tilhørende harmoniserede standarder, hvor det er relevant. Støjemission i overensstemmelse med direktiverne 2000/14/EF bilag VI og 2005/88/EF.
for maskiner under paragraf 12. Det bemyndigede organ er AVT Reliability, Unit 2 Easter Court, Europa Boulevard, Warrington, Cheshire, WA5 7ZB, Storbritanien.
Støj Tekniske filer er i besiddelse af Ray Neilson på Belle-gruppen hovedkontoret adresse, som er nævnt ovenfor.
EC DECLARATION OF CONFORMITY / DECLARATION CE DE CONFORMITE / DECLARACIÓN
DE CONFORMIDAD CE / DECLARAÇÃO CE DE CONFORMIDADE / EG-VERKLARING
VAN OVEREENSTEMMING / EF OVERENSSTEMMELSESERKLÆRING
Ray Neilson
TIPO DE PRODUCTO.......... PRODUCTTYPE................... PRODUKTTYPE...................
MODELO.............................. MODEL ................................. MODEL.................................
NO. DE SÉRIE ..................... SERIENUMMER ................... SERIENR..............................
DATA DE FABRIC................ FABRICAGEDATUM ............ FREMSTILLINGSDATO .......
NIVEL DE POTÊNCIA GEMETEN LYDEFFEKTNIVEAU
DE SOM MEDIDO / GELUIDSSTERKTENIVEAU / MÅLT /
.......................(GARANTIDO) ...............(GEGARANDEERD) ...................(GARANTERET)
PESO.................................... GEWICHT............................. VÆGT...................................
GB
F
E
P
NL
DK
Signed by:
Signature:
Medido por:
Assinado por:
Getekend door:
Uunderskrevetaf:
Place of Declaration - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Date of Declaration - 2017 ...........................................................................
Lieu de déclaration - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Date de déclaration - 2017...........................................................................
Declaración hecha en - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Fecha de la declarachón - 2017 ..................................................................
Lugar de Declaração - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Data da Declaração - 2017...........................................................................
Plaats van de Verklaring - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Datum van de verklaring - 2017 ..................................................................
Sted i erklæring - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Dato for erklæringen - 2017.........................................................................

3
Wir, Belle Group Sheen UK, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, GB, bestätige hiermit, dass, wenn das Produkt innerhalb dieser Bescheinigung ist von einem
gekauft zugelassen Belle Group-Händler innerhalb der EWG, so entspricht sie den folgenden EG-Richtlinien: 2006/42/CE (Diese Richtlinie ersetzt die Richtlinie
98/37/EG), elektromagnetische Kompatibilität Richtlinie 2004/108/EG (geändert durch 89/336/EWG, 92/31/EWG und 93/68 EWG). Die Elektro-und Elektronik-Altgeräte
(WEEE) 2002/96/CE, der Niederspannungs-Richtlinie 2006/95/CE, BS EN ISO 12100-1:2003 Sicherheit von Maschinen und der damit verbundenen harmonisierten
Normen, sofern zutreffend. Geräuschemissionen entsprechen der Richtlinie 2000/14/EG Anhang VI und 2005/88/EG, für Maschinen gemäß Artikel 12 der benannten
Stelle ist AVT Reliability, Unit 2 Easter Court, Europa Boulevard, Warrington, Cheshire, WA5 7ZB, GB.
Lärm Technische Dateien werden von Ray Neilson im Belle Group Head Office Adresse, die oben angegeben statt.
Il Gruppo Belle Sheen UK, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, GB, certifica che, se il prodotto descritto nel presente certificato viene acquistato da un
rivenditore autorizzato Belle gruppo all'interno della CEE, è conforme alle seguenti direttive CEE: 2006/42/CE (presente direttiva sostituisce la direttiva 98/37/CE),
elettromagnetica compatibilità con la direttiva 2004/108/CE (modificata dalla 89/336/CEE, 92/31/CEE e 93/68 CEE). L'Elettrico di Spreco e l'Apparecchiatura Elettronica
(WEEE) 2002/96/CE, la direttiva bassa tensione 2006/95/CE, BS EN ISO 12100-1:2003 Sicurezza del macchinario e le relative norme armonizzate, se del caso.
Emissioni sonore conformi alla direttiva 2000/14/CE, allegato VI e 2005/88/EG, per le macchine a norma dell'articolo 12, l'organismo notificato AVT Reliability, Unit 2
Easter Court, Europa Boulevard, Warrington, Cheshire, WA5 7ZB, GB.
File rumore tecnici sono tenuti da Ray Neilson all'indirizzo dell'Ufficio gruppo Belle Sede che è riportata sopra.
Undertecknade, Belle Group Sheen UK, Sheen, Nr Buxton, Derbyshire, SK17 0EU, Storbritannien, intygar härmed att om den produkt som beskrivs i detta intyg är
köpt från en auktoriserad Belle-återförsäljare inom EEG, överensstämmer med följande EEG-direktiv: 2006/42/CE (Detta direktiv ersätter direktiv 98/37/EG),
Elektromagnetisk kompatibilitet 2004/108/CE (ändrat genom direktiv 89/336/EEG, 92/31/EEG och 93/68 EEG). Avfall från elektriska och elektroniska produkter (WEEE)
2002/96/CE, lågspänningsdirektivet 2006/95/CE, BS EN ISO 12100-1:2003 Maskinsäkerhet och tillhörande harmoniserade standarder, i förekommande fall. Buller följa
direktiv 2000/14/EG bilaga VI och 2005/88/EG till maskiner enligt artikel 12 anmälda organet är AVT Reliability, Unit 2 Easter Court, Europa Boulevard, Warrington,
Cheshire, WA5 7ZB, Storbritannien.
Buller Tekniska filer innehas av Ray Neilson på Belle Group Huvudkontor adress som anges ovan.
Vi, Belle Group Sheen UK, Sheen, Nr Buxton, Derbyshire, SK17 0EU, GB, herved bekrefte at hvis produktet er beskrevet i dette sertifikatet er kjøpt fra en autorisert
Belle Group forhandler innenfor EØS, følger det med til følgende EEC direktiver: 2006/42/CE (Dette direktivet erstatter direktiv 98/37/EF), Det elektromagnetisk
kompatabiltets-direktivet 2004/108/CE (endret ved 89/336/EEC, 92/31/EEC og 93/68 EEC). Avfallet Elektrisk og Elektronisk Utstyr (WEEE) 2002/96/CE,
Lavspenningsdirektivet 2006/95/CE, BS EN ISO 12100-1:2003 Sikkerhet av maskiner og tilhørende harmoniserte standarder, der dette er aktuelt. Lydeffekt samsvar med
direktiv 2000/14/EC vedlegg VI og 2005/88/EG, for maskiner i henhold til artikkel 12 i meldte organ er AVT Reliability, Unit 2 Easter Court, Europa Boulevard,
Warrington, Cheshire, WA5 7ZB, GB.
Støy Tekniske filene holdes av Ray Neilson på Belle gruppen hovedkontor adresse som er angitt ovenfor.
Me, Belle Group Sheen UK, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, GB, todistaa, että jos tuote on kuvattu tämän todistuksen ostetaan valtuutetun Belle
jälleenmyyjä ETY: n sisällä, se täyttää seuraavat EY-direktiiveihin: 2006/42/EY (tällä direktiivillä korvataan direktiivi 98/37/EY), sähkömagneettinen yhteensopivuutta
direktiivin 2004/108/CE (muutettuna 89/336/ETY, 92/31/ETY ja 93/68 ETY). Tuhlaa Sähkö ja Sähköinen Varusteet (WEEE) 2002/96/CE, the matalajännitedirektiivistä
2006/95/CE, SFS-EN ISO 12100-1:2003 Koneturvallisuus ja niihin liittyvien yhdenmukaistettujen standardien tarvittaessa. Melupäästöjä täyttävät direktiivin 2000/14/EY
liitteessä VI ja 2005/88/EG, koneiden 12 artiklan mukaisesti ilmoitetun laitoksen on AVT Reliability, Unit 2 Easter Court, Europa Boulevard, Warrington, Cheshire,
WA5 7ZB, GB.
Noise Tekniset tiedostot hallussa Ray Neilson at Belle pääkonttori osoite, joka on edellä.
                     
              2006/42/EY   ę ę 
   2004/108/CE     89/336/EEC, 92/31/EEC & 93/68 EEC Utylizacja sprzętu elektrycznego i
elektronicznego 2002/96/CE,      2006/95/CE, BS EN ISO 12100-1:2003      
               2005/88/EG      AVT
Reliability, Unit 2 Easter Court, Europa Boulevard, Warrington, Cheshire, WA5 7ZB,  
Hałas techniczne pliki są przechowywane przez Ray Neilsonem na grupy głowy Belle adres Biura zamieszczonego powyżej.
EGKONFORMITÄTSERKLÄRUNG / DICHIARAZIONE CE DI CONFORMITÁ / EG-VERKLARING VAN
OVEREENSTEMMING / EC SAMSVARSERKLÆRING / EY-YHDENMUKAISUUSILMOITUS /
DEKLARACJA ZGODNOSCI Z PRZEPISAMI UE
Ray Neilson
D
I
S
NO
SF
PL
Unterzeichnet vo:
Firmato da:
Undertecknat:
Signatur:
Allekirjoitus:
:
Erklärungsort - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Erklärungsdatum - 2017...............................................................................
Luogo de dichiarazione - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Data de dichiarazione - 2017.......................................................................
Plats av Förklaring - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Datum av Förklaring - 2017 .........................................................................
Sted av Erklæring - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Dato av Erklæring - 2017 .............................................................................
Julistuksen paikka - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Julistuksen päivämäärä - 2017 ...................................................................
Miejsce deklaracji - Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK Data deklaracji - 2017...................................................................................
PRODUKTTYP..................... TIPO PRODOTTO ................ PRODUKTTYP.....................
MODELL .............................. MODELLO ............................ MODELL...............................
SERIENNR........................... SERIE N°.............................. SERIE NR. ...........................
HERSTELLUNGSDATU ...... DATA DI FABBRICAZIONE.. TILLVERKNINGSDATUM.....
SCHALLLEISTUNGSPEGEL LIVELLO POTENZA LJUDSTYRKA
GEMESSEN / SONORA MISURATA / UPPMÄTT /
......................(GARANTIERT) .........................(GARANTITA) .................(GARANTERAD)
GEWICHT............................. PESO.................................... VIKT......................................
PRODUKTTYP..................... TUOTETYYPPI ..................... TYP PRODUKTO..................
MODELL .............................. MALLI ................................... MODEL .................................
SERIE NR. ........................... VALMISTUSNRO ................. Nr SERII................................
PRODUKSJONSDATO........ VALMISTUSPÄIVÄ .............. DATAPRODUKCJI ...............
ÄLYDKRAFTNIVÅ ÄNENVOIMAKKUUDEN POZIOM MOCY
MÅLT / TASO MITATTU /
 WI  KU ZMIERZONY /
.......................(GARANTERT) .................................(TAATTU) ...........(GWARANTOWANY)
VEKT.................................... MASSA ................................. WAGA...................................
Generaldirektor – Im auftrag von BELLE GROUP (SHEEN) UK.
Amministratore Delegato – Per conto di BELLE GROUP (SHEEN) UK.
V.D. – På vägnar av BELLE GROUP (SHEEN) UK.
Managing Director - På vegne av SOCIETE BELLE GROUP (SHEEN) UK.
Toimitusjohtaja - BELLE GROUP (SHEEN) UK: n puolesta.
  – w imieniu BELLE GROUP (SHEEN) UK

4
How To Use This Manual ...........................................................................................................................................................................4
Warning ......................................................................................................................................................................................................4
Machine Description...................................................................................................................................................................................5
Environment ...............................................................................................................................................................................................5
Decals .................................................................................................................................................................................................. 6 - 7
Technical Data............................................................................................................................................................................................8
Reasons For Compaction...........................................................................................................................................................................8
General Safety ...........................................................................................................................................................................................9
Health and Safety.......................................................................................................................................................................................9
Pre-Start Checks......................................................................................................................................................................................10
Start and Stop Procedure..................................................................................................................................................................10 - 11
Operating Instructions ..............................................................................................................................................................................12
Service & Maintenance .................................................................................................................................................................... 13 - 14
Trouble Shooting Guide ...........................................................................................................................................................................15
Warranty ...................................................................................................................................................................................................16
Declaration of Conformity...........................................................................................................................................................................2
How To Use This Manual
GB
Before you operate or carry out any maintenance on this machine YOU MUST READ and STUDY
this manual.
WARNING
The product can be at risk. The machine or yourself can be damaged or injured if procedures are not
carried out in the correct way.
CAUTION
The life of the operator can be at risk.
WARNING
WARNING
GB
Contents
KNOW how to safely use the unit’s controls and what you must do for safe maintenance. (NB Be sure that you know how to switch the
machine off before you switch on, in case you get into difculty.)
ALWAYS wear or use the proper safety items required for your personal protection. If you have ANY QUESTIONS about the safe use
or maintenance of this unit, ASK YOUR SUPERVISOR OR CONTACT: Altrad Belle (UK): [phone]
GB
Altrad Belle reserves the right to change machine specication without prior notice or obligation.
This manual has been written to help you operate and service the ‘RPX’ safely. This manual is intended for dealers and operators of the
‘RPX’.
Foreword
The ‘Machine Description’ section helps you to familiarise yourself with the machine’s layout and controls.
The ‘Environment’ section gives instructions on how to handle the recycling of discarded apparatus in an environmentally friendly way.
The ‘General Safety’ and ‘Health and Safety’ sections explain how to use the machine to ensure your safety and the safety of the
general public.
The ‘Start and Stop Procedure’ helps you with starting and stopping the machine.
The ‘Trouble Shooting Guide’ helps you if you have a problem with your machine.
The ‘Service & Maintenance’ section is to help you with the general maintenance and servicing of your machine.
The ‘Warranty’ Section details the nature of the warranty cover and the claims procedure.
The ‘Declaration of conformity’ section shows the standards that the machine has been built to.
Directives with regard to the notations.
Text in this manual to which special attention must be paid are shown in the following way:

5

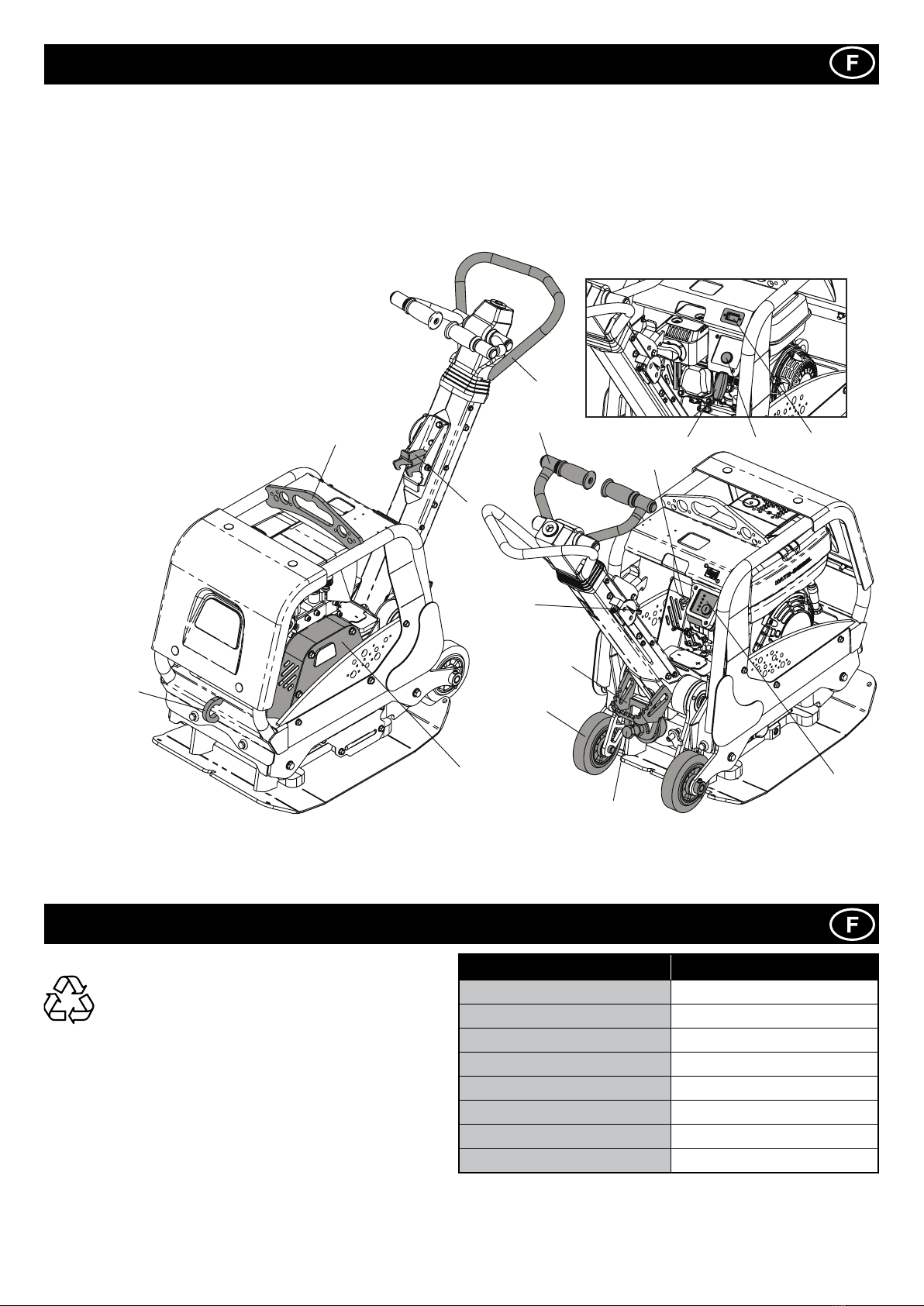

Machine Description
GB
1. Throttle lever.
2. Electric Start (Diesel Electric Start only).
4. Lifting Point.
5. Handle Release Catch.
6. Forward / Reverse Control Handle.
7. Steering Handle.
8. Belt Guard.
9. Foot Rest.
10. Handle Adjustment Bolt.
11. Integrated Wheel Kit.
12. Towing Eye
13. Recoil Start Handle (Petrol only)
14. Emergency Stop (Petrol only)
15. Stop Button (Diesel only)
16. Hourmeter (optional)
Safe Disposal.
Instructions for the protection of the environment. The
machine contains valuable materials. Take the discarded
apparatus and accessories to the relevant recycling
facilities.
Environment
GB
Component Material
Handle Steel
Front Cover Hdpe
Main Frame Steel
Baseplate Steel
Hand Grips Polyurethane Foam
Engine Aluminium
Flexible Mounts Steel And Rubber
Various Parts Steel And Aluminium
7
6
1
9
11
10
8
12
4
5
2
15
13 14 16
Diagram shows Hatz Diesel
Electric Start option
Diagram shows Honda Petrol option

6
A
B
C
D
J
C
H
G
F
E
A. Forward / Reverse & No Lift Decal
B. Throttle Decal
C. Lifting Point Decal
D. Hot Parts Decal
E. No Lift Decal
F. Diesel Engine Stop Decal
G. Safety Decal
H. Noise Decal
J. Battery Charge Decal
K. Warning Decal
L. Petrol Engine Stop Decal

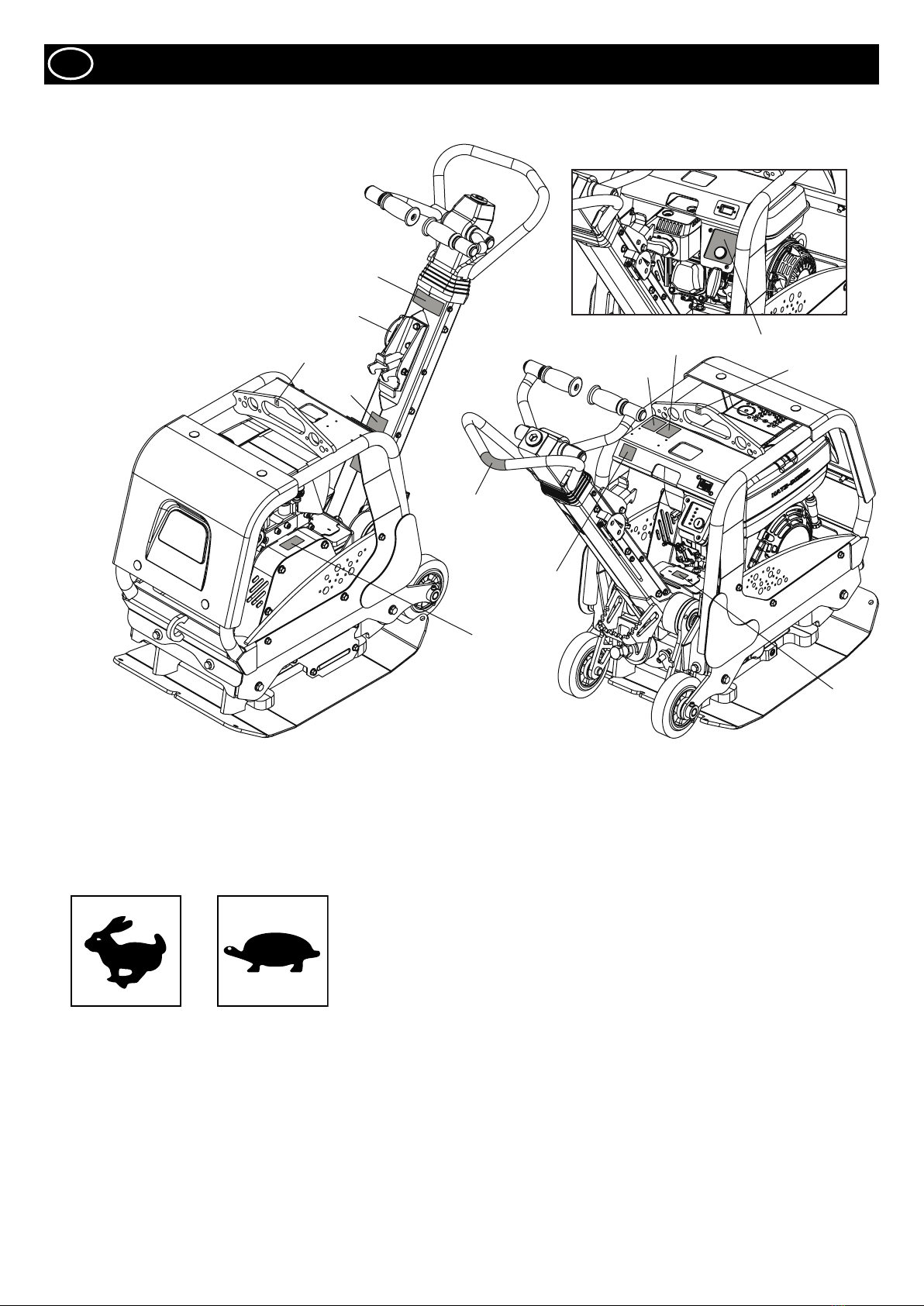

Decals
GB
A. Forward / Reverse & No Lift Decal
Indicates how to move the compactor forwards and backwards and highlights that the Forward / Reverse Control Handle and
Steering Handle should not be used as Lifting Points.
B. Throttle Decal
C. Lifting Point Decal
Identies the correct lifting point on the compactor.
D. Hot Parts Decal
This area may get hot - DO NOT touch.
E. No Lift Decal
This area should not be used as a Lifting Point.
Fast Engine
Speed Position
Slow Engine
Speed Position
L
K
Diagram shows Hatz Diesel
Electric Start option
Diagram shows Honda Petrol option

7
Please Read
Operators
Manual
Wear Protective
Footwear
Wear Ear
Protection
Wear Eye
Protection
F. Diesel Engine Stop Decal
Identies the position of the Engine Stop Button.
G. Safety Decal
Decals
GB
H. Noise Decal
Identies the Noise Level of the machine
J. Battery Charge Decal (Diesel Electric Start model only)
Read the Operators Manual for information on charging the Li-Ion battery.
K. Warning Decal
A. DO NOT run the engine whilst the machine is being manouvered on its wheels.
B. DO NOT operate the machine in reverse on an incline.
C. DO NOT operate in reverse up to an enclosed or restictive space.
L. Petrol Engine Stop Decal
Press and hold the Stop Button for 5 seconds to stop the engine.

8
Technical Data
GB
Model RPX 35/40 RPX 35/50 RPX 35/60
Engine Honda
GX200
Hatz
1B20
Hatz
1B20
Electric
Start
Honda
GX200
Hatz
1B20
Hatz
1B20
Electric
Start
Honda
GX200
Hatz
1B20
Hatz
1B20
Electric
Start
Engine Power (Hp / kW) 5.5/4.0 4.2/3.1 4.2/3.1 5.5/4.0 4.2/3.1 4.2/3.1 5.5/4.0 4.2/3.1 4.2/3.1
Engine RPM 3000 3000 3000 3000 3000 3000 3000 3000 3000
Weight (Kg) 176 187 189 1800 191 194 185 196 207
Static Pressure (kg/m2)1351 1436 1449 1104 1172 1190 944 1000 1057
Centrifugal Force (kN) 35 35 35 35 35 35 35 35 35
Frequency (Hz) 81 81 81 81 81 81 81 81 81
Max Gradient (°) 20 20 20 20 20 20 20 20 20
Maximum Travel Speed (m/min) 27 27 27 26 26 26 25 25 25
*3-Axis Vibration (m/sec2)3.1 2.4 2.4 3.1 2.4 2.4 3.1 2.4 2.4
Noise Level (dB(A)) 108 108 108 108 108 108 108 108 108
400 / 500 / 600
809
1264
700
1205
1067
326
* Minimum level to EN500 Part 4
Reasons For Compaction
GB
Soil, which has been disturbed or new inll, subbase and blacktop, will have small voids or air pockets which, if not compacted, will
lead to one or more problems occurring.
1. As trafc crosses the surface of an uncompacted area, the material is compressed. This leads to subsidence of the top surface
as the material lls the voids.
2. A similar situation occurs with static loads on uncompacted ground. The load (e.g. a building) will sink.
3. Materials with voids are more susceptible to water seepage, leading to erosion. Water ingress may also cause the soil to
expand during freezing temperatures and contract during dry spells. Expansion and contraction is a major cause of damage to
building foundations and normally leads to the structure requiring underpinning.
Compaction increases the density of the material and therefore increases its load bearing capacity. Reduces air voids and therefore
reduces the risk of subsidence, expansion and contraction, due to ingress of water.

9
General Safety
GB
For your own personal protection and for the safety of those around you, please read and ensure you fully understand the following
safety information. It is the responsibility of the operator to ensure that he/she fully understands how to operate this equipment safely.
If you are unsure about the safe and correct use of the ‘RPX’, consult your supervisor or Altrad Belle.
• This equipment is heavy and must not be lifted single-handedly, either GET HELP or use suitable lifting equipment.
• Cordon off the work area and keep members of the public and unauthorised personnel at a safe distance.
• Personal Protective Equipment (PPE) must be worn by the operator whenever this equipment is being used (see Health & Safety).
• Make sure you know how to safely switch this machine OFF before you switch it ON in case you get into difculty.
• Always switch OFF the engine before transporting, moving it around the site or servicing it.
• During use the engine becomes very hot, allow the engine to cool before touching it. Never leave the engine running and
unattended.
• Never remove or tamper with any guards tted, they are there for your protection. Always check guards for condition and security,
if any are damaged or missing, DO NOT USE THE COMPACTOR until the guard has been replaced or repaired.
• DO NOT operate the Compactor when you are ill, feeling tired, or when under the inuence of alcohol or drugs.
Fuel Safety.
• Before refuelling, switch off the engine and allow it to cool.
• When refuelling, DO NOT smoke or allow naked ames in the area.
• Spilt fuel must be made safe immediately, using sand. If fuel is spilt on your clothes, change them.
• Store fuel in an approved, purpose made container away from heat and ignition sources.
Vibration
Some vibration from the compaction operation is transmitted through the handle to the operator’s hands. The Altrad Belle RPX range
has been specically designed to reduce hand/arm vibration levels. Refer to specications & technical data for vibration levels and us-
age times (recommended maximum daily exposure time). DO NOT exceed the maximum usage times.
PPE (Personal Protective Equipment)
Suitable PPE must be worn when using this equipment i.e. Safety Goggles, Gloves, Ear Defenders, Dust Mask and Steel Toe capped
footwear. Wear clothing suitable for the work you are doing. Tie back long hair and remove any jewellery which may catch in the
equipment’s moving parts. Always protect skin from contact with concrete.
Dust
The compacting process will occasionally produce dust, which may be hazardous to your health. Always wear a mask that is suited to
the type of dust being produced.
Fuel
DO NOT ingest fuel or inhale fuel vapours and avoid contact with your skin. Wash fuel splashes immediately. If you get fuel in your
eyes, irrigate with copious amounts of water and seek medical attention as soon as possible.
Exhaust Fumes
DO NOT operate the compactor indoors or in a conned space, make sure the work area is adequately ventilated.
Health & Safety
GB
Improper maintenance can be hazardous. Read and Understand this section before you perform any
maintenance, service or repairs.
CAUTION
Fuel is ammable. It may cause injury and property damage. Shut down the engine, extinguish all open
ames and do not smoke while lling the fuel tank. Always wipe up any spilled fuel.
CAUTION
The exhaust fumes produced by this equipment are highly toxic and can kill!
WARNING

10
Start And Stop Procedure
Honda GX200 Petrol Engine
Stopping the Engine
1. To stop the engine, set the throttle control to idle (See Fig. 1), then press and hold the red stop
button for 5 seconds until the engine stops (See Fig. 2).
• Turn the fuel OFF
Starting the Engine
1. Open the fuel tap by moving the fuel ON / OFF lever fully to the right.
2. If starting the engine from cold, set the choke ON by moving the choke lever fully to the left. If
restarting a warm engine, the choke is usually not required, however, if the engine has cooled
to a degree, partial choke may be required.
3. Set the throttle to the idle position by moving the throttle lever fully to the right.
4. Taking a rm hold of the frame with one hand, grasp the recoil starter handle with the other.
Pull the recoil starter until engine resistance is felt, then let starter return.
5. Taking care not to pull the starter’s rope fully out, pull the starter handle briskly.
6. Repeat until the engine res.
7. Once the engine res gradually set the choke lever to the OFF position by moving it to the
right.
8. If the engine fails to re after several attempts, follow the Troubleshooting Guide.
GB
Fig.1
Fig.2
Pre start-up inspection
The following Pre-start-up inspection must be performed before the start of each work session or after every four hours of use, which-
ever is rst. Please refer to the service section for detailed guidance. If any fault is discovered, the compactor must not be used until
the fault is rectied.
1. Thoroughly inspect the compactor for signs of damage. Check components are present and secure. Pay special attention to the
belt guard.
2. Check the engine oil and hydraulic oil level and top up as necessary.
3. Check the engine fuel level and top up as necessary.
4. Check for fuel, oil and hydraulic leaks.
Pre-Start Checks
GB

11
Start And Stop Procedure
Hatz 1B20 Diesel Engine
Stopping the Engine
1. To stop the engine, set the throttle control to idle (See Fig. 1), then press and hold the red stop
button until the engine stops (See Fig. 2).
Starting the Engine
1. Turn ON the fuel by moving the fuel ON/OFF lever fully to the right.
2. Set the engine speed control to start.
3. Taking a rm hold of the control handle with one hand, grasp the recoil starter handle with
the other. Pull the handle until engine resistance is felt, then let the starter return.
4. Taking care not to pull the starter’s rope fully out, pull the starter handle briskly with both
hands.
5. Repeat this procedure until the engine res.
6. If the engine fails to start after several attempts, Follow the
troubleshooting guide.

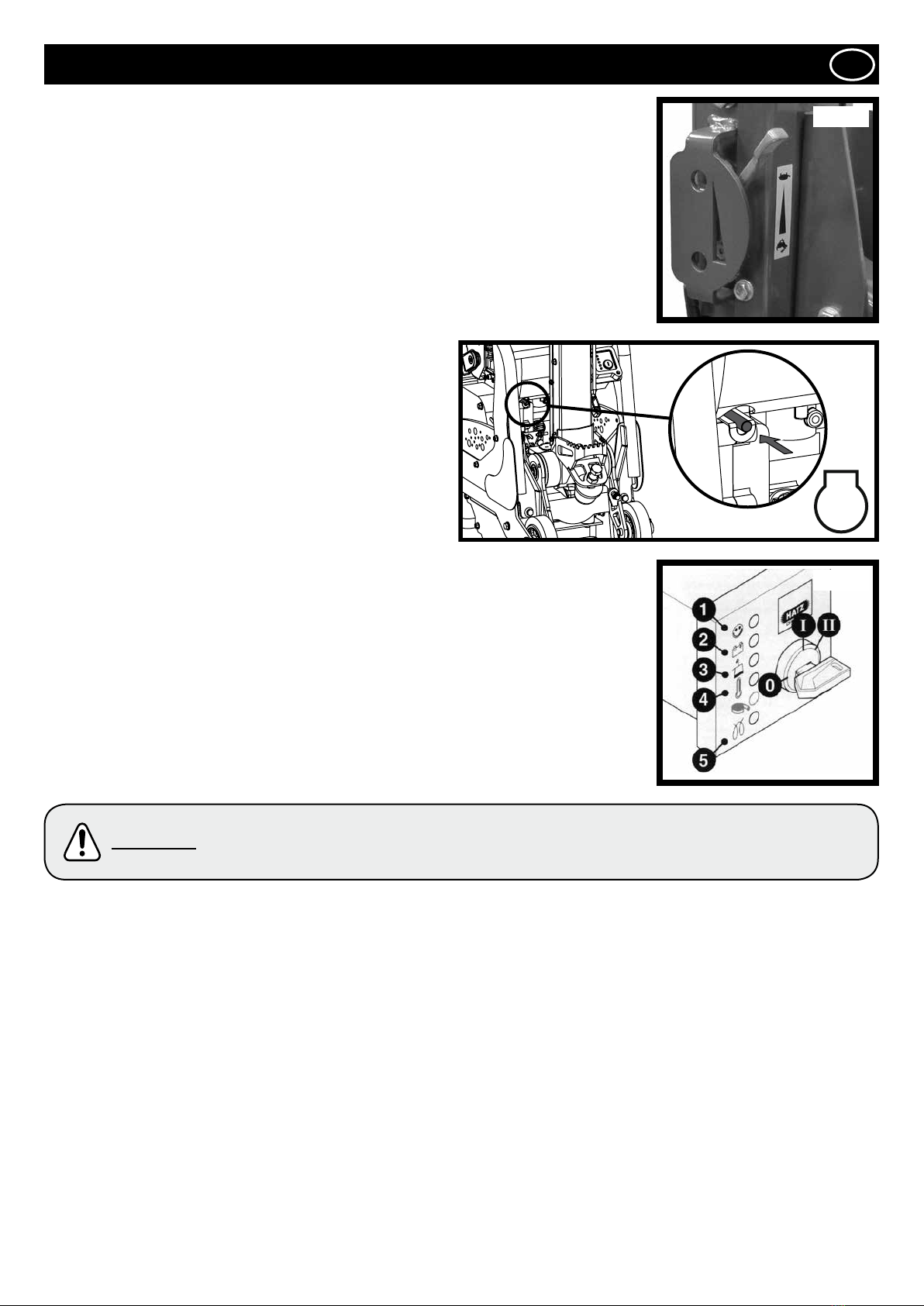

Hatz 1B20 Diesel Engine (Electric Start)
Stopping the Engine
1. To stop the engine, set the throttle control to idle (See Fig. 1),
then press and hold the red stop
button until the engine stops (See Fig. 2).
2. Turn the key to position ‘0’ and remove it. All the indicator
lights must go out.
NOTE:- Failure to return the starter key to position ‘0’ may
result in the battery being totally discharged.
Starting the Engine
1. Insert the key and turn it to position ‘I’ (The battery charge light and oil pressure warning light
will light up)
2. Turn start key to position ‘II’
3. Release the key as soon as the engine runs. The starting key must spring back to position ‘I’
and remain there during engine operation. The battery charge light and oil pressure warning
light must go out immediately after starting. Indicator light ‘1’ lights up to show that the engine
is running.
4. If anything seems to be incorrect, stop the engine immediately and rectify the fault. (See the
Troubleshooting Guide)
5. Always turn the start key back to position ‘0’ before re-starting the engine. The repeat lock prevents the starter motor from
engaging and possibly being damaged whilst the engine is still running.
Never operate the electric starter when the engine is running or coasting to a standstill. There is a risk of
broken starter pinion or ring gear teeth. Never stop the engine by moving the decopression lever.
During breaks in work or at the end of theworking period, keep the starting handle and starting key in a
safe place, out of reach of unauthorised persons.
CAUTION
GB
Fig.1
STOP
Fig.2
Fig.3

12
Operating Instructions
GB
• Take the compactor to where it is required.
Where it is necessary to use lifting equipment to position the compactor, make sure the lifting equipment has a WLL (Working
Load Limit) suitable for the compactors weight (see Technical Data section or the machine serial plate). Attach suitable chains
or slings ONLY to the lifting point (Item 4 of the Machine Description) on the top of the compactor.
• Moving the compactor using the integrated wheel kit
• Use the Fixed Steering Handle (Item 7) to tilt the machine backwards onto the integrated wheels (Item 11).
• Manouvre only on smooth, at, rm surfaces. These wheels are not designed for soft, uneven surfaces.
• To lower the machine off it’s wheels - stand on the foot rest (Item 9) and allow the machine to lower using your body weight as a
counter balance.
DO NOT use on boggy, waterlogged ground as the compactor will sink and cause excessive loading to
the engine and drive system.
CAUTION
• Having carried out the checks listed in the ‘Pre Start’ section, you may start the engine.
The Altrad Belle ‘RPX’ range of compactors are tted with a centrifugal clutch, this allows the engine to run at idle without driving
the gearbox.
As the engine speed is increased the clutch will engage and will drive the gearbox. For correct operation, the engine speed
should be set to maximum.
• Set the throttle to maximum and use the control handle for direction and to steer or turn the compactor.
The control handle has been designed so that when it is being used in reverse and the operator lets go for any reason, the
handle automatically moves into forward mode. This is a signicant safety feature of the machine.
During normal operation you should not have to push the compactor but allow it to travel at its own pace.
The speed of travel will be determined by the condition of the surface being compacted.
Caution must be used when operating the compactor in reverse. Ensure that there are no obstructions or trip hazards when
operating in reverse.
If the surface to be compacted is on a slope, great care must be taken when controlling the compactor’s direction of travel. If
necessary, use a suitable rope attached to the compactor at a low point on the chassis, to allow a helper to take part of the
compactor’s weight. Work up and down a slope not across.
• Work the compactor over the surface in an organised pattern until the required compaction has been achieved.
Where there are a number of different layers to be compacted on top of each other, compact each layer individually.
• To stop the compactor vibrating, set the throttle to idle. To stop the engine refer to the relevant Start / Stop procedure.
NEVER leave the engine running whilst the machine is being manouvered on its wheels.
CAUTION
DO NOT operate the machine in reverse on an incline.
DO NOT operate in reverse up to an enclosed or restictive space.
CAUTION

13
Service & Maintenance
The Altrad Belle ‘RPX’ range of Reversible Plate Compactors are designed to give many years of trouble free operation. It is, however,
important that the simple regular maintenance listed in this section is carried out. It is recommended that an approved Altrad Belle
dealer carries out all major maintenance and repairs. Always use genuine Altrad Belle replacement parts, the use of spurious parts may
void your warranty.
Before any maintenance is carried out on the machine, switch off the engine. If working on a diesel engine, make sure that the stop
switch is in the stop position.
Always set the compactor on level ground to ensure any uid levels will be correctly read. Only use recommended oils (see chart on
following page).
Running In Period
When the compactor is rst used from new, the engine oil must be changed after the initial running in period (see engine manufactur-
er’s manual for full detail). The belt tension should be checked after 4 hours use.
Drive Belt
Remove the belt guard then check the belt tension by placing light nger pressure on the top of the belt, as near central between the
engine drive and gearbox pulley. The belt should deect by approx. 10 to 15mm. If the belt tension requires adjustment, loosen the
setscrew on the Belt Tensioning device and slide to the right. Once set, retighten the setscrew and check belt tension a secong time.
Finally, replace the belt guard ensuring it is correctly and securely tted.
GB
Routine Maintenance Every 8
Hours
First Month /
50 Hours
150
Hours
250
Hours
500
Hours
Engine Oil Check Level 
Change  
Air Filter Check Condition / Clean 
Replace when necessary / Every 12 months
Spark Plug Change 
Drive Belt Tension  
Oil / Fuel Type & Quantity - Spark Plug Type
Oil Type Quantity
(Litre) Fuel Type Capacity (Litre)
Spark Plug
Type
Electrode
Gap (mm)
Honda GX200 Petrol S.A.E. 10W 30 0.6 Unleaded
Petrol 3.1 BPR6ES (NGK) 0.7 - 0.8mm
Hatz 1B20 Diesel S.A.E. 10W 30 0.9 Diesel
(BS2869)
Refer to
Manual N/A N/A
Oil Type & Quantity
Component Oil Type Honda GX200
(Litres)
Hatz 1B20
(Litres)
Gearbox S.A.E. 10W 40 0.72 0.72
Hydraulic Control Shell Tellus 32 0.2 0.2
Fuchs Renolin MR520 0.2 0.2
Li-Ion Battery - Charging (Hatz 1B20 Diesel Electric model only)
• Use ONLY specic Li-ion battery chargers
• DO NOT charge the battery with charging voltage of over 15.0V
• DO NOT use any charger with automatic desulphation function
• When possible, remove the battery from the vehicle before charging
• Charging voltage should be 14.0 – 15.0V for both vehicle and battery charger. Lower voltage will result in insufcient charge.
Higher voltage will cause damage to the battery
• Respect the standard & maximum charge current indicated on the battery labels
• Avoid draining the battery to less than 8V. If the voltage drops to below 8V, refer to the charger manual
• If the battery becomes hot to the touch, stop charging and allow the battery to cool before resuming
• After charging, wait 1 to 2 hours before checking the voltage. If the voltage is less than 12.8V, additional charging is necessary

14
Service & Maintenance
GB
Bleeding the Hydraulic System
1. Ensure the machine is in a stationary position, and situated on level ground.
2. Remove the ller cap, and ll the control pump head with oil. Stop once you have reached the maximum level indicator, which is
within the head.
3. Slowly pump the control handle from the ‘Forward Motion’ position, to the ‘Reverse Motion’ position, until the oil level drops.
4. Re-ll the control pump head upto the maximum level. Continue to pump the handle until resistence is felt, and the handle locks
in the ‘Reverse Motion’ position.
5. Again, re-ll the control pump head upto the maximum level.
6. Re-t the Filler Bung, and test the machine.
Assembly of the Control Pump
1. Carefully clean the housing with compressed air on the inside. Check for scratches on sliding bores for O Rings and there are
no sharp edges.
2. Press the Bushing in to Housing.
3. Lubricate the Lip Seal with Hydraulic Oil and slip it on the Rack (open side away from the rack).
4. Lubricate the Rack with Hydraulic Oil and slide it into the Housing until the Lip Seal is in the groove, making sure the teeth are
in the right position. When the Lip Seal is in the Groove this represents forward motion.
WHILST RUNNING THIS MACHINE DURING THIS PROCEDURE, IT IS ADVISABLE TO PUT THE
MACHINE ONTO A RUBBER MAT OR EQUIVALENT TO ABSORB SOME OF THE VIBRATION.
CAUTION
5. After lubricating the Pinion (without O Rings), insert it into the Housing and Rack. Check the movement of the Rack from Forward
to Reverse. (See CAUTION).
6 Take the Pinion out and t the two O Rings, making sure they are not damaged.
7. Lubricate the Pinion and O Rings with hydraulic oil and carefully insert in to the Housing. Make sure the Rack is in the right
position and this is easiest when in reverse motion.
8. Fit the Shim and Retaining Ring. It may be necessary to push the Pinion from the opposite side to get them assembled.
9. Place the Housing on the ller side and t the O Rings to the bottom face. LOCTITE seal 518 is recommended.
10. Assemble the Hydraulic Connector and Dowty Washer using LOCTITE 243.
11. Assemble the Bracket and x with 4 screws and washers using LOCTITE 243.
12. Loosely t the Plug Screw and Washer DO NOT TIGHTEN.
In reverse motion the Control Handles run parallel with the Housing in the direction of the operator.
CAUTION

15
Trouble Shooting Guide
GB
Problem Cause Remedy
Engine will not start.
No fuel. Open fuel tap.
Fill fuel tank.
Engine switched off. Switch engine on.
Spark plug fouled. Clean and reset plug gap.
Engine cold. Close choke.
Engine Flooded.
Honda, open choke, fully open throttle, pull recoil starter
until engine res.
Hatz, move speed control to stop, pull recoil starter 5 times
then repeat start procedure.
Engine still will not start. Major Fault. Contact Agent or Altrad Belle.
Unit will not move.
Engine speed too slow. Set engine speed control to fast.
Drive belt tension loose. Adjust belt tension
Air lter blocked. Clean or renew air lter.
Worn or Damaged Clutch. Repair or Replace as necessary.
Drive failure. Contact Agent or Altrad Belle.
Gearbox failure. Contact Agent or Altrad Belle.
Forward speed too slow. Too much oil in hydraulic head. Reduce oil level.
Wrong adjustment of control system Contact Agent or Altrad Belle.
Reverse speed too slow.
Not enough oil in hydraulic head. Fill and bleed system.
Air in control system. Bleed control system.
Wrong adjustment of control system Contact Agent or Altrad Belle.
Loss of Hydraulic Oil.
Connectors leaking. Reseal connectors.
Defective hydraulic hose. Replace hose.
Piston seal in gearbox defective. Contact Agent or Altrad Belle.
Machine operates
erratically. Shock mounts damaged. Replace all four mounts.

16
Warranty
GB
Your new Altrad Belle ‘RPX’ reversible plate compactor is warranted to the original purchaser for a period of one-year (12 months) from
the original date of purchase.
The Altrad Belle warranty is against defects in design, materials an workmanship.
The following are not covered under the Altrad Belle warranty:
1. Damage caused by abuse, misuse, dropping or other similar damage caused by or as a result of failure to follow assembly,
operation or user maintenance instructions.
2. Alterations, additions or repairs carried out by persons other than Altrad Belle or their recognised agents.
3. Transportation or shipment costs to and from Altrad Belle or their recognised agents, for repair or assessment against a
warranty claim, on any machine.
4. Materials and/or labour costs to renew, repair or replace components due to fair wear and tear.
The following components are not covered by warranty.
• Drivebelt/s
• Engine Air Filter
• Engine Spark Plug
Altrad Belle and/or their recognised agents, directors, employees or insurers will not be held liable for consequential or other damages,
losses or expenses in connection with or by reason of or the inability to use the machine for any purpose.
Warranty Claims
All warranty claims should rstly be directed to Altrad Belle, either by telephone, by Fax, by Email, or in writing.
For warranty claims:
Tel : [phone], Fax : [phone], Email : W[email protected]
or Write to:
Altrad Belle Warranty Department,
Sheen, Nr. Buxton
Derbyshire
SK17 0EU
England
Warranty Registration:
In the bid for ALTRAD Belle to become greener and more eco friendly, we have now introduced online
Warranty registration. To access the registration page of our website, please use the following address:-
http://www.bellegroup.com/index.php?p=warranty_registration
Alternatively, please scan the adjacent QR Code (Quick Response Code) using your smartphone to access
the registration page.

17
Commnet Utiliser Ce Manuel....................................................................................................................................................................17
Avertissement...........................................................................................................................................................................................17
Description de l’appareil ...........................................................................................................................................................................18
Environnement .........................................................................................................................................................................................18
Etiquettes...........................................................................................................................................................................................19 - 20
Caractéristiques techniques ....................................................................................................................................................................21
Pourquoi le compactage? ........................................................................................................................................................................21
Consignes de sécurité..............................................................................................................................................................................22
Santé et Sécurité......................................................................................................................................................................................22
Inspection avant mise en marche ............................................................................................................................................................23
Démarrage et arrêt de l’appareil .......................................................................................................................................................23 - 24
Utilisation .................................................................................................................................................................................................25
Révision.............................................................................................................................................................................................26 - 27
Guide de dépistage des anomalies ..........................................................................................................................................................28
Garantie ...................................................................................................................................................................................................29
Déclaration de conformité ..........................................................................................................................................................................2
Comment Utiliser Ce Manual
AVVERTISSMENT
Sommaire
Ce manuel a été spécialement conçu pour vous aider à utiliser et entretenir la RPX en toute sécurité. Ce manuel est réservé aux
distributeurs et utilisateurs de la RPX.
Préface
La section “description de la machine” vous aide à vous familiariser avec les commandes et les fonctions de l’appareil.
La section “protection de l’environnement” vous donne les consignes quant à la manière d’éliminer votre appareil dans le respect
de l’environnement.
Les sections “Informations relatives à la sécurité” et “Consignes de santé et sécurité” vous explique comment utiliser la machine
en assurant votre sécurité et celle des autres.
La “Procédure de démarrage et arrêt” vous aide à démarrer et arrêter la machine.
Le guide de “Dépannage” aide à résoudre les problèmes de votre machine.
La section “Service et Entretien” vous aide pour l’entretien et le nettoyage de votre machine.
La section “Garantie” vous donne les détails de la garantie et la procédure à suivre en cas de réclamation.
La section “Déclaration de conformité” vous donne les normes de fabrication de la machine.
Directive en rapport avec les annotations
Le texte qui demande une attention spéciale dans ce manuel ce présente comme suit:
Peut être dangereux pour l’utilisateur
AVVERTISSEMENT
Produit à risque. Vous pouvez vous blesser ou la machine peut être endommagée si vous ne respectez
pas la procédure d’utilisation à la lettre.
ATTENTION
SAVOIR utiliser les commandes de cet appareil et procéder à son entretien en toute sécurité. (PS : Assurez-vous de savoir arrêter la
machine avant de la démarrer au cas ou vous auriez des problèmes).
TOUJOURS utiliser les éléments nécessaires à votre protection lors de l’utilisation de la machine. Pour TOUTES QUESTIONS
relatives à l’entretien et l’utilisation en toute sécurité de cet appareil, DEMANDER CONSEIL A VOTRE DIRECTION OU CONTACTER
Altrad Belle :[phone]
Altrad Belle se réserve le droit de changer la forme, l’équipement et la technique de la machine sans notication.
Veuillez lire et étudier ce manuel avant toute utilisation ou entretien de cet appareil.
AVVERTISSEMENT

18
Description de l’appareil
1. Manette des gaz.
2. Démarreur électrique (Démarreur électrique diesel uniquement).
4. Point de levage.
5. Loquet de déverrouillage du manche.
6. Poignée de commande Avant / Arrière.
7. Poignée de direction.
8. Garde-courroie.
9. Repose-pieds.
10. Boulon d’ajustement du manche.
11. Kit de roues intégrées.
12. Œil de remorquage
13. Poignée du lanceur à rappel (Essence uniquement)
14. Arrêt d’urgence (Essence uniquement)
15. Bouton d’arrêt (Diesel uniquement)
16. Horomètre (en option)
Environnement
7
6
1
9
11
10
8
12
4
5
2
15
13 14 16
Le schéma montre l’option démarreur
électrique Diesel Hatz
Le schéma montre l’option moteur
essence Honda
Dispositif de sécurité.
Recommandations pour la protection de
l’environnement. Cet appareil contient des matériaux
recyclables. Veuillez apporter les appareils et les
accessoires dont vous voulez vous débarrasser aux
endroits prévus pour le recyclage.
Pièces Matière
Poignée Acier
Capot Avant HDPE
Châssis Principal Acier
Plaque Inférieure Acier
Grip Mousse en Polyuréthane
Moteur Aluminium
Supports Flexibles Acier et Caoutchouc
Autres Pièces Acier et Aluminium

19
A
B
C
D
J
C
H
G
F
E
A. Étiquette Avant / Arrière & Pas de levage
B. Étiquette Manette des gaz
C. Étiquette Point de levage
D. Étiquette Pièces chaudes
E. Étiquette Pas de levage
F. Étiquette Arrêt moteur diesel
G. Étiquette Sécurité
H. Étiquette Bruit
J. Étiquette Chargement de la batterie
K. Étiquette Attention
L. Étiquette Arrêt moteur essence
Ettiquettes
A. Étiquette Avant / Arrière & Pas de levage
Indique comment déplacer le compacteur en avant et en arrière et attire l’attention sur le fait que la Poignée de contrôle Avant /
Arrière et la Poignée de direction ne doivent pas être utilisées comme des Points de levage.
B. Étiquette Manette des gaz
C. Étiquette Point de levage
Identie le point de levage correct sur le compacteur
D. Étiquette Pièces chaudes
Cette zone peut être chaude - NE PAS toucher.
E. Étiquette Pas de levage
Cette zone ne devrait pas être utilisée comme un Point de levage.
Position Vitesse
du moteur
rapide
Position Vitesse
du moteur lente
L
K
Le schéma montre l’option démarreur
électrique Diesel Hatz
Le schéma montre l’option moteur
essence Honda

20
Lire Le
Manuel
D’utilisation
Port de
Chaussures
de Protection
Port de
Protection
Acoustique
Port de
Lunettes de
Protection
F. Étiquette Arrêt moteur diesel
Identie l’emplacement du Bouton d’arrêt du moteur.
G. Étiquette Sécurité
Ettiquettes
H. Étiquette Bruit
Identie le Niveau de bruit de la machine.
J. Étiquette Chargement de la batterie (Démarreur électrique diesel uniquement)
Lire le Manuel du conducteur pour des renseignements sur le chargement de la batterie Li-Ion.
K. Étiquette Attention
A. NE PAS faire tourner le moteur lors du maniement de la machine sur ses roues.
B. NE PAS faire fonctionner la machine en marche arrière sur une pente.
C. NE PAS faire fonctionner en marche arrière jusque dans un espace clos ou conné.
L. Étiquette Arrêt moteur essence
Appuyer et maintenir le Bouton stop pendant 5 secondes pour arrêter le moteur.
