Aluratek ADPFR09 Operating and maintenance manual

mnl M10598 Copyright © 2021 Aluratek, Inc. All Rights Reserved.
aluratek.com
model ADPFR09
Instructional Manual
9” Multimedia Digital Photo Frame

04
06
07
07
08
09
10
12
13
14
15
Table of Contents
Frame Features .............................................................................................................
Remote Control Close-up ..............................................................................................
Package Contents .........................................................................................................
Getting Started ...............................................................................................................
Operating Instructions
Viewing Photos .........................................................................................................
Transferring Files from your PC / Mac to the Frame’s Internal Memory....................
Photo Function
Photo Set-up .............................................................................................................
Video Function
Video Set-up .............................................................................................................
Music Function
Music Set-up .............................................................................................................
Motion Function
Motion Set-up ..........................................................................................................
System Function
System Set-up ..........................................................................................................

16
17
18
19
20
Table of Contents
Calendar Function
Calendar Set-up ........................................................................................................
Delete Function
How to Delete File from the Internal Memory .......................................................
Technical Support ..........................................................................................................
Radio and TV Interference Statement ...........................................................................
Warranty ........................................................................................................................

1
2
9” IPS LCD Screen
Black Matte Frame
Motion Sensor
Power ON / OFF Button
3
4
5
6
7
8
9
10
11
12
A
B
Insert a microSD memory card to easily access and share your favorite pictures,
video and music.
Transfer and store files quickly and easily to the frame’s 16GB built-in memory
Reset Button
MicroUSB Port
microSD Card Slot
Power Adapter Port
Wall Hang Holes
Speakers
Security Lock
Frame Stand 1
2
5
6
7
8
10
4
9
A
12
3
11
10
B
Frame Features
4

1
2
9” IPS LCD Screen
Black Matte Frame
Motion Sensor
Power ON / OFF Button
3
4
5
6
7
8
9
10
11
12
A
B
Insert a microSD memory card to easily access and share your favorite pictures,
video and music.
Transfer and store files quickly and easily to the frame’s 16GB built-in memory
Reset Button
MicroUSB Port
microSD Card Slot
Power Adapter Port
Wall Hang Holes
Speakers
Security Lock
Frame Stand 1
2
5
6
7
8
10
4
9
A
12
3
11
10
B
5

6
1
POWER
SETUP
VOL -
MENU
ZOOM
ROTATE
MUTE
RETURN
VOL +
BGM
OK
Remote Control Close-Up
2
311
512
4
6
13
1. BGM - Start slideshow with background music
(If there are music les on the same memory media)
2. Power
3. Menu - Takes you to the main menu
4. Up, Down, Left, Right Arrows - Use arrow keys
to navigate your way through various menus
5. OK
6. Setup - Takes you to the setup menu
7. Volume + / Volume -
8. Advance to Previous music/video
9. Advance to Next music/video
10. Mute
11. Return
12. Play / Pause
13. Zoom
14. Rotate
10
7
14
8
9

Getting Started
Plug in the power adapter and press the to power on the photo frame.
7
Package Contents
Your order has been carefully packaged and inspected. The following accessories should
be included in your package. Please inspect the contents of the package to ensure that
you have received all items and that nothing has been damaged. If you discover a problem,
please contact us immediately for assistance.
• Power Adapter
• Remote Control
• USB 2.0 Cable
• Frame Stand

A
A
8
Operating Instructions
Viewing Photos
• Please insert your microSD memory card at this time.
Insert the memory card into the card slot
as shown
• The frame will start slideshow automatically when
the card is inserted.
• The slideshow can be stopped by pressing the “►||”
button on the remote. You can then press the “◄” or
“►” button to see the next or previous picture.

9
Operating Instructions
Transferring Files from your PC / Mac to the Frame’s Internal Memory
• A USB cable is included with your digital frame to connect it to your PC/ MAC. Connect
the small connector to your digital frame and the larger connector to your PC / MAC.
• Once connected, the frame will display a USB connector on the screen. On a PC, the
frame’s internal memory will appear as a removable drive when viewed in My Computer.
On a Mac, the frame will appear as a drive icon on the desktop.
• Copy your photo, video and music les from your PC / MAC into the icon representing
the frame’s internal memory. When nished disconnect the USB cable from the PC or
MAC. (Note: For a Mac, eject the drive icon before disconnecting the USB cable.)
• The frame will return to normal operation once it is disconnected from your PC / MAC.

10
Photo Function
Photo Setup
From the main menu, press the “◄” or “►” buttons to select the and press “OK”
or “►||” button to conrm. Press “OK” or “►||” button again to access the “Photo
Setup” menu.
You will see the following options: Display Mode, Music, Display Ratio, Slide Speed,
Slideshow Repeat, Play Random Slideshow, Slideshow E󰀨ect and Slide Mode.
Use the “▲” or “▼” button to cursor through the menu. To make any changes to the
setup option highlighted, press the “◄” or “►” button to select the desired option.
Once your selection has been made, press the “▲” or “▼” button to move on to the
next menu option.
Press the “Return” button to return to the Setup menu. Press the “Return” button
again to return to the Main menu.

11
Photo Function
To select pictures from either the microSD card or internal memory, press the “return”
button from the Main menu. Use “◄” or “►” button to select desired media and press
the “OK” button or “►||” button to conrm.

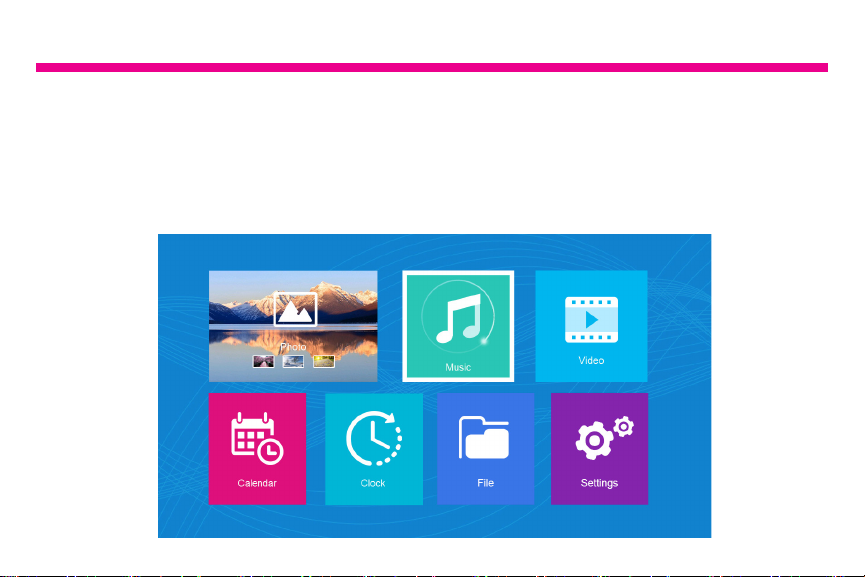

Main Menu:

12
Video Function
Video Setup
From the main menu, press the “◄” or “►” buttons to select the and press “OK”
or “►||” button to conrm. Use the “▲” or “▼” button to cursor to “Video Setup” menu.
Press “OK” or “►||” button again to access the “Video Setup” menu.
You will see the following options: Play Mode and Display Ratio.
Use the “▲” or “▼” button to cursor through the menu. To make any changes to the setup
option highlighted, press the “◄” or “►” button to select the desired option.
Once your selection has been made, press the “▲” or “▼” button to move on to the next
menu option.
Press the “Return” button to return to the Setup menu. Press the “Return” button again to
return to the Main menu.

13
Music Function
Music Setup
From the main menu, press the “◄” or “►” buttons to select the and press “OK”
or “►||” button to conrm. Use the “▲” or “▼” button to cursor to “Music Setup” menu.
Press “OK” or “►||” button again to access the “Music Setup” menu.
You will see the following options: Play Mode and Volume.
Use the “▲” or “▼” button to cursor through the menu. To make any changes to the setup
option highlighted, press the “◄” or “►” button to select the desired option.
Once your selection has been made, press the “▲” or “▼” button to move on to the next
menu option.
Press the “Return” button to return to the Setup menu. Press the “Return” button again to
return to the Main menu.

14
Motion Function
Motion setup
From the main menu, press the “◄” or “►” buttons to select the and press “OK” or
“►||” button to conrm. Use the “▲” or “▼” button to cursor to “Motion Sensor” menu.
Press “OK” or “►||” button again to access the “Motion Sensor” menu.
You will see the following options: Motion Sensor and Motion Sensor Time.
Use the “▲” or “▼” button to cursor through the menu. To make any changes to the setup
option highlighted, press the “◄” or “►” button to select the desired option.
Once your selection has been made, press the “▲” or “▼” button to move on to the next
menu option.
Press the “Return” button to return to the Setup menu. Press the “Return” button again to
return to the Main menu.

15
System Function
System Setup
From the main menu, press the “◄” or “►” buttons to select the and press “OK”
or “►||” button to conrm. Use the “▲” or “▼” button to cursor to “System Setup” menu.
Press the “►||” button again to access the “System Setup” menu.
You will see the following options: Language, Start Up Mode, Brightness, Contrast, Saturation,
Hue, Auto Power On, Auto On Time, Auto Power O󰀨, Auto O󰀨 Time, Auto Power Frequency,
Eco, No Activity Standby, Reset Setting.
Use the “▲” or “▼” button to cursor through the menu. To make any changes to the setup
option highlighted, press the “◄” or “►” button to select the desired option.
Once your selection has been made, press the “▲” or “▼” button to move on to the next
menu option.
To make changes to the Auto Power O󰀨/Power On option, once it is highlighted, press “OK”
or “►||” button to bring up the submenu to change the time. Use the “◄” or “►” to highlight
either hour or minutes and use “▲” and “▼” to set the desired time. Once the desired time is
shown, press “►||” button to conrm or to cancel.
Press the “Return” button to return to the Setup menu. Press the “Return” button again to
return to the Main menu.

16
Calendar Function
Calendar Setup
From the main menu, press the “◄” or “►” buttons to select the and press “OK” or
“►||” button to conrm. Use the “▲” or “▼” button to cursor to “Calendar Setup” menu.
Press “OK” or “►||” button again to access the “Calendar Setup” menu.
You will see the following options: Date, Set Time Format, Clock Time, Alarm Status,
Alarm Time and Alarm Frequency.
Use the “▲” or “▼” button to cursor through the menu. To make changes to Date and
Clock Time option, once it is highlighted, press “OK” and “►||” button to bring up the
submenu to change the date or time. Use the “◄” or “►” to highlight and use “▲” and
“▼” to set the desired number. Once the desired date or time is shown, press “OK” or
“►||” button to conrm or to cancel
Press the “Return” button to return to the Setup menu. Press the “Return” button again to
return to the Main menu.

17
Delete Function
How to Delete File from the Internal Memory
From the main menu, press the “◄” or “►” buttons to select the and press “OK” or
“►||” button to conrm. Use the “▲” or “▼” button to select the le you want to delete and
press “►” button.
In the pop up menu please select “Delete” and press the “OK” button. Select “Yes” to
delete the le.

18
Technical Support
We are committed to providing the best customer service support. If you need assistance
with your Aluratek product, please contact the Aluratek Technical Support department prior
to returning this device. Reach out to us in any of the following ways:
E-mail: [email protected]
Web: aluratek.com/helpdesk
Local (Irvine, CA): 714-586-8730
Toll free: 1-866-580-1978

19
Radio and TV Interference Statement
WARNING!!! This equipment has been tested and found to comply with the limits of a Class
B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment o󰀨 and on, the
user is encouraged to try to correct the interference by whatever measures may be required
to correct the interference.

20
Warranty
Aluratek warrants this product against defect in material or workmanship for 1 Year from the date of
purchase.
This warranty becomes invalid if the factory-supplied serial number or “warranty void” sticker has
been removed or altered on the product.
This warranty does not cover:
A) Cosmetic damage or damage due to acts of God
B) Accident, misuse, abuse, negligence or modication of any part of the product.
C) Damage due to improper operation or maintenance, connection to improper equipment,
or attempted repair by anyone other than Aluratek.
D) Products sold AS IS or WITH FAULTS.
IN NO EVENT SHALL ALURATEK’S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT
FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING
FROM THE USE OF THE PRODUCT, IT’S ACCOMPANYING SOFTWARE, OR IT’S DOCUMENTATION.
Aluratek makes no warranty or representation, expressed, implied, or statutory, with respect to it’s
products, contents or use of this documentation and all accompanying software, and specically
disclaims it’s quality, performance, merchantability, or tness for any particular purpose. Aluratek
reserves the right to revise or update it’s product, software or documentation without obligation to
notify any individual or entity.
