Amana GUC Series User manual

GUC*, GUX*, GUD*
Gas Fired Warm Air
Furnace
Effective: September 1995 10318810
WARNING
To avoid death, personal injury or property
damage,donotusethisfurnaceifanypartof
the furnace has been under water. Immedi-
ately call a qualified service technician to
inspectthefurnaceandtoreplaceanypartof
the control system and any gas control hav-
ing been under water.
Important Note To The Owner
It is important that you fill out the owner’s registration card
and mail it today. This will assist Amana in contacting you
should any service or warranty information change in the
future.When fillingin theregistration card,be sureto include
the Model, Manufacturing and Serial Numbers, plus the
installation date. If the registration card cannot be located,
please call 1-800-843-0304 to register the furnace.
Your warranty certificate is also supplied with the unit. Read
the warranty carefully and note what is covered. Keep the
warranty certificate in a safe place, so you can find it, if
necessary.
WARNING
Iftheinformationintheseinstructionsisnot
followed exactly, a fire or explosion may
result causing property damage, personal
injury or loss of life.
—Donotstore or usegasolineor other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
—What to do if you smell gas:
• Do not try to light any appliance.
• Do not touch any electrical switch; do
not use any phone in your building.
• Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier,
call the fire department.
—Installationandservicemustbeperformed
by a qualified installer, service agency or
the gas supplier.
WARNING
Should overheating occur or the gas supply
fail to shut off, turn off the manual gas con-
trol valve to the furnace before shutting off
the electrical supply.
THE INSTALLATION AND SERVICING OF THIS EQUIPMENT MUST BE PERFORMED BY QUALIFIED,
EXPERIENCED TECHNICIANS ONLY.
Due to policy of continual product improvement, the right is reserved to change specifications and design without notice.
RECOGNIZE THIS SYMBOL AS A SAFETY PRECAUTION
User's Informational
Manual
Affix this manual, Installation Instructions and Specification
Sheet adjacent to the furnace.

2
Amana Refrigeration, Inc.
Fayetteville, TN 37334
As a professional installer you have an obligation to
know the product better than the customer. This
includes all safety precautions and related items.
Priortoactualinstallation,thoroughly familiarizeyour-
self with this Instruction Manual. Pay special attention
to all safety warnings. Often during installation or
repairitispossibletoplaceyourselfinapositionwhich
is more hazardous than when the unit is in operation.
Remember, it is your responsibility to install the
productsafely andtoknowitwell enoughto beable to
instruct a customer in its safe use.
Safety is a matter of common sense...a matter of
thinking before acting. Most dealers have a list of
specific good safety practices...follow them.
TheprecautionslistedinthisInstallationManualshould
not supersede existing practices but should be con-
sidered as supplemental information.
ATTENTION INSTALLING PERSONNEL
Remember to leave this manual with the homeowner.
Contents
Important Note To The Owner ............................................................................................................ 1
Attention Installing Personnel ............................................................................................................. 2
I. General Information......................................................................................................................... 3
Unit Location.............................................................................................................................................................................3
Unit Installation .........................................................................................................................................................................3
Unit Clearances to Combustible Surfaces................................................................................................................................3
Air Requirements ......................................................................................................................................................................3
Combustion Air (GUC, GUX and GUD - One Pipe System) ....................................................................................................4
Combustion Air (GUD - Two Pipe System) ..............................................................................................................................4
Indoor Humidity.........................................................................................................................................................................4
Propane Furnaces Only............................................................................................................................................................5
II. Operation ....................................................................................................................................... 5
Thermostat................................................................................................................................................................................5
Electrical Components..............................................................................................................................................................6
Operating Instructions ..............................................................................................................................................................6
Roll-Out Protection Device .......................................................................................................................................................7
Turning Off Furnace..................................................................................................................................................................7
Electronic Control Module ........................................................................................................................................................7
Reset After Control Lock-Out ...................................................................................................................................................7
III. Maintenance.................................................................................................................................. 8
Replacing or Cleaning Filters ...................................................................................................................................................8
Side Air Return .........................................................................................................................................................................8
Bottom Air Return .....................................................................................................................................................................9
Filter Cleaning and Replacing ..................................................................................................................................................9
Condensate Collection and Disposal (Qualified Servicer Only) ...............................................................................................9
Induced Draft Motor Lubrication ...............................................................................................................................................9
Air Circulating Blower Motor Lubrication ..................................................................................................................................9
IV. Inspection of Furnace (Qualified Servicer Only. ............................................................................ 9
Inspection Procedures ..............................................................................................................................................................9
V. For More Information.................................................................................................................... 10
VI. Safety Labels ...............................................................................................................................11

3
WARNING
PERSONAL INJURY HAZARD
To avoid personal injury or fire, minimum
clearancestocombustiblesurfacesmustbe
followed.
7. Make certain the required clearances for the furnace are
always maintained. These clearances are listed on the
furnacenameplate.Ifanyquestiondevelops,contactthe
installer of the furnace, or another qualified servicer.
Unit Installation
Examine the furnace installation to determine the following:
1. The flue vent pipe is physically sound and sealed. The
vent slopes upward to vent terminal so condensate
drains back toward the furnace. The vent shows no
evidence of leaking or separation at joints or fittings.
2. Thereturnairductconnectionisphysicallysound,sealed
to the furnace casing, and terminates outside the space
containing the furnace.
3. The physical support of the furnace is sound without
sagging, cracks, or gaps around the base so as to
provide a seal between the support and the base.
4. There are no obvious signs of deterioration of the fur-
nace.
5. Check the burner flames to for adjustment.
Unit Clearances to Combustible Surfaces
A 1" Top Clearance Is Also Required
1"1"
3"
3'
Service Area Free
Access To Furnace
Figure 1
Unit Clearances
I. General Information
This furnace is built to provide many years of safe and
dependable service, providing it is properly installed and
maintained.However,abuseand/orimproperusecanshorten
the life of the furnace and create hazards for you, the
homeowner.
WARNING
PERSONAL INJURY HAZARD
To avoid possible equipment damage, per-
sonal injury, fire or death, the following in-
structions must be observed regarding unit
location,airrequirementsandoperatingpro-
cedures.
Unit Location
1. The furnace area and the vicinity of any other gas
appliances must be kept clear and free of combustible
materials, gasoline, and other flammable vapors and
liquids.Also,donotstoreoruseflammableitemssuchas
paint, varnish, or lacquer in the area.
2.Donotstoreorusechlorineorfluorineproducts(bleaches,
cements, strippers, aerosols) near the unit. They can
corrode the heat exchanger.
3. Do not use the furnace closet as storage for brooms,
mops, brushes and oily rags or cloths. The area must be
kept clear, clean and free of lint. Furnace must be kept
freeand clear ofexposed or looseinsulationmaterials in
the area of installation. Examine the furnace area when
the furnace or additional insulation is added since some
insulation materials may be combustible.
4. Make sure the furnace is always connected to an ap-
proved vent, in good condition, to carry combustion
products outdoors.
5.Familiarizeyourself withthecontrolsthat shutoffthe gas
andelectrical powerto thefurnace.If thefurnace isto be
shut down at the end of the heating season, turn off both
the gas and electrical power. For safety, always turn the
gasand electricalpower off beforeperforming serviceor
maintenance on the furnace.
6. Establish a regular maintenance schedule to insure
efficient and safe operation of the furnace. The furnace
should be checked at the beginning of each heating and
cooling season by a qualified service technician.

4
Air Requirements
WARNING
PERSONAL INJURY HAZARD
To avoid death, personal injury or property
damage, enough fresh air for proper com-
bustion and ventilation of flue gases must
be provided to this furnace. Most homes
require outside air to be supplied into the
furnace area.
Improved construction and additional insulation in homes
have reduced the heat loss and made these homes much
tighter around doors and windows so that air infiltration is
minimal. This creates a problem to supply ventilation and/or
combustion air for gas fired or other fuel burning appliances.
Any use of appliances that pull air out of the house (clothes
dryers,exhaust fans, fireplaces,etc.) increases thisproblem
and appliances could be starving for air.
If fuel-burning appliances are starved for air, the flue gases
which these appliances produce as they operate may not
vent outdoors properly, but remain in the home instead.
These flue gases may include carbon monoxide.
WARNING
PERSONAL INJURY HAZARD
Death or personal injury from asphyxiation
can result from exposure to carbon monox-
ide.
WARNING
PERSONAL INJURY HAZARD
This product contains or produces a chemi-
cal or chemicals which may cause serious
illness or death and which are known to the
State of California to cause cancer, birth
defects or other reproductive harm.
Carbon monoxide or “CO” is a colorless and odorless gas
produced when fuel is not burned completely or when the
flame does not receive sufficient oxygen.
Be aware of these air starvation signals which indicate
conditions that may result in carbon monoxide or that
carbon monoxide may be present:
1. Headaches-Nausea-Dizziness.
2. Excessive humidity-heavily frosted windows or a moist
“clammy” feeling in the home.
3. Smoke from a fireplace won’t draw up the chimney.
4. Flue gases won’t draw up the appliance vent pipe.
WARNING
Itisvitallyimportantthefurnacehaveproper
venting.GUDmodelfurnacesaredirectvent
appliances and must never be common
ventedwithanothergasfiredappliance.Any
alteration to any venting system must be in
accordance with local and national codes,
and the manufacturer's instructions.
Combustion Air (GUC, GUX and GUD - One Pipe
System)
Normally the air for combustion and ventilation can be
obtainedfromthe surroundingunconfinedspace orlouvered
closet door.
• Whenafurnaceisinstalledinaclosetandtheclosetdoor
is louvered DO NOT OBSTRUCT LOUVERS. Louvers
must be open and clear to provide combustion air to the
furnace.
• When the furnace is installed in a confined space within
a home and the air for combustion and ventilation enters
the space through ducts from the outside...be sure to
check the entering and outlet (grilled) openings so that
they are always clear and clean.
IMPORTANT NOTE: Donotpartitionoffasmall areaaround
the furnace including a non louvered door. This could ob-
struct the combustion air from reaching the furnace.
Combustion Air (GUD - Two Pipe System)
NOTE: To insure proper operation of the furnace, both
combustion air and flue pipes must never become ob-
structed.
NOTE: Theairfor combustionandventilation mustnotcome
from a corrosive atmosphere.
WARNING
Topreventpossibledeathorpersonalinjury
duetoasphyxiation,AmanaCondensingGas
Fired Warm Air Furnaces must be Category
IV vented.
CategoryIVventingmustbegasandwatertight.Forinforma-
tion on Category IV venting, refer to the installation instruc-
tions available from the installing dealer, distributor, or di-
rectly from Amana.
The vent system must slope toward the furnace for drainage
of condensate. Provision must be made to drain the conden-
sate and protect the condensate drain trap and drain line
from freezing conditions.

5
WARNING
Topreventpossibledeathorpersonalinjury
due to asphyxiation, common venting with
other induced draft appliances is not al-
lowed. Carefully read and follow all instruc-
tions given in this section.
NOTE: The louvers in the furnace door and top must never
be obstructed. They must remain open so air can flow
through the furnace and cool internal components.
Indoor Humidity
Relative humidity is the amount of water vapor in the air
relative to the amount the air can hold at the same tempera-
ture. Example: At 40% relative humidity, the air could hold 2
1/2 times as much moisture (2.5 x 40 = 100%) before
becoming saturated.
The colder the air; the less moisture it can hold. As air is
warmed, its ability to hold moisture is increased.
Example: A winter day, outdoor temperature 10°F, and
relative humidity of 70%. If that air enters a home and is
warmed to 72°F. the relative humidity will drop to 6% (very
dry) if no more moisture is added.
Relative humidity is important to your health and home as
proper humidification helps reduce respiratory difficulties
and helps improve the indoor air quality.
A good relative humidity is one just high enough to barely
startcondensation along thelower edges orlowercorners of
the windows. More than that can be damaging.
Frequent fogging or excessive condensation on inside win-
dows indicates the indoor humidity level is too high for
outdoor weather conditions. Damage to the building may
result if the condition persists. (Condensation on inside of
storm windows indicates loose inside windows. Adding
weather-stripping to tighten inside windows usually corrects
this problem.)
The following table shows the recommended maximum
indoor humidity in relationship to the outdoor temperatures.
Temperature
(° F.) Humidity
+20° 35%
+10° 30%
0° 25%
-10° 20%
-20° 15%
Table 1
Propane Furnaces Only
WARNING
PERSONAL INJURY HAZARD
To avoid death, personal injury or property
damageduetoexplosionorfire,installagas
detectingwarningdevice. Since theodorant
inpropanegas can bereducedby iron oxide
(rust), a gas detecting warning device is the
only reliable method to detect propane gas
leaks.
WARNING
PERSONAL INJURY HAZARD
If thegas furnace isinstalled in a basement,
an excavated area or a confined space, it is
stronglyrecommendedtocontactapropane
supplier to install a gas detecting warning
device in case of a gas leak.
•Sincepropane gas isheavier than air, any
leaking gas can settle in any low areas or
confined spaces.
•Propane gas odorant may fade, making
the gas undetectable except with a warn-
ing device.
An undetected gas leak will create a danger
of explosion or fire. If the presence of gas is
suspected, follow the instructions on the
cover of this manual. Failure to do so could
result in SERIOUS PERSONAL INJURY OR
DEATH.

6
II. Operation
Thermostat
There are many types and styles of thermostats but the
operation is usually similar. BE SURE TO BECOME FAMIL-
IAR WITH YOUR THERMOSTAT. The simplest type of
thermostat only starts and stops the furnace to maintain the
proper room temperature. The most widely used types will
controlbothheatingandcoolingfunctionsandwillhaveaFan
Switch with Auto and ON settings. On Auto, the Circulating
Air Blower will cycle on/off with the furnace but if switched to
ON it will run constantly whether or not the furnace is on.
In addition there are thermostats that automatically switch
from Heating to Cooling and with night setbacks. The night
set-back, or multiple set-back type, will lower the tempera-
ture at night or during the day when no one is at home.
Cool/Heat
Switch Fan
Switch
Cool/Heat
Temperature
Control Dial
Room Temperature
Thermostat
Thermostat
Control
Lever
System
Switch Fan Switch Action
OFF AUTO None
COOL AUTO System only cools, fan
cycles off and on.
COOL ON System only cools, fan
runs all the time.
HEAT AUTO System only heats, fan
cycles off and on.
HEAT ON System only heats, fan
runs all the time.
OFF ON No heating or cooling,
fan runs all the time.

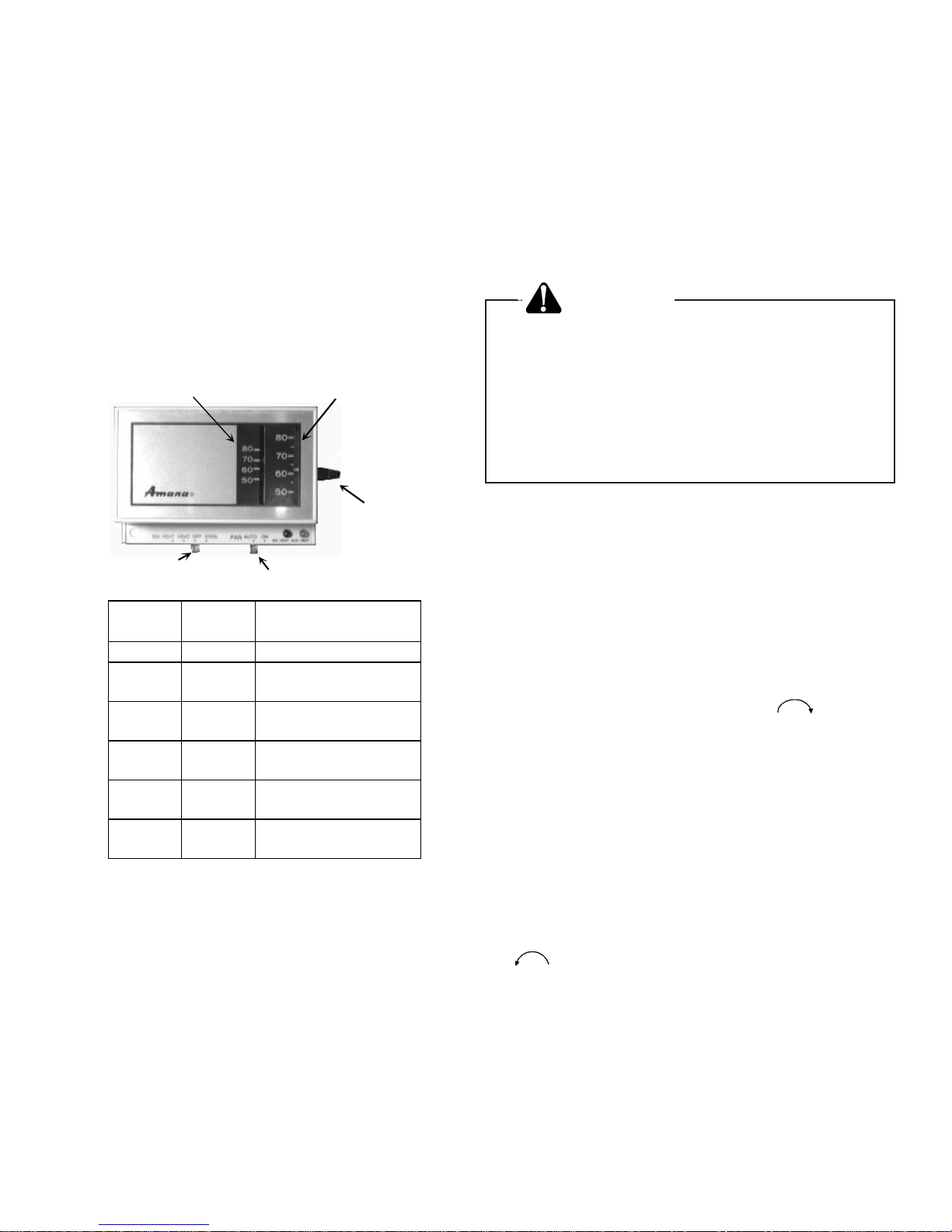

Figure 2
Typical Thermostat
Electrical Components
This furnace is equipped with an electronic ignition device
which lights the burners. It also has a power vent blower to
exhaust combustion products.
Keep both doors in place except for inspection and mainte-
nance. An interlock switch prevents furnace operation if the
blower door is not in place.
Do not use this furnace if any part has been under water.
Immediately call a qualified servicer to inspect the furnace
and to replace any part of the control system and any gas
control which has been under water.
WARNING
PERSONAL INJURY HAZARD
To avoid death, personal injury or property
damage do not remove any internal com-
partment covers. Electrical components are
contained in both compartments. Contact a
qualified servicer at once if an abnormal
condition is noticed.
Operating Instructions
1. Close the manual gas valve external to the furnace.
2. Turn off the electrical power supply to the furnace.
3. Set room thermostat to lowest possible setting.
4. Remove the upper door on the front of the furnace by
turning the latch screw 1/4 turn.
5. This furnace is equipped with an ignition device which
automatically lights the burner. Do not try to light burner
by hand.
6. Turn the gas control knob clockwise to the OFF
position for either the White Rodgers 36-E gas valve
(Figure 3) or the Honeywell VR-8205 gas valve (Figure
4). For the Robertshaw 7222 gas valve (Figure 5) slide
the lever to the "OFF" position. Do not use excessive
force.
7. Wait five minutes to clear out any gas. Then smell for
gas, including near the floor. This is important , because
some types of gas are heavier than air.
8. If you smell gas following the five minute waiting period
in Step 7, immediately follow the instructions on the
cover of this manual. If you do not smell gas after five
minutes, turn the gas control knob counterclockwise
tothe ONpositionfor eithertheWhite Rodgers36-
E gas valve (Figure 3) or the Honeywell VR-8205 gas
valve (Figure 4). For the Robertshaw 7222 gas valve
(Figure5) slide thelever to the"ON" position. Donot use
excessive force.
9. Replace the door on the front of the furnace.
10. Open the manual gas valve external to the furnace.
11. Turn on the electrical power supply to the furnace.
12. Set thermostat to desired setting.

7
Flame Roll-Out
Protection
Device
Figure 6
Roll-Out Protection Device
(GUC and GUX)
Flame Roll-Out
Protection
Device
Figure 7
Roll-Out Protection Device
(GUD)
WARNING
PERSONAL INJURY HAZARD
To avoid death, personal injury or property
damagedueto fireorexplosion,donotreset
theroll-outprotection device.Ifitopens, the
cause must be investigated by a qualified
servicer before any attempt is made to en-
gage the roll-out protection device and turn
the furnace back on.

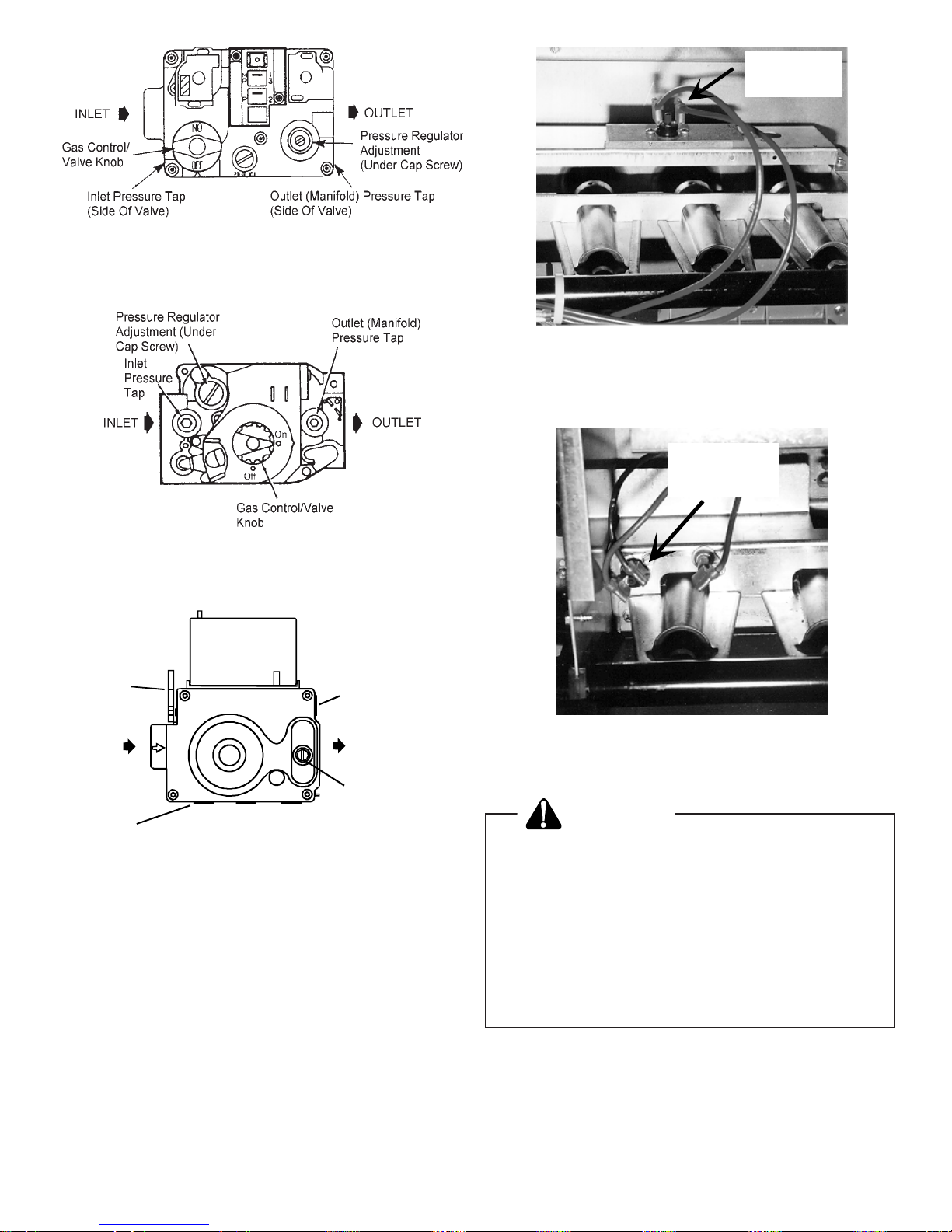

Figure 3
White Rodgers
Model 36E
Figure 4
Honeywell
Model VR-8205
Gas Control
Valve Lever
(In ON Position)
INLET OUTLET
Pressure Regulator
Adjustment (Under
Cap Screw)
Outlet Pressure Tap
(Side of Valve)
Inlet PressureTap Figure 5
Robert Shaw Model 7222 DER
Roll-Out Protection Device
Ifflamesfromtheburnersarenotproperlydrawnintothe heat
exchanger, a flame roll-out limit switch will open causing
combustion to cease. The roll-out limit switch is located on
oneendofthemanifoldassemblyforGUCandGUXfurnaces
(Figure6) and inthe burner boxon GUD furnaces(Figure 7).

8
III. Maintenance
AT LEAST ONCE A YEAR, BEFORE THE HEATING SEA-
SON BEGINS, have the furnace checked by a qualified
servicer to be certain there is adequate combustion air and
that the furnace and the vent system are working properly.
Have the vent pipe and combustion air pipe (some models)
checked for blockage by debris or leaks, which could permit
fumes to enter the house. Replace any damaged sections of
the vent pipe.
WARNING
PERSONAL INJURY HAZARD
To avoid death or personal injury due to
electrical shock, disconnect the electrical
power before performing any maintenance.
Replacing or Cleaning Filters
WARNING
PERSONAL INJURY HAZARD
To avoid death, personal injury or property
damage, never operate furnace without a
filter installed. Dust and lint will build up on
internal parts resulting in loss of efficiency,
equipment damage and possible fire.
Iffilterreplacement becomes necessary, it mustbe replaced
with a filter of the same type and size that complies with
UL900 or CAN/ULC-S111 standards.
See the Specification Sheet for filter sizes.
WARNING
PERSONAL INJURY HAZARD
To avoid death or personal injury due to
electrical shock, disconnect the electrical
powerbeforeremovingfiltersor performing
any maintenance.
The filter is designed for high velocity heating and cooling
applications. Filters must be inspected, cleaned or changed
every two months or as required. It is the owner's responsi-
bility to keep air filters clean. NOTE: Dirty filters are the most
common cause of inadequate heating or cooling perfor-
mance.

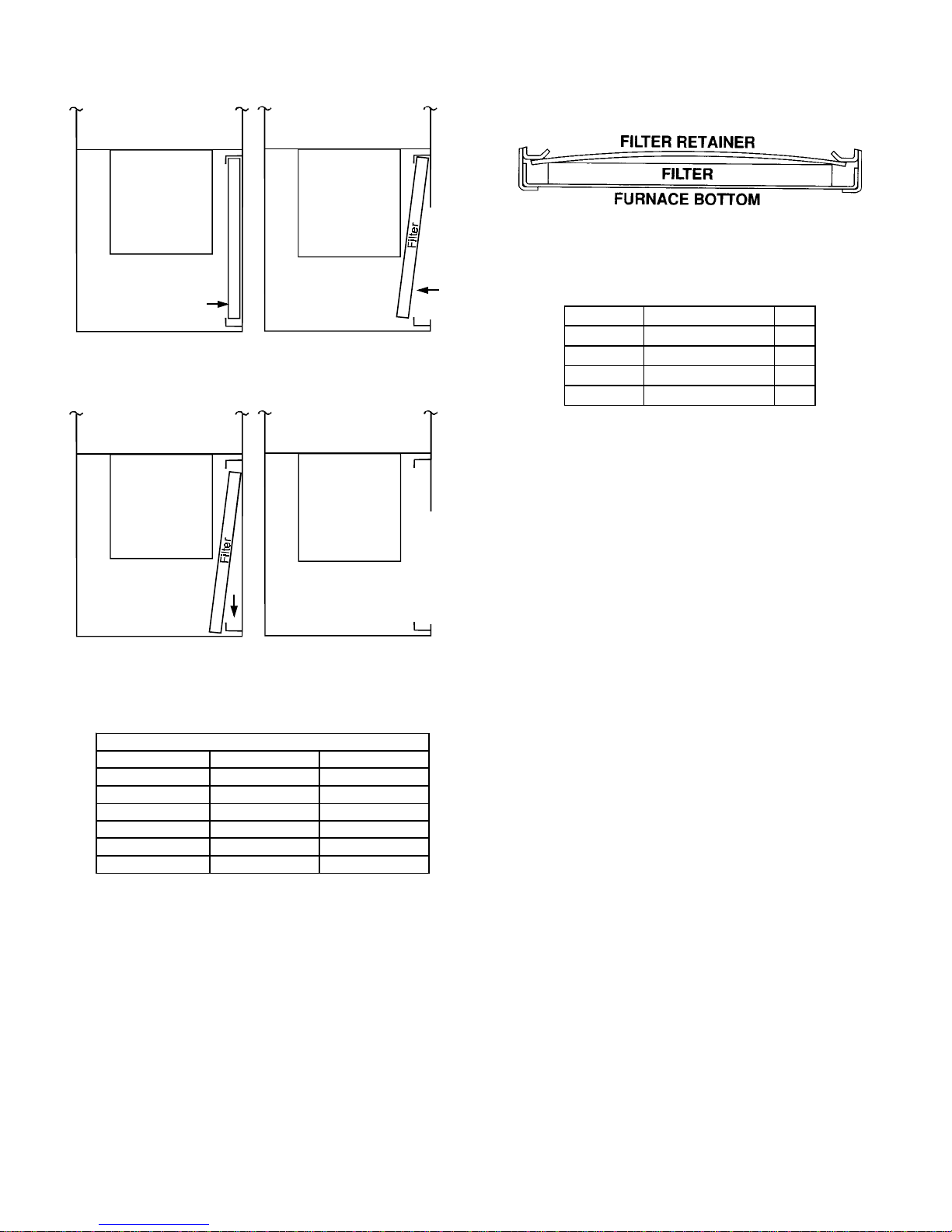

To remove the filter contained in the furnace retaining rails,
disconnect electrical power to the furnace and remove the
lower door by turning the door latches 1/4 turn.
Graspthelowerportionofthefilter,liftuptodisengageitfrom
the lower railing, move towards blower, drop filter down. Pull
filter outward. (Figure 8)
Turning Off Furnace
1. Set the thermostat to lowest setting.
2. Turn off the electrical power supply to the furnace.
3. Remove the upper door on the front of the furnace by
turning the latch screws 1/4 turn each.
4. Turn the gas control knob clockwise to the "OFF"
position or either the White Rodgers 36-E gas valve
(Figure 3) or the Honeywell VR-8205 gas valve (Figure
4). For the Robertshaw 7222 gas valve (Figure 5) slide
the lever to the "OFF" position. Do not use excessive
force.
5. Close manual gas shut-off valve external to the furnace.
6. Replace the door on the furnace.
Electronic Control Module
The furnace is equipped with a self-diagnostic electronic
control module. If a furnace component is not operating
properly,thecontrolmodulewillrepeatedlyflasharedlighton
andoffinafactory-programmedsequence,dependingonthe
problem encountered.
If a furnace equipped with a self diagnostic module is not
operating properly, look through the observation window in
the blower access door and make note of the number of
flashes in the sequence. Contact a qualified servicer for
further information. Do not attempt to troubleshoot the prob-
lem yourself.
Reset After Control Lock-Out
If ignition has not been achieved for any reason after three
ignitioncycles,the electronic control module willlock-out the
furnace. Ignition is no longer attempted. A lock-out causes
both the air blower and the vent blower to run continuously,
and ignition is no longer attempted. The control's diagnostic
light will then repeatedly flash once and then pause. When
thisoccurs,itmaybenecessarytoresetthecontrolbyturning
the thermostat setting below room temperature for thirty
seconds and then returning the setting to the desired tem-
perature. The control may also be reset after a lock-out by
turning off the electrical disconnect switch to the furnace for
thirty seconds.
IMPORTANT: If the furnace must be reset frequently to
obtain satisfactory operation, a problem exists with your
furnacethat mustbe corrected.Contact aqualified servicer..

9
Side Air Return
1. Lift filter above bottom 2. Tilt filter to clear rail.
rail.
Front of Furnace
Blower
Grab Here
And Lift
Filter
Front of Furnace
Blower
3. Lower filter below top 4. Pull filter out.
rail.
Front of Furnace
Blower
Front of Furnace
Blower
Figure 8
Filter Removal
Side Return Filter Sizes
Minimum Recommended Size,Inches
Size_Air Flow Disposable* Permanent*
045_30 1 - 24x24 (576) 1 - 16x25 (280)
070_30 1 - 24x24 (576) 1 - 16x25 (280)
070_40 2 - 16x25 (768) 1 - 16x25 (372)
090_35 2 - 14x25 (692) 1 - 16x25 (342)
090_50 2 - 20x25 (960) 2 - 16x25 (465)
115_50 2 - 20x25 (960) 2 - 16x25 (465)
* Quantity - Inches (Total Minimum Surface Area in Square Inches)
Permanent filter sizes are as shipped with furnace. The minimum
permanent filter size area is based on allowable face velocity of 620
feet per minute. Table 2
Bottom Air Return
The filter is held in place by a sheet metal retainer strap
(Figure9).Tochangeandcleanthefilter,slideoneendofthe
retainer towards the front and remove filter.
Figure 9
Filter Retainer
Bottom Return Filter Sizes
Model Filter Size, Inches Type
45 14 x 25 x 1 P
70 16 x 25 x 1* P
90 20 x 25 x 1 P
115 20 x 25 x 1 P
P = Permanent
* As Shipped With Furnace
Table 3
Filter Cleaning and Replacing
Use a vacuum cleaner to clean out the blower area and the
adjacent area of the return air duct.
Wash,rinse,anddryapermanentfilter.Bothsidesofametal
filter should be sprayed with a dust adhesive as recom-
mended on the adhesive container. Spray adhesives for use
with permanent metal filters can be found at some hardware
stores.
Ifpermanentfilterarebadlytornoruncleanable,theymustbe
replaced with permanent filters of the same type and size.
When replacing permanent filter used in side air return
applications must have dimensions of 16" x 25" x 1".
When replacing permanent filter used in bottom air return
applications use the Table 2 or 3 to determine filter size.
Reinstall filter by placing it into the furnace along the side of
the blower. Engage filter in top rail, move toward side of
furnace and drop it into the bottom rail. BE SURE AIRFLOW
DIRECTION ARROW POINTS TOWARDS THE BLOWER.
Condensate Collection and Disposal (Qualified
Servicer Only)
Ifthedrain tubes or condensate collection standpipe assem-
bly become blocked, the components may be removed,
cleaned and reinstalled.
Induced Draft Motor Lubrication
The induced draft motor bearings are permanently lubri-
cated. No further lubrication is required.
Air Circulating Blower Motor Lubrication
The air circulation blower motor bearings are permanently
lubricated. No further lubrication is required.

10
IV. Inspection of Furnace (Qualified
Servicer Only.
WARNING
To avoid death or personal injury due to
shock or burns, the following procedures
must be followed exactly, in sequence, be-
fore inspecting this furnace.
1. Close gas shut-off valve.
2. Disconnectelectricalpowertofurnace.
3. To allow the furnace to cool, wait 15
minutes before proceeding.
Inspection Procedures
•Vacuum the burner vestibule annually.
•Burners, mounting brackets and all other parts in the
vestibule area for signs of deterioration.
•PVCfluepipeforleaksandholes(thePVCfluepipemust
slope upward away from the furnace).
•PVCflueoutletandair inlet(some models)for restriction
(wasp nests, etc.) and general condition.
•Return air connection to the furnace for soundness,
proper sealing to the furnace casting and terminating
outside the space containing the furnace.
•Physical support of the furnace for proper seal between
thesupport andthebase,withoutany sagging,cracks or
gaps, etc.
•Burner operation. After reconnecting electrical power
andgastothe furnace,setroomthermostat tomaximum
setting to operate the furnace. Inspect the main burner
flames. Natural gas flames should be stable, soft and
blue. Propane gas flames may appear slightly yellow.
Dust may cause orange tips. Flame must extend directly
outwardfromtheburnerwithoutcurling,floating,orlifting
off. On the GUD furnace only, the flames can be in-
spected through the sight glass on the front cover. Only
a qualified servicer should ever remove the cover. (Fig-
ure 9)
Check the burner flames for:
1. Good adjustment
2. Stable, soft and blue
3. Not curling, floating, or lifting off.
Figure 9
Burner Inspection
V. For More Information
Most questions can be answered by the local Amana dealer.
Check with dealer first if needing any further information
regarding the operation, maintenance, or service of the
furnace.
If you have any matters that are not resolved locally, or for
more information on other heating and cooling products or
kitchenappliancesoffered byAmanais needed-please call:
CONSUMER INFORMATION LINE
AMANA TOLL FREE
1-800-843-0304 (U.S. only)
(Not a technical assistance line for dealers.)
________________________________________
Outside the U.S., call 1-319-622-5511.
(Not a technical assistance line for dealers.)
Your telephone company will bill you for the call.
Ask a participating Amana dealer about
Amana's extended service plan. It adds to
the strong warranty with additional parts
and labor coverage.
Toobtaintheproperlabels,theModel,Manu-
facturing Number and Serial Number of the
unit must be supplied. These numbers are
recorded on the nameplate of the furnace.
For convenience, record this information
here:
MODEL NUMBER: _ _ _ _ _ _ _ _ _ _
MANUFACTURINGNUMBER: P_ __ __ __F
SERIAL NUMBER: 9 _ _ _ _ _ _ _ _

11
VI. Safety Labels
NOTE: If safety labels are missing or illegible, contact the installing dealer or Amana Customer Service Department for
ordering information.
10435401
11072703
10232005
B1358001
WARNING: AVERTISSEMENT:
THIS COMPARTMENT MUST BE
CLOSED EXCEPT WHEN SERVICING CE COMPARTIMENT DOIT RESTER FERME, SAUF POUR L'ENTRETIEN
B13580-1L
A
