Amana 12392746 User manual

Commercial Combination
Microwave and Convection Oven
Keep these instructions for future reference. If the equipment changes
ownership, be sure this manual accompanies equipment.
Owner's Manual

2
Model Identification
Complete enclosed registration card and promptly return.
If registration card is missing, call Consumer Affairs
Department at 1-800-843-0304 inside U.S.A. or
1-319-622-5511 outside U.S.A. Any questions or to
locate an authorized servicer, call 1-800-843-0304 inside
U.S.A. or 1-319-622-5511 outside U.S.A. If an automated
telephone system is reached, select Commercial
Microwave Ovens category. Warranty service must be
performed by an authorized servicer. Amana also
recommends contacting an authorized servicer if service
is required after warranty expires.
When contacting Amana, provide product information.
Product information is located on oven serial plate.
Record the following information:
Model Number: ____________________________
Manufacturing Number: _____________________
Serial or S/N Number:_______________________
Date of purchase: __________________________
Dealer’s name and address:__________________
________________________________________
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY
A. DO NOT attempt to operate this oven with door open since open door operation can result in harmful
exposure to microwave energy. It is important not to defeat or tamper with safety interlocks.
B. DO NOT place any object between oven front face and door to allow soil or cleaner residue to accumulate on
sealing surfaces.
C. DO NOT operate oven if it is damaged. It is particularly important that oven door close properly and that there
is no damage to:
1. door (bent)
2. hinges and latches (broken or loosened)
3. door seals and sealing surfaces.
D. Oven should not be adjusted or repaired by anyone except properly qualified service personnel.
Contents
ModelIdentification........................................................................... 2
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY ........................................ 2
IMPORTANT SAFETY INSTRUCTIONS.......................................... 3
Grounding Instructions ..................................................................... 5
Installation ........................................................................................ 5

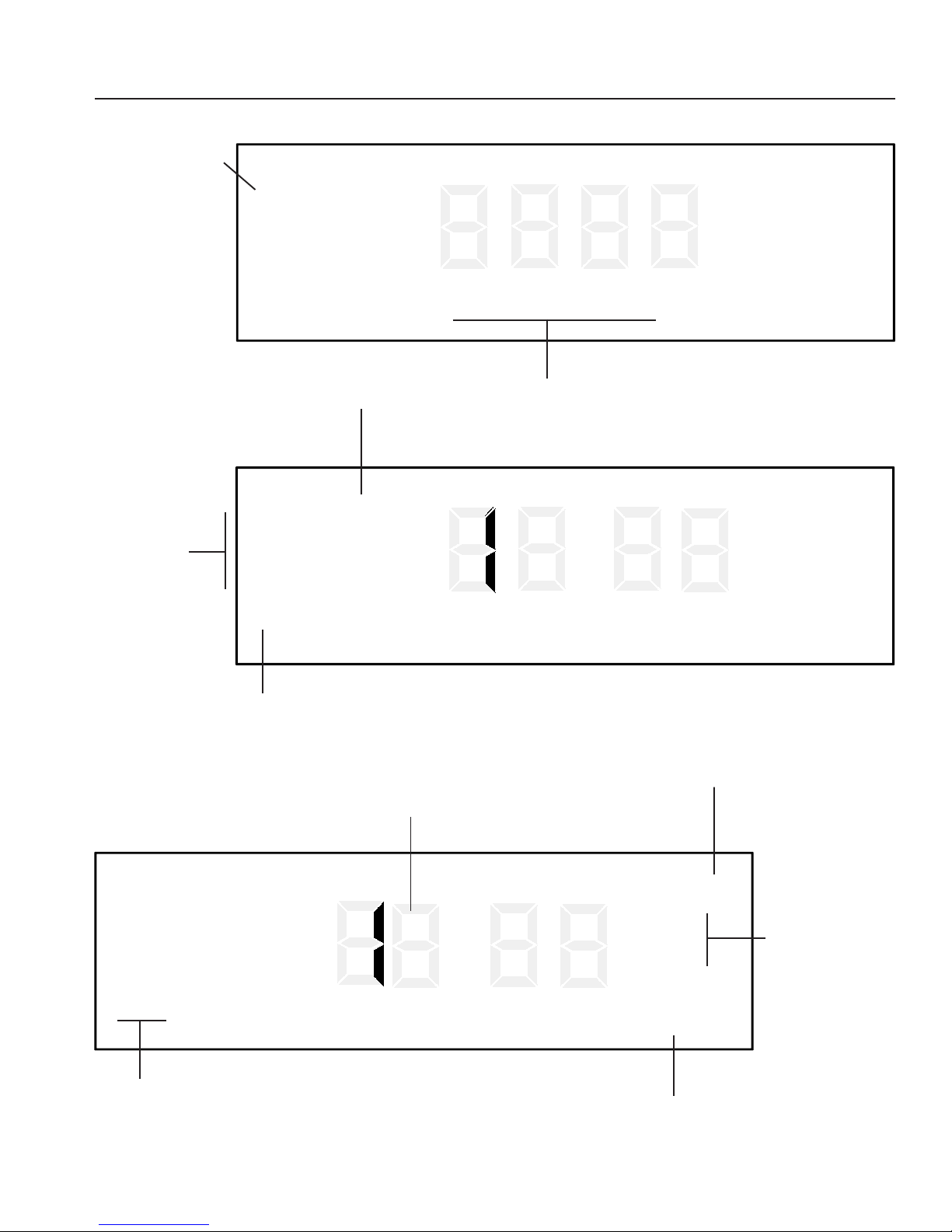

Display and Features........................................................................ 6
Programming.................................................................................... 9
Convection Cooking ........................................................................10
Combination Cooking (Microwave and Convection) ........................11
User Options ...................................................................................12
User Maintenance ...........................................................................13
Service Codes .................................................................................13
Care and Cleaning...........................................................................14
Troubleshooting...............................................................................15
Model Specifications........................................................................16

3
IMPORTANT SAFETY INSTRUCTIONS
Recognize this symbol as a SAFETY message
Recognize this symbol as a HOT SURFACE WARNING
WARNING
!
When using electrical oven, basic safety precautions should be followed to reduce risk of burns, electric shock,
fire, or injury to persons or exposure to excessive microwave energy.
1. READ all instructions before using equipment.
2. READ AND FOLLOW the specific
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY on page 2.
3. This equipment MUST BE GROUNDED.
Connect only to properly grounded outlet. See
GROUNDING INSTRUCTIONS on page 5.
4. Install or locate this equipment ONLY in
accordance with the installation instructions in
this manual.
5. Some products such as whole eggs and sealed
containers—for example, closed glass jars—may
explode and SHOULD NOT be HEATED in this
oven.
6. Use this equipment ONLY for its intended use as
described in this manual. Do not use corrosive
chemicals or vapors in this equipment. This type
of oven is specifically designed to heat or cook. It
is not designed for industrial or laboratory use.
7. As with any equipment, CLOSE SUPERVISION
is necessary when used by CHILDREN.
8. DO NOT operate this equipment if it has a
damaged cord or plug, if it is not working
properly, or if it has been damaged or dropped.
9. This equipment, including power cord, must be
serviced ONLY by qualified service personnel.
Special tools are required to service equipment.
Contact nearest authorized service facility for
examination, repair, or adjustment.
10. DO NOT cover or block any openings on the
equipment.
11. DO NOT store this equipment outdoors.
DO NOT use this product near water – for
example, near a kitchen sink, in a wet basement,
or near a swimming pool, and the like.
12. DO NOT immerse cord or plug in water.
13. Keep cord AWAY from HEATED surfaces.
14. DO NOT let cord hang over edge of table or
counter.
15. See door cleaning instructions in Care and
Cleaning section of manual on page 13.
16. For commercial use only.
17. DO NOT insert oversized foods or oversized
utensils in a microwave/convection oven as they
may create a fire, an electrical arc, or risk of
electrical shock.
18. DO NOT clean with metal scouring pads. Pieces
can break off the pad and touch electrical parts
involving risk of electrical shock.
19. DO NOT use paper products not intended for
cooking when equipment is operated in
convection or combination mode.
20. DO NOT store any materials, other than
manufacturer's recommended accessories, in this
equipment when not in use.
21. DO NOT cover racks or any other part of the
oven with metal foil. Airflow restriction will cause
overheating of the oven.
22. DO NOT spray oven cleaning solutions toward
the rear inner cavity surface. This will
contaminate and damage the convection heating
assembly.
!
SAVE THESE INSTRUCTIONS

4
IMPORTANT SAFETY INSTRUCTIONS
9. Never use paper, plastic, or other combustible
materials that are not intended for cooking. If oven
temperature is high, material may ignite.
10. Oven temperature is at least 150°F in convection
mode. Verify plastic, paper or other combustible
materials are recommended by the manufacturer
to withstand the minimum oven temperature.
11. When cooking with paper, plastic, or other
combustible materials, follow manufacturer's
recommendations on product use.
12. Do not use paper towels which contain nylon
or other synthetic fibers. Heated synthetics could
melt and cause paper to ignite.
13. Do not heat sealed containers or plastic bags
in oven. Food or liquid could expand quickly and
cause container or bag to break. Pierce or open
container or bag before heating.
14. Racks, utensils, rack guides, and oven surfaces
may become hot during or after use. Use utensils
or protective clothing, like pan grips or dry oven
mitts, when necessary to avoid burns.
15. Do not unplug oven immediately after use.
Internal fan must cool oven to avoid damage of
electrical components.
16. To avoid pacemaker malfunction, consult
physician or pacemaker manufacture about effects
of microwave energy on pacemaker.
1. Briskly stir or pour liquids before heating with
microwave energy to prevent spontaneous
boiling or eruption. Do not overheat. If air is not
mixed into a liquid, liquid can erupt in oven or
after removal from oven.
2. Do not deep fat fry in oven. Fat could overheat
and be hazardous to handle.
3. Do not cook or reheat eggs in shell or with an
unbroken yolk using microwave energy. Pressure
may build up and erupt. Pierce yolk with fork or
knife before cooking.
4. Pierce skin of potatoes, tomatoes, and similar
foods before cooking with microwave energy.
When skin is pierced, steam escapes evenly.
5. Do not leave oven unattended.
6. Do not use regular cooking thermometers in
oven when cooking in microwave or combination
mode. Most cooking thermometers contain
mercury and may cause an electrical arc,
malfunction, or damage to oven.
7. Do not heat baby bottles in oven.
8. Do not use metal utensils in oven except when
recommended by microwave food manufacturers
or recipe requires metal utensils in convection or
combination mode. Heat food in containers
made of glass or china if possible.
CAUTION
!
To avoid risk of personal injury or property damage, observe the following:
SAVE THESE INSTRUCTIONS
a. DO NOT overcook food. Carefully attend oven if
paper, plastic, or other combustible materials
are placed inside the oven to facilitate cooking.
b. Remove wire twist-ties from paper or plastic
bags before placing bag in oven.
c. KEEP oven DOOR CLOSED, turn oven off, and
disconnect the power cord, or shut off power at the
fuse or circuit breaker panel, if materials inside the
oven should ignite. Fire may spread if door is opened.
d. DO NOT use the cavity for storage. DO NOT leave
paper products, cooking utensils, or food in the cavity
when not in use.
To reduce risk of fire in the oven cavity: WARNING
!

5
Installation
WARNING
!
To avoid risk of electrical shock
or death, this oven must be
grounded and plug must not be
altered.
Grounding
Instructions
Oven MUST be
grounded.
Grounding reduces risk of electric
shock by providing an escape wire
for the electric current if an electrical
short occurs. This oven is equipped
with a cord having a grounding wire
with a grounding plug. The plug must
be plugged into an outlet that is
properly installed and grounded.
Consult a qualified electrician or
servicer if grounding instructions are
not completely understood, or if
doubt exists as to whether the oven
is properly grounded.
Do not use an extension cord.
If the product power cord is too
short, have a qualified electrician
install a three-slot receptacle. This
oven should be plugged into a
separate 60 hertz circuit with the
electrical rating as shown in
specifications table. Models ACE208
require a 208 voltage supply and
model ACE230 requires a 230/240
voltage supply. When the
combination oven is on a circuit with
other equipment, an increase in
cooking times may be required and
fuses can be blown.
Unpacking Oven
• Inspect oven for damage such as dents in door or inside oven cavity.
• Report any dents or breakage to source of purchase immediately.
Do not attempt to use oven if damaged.
• Remove all materials from oven interior.
• If oven has been stored in extremely cold area, wait a few hours before
connecting power.
Radio Interference
Microwave operation may cause interference to radio, television, or a similar
oven. Reduce or eliminate interference by doing the following:
• Clean door and sealing surfaces of oven according to instructions in
Care and Cleaning section.
• Place radio, television, etc. as far as possible from oven.
• Use a properly installed antenna on radio, television, etc. to obtain
stronger signal reception.

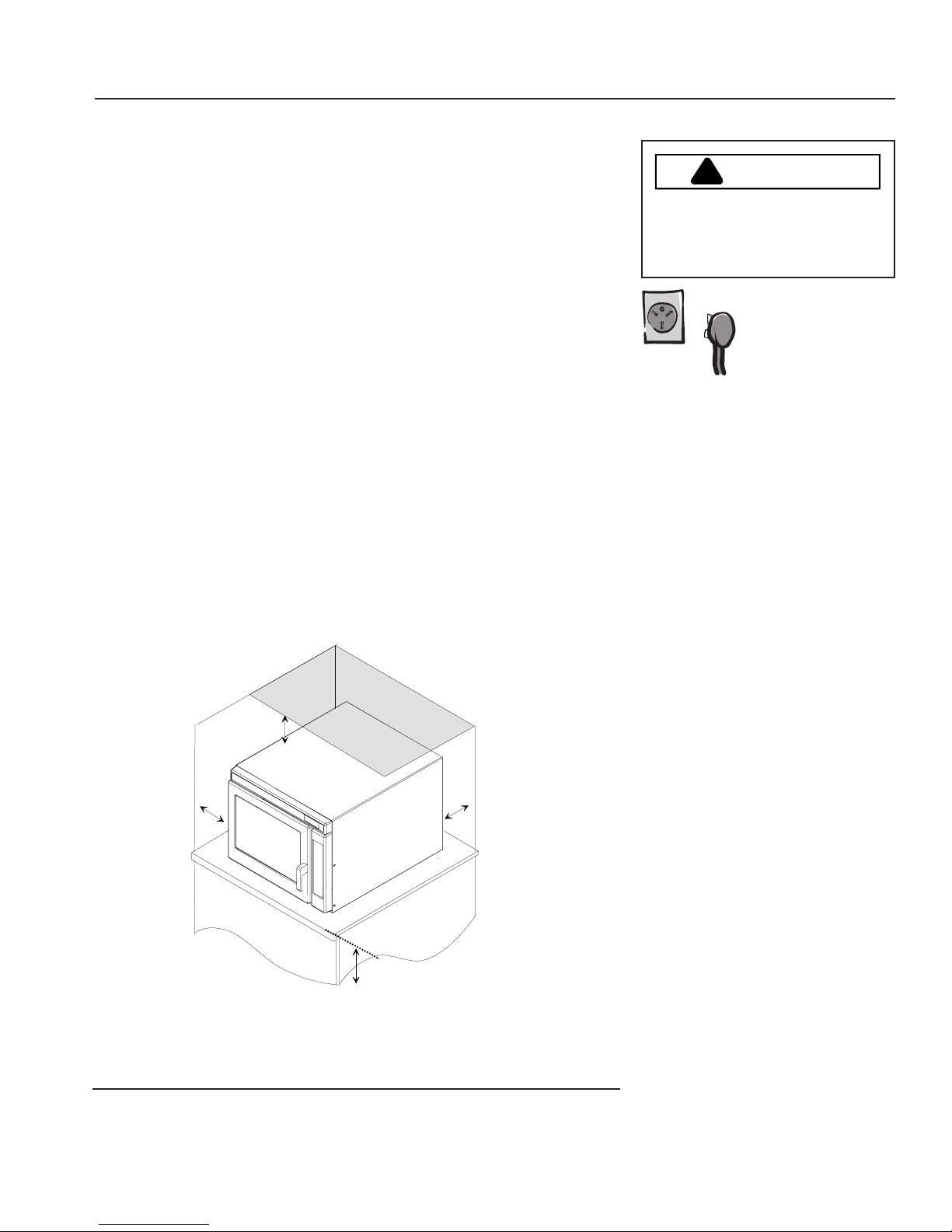

Oven Placement
• Do not install oven next to or above source of heat, such as pizza oven
or deep fat fryer. This could cause microwave oven to operate
improperly and could shorten life of electrical parts.
• Do not block or obstruct oven filter. Allow access for cleaning.
• Install oven on level countertop surface.
• Place warning label in a conspicuous place close to microwave oven.
• Outlet should be located so that plug is accessible when oven is in
place.
A—Allow at least 1 1/4" (3.18 cm) of clearance around top and sides of oven. Proper air
flow around oven cools electrical components. With restricted air flow, oven may
not operate properly and life of electrical parts is reduced.
B—Install combination oven so oven bottom is at least 3 feet (91.5 cm) above floor.
Oven Clearances
A
B
AA

6
Display and Features
A—Oven Door Handle (Lift to open.)
B—Rack Guides
C—Top Control Panel
Item flashes in display indicating
keypads can be used and cooking
entries can be made.
Temperature is displayed in the
time field.
Preheat not ready indicates the oven
is not at preheat temperature. NOT
flashes while the oven heats to
preheat temperature.
450F
STG
COOK
LEVEL
PREHEAT NOT READY STANDBY
ITEM POWER
CM
88 8
1
2
3
4:
Display
D—Display
E—Side Control Panel
G—Air Intake Filter
Oven Features
A
BC
D
E
G

7
Displays stage the oven is cooking in
during multi-stage cooking cycles.
Power displays when oven is actively
generating microwave energy. Will not
display when set at 0, and will turn on
and off when set less than HI.
Display and Features (contd)
STG
COOK
LEVEL
PREHEAT NOT READY STANDBY
ITEM
POWER
CM
88 8
1
2
3
4450F
:
:
5 45
STG
COOK
LEVEL
PREHEAT NOT READY STANDBY
ITEM
POWER
CM
88
23 8
1
2
3
4
:
STG
COOK
LEVEL
PREHEAT NOT READY STANDBY
ITEM
POWER
CM
88
23 8
9
1
2
3
45 45
Item is not
displayed
indicating keypad
will not accept
entries. To activate
keypad, open and
close oven door
Item will then
display.
Preheat ready displays when oven
has reached the preset preheat
temperature.
Convection cooking only.
Combination cooking: both convection
(C) and microwave energy (M) are
used. Cook level displays with the amount
of microwave energy used.
Time left in cooking condition
Displays
menu pad
selected by
user.
Indicates
percentage of
microwave power
(0 to 100%).
9 is 90%,
5 is 50%,
H is High (100%).

8
Display and Features (contd)
PREHEAT
ON / OFF
TIME
TEMP
POWER
LEVEL
STAGE
PROGRAM
SAVE
PREHEAT NOT READY
Start Pad
The start pad is used
to begin a manual
time entry cooking
cycle.
STOP/RESET
pad
The STOP/RESET
pad stops a cooking sequence in
progress, clears out any
remaining time, and also ends a
programming or user option cycle.
When the STOP/RESET pad is
used to end a programming or
option change, the changes are
discarded.
START
STOP
RESET
Cooking Display
DISPLAYS DESCRIPTION
PREHEAT
READY
PREHEAT READY
displays when oven has
reached preheat temperature and is ready to cook.
00:00
Displays cooking time. If stage cooking is
programmed, total cooking time is displayed.
PREHEAT
NOT READY
PREHEAT NOT READY
displays and NOT
flashes when oven is turned on and is warming up
to the selected preheat temperature.
COOK LEVEL
COOK LEVEL displays the current microwave
power level. HI is the highest setting, and 0 is lowest
(no microwave energy used).
ITEM
ITEM displays the single or double digit entry of a
programmed cooking condition when using a
programmed pad. ITEM also flashes when a
cooking condition can be started or programmed.
STG STG displays with a single number. This is the
stage the oven is at in the cooking condition.
STANDBY
STANDBY displays when oven is turned off, and
also after the oven is plugged in, the door is
opened, and then shut.
C MCMdisplays when oven is convection cooking.
C M C M displays when oven is cooking using both
microwave energy and convection.
POWER
POWER displays during active microwave
generation in the oven. POWER will not display when
power setting is at 0; and POWER will turn on and off
when microwave energy is set at less than HI.
Programming Display
DISPLAYS DESCRIPTION
Prog
Displays when oven is in programming mode for
single pad or double pad memory.
OP: --
Displays when oven is in user option mode. User
options can then be set or specified.
STG
Displays stage number during cooking or when
programming a specific cooking stage. Stage
number (1 through 4) indicates the stage that is
being used.
Temperature warnings
The combination oven has two
distinct temperature warnings:
• A warning when the preheat
temperature does not match the
preprogrammed temperature of
a cooking condition.
• A warning when the actual oven
cavity temperature is not to
preheat temperature, such as
when the oven is first started.

9
Programming
What is stage
cooking?
Stage cooking enables
several different cooking cycles, or
stages, to be used consecutively
without repeated input from the user.
Stage cooking can be set to to
defrost food initially, then cook it, and
then keep the food warm until
serving time.
STAGE
Programming
Preheat Setting
The convection temperature setting
can be set between 150°F to 475°F.
It is recommended to set the preheat
setting to the most commonly used
temperature for that oven. The
factory default preheat setting is
450°F.
To program the preheat setting:
1. Press PROGRAM SAVE pad.
2. Press TEMP pad.
3. Enter desired temperature by
using the numeric key pads.
4. Preheat temperature is
changed.
Programming Multiple Stages
Stage cooking allows consecutive cooking cycles without interruption.
Up to four different cooking cycles can be programmed into a memory pad.
To use stage cooking:
1. Follow steps 1 through 6 above.
7. Press STAGE.
• This will begin programming for the next cooking
stage.
• Display indicates stage to be programmed.
• Enter cook time, temp and power level as in steps 4. 5 and 6.
• To enter another cooking stage for that pad, press STAGE pad
again.
• Up to four different stages can be programmed.
8. Press PROGRAM SAVE to save the program and
changes.
9. To discard changes, press STOP/RESET before
pressing PROGRAM SAVE.
STAGE
PROGRAM
SAVE
Programming Pads
Oven is shipped from the factory for single pad programming. To change
the oven default to double pad programming, see User Option section. To
program the amount of time, power level, or temperature setting for a pad:
1. Oven must be ON.
• Press PREHEAT ON/OFF.
•ITEM must flash in display.
2. Press PROGRAM SAVE.
• Programming mode begins.
•PROG displays.
• Oven is in programming mode.
3. Press pad to be programmed or reprogrammed.
• Display will change to review all settings for the pad.
• The pad number that is being programmed displays
below the word ITEM.
4. Press TIME to program amount of cooking time.
• Enter desired cooking time by using numeric key pads.
5. Press TEMP pad to program the cooking temperature.
• Enter desired convection temperature by using
numeric pads.
6. Press POWER LEVEL to program level of microwave
power.
• Press POWER LEVEL again to set to H(High).
• For a lower microwave power, press pads 1 (for 10%)
through 9 (for 90%). 0 turns off the microwave
power and cooking is by convection only.
7. Press PROGRAM SAVE to save the program changes.
8. To discard changes, press STOP/RESET.
PROGRAM
SAVE
PROGRAM
SAVE
TIME
TEMP
POWER
LEVEL
PREHEAT
ON / OFF
Example of Stage Cooking Conditions
Stage1Stage2Stage3
Temp 450°F 450°F 450°F
Power H (high) 3 0
Time 2:30 1:30 1:30

10
Convection Cooking
CAUTION
!
To avoid risk of burns, handle utensils, racks, and door with care. Allow oven, utensils, and racks
to cool before cleaning. Oven, utensils, and racks, become hot during operation.
To operate the oven for convection cooking only, you can use
preprogrammed pads or manual time entry. The following instructions are
for convection cooking only. For combination cooking, see that section.
Convection Cooking Using Manual
Time Entry
1. Press PREHEAT ON/OFF to start the oven.
• Oven begins a preheat cycle.
•PREHEAT NOT READY displays.
• To change preheat settings, see Programming .
2. Oven reaches preheat temperature.
• Signal sounds and PREHEAT READY displays.
3. Press TIME.
• Enter desired cooking time by using the keypad.
4. Press TEMP if cooking temperature is different than
preheat temperature.
• Enter the new temperature.
5. Press POWER LEVEL.
• For convection cooking only, press 0.
6. To activate stage cooking, press STAGE and repeat
steps 3, 4, and 5.
• Up to 4 different stages can be programmed.
7. Press the START pad to begin the cooking cycle.
Convection Cooking with Programmed Pads
1. Press PREHEAT ON/OFF to start the oven.
• Oven begins a preheat cycle.
•PREHEAT NOT READY displays.
• To change preheat settings, see Programming.
2. Oven reaches preheat temperature.
• Signal sounds and PREHEAT READY displays.
3. Press selected pad.
•ITEM must be flashing in display. If not, open and close door.
• If using single pad programming, press pad and oven begins
automatically.
• For double pad programming, press pads in proper sequence and
oven begins automatically.
4. Cooking cycle begins
• Total cooking time is displayed.
• To display the temperature while a program is running, press the
TEMP button and the temperature will briefly display.
5. Oven finishes cooking sequence
• An end of cycle beep signals the end of the cooking cycle.
• Oven interior and cooking dish will be hot.
6. Press PREHEAT ON/OFF to shut off oven.
PREHEAT
ON / OFF
PREHEAT
ON / OFF
TIME
TEMP
POWER
LEVEL
START
Convection Cooking
Convection cooking utilizes both a
convection element and fan to evenly
distribute heated air throughout the
oven cavity. By circulating air, no hot
or cold spots occur, creating a
consistent temperature envelope
around the food. These consistent
temperatures cook food evenly and
reduces cooking time. Oven will
always operate in convection mode.
All the pad does is
beep.
Ovens are not shipped
preprogrammed. Any preset cooking
conditions must be set by the customer.
If a pad is pressed that has not been
programmed, a rapid triple beep will
sound and no cooking condition will
initiate.

11
CAUTION
!
To avoid risk of burns, handle utensils, racks, and door with care. Allow oven, utensils, and racks
to cool before cleaning. Oven, utensils, and racks, become hot during operation.
Combination Cooking (microwave and convection)
Combination Cooking
The combination mode uses both
the speed of microwave energy and
browning of convection cooking to
yield fast, high quality food.
• Microwave cooking uses high
frequency energy waves to heat
the food. When cooking,
microwave energy causes food
molecules to move rapidly. This
rapid movement between the
food molecules creates heat,
which cooks the food. POWER
displays when oven is
generating microwave energy
for the current cycle.
• Convection cooking uses the
selected oven temperature to
bake and brown foods. The
circulating air surrounds food in
an envelope of evenly heated air.
• Oven will maintain a minimum
convection temperature of
150°F (66°C) to ensure drier air
and more even cooking.
To operate the oven for combination cooking, you can use preprogrammed
pads or manual time entry. The following instructions are for
combination cooking only. For convection only cooking, see that section.
Using manual time entry
1. Press PREHEAT ON/OFF to start the oven.
• Oven begins a preheat condition.
•PREHEAT NOT READY displays with NOT flashing.
• To change the preheat temperature, see Programming .
2. Oven reaches preheat temperature.
• Signal sounds and PREHEAT READY displays.
3. Press TIME.
• Enter desired cooking time by using numeric keypad.
4. Press TEMP if cooking temperature differs from
preheat temperature.
• Enter the new temperature.
5. Press POWER LEVEL.
• To have microwave power on HIGH, press the
POWER LEVEL pad again. Hdisplays.
• For a lower microwave power, press pads 1 (for
10%) through 9 (for 90%). 0 turns off the microwave
power and cooking is by convection only.
6. If stage cooking is desired, press STAGE and repeat
steps 3, 4, and 5.
• Up to 4 different stages can be programmed.
7. Press the START pad to begin the cooking cycle.
Combination Cooking With
Preprogrammed Pads
1. Press PREHEAT ON/OFF to start the oven.
• Oven begins a preheat condition.
•PREHEAT NOT READY displays with NOT flashing.
• To change preheat temperature, see Programming section.
2. Oven reaches preheat temperature.
• Signal sounds and PREHEAT READY displays.
3. Press desired pad.
• For double pad programming, press pads in proper sequence.
• Oven begins automatically.
4. Cooking cycle begins
• Total cooking time is displayed.
• To display the temperature while a program is running, press the
TEMP button and the temperature will briefly display.
5. Oven finishes cooking sequence
• An end of cycle beep signals the end of the cooking cycle.
Oven interior and cooking dish will be hot.
6. Press PREHEAT ON/OFF to shut off oven.
PREHEAT
ON / OFF
PREHEAT
ON / OFF
TIME
TEMP
POWER
LEVEL
START

12
User Options
Changing user options
Options such as single or double pad programming, beep volume, and
maximum cooking time can be changed to suit individual preferences.
To change options oven STANDBY must display:
1. Press hidden pad.
• Pad is unmarked and located to the direct left of PREHEAT ON/OFF pad.
• Nothing will be displayed when hidden pad is pressed.
2. Press PROGRAM SAVE pad.
•0P: displays. Oven is now in options mode.
3. Press number pad that controls option to be changed.
• See table below for options.
• Current option will display.
4. Press number pad again to change the option.
• Each time pad is pressed, option will change.
• Match code displayed with code for desired option.
5. Press PROGRAM SAVE pad to save changes.
• To change additional options, repeat steps 3 and 4.
• Changes take affect after PROGRAM SAVE pad is pressed.
• Press STOP/RESET to return to STANDBY, or open and close oven
door.
EXPRESS
CONVECTION
PREHEAT
ON / OFF
TIME
HIDDEN
PAD
Didnt like an option?
Factory settings are marked in bold. To
change the oven back to the factory
setting, simply select the option that is
marked in bold.
My changes werent saved.
In order for any changes to be saved, the
PROGRAM SAVE pad must be pressed
after selecting an option. Pressing the
STOP/RESET pad will not save
changes.
Numbered Pads Display Options (Factory Settings in Bold)
1
Preprogrammed Pads
OP:10
OP:11
Allows 10 (0-9) preprogrammed pads.
Allows 100 (00-99) preprogrammed pads.
2
Manual Time Entry OP:20 OP:21 Manual time entry/cooking not allowed Manual time entry/cooking allowed
3
Reset to READY mode
OP:30
OP:31
Opening oven door does not reset oven back to ready mode
Opening oven door resets the oven back to ready mode
4
Keybeep OP:40 OP:41 Keys do not beep when pressed (keybeep off) Keys beep when pressed (keybeep on)
5
Keybeep Volume
OP:50
OP:51
OP:52
OP:53
Keybeep volume OFF
Keybeep volume low
Keybeep volume medium
Keybeep volume high
6
Food Done Signal
OP:60
OP:61
OP:62
OP:63
Food done signal is a continuous beep until reset by user
Food done signal is a three second beep
Food done signal is four beeps, one time only
Food done signal is four beeps, four times
7
Keypad Time Entry
OP:70
OP:71
OP:72
OP:73
Keypad time entry window is 15 seconds
Keypad time entry window is 30 seconds
Keypad time entry window is one minute
Keypad time entry window is two minutes
8
Temperature Warnings
OP:80
OP:81
OP:82
OP:83
Both temperature warnings off
Warning only when preheat temperature does not match preprogrammed temperature
Warning only when actual oven cavity temperature is not to preheat temperature
Both temperature warnings on
TEMP PAD
Temperature Scale
OP:bo
OP:b1
°F
°C

13

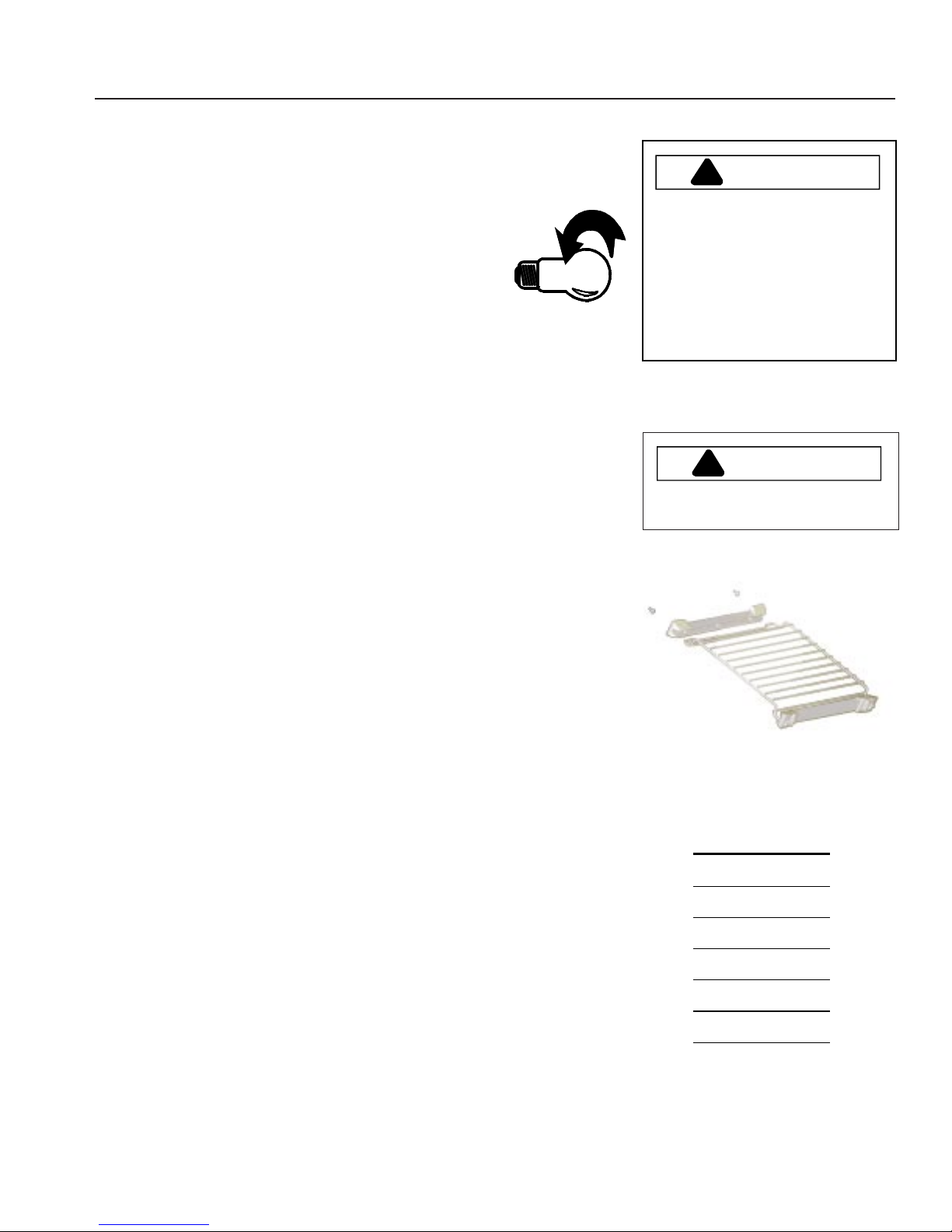

User Maintenance
WARNING
!
To avoid risk of burns or
electrical shock:
• disconnect electrical supply to
oven before changing light bulb.
• before replacing light bulb make
sure oven and bulb are cool.
• do not operate oven without
bulb and access cover in place.
CAUTION
!
Wear gloves to protect hands
from accidental bulb breakage.
1. Disconnect electrical supply.
2. Remove screw from access cover on top left wall of
oven exterior.
3. While wearing protective gloves, unscrew the light
bulb counterclockwise.
4. Replace light bulb with 230-volt (rated 250V), 40-watt
appliance bulb.
• Do not over tighten bulb or it may be difficult to
remove later.
5. Replace light bulb cover and access cover before use.
6. Reconnect power supply.
Replacing Oven Light
Service codes
During operation, the oven may display one of the following codes. If this
should occur:
1. Unplug oven and leave unplugged for approximately one minute. Plug
oven in and see if code reappears.
• If code does not reappear, continue normal use with the oven.
2. If service code reappears, write down the service code displayed and
contact the nearest authorized Amana Servicer.
• Do not use oven until contacting the Amana Servicer.
Moving Oven Rack Guides
The oven rack guides can be moved to one of three positions within the
oven, allowing for versatility in cooking and placement of food. The middle
rack position is the most common. Guides can also be removed for easier
cleaning.
To remove rack guides:
1. Oven cavity must be cool to touch.
2. Remove oven rack by lifting up and sliding to the front of the oven.
3. Apply gentle pressure by pulling upwards on the front of rack guide.
4. Lift the rear of the rack guide to remove. Guide may be snug.
To replace rack guides:
1. Oven cavity must be cool to touch.
• UP on guide rack should be in correct direction for placement.
2. Place rear of rack guide over desired anchor in back of oven and push down.
3. Place front of rack guide over desired anchor in front of oven.
• Apply firm pressure to front and rear of rack guide to fit onto anchor.
• Fit may be tight.
• Rack guide should not move after being set in place.
4. Replace oven rack as desired.
• Slide oven rack towards rear of oven, holding upwards to avoid detents.
• Oven rack can be placed upwards or downwards. Upwards is
recommended.
• Oven rack must be seated in detents. Error Codes
Err1
err2
err3
err4
err5
err6
err7

14
Clean oven frequently to maximize oven life, performance, and efficiency. A dirty oven cooks inefficiently
because moisture, spills, and grease absorb convection and microwave energy.
Care and Cleaning
Oven Racks and Guides
Clean the oven racks and rack
guides with a detergent solution
made with warm water. Scrub with a
soft nylon pad to loosen and remove
any baked on materials. DO NOT
use a lye based oven cleaner,
such as many of the 'instant' oven
cleaners. This will damage the finish
of the oven, the racks, and rack
guides.
Air Filter
Air filter must be cleaned regularly to
prevent overheating of oven. The air
filter is located directly below the
oven door.
1. Remove the filter retaining
screws, located on the outside
edges of the filter.
2. Remove the air filter.
3. Wash filter in a mild detergent
solution made with warm water.
4. Rinse and dry thoroughly.
5. Replace filter and screws.
Discharge Air Vents
Check for a build up of cooking
vapors along discharge louvers in
the back of the oven. Clean the air
vent using a damp cloth to ensure
proper airflow. Dry thoroughly.
WARNING
!
To avoid electrical shock which
can cause severe personal
injury or death, unplug power
cord or open circuit breaker to
oven before cleaning oven.
Recommended Maintenance Schedule
Schedule Maintenance Cleaning (Not covered under warranty)
• Contact an authorized servicer to remove and clean heater box.
• Schedule appointment every 12 months or when heavy grease buildup
is apparent on back of oven cavity.
Recommended Cleaning Schedule
• Schedule daily cleaning and clean after use.
• Clean interior, exterior, door and racks according to instructions.
• Clean spills immediately.
• Remove oven racks, and clean according to instructions.
• Wipe dry after cleaning.
• Clean air filter and air vents regularly to prevent overheating.
Cleaning Oven Exterior
Clean the door and other exterior surfaces with a clean cloth, sponge or
nylon pad using a mild detergent and warm water solution. Wring cloth well
to remove excess water before wiping oven.
• If spraying solutions into oven cavity, protect interior rear wall from
moisture or mist.
• Do not use harsh or abrasive cleaners or cleaners containing ammonia.
• Do not use water pressure type cleaning systems.
Cleaning Oven Cavity
Remove racks and rack guides for best results. Recommended cleaning
solution is Convection Express Cleaner. Repeat cleaning several times if
necessary. Saturate oven interior surfaces with Amana Convection Express
Cleaner and let sit for 2 to 5 minutes. Rub vigorously with nylon scouring pad
to loosen debris. Wipe clean with warm, damp clean cloth.
NOTE: A plastic putty knife or equivalent may be used to remove baked on
debris.
• Wear protective rubber gloves when cleaning oven.
• Use only a plastic putty knife, nylon scouring pad or equivalent, to aid in
removing soil or build-up from the oven interior.
•Do not use knife, metal utensil, or steel wool pad to remove baked on
material. This will damage the teflon coating.
• Refer to warranty for limitations regarding teflon interior and cleaning
requirements.
CAUTION
!
To prevent burns, handle utensils, racks, and door with
care. Allow oven, utensils, racks to cool before cleaning.
Oven, utensils, and racks, become hot during operation.

15
Troubleshooting
WARNING
!
To avoid risk of electrical shock which can cause severe personal injury or death, do not remove outer case at
any time. Only authorized servicer should remove outer case.
Problem Possible Cause
Oven does not operate.
Confirm oven is plugged into dedicated circuit.
Confirm oven is on grounded and polarized circuit.
(Contact electrician to confirm)
Check fuse or circuit breaker.
Oven operates intermittently. Check air filter and discharge areas for obstructions.
If oven does not accept entries when pad is pressed. Make sure oven is on and preheated.
Open and close oven door. Press pad again.
If oven malfunctions or shows “SERVICE”:
Oven control is equipped with a self-diagnostic system.
Self-diagnostic system alerts you if there is a error or
problem. When electronic control signals a problem,
follow steps listed below.
1. Record number shown.
2. Unplug oven, wait for 1 minute, and plug in oven.
• Disconnecting electrical supply may eliminate
service code. If failure continues, contact an
authorized servicer.
Oven fan turns on while oven is not preheating or
cooking. Normal operation.
Wrong preheat temperature. Oven is operating normally. Display shows before a
cooking cycle when preheat temperature is different
than the programmed cooking cycle temperature.
This message only appears when cooking with
preprogrammed pads.

16
 2000 Amana Appliances
Amana, Iowa 52204
Part No.12392746
Printed in U.S.A.08/00
Amana Appliances Online • http://www.amanacommercial.com
Specifications
MODEL ACE*** (*** indicates model number)
Power Source
Voltage AC 208 or 230/240 VAC
Frequency 60 Hz
Amperage 20 A
Power
Frequency 2450 MHz
Nominal Microwave Energy (IEC705) 1000 Watts
Power Consumption Combination: 3300 watts Convection only: 2700 watts
Power Cord Length 5' 6" (168 cm)
Oven Cavity Dimensions inches (cm) 13" (33 cm) x 10½" (27 cm) x 15" (38 cm)
Net Weight 112lbs. (51 kg)
Oven Cavity Capacity 1.2 Cu. Ft. (34 L)
Receptacle and plug NEMA 6-20R
Product specifications can change at any time without notice.
19 1/4"
or
49 cm
18"
or
46 cm
21 1/8"
or
54 cm
38 1/4"
or
97 cm
