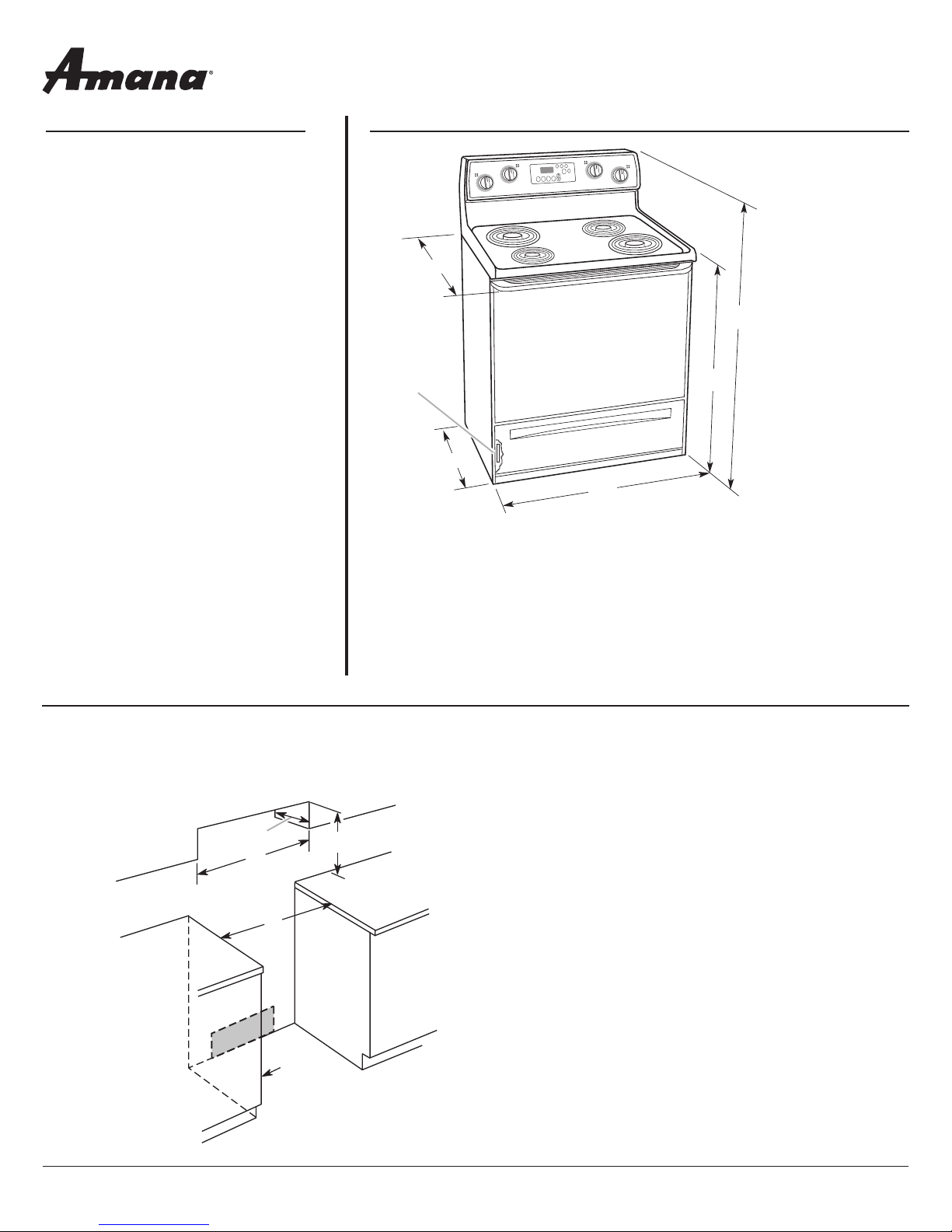

30" (76 cm) Freestanding Electric Range
PRODUCT MODEL NUMBERS PRODUCT DIMENSIONS
CABINET OPENING DIMENSIONS
AER3311WA
AER5522VA
AER5523XA
AER5524XA
AER5822VA
AER5823XA
AER5830VA
AER5844VA
AER6011VA
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice. Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Electrical: Range must be connected to the
proper electrical voltage and frequency as
specified on the model/serial number rating plate.
The model/serial number rating plate is located
behind the control panel or on the oven frame
behind the storage drawer panel. Refer to the
figures in the “Product Dimensions” section.
This range is manufactured with the neutral
terminal connected to the cabinet. Use a 3-wire,
UL listed, 40- or 50-amp power supply cord
(pigtail). If local codes do not permit ground
through the neutral, use a 4-wire power supply
cord rated at 250 volts, 40 or 50 amps and
investigated for use with ranges.
A circuit breaker is recommended.
The range can be connected directly to the circuit
breaker box (or fused disconnect) through flexible
or nonmetallic sheathed, copper or aluminum
cable.
Ref. W10252706A
10/08/10
A. 27¹⁷⁄₃₂" (69.9 cm) max. depth with handle
B. 46
⁷⁄₈
" (119.1 cm) overall height (max.) with leveling legs
screwed all the way in*
C. 36" (91.4 cm) cooktop height (max.) with leveling legs screwed
all the way in*
D. 29⁷⁄₈" (75.9 cm) width
E. 25" (63.5 cm) depth
F. Model/serial rating plate (located on the left side frame behind
storage drawer panel)
A
B
C
D
E
F
A
B
D
F
E
C
Cabinet opening dimensions shown are for:
25" (63.5 cm) countertop depth,
24" (61 cm) base cabinet depth,
36" (91.4 cm) countertop height
*Range can be raised approximately 1" (2.5 cm) by adjusting the leveling legs.
A. 13" (33.0 cm) max. upper cabinet depth
B. 30" (76.2 cm) min. opening width
C. For minimum clearance to top of cooktop, see NOTE*.
D. 30¹⁄₈" (76.5 cm) min. opening width
E. Outlet - 8" (20.3 cm) to 22" (55.9 cm) from either cabinet,
5¹⁄₂" (14.0 cm) max. from floor
F. ⁷⁄₈" (2.2 cm) min. required between cutout and cabinet door or
hinge.
*NOTE: 24" (61 cm) min. when bottom of wood or metal cabinet is
protected by not less than ¹⁄₄" (6.4 mm) flame retardant millboard
covered with not less than No. 28 MSG sheet steel, 0.015" (0.4 mm)
stainless steel, 0.024" (0.6 mm) aluminum or 0.020" (0.5 mm)
copper.
30" (76.2 cm) min. clearance between the top of the cooking
platform and the bottom of an unprotected wood or metal cabinet.
