1
CABINET PARTS
For Models: ASD2524VEW00, ASD2524VEB00, ASD2524VES00
(White) (Black) (Stainless Steel)
05−08 Printed In U.S.A. (jdc)(bay) Part No. W10204059 Rev. B
REFRIGERATOR

CABINET PARTS
2
For Models: ASD2524VEW00, ASD2524VEB00, ASD2524VES00
(White) (Black) (Stainless Steel)
W10204059
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Literature Parts
W10194140 Energy Guide
W10162456 Owner’s Manual
W10180856 Service & Wiring
Sheet
628370 Modular Icemaker
Service Sheet
W10168294 Instruction Sheet
(Door Removal)
2 2174748 Front Roller (2)
3 3400517 Screw
4 2196236 Rear Roller (2)
5 489427 Screw
6 2155013 Clip, Grille
7 489478 Screw
8 2156056 Shim
9 2203771 Hinge Top (RC)
10 3400113 Screw
11 8281227 Screw
12 Hinge Cover (FC)
W10138576 White
W10138577 Black
13 Hinge Bottom
W10138965 RC
2303141 FC
14 Filler, Wrapper
2304846 White
2304848 Black
15 Grille
W10184886 White
W10184888 Black
16 489497 Screw
17 489464 Screw
18 2304888 Drain Fitting
19 2304937 Extension Tube
20 1108439 Clip, Drain Tube
21 2188739 Cover, Unit
22 Cabinet (Not A
Serviceable Part)
23 Hinge Cover (RC)
W10138581 White
W10138582 Black
24 549193 Clamp, Service
Cord
25 489084 Screw
26 Door Closer
2155311 RC
2223751 FC
27 489483 Screw
28 2260507 Housing, Water
Filter
29 4396841 Water Filter
30 Cap, Water
Filter
2260502W White
2260502B Black
31 489500 Screw
32 2260519 Block, Housing
Support
33 Button, Water
Filter
2260503W White
2260503B Black
34 2255012 Tube, Filter
Outlet
35 2319867 Tube, Filter
Inlet
36 2203770 Hinge Top (FC)

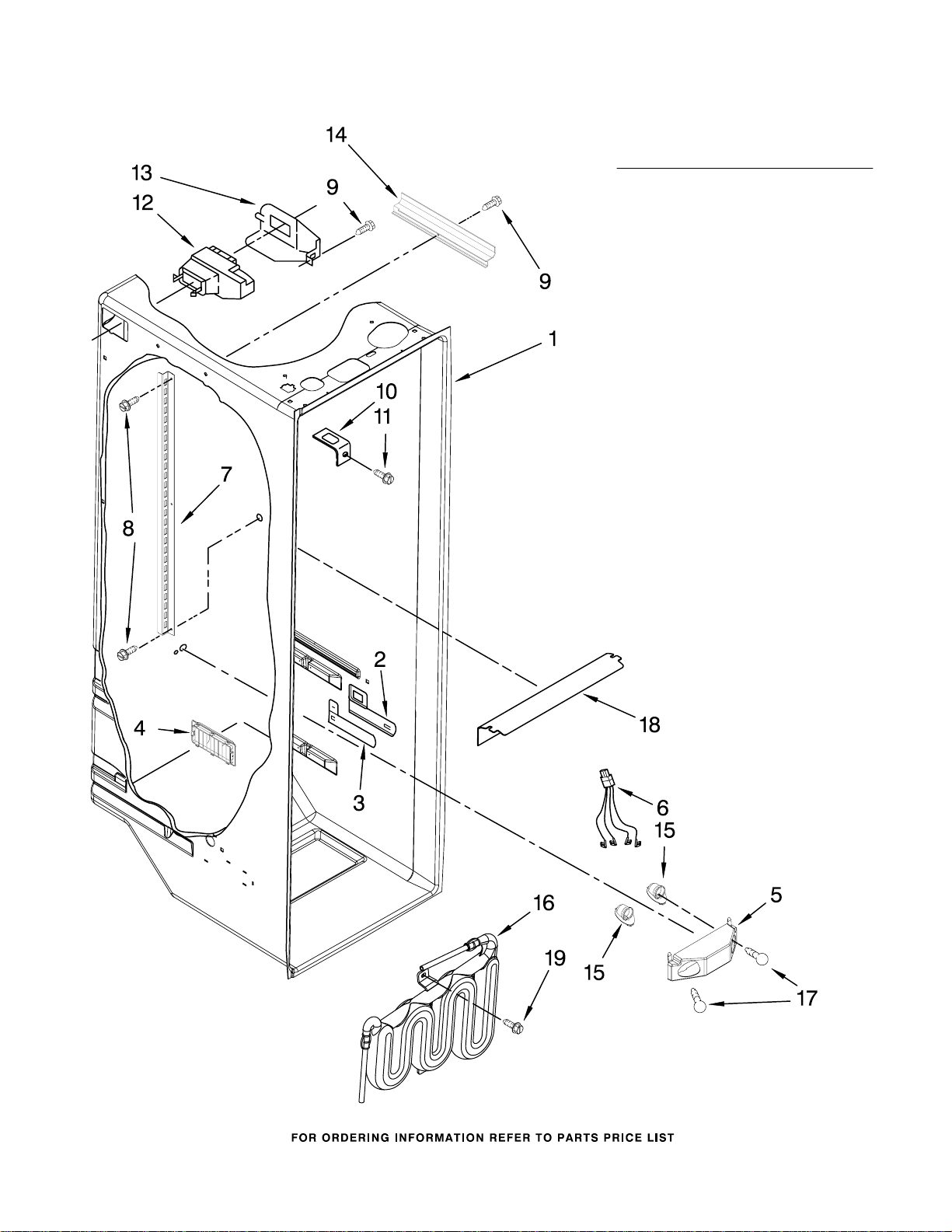

REFRIGERATOR LINER PARTS
3
For Models: ASD2524VEW00, ASD2524VEB00, ASD2524VES00
(White) (Black) (Stainless Steel)
W10204059
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2
W10175967 Escutcheon, Meat
Pan Control
3 2182757 Slide Meat
Pan Control
4 2257741 Louver
5 2256035 Bracket,
Dual Crisper
Light
6 2311637 Wire Harness,
Dual Crisper
7 2319866 Shelf Ladder
8 489478 Screw
9
W10004810 Screw (2)
10 2256085 Bracket Retainer
11 489290 Screw
12
W10151374 Air Diffuser
Assembly
13 2152019 Air Diffuser
Cover
14 2150331 Cover, Wiring
15 2162085 Socket
16 2307107 Reservoir
17 2255743 Light Bulb
18 2209769 Light Lens
19 488280 Screw

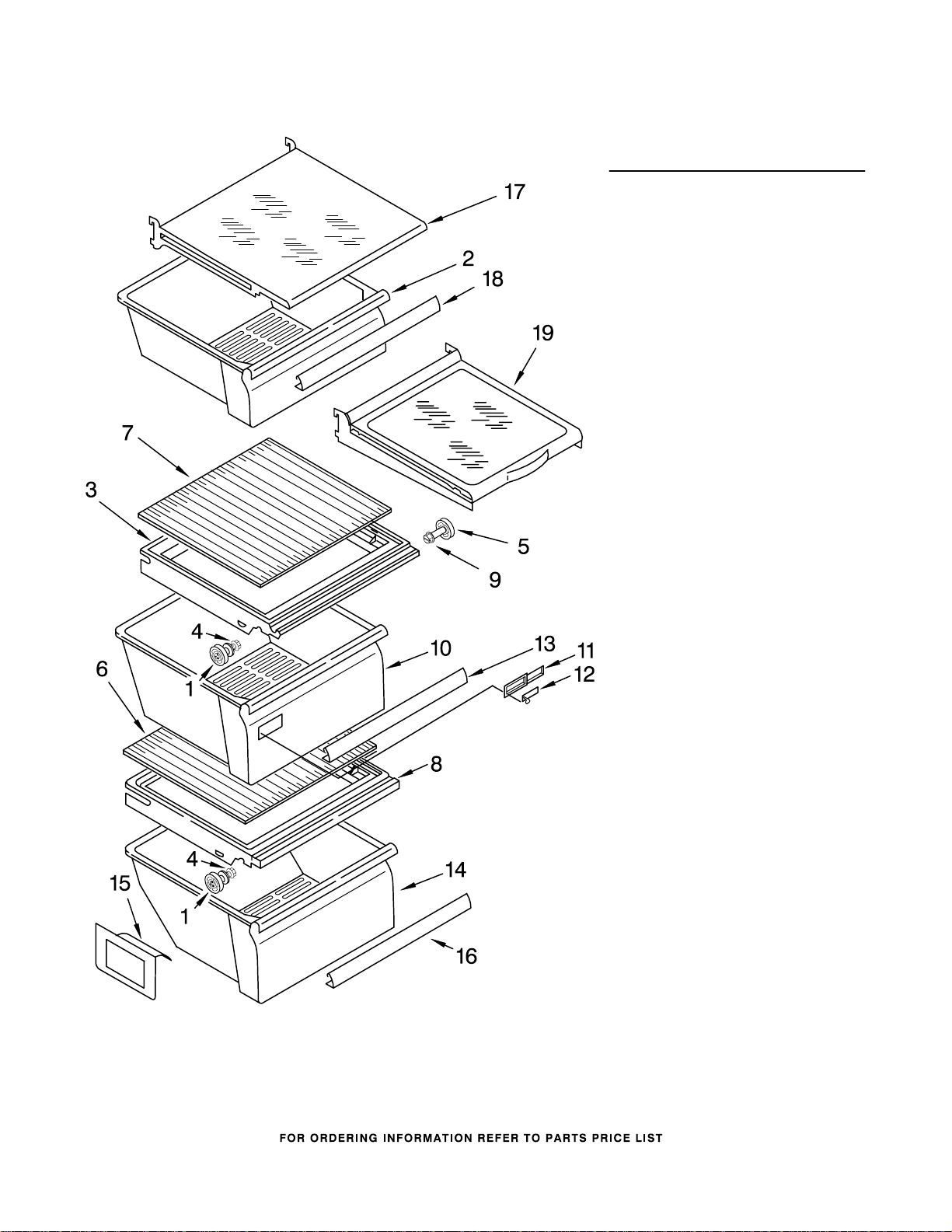

REFRIGERATOR SHELF PARTS
4
For Models: ASD2524VEW00, ASD2524VEB00, ASD2524VES00
(White) (Black) (Stainless Steel)
W10204059
Illus. Part
No. No. DESCRIPTION
1 2196485 Stud Assembly
2 2188655 Snack Bin
3 2209698 Cover, Crisper
4 3400894 Screw
5 2196483 Stud Assembly
6 2179259 Glass, Meat Cover
7
W10141752 Glass, Cover
8 2311726 Cover, Meat Pan
9 8281158 Screw
10 2188652 Crisper Pan
11 2179343 Body, Humidity
Control
12 2179342 Slide, Humidity
Control
13 2255593 Trim, Handle
14 2188654 Meat Pan
15 2179350 Deflector
16 2255592 Trim, Handle
17
W10141750 Shelf, Snack Bin
18 2179243 Trim, Handle
19
W10141749 Shelf Assembly,
Spillguard (2)

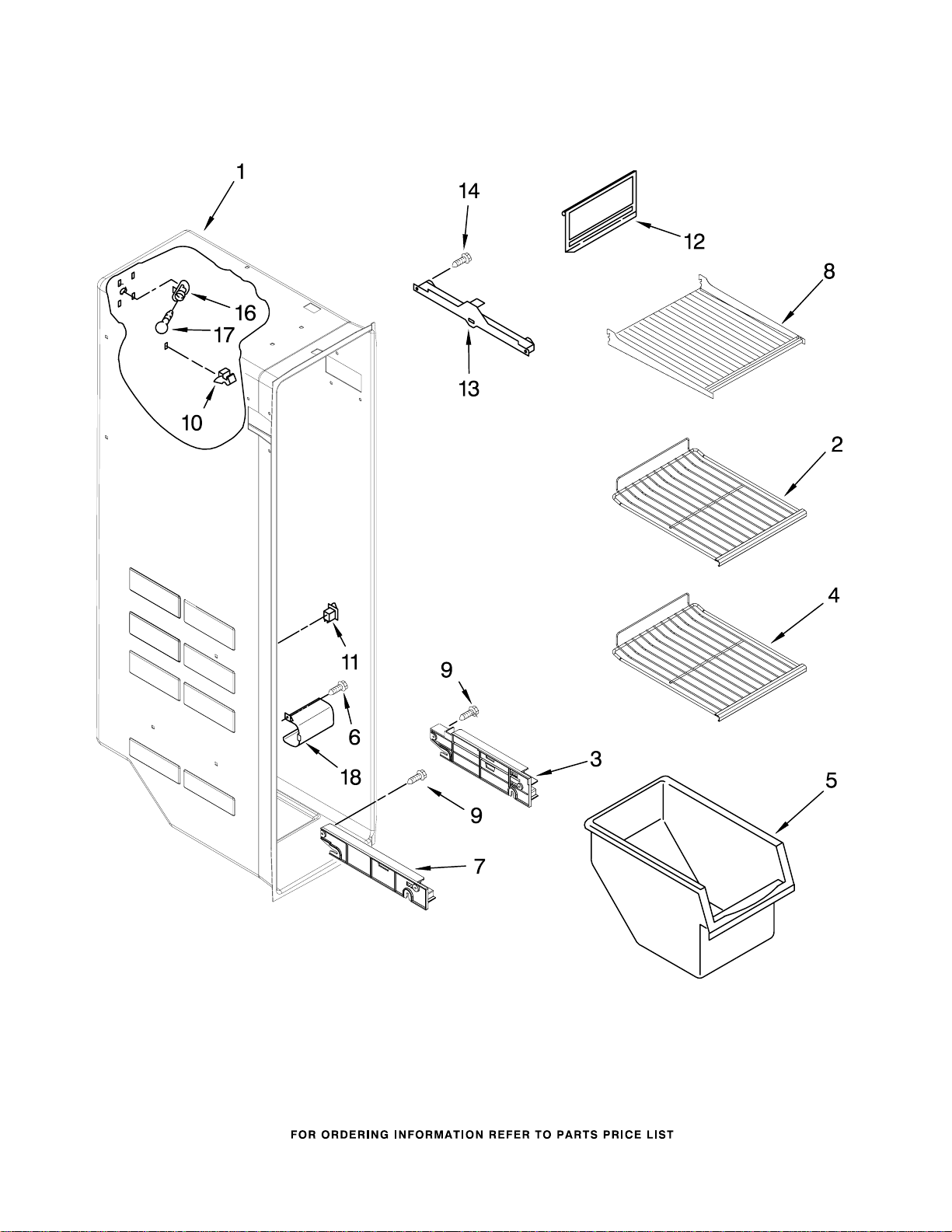

FREEZER LINER PARTS
5
For Models: ASD2524VEW00, ASD2524VEB00, ASD2524VES00
(White) (Black) (Stainless Steel)
W10204059

FREEZER LINER PARTS
6
For Models: ASD2524VEW00, ASD2524VEB00, ASD2524VES00
(White) (Black) (Stainless Steel)
W10204059
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 2171714K Shelf, Slide Out
Upper
3 Track, Basket−Dual
2261449 Right
2261448 Left
4 2174268K Shelf, Slide Out
5 2182971 Freezer Bin
6 3400893 Screw
7 Shelf Track
2301289 Right Side
2301290 Left Side
8 2205837K Shelf (2)
9
W10004810 Screw (8)
10 842534 Clip, Air Duct (2)
11 1115373 Switch, Rocker Arm
12 2171713K Door, Ice Comp
13 Slide, Ice Maker
Mounting
1119293 Right Side
1119237 Left Side
14 489478 Screw
16 2162085 Light Socket
17 2255743 Light Bulb
18 2171705 Light Lens

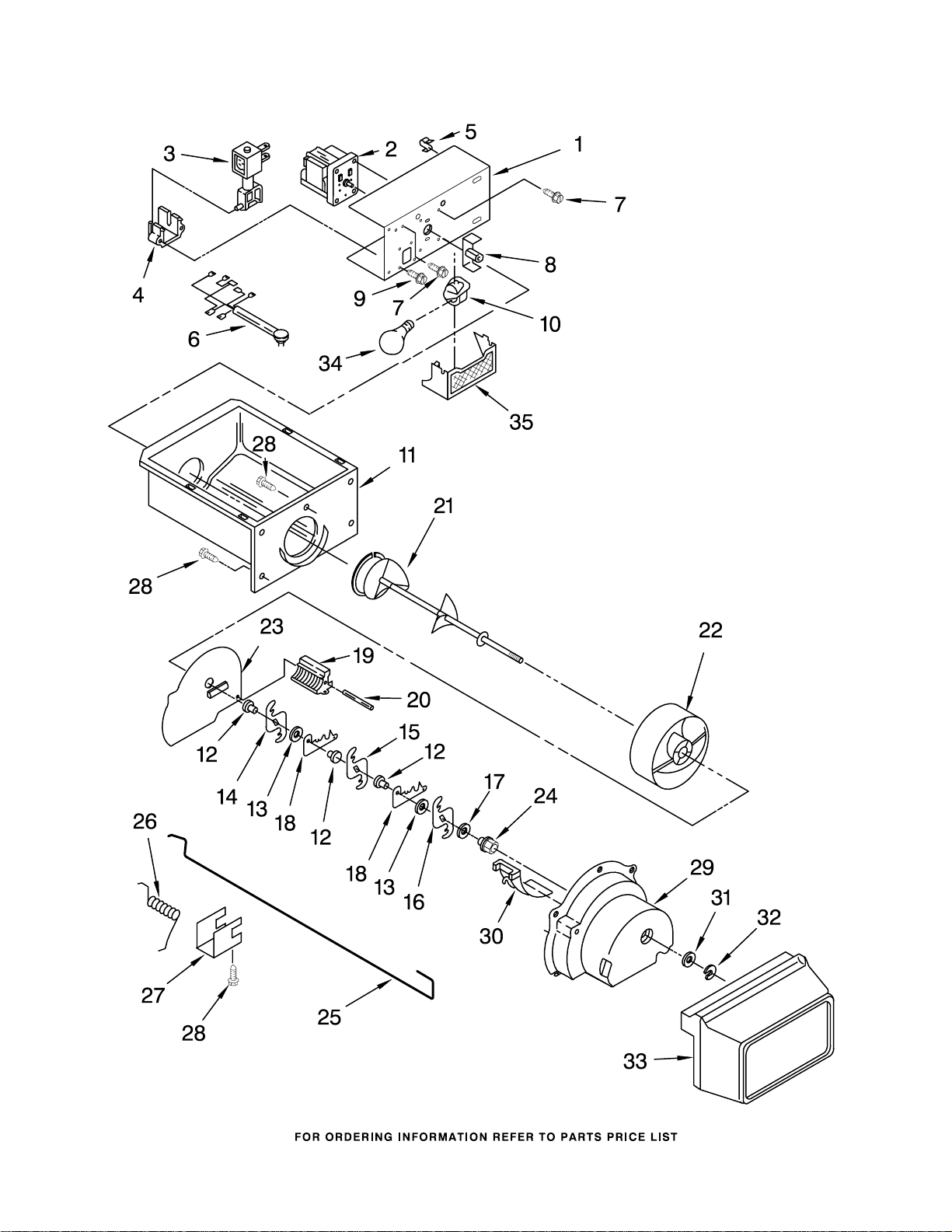

MOTOR AND ICE CONTAINER PARTS
7
For Models: ASD2524VEW00, ASD2524VEB00, ASD2524VES00
(White) (Black) (Stainless Steel)
W10204059

MOTOR AND ICE CONTAINER PARTS
8
For Models: ASD2524VEW00, ASD2524VEB00, ASD2524VES00
(White) (Black) (Stainless Steel)
W10204059
Illus. Part
No. No. DESCRIPTION
1 2254587 Bracket, Motor
2
W10181208 Motor, Dispenser
3 2152713 Solenoid Assy
4 2149100 Guide, Solenoid
5 1115374 Clip, Wiring
6 2206501 Wire Assy, Disp
7 489399 Screw
8
W10140958 Coupling, Mtr
9 489478 Screw
10 2162085 Socket, Light
11 2196091 Container, Ice
12 1119005 Spacer, Step (2)
13 1119007 Spacer, Flat (4)
14 2257022 Blade, Rotary
15 2257023 Blade, Rotary
16 2257024 Blade, Rotary
17 489235 Washer, Plain
18 1119009 Blade, Fixed (2)
19 2157405 Block, Blade
20 489229 Roll Pin
21 2196295 Auger
22 2305377 Drum
23 2171682 Baffle, Floating
24 1119018 Nut, Bearing
25 2155231 Control Arm
26 1119020 Spring, Return
27 1119021 Retainer Clip, Rod
28 488886 Screw
29 2180348 Housing, Crusher
30 1119017 Deflector, Ice
31 489234 Washer, Plain
32 489236 Retainer Ring
33 2204321 Cover, Ice Cont’r
34 527949 Bulb, Light
35 2171706 Lens, Light

REFRIGERATOR DOOR PARTS
9
For Models: ASD2524VEW00, ASD2524VEB00, ASD2524VES00
(White) (Black) (Stainless Steel)
W10204059

REFRIGERATOR DOOR PARTS
10
For Models: ASD2524VEW00, ASD2524VEB00, ASD2524VES00
(White) (Black) (Stainless Steel)
W10204059
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes Item #6)
W10173407 White
W10173409 Black
2318542S Stainless Steel
2 2256101 Compartment Door
3 2304235K Shelf Bin (3)
4 3400012 Screw
5 2326016 Screw, Mounting
6 Door Gasket,
Magnetic
2221313 Black
7 2156022 Shelf Bin
8 Handle, Assy
W10179168 White
W10179166 Black
W10136871 Stainless
10 2182178 Door Closer,
Upper Cam
11 489420 Screw
12 Bracket, Door Stop
2323534 Chrome
2323534B Black
13 2301049 Thimble−Top
14 12528501 Nameplate

11

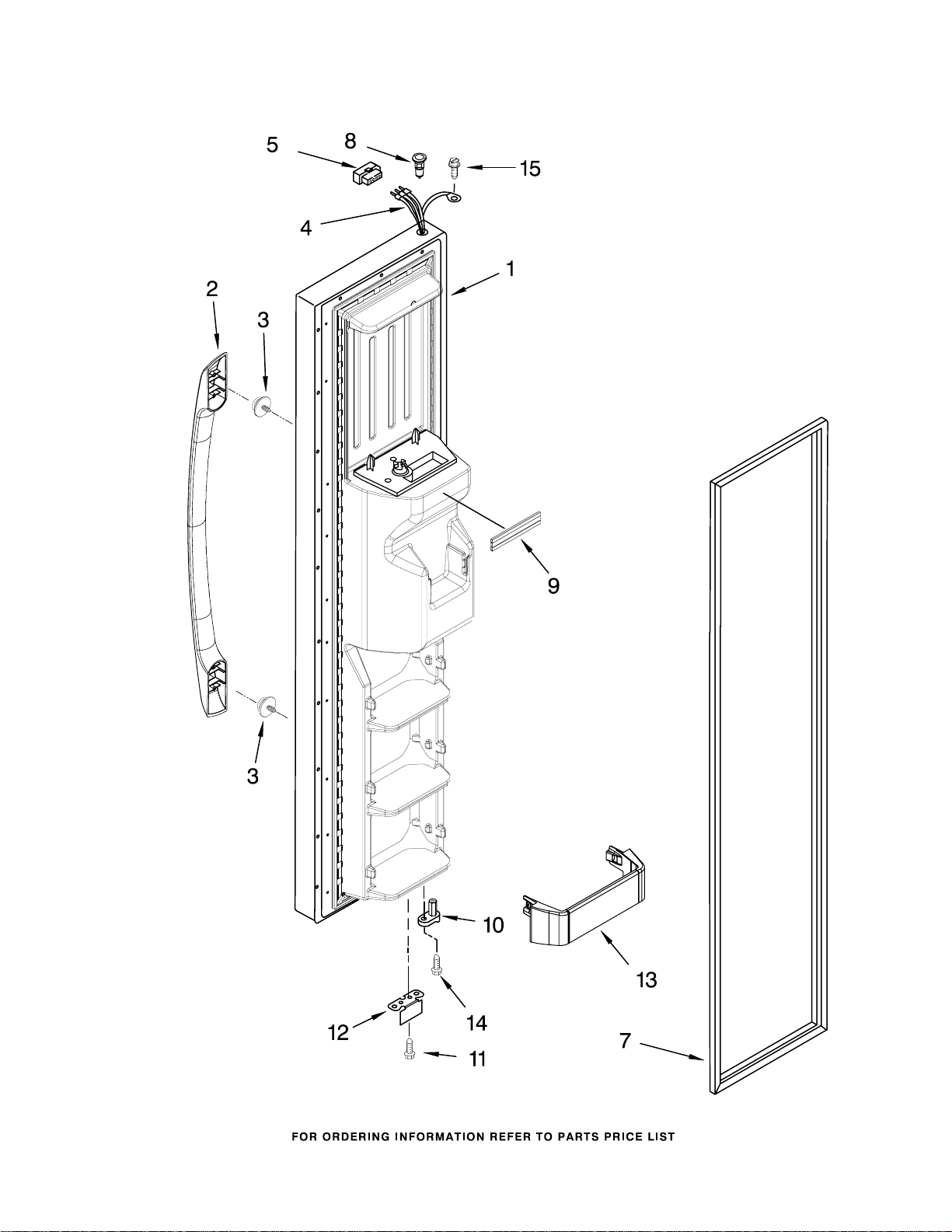

FREEZER DOOR PARTS
For Models: ASD2524VEW00, ASD2524VEB00, ASD2524VES00
(White) (Black) (Stainless Steel)
W10204059

FREEZER DOOR PARTS
12
For Models: ASD2524VEW00, ASD2524VEB00, ASD2524VES00
(White) (Black) (Stainless Steel)
W10204059
Illus. Part
No. No. DESCRIPTION
1 Freezer Door
(Includes #8
And Dispenser
Front Parts)
W10169442 White
W10169443 Black
W10169444 Stainless Steel
2 Handle, Assy
W10179171 White
W10179169 Black
W10136870 Stainless
3 2326016 Screw, Mounting
4
W10167528 Dispenser Harness
5 2154473 Connector
7 Door Gasket,
Magnetic
2221314 Black
2326339 Apollo Grey
8 Thimble−Top
2301049 For White, Black,
Biscuit and
Stainless VCM
Models
2308091 For Stainless
Steel Model
9 2313199K Trim, Door Shelf
10 2323535 Door Closer,
Upper Cam
11 489420 Screw
12 Bracket, Door Stop
2323534 Chrome
2323534B Black
13 2174267K Trivet−FC
14 3400012 Screw
15 488500 Screw

DISPENSER FRONT PARTS
13
For Models: ASD2524VEW00, ASD2524VEB00, ASD2524VES00
(White) (Black) (Stainless Steel)
W10204059

DISPENSER FRONT PARTS
14
For Models: ASD2524VEW00, ASD2524VEB00, ASD2524VES00
(White) (Black) (Stainless Steel)
W10204059
Illus. Part
No. No. DESCRIPTION
1 Housing, Dispenser
(Not Serviced)
2 3196537 Screw
3 2194719 Retainer, Levers
4 2304772 Spring, Torsion
5 2196195 Pin
6 2180353 Door, Ice
7 2304355 Door Mechanism
Assembly
8 2205686 Mechanism Delay
9 Grille, Overflow
2206670W White
2206670B Black
10 2304317 Water Fitting
Assembly (Includes
Water Tube)
11 Lever, Ice
Dispenser
2203562W White
2203562B Black
12 2180224 Guide, Ice
13 2305571 Gasket
14 2162361 Switch
15
W10167536 Bracket, Control
16 489214 Screw (2)
17 Lever, Water
Dispenser
2203561W White
2203561B Black
18 489000 Screw
19 Front Cover Assy
W10139879 White
W10139881 Black
20 625834 Spacer, Switch (2)
21 2195051 Strain Relief
22 2304673 Bracket, Dispenser
23
W10170979 Control, Elec

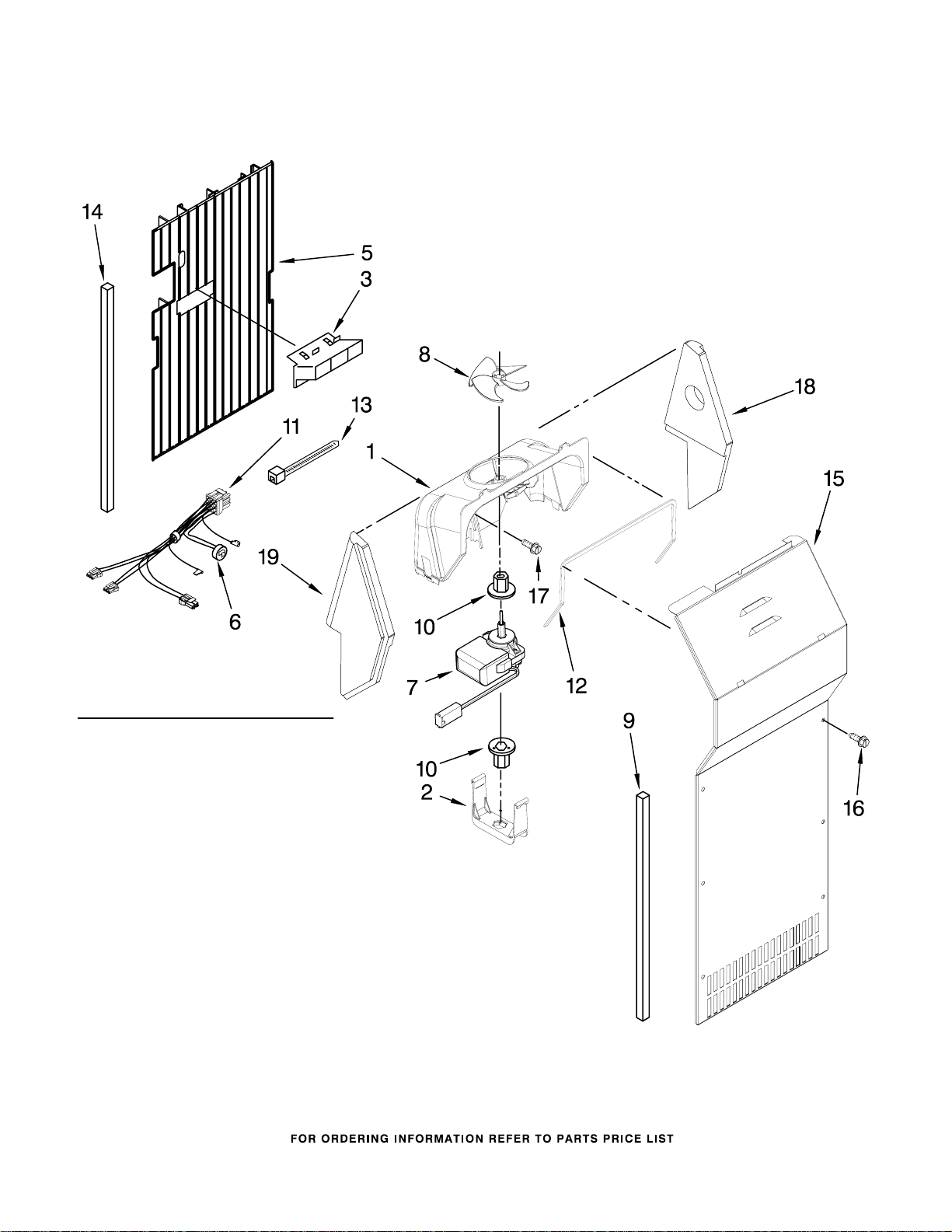

AIR FLOW PARTS
15
For Models: ASD2524VEW00, ASD2524VEB00, ASD2524VES00
(White) (Black) (Stainless Steel)
W10204059
Illus. Part
No. No. DESCRIPTION
1 2182120 Fan Scroll
2 2155590 Retainer
Fan Motor
3 2182146 Duct, I/M
5 2203593 Air Duct Freezer
6 2321799 Bi−Metal, Defrost
7 2315549 Fan Motor
8 2169142 Fan Blade
9 2304241 Gasket, Evaporator
Cover (2)
10 2176759 Fan Grommet (2)
11
W10129815 Harness, Fan
Evaporator
(Includes #6)
12 2155789 Gasket, Fan Scroll
13 2172840 Strap
14 2203876 Gasket
15 2203841 Cover, Evaporator
(Includes #9)
16 8281159 Screw (6)
17 489478 Screw
18 2203595 Support, R.S.
19 2203596 Support, L.S.

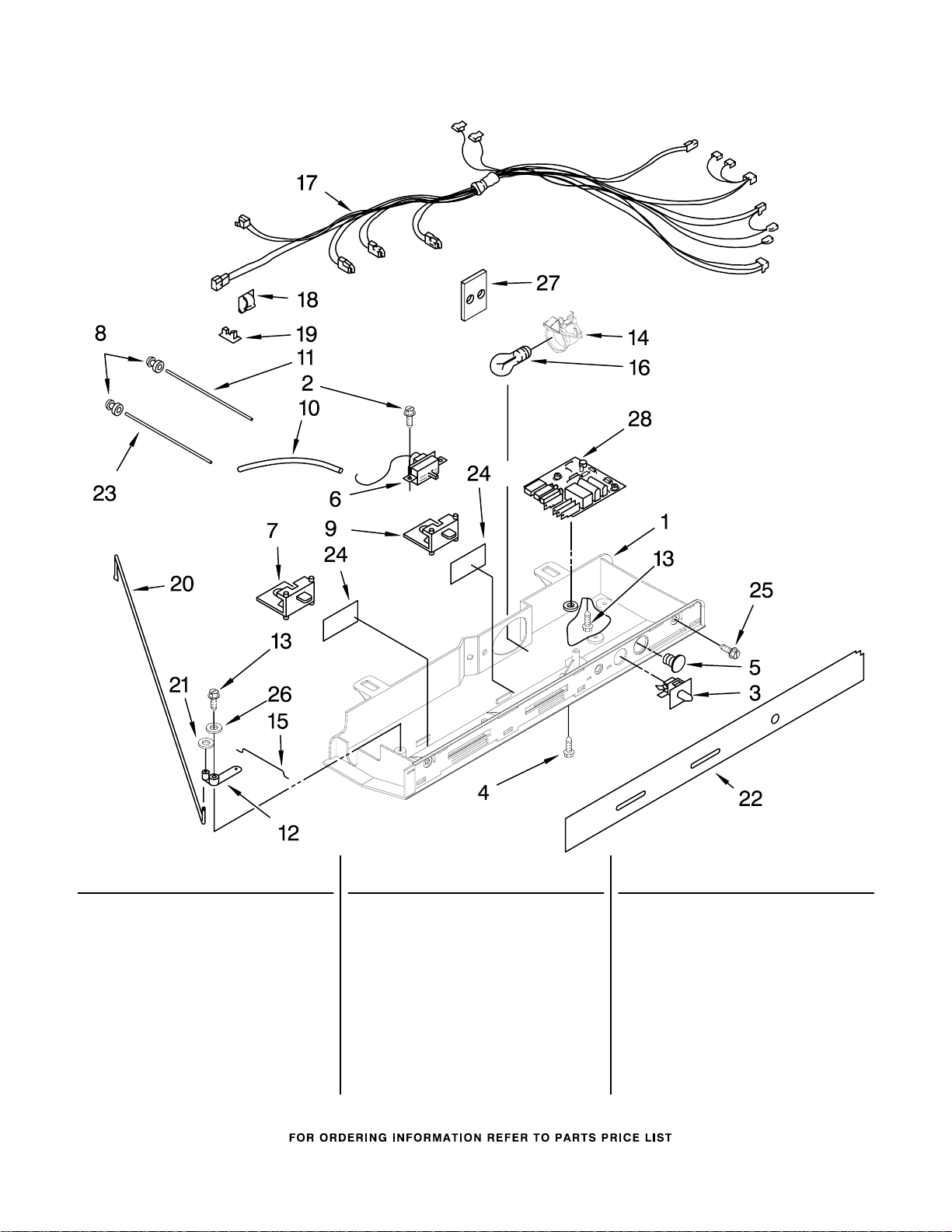

CONTROL PARTS
16
For Models: ASD2524VEW00, ASD2524VEB00, ASD2524VES00
(White) (Black) (Stainless Steel)
W10204059
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 2181738 Control Box
2 489214 Screw (2)
3 2149705 Switch, Light
4 489398 Screw (2)
5 940014 Hole Plug
6 2315562 Thermostat
7 2181741 Slide, Air Control
8 2172906 Grommet, Light
Bar (4)
9 2161466 Slide, Thermostat
10 2196001 Tube Barrier
11 2179920 Light Bar (RC)
12 2161306 Pivot Arm
13 627068 Screw
14 2162085 Light Socket
15 2161307 Connecting Rod,
Short
16 2255743 Light Bulb
17 2187868 Control Box
Harness
18 1115374 Clip, Wiring
19 1115375 Clip, Wiring
20 2161308 Connecting Rod
21 489391 Fastner, Push−On
22
W10176424 Escutcheon,
Control Box
23 2179921 Light Bar (FC)
24 2175513 Window
25 489084 Screw (2)
26 489203 Spring Washer
27 2172931 Heat Shield
28 2303824 Control, Elec

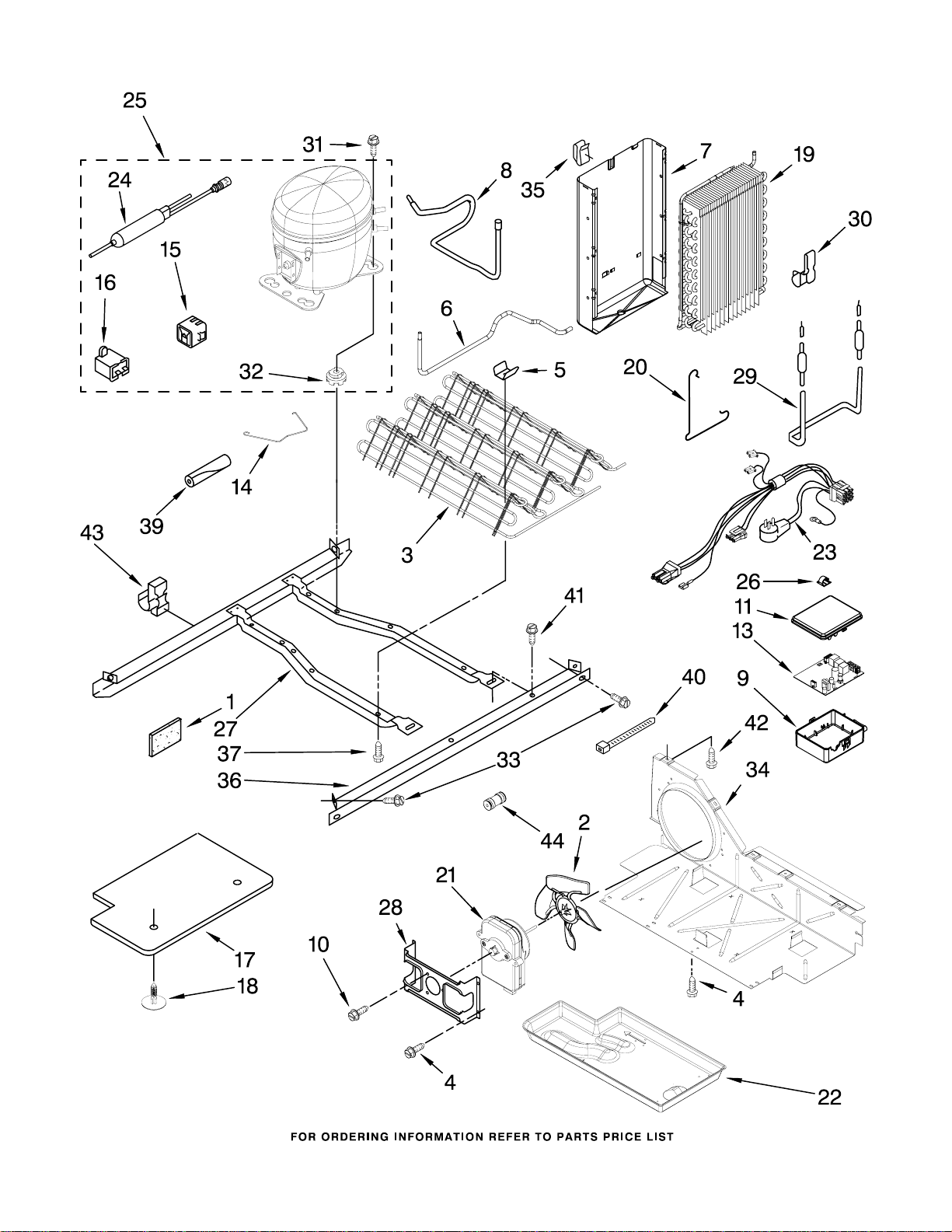

UNIT PARTS
17
For Models: ASD2524VEW00, ASD2524VEB00, ASD2524VES00
(White) (Black) (Stainless Steel)
W10204059

UNIT PARTS
18
For Models: ASD2524VEW00, ASD2524VEB00, ASD2524VES00
(White) (Black) (Stainless Steel)
W10204059
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 2169104 Insulation, Sound
2 12825802 Fan, Blade
3
W10121484 Condenser Assembly
4 489464 Screw
5 2216914 Clip, Condenser
6 2161341 Tube, Condenser to
Heat Loop
7 2217194 Heat Shield
And Drain Pan
8 2205765 Tube Suction
9 2326982 Control Box
10 8533993 Screw
11 2255624 Box Cover
13 2322547 Elec. Control
14 2223314 Clip, Retaining
15 2304884 Start−Device,
Combination
(Start Relay and
Overload)
16 Capacitor
2169373 Production
2264017 Service
17 2304899 Unit Cover, Bottom
18 489396 Clip
19 2188823 Evaporator
20 2161324 Clip
21 2188874 Motor, Fan
22 1105523 Tray, Evaporator
23
W10163019 Harness, Unit
24 Drier
W10177049 Production
2317845 Service
25
W10120459 Compressor
(Includes Items
15, 16, 24, &
32)
(Also Order
876765 Tube Kit)
26 1115374 Clip, Wiring
27 2304904 Unit Mounting
Frame
28 2181929 Bracket, Fan Motor
29 2323198 Heater, Defrost
30 2304287 Clip, Heater
31 489373 Screw
32 Grommet (4)
1100826 Production
4387558 Service
33 489340 Screw
34 2196202 Air Baffle
35 2155547 Clip, Heat
36 2305374 Unit Mounting
Rail
37 8281232 Screw
39 2161302 Sleeve
40 2172840 Wire Tie
41 489427 Screw
42 489478 Screw
43
W10169512 Clip, Wire & Tube
44 2320322 Union
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
5.0 oz.
(R−134A)

ICEMAKER PARTS
19
For Models: ASD2524VEW00, ASD2524VEB00, ASD2524VES00
(White) (Black) (Stainless Steel)
W10204059

ICEMAKER PARTS
20
For Models: ASD2524VEW00, ASD2524VEB00, ASD2524VES00
(White) (Black) (Stainless Steel)
W10204059
Illus. Part
No. No. DESCRIPTION
1 489084 Screw
2 2209774 Fitting, Water
Tube
3 628379 Clip, Fuse
4 489478 Screw
5 2315534 Filter Valve Asm
6 2208136 Clip, Tube
7 2174155 Cover
8 488649 Screw
9
W10122527 Mold & Heater
Assembly (Also
Order 542638
Silicone Grease)
10 628515 Cup−Water Fill
11 627843 Ejector
12 2182124 Ice Stripper
13 2194712 Support
14 2315522 Retainer,
Thermostat
15 628397 Thermostat (Also
Order 542369
Cement
Alumilastic)
16 8533917 Screw
17 628320 Bracket, Ice Maker
Mounting
18 489276 Screw
19 2187464 Harness, Wiring
20 626691 Module Assembly
(Includes Items
37 & 38)
21 626683 Motor
22 489136 Screw
100
W10122506 Icemaker Assembly
