What Nee to }( ow Abo t
Safety str ctio s
Warning and Important Safety Instructions appearing in
this guide are not meant to cover all possible
conditions and situations that may occur. Common
sense, caution and care must be exercised when
installing, maintaining or operating appliance.
Always contact the manufacturer about problems or
conditions you do not understand.
Recognize Safety Symbols, Words,
Labels
This appliance is equipped with a three-prong
grounding plug for your protection against possible
electrical shock hazards. It must be plugged into a
grounding receptacle. Where a standard two-prong
wall receptacle is encountered, it is the personal
responsibility and obligation of the customer to have it
replaced with a properly grounded three-prong wall
receptacle. Do not under any circumstances, cut or
remove the third (ground} prong from the power cord.
Do not use an adapter plug.
Power supply cord with
three-prong grounding plug
Grounding type
wall receptacle

SAVE THESE l NSTRUCTIONS

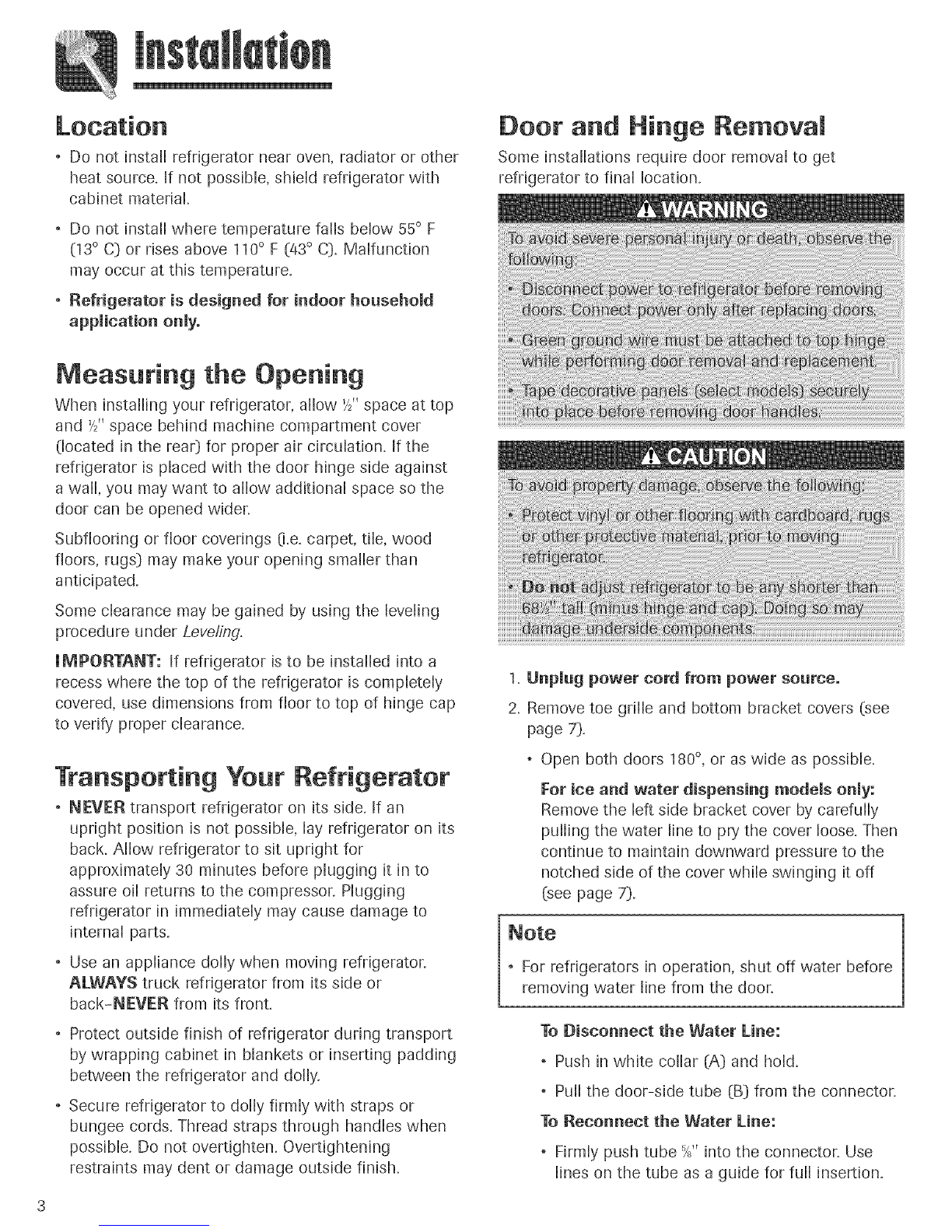

Do not install refrigerator near oven, radiator or other
heat source. Wfnot possible, shield refrigerator with
cabinet material.
Do not install where temperature falls below 55° F
(13° C} or rises above 110° F (43° C}. Malfunction
may occur at this temperature.
Refrigerator is designed for indoor househomd
appmication onmy.
Measuring the Opening
When installing your refrigerator, allow '/_"space at top
and '%'space behind machine compartment cover
(located in the tea0 for proper air circuhtion. If the
refrigerator is placed with the door hinge side against
a wall, you may want to allow additional space so the
door can be opened wider.
Subfiooring or floor coverings (i.e. carpet, tile, wood
floors, rugs} may make your opening smaller than
anticipated.
Some clearance may be gained by using the leveling
procedure under Leveling.
UMPORTANT: If refrigerator is to be installed into a
recess where the top of the refrigerator is completely
covered, use dimensions from floor to top of hinge cap
to verify proper clearance.
Transporting Your Refrigerator
NEVER transport refrigerator on its side. If an
upright position is not possible, lay refrigerator on its
back. Allow refrigerator to sit upright for
approximately 30 minutes before plugging it in to
assure oil returns to the compressor. Phgging
refrigerator in immediately may cause damage to
internal parts.
Use an appliance doily when moving refrigerator.
ALWAYS truck refrigerator from its side or
back-NEVER from its fronL
Protect outside finish of refrigerator during transport
by wrapping cabinet in blankets or inserting padding
between the refrigerator and dolly.
Secure refrigerator to dolly firmly with straps or
bungee cords. Thread straps through handles when
possible. Do not overtighten. Overtightening
restraints may dent or damage outside finish.
Door and Hinge Removam
Some installations require door removal to get
refrigerator to final location.
1. Unplug power cord from power source°
2. Remove toe grille and bottom bracket covers (see
page 7}.
Open both doors 180°, or as wide as possible.
it:or ice and water dispensing models only:
Remove the left side bracket cover by carefully
pulling the water line to pry the cover loose. Then
continue to maintain downward pressure to the
notched side of the cover while swinging it off
(see page 7}.
.For refrigerators in operation, shut off water before
removing water line from the door.
To Disconnect the Water Line:
Push in white collar (A} and hold.
Pull the door-side tube (B} from the connector.
To Reconnect the Water Line:
,Firmly push tube %" into the connector. Use
lines on the tube as a guide for full insertion.

.If tube end is damaged, cut off %" before
reconnecting.
If leaking occurs, reconnect the line.
3, Close doors.
/4, Remove top hinge covers by
removing Phillips screws.
5, Unscrew %_"hex head screws from
top hinges.
For water dispensing
models only:
Do not remove screw
connecting green ground
wire,
6. For ice and water dispensing models only:
Detach main wire connector harness and red wire
harness.
"To detach main wire
harness, use a fiat blade
tool or fingernail to press
junction point between two .......
connectors to release.
,To detach red wire harness, press
tab on underside of connector to
release.
7. Remove top hinges along with doors.
Repmacing the Doors
To replace the doors, follow the steps in Door and
Hinge Removal in reverse order.
UMPORTANT: If water line tube end is damaged, cut
off 5%,before reconnecting.
Connecting the Water Supply
(select models}
8. Remove bottom hinges with a _" hex head driver.

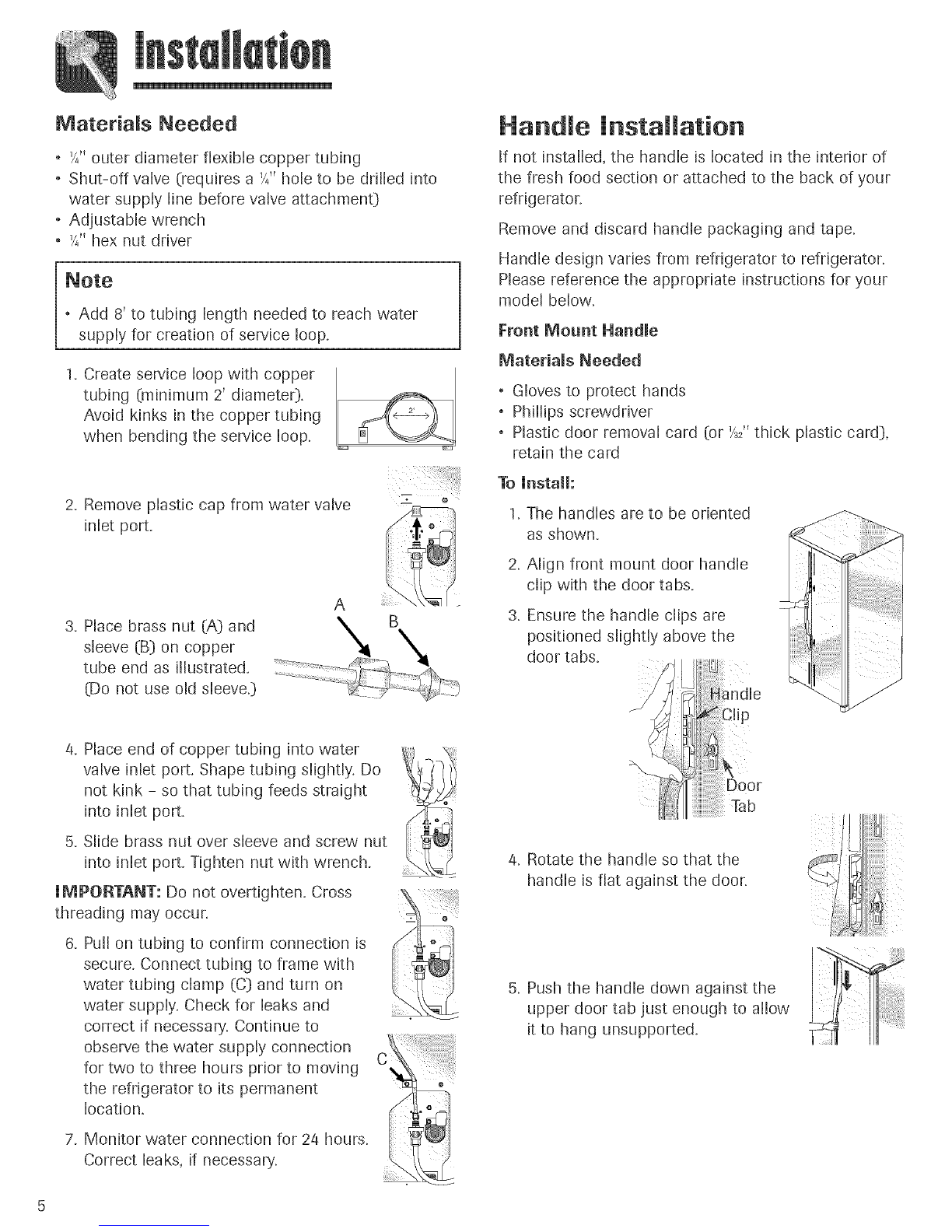

MateriaRs Needed
. ¼" outer diameter flexible copper tubing
. Shut-off valve (requires a '/4"hole to be drilled into
water supply line before valve attachmen0
. Adjustable wrench
. '/_"hex nut driver
. Add 8' to tubing length needed to reach water
supply for creation of service loop.
1. Create service loop with copper
tubing (minimum 2' diamete0.
Avoid kinks in the copper tubing
when bending the service loop.
2. Remove plastic cap from water valve
inlet porL
3_ Place brass nut (A} and
sleeve (B} on copper
tube end as illustrated,
(Do not use old sleeve.}
A
4_ Place end of copper tubing into water
valve inlet port. Shape tubing slightly. Do
not kink - so that tubing feeds straight
into inlet port.
5. Slide brass nut over sleeve and screw nut
into inlet port. Tighten nut with wrench.
UMPORTANT: Do not overtighten. Cross
threading may occur`
.Pull on tubing to confirm connection is
secure. Connect tubing to frame with
water tubing clamp (C} and turn on
water supply. Check for leaks and
correct if necessary. Continue to
observe the water supply connection
for two to three hours prior to moving
the refrigerator to its permanent
location.
7. Monitor water connection for 24 hours.
Correct leaks, if necessary.
Handme installation
If not installed, the handle is located in the interior of
the fresh food section or attached to the back of your
refrigerator,
Remove and discard handle packaging and tape.
Handle design varies from refrigerator to refrigerator.
Please reference the appropriate instructions for your
model below.
Front Mount Handle
Materials Needed
Gloves to protect hands
• Phillips screwdriver
• Plastic door removal card (or %" thick plastic card},
retain the card
To UnstaH:
The handles are to be oriented
as shown.
Align front mount door handle
clip with the door tabs.
Ensure the handle clips are
positioned slightly above the
door tabs.
Door
Tab
4. Rotate the handle so that the
handle is flat against the door.
5. Push the handle down against the
upper door tab just enough to allow
it to hang unsupported.

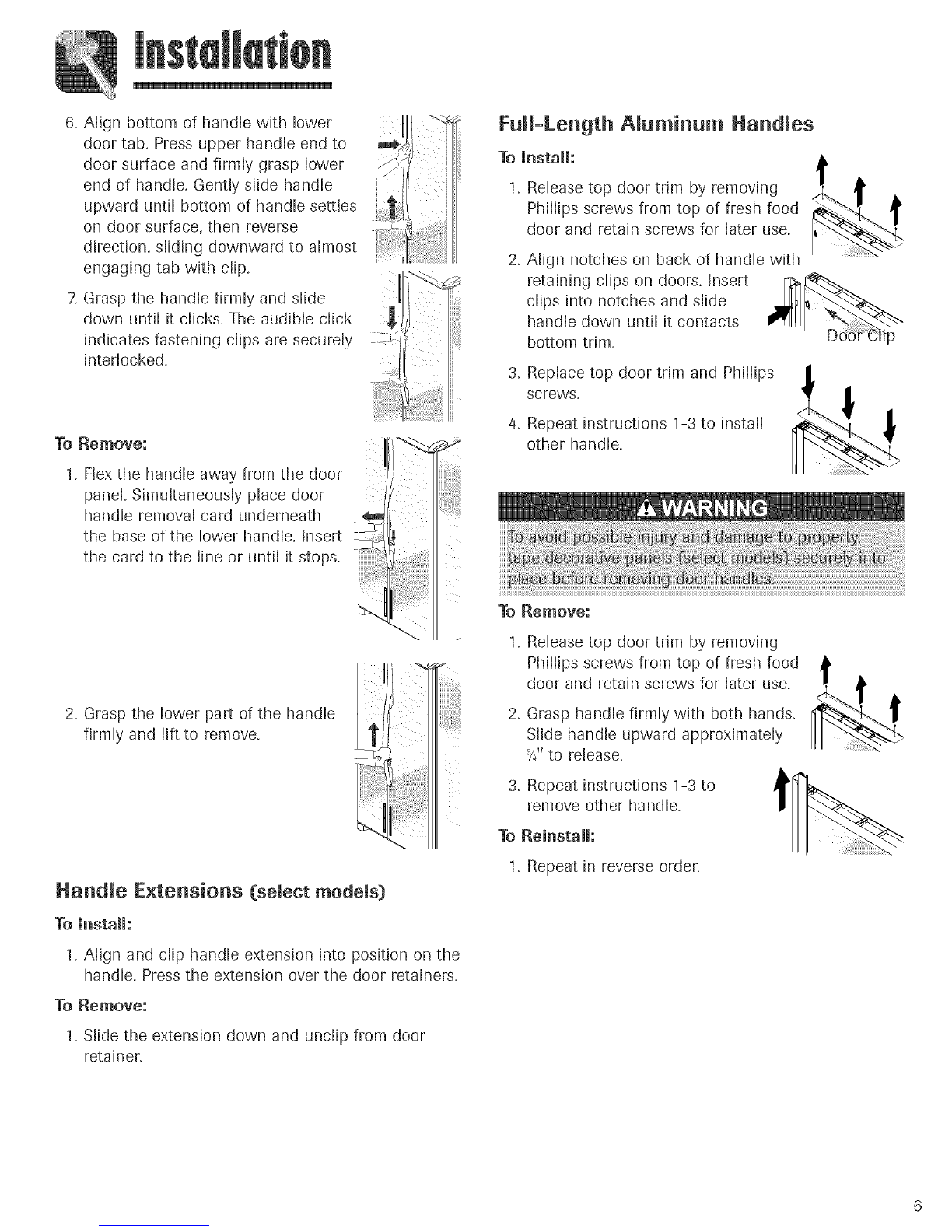

6.Alignbottomof handlewithlower
doortab.Pressupperhandleendto
doorsurfaceandfirmlygrasplower
endofhandle.Gentlyslidehandle
upwarduntilbottomofhandlesettles
ondoorsurface,thenreverse
direction,slidingdownwardto almost
engagingtabwithclip.
7.Graspthehandlefirmlyandslide
downuntilitclicks.Theaudibleclick
indicatesfasteningclipsaresecurely
interlocked.
To Remove:
1. Flex the handle away from the door
panel. Simultaneously place door
handle removal card underneath
the base of the lower handle. Insert
the card to the line or until it stops.
2. Grasp the lower part of the handle
firmly and lift to remove.
Handle Extensions (select models)
To UnstaH:
1. Align and clip handle extension into position on the
handle. Press the extension over the door retainers.
To Remove:
1. Slide the extension down and unclip from door
retainer.
Full-Length Aluminum Handles
To Install:
1. Release top door trim by removing
Phillips screws from top of fresh food
door and retain screws for later use.
Align notches on back of handle with
retaining clips on doors. Insert
clips into notches and slide
handle down until it contacts
bottom trim.
3, Replace top door trim and Phillips
screws,
4,Repeat instructions 1-3 to install
other handle.
To Remove:
1. Release top door trim by removing
Phillips screws from top of fresh food
door and retain screws for later use.
2. Grasp handle firmly with both hands.
Slide handle upward approximately
-_//'to release.
3.Repeat instructions 1-3 to
remove other handle.
To fleinstaiI:
1. Repeat in reverse order.

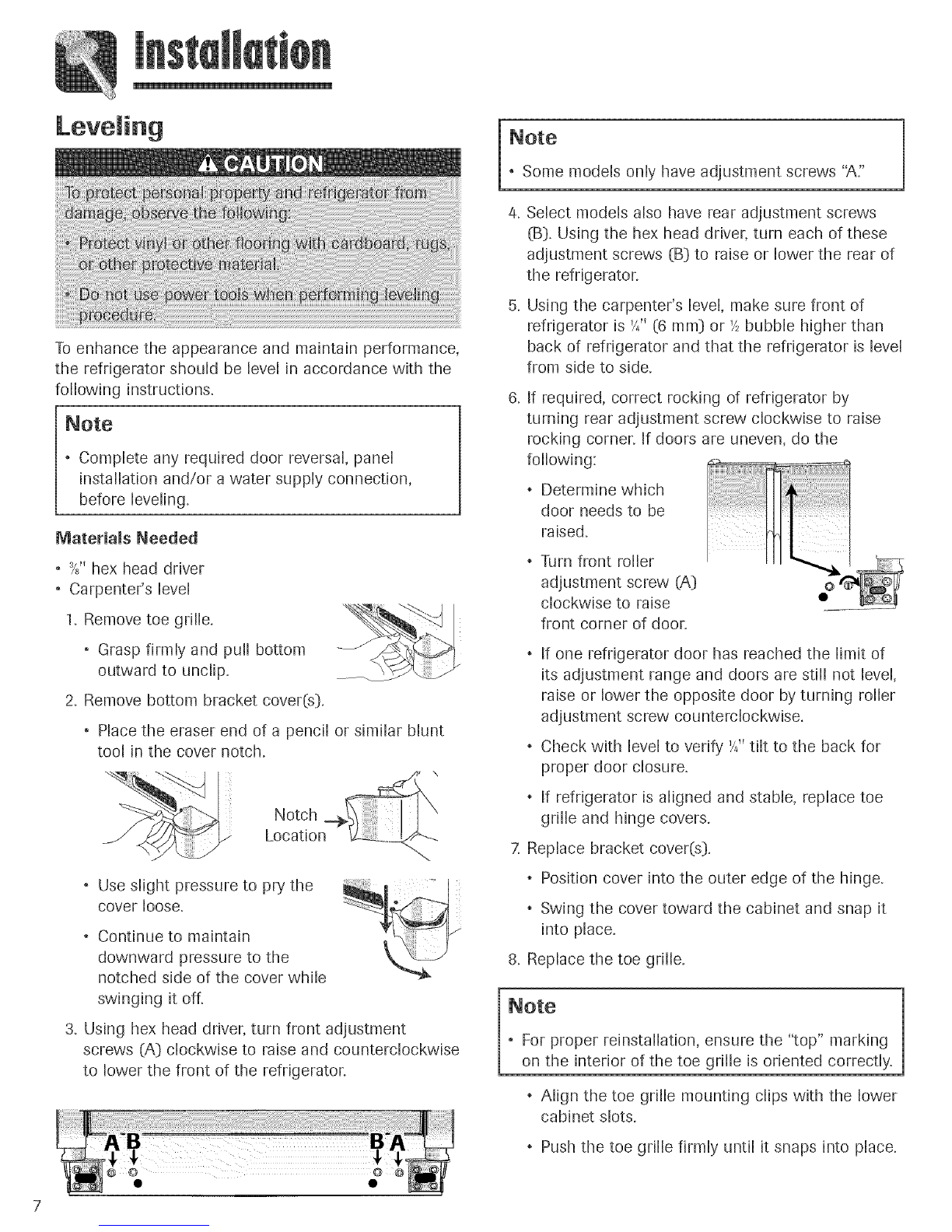

Toenhancetheappearanceandmaintainperformance
therefrigeratorshouldbelevelin accordancewiththe
followinginstructions.
Note
,Complete any required door reversal, panel
installation and/or a water supply connection,
before leveling.
Materials Needed
,_X,"hex head driver
,Carpenter's level
1. Remove toe grille.
,Grasp firmly and pull bottom
outward to unclip.
2. Remove bottom bracket cover(s}.
,Place the eraser end of a pencil or similar blunt
tool in the cover notch.
Notch
Location
, Use slight pressure to pry the
cover loose.
Continue to maintain
downward pressure to the
notched side of the cover while
swinging it off.
3. Using hex head driver, turn front adjustment
screws (A} clockwise to raise and counterclockwise
to lower the front of the refrigerator.
Some models only have adjustment screws "A_"
Select models also have rear adjustment screws
(B}. Using the hex head driver, turn each of these
adjustment screws (B} to raise or lower the rear of
the refrigerator.
Using the carpenter's level, make sure front of
refrigerator is '/4"(6 ram} or K bubble higher than
back of refrigerator and that the refrigerator is level
from side to side.
If required, correct rocking of refrigerator by
turning rear adjustment screw clockwise to raise
rocking corneE If doors are uneven, do the
following:
Determine which
door needs to be
raised.
Turn front roller
adjustment screw (A}
clockwise to raise
front corner of door.
If one refrigerator door has reached the limit of
its adjustment range and doors are still not level,
raise or lower the opposite door by turning roller
adjustment screw counterclockwise.
Check with level to verify '/9"tilt to the back for
proper door closure.
If refrigerator is aligned and stable, replace toe
grille and hinge covers.
Z Replace bracket cover(s}.
Position cover into the outer edge of the hinge.
Swing the cover toward the cabinet and snap it
into place.
8. Replace the toe grille.
,For proper reinstalhtion, ensure the "top" marking
on the interior of the toe grille is oriented correctly.
.Align the toe grille mounting clips with the lower
cabinet slots.
,Push the toe grille firmly until it snaps into place.

Dial Temperature Controls
(select models)
The controls are located at the back left of the
refrigerator compartment.
*The freezer control turns the cooling system on.
Neither section will cool if freezer control is set to
OFF,
initial Control Settings
After plugging the refrigerator in,
set the controls.
*To adjust the controls, turn the
control knob to the left or right
as desired.
*Set the freezer control on 4.
*Set the refrigerator control on 4.
*Let the refrigerator run at least 8
to 12 hours before adding food.
Warm Cabinet Surfaces
At times, the front of the refrigerator cabinet may be
warm to the touch. This is a normal occurrence that
helps prevent moisture from condensing on the
cabinet. This condition will be more noticeable when
you first start the refrigerator, during hot weather and
after excessive or lengthy door openings.
Adjusting the Controls
24 hours after adding food, you may decide that one
or both compartments should be colder or warmer. If
so, adjust the control(s) as indicated in the
Temperature Control Guide table below. See page 21
for instructions on checking compartment
temperature.
*Except when starting the refrigerator, do not change
either control more than one number at a time.
*Allow 2/4hours for temperatures to stabilize.
*Changing either control will have some effect on the
temperature of the other compartment.
Temperature Control Guide
Refrigerator too warm Turn the refrigerator control
to next higher numben
Refrigerator too cold Turn the refrigerator control
to next lower number,
Freezer too warm Turn the freezer control to
next higher number,
Freezer too cold Turn the freezer control to
next lower number,
Turn refrigerator OFF Turn the freezer control to
OFF.
* Turning freezer control to OFF stops cooling in
both compartments. It does not shut off power to
the refrigerator`

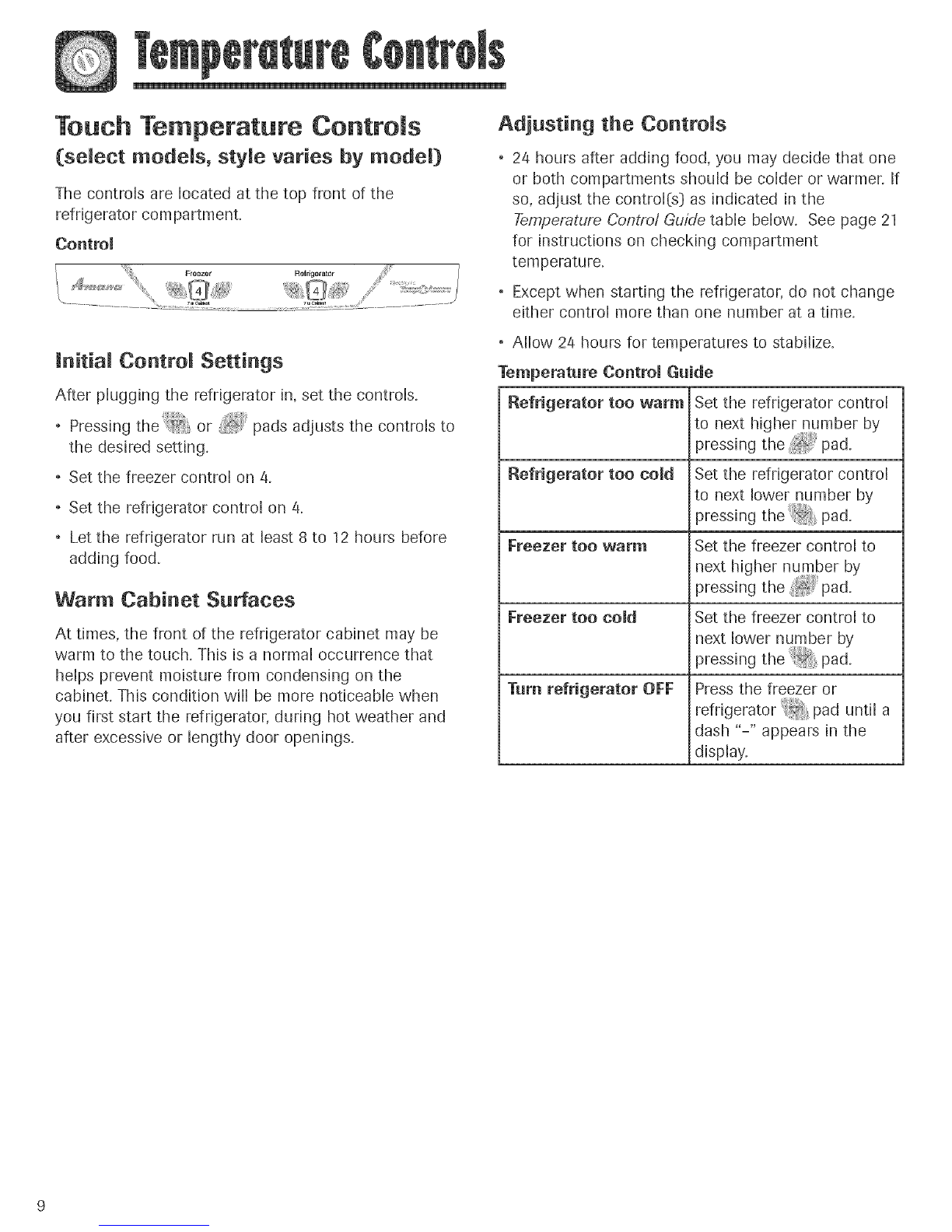

Touch Temperature Controls
(select models, style varies by model)
The controls are located at the top front of the
refrigerator compartment.
Contro[
_!!iii}ii, Freezed
[initial Centre[ Settings
After phgging tile refrigerator in, set the controls.
,Pressing the 1_i, or pads adjusts the controls to
the desired setting.
,Set the freezer control on/4.
,Set the refrigerator control on/4_
Let the refrigerator run at least 8 to 12 hours before
adding food.
Warm Cabinet Surfaces
At times, the front of the refrigerator cabinet may be
warm to the touch. This is a normal occurrence that
helps prevent moisture from condensing on the
cabineL This condition wiI[ be more noticeable when
you first start the refrigerator, during hot weather and
after excessive or lengthy door openings.
Adjusting the Controls
2/4 hours after adding food, you may decide that one
or both compartments should be colder or warmen If
so, adjust the control(s} as indicated in the
Temperature Control Guide table below. See page 21
for instructions on checking compartment
temperature.
,Except when starting the refrigerator, do not change
either control more than one number at a time.
Allow 2/4hours for temperatures to stabilize.
Temperature Control Guide
Refrigerator too warm Set the refrigerator control
to next higher number by
Refrigerator too cold
Freezer too warm
Freezer too cold
Turn refrigerator OF[:
Set the refrigerator control
[to next lower number by
Set the freezer contro[ to
[Set the freezer control to
next lower number by
Press the freezer or
[refrigerator :_ pad until a
dash "-" appears in the
display.

Your refrigerator has either Spillsaver TM or non-sealed
shelves. SpiIDaver TM shelves have a spill retainer edge
which allows for easier clean up and some are
equipped with the EasyGlidd Mslide out feature. To
slide out (select models}, grasp the front of the shelf
and pull forward. Push in the shelf to return to the
original position.
To Remove a Shelf:
.Slightly tilt up the
front and lift up the
rear of the shelf, then
pull the shelf straight
out+
To Lock the Shelf Unto Another Position:
.Tilt up the front edge of the shelf.
,Insert the hooks into the desired frame openings and
let the shelf settle into place.
Be sure the shelf is securely locked at the rear,
The Crisper Top serves as the lower fresh food shelf,
To Remove the Crisper Top:
,Remove drawers as indicated (see page 12).
Place hand under the frame to push up the glass. Lift
glass out.
To install, repeat above instructions in reverse order,
SideG_ide TM She_ves [select models]
SideGlide TM Shelves can be
adjusted to create a full-
width shelf, or to slide from
side to side to accommodate
storage needs.
To Remove Shelf Rail
Assembly:
,Lift rail assembly up to remove hooks from frame.
To Unstall Shelf Rail Assembly:
Tilt up the front edge of the assembly.
Insert the hooks into the desired frame openings and
let the rail assembly settle into place,
Be sure the rail assembly is securely locked into the
frame.
To Unstall SideGlide TM Shelves for Full-width:
Tilt up the front edge of the shelf slightly.
Hook the rear lip of the shelf over one of the rails on
the shelf rail assembly.
Let the shelf settle into place.
Install the other SideGlide TM shelf on the same rail of
the shelf assembly.
To UnstaH SideGlide TM Shelves for
Sliding Side to Side:
, Tilt up the front edge of the shelf slightly.
,Hook the rear lip of the shelf over one of the rails on
the shelf rail assembly.
,Let the shelf settle into place.
,Install the other SideGlide TM shelf on the other rail of
the shelf rail assembly.
10

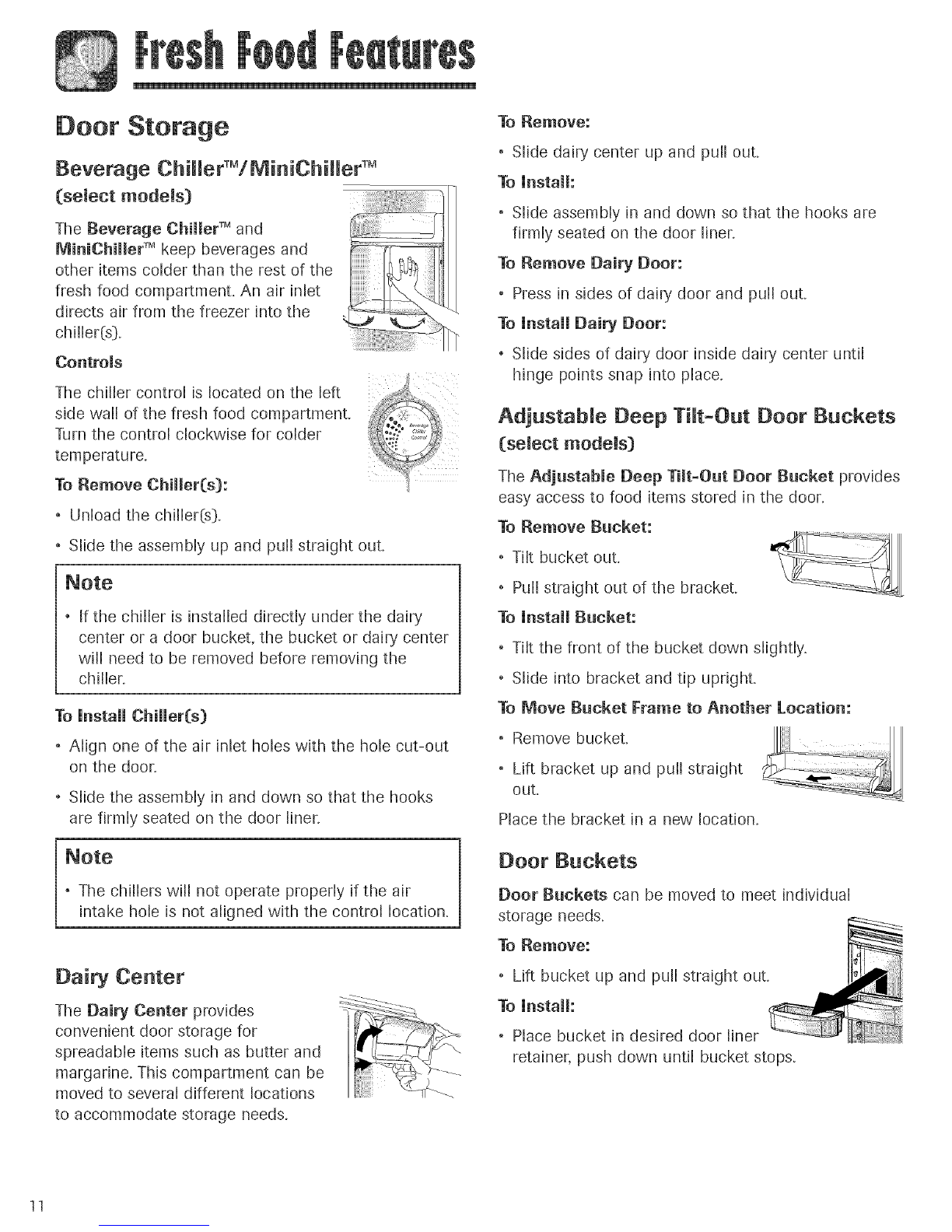

Door Storage
Beverage ChH[erTM/MiniChH[er TM
(select models}
The Beverage Chiller TM and
MiniChilier TM keep beverages and
other items colder than the rest of the
fresh food compartment. An air inlet
directs air from the freezer into the
chilbr(s}_
Controms
The chiller control is located on the left
side wall of the fresh food compartment.
Turn the control clockwbe for colder
tern peratu re.
To Remove Chiller(s}:
,Unload the chilbr(s}.
, Slide the assembly up and pull straight out.
If the chiJJer is [nstalJed directJy under the dairy
center or a door bucket, the bucket or dairy center
wiJJ need to be removed before removing the
chJJJer.
To [nstai[ Chiller{s}
,Align one of the air inlet hobs with the hob cut-out
on the door.
Slide the assembly in and down so that the hooks
are firmly seated on the door liner.
The chillers wiI[ not operate properly if the air
intake hob is not aligned with the control Iocation.
Dairy Center
The Dairy Center provides
convenient door storage for
spreadabb items such as butter and
margarine. This compartment can be
moved to several different locations
to accommodate storage needs.
To Remove:
Slide dairy center up and puI[ out.
To [nstaih
Slide assembly in and down so that the hooks are
firmly seated on the door liner.
To Remove Dairy Door:
, Press in sides of dairy door and pull out.
To [nstaH Dairy Door:
• Slide sides of dairy door inside dairy center until
hinge points snap into place.
Adjustable Deep THt-Out Door Buckets
(select modems}
The Adjustabme Deep Timt-Out Door Bucket provides
easy access to food items stored in the door.
To Remove Bucket:
"Tilt bucket out.
PuI[ straight out of the bracket.
To [nstaH Bucket:
,Tilt the front of the bucket down slightly.
Slide into bracket and tip upright.
To Move Bucket Frame to Another Location:
,Remove bucket.
Lift bracket up and puI[ straight
out.
Place the bracket in a new location.
Door Buckets
Door Bucket.s can be moved to meet individual
storage needs.
To Remove:
, Lift bucket up and pu[[ straight out.
To install:
,Place bucket in desired door liner
retainer, push down until bucket stops.
11

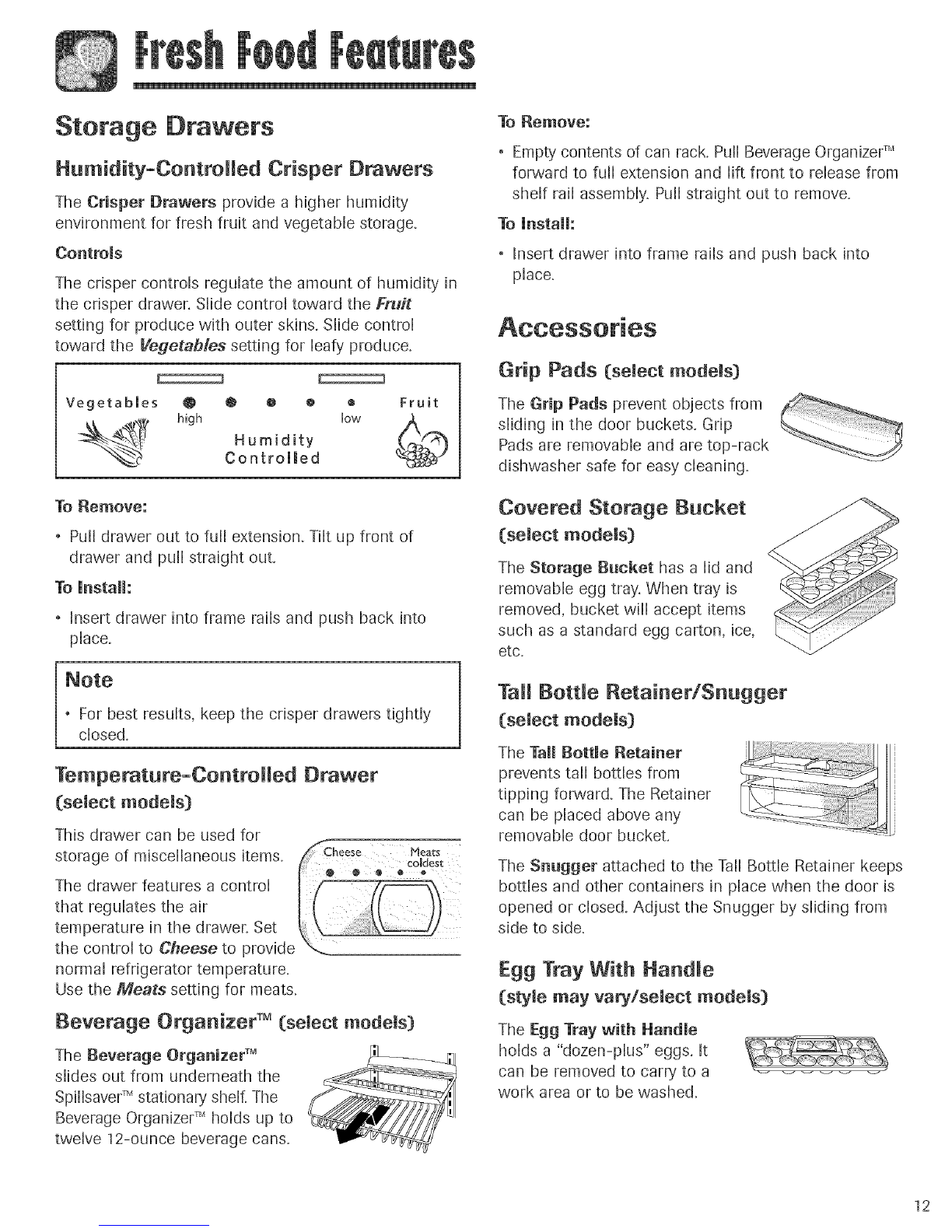

Storage Drawers
Humidity-Controlled Crisper Drawers
The Crisper Drawers provide a higher humidity
environment for fresh fruit and vegetable storage.
Controls
The crisper controls regulate the amount of humidity in
the crisper drawer. Slide control toward the Fruit
setting for produce with outer skins. Slide control
toward the Veffetabfes setting for leafy produce.
Vegetables @ @ • o ® Fruit
_'s_ high low
Humidity
Controlled
To Remove:
, Pull drawer out to full extension. Tilt up front of
drawer and pull straight out.
To UnstaH:
,Insert drawer into frame rails and push back into
place.
, For best results, keep the crisper drawers tightly
closed.
Temperature-Controlled Drawer
(select models])
This drawer can be used for
storage of miscellaneous items.
The drawer features a control
that regulates the air
temperature in the drawer. Set
the control to Cheese to provide
normal refrigerator temperature.
Use the Meats setting for meats.
Beverage Organizer TM (select models])
The Beverage Organizer TM
slides out from underneath the
Spillsaver TM stationary shelt The
Beverage Organizer TM holds up to
twelve 12-ounce beverage cans.
To Remove:
, Empty contents of can rack. Pull Beverage Organizer TM
forward to full extension and lift front to release from
shelf rail assembly. Pull straight out to remove.
To UnstaJl:
,Insert drawer into frame rails and push back into
place.
Grip Pads (select models])
The Grip Pads prevent objects from
sliding in the door buckets. Grip
Pads are removable and are top-rack
dishwasher safe for easy cleaning.
Covered Storage Bucket
(select models])
The Storage Bucket has a lid and
removable egg tray. When tray is
removed, bucket will accept items
such as a standard egg carton, ice,
etc.
Tall Bottle Retainer/Snugger
(select models])
The Tall Bottle Retainer
prevents tall bottles from
tipping forward. The Retainer
can be placed above any
removable door bucket.
The Snugger attached to the Tall Bottle Retainer keeps
bottles and other containers in place when the door is
opened or closed. Adjust the Snugger by sliding from
side to side.
Egg Tray With Handle
(style may vary/select models])
The Egg Tray with Handle
holds a "dozen-plus" eggs. It
can be removed to carry to a
work area or to be washed.
12

She ves and gaskets
Fixed Freezer Shelf
To Remove Clip-mounted Shelves:
,Lift shelf from wall mounting
clips and pull left side of shelf
out of wall mounting holes.
To Unstall Clip-mounted Shelves:
,Place left side of shelf in mounting holes and press
down into wall mounting clips.
She ves
Shelves can be removed to meet individual storage
needs.
To Remove Shelf:
,Snap right side of shelf up from
cabinet railing and slide to dghL
To UnstaH Shelf:
,Replace shelf in left side cabinet railing. Snap shelf
into right side cabinet railing.
Baskets and Drawers
Baskets and drawers (style may vary}
slide out for easy access of items in
back.
To Remove:
,Pull out to its full extension. Lift up front of basket
and remove.
To Unstal[:
,Slide basket or drawer into cabinet railing. Lift up
front of basket or drawer, and slide to the back of
refrigerator.
ice Storage Bin
The Uce Storage Bin is located below the automatic
ice maker.
To Remove:
,Raise ice maker arm to deactivate ice maker. Lift
front of bin and pull out to its full extension. Lift up
front of bin and remove.
To Unstalh
,Slide bin into railing below ice maker until bin locks
into place. Drop ice maker arm to activate ice maker.
UMPORTANT: Ice bin must be locked in place for
proper ice dispensing. Turn auger driver behind bin
counterclockwise (as shown} to properly align ice bin
with auger driver.
13

Door Storage
Adjustable Door Buckets
Door Buckets can be moved to meet individual
storage needs.
To Remove:
,Lift the door bucket up until it
chars the retainers on the door
liner, then pull the door bucket
straight out.
To UnstaH:
iiiiiii_
s
Slide bucket in above desired door liner retainer and
push down until bucket stops.
Fixed Door Bucket (semectmodels}
The Fixed Door Bucket is located in
the upper section of the freezer door.
UlVtPORTANT: Fixed door bucket is not
adjustabb. If bucket is removed, freezer
light will not deactivate when door is
closed.
THt-out Door Buckets (select models}
The Timt-Out Door Bucket provides easy access to
food items stored in the doon
To Remove Bucket:
" Tilt bucket out.
, Pull straight out of the frame.
To UnstaH Bucket:
,Tilt the front of the bucket down slightly.
,Slide into frame and tip upright.
To Move Bucket Frame to Another Location:
,Remove bucket.
Lift frame up and pull straight
out.
Slide the frame in and down into the new location.
14

15
* Energyratingguidesthatarepostedonthe
refrigeratoratthetimeof purchasedo notinclude
optionalicemakerenergyusage.
Somemodelsareautomaticicemakerready.The
numberoftheappropriateicemakerkitisIC10S.The
kitcontainsinstallationinstructionsandwater
connectioninstructions.
Othermodelshaveafactoryinstalledicemaker.
Connecttheicemakertothewatersupplyas
instructedon page5.Properwater flow anda level
refrigerator ate essential for optimal ice maker
performanceo
Operating instructions
*Confirm ice bin is in place and ice maker arm is
down.
*After freezer section reaches
approximately 0° to 2° F (-18 ° to
-17 ° C), ice maker fills with water
and begins operating. You will have
a complete harvest of ice
approximately every three hours.
*Allow approximately 24 hours after installation to
receive first harvest of ice.
*Discard ice created within first 12 hours of operation
to verify system is flushed of impurities.
*Stop ice production by raising ice maker arm until
click is heard.
*ice maker will remain in the OFF position until arm is
pushed down.
*The first one or two batches will probably contain
undersized and irregular cubes because of air in the
supply line.
*When the ice cubes are ejected it is normal for
several cubes to be joined together at the ends. They
can easily be broken apart. The ice maker will
continue to make ice until the supply of ice cubes
raises the sensor arm, shutting the ice maker off.
*Certain sounds may accompany the various cycles of
the ice maker. The motor may have a slight hum, the
cubes will rattle as they fall into an empty storage
pan and the water valve may click or "buzz"
occasionally.
if the ice is not used frequently, the ice cubes will
become cloudy, shrink, stick together and taste stale.
Empty the ice storage bin periodically and wash it in
lukewarm water. Be sure to dry the bin thoroughly
before replacing it.
Beverages and foods should not be placed in the ice
storage bin for quick chilling. These items can block
the sensor arm, causing the ice maker to
malfunction.
*Turn off (arm up) the ice maker when the water
supply is to be shut off for several hours,
To Remove the Uce Bim
*Pull it forward, away from the ice maker. To avoid the
ice maker dumping ice while the bin is removed, turn
the ice maker off by raising the sensor arm.
To Unstall the Uce Bin:
*Reverse the above procedure. Turn the ice maker on
by lowering the sensor arm.

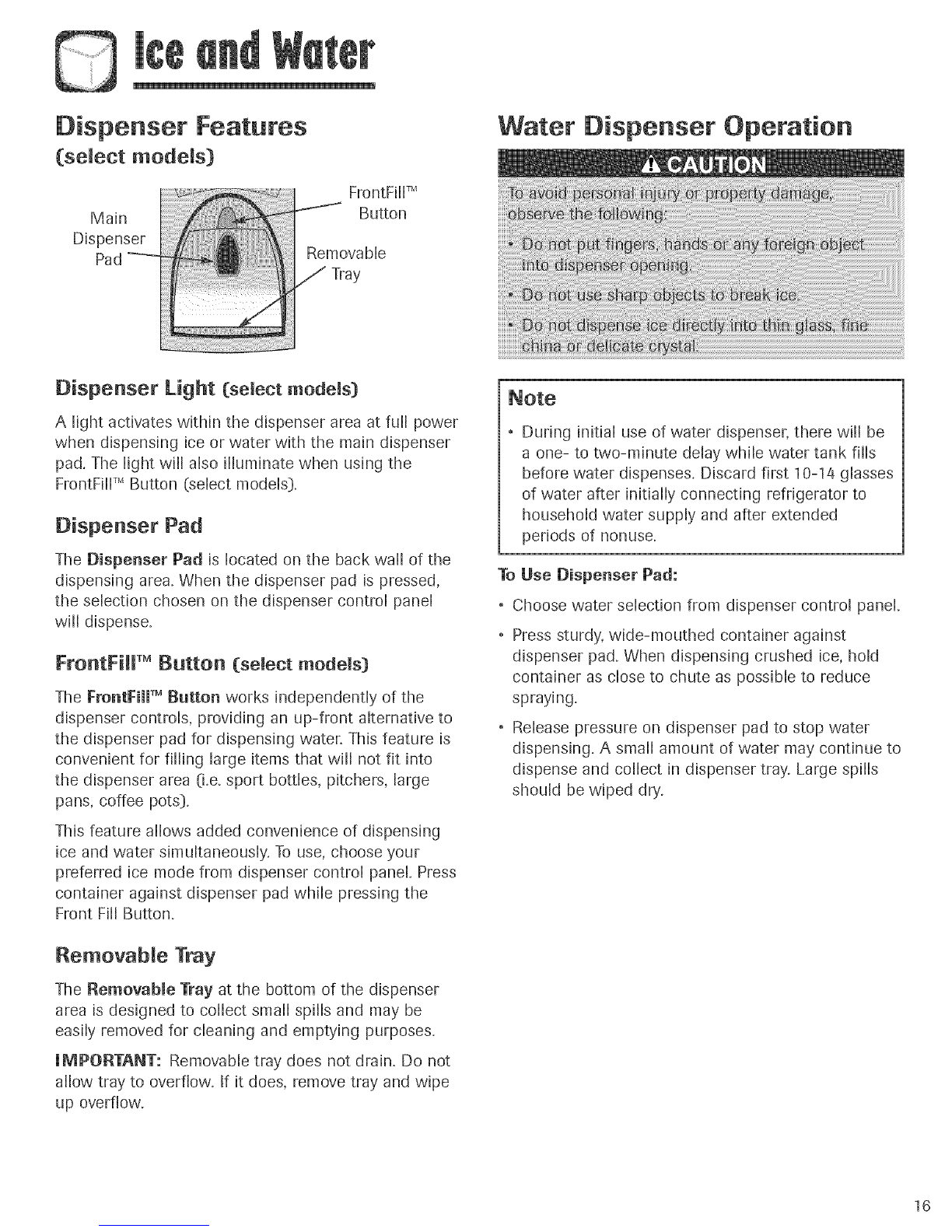

Dispenser Features
(select models)
Main
Dispenser
Pad
FrontFill TM
Button
Removable
Tray
Water Dispenser Operation
Dispenser Light (select models)
A light activates within the dispenser area at full power
when dispensing ice or water with the main dispenser
pad. The light will also illuminate when using the
FrontFill TM Button (select models).
Dispenser Pad
The Dispenser Pad is located on the back wall of the
dispensing area. When the dispenser pad is pressed,
the selection chosen on the dispenser control panel
will dispense.
FrontFilP Button (select models)
The FrontFilP Button works independently of the
dispenser controls, providing an up-front alternative to
the dispenser pad for dispensing watch This feature is
convenient for filling large items that will not fit into
the dispenser area (i.e. sport bottles, pitchers, large
pans, coffee pots).
This feature allows added convenience of dispensing
ice and water simultaneously. To use, choose your
preferred ice mode from dispenser control panel. Press
container against dispenser pad while pressing the
Front Fill Button.
Removable Tray
The Removable "[ray at the bottom of the dispenser
area is designed to collect small spills and may be
easily removed for cleaning and emptying purposes.
IMPORTANT: Removable tray does not drain. Do not
allow tray to overflow. If it does, remove tray and wipe
up overflow.
*During initial use of water dispenser, there will be
a one- to two-minute delay while water tank fills
before water dispenses. Discard first 10-14 glasses
of water after initially connecting refrigerator to
household water supply and after extended
periods of nonuse.
To Use Dispenser Pad:
*Choose water selection from dispenser control panel.
*Press sturdy, wide-mouthed container against
dispenser pad. When dispensing crushed ice, hold
container as close to chute as possible to reduce
spraying.
*Release pressure on dispenser pad to stop water
dispensing. A small amount of water may continue to
dispense and collect in dispenser tray. Large spills
should be wiped dry.
16

17

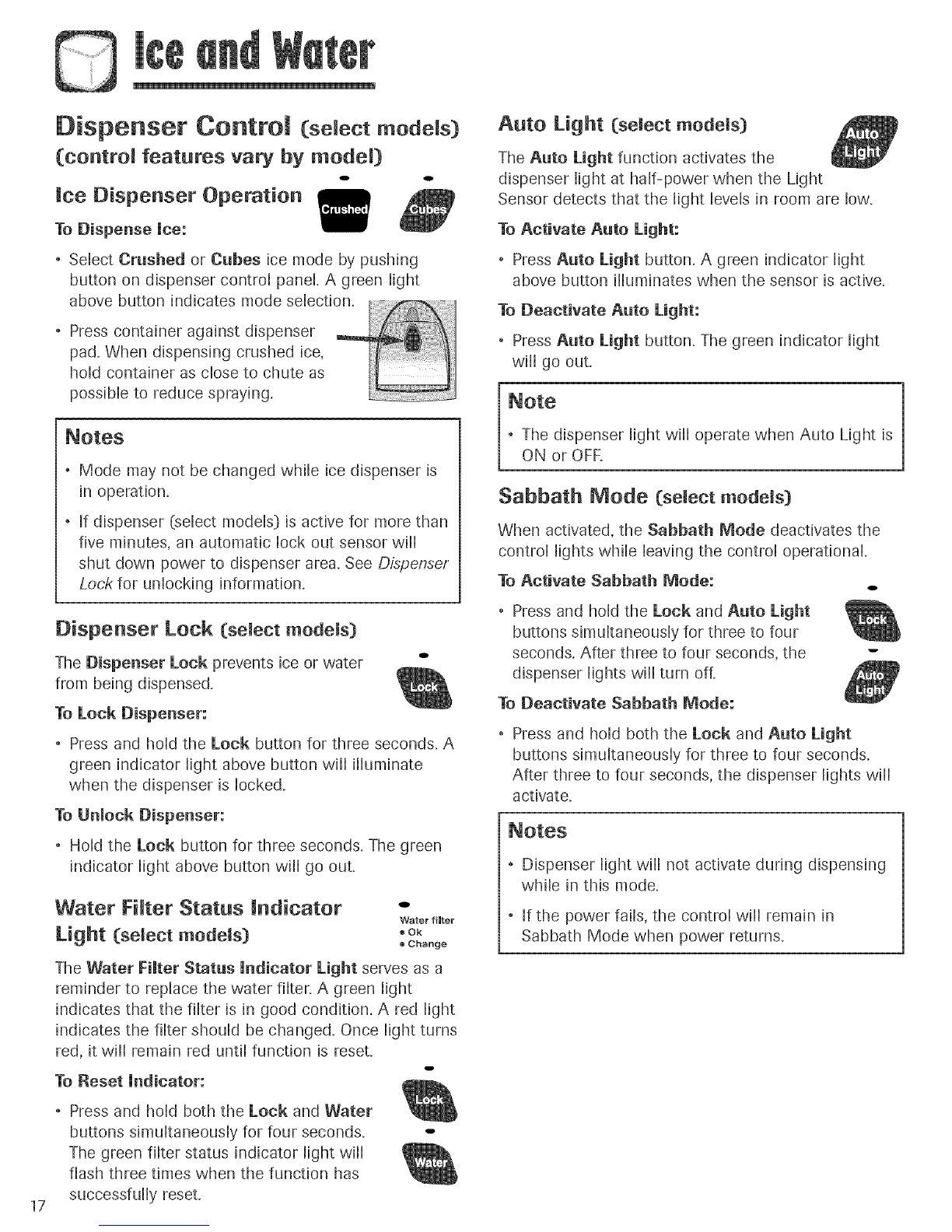

Dispenser Control (select modds)
(control features vary by modei)
O 4W
Ice Dispenser Operation
To Dispense Ice:
. Select Crushed or Cubes ice mode by pushing
button on dispenser control panel. Agreen light
above button indicates mode selection.
Press container against dispenser
pad, When dispensing crushed ice,
hold container as close to chute as
possible to reduce spraying.
.Mode may not be changed while ice dispenser is
in operation.
.If dispenser (select models} is active for more than
five minutes, an automatic lock out sensor will
shut down power to dispenser area. See Dispenser
Lock for unlocking information.
Dispenser Lock (select models)
ID
The Dispenser Lock prevents ice or water
from being dispensed.
To Lock Dispenser:
.Press and hold the Lock button for three seconds. A
green indicator light above button will iihminate
when the dispenser is locked.
To Unmock Dispenser:
.Hold the Lock button for three seconds. The green
indicator light above button wiiI go out.
Water Filter Status Indicator "
Water fimter
Light (select models) .o.
Change
The Water FHter Status bldicator Light serves as a
reminder to replace the water fiiteL A green light
indicates that the filter is in good condition. A red light
indicates the filter should be changed. Once light turns
red, it wiiI remain red until function is reset.
To Reset bldicator:
.Press and hold both the Lock and Water
buttons simultaneously for four seconds.
The green filter status indicator light will
flash three times when the function has
successfully reset.
Auto Light (semectmodels)
The Auto Light function activates the
dispenser light at half-power when the Light
Sensor detects that the light levels in room are low.
To Activate Auto Light:
.Press Auto Light button. A green indicator light
above button iihminates when the sensor is active.
To Deactivate Auto Light:
.Press Auto Light button. The green indicator light
wiiI go out.
.The dispenser light wiJJoperate when Auto Light is
ON or OFE
Sabbath Mode (select models)
When activated, the Sabbath Mode deactivates the
control lights while leaving the control operational
To Activate Sabbath Mode:
. Press and hold the Lock and Auto Light
buttons simultaneously for three to four
seconds. After three to four seconds, the
dispenser lights wiiI turn oft
To Deactivate Sabbath Mode:
. Press and hold both the Lock and ,guto Light
buttons simultaneously for three to four seconds.
After three to four seconds, the dispenser lights wiiI
activate.
. Dispenser light wiii not activate during dispensing
while in this mode.
.If the power fails, the control will remain in
Sabbath Mode when power returns.

Water Filter Re ova[ and
installation (select models) Replacing Water FHter
[MPORTANT: Air trapped in system may cause
water and cartridge to eject. Use caution when
1. Turn filter counterclockwise until it releases from
filter head.
2. Drain water from filter into sink, and dispose in
normal household trash.
3. Wipe up excess water in filter cover and continue
with/nitial/nsta!lation, steps 2 and/4.
The filter should be changed at least every 12 month&
[MPORTA@T: Condition of water and amount used
determines life span of water filter cartridge. If water
use is high, or if water is of poor quality, replacement
may need to take place more often.
To purchase a replacement water filter cartridge,
contact your dealer or cai[ 1-877-232-6771 U.S.A. or
1-800-688-8/408 Canada.
The dispenser feature may be used without a water
filter cartridge. If you choose this option, replace filter
with blue bypass cap.
initial installation
The water filter is located in the upper right hand
corner of the fresh food compartment.
1. Remove blue bypass cap and
retain for later use.
2, Remove sealing [abe[ from
end of filter and insert into
filter head.
3. Rotate gently clockwise until
filter stops. Snap filter cover
closed.
/4, Reduce water spurts by
flushing air from system,
Run water continuously for
two minutes through
dispenser until water runs
steady. During initial use,
allow about a one- to two-minute delay in water
dispersal to allow internal water tank to fill.
. Additional flushing may be required in some
households where water is of poor quality.
18

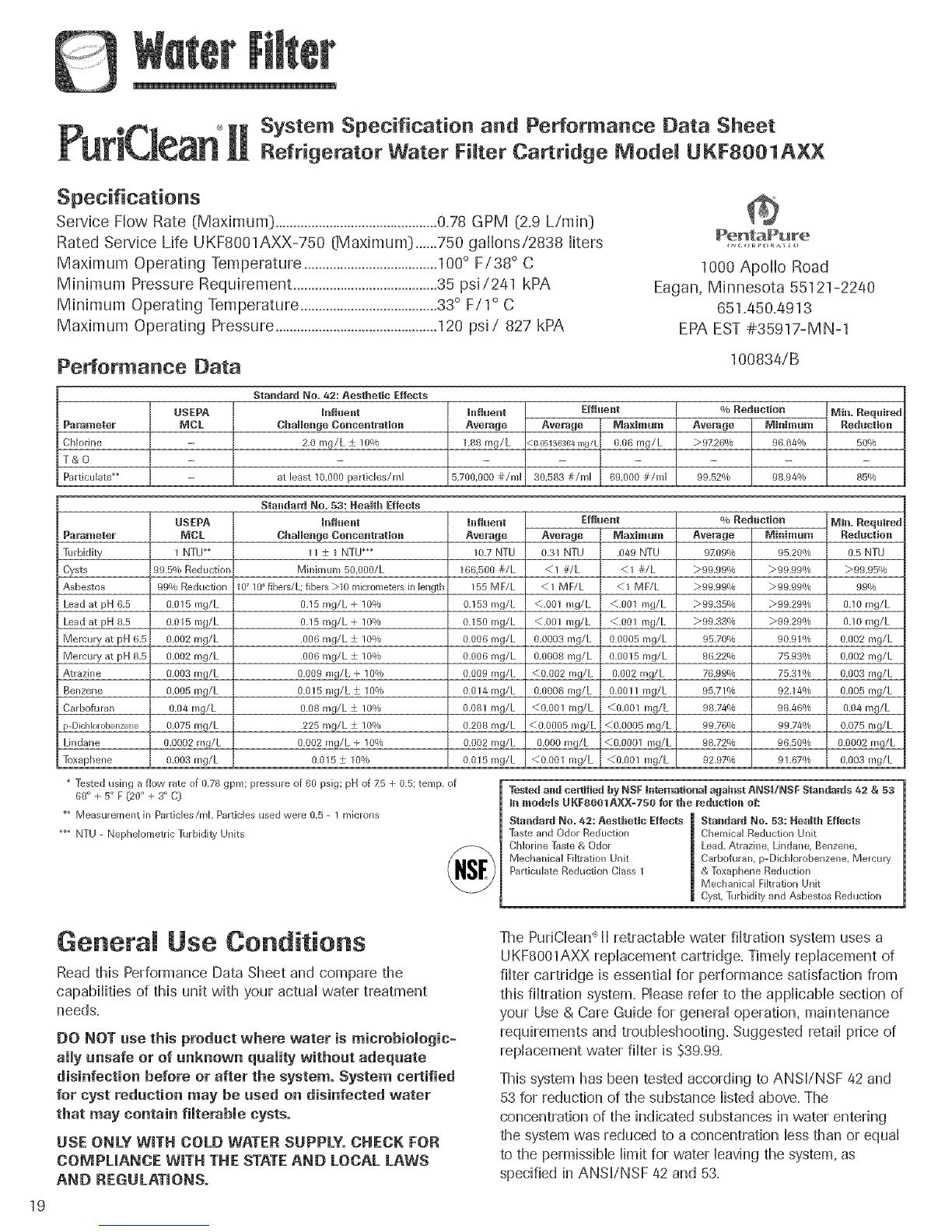

System Specification and Performance Data Sheet
Refrigerator Water FHter Cartridge Modd UKF8001AXX
Specifications
Service Flow Rate [Maximum] .............................................0.78 GPM [2.9 L/mini
Rated Service Life UKF8001AXX-750 [Maximum] ......750 gallons/2838 liters
Maximum Operating Temperature .....................................100° F/38 ° C
Minimum Pressure Requirement ........................................35 psi/241 kPA
Minimum Operating Temperature ......................................33° F/1 ° C
Maximum Operating Pressure .............................................120 psi/ 827 kPA
PentaPure
1000 Apollo Road
Eagan, Minnesota 55121-2240
651.450.4913
EPA EST #35917-MN-1
Performance Data
Pararaeter
Chlorine
T&O
Particulate**
100834/B
USEPA
MCL
Standard No. 42: Aesthetic Effects
mnfluem_t h_fluent
Challenge Concentration Average
2,0 mg/L + 10% 188 mg/L
at least 10,000 particles/ml 5,700,000 #/ml
Effluent
Average Ma×imura
<005136968 rng/L 008 mg/L
80,583 #/rnJ 69,000 @/mJ
e/oReduction
Average I£1inimura
> 9Z2d_ 9684%
99,52% 98.94%
Min. Required
Reductien
5O%
85_
_aranleter
TurbNity
Cysts
Asbestos
Lead at pH 85
Lead at pH 85
Mercury at pH 65
Mercury at pH 85
A_razine
Benzene
Carbofural_
p_Dichklrobenzene
Lindane
Toxaphene
USEPA
_/IOL
1 NTU**
995% Reduction
99% Reduction
0.015 mg/L
0.015 mg/L
0_002mg/L
0_002mg/L
0_003mg/L
0_005mg/L
0.04 mg/L
0_075mg/L
0,0002 mg/L
0,003 mg/L
Standard No. 53: Healtb Effects
Influent
Challenge Concentration
11+1 NTU***
Minimum 50,000/L
10_10_fibers/L: fibers >10 micrometem in length
0J5 mg/L + 10%
OJ5 mg/L + lO_J
008 mg/L _+!00_
008 mg/L _+100_
0009 mg/L + 10%
00!5 rag/L_+ 10%
008 mg/L _+10o_
225 mg/L _+10_J
0002 mg/b + 10%
0015 _+10%
Influent
Average
107 NTU
166,500 #/L
155 MF/L
0J53 mg/L
0150 mg/L
0006 mg/L
0006 mg/b
0009 mg/L
00!4 mg/L
0_081 mg/L
0208 mg/L
0.002 mg/L
0015 mg/L
Effluent
Average Maximura
03! NTU 049 NTU
<! #/L <1 #/L
<1 MF/L <1 MF/L
<,001 mg/L <001 mg/L
<,001 mg/L <001 nlglL
0_0003 mg/L 00005 mg/L
00008 mg/L &00!5 mg/L
<&002 mg/L 0.002 mg/L
00006 mg/L 0,00!1 mg/L
<0<001 mg/L <0001 mg/L
<0_0005 mg/L <0,0005 mg/L
0.OO0mg/L <0 0001 mg/L
<0_001 mg/L <0001 mg/L
o/oRedaction
Average [v[inimara
9209_ 9520o/_
>99 99% >99.9go/_
>99.99% >99,99o/_
> 99_85@J >9929@8
_99,33(V_ _99.29%
95.70_ 90,9 V_
8&22ai_ 7593_
7G.g9aA_ 75_31%
95 7Y_ 9214%
98_74_ 98.46_
99.7G_ 99.74_V_
98.72% 9650a20
92.97% 91.67%
Min. Required
Red_¢,tien
0.5 NTU
>99_95_
99o/g
0J0 mg/L
0J0 mg/L
0002 mg/L
0002 mg/b
0.003 mg/L
0005 mg/L
0.04 mg/L
0.075 mg/L
00002 mg/L
0003 mg/L
* Tested using a flow rate of 0.78 gpm; pressure of 60 psig; pH of 25
68 ° + 5 ° F {20 ° + 8 ° C}
** Measurement in Particies/ml Particles used were 05 - 1 microns
*** NTU - Nepheiometdc -R_rbidbyUnits
+ 05: temp of Tested and eerqfied by NSF h_temationa[ agah_st ANS[/NSF Standards 42 & 53
in models UKF8ee_AXX=750 for the reduction Of:
Standard No. 42: Aesthetic Effects Standard No. 53: Health Effects
Taste and Odor Reduction Chemica_ Reduction Unit
Chlorine %ste & Odor Lead Atrazine, Lindane, Benzene,
Mechanical Filtration Unit Carbofuran p-Dich!orobenzene, Merculy
Particulate Reduction Class 1 & Toxapbene Reduction
Mecbanica_ Fikration Unit
Cyst, Turbidity and Asbestos Reduction
19
Ge era[ Use Conditions
Read this Performance Data Sheet and compare the
capabilities of this unit with your actual water treatment
needs.
DO NOT ase this prodact where water is microbioiogic°
ally unsafe or of unknown quality withoat adeqaate
disinfection before or after the system° System certified
for cyst redaction may be ased on disinfected water
that may contain filterable cysts.
USE ONLY WITH COLD WATER SUPPLY. CHECK FOR
COIVlPUANCE WITH THE STATEAND LOCAL LAWS
AND REGULATIONS.
The PuriCiean_[1retractable water filtration system uses a
UKF8001AXX replacement cartridge. Timely replacement of
filter cartridge is essential for performance satisfaction from
this filtration system. Please refer to the applicable section of
your Use & Care Guide for general operation, maintenance
requirements and troubleshooting. Suggested retail price of
replacement water filter is $39.99.
This system has been tested according to ANS[/NSF 42 and
53 for reduction of the substance listed above. The
concentration of the indicated substances in water entering
the system was reduced to a concentration less than or qual
to the permissible limit for water leaving the system, as
specified in ANS[iNSF 42 and 53.
