PASSPORT®300 PRO
(This is the model name for warranty claims)
Fender Musical Instruments Corporation, 8860 East Chaparral Road Suite 100 Scottsdale, AZ 85250
Issued: November, 2009
P/N 069-4403-000
SERVICE MANUAL
ATTENTION:
WARRANTY SERVICE PROCEDURES
Warranty service for the Passport 300 PRO is limited to the replacement of the defective
PCB Assemblies and all other parts not marked as “REF” in the Parts List. Non-Warranty
repairs can of course be to the component level at the Service Center’s discretion. For
non-warranty component level repairs all parts listed as “REF” in the Parts List must be
sourced from suppliers other than FMIC.

PASSPORT®300 PRO
(This is the model name for warranty claims)
2
November, 2009
IMPORTANT NOTICE
•Copyright © 2009 FMIC. All rights reserved. All
information contained herein is CONFIDENTIAL
and PROPRIETARY and is the property of
Fender® Musical Instruments Corporation. It is
not to be sold or assigned to another party and is
disclosed solely for use by Fender Authorized
Service Centers for purposes of product service
and maintenance. All information is not to be
disclosed to others without the expressed
permission of Fender® Musical Instruments
Corporation. All specifications are subject to
change without notice. This information and any
copies produced electronically or otherwise must
be surrendered upon demand of Fender® Musical
Instruments Corporation.
•Parts marked with two asterisks (**) indicate the
required use of that specific part. This is
necessary for RELIABILITY and SAFETY
requirements.
DO NOT USE A SUBSTITUTE!
PARTS LIST CODES
The description codes used in the itemized Parts Lists are defined below:
CAPACITOR CODES
CAP AE = Aluminum Electrolytic
CAP CA = Ceramic Axial
CAP CD = Ceramic Disk
CAP CR = Ceramic Radial
CAP MPF = Metalized Polyester Film
CAP MY = Mylar
CAP PFF = Polyester Film/Foil
RESISTOR CODES
RES CC = Carbon Comp
RES CF = Carbon Film
RES FP = Flame Proof
RES MF = Metal Film
RES MOX = Metal Oxide
RES WW = Wire Wound
HARDWARE CODES
BLX = Black Oxide
CR = Chrome Plated
HWH = Hex Washer Head
M = Machine Screw
NI = Nickel Plated
OHP = Oval Head Phillips
PB = Particle Board
PHP = Pan Head Phillips
PHPS = Pan Head Phillips Sems
SMA = Sheet Metal "A" Point
SMB = Sheet Metal "B" Point
SS = Stainless Steel
TF = Thread Forming
ZI = Zinc Plated

PASSPORT®300 PRO
(This is the model name for warranty claims)
3
SPECIFICATIONS
Model Name: PASSPORT 300 PRO
Release Number: PR845
Part Numbers: (120V, 60Hz) US: 069-4403-000
(240V, 50Hz) AUS: 069-4403-030
(230V, 50Hz) UK: 069-4403-040
(230V, 50Hz) EUR: 069-4403-060
(120V, 60Hz) DS: 069-4403-900
(110V, 60Hz) TW DS: 069-4403-910
(240V, 50Hz) AUS DS: 069-4403-930
(230V, 50Hz) UK DS: 069-4403-940
(220V, 50Hz) ARG DS: 069-4403-950
(230V, 50Hz) EUR DS: 069-4403-960
(100V, 50Hz) JPN DS: 069-4403-970
(220V, 60Hz) ROK DS: 069-4403-990
Power Requirement: 450W
Fuse type: T6.3A H, 250V
Passport System: Width: 29 in. (73.66 cm)
Height: 23 in. (58.42 cm)
Depth: 11 in. (27.94 cm)
Weight: 44 lbs (19.96 kgs)
Product specifications are subject to change without notice

PASSPORT®300 PRO
(This is the model name for warranty claims)
4
SERVICE NOTES
The followings are the procedures to disassemble
the 300 PRO Mixer Tower.
1. Shelf Removal – Open the Rear Panel Door.
Then, using a screwdriver or flat tool, insert the
screwdriver head into the slot at the right hinge
and twist the screwdriver (as shown below in
photo 1) and pull the door out; this should
release the shelf from the hinge. Do not push
too hard since the hinges are made of plastic.
Repeat this for the other shelf and both shelves
can be removed.
2. Rear Door Disassembly – Open the Rear
Panel Door. Pull the door up, releasing it from
its hinges on either side of the bottom of the
door. Now, notice the two inner edges noted in
photo 2. Tilt the Rear Door upward until the
bottom right edge of the door is able to clear
edge 1, and pull the bottom right side of the
Rear Door up past this edge until the right leg of
the door meets the edge (2) above it (see photo
3). Tilt the door back down, and push the door
into toward the unit such that the right edge of
the Rear Door clears this edge. The Rear Door
can now be removed. (Note: This is the first
step for disassembling other parts)
3. SMPS & AMP Module Disassembly –
Unscrew the six M3 screws on the rear panel,
then pull the SMPS/AMP module out of the
Passport enclosure. Unplug all connectors
before completely removing the SMPS/AMP
module. (Note: This is the second step for
disassembling other parts)
4. SMPS PCB & AMP PCB Disassembly –
Unscrew the two M9 nuts locking the speaker
output jacks on the rear panel. Unscrew the
eight M3 flat screws on the rear panel. Unplug
all connectors and remove the rear Panel.
Unscrew the six screws from the Cover A box
and remove Cover A. Unscrew the one M3 flat
screw from the Cover B box that is attached to
the AMP PCB bracket. Unscrew the eight M3
screws holding the SMPS PCB and remove the
Cover B box. Unplug the connectors between
the SMPS PCB and AMP PCB. Unscrew the
four M3 screws on the Bracket-AMP IC and
remove the bracket. Unscrew the two M3
screws on the bottom side of the SMPS PCB
that are holding the AMP PCB in place.
5. Front Panel Disassembly – Removing the
front panel is a two step process. Unscrew the
three M3 screws of the Partition Main board
that is being accessed from the back. Unplug
the connector, and then remove the Partition
Main board. Unscrew the eight M3 screws that
are holding the front panel in place. The front
panel can now be removed.
6. INPUT PCB Disassembly – Remove the
stereo out knob from the front. Remove the
eleven M9 nuts and washers from the input
jacks. Unscrew the eight XLR jack mounting
screws. Unscrew the three M3 screws from the
Input PCB. The Input PCB can now be
removed. (Note: This step must be performed
after step 4)
7. Mixer PCB Disassembly – Remove all 26
knobs from the front of the unit. Unscrew the
eleven M3 screws from the mixer PCB. The
Mixer PCB can now be removed. (Note: This
step must be performed after the step 5)

PASSPORT®300 PRO
(This is the model name for warranty claims)
5

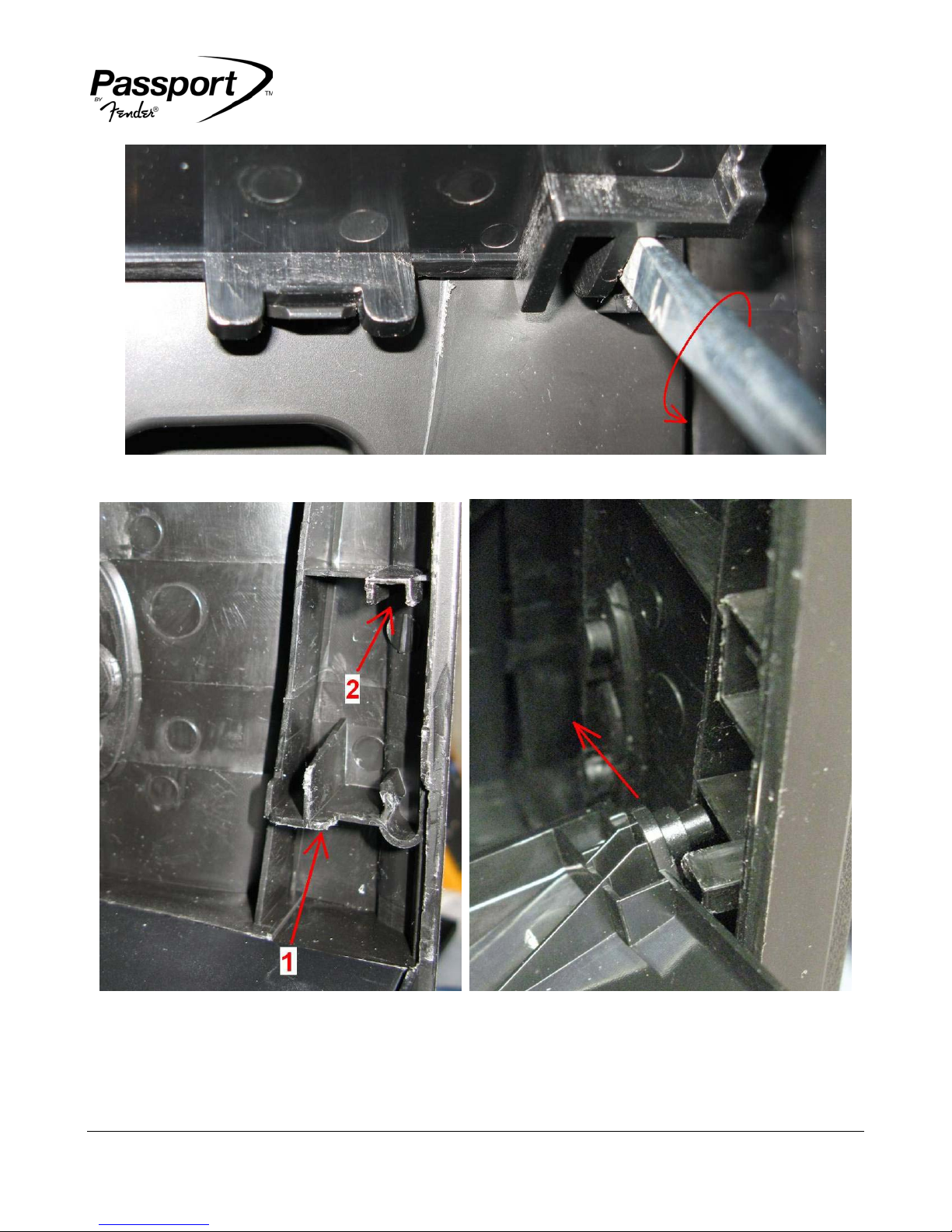

Photo 1: Screwdriver inserted into shelf hinge.
Photo 2: Edges Rear Door must pass Photo 3: Push Rear Door in toward unit to remove

PASSPORT®300 PRO
(This is the model name for warranty claims)
6
PCB EXCHANGE POLICY
Parts marked with a single asterisk (*) in the Parts
List are not field replaceable. If a failure due to one
of these components is detected, please contact
the FMIC Customer Service Department to order
the complete PCB Assembly.
CIRCUIT DESCRIPTION
This section provides concise information about new
or unusual circuitry designs incorporated into this
amplifier model. The purpose is to aid the service
technician by providing insight into the design areas
most likely to become obstacles in troubleshooting.
Information is focused for its effective use while
maintaining the security of Fender® proprietary
information wherever possible.
The 300 PRO consists of the following modules.
1. The SMPS PCB Module
2. The Input PCB Module
3. The Mixer PCB Module
4. The Class-D Amplifier PCB Module
The SMPS PCB Module
The SMPS PCB Module uses SW501 to select
input AC mains voltages ranging from 100V ~ 120V
(50/60Hz) at the 115V AC mains setting, and 220V
~ 240V (50/60Hz) at the 230VAC mains setting. It
then provides the following output voltages to power
the 300 Pro for various functionalities.
1. +40/-40VDC for the class-D amplifier PCB
assembly
2. +5/-5VDC for the class-D amplifier PCB
assembly
3. +12VDC V_driver for the Class-D amplifier PCB
assembly
4. +15/-15VDC for the input PCB assembly
5. +24Vdc for The fan
6. +8VDC for the wireless microphone
7. +5VDC for the MCU and LED etc.
8. +48VDC for the microphone
U502 (ICE2B365) is the PWM controller integration
switch MOSFET to drive Transformer T504, which
supplies +15/-15VDC, 8VDC, 12VDC, 24VDC,
+5VDC, +48VDC and switches on the PWM
controller U501 (KA3844B). U501 then alternately
switches Q501 and Q502 on and off according to
the load condition to drive transformer T501, which
supplies +40/-40VDC and +5/-5VDC voltage to the
Class-D amplifier PCB assembly.
The Input PCB Module
The input PCB provides a series of input and output
jacks as described below.
1. Channel 1-4 with XLR and ¼” TRS phone jacks
2. Channel 5-6 with 1/8“stereo and ¼” TRS phone
jacks.
3. ¼” TRS Pre-Amp Out / Power Amp In phone
jacks
4. 1/8” stereo output with volume control.
5. ¼” Subwoofer output.
Channel 1-4 also contain “PAD” switches which
provide 20dB of attenuation when being engaged.
Channel 5-6 can be used for both, mono as well as
stereo input sources. The input is a mono input
when only the L/Mono jack is being used. The XLR
jacks on channel 1-4 can provide +48VDC phantom
power when the phantom power switch is being
engaged. The signal from the XLR and ¼” phone
jacks are either amplified (Mic input by +40dB) or
buffered (Line input by 0dB) and then fed to the
Mixer PCB.
All signals that are coming from the mixer buss is
being fed through a limiter and then fed to the
amplifier.

PASSPORT®300 PRO
(This is the model name for warranty claims)
7
The Mixer PCB Module
The Mixer PCB module receives input signal from
channel 1-6. It provides the following control
functions for each channel.
1. LEVEL VOLUME
2. EQ LOW
3. EQ HIGH
4. REVERB VOLUME.
5. INPUT SIGNAL PRESENT / CLIP INDICATOR.
The input signals from each channel along with the
reverb output are summed at U214. The summed
signal is going through a System EQ and a Master
Volume Control to the amplifier module via the Input
PCB. The output level is being shown on the LED
meter bar.
The AMP Module
The amplifier is a two-channel 150W per channel /
4 Ohm half-bridge Class-D audio power amplifier.
Its power supply is +/-40VDC.
The main features about the amplifier are as
follows:
Output Power: 150 W per channel into 4 Ohms at
1% THD+N at 1kHz.
Multiple Protection Features
- Over-current protection (OCP),
- Over-voltage protection (OVP),
- Under-voltage protection (UVP),
- DC-protection (DCP),
- Over-temperature protection (OTP)

PASSPORT®300 PRO
(This is the model name for warranty claims)
*Non-serviceable part. Replace complete parent assembly. See PCB EXCHANGE POLICY section above.
shaded Unique Fender® part. Order directly from the FMIC Parts Department.
shaded + *Access to this part or assembly is controlled. Please contact the FMIC Customer Service Department.
** Safety Requirement part. Replacement must match Safety Agency…–Value, if specified –Type, if specified –Approval Mark(s) if on part.
shaded + ** Both a unique Fender® part and a Safety Requirement part as defined above.
8
.PARTS LIST: AMP - PCB ASSEMBLY
QTY PART # DESCRIPTION REFERENCE DESIGNATION
1 0079972000 *PCB ASSY, PWR AMP Complete AMP PCB Assembly
3 REF CC 25V 10U 10% 1206 C767, C768, C769
2 REF CC 25V 22U 10% 1210 C735, C736
4 REF CC 25V 3.3U 10% 1210 C747, C748, C749, C750
12 REF CC 50V 0.1uF 10% 0805 C708, C709, C747A, C748A, C749A, C750A, C775, C7G1, C7G2,
C7HS1, C7HS2, CS1
4 REF CC 50V 220pF 5% 0805 C702, C703, C706, C707
1 REF CC 50V 0.22U 10% 0805 C777
4 REF CC 50V 2.2U 10% 1206 X7R C730, C731, C732, C770
2 REF CC 50V 47pF 5% 0805 1.2x C728, C729
2 REF CC 50V 0.047U 10% 0805 C765, C766
2 REF CC 100V 4700P 10% 0805 C759A, C760A
2 REF CC 500V 150P 10% RLT 7X9 C755, C756
8 REF CC 250V 1000P 5% 0805 C737, C738, C740, C742, C751, C752, C753, C754
6 REF CC 250V 0.1U 10% X7R C716, C717, C718, C719, C739, C741
2 REF CM 400VDC 0.47U 5% RB C759, C760
2 REF CM 400V 0.1U 5% RL 18X14 C761, C762
2 REF CT 16V 10uF 20% SM C733, C734
1 REF CE 16V 10uF 20% RL 4x7 C778
1 REF CE 16V 100U 20% RLR 5x11 C774
2 REF CE 16V 22UF 20% RL 4X7 C743, C744
4 REF CE 16V 22U 20% RLR 4X7 C700, C701, C704, C705
4 REF CE 50V 2200UF 20% RL C720, C721, C722, C723
1 REF PCB AMP D/S 94V0 VER03 AMP
2 REF INDUCTOR 22UH +/-20% L700, L701
2 REF CHOKE-COMMON MODE 10A CL700, CL701
1 REF WAFER 4P P3.96 STRAIGHT JB702
1 REF CONNECTOR SOCKET 7P JB703
2 0079947000 JACK, 1/4 INCH SPKR CH700, CH701
1 REF IC DUAL OP AMP NE5532D U700
2 REF IC GATE DRIVER IRS20957S U703, U704
2 REF IC ASIC TLC081 SO-8 U705, U706
2 REF BRACKET-GROUNDING PCB M702, M703
2 REF BRACKET-MAIN M700, M701
2 REF RMF 1W 2K 5% ATS METAL O R794, R795
2 REF RMF 1W 47K 1% ATS R783, R785
3 REF RMG 1/10W 0R 1% 0805 R718, R724A, R725A
1 REF RMG 1/10W 0R 5% 0805 R788

PASSPORT®300 PRO
(This is the model name for warranty claims)
*Non-serviceable part. Replace complete parent assembly. See PCB EXCHANGE POLICY section above.
shaded Unique Fender® part. Order directly from the FMIC Parts Department.
shaded + *Access to this part or assembly is controlled. Please contact the FMIC Customer Service Department.
** Safety Requirement part. Replacement must match Safety Agency…–Value, if specified –Type, if specified –Approval Mark(s) if on part.
shaded + ** Both a unique Fender® part and a Safety Requirement part as defined above.
9
.PARTS LIST: AMP - PCB ASSEMBLY
QTY PART # DESCRIPTION REFERENCE DESIGNATION
2 REF RMG 1/10W 10R 1% 0805 R769, R770
6 REF RMG 1/10W 100R 1% 0805 R710, R712A, R713A, R745, R746, R766
9 REF RMG 1/10W 1K 1% 0805 R719C, R723, R723B, R730, R732, R733, R734, R736, R737
7 REF RMG 1/10W 10K 1% 0805 R706A, R707A, R755, R757, R759, R764, R765
6 REF RMG 1/10W 100K 1% 0805 R700A, R701A, R711, R712, R719B, R763
3 REF RMG 1/10W 1M 1% 0805 R700C, R700D, R721B
2 REF RMG 1/10W 15K 1% 0805 R767, R768
1 REF RMG 1/10W 18K 1% 0805 R721
1 REF RMG 1/10W 2K 1% 0805 R719A
1 REF RGM 1/10W 220R 1% 0805 R735
1 REF RMG 1/10W 2.2K 1% 0805 R718A
2 REF RMG 1/10W 2.4K 1% 0805 R743, R744
1 REF RMG 1/10W 270R 1% 0805 R731
1 REF RMG 1/10W 2.7K 1% 0805 R719
6 REF RMG 1/10W 3.3K 1% 0805 R702A, R703A, R708A, R709A, R754A, R758A
1 REF RMG 1/10W 33K 1% 0805 R703
2 REF RMG 1/10W 39K 1% 0805 R781, R782
2 REF RMG 1/10W 470R 1% 0805 R716A, R717A
1 REF RMG 1/10W 4.7K 1% 0805 R721C
6 REF RMG 1/10W 47K 1% 0805 R718B, R789, R790, R791, R792, R798
8 REF RMG 1/10W 4.7R 1% 0805 R700B, R701B, R775, R776, R777, R778, R779, R780
9 REF RMG 1/10W 5.1K 1% 0805 R700, R701, R705, R706, R707, R708, R709, R718C, R726
4 REF RMG 1/10W 6.8K 1% 0805 R717, R729A, R748, R751
5 REF RMG 1/10W 8.2K 1% 0805 R702, R702B, R721A, R749, R752
2 REF RMG 1/8W 6.8K 5% 1206 R750, R753
4 REF RMG 1/4W 22R 1% 1206 R771, R772, R773, R774
4 REF RMG 1W 5.1R 5% 2512 R704A, R704B, R705A, R705B
2 REF RWR 5W 10R 5% AL R722A, R723A
15 REF DIODE LL4148 SM D700, D701, D702, D703, D718, D719, D723, D724, D725, D738, D739,
D740, D741, D742, D743
8 REF DIODE ULTRA 200V ER1D D710, D711, D712, D713, D714, D715, D716, D717
2 REF DIODE SCHOTTKY 40V 1A D708, D709
1 REF DZ 1/2W 22VD RLZTE-1122D Z705
1 REF DZ 1/2W 3.3V SMD ROHM Z701
1 REF DZ 1/2W 47V 0805 Z706
4 REF TR PNP MMBT5401 HFE: 50 Q712, Q715, Q717, Q718
4 REF TR NPN MMBT5551 HFE: 80 Q706, Q707, Q710, Q714
6 REF TR MMBT3904LT1G NPN Q705, Q716, Q719, Q720, Q721, Q722

PASSPORT®300 PRO
(This is the model name for warranty claims)
*Non-serviceable part. Replace complete parent assembly. See PCB EXCHANGE POLICY section above.
shaded Unique Fender® part. Order directly from the FMIC Parts Department.
shaded + *Access to this part or assembly is controlled. Please contact the FMIC Customer Service Department.
** Safety Requirement part. Replacement must match Safety Agency…–Value, if specified –Type, if specified –Approval Mark(s) if on part.
shaded + ** Both a unique Fender® part and a Safety Requirement part as defined above.
10
.PARTS LIST: AMP - PCB ASSEMBLY
QTY PART # DESCRIPTION REFERENCE DESIGNATION
4 REF MOSFET N-CH 200V 18A Q700, Q701, Q702, Q703
1 REF THERMISTOR NTC 10K 1% 50 RP701
1 REF WIRE-SHIELD 5P P2.5 #26 JA702
.PARTS LIST: INPUT - PCB ASSEMBLY
QTY PART # DESCRIPTION REFERENCE DESIGNATION
1 0079970000 *PCB ASSY, INPUT Complete INPUT PCB Assembly
2 REF CC 50V 10P 5% 0603 C961, C962
14 REF CC 50V 100P 5% 0603/1608 C818, C819, C828, C836, C837, C849, C858, C859, C868, C878, C879,
C888, C949, C950
3 REF CC 50V 0.01uF 10% 0603 C670, C960, C969
61 REF CC 50V 0.1U 5% 0603 C801, C802, C803, C804, C805, C806, C816, C817, C825, C826, C829,
C830, C838, C839, C845, C846, C856, C857, C865, C866, C869, C870,
C876, C877, C885, C886, C895, C896, C901, C902, C905, C906, C915,
C916, C919, C920, C922, C923, C928, C929, C930, C931, C932, C938,
C939, C940, C941, C942, C943, C944, C945, C946, C947, C948, C951,
C963, C964, C965, C966, C967, C968
32 REF CC 50V 220P 5% 0603 C821, C822, C841, C842, C861, C862, C881, C882, C891, C892, C893,
C894, C897, C898, C899, C900, C903, C904, C907, C908, C909, C910,
C921, C925, C952, C953, C954, C955, C956, C957, C958, C959
4 REF CC 50V 2200P 5% 0603 C813, C833, C853, C873
6 REF CC 50V 0.033U 10% C911, C912, C913, C914, C934, C935
17 REF CC 50V 470P 5% 0603 C814, C815, C823, C824, C834, C835, C843, C844, C854, C855, C863,
C864, C874, C875, C883, C884, C924
2 REF CE 10V 100U 20% RLR 5X11 CE808, CE809
3 REF CE 25V 220U 20% RLR P2.5 CE801, CE802, CE803
2 REF CE 50V 10U 20% RLR 5X11 CE891, CE892
49 REF CE 50V 47U 20% RLR 5X11 CE813, CE816, CE817, CE818, CE819, CE820, CE823, CE826,
CE827, CE828, CE829, CE830, CE833, CE836, CE837, CE838,
CE839, CE840, CE843, CE846, CE847, CE848, CE849, CE850,
CE851, CE852, CE853, CE854, CE855, CE856, CE857, CE858,
CE859, CE860, CE861, CE862, CE865, CE866, CE867, CE868,
CE869, CE870, CE871, CE872, CE873, CE874, CE875, CE876, CE890
2 REF CE 63V 100U 20% RLT 10x1 CE804, CE805
9 REF CE 63V 47U 20% RLR CE811, CE812, CE821, CE822, CE831, CE832, CE841, CE842, CE888
1 REF PCB INP D/S 94V0 VER03 INP
2 REF COIL 22UH 10% AT BL7 L801, L802
3 REF CONNECTOR 10P P2.54 ST JB2, JB3, JB4
1 REF WAFER 5 PIN P2.5 J5
1 REF WAFER 6 PIN P2.5 JB7
