AmazonBasics B07D7P47GK User manual

B07D7P47GK, B07D8X6CK8, B07D93KC21, B07D93KC3P,
B07D91YBXK, B07D91YT8G
Programmable Mechanical Gaming Keyboard,
RGB LED Backlit
Clavier de Jeu Mécanique Programmable, Rétroéclairage LED RGB
Programmierbare, mechanische Gaming-Tastatur, RGB LED-Hintergrundbeleuchtung
Tastiera da Gioco Meccanica Programmabile, RGB Retroilluminata a LED
Teclado Mecánico Programable Para Juegos, Retroiluminación LED RGB
プログラングでるカカルゲーングキーボードRGB LED バックライト付

English ..................................... 3
Français .................................18
Deutsch..................................32
Italiano ...................................46
Español ..................................60
日本語.....................................74

3
Welcome Guide •English
Contents:
Before getting started, ensure the package contains the following components:
A B C D
F
E
ACustomizable G keys DMode key
BMultimedia keys EInstallation CD
CLock indicators FWrist rest

4
Function Keys
Fn+F1 Turn on the Media Player application
Fn+F2 Decrease the volume
Fn+F3 Increase the volume
Fn+F4 Mute the computer’s sound
Fn+F5 Stop playing the track
Fn+F6 Play the previous track
Fn+F7 Pause and restart the track
Fn+F8 Play the next track
Fn+F9 Start the default e-mail application
Fn+F10 Start the default web browser and load the homepage
Fn+F11 Open favorites of the used browser
Fn+F12 Open the calculator
Fn+PgUp Increase the backlight brightness
Fn+PgDn Decrease the backlight brightness
Fn+ Lock the Windows key

5
IMPORTANT SAFEGUARDS
Read these instructions carefully and retain them for future use. If this product is passed
to a third party, then these instructions must be included.
This product is intended for use as a computer text input device. This product allows to customize
buttons for gaming purposes.
When using the product, basic safety precautions should always be followed to reduce the risk of
injury including the following:
Risk of suffocation! Keep any packaging materials away from children – these
materials are a potential source of danger, e.g. suffocation.
SAVE THESE INSTRUCTIONS
Connection and Installation
This product is a plug-and-play device and for basic operation it does not
require installation of any drivers or software. In the basic operation mode it
can be used on both PC and MAC. To gain full functionality of the product,
install the software.
1. Connect the USB plug to the USB port of your computer.
2. The computer detects the product automatically.
3. Insert the installation CD or download the software “AmazonBasics gaming software” from
https://www.amazon.com/dp/B07D7P47GK
4. Open the setup file and follow the on-screen installation steps.
5. Open the “AmazonBasics gaming software”.
The software is compatible with PC only. Reboot the computer after the
installation is completed.
DANGER
NOTICE
NOTICE

6
Operation
Selecting the language
Click button and choose the language.
Game Profile Management
Game profiles let you organize all your custom settings. You can save up to five profiles.

7
Renaming a game profile
• Select a profile and type in the new name in the text field under PROFILE NAME.
• Click APPLY and then .
• Choose a file name and location and click Save.
Loading an existing game profile
• Click and browse an existing game profile.
• Click Open to confirm.
Linking a game profile to a game/program
• Enter the *.exe file of the game/program in the PATH TO EXECUTABLE (*.EXE) field.
• The product detects the relevant profile automatically after the game/program has been
opened.
Buttons
Mode key
Press the mode key (D) to toggle between the 5 game profiles.
G1-G5 keys
Press one of the G keys (A) to assign a macro to it (see Macro Manager section).

8

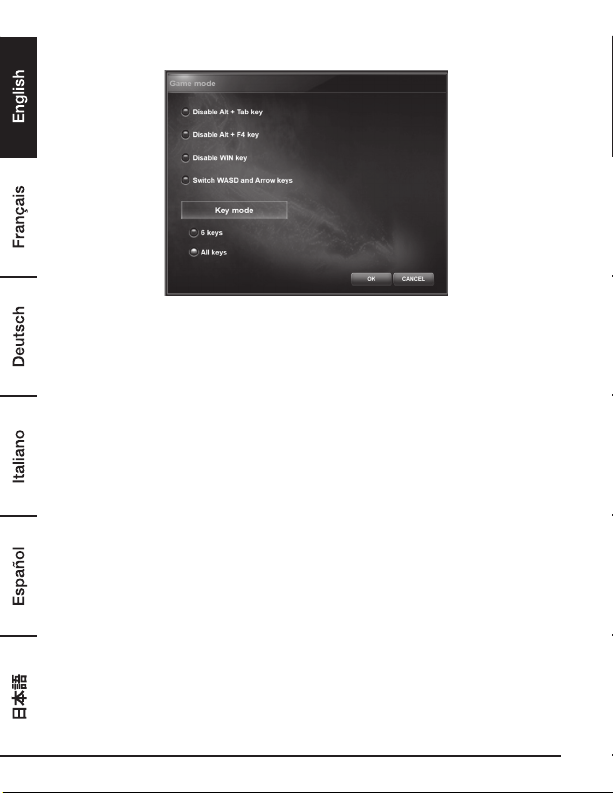

Game mode
Select the game mode, then press OK to activate it.
• Disable Alt + Tab shortcut
- Switch between opened windows applications.
• Disable Alt + F4 shortcut
- Close the current window or application, when all the windows are closed or minimized
- The shortcut opens the shutdown window.
• Disable Windows Key
-Invokes the operating system’s start menu.
• WASD <-> Arrow Keys
-Swap WASD with arrow keys.
• Key mode
- 6 keys - 6-key-rollover (Up to 6 keystrokes are correctly detected regardless of how many other
keys are being pressed at the same time.)
- All keys - Multi-key-rollover / Anti-ghosting (All simultaneous keystrokes are correctly detected.)

9
Macro Manager
The macro manager allows you to create numerous series of actions assigned to a particular key.
With a single game profile you can setup up to 9 macro combinations. Each
macro combination can record up to 64 actions.
BUTTON FUNCTION
Add a new macro
(under MACRO SELECT)
Delete a macro
Save a macro
Load a macro
MACRO NAME Type in a macro name
Delay time
• Recording - the delay will be reproduced according to how
keystrokes are entered
• Fixed - the delay is predefined and fixed (expressed in
milliseconds)
• Ignore - ignore all the pauses in-between keystrokes
NOTICE

10
BUTTON FUNCTION
Start Start recording the macro combination
Stop Stop recording the macro combination
Move an action up/down
Delete an action
Insert a new action
Play options
• Repeat times - choose a particular number of repetitions
• REPEAT UNTIL YOU PRESS ANY MACRO KEY TO END
• REPEAT UNTIL MACRO KEY RELEASE
Some games are unable to detect short delays.
Sensitivity
Sensitivity settings allow to customize the speed and precision of the product.
NOTICE

11
Polling rate
• Polling rate setting configures the number of times the computer prompts the product for
information.
• The possible settings are 125 Hz/8 ms, 250 Hz/4 ms, 500 Hz/2 ms, 1000 Hz/1 ms.
• After choosing the setting click APPLY to confirm.
Some USB hubs may decrease the product’s polling frequency. If you
experience decreased performance, plug the product directly into the USB port
of your computer.
Repeat rate
• Repeat rate setting configures the repetition speed of a pressed key.
• Move the slider from SLOW to FAST to adjust the setting.
• After choosing the setting click APPLY to confirm.
Repeat delay
• Repeat delay setting configures the pause between pressing the key and when it starts
repeating.
• The possible settings are 1x (250 ms), 2x (500 ms), 4x (750 ms), 8x (1000 ms)
• After choosing the setting click APPLY to confirm.
Repeat rate test
Hold down a random key continuously into the blank bar to test the speed of repeat rate and
repeat delay.
Lighting Effect
NOTICE

12
Lighting effect
Select the desired lighting effect. Use the drop-down menu to choose from:
• FULL LIGHTENED
• BREATHING LIGHT
• REACT
• SCROLL
• RIPPLE
• RADAR
• FIREWORKS
• BLINK
• WAVE
• CUSTOM SETUP - click on the particular key to light it up and choose the color
LED setting
LED setting is only supported under “Custom setup” mode.
• Click on the multicolored square and choose the color.
• Use the RGB fields to input the color’s code.
• Click OK and APPLY.

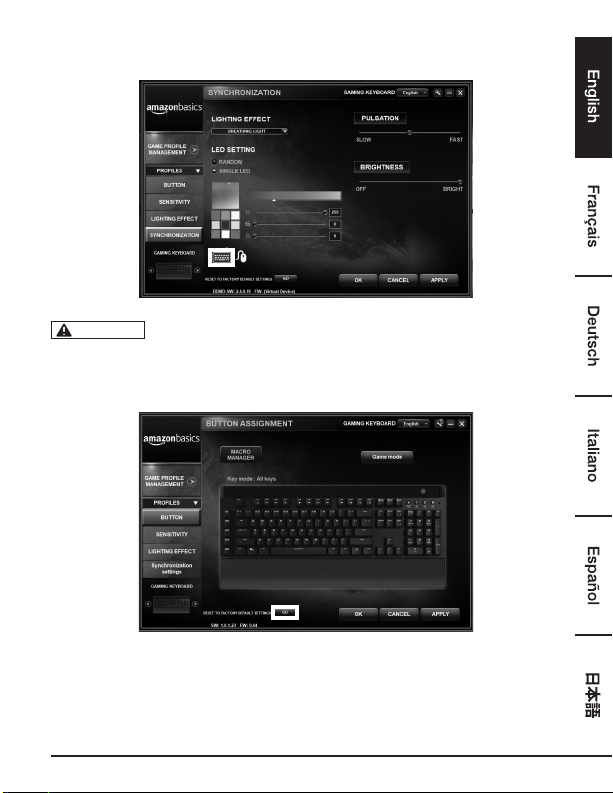

Synchronization Settings
If you are also using the AmazonBasics Gaming Mouse (ASIN: B07CM7N7TG) you can
synchronize the lighting settings for both devices simultaneously.
You can synchronize the:
• Lighting effect
Select the lightning effect (see the “Lightning Effect” section)
• LED setting
Select the color of the lighting effect, choose from:
- RANDOM - the colors change randomly
- SINGLE LED -choose a particular color for the side light and the main light
• Pulsation
Slide between SLOW and FAST setting to choose the speed.

13
• Brightness
Slide between OFF and BRIGHT setting to choose the brightness.
The product is in the synchronization mode when the keyboard icon lights up
blue.
Reset to Factory Default Settings
Click GO to reset the product to factory default settings.
Cleaning
• To clean, wipe with a soft, slightly moist cloth.
NOTICE

14
Specifications
Power source: 5V USB port
System requirements: Windows 7/8/8.1/10
Product dimensions
(W x H x D): approx. 18.62 x 8.58 x 1.77 inch (47.3 x 21.8 x 4.5 cm)
Product net weight: approx. 2.82 lbs (1.28 kg)
ASIN Layout type
B07D7P47GK US Layout (QWERTY)
B07D8X6CK8 UK Layout (QWERTY)
B07D93KC21 DE Layout (QWERTZ)
B07D93KC3P FR Layout (AZERTY)
B07D91YBXK IT Layout (QWERTY)
B07D91YT8G ES Layout (QWERTY)
Disposal
The Waste Electrical and Electronic Equipment (WEEE) Directive aims to minimize the
impact of electrical and electronic goods on the environment, by increasing re-use and
recycling and by reducing the amount of WEEE going to landfill. The symbol on this
product or its packaging signifies that this product must be disposed separately from
ordinary household wastes at its end of life. Be aware that this is your responsibility
to dispose of electronic equipment at recycling centers in order to conserve natural
resources. Each country should have its collection centers for electrical and electronic
equipment recycling. For information about your recycling drop off area, please contact
your related electrical and electronic equipment waste management authority, your local
city office, or your house hold waste disposal service.

15
Unique Identifier:
B07D7P47GK, B07D8X6CK8, B07D93KC21, B07D93KC3P,
B07D91YBXK, B07D91YT8G
AmazonBasics Programmable Mechanical Gaming Keyboard
Party issuing Supplier’s
Declaration of Conformity:
ABC Corporation: Acrox Technology Co., Ltd.
Street Address: 4F, No. 89, Minshin St.,
City State: Nei Hu Dist., Taipei
Postal Code: 114
Country: Taiwan
Telephone number or internet contact information:
[phone], [email protected]
Responsible Party – U.S.
Contact Information:
Amazon.com Services, Inc.
Street Address: 410 Terry Ave N,
City State: Seattle, WA
Postal Code: 98109
Country: United States
Telephone number or internet contact information:
[phone],
[email protected]

16
FCC Compliance Statement
1. This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
FCC Interference Statement: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Canada IC Notice
• This Class B digital apparatus complies with Canadian CAN ICES-3(B) / NMB-3(B) standard.

17
Warranty Information
To obtain a copy of the warranty for this product:
For US - Visit amazon.com/AmazonBasics/Warranty
For UK - Visit amazon.co.uk/basics-warranty
— or —
Contact Customer Service at 1-866-216-1072
Feedback
Love it? Hate it?
Let us know with a customer review.
AmazonBasics is committed to delivering customer-driven products that live up to your high
standards. We encourage you to write a review sharing your experiences with the product.
Please visit: amazon.com/review/review-your-purchases#
For further services:
Visit amazon.com/gp/help/customer/contact-us
— or —
Contact Customer Service at 1-866-216-1072

18
Guide de Bienvenue •Français
Contenu:
Avant de commencer, veuillez vous assurer que l’emballage contient les composants suivants:
A B C D
F
E
ATouches G personnalisables DTouche Mode
BTouches Multimédia ECD-ROM d’installation
CVoyants de verrouillage FRepose-poignet

19
Touches Fonctions
Fn+F1 Activer l’application du lecteur multimédia
Fn+F2 Réduire le niveau du volume
Fn+F3 Augmenter le niveau du volume
Fn+F4 Désactiver le son de l’ordinateur
Fn+F5 Interrompre la lecture de la piste
Fn+F6 Lire la piste précédente
Fn+F7 Mettre en pause et redémarrer la piste
Fn+F8 Lire la piste suivante
Fn+F9 Démarrer l’application d’e-mail par défaut
Fn+F10 Démarrer le navigateur Web par défaut et charger la page d’accueil
Fn+F11 Ouvrir les favoris du navigateur utilisé
Fn+F12 Ouvrir la calculatrice
Fn+PgUp Augmenter la luminosité du rétro-éclairage
Fn+PgDn Réduire la luminosité du rétro-éclairage
Fn+ Verrouiller la touche Windows

20
MESURES DE SÉCURITÉ
IMPORTANTES
Veuillez lire attentivement les présentes instructions et les conserver afin de pouvoir vous
y référer ultérieurement. En cas de cession de ce produit à un tiers, le présent manuel
d’utilisation doit également lui être remis.
Ce produit est conçu pour être utilisé comme dispositif de saisie de texte sur ordinateur. Ce produit
permet de personnaliser les touches à des fins de jeu.
Lors de l’utilisation du produit, vous devez toujours prendre des mesures de sécurité de base afin
de réduire tout risque de blessures, parmi lesquelles:
Risque d’étouffement! Conservez tous les matériaux d’emballage hors de la
portée des enfants. Ces matériaux constituent une source de danger potentiel,
par ex. étouffement.
CONSERVEZ CES INSTRUCTIONS
Raccordement et Installation
Ce produit est un périphérique Prêt à l’emploi et, pour le fonctionnement
de base, il ne nécessite pas d'installation de pilotes ou de logiciel. En mode
Fonctionnement de base, il peut être utilisé sur PC comme sur MAC. Pour
bénéficier de l’intégralité des fonctionnalités du produit, installez le logiciel.
1. Branchez la fiche USB au port USB de votre ordinateur.
2. L’ordinateur détecte automatiquement le produit.
3. Insérez le CD d’installation ou téléchargez le logiciel «AmazonBasics gaming software» à partir
du site: https://www.amazon.com/dp/B07D7P47GK
4. Ouvrez le fichier d’installation, puis exécutez les étapes d’installation qui s’affichent sur l’écran.
5. Ouvrez le logiciel «AmazonBasics gaming software».
Le logiciel est compatible PC exclusivement. Au terme de l’installation,
l’ordinateur doit redémarrer.
DANGER
REMARQUE
REMARQUE
