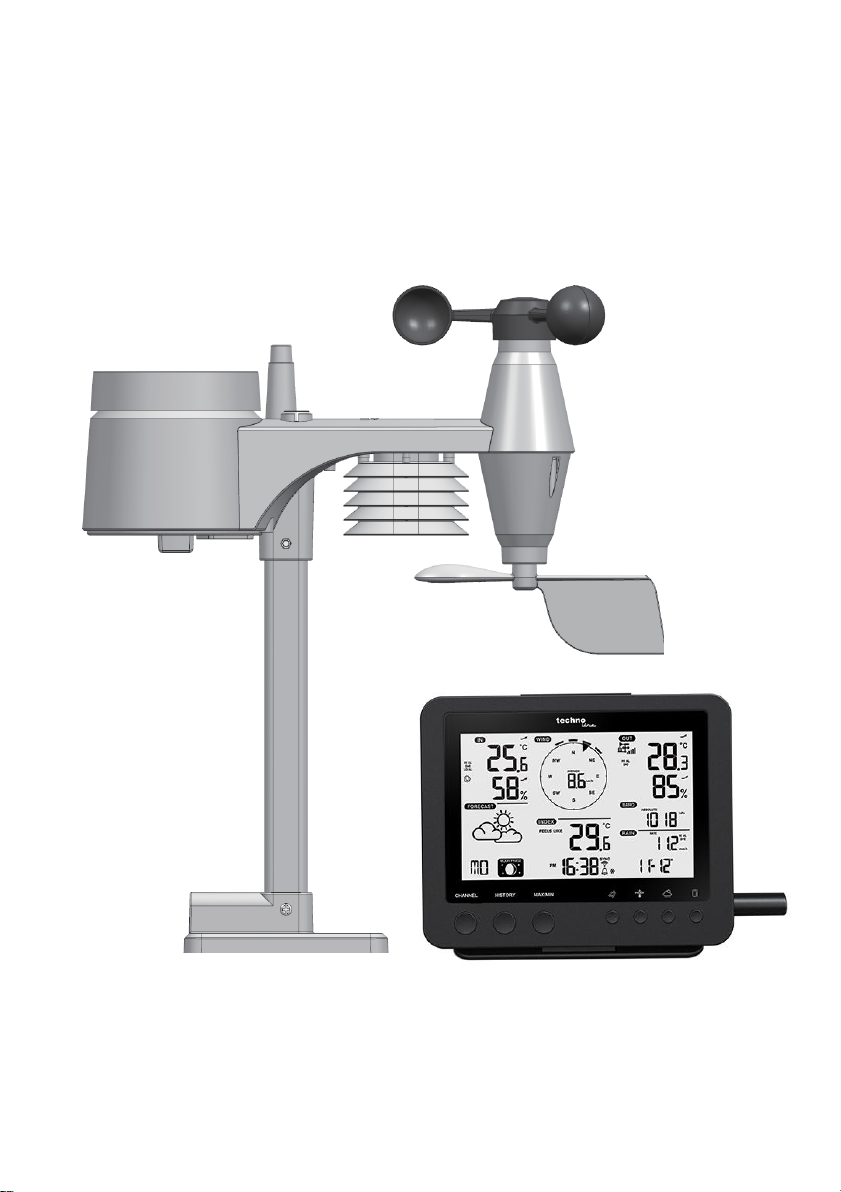

Ambient Weather WS-1900 User manual

CHANNEL HISTORY MAX/MIN
WI-FI weather station with
5-In-1 professional sensor
Model: WS1900
User Manual

EN 1
Table of contents
Introduction 2
Overview 2
Installation and setup 4
Power-up station 6
Pairing wireless 5-in-1 weather sensor & station 7
Pairing additional wireless sensor & station (optional) 7
Create weather server account & setup of wi-fi connection 7
Create Weather Underground account 7
Create Weathercloud account 8
Setup of wi-fi connection 9
Setup the weather server connection 10
Advanced setting in web interface 12
View your weather data in WUnderground 12
View your weather data in Weathercloud 13
Firmware update 13
Other settings & functions of the station 14
Time setting 14
Moon phase 15
Pointing the wireless 5-in-1 sensor to south 15
Setting the alarm time 16
Activating alarm and temperature pre-alarm function 16
Temperature / humidity function & trend 16
Room comfort indicator 17
Wireless receiving of sensor signal 17
Wind 18
Weather index 18
Weather forecast 19
Barometric pressure 19
Rainfall 19
MAX / MIN data recording 20
History data of past 24 hours 20
Weather alert setting 20
Maintenance 22
Battery replacement 22
Clearing the rain collector 22
Clearing the thermo-hygro sensor of wireless 5-in-1 sensor 22
Specifications 22
Precautions 25
Battery safety warnings 26

EN 2
CHANNEL HISTORY MAX/MIN
Introduction
Thank you for selecting Wi-fi weather station with 5-in-1 professional sensor. This system gathers and
automatically uploads accurate and detailed weather data to Weather Underground and Weathercloud
website - the famous weather service which allows weather observers to upload their local weather data with
automated personal weather stations (PWS) - at which you can access and upload your weather data freely.
This product offers professional weather observers or serious weather enthusiasts robust performance with
a wide range of options and sensors. Youwill get your own local forecast, high/lows, totals and averages for
virtually all weather variables without using a PC.
This weather station which transmits in / outdoor temperature, humidity, wind and rain data, which can add
to a sensor array of maximum 7 units, transmits your temperature & humidity to the console. Both sensors
are fully assembled and calibrated for your easy installation. They send data at a low power radio frequency
to the console from up to 150m away (line of sight).
In the console, a high-speed processor is embedded to analyze the received weather data and these real-
time data can be published to Wunderground.com and weathercloud.net through your home Wi-fi router.
The console can also synchronize with internet time server to keep the time and weather data time stamp
of high precision. The LCD display shows informative weather readings with advanced features, such as
high/low alert alarm, different weather index, and MAX/MIN records. With calibration and moon phase
feature, this system is truly a remarkably personal yet professional weather station for your own
backyard.
Note:
This instruction manual contains useful information on the proper use and care of this product.
Please read this manual through to fully understand and enjoy its features, and keep it handy
for future use .
Overview
Base station
1
11 12 13 14 15 16
2
3 4 5 6 7 8 9 10 17 18 19 20 21 22 23 24 25
BARO SENSOR REFR ESH RESET
UNIT WI-FI

EN 3
1 .
Table stand
10 . LCD display
19 . [ °C / °F ] slide switch
2 .
[ SNOOZE ] key
11 . [ CLOCK SET ] key
20 . [ BARO UNIT ] key
3 .
[ CHANNEL ] key
12 . [ ALARM ] key
21 . [ SENSOR / WI-FI ] key
4 .
[ HISTORY ] key
13 . Wall mounting holder
22 . [ REFRESH ] key
5 .
[ MAX / MIN ] key
14 . [ ALERT ] key
23 . Battery compartment
6 .
[ WIND ] key
15 . [ V ] key
24 . [ OFF/LO/HI ] key
7 .
[ INDEX ] key
16 . [ Ʌ ] key
25 . [ RESET ] key
8 .
[ BARO ] key
17 . Power jack
9 .
[ RAIN ] key
18 . [ 12/24 ] key

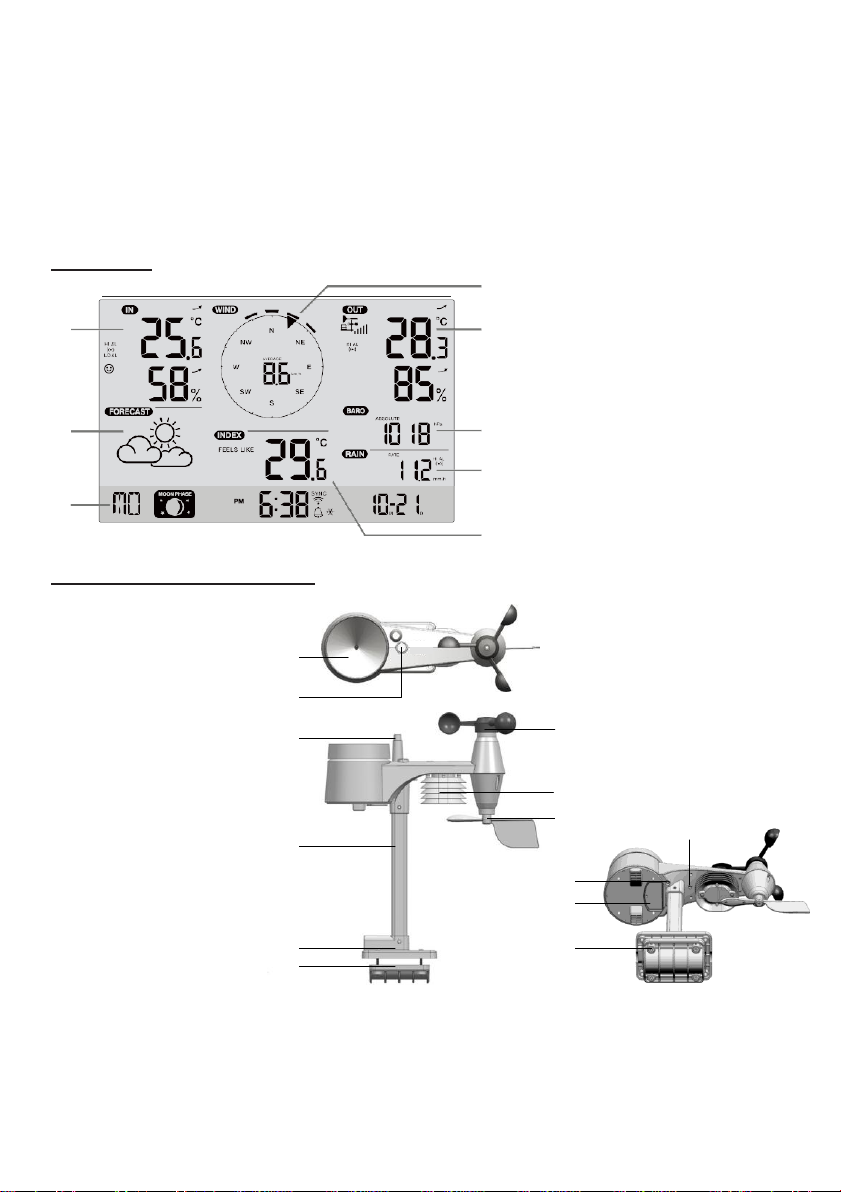

LCD display
1
2
3
4
Display section:
1 . Indoor / CH temperature &
5
humidity
2 . Weather forecast
3 . Time, calendar & moon phase
4 . Wind direction & speed
6
5 . Outdoor temperature &
humidity
7
6 . Barometer
7 . Rainfall
8 . Weather index
8
Wireless 5-in-1 weather sensor
1 . Rain collector
2 . Balance indicator
3 . Antenna
4 . Wind cups
5 . Mounting pole
6 . Radiation shield
7 . Windvane
8 . Mounting base
9 . Mounting clamp
10 . Red LED indicator
11 . [ RESET ]key
12 . Battery door
13 . Screws
1
2
3 4
6
7 10
5 11
12
8 13
9

EN 4

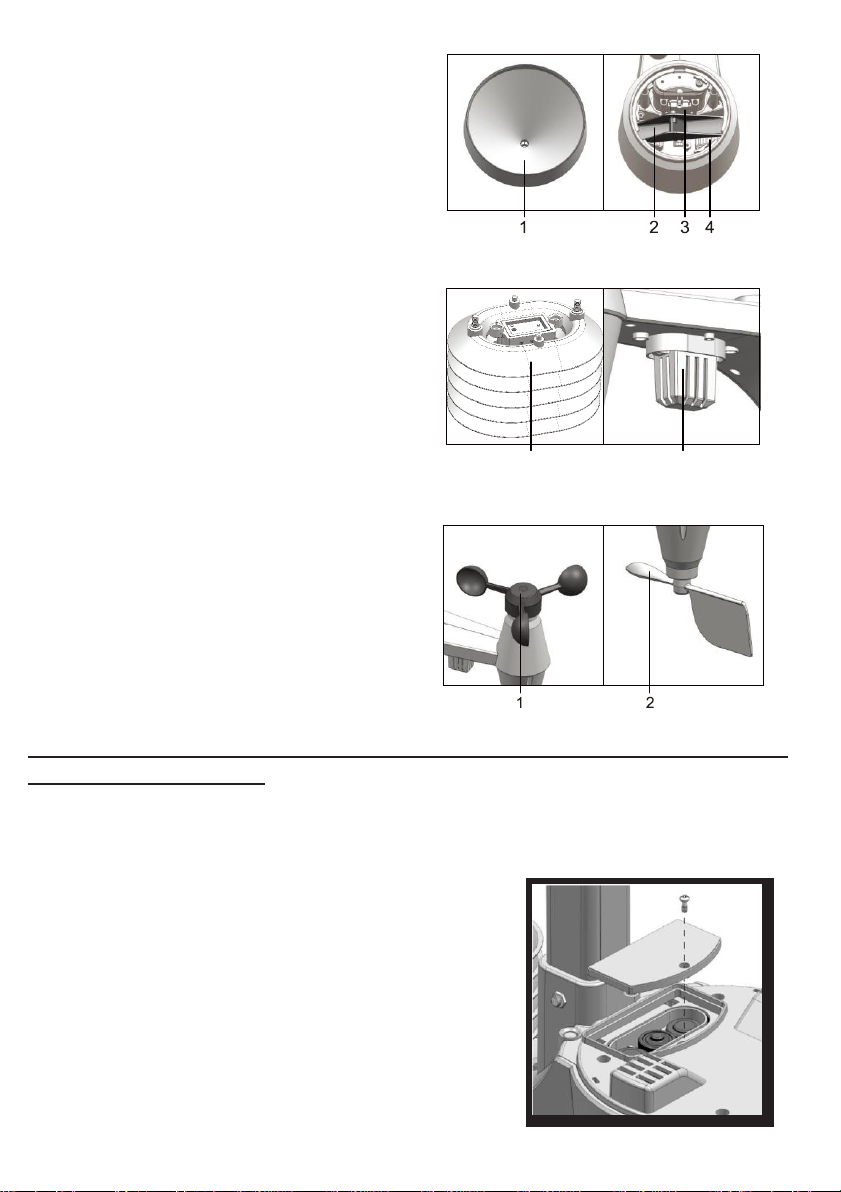

Rain gauge
1 . Rain collector
2 . Tipping bucket
3 . Rain sensor
4 . Drain holes
Temperature and humidity sensor
1 . Radiation shield Sensor casing
2 . Temperature and humidity sensor (inside
the radiation shield)
1 2
Wind sensor
1 . Wind cups (anemometer)
2 . Wind vane
Installation and setup
Install wireless 5-in-1 sensor
Your wireless 5-IN-1 sensor measures wind-speed, wind-direction, rainfall, temperature and
humidity for you. It’s assembled and calibrated for your easy installation.
Install batteries
Unscrew the battery door at bottom of unit and insert the
batteries according to the +/- polarity indicated.
Screw the battery door compartment ontightly.
Note:
Ensure the water tight O-ring is properly aligned in
place to ensure water resistant.
The red LED will begin flashing every 12 seconds.

EN 5

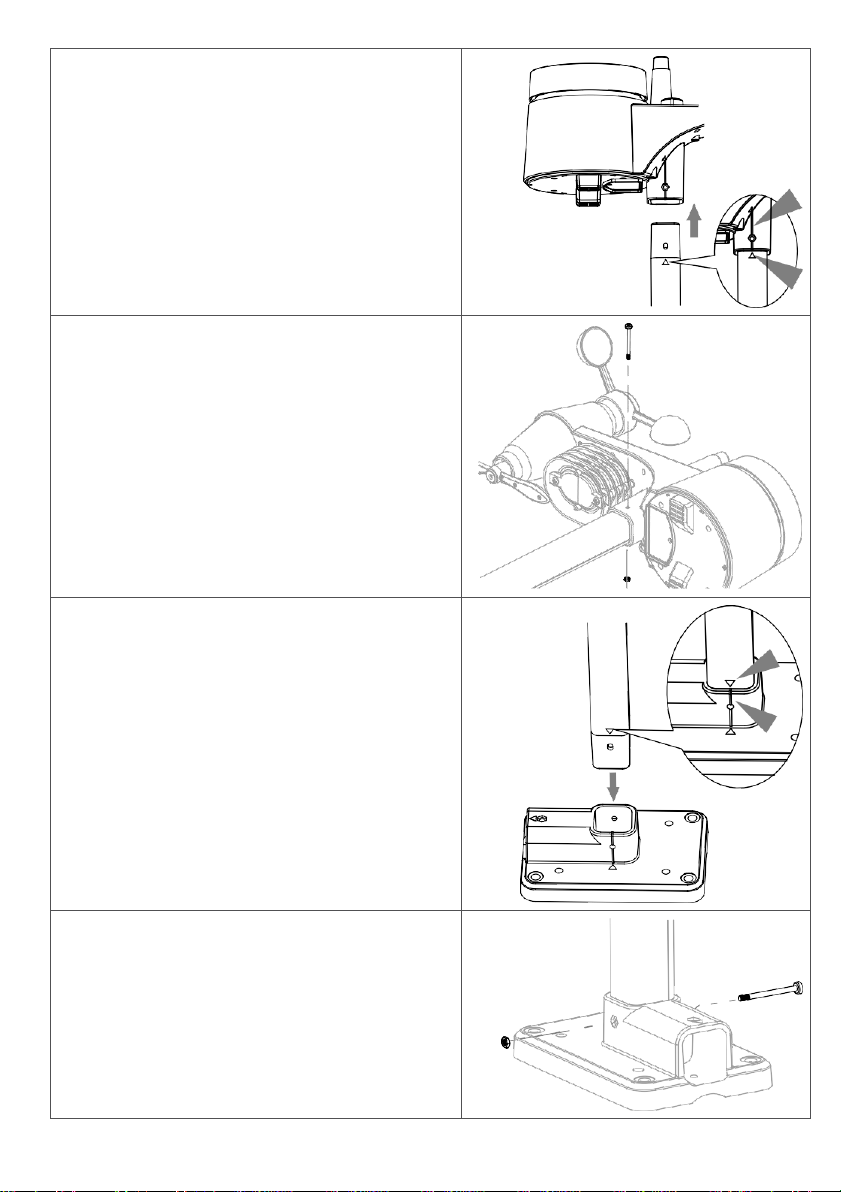

Assemble the stand and pole
Step 1
Insert the top side of the pole to the square hole of
the weather sensor.
Note:
Ensure the pole and sensor's indicator align.
Step 2
Place the nut in the hexagon hole on the sensor,
then insert the screw in other side and tighten it by
the screw driver.
Step 3
Insert the other side of the pole to the square hole
of the plastic stand.
Note:
Ensure the pole and stand's indicator align.
Step 4
Place the nut in the hexagon hole of the stand,
then insert the screw in other side and then
tighten it by the screw driver.

EN 6
Install the wireless 5-IN-1 sensor in an
open location with no obstructions above
and around the sensor for accurate
rain and wind measurement. Install
the sensor with the smaller end facing
the North to properly orient the wind
direction vane.

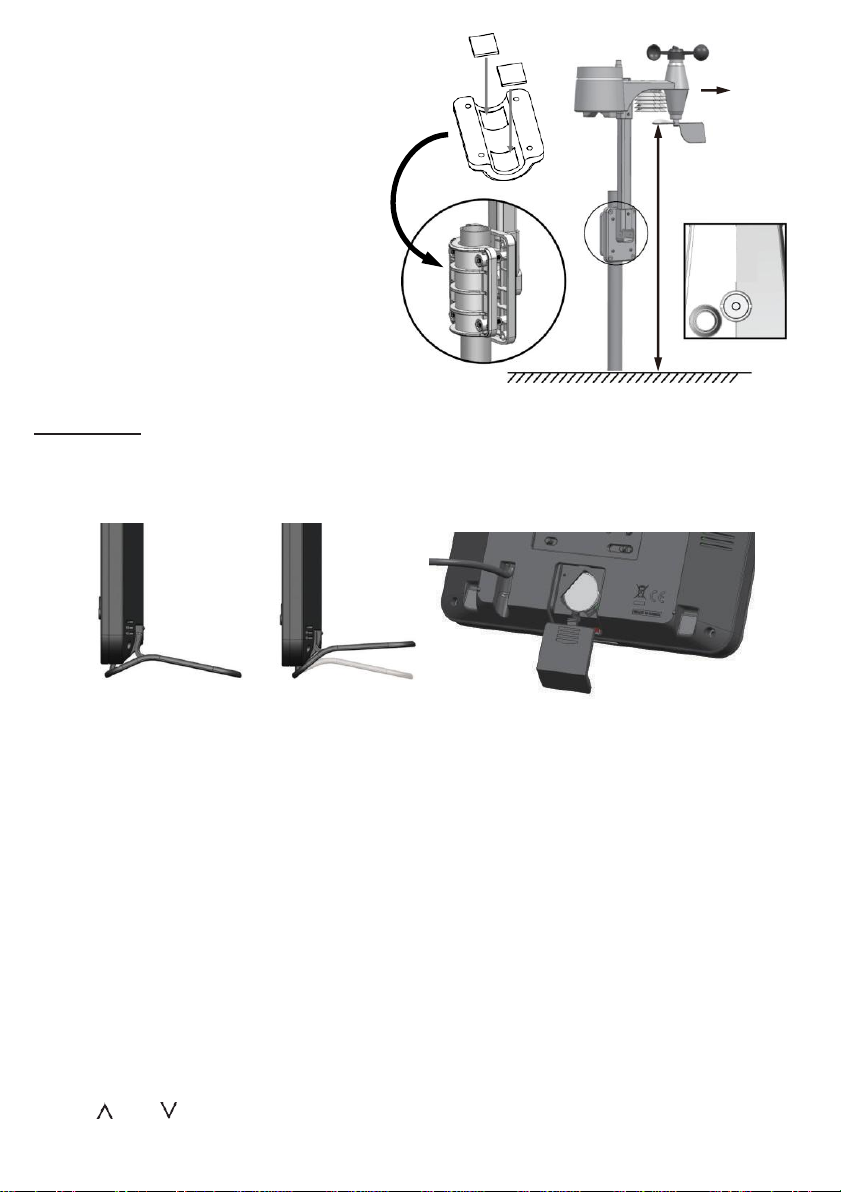

Secure the mounting stand and bracket
(included) to a post or pole, and allow
minimum 1.5m off the ground.
Make sure that the air bubble on the
balance indicator is within the black
circle before the sensor gets screwed
tight.
Add rubber
pads before
mount on Point to
the pole NORTH
1.5 meter off
the ground
Base station
Your station can pairing up with the wireless 5-IN-1 outdoor weather sensor and up to 7
optional wireless sensors. (Not included)
Install the back-up battery (not included, optional)
1 . Remove the battery door of the base station.
2 . Insert a new button cell battery.
3 . Replace the battery door.
Note:
The backup battery can backup: Time & Date, Max/Min & Past 24 hours weather records, Alert
setting values, offset value of weather data and Sensor(s) channel history.
The built-in memory can backup: Router setting and Weather server setting
Power up the station
1 . Plug the power adaptor to power up the console.
2 . Once the console power up, all the segments of the LCD will be shown.
3 . The console will automatically start AP (Access Point) mode.
Note:
If no display appears on the LCD after you plug the adaptor, press [ RESET ] key by using a
pointed object.
Set the LCD display viewing angle
Press [ ] or [ ] key in normal mode to adjust LCD viewing angle to fit table stand or wall
mount situation.

EN 7
Pairing 5-in-1 weather sensor & station
After insert of batteries, the console will automatically search and connect the wireless 5-IN-1
sensor (the sensor antenna icon blinking).
Once the connection is successful, antenna icon and readings for outdoor temperature &
humidity, wind speed, wind direction and rainfall will appear on the LCD.
Changing batteries and manual pairing of sensor
Whenever you changed the batteries of the wireless 5-IN-1 sensor, pairing must be done
manually.
1 . Change all the batteries to new ones in the sensor.
2 . Press [ SENSOR / WI-FI ] key on the console .
3 . Press [ RESET ] key on the wireless 5-IN-1 sensor.
Pairing additional wireless sensor(s) & station (optional)
This console can support up to 7 additional wireless sensor(s). You can press [SENSOR /
WIFI ] key to search the on display channel's sensor manually. Once your sensor paired up,
the sensor signal strength indicator and weather reading will appear on your console display.
Note:
The additional wireless sensor(s) is not included.
Create weather server account & setup wi-fi connection
The console can upload weather data to Wunderground and / or Weathercloud through WI-FI
router. you can follow the step below to setup your device.
Note:
The Weather Underground and Weathercloud website are subject to change.
Create Weather Underground account

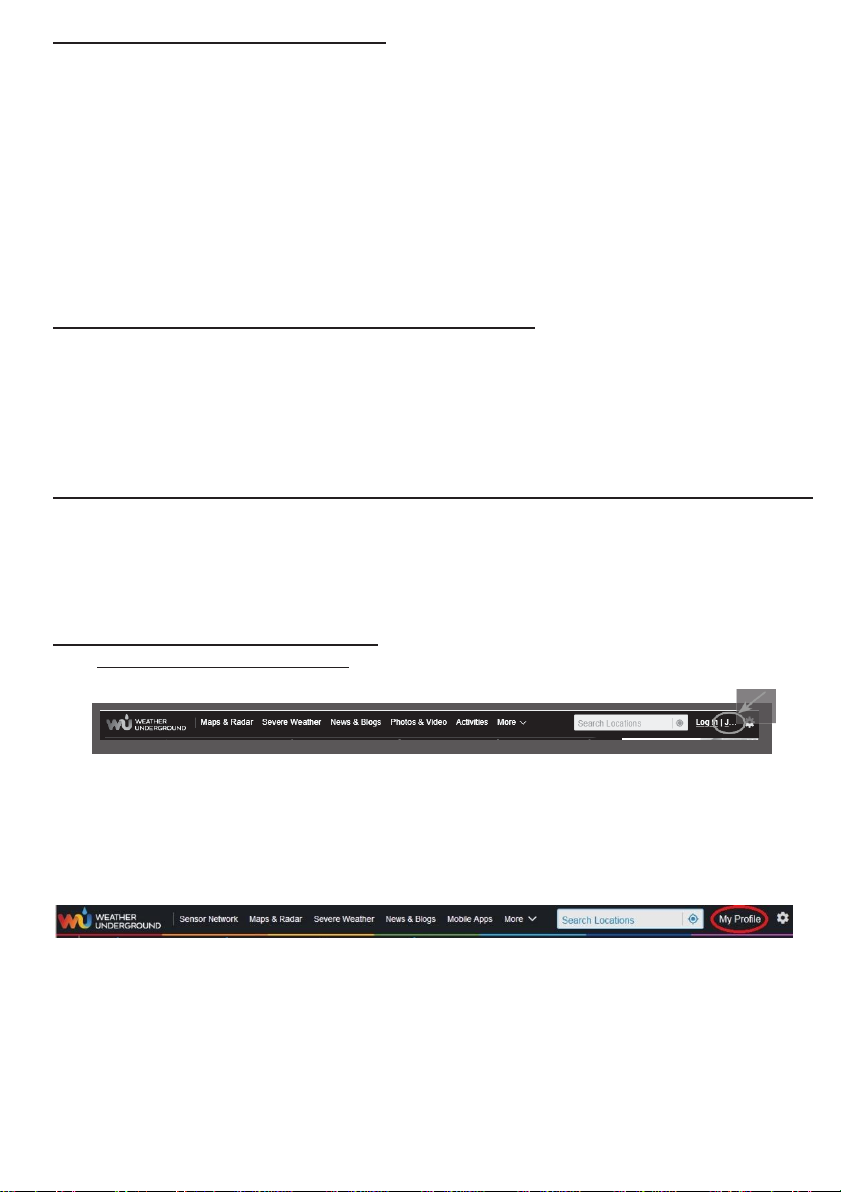

1 . In https://www.wunderground.com click the "Join" on the top right corner to open the
registration page. Follow the instructions to create your account.
Note:
Use the valid email address to register your account.
2
. After you have created your account and completed the Email validation, please go back
to the WUndergound web page. Click “My Profile” -> “My Devices” -> “Add a New Device”
-> “Professional Weather Station” .
3 . Set the location, by writing an address or use the map to set the location and proceed.
4. Fill in at least all required fields. For ”Device Hardware” choose “Other”. Accept the privacy
declaration and proceed

EN 8
.
5. Note your Station ID and Station Key.
Create Weathercloud account
1 . In https://weathercloud.net enter your information in "Join us today" section, then follow
the instructions to create your account .
Note:
Use the valid email address to register your account.
2

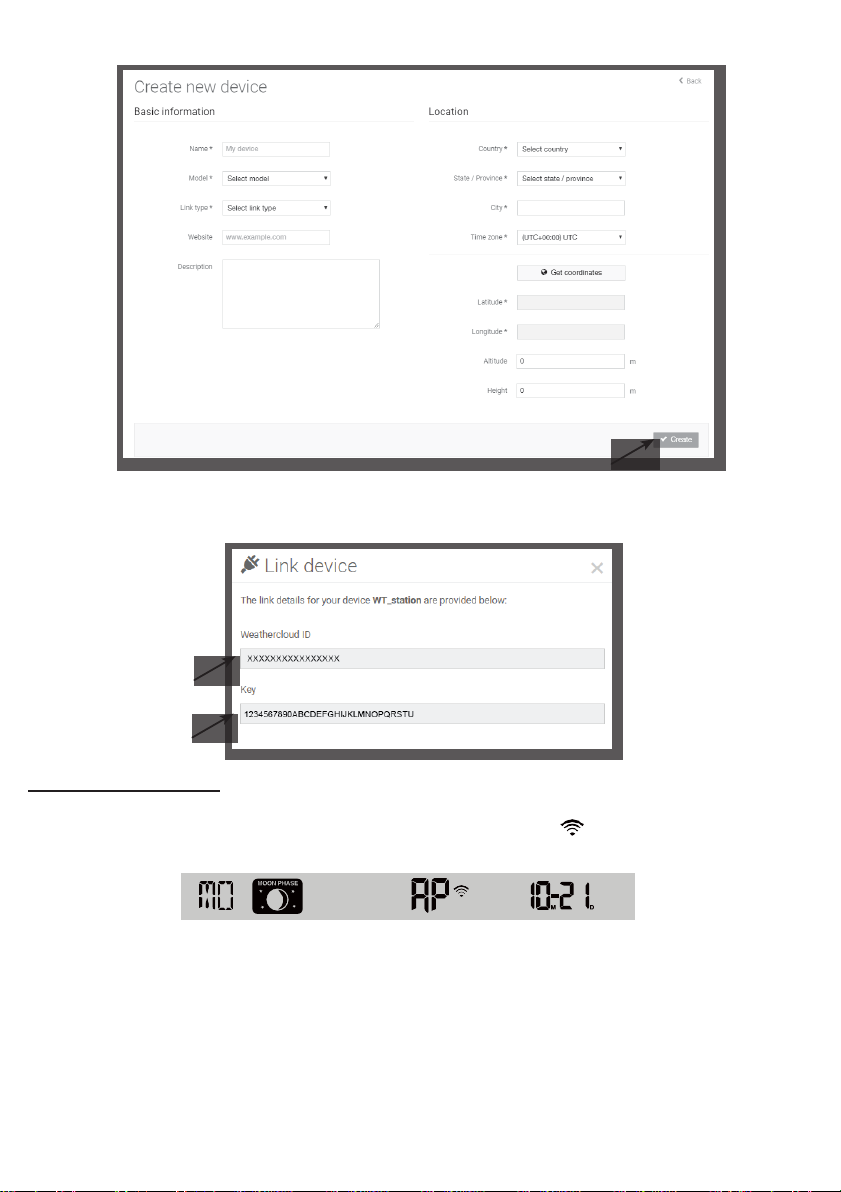

. Sign in weathercloud and then you will go the "Devices" page, click "+ New" to create new
device.
3 . Enter all the information in Create new device page, for the Model* selection box select
the "W100 Series" under "CCL" section. for the Link type* selection box select the "Pro
Weather Link", Once you have completed, click Create .

EN 9
4 . Jot down your ID and key for the further setup step.
Setup wi-fi connection
1 . When you first power up the console, or press and hold the [ WI-FI / SENSOR ] key for 6
seconds in normal mode, the console LCD will show "AP" and " " icon to signify that it has
entered AP (access point) mode, and is ready for WI-FIsettings.
2 . Use the smart phone, tablet, or computer to connect to the console through WI-FI.

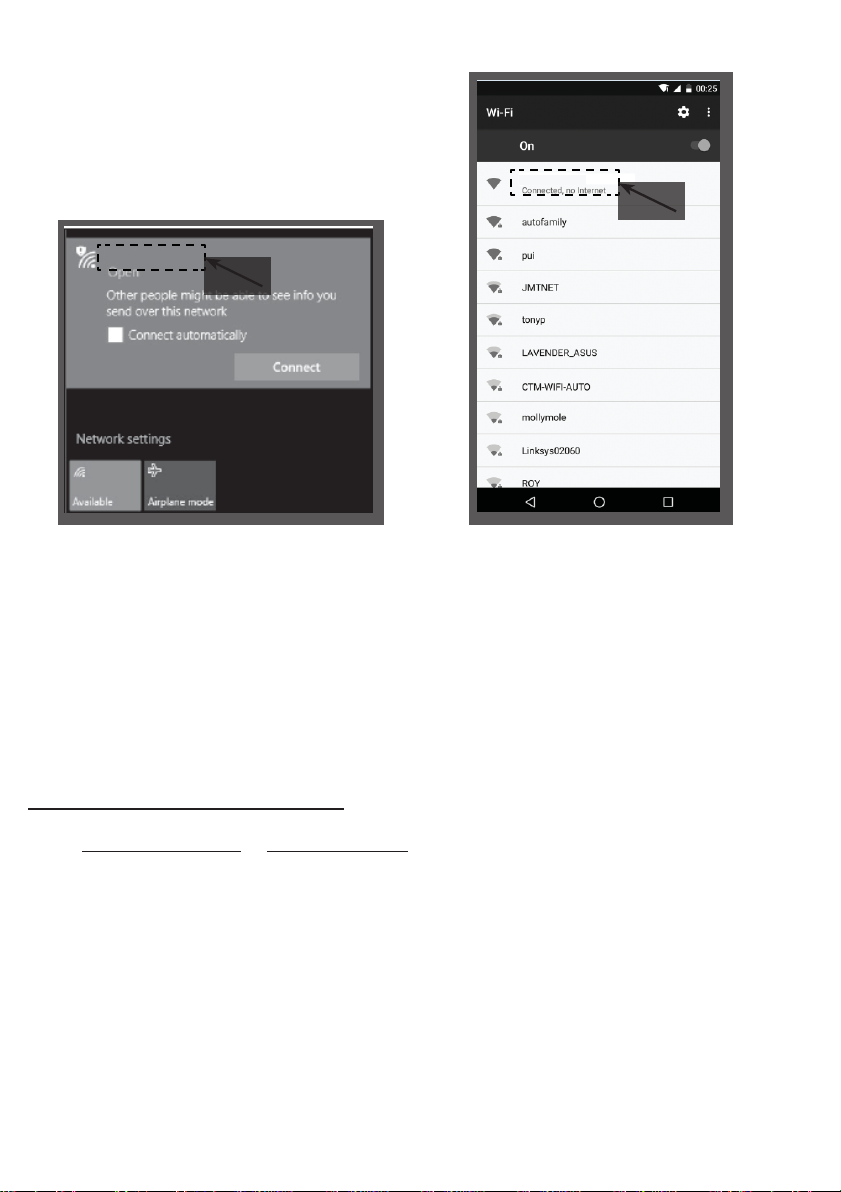

3 . In PC choose WiFi network settings or In Android / iOS choose setting → WI-FI to select the
console’s SSID: PWS-XXXXXX in the list and it will need several second toconnect.

EN 10
PWS-XXXXXX
PWS-XXXXXX
PC WI-FI network interface Android WI-FI networkinterface
4 . Once connected, enter the following IP address into your internet browser’s address bar, to
access the console’s web interface:
http://192.168.1.1
Note:
Some browsers will treat 192.168.1.1 as a search, so make sure you include http:// header.
Recommended browsers, such as the latest version of Chrome, Safari, Edge, Firefox or
Opera.
Setup the weather server connection

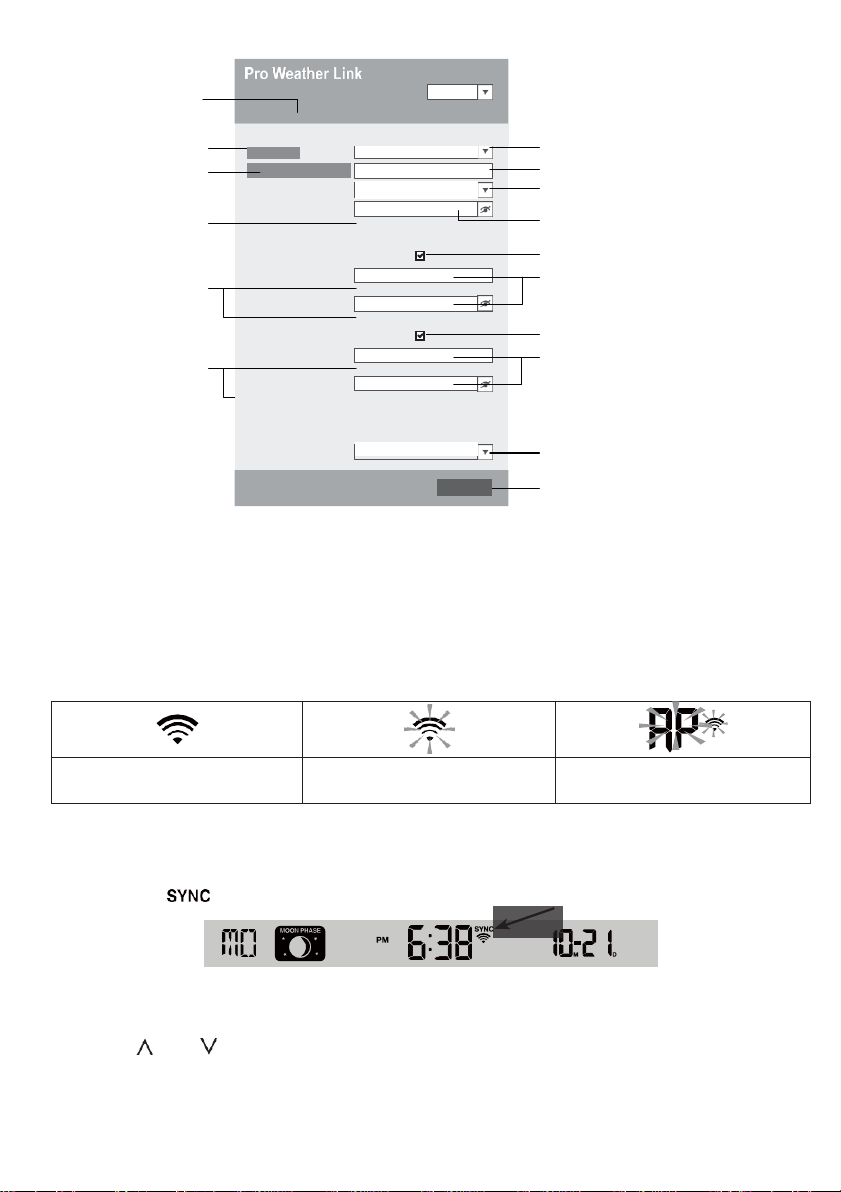

Enter the following information into the below web interface "SETUP" page. If you choose not
to use Wunderground.com or Weathercloud.net, leave the check boxes unchecked.

EN 11
Press “SETUP” icon
to SETUP page
Language: English
UP ADVANCED
Press to search router
Press to allow add
router manually
Password record remark
(If you entered password)
Router:
Weather server setup
******
Select the Wi-fi router (SSID) you will connect to
Manually enter the SSID if not on the list
Select router’s security type (usually WAP2)
Router’s password (leave blank if unsecured)
Current ID and key recorded
(if any)
Wunderground
Station ID:
Station key:
Check to confirm upload to Weather underground
Enter new Station ID and Station key
assigned by Wundeground
Current ID and key recorded
(if any)
******
Weathercloud
Station ID:
Station key:
Check to confirm upload to Weathercloud
Enter new Station ID and Station key
assigned by Weathercloud
Server URL: Select time server
Function firmware version: 1.00
WiFi firmware version: 1.00
Press to complete the setting
Note:
SETUP page
When WI-FI setup is complete, your PC or mobile will resume your default WI-FI connection.
During AP mode, you can press and hold the [ WI-FI / SENSOR ] key for 6 seconds to
stop AP mode and the console will restore your previous setting.
Wi-fi connection status
Below is the WI-FI icon status on the console LCD:
Stable: Console is in
connection with WI-FI router
Flashing: Console is trying to
connect to WI-FI router
Flashing: Console currently in
Access Point (AP) mode
Time server connection status
After the console has connected to the internet, it will attempt to connect to the internet time
server to obtain the UTC time. Once the connection succeeds and the console's time has been
updated, the “ “ icon will appear on the LCD.
Time zone: To display the time of your time-zone, change the time zone in CLOCK setting mode
from '00' (default) to your time zone (e.g. 01 for Germany).
1 . Press and hold [ CLOCK SET ] key for 2s to enter time setting mode.
2 . Press [ ] or [ ] key to enter your time zone, then press and hold [ CLOCK SET ] key
to confirm and exit. Please refer to CLOCK SETTING session of manual for details of other
setting for the console .
******
Mac address 00:0E:C6:00:07:10
Time server setup
nist.time.gov
IPACIR23Wc
WDw124
WAP2
Security type:
Router Password:
Add Router
ROUTER_A
Search
WiFi Router setup
SET
Apply

EN 12
The time will automatically synchronize Internet time server at 12:00AM and 12:00PM per day.
Also you can press the [REFRESH ] key to get the internet time manually within 1 minute.
Advanced setting in web interface
Press "ADVANCED" key at the top of web interface to enter the advance setting page, this
page allow you to set and view the calibration data of the console, also you can update the
firmware in here (Only available in PC platform).
Select setting unit
Language:
SETUP ADVANCED
Press “ADVANCED” icon
to advancd page
Temperature oC Humidity %
Temperature
calibration section
Indoor
Outdoor
CH 1
CH 2
CH 3
CH 4
CH 5
CH 6
CH 7
Current offset:1
Current offset:-9
Current offset:2
Current offset:3
Currentoffset:1.2
Currentoffset:-0.2
Current offset:-20.1
Current offset: 11 .5
Current offset: 0.2
Current offset:-5
Currentoffset: 10
Currentoffset:-5
Currentoffset:-2
Currentoffset:-2
Currentoffset:-5
Currentoffset:-3
Current offset:-10
Currentoffset:-3
Humidity
calibration section
Range: -20.0 ~ 20.0oC
-36 .0 ~ 36 .0oF (Default: 0.0) Range: -20 ~ 20 (Default: 0)
Pressure
calibration section
Pressure
Absolute Pressure Offset:
Relative Pressure Offset:
Setting Range:
Current offset: -3
(Default: 0)
Current offset:10
(Default: 0)
Select setting unit
Rain
calibration section
Wind
calibration section
-800 ~ 800hpa / -23.62 ~ 23.62inHg / -601.5 ~ 601.5mmHg
Rain gain: Current gain: 0.85
Range: 0.5 ~ 1.5(Default: 1.00)
Wind speed gain:
Current gain: 0.75
Range: 0.5 ~ 1.5(Default: 1.00)
Current offset: 2o
**Wind direction:
**UV gain:
Range: -10 ~ 10(Default: 0o)
Current gain: 1.1
Range: 0.01 ~ 10(Default: 1.00)
** Depends on outdoor sensor type
Function firmware version: 1.00
WiFi firmware version: 1.00
Calibration Advancd page
1 . User may enter or change the offset and gain values for different measurement parameters
while current offset and gain values are shown next to their corresponding boxes.
2 . Once completed, press Apply in the SETUP page
The current offset value will show the previous value that you entered, if you want to change,
just input the new value in the blank, the new value will valid onceyou press Apply icon in
SETUP page.
Note:
Calibration of most parameter is not required, with the exception of Relative Pressure, which
must be calibrated to sea-level to account for altitude effects.
View your weather data in WUnderground
To view your weather station live data in a web browser (PC or mobile version), please visit
http://www.wunderground.com, and then enter your “Station ID” in the searching box. Your
weather data will show up on the next page. You can also login your account to view and
download the recorded data of your weather station.
hpa
English

EN 13
You can also use the Apple ipad's "WunderStation" app to login your own weather station to
view the live data.
WunderStation
VIiewing your weather data in Weathercloud
1 . To view your weather station live data in a web browser (PC or mobile version), please visit
https://weathercloud.net and sign in your own account.
2 . Click the icon inside the pull down menu of your station.
3
. Click "Current", "Wind", "Evolution" or "Inside" icon to view the live data of your weather
station .
Firmware update
The console supports OTA firmware update capability. Its firmware may be updated over the
air anytime (whenever necessary) through any web-browser on a PC with WI-FI connectivity.
Update function, however, is not available through mobile/smart devices.
In case that a new firmware is available you can find it at:
https://www.technoline.de/software/ws1900
If no new firmware is available, then no firmware update can be found in above URL.
Two types of firmware updates are available, namely Function Firmware and System WI-FI
Firmware, and are located at the bottom of ADVANCED page.

EN 14
4
Current Function
firmware version
Current WI-FI
firmware version
Firmware update steps
1 . Download the latest version firmware (function or WI-FI) to your PC.
2 . Set the Console into AP (access point) mode then connect the PC to the console (ref to
"SETUP WI-FI CONNECTION" section in previous page).
3 . Toupdate the Function firmware, click the Browse in Function firmware section and
browse to the location of the file you download in step 1. Toupdate the WI-FI firmware,click
the Browse in WI-FI firmware section.
4 . Click the corresponding Upload to start
transfer the firmware file to console (indicated by
a transfer completion %).
Function firmware version: 1.00
3
C:\download\PWS_SYS.bin Browse
30% ... Upload
WiFi firmware version: 1.00
Browse
Upload
5 . Once the console received the firmware file, it
executes the update automatically as indicated
by the update progress on display (i.e. 100 is
completion).
6
. The console will restart once the update completed.
Note:
Function and WI-FI firmware cannot be updated at the same time, you need to update oneby
one .
Please keep connecting the power during the firmware update process.
Please make sure your PC's WI-FI connection is stable.
When the update process start, do not operate the PC and console.
During firmware update the console will stop upload data. It will reconnect to your WI-FI
router and upload the data again once the update success. If the console cannot connect
to your router, please end the SETUP page to setup again.
After the firmware updates, user might need to input the Weather Underground ID
and password again.
Other settings & functions of the station
Time setting
This console is designed to obtain the local time by synchronize with the assigned internet time
server. If you want to use it offline, you can set the time and date manually. During the first time

EN 15
startup, press and hold the [ WI-FI / SENSOR ] key for 6 seconds and let the console back to
normal mode.
1 . In normal mode, press and hold [ CLOCK SET ] key for 2 seconds to enter setting.
2 . The setting sequence: Time Zone → DST ON/OFF → Hour → Minute → 12/24 hour format →
Year → Month → Day → M-D/D-M format → Time sync ON/OFF → weekday Language.
3 . Press [ ] or [ ] key to change the value. Press and hold the key for quick-adjust.
4 . Press [ CLOCK SET ] key to save and exit the setting mode, or the unit will automatically
exit the setting mode 60 seconds later without pressing any key.
Note:
In normal mode, press [ CLOCK SET ] key to switch between year and datedisplay.
During the setting, you can press and hold [ CLOCK SET ] key for 2 seconds to back to normal
mode.

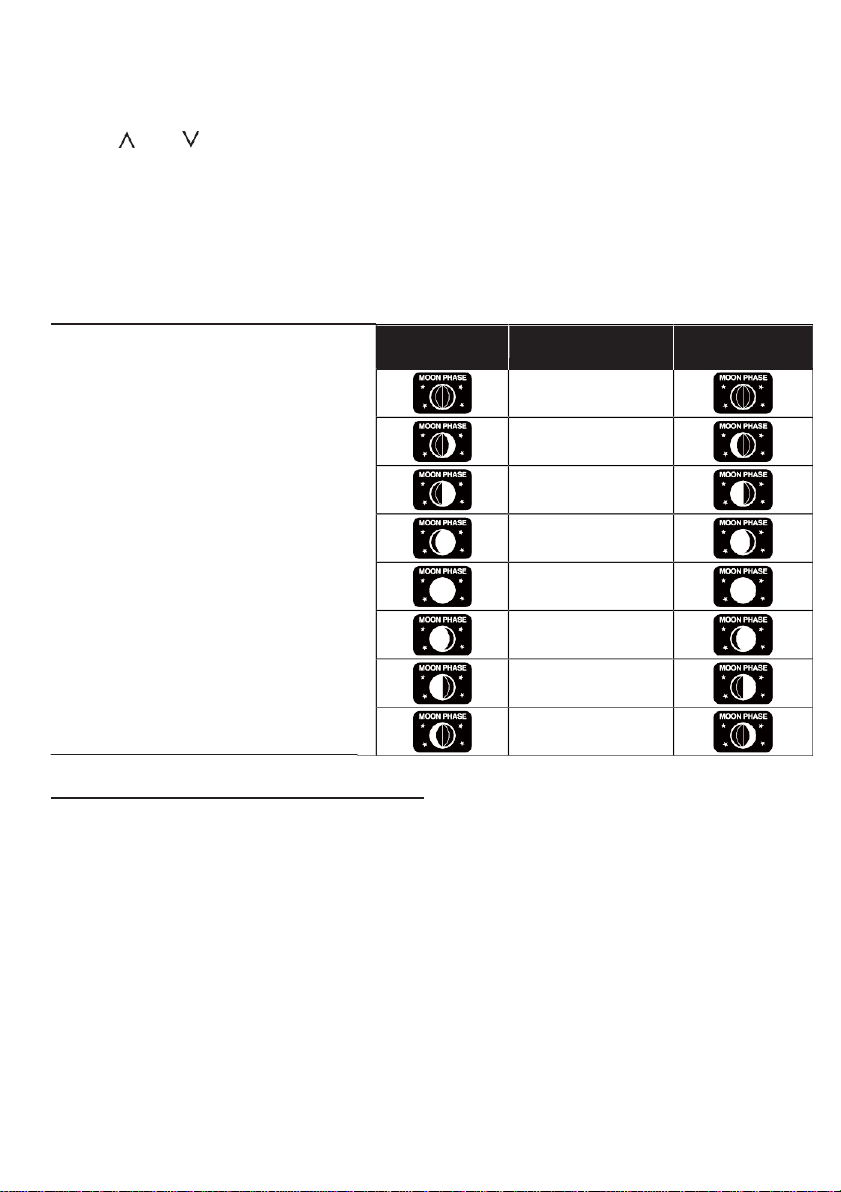

Moon phase
The moon phase is determined by
the time, date and time zone. The
following table explains the moon
phase icons of the Northern and
Southern hemispheres. Please refer
to orienting the 5-in-1 sensor
towards south section about how to
setup for the Southern hemispheres.
Northern
hemisphere
Moon Phase
Southern
hemisphere
New Moon
Waxing Crescent
First quarter
Waxing Gibbous
Full Moon
Waning Gibbous
Third quarter
Waning Crescent
Pointing the wireless 5-in-1 sensor to south
The outdoor 5-IN-1 sensor is calibrated to point to North for the maximum accuracy. However,
for the user's convenience (e.g. users in the Southern hemisphere), it is possible to use the
sensor with the wind vane pointing to South.
1 . Install the 5-IN-1 wireless sensor with its wind meter end pointing to South. (Please refer to
INSTALLATION OF THE WIRELESS SENSOR for mounting details)
2 . In normal mode of the console, press and hold [ INDEX ] key for 10 seconds to enter into
the calibration mode, then press [ INDEX ] key again until the “N” icon appears on the left
botton corner of the LCD to enter into the sensor orientation mode
3 . Use [ Ʌ ] or [ V ] key to change to lower part (Southern Hemisphere).
4 . Press [ INDEX ] key to confirm and exit.

EN 16
Note:
- Changing the hemisphere setting will automatically switch the direction of the moon phase on
the display.
Setting the alarm time
1 . In normal time mode, press and hold [ ALARM ] key for 2 seconds until the alarm hour digit
flashes to enter alarm time setting mode.
2 . Press [ ] or [ ] key to change the value. Press and hold the key for quick-adjust.
3 . Press [ ALARM ] key again to step the setting value to Minute with the Minute digit flashing.
4 . Press [ ] or [ ] key to adjust the value of the flashing digit.
5 . Press [ ALARM ] key to save and exit the setting.
Note:
In alarm mode, the “ ” icon will display on the LCD.
The alarm function will turn on automatically once you set the alarm time.
Activating alarm and temperature pre-alarm
1 . In normal mode, press [ ALARM ] key to show the alarm time for 5 seconds.
2 . When the alarm time displays, press [ ALARM ] key again to activate the alarm function.
Or press [ ALARM ] key twice to activate the alarm with ice pre-alarm function.
Alarm off
Alarm on
Alarm with ice-alert
Note:
Once the ice pre-alert activates, the pre-set alarm will sound and ice-alert icon will flash 30
minutes earlier if the outdoor temperature is below -3°C.
When clock reach the alarm time, alarm sound will start.
Where it can be stopped by following operation:
Auto-stop after 2 minutes alarming if without any operation and the alarm will activate again in
the next day.
By pressing [ SNOOZE ] key to enter snooze that the alarm will sound again after 5minutes.
By pressing and hold [ SNOOZE ] key for 2 seconds to stop the alarm and will activate again
in the next day
By pressing [ ALARM ] key to stop the alarm and the alarm will activate again in the next day.
Note:
- The snooze could be used continuously in 24 hours.
- During the snooze, the alarm icon “ ” will keep flashing.
Temperature / humidity function & trend
Use the [ °C / °F ] slide switch to select the temperature display unit.
The temperature / humidity trend indicator shows the trends of changes in the forthcoming few
minutes.
Arrow indicator
Temperature / Humidity trend
Rising
Steady
Falling

EN 17
Note:
When indoor temperature is below -40°C, the LCD will display “Lo”. If temperature is above
70°C, LCD will display “HI”.
When outdoor temperature is below -40°C, the LCD will display “Lo”. If temperature is above
80°C, LCD will display “HI”.
When humidity is below 1%, LCD will display “Lo”. If humidity is above 99%, LCD will display
“HI”.

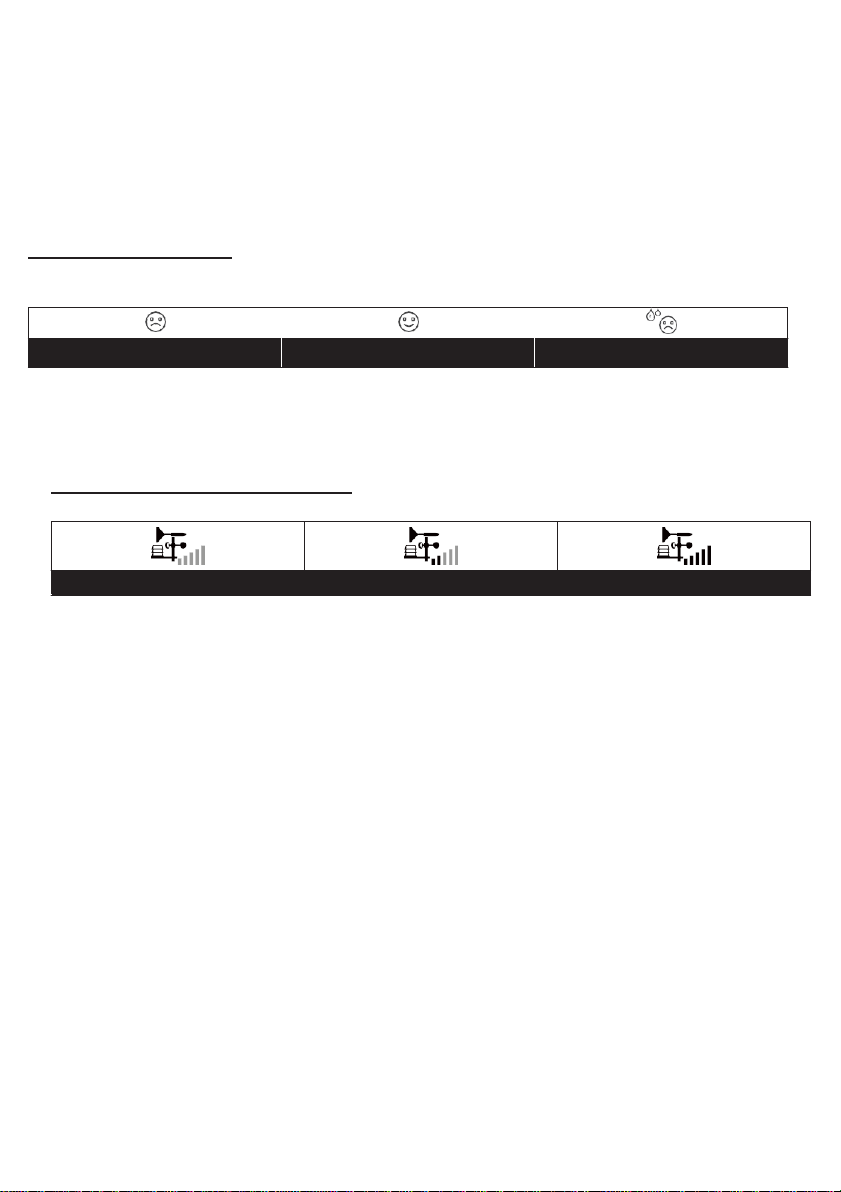

Room comfort indicator
The comfort indication is a pictorial indication based on indoor air temperature and humidity in
an attempt to determine comfort level.
Too cold
Comfortable
Too hot
Note:
- Comfort indication can vary under the same temperature, depending on the humidity.
- There is no comfort indication when temperature is below 0°C (32°F) or over 60°C(140°F).
Wireless receiving of sensor signal
1 . The console display signal strength for the wireless 5-IN-1 sensor, as per table below:
No signal
Weak signal
Good signal
2 . If the signal has discontinued and does not recover within 15 minutes, the signal icon will
disappear. The temperature and humidity will display “Er” for the corresponding channel.
3 . If the signal does not recover within 48 hours, the “Er” display will become permanent. You
need to replace the batteries and then press [ SENSOR / WI-FI] key to pair up the sensor
again .
View the outdoor channel (optional feature with add on extra thermo-hygro sensors)
This console is capable to pair with a wireless 5-IN-1 sensor and up to 7 wireless thermal-hygro
sensors. If you have 2 or more sensors, you can press [ CHANNEL ] key to switch between
different wireless channels in normal mode, or press and hold [ CHANNEL ] key for 2 seconds
to toggle auto-cycle mode to display the connected channels at 4 seconds interval.
During auto-cycle mode, press [ CHANNEL ] key to stop auto cycle and display the current
channel .

EN 18
Wind
Wind speed and direction section overview
Real time wind
direction indicator
Past wind
directions indicator
of last 5 minutes
Average / gust
wind speed
To set the wind speed unit and direction display format
1 . In normal mode, press and hold [ WIND ] key for 2 seconds to enter into wind speed unit
mode and the unit will flash. Press [ ] or [ ] key to change the wind speed unit in this
sequence: m/s → km/h → knots →mph
2 . Press [ WIND ] key again to return to normal mode.
To select the wind display mode
In normal mode, press [ WIND ] key to switch between AVERAGE and GUST wind speed.
Weather index
At the WEATHER INDEX section, you can press [ INDEX ] key to view the weather index in this
sequence: FEELS LIKE → HEAT INDEX → WIND CHILL → DEWPOINT.
FEELS LIKE values
The feels like temperature index determine how the outdoor temperature that people actually
feel .
Heat index
The heat index, which is determined by the wireless 5-IN-1 sensor's temperature & humidity
data, when the temperature is between 27°C (80°F) and 50°C (120°F).
Heat Index range
Warning
Explanation
27°C to 32°C (80°F to 90°F)
Caution
Possibility of heat exhaustion
33°C to 40°C (91°F to 105°F)
Extreme Caution
Possibility of heat dehydration
41°C to 54°C (106°F to 129°F)
Danger
Heat exhaustion likely
≥55°C (≥130°F)
Extreme Danger
Strong risk of dehydration / sun stroke
Wind chill
A combination of the wireless 5-IN-1 sensor's temperature and wind speed data determines the
current wind chill factor.
Dew point
The dew point is the temperature below which the water vapor in air at constant
barometric pressure condenses into liquid water at the same rate at which it evaporates.
The condensed water is called dew when it forms on a solid surface.

EN 19
The dew point temperature is determined by the temperature & humidity data fromwireless
IN-1 sensor .
Weather forecast
The built-in barometer can notice atmosphere pressure changes. Based on the data collected,
it can predict the weather conditions in the forthcoming 12~24 hours within a 30~50km (19~31
miles) radius.
Sunny
Partly cloudy
Cloudy
Rainy
Rainy / Stormy
Snowy
Note:
The accuracy of a general pressure-based weather forecast is about 70% to75%.
The weather forecast is reflecting the weather situation for next 12~24 hours, it may not
necessarily reflect the current situation.
The SNOWY weather forecast is not based on the atmospheric pressure, but based on the
temperature of outdoor. When the temperature is below -3°C (26°F), the SNOWY
weather icon will be displayed on the LCD.
Barometric pressure
The atmospheric pressure is the pressure at any location of
the earth caused by the weight of the column of air above it.
One atmospheric pressure refers to the average pressure and
gradually decreases as altitude increases. Meteorologists use
barometers to measure atmospheric pressure. Since variation in
atmospheric pressure greatly affected by weather, it is possible to
forecast the weather by measuring the changes in pressure.
To set the barometer unit
In normal mode, press [ BARO UNIT ] key to change the barometer unit in this sequence:
hPa→ inHg → mmHg
To view the absolute / relative barometric reading
In normal mode, press and hold [ BARO ] key to switch between ABSOLUTE / RELATIVE
barometric reading.
To set relative atmospheric pressure value
Go to “Advanced Setting in Web Interface” on page 11.
E.g. If your local REL reading is 1010 hPa, and the difference to the reading of the unit, say 1013
hPa, then enter “-3” into the box.
Rainfall
The RAINFALL section shows the rainfall and rain rate information
To set the rainfall unit
1 . Press and hold [ RAIN ] key for 2 seconds to enter unit setting mode.
2 . Press [ Ʌ ] or [ V ] key to toggle the rainfall unit between mm and in.
3 . Press [ RAIN ] key to confirm and exit the setting.
