Ambient ASHP-23 User manual

Page 1of 38
Installation and User Guide
Models
ASHP-23
ASHP-23-3P
ASHP-23-HW
ASHP-23-3P-HW
ASHPCHW-23
ASHPCHW-23-3P
ASHPPOOL-23
ASHPPOOL-23-3P
Ambient variable speed air to water reverse cycle heat pumps
Quality Australian Made Product By
Copyright AusGeothermal 2018

Page 2of 38
Installation Guide
Contents
1. Cover page
2. Contents
3-4. Introduction
5-11. Model selection
12. Hydronic Buffer Tanks/Commercial Hot Water Tanks
13-17. Installation Options/Piping Schematics
18. Packaging and Handling
19-20. Heat Pump Location and Mounting/Schematic
21-23. Wiring Diagram (Single Phase) (Three Phase)
24-26. Filling System
27-28. Pre-start checks
29-30. Start-up procedure/Quick Start Up Procedure
(Hydronic Heat Pump Units)
31-32. Domestic Hot Water Start Up Procedure
33. Commercial Hot Water Start Up Procedure/Quick Start
34. Alarms
35-37. Product Warranty Terms
38. Warranty Registration
Installation by trained and licenced technicians only
*Please contact your supplier / Installer with any questions regarding installation and
start up procedure
*Note: Information contained within this document is correct at the time of publishing
Materials and Specification are subject to change without prior notification
Copyright AusGeothermal 2018

Page 3of 38
Introduction
✓Thank you for purchasing our state of the art Ambient variable
speed air to water heat pump.
✓Ambient variable speed air to water heat pumps have been
designed and manufactured with energy efficiency and ease of
installation in mind.
✓Only the best products make it into our heat pumps utilizing the
latest BLDC Variable Speed Copeland Scroll Compressor
matched with Carel speed drive, electronic refrigerant
expansion valve, variable speed fans, microprocessor controls
with on board user interface
✓Heat pump software has been custom designed to manage
compressor envelope and full system modulating range to the
highest efficiency possible
(Software and trademark is licenced to Ausgeothermal only)
✓We have coupled these quality components to water marked
heat exchangers and are cased in our heavy duty galvanized
and powder coated heat pump unit casings
✓For ease of installation all Ambient variable speed air to water
heat pumps are fully commissioned and quality tested prior to
dispatch
✓They come equipped with hydronic circulation pump expansion
tank pressure relief valve, auto fill kit and fill point
(Hot water models have hot water circulation pump fitted)
✓Ambient on-board controls are standard from factory and are
pre-set ready for use
✓1.5metre buffer tank or supply water temperature sensors are
supplied with units.
(1.5metre hot water tank temperature sensors are supplied with
hot water models)

Page 4of 38
✓Ambient Variable Speed Air Source Heat Pump units can also be
controlled via a wide range of external control devices including
standard room controls, Innovum Heat View, Modbus, BACnet,
SNMP, BMS etc
✓Ambient Variable speed heat pumps can be used for a wide
range of heating, cooling and hot water applications
*Hydronic in slab heating and cooling
*Hydronic radiator and convector heating
*Ducted heating and cooling
*Domestic hot water heating
*Commercial hot water heating
*Process heating and cooling
*Hospitals, Aged care, Hydroponics
Diagram/Photo Copyright AusGeothermal 2018

Page 5of 38
Model Selection
Ambient Variable Speed Air Source Heat Pumps
Are available in the below selection list by category
Diagram/Photo Copyright AusGeothermal 2018

Page 6of 38
Diagram/Photo Copyright AusGeothermal 2018

Page 7of 38
Commercial Hot Water

Page 8of 38
Hydronic Heating

Page 9of 38
Hydronic Heating

Page 10 of 38

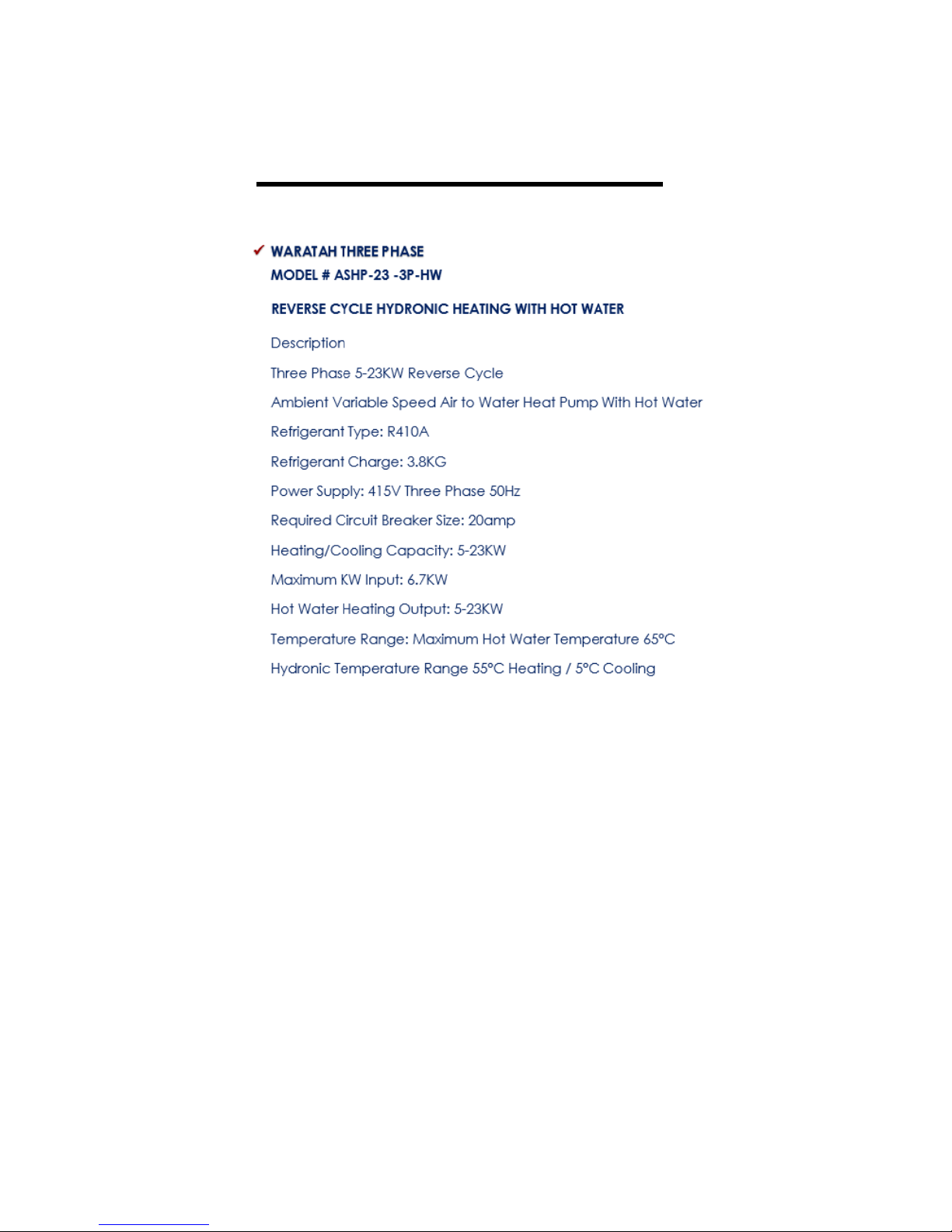

Hydronic Heating

Page 11 of 38
Swimming Pool Heating

Page 12 of 38
Hydronic Buffer Tanks
Commercial Hot Water Tanks
Model: ACHWTSS
Dimension
Fittings
ADiameter
680mm
BHeight
1860mm
CHot Water Outlet/PTR Valve/Ring Loop Return
1540mm
DSensor Port
1240mm
DN20
E Cold Water/Heat Pump In
200mm
DN32
F Boiler Return/Heat Pump Out
DN32
GPTR Valve
DN20
HElement-Upper Unit Thermostat Setting
Max
60deg.C
3.6KW
IHot Water Outlet/Cold Inlet
DN32
Weight
80kg
Approx.
Storage Capacity
400L
Water Connection & Settings
Temperature Relief Valve Settings
700kPa
Expansion Control Valve Setting
600kPa
Maximum Working Pressure
700kPa
Maximum Supply Pressure
500kPa
*Note: Materials and specifications are subject to change without notice
Diagram/Photo Copyright AusGeothermal 2018

Page 13 of 38

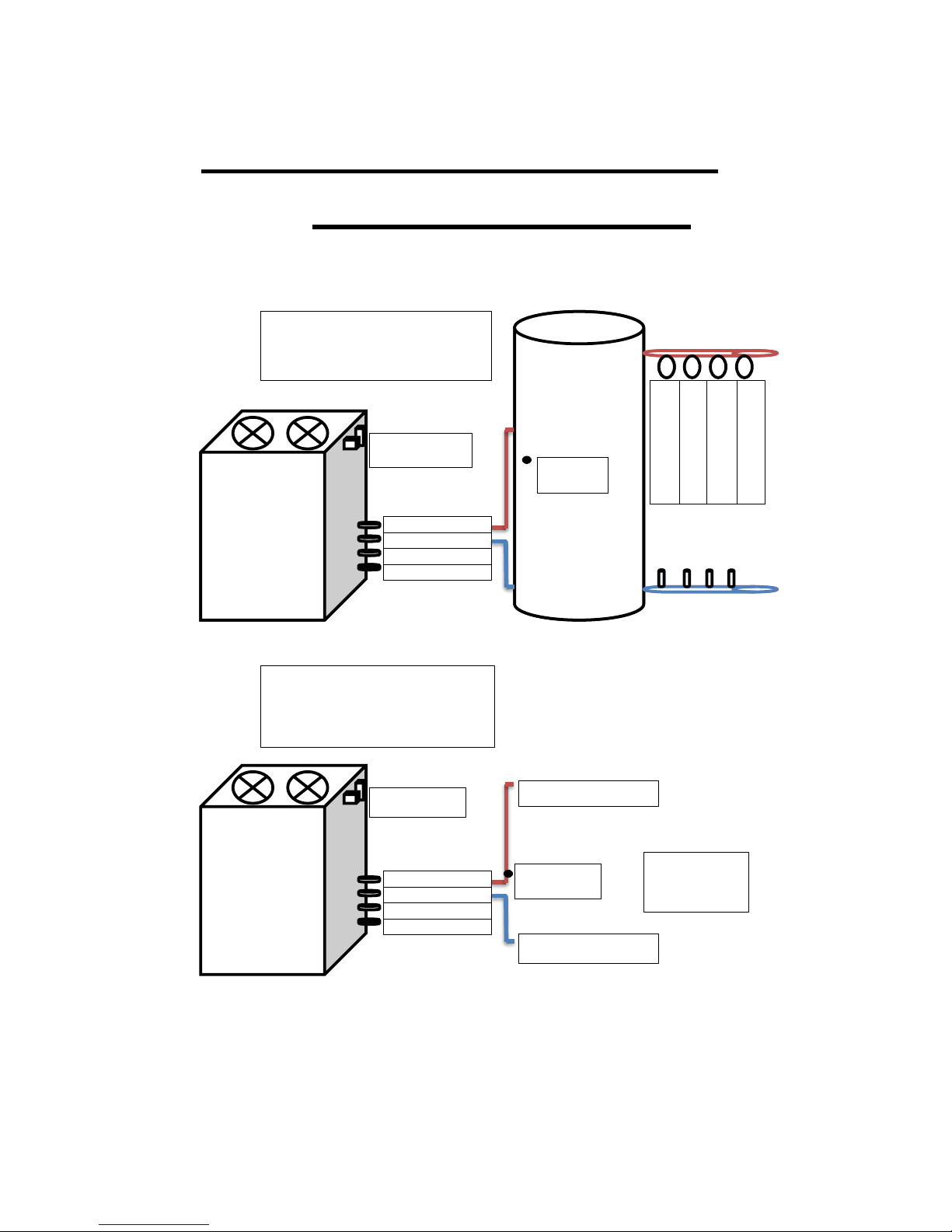

Installation Options and
Piping (Hydronic)
Diagram/Photo Copyright AusGeothermal 2018
3 BAR PRESSURE RELIEF VALVE ½ INCH
COLD WATER FILL ½ INCH MBSP
HYDRONIC RETURN WATER IN 1 INCH
HYDRONIC FLOW WATER OUT 1 INCH
3 BAR PRESSURE RELIEF VALVE ½ INCH
COLD WATER FILL ½ INCH MBSP
HYDRONIC RETURN WATER IN 1 INCH
HYDRONIC FLOW WATER OUT 1 INCH
AMBIENT WITH
BUFFER TANK STORAGE
SENSOR
POCKET
ELECTRICAL SUPPLY
ISOLATOR
SLAB HEATING PUMP CIRCIT 1
SLAB HEATING PUMP CIRCIT 2
RADIATOR HEATING CIRCIT
FAN COIL HEATING /COOLING
3 BAR PRESSURE RELIEF VALVE ½ INCH
COLD WATER FILL ½ INCH MBSP
HYDRONIC RETURN WATER IN 1 INCH
HYDRONIC FLOW WATER OUT 1 INCH
AMBIENT WITH
INSLAB/SCREED
HEATING/COOLING
ELECTRICAL SUPPLY
ISOLATOR
FLOW TO HYDRONIC IN FLOOR
MANIFOLD
RETURN FROM HYDRONIC IN
FLOOR MANIFOLD
ROOM CONTROLS
TO WIRE BACK TO
AMBIENT EXTERNAL
DIGITAL INPUT
CONTROL BOX
SENSOR POCKET
FOR SUPPLIED
PIPE SENSOR

Page 14 of 38
Installation Options and
Piping (Hydronic)
Diagram/Photo Copyright AusGeothermal 2018
3 BAR PRESSURE RELIEF VALVE ½ INCH
COLD WATER FILL ½ INCH MBSP
HYDRONIC RETURN WATER IN 1 INCH
HYDRONIC FLOW WATER OUT 1 INCH
AMBIENT WITH RADIATOR
HEATING PANELS
SENSOR POCKET
FOR SUPPLIED
PIPE SENSOR
ELECTRICAL SUPPLY
ISOLATOR
FLOW TO HYDRONIC
RADIATOR CIRCIT
RETURN FROM HYDRONIC
RADIATOR CIRCIT
ROOM CONTROLS
TO WIRE BACK TO
AMBIENT EXTERNAL
DIGITAL INPUT
CONTROL BOX
3 BAR PRESSURE RELIEF VALVE ½ INCH
COLD WATER FILL ½ INCH MBSP
HYDRONIC RETURN WATER IN 1 INCH
HYDRONIC FLOW WATER OUT 1 INCH
AMBIENT WITH FAN COIL
HEATING/COOLING
SENSOR
POCKET
FOR SUPPLIED
PIPE SENSOR
ELECTRICAL SUPPLY
ISOLATOR
FLOW TO CHILLED/HOT WATER
FAN COIL UNIT
RETURN FROM CHILLED/HOT
WATER FAN COIL UNIT
ROOM CONTROLS
TO WIRE BACK TO
AMBIENT EXTERNAL
DIGITAL INPUT CONTROL
BOX

Page 15 of 38
Installation Options and
Piping (Hydronic)
Note
Do not install to coil heat exchanger storage tanks
Install to open circuit tanks only
Appropriate hydronic fill back flow protection must be installed
Check with State/Territory regulations and codes
Diagram/Photo Copyright AusGeothermal 2018
3 BAR PRESSURE RELIEF VALVE ½ INCH
COLD WATER FILL ½ INCH MBSP
HYDRONIC RETURN WATER IN 1 INCH
HYDRONIC FLOW WATER OUT 1 INCH
AMBIENT WITH FAN COIL
HEATING/COOLING AND
SLAB HEATING
SENSOR POCKET
FOR SUPPLIED
PIPE SENSOR
ELECTRICAL SUPPLY
ISOLATOR
FLOW TO CHILLED/HOT WATER
FAN COIL UNIT
RETURN FROM CHILLED/HOT WATER FAN COIL UNIT
ROOM CONTROLS
TO WIRE BACK TO
AMBIENT EXTERNAL
DIGITAL INPUT CONTROL
BOX AND DIVERTER
VALVE
RETURN FROM IN FLOOR HEATING MANIFOLD
FLOW TO INFLOOR HEATING
MANIFOLD
DIVERTER

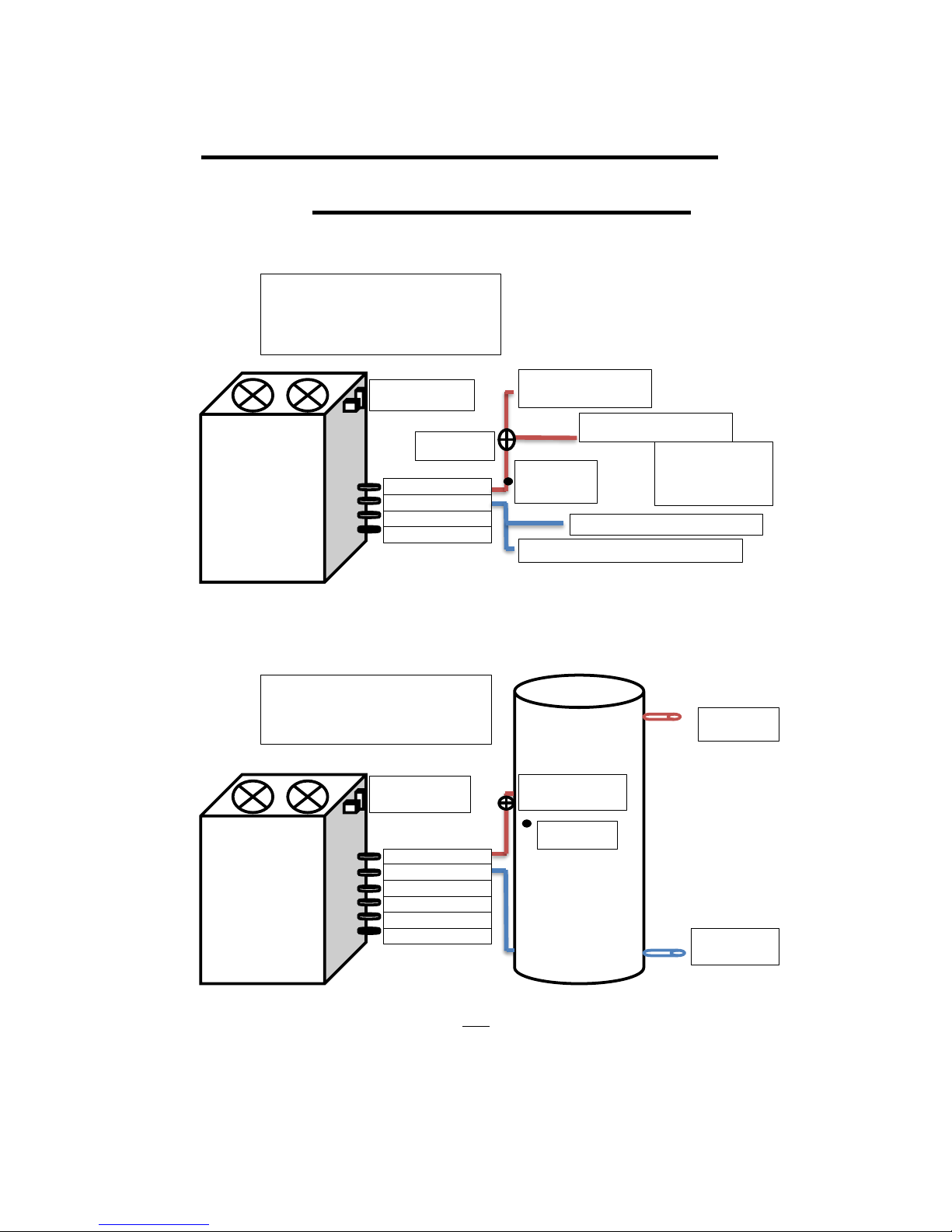

VALVE
3 BAR PRESSURE RELIEF VALVE ½ INCH
COLD WATER FILL ½ INCH MBSP
HYDRONIC RETURN WATER IN 1 INCH
HYDRONIC FLOW WATER OUT 1 INCH
AMBIENT WITH HOT
WATER TANK STORAGE
SENSOR
POCKET
ELECTRICAL SUPPLY
ISOLATOR
HOT WATER FLOW
HOT W ATER RETURN
SPRING CHECK VALVE
HOT WATER
OUT
COLD WATER IN

Page 16 of 38
Installation Options
and Piping
Commercial Hot Water
Diagram/Photo Copyright AusGeothermal 2018
HOT WATER IN
HOT WATER OUT
SENSOR
POCKET
ELECTRICAL
SUPPLY
ISOLATOR
BOOST
ELEMENT
HOT WATER OUT
COLD WATER FILL
IN
SPRING
CHECK
VALVE

Page 17 of 38
Installation Options
and Piping
Swimming Pool Heating
Diagram/Photo Copyright AusGeothermal 2018
POOL WATER
INLET 50MM PVC
FROM POOL HEATING
PUMP/FILTER SYSTEM
POOL WATER OUTLET
RETURN TO POOL
50MM PVC
ELECTRICAL SUPPLY
ISOLATOR

Page 18 of 38
Packaging and Handling
H
D
L
Weight: 150KG
Lifting device required
Supplied on heavy duty shipping pallet
Sealed within cardboard packaging and labels
Package Dimensions
1600mm Height
1200mm Width
700mm Depth
Important
Prior to installing the heat pump please ensure to inspect the
item for any visual damage
*Above information provided based per one unit (heat pump) only
Diagram/Photo Copyright AusGeothermal 2018

Page 19 of 38
Heat Pump Location
And Mounting
✓It is important that the Ambient Variable Speed Air
Source Heat Pump is installed so that the outside
ambient air is not recirculated through the outdoor coil
✓Ambient Variable Speed Air Source Heat Pumps are
vertical discharge air flow, meaning fresh air needs to
be available to enter the rear of the heat pump unit
and used air needs to be able to discharge into the
atmosphere
✓AusGeothermal recommend
Ambient Variable Speed Air Source Heat Pumps should
be installed and mounted on a level concrete slab
using rubber mounting blocks and anchor bolts
✓Electrical isolator and pipe work to be easily accessible
for service
✓Electrical and plumbing works to be installed by
licenced and trained technicians only
Important
Failing to comply with above recommendations will
result in Product Warranty becoming void immediately

Page 20 of 38
Diagram/Photo Copyright AusGeothermal 2018
Heat Pump Location and
Mounting Schematic
