Ambiente LUNA STAT User manual

TUE
MENU OK
ROOM TEMP
AM
18.5
9:30
2
c
LUNA STAT THERMOSTAT MANUAL

2CONTENTS
What is the Luna Stat 3
Installation procedure 6
Setting program mode 8
Programmable mode 9
LCD display 10
Setting the clock 13
Change/check
temperature
14
Schedule and comfort
settings 15
Setting the holiday mode 17
Optimum start 18
Non-Programmable
mode 19
LCD display 20
Change/check
temperature
22
Setback thermostat mode 23
TABLE OF CONTENTS
LCD display 24
Change/check
temperature
26
Setback temperature 27
Features available on all
program modes 28
Frost protection 28
Setting the hold mode 29
Keypad lock 30
Floor limit protection 31
Factory reset 32
Optional features
explained
33
Changing optional
features
36
Optional features table 37
Error codes 39
Wiring diagrams 40

3
WHAT IS THE LUNA STAT
The Luna Stat is a multi-function thermostat for underfloor
heating, radiators or any other form of heating where
multifunction temperature control is required.
The Luna Stat consists of two main modes
1. Standalone programmable/non-programmable thermostat
2. Set back thermostat with central programmer
WHAT IS THE LUNA STAT

4
PROGRAMMABLE/NON-PROGRAMMABLE THERMOSTAT
1. PROGRAMMABLE/NON-PROGRAMMABLE THERMOSTAT
The Luna Stat operates by itself as independent control to the
rest of the heating system as a thermostat in either
programmable or non/programmable operation.
A. Non Programmable – operates as a simple thermostat where
the temperature is held at the set point continuously.
B. Programmable – operates as a fully programmable thermostat
with 4 times at which to set a target temperature. This enables
you to regulate the temperature in your home by setting specific
temperatures for times of day.
This way the thermostat doesn’t operate the heating as On/Off
but as an Up/Down control to the specific temperatures you set
on your Luna Stat.
This enables you to have intricate control in each room creating
a micro climate in different areas of your home and regulating
the temperature for night, for when your home is unoccupied,
or even when individual rooms are unoccupied or not used.

5
SET BACK THERMOSTAT WITH CENTRAL PROGRAMMER
2. SET BACK THERMOSTAT WITH CENTRAL PROGRAMMER
The Luna Stat operates as temperature control on a room by
room basis in conjunction with a single programmer (supplied
separately) providing central timed control for larger areas or
whole houses.
The Luna Stat is set to non-programmable and maintains the
temperature at the set point whilst the programmer is on. When
the programmer is off the Luna Stat automatically drops the set
temperature by up to 5oC for example during the night or whilst
the property is unoccupied.
This enables the operation of an efficient system with simple to
use thermostat and central programmer rather than multiple
thermostats that need programming one at a time.

6
INSTALLATION PROCEDURE
INSTALLATION PROCEDURE
Care should be taken on where the Luna Stat is installed, as
being the ultimate control of your heating it is important that it is
not installed near any secondary hot or cold sources. The Luna
Stat should be installed at chest/eye level (approximately 1.5
metres) and where it will receive an even reading of the
temperature of the room. It should be installed out of direct
sunlight, away from draft or heat sources such as airing
cupboards. The Luna Stat is designed to be mounted flush and
will require an electrical back box with a depth of at least 35mm.

7
INSTALLATION PROCEDURE
Step 1
Separate the two halves of the
thermostat by using a small
flat screwdriver to disengage
the clips in the top edge of
the Luna Stat.
Step 2
Ensure that the front (Screen)
part of the thermostat is kept
somewhere safe and clean.
Terminate the cable for the
thermostat in accordance
with wiring diagrams on pages
40-43.
Step 3
Fix the thermostat back plate
back to the back box with the
screws provided, ensuring this
is secure.
Step 4
Clip the front on to the back
plate engaging the bottom
clips first.

8
PROGRAMMABLE MODE (5+2 AND 7 DAY)
SETTING YOUR PROGRAM MODE SELECTION
This Luna Stat has been set by default to a Programmable
thermostat in 5+2 day programming (Weekdays + Weekend).
To change between programmable, non-programmable and set
back thermostat follow these steps.
1. Press MENU till the ‘SET SETUP’ main menu item flashes.
2. Press OK 5 times, or until the small digits show ‘05’.
3. Press to change the large number for the following modes
• 00 – Non Programmable/Set back thermostat
• 01 = Weekday/Weekend programmable
• 02 = 7 day programmable
4. Press OK 10 times, or until the small digit shows ‘15’.
5. Press to change the large number for the following modes
• 00 – Setback thermostat disabled
• 01 = Setback thermostat enabled (non-programmable only)
6. Press MENU to save the setting and the button to return to
the home screen.

9

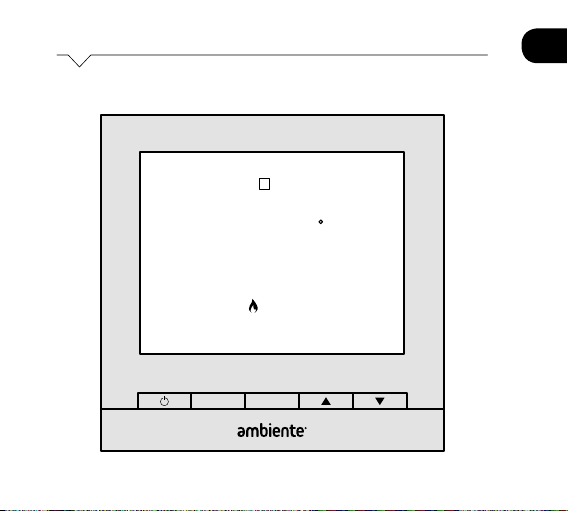

PROGRAMMABLE MODE (5+2 AND 7 DAY)
PROGRAMMABLE MODE (5+2 AND 7 DAY)
TUE
MENU OK
ROOM TEMP
AM
18.5
9:30
2
c

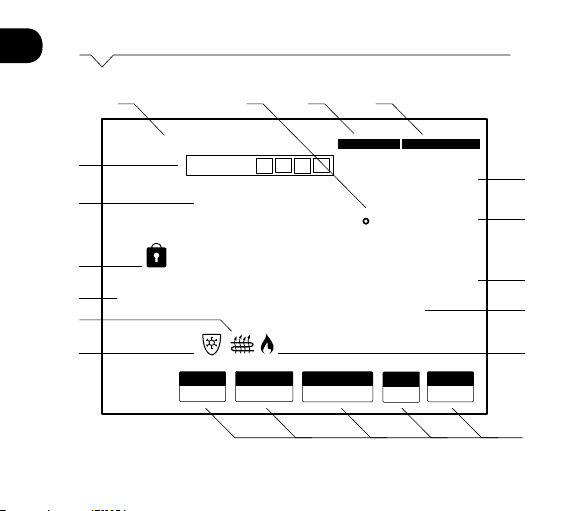

10 LCD DISPLAY
ROOM TEMP FLOOR TEMP
AM
188.8
88:88
2
c
PROGRAMMABLE MODE (5+2 AND 7 DAY)
TUEMON THUWED FRI SUNSAT
34 1
PERIOD
SET
SET
HOLD
SET
SETUP
HOLD LEFT HOLIDAY LEFT
PM
COPY TO
OVERRIDE
SET
SCHEDULE
SET
HOLIDAY
SET
CLOCK
1 2 3 4
7
8
10
14
12
16
15
13
11
9
6
5

11
PROGRAMMABLE MODE (5+2 AND 7 DAY)
LCD DISPLAY
1. Day of the week – Displays the current day.
2. Temperature unit – Degrees Celsius (oC) or Fahrenheit (oF).
3. Hold Left indicator. – Displays when the HOLD FOR function
is active along with the hours of hold remaining.
4. Holiday Left indicator – Displays when the holiday function is
active along with the number of days remaining.
5. Time Period – Displays the current program period as set in
the program of the thermostat.
6. Room/Floor Temperature – Indicates the current sensor set
up and point of temperature measurement.
7. Time – Displays the current time in 24 or 12 hour format.
8. Copy function – Enables the copying of times between days.
9. Key pad Lock – Displays when the key pad is locked.
10. Override – Displays when a temporary override is set.

12 LCD DISPLAY
11. SET – Displays when any program or parameter is being
changed.
12. Temperature – Displays the current sensor temperature.
13. Frost Shield – Displays when the thermostat is in frost
protection mode.
14. Flame Symbol – Displays when the thermostat is calling for
heat.
15. Floor Protection – Displays when the floor limit temperature
is reached.
16. Main Menu – Displays when setting schedule and feature
parameters.
PROGRAMMABLE MODE (5+2 AND 7 DAY)

13
PROGRAMMABLE MODE (5+2 AND 7 DAY)
SETTING THE CLOCK
To set/change the clock and day follow these steps. This is not
applicable if the thermostat is in non-program mode.
1. Press MENU so the ‘SET CLOCK’ main menu item flashes.
2. Press OK to confirm. The current hour will flash
3. Press to change the hour and press OK.
4. Press to change the minute and press OK.
5. Press to change the day and press OK.
6. Press MENU to save the change and the button to return to
the home screen.

14 CHANGE/CHECK THE TEMPERATURE SETTING
To set/change the temperature (temporary override) follow
these steps. Note, this only changes the temperature until the
next program time.
1. Press once to view the current temperature setting.
2. Press repeatedly to change the thermostat in increments
of 0.5oC.
3. Press OK to save the new temperature and return to the home
screen. The thermostat will display ‘OVERRIDE’ to confirm a
different temperature has been set.
The symbol will show when the thermostat is calling for heat.
If a floor sensor has been installed this temperature can be
checked by press and holding the ‘OK’ button. The thermostat
will return to the home screen after 10 seconds.
You can also change the temperature this way in the Frost,
Holiday and Hold modes.
PROGRAMMABLE MODE (5+2 AND 7 DAY)

15
SCHEDULE AND COMFORT SETTINGS
SCHEDULE AND COMFORT SETTINGS
The Luna Stat comes pre-programmed with comfort levels set.
These factory default settings are:
To set/change the program comfort levels follow these steps.
1. Press MENU to display the main menu items.
2. Press MENU till the ‘SCHEDULE’ main menu item flashes.
3. Press OK to confirm. ‘MON ~ FRI’ will flash.
4. Press to select different day(s) and press OK.
• ‘Period 1’ is displayed and the corresponding hour flashes.
Week Day and Weekend – 5/2 day programming
Mon-Fri 5.30 - 20oC 8.00 - 16oC 16.00 - 20oC 22.00 - 16oC
Sat-Sun 6.30 - 20oC 9.00 - 16oC 16.00 - 20oC 23.00 - 16oC
Monday to Sunday – 7 day programming
Mon-Sun 5.30 - 20oC8.00 - 16oC16.00 - 20oC22.00 - 16oC

16 SCHEDULE AND COMFORT SETTINGS
5. Press to change the hour for ‘Period 1’.
6. Press OK to confirm and minute for ‘Period 1’ flashes.
7. Press to change the minute for ‘Period 1’.
8. Press OK to confirm and temperature for ‘Period 1’ flashes.
9. Press to change the temperature for ‘Period 1’.
10. Press OK to confirm.
• ‘Period 2’ is displayed and the corresponding hour flashes.
11. Repeat steps 5 to 10 for Periods 2, 3 & 4.
12. After pressing OK for ‘Period 4’, ‘COPY TO’ will flash.
a. Press to cancel copy function and set other days manually.
b. Press OK to apply copy function.
Note: When set to 5+2 day programming, pressing OK skips
points c and d.
c. Press to select a day, press to deselect a day.
Note: Selected days are shown without flashing.
d. Press OK to save the copy and Luna Stat returns to main menu.
13. Repeat steps 2-12 to set and/or copy further days.
14. Press MENU to save the change and the button to return to
the home screen.
PROGRAMMABLE MODE (5+2 AND 7 DAY)

17
PROGRAMMABLE MODE (5+2 AND 7 DAY)
SETTING THE HOLIDAY MODE
To set/change the Holiday mode follow these steps. (This is not
applicable in non-programmable mode.)
1. Press MENU till the ‘SET HOLIDAY’ main menu item flashes.
2. Press OK to confirm. The ‘HOLIDAY LEFT’ symbol will show
and the number of days will flash.
3. Press to change the number of days the holiday should
be set for (Note: Holiday starts from 00:00 of the next day and
ends on 23:59 of the last day).
4. Press OK to confirm and the temperature for the holiday will
flash.
5. Press to change the temperature for the holiday period.
6. Press MENU to save the holiday and the button to return to
the home screen.
Note: Setting Holiday mode will remove any Hold mode set -
see page 29.

18 OPTIMUM START
The Luna Stat will typically turn the heating on at the time set in
the program. With the optimum start feature enabled the Luna
Stat will display a flashing symbol and turn the heating on
beforehand in order to reach the required temperature for the
time set. See page 33 for further details and page 36 for details
on enabling this optional feature.
PROGRAMMABLE MODE (5+2 AND 7 DAY)

19
NON -PROGRAMMABLE MODE
NON -PROGRAMMABLE MODE
MENU OK
ROOM TEMP
18.5
c

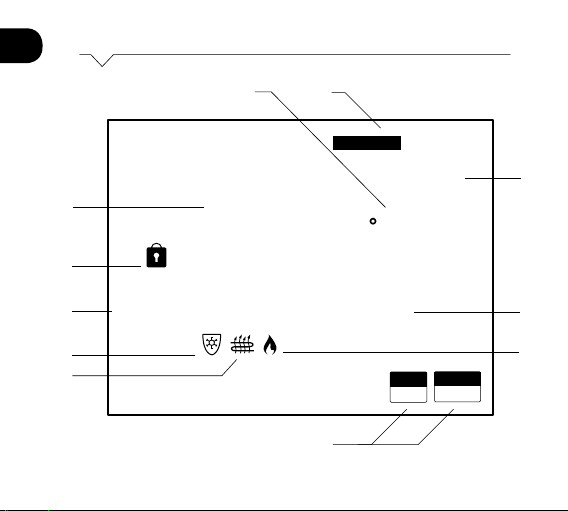

20
NON-PROGRAMMABLE MODE
LCD DISPLAY
ROOM TEMP FLOOR TEMP
188.8
88:88
c
SET
HOLD LEFT
SET
HOLD
SET
SETUP
12
3
4
7
9
11
5
6
8
10
