Amcor AC12 User manual

AC12 AC12HP
USER MANUAL
Portable
Air
Conditioner

Thank you for choosing this innovative Amcor air conditioner. We suggest that you
keep this manual in a safe place for future reference. It describes the many benefits
and advanced features this unique product has to offer. Before you use your new air
conditioner you should carefully read these instructions to maximise this product’s
performance.
For over 60 years Amcor has specialised in complete indoor environmental control,
manufacturing and marketing; dehumidifiers, portable air conditioners, coolers, air
purifiers, ionisers and aroma therapy scent diffusers. These world class products
incorporate the latest technological developments.
QUICK VISUAL SAFETY GUIDE ON WHERE OR WHEN NOT TO USE YOUR
DEHUMIDIFIER
Exposed to the
weather outdoors
Near water
If the power cable wires
are frayed or cut
Where small children
may be left unattended
If an extension lead may
become overloaded
Where the power cable
may be damaged
On a slope or uneven
surface
Where there is a risk of
interference by foreign
objects
Where it may be
damaged by chemicals
This product is not for
DIY repair
Where there is a risk of
fire, or close to a naked
flame
Where there is a
risk of water falling
on the unit

3
IMPORTANT
• Carefully read the instructions before operating the unit.
• This appliance is for indoor use only.
• Rating: This unit must be only connected to a 220-240 V / 50 Hz
earthed outlet.
• Installation must be in accordance with the regulations of the
country where the unit is used.
• If you are in any doubt about the suitability of your electrical supply
have it checked and, if necessary, modified by a qualified
electrician.
• This air conditioner has been tested and is safe to use. However,
as with any electrical appliance - use it with care.
• Disconnect the power from the appliance before dismantling,
assembling or cleaning.
• Avoid touching any moving parts within the appliance.
• Never insert fingers, pencils or any other objects though the guard.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in
a safe way and understand the hazards involved. Children shall
not play with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
• Do not clean the unit by spraying it or immersing it in water.
• Never connect the unit to an electrical outlet using an extension
cord. If an outlet is not available, one should be installed by a
qualified electrician.
• Never operate this appliance if the cord or plug is damaged.
Ensure the power cord is not stretched or exposed to sharp
objects or edges.
• A damaged supply cord should be replaced by the manufacturer
or a qualified electrician in order to avoid a hazard.
• Any service other than regular cleaning or filter replacement
should be performed by an authorized service representative.
Failure to comply could result in a voided warranty.

4
• Do not use the appliance for any purpose other than its intended
use.
• The air conditioner must always be stored and transported upright,
otherwise irreparable damage may be caused to the compressor;
if in doubt we suggest waiting at least 24 hours before starting the
unit.
• Avoid restarting the air conditioner unless 5 minutes have passed
since being turned off. This prevents damage to the compressor.
• Never use the mains plug as a switch to start and turn off the air
conditioner. Use the provided ON/OFF button located on the
control panel.
• Always place the unit on a dry and stable surface.
• The appliance should not be installed in laundry or wet rooms.
Energy Saving and Unit Safety Protection Tips
• Do not cover or restrict the airflow from the outlet or inlet grills.
• For maximum performance the minimum distance from a wall or
objects should be minimum 50cm.
• Keep the filters clean. Under normal conditions, filters should only
need cleaning once every three weeks (approximately). Since the
filters remove airborne particles, more frequent cleaning may be
necessary, depending on the air quality.
• For the initial startup set the fan speed to maximum and the
thermostat to 4-5 degrees lower than the current temperature. After,
set the fan switch to low and set the thermostat to your desired
setting.
• To protect the unit we recommend not using the cooling function
when the ambient temperature is higher than 35 ℃.

5

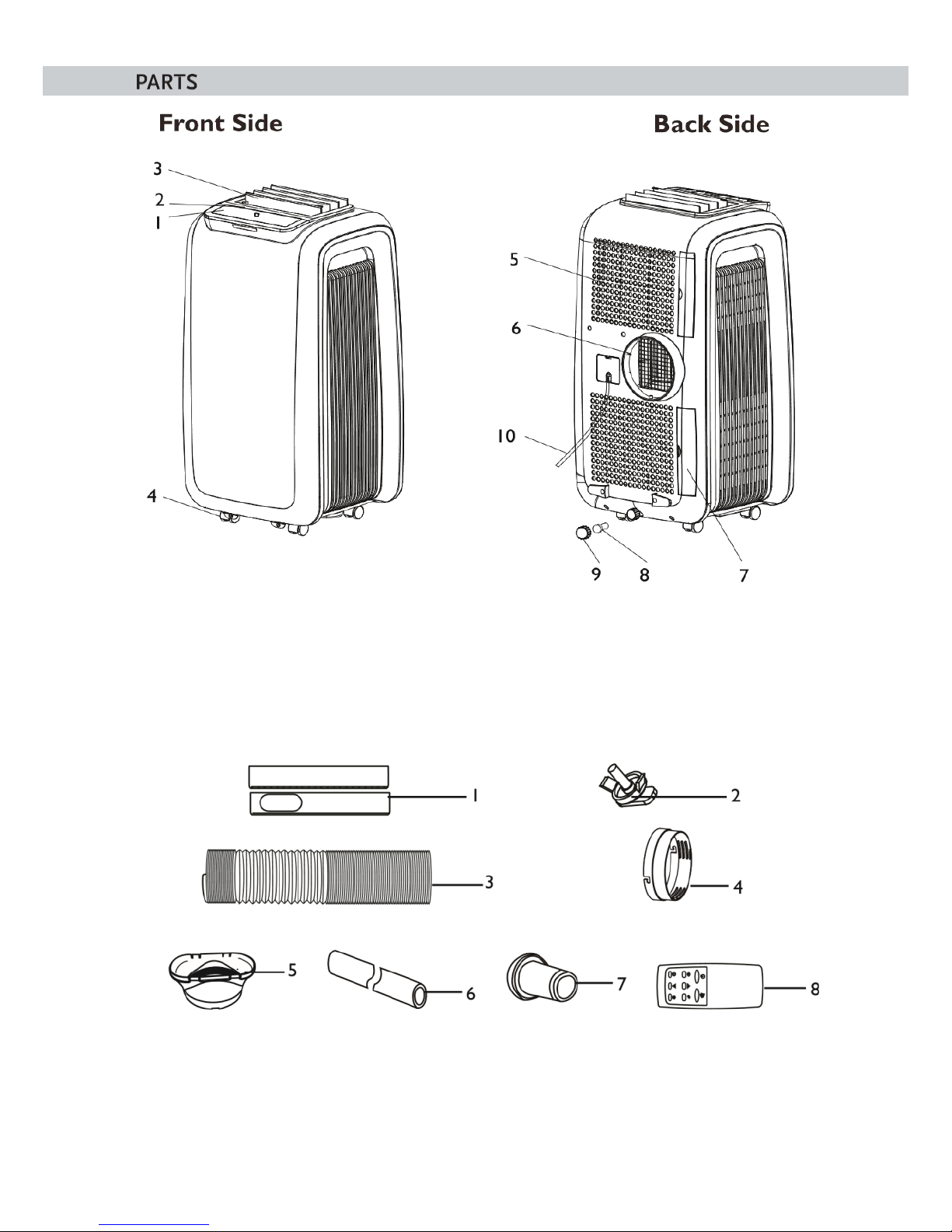

1. Control Panel 2. Air outlet 3. Self closing louvres
4. Castors 5. Upper filter frame 6. Exhaust outlet
7. Lower filter frame 8. Rubber stopper 9. Drain screw cap
10. Power cord
Check that all accessories are in the box and please read the instructions manual before
assembling the unit.
1. Extendable slide bar 2. Screw, washer, nut (for slide bar)
3. Extendable exhaust hose (up to 1.5 meters) 4. Hose connector
5. Fishtail adapter 6. 10mm Drain pipe (AC12HP only)
7. Drain connector (AC12HP only) 8. Remote control

6
INSTALLATION
Warning：Before using this unit, please keep it upright for at least 3-4 hours.
This unit can easily be moved from one room to another.
While moving the unit please note that it must be kept upright and then placed on an even
surface. 1.Extend one end of the hose
and connect the hose
connector, by twisting it a
number of full rotations.
2.In the same way connect the
fishtail adapter to the opposite
end of the exhaust hose.
3. Twist the hose connector into the exhaust outlet on the rear
of the unit.
INSTALLATION OF WINDOW KIT The window kit (slide bar and fishtail)
can be used with sliding windows and
doors. For other types of window, the
fishtail should be used on its own.
1.Partially open the window and then fix
the window kit to fill the opening in the
window.
2. Make sure the unit is upright and there are no obstructions
to the air inlet grills.
3. With the hose and
fishtail adaptor
connected to the
unit, push the end of
the fishtail adaptor
into the slot in the
slide bar.
NOTES:
To ensure efficient operation the opening should be as small as possible.
The best form of installation is through a wall duct.
The unit will need to be externally in heating mode (AC12HP only), ideally through the
wall. By properly venting you expel cold air from your room while efficiently heating it.
Your air conditioner should be used without a vent hose in dehumidifier mode. Please
ensure an external water tank is used, monitored and regularly emptied before over
spilling. Permanent plumbing can be also installed in dehumidifier mode, alternatively an
external water pump can be fitted for unattended use.
IMPORTANT SAFEGUARDS
The length of the soft hose extends from 28 cm to 150 cm. If the hose is extended above
this length the unit may malfunction and this can invalidate the warranty.
The outlet vent must be well ventilated and not obstructed as this will cause the unit to
overheat. Avoid bending the hose more than 30°.

7
FEATURES AND OPERATION
FEATURES
1.Self-evaporative system - no external water tank needed
2.Designer inspired luxury model
3.Louvres outlet closes when shutting down the unit, this prevents dust and dirt entering the
machine.
4.Bright LED screen, indicates temperature and operation mode
5.On/Off timer function –allows you to choose when the unit operates.
6.Compressor protection technology
OPERATION
ON/OFF
Press “POWER” to switch the unit On or Off
COOLING MODE
After the machine is turned on, it will automatically enter cooling mode with a desired temperature of
22℃and low fan speed.
Press “MODE” to select cooling mode, the cooling mode indicator will be lit.
Press the “UP” and “DOWN” buttons to adjust the desired temperature (between 16℃and 31℃).
Press “SPEED” to select the fan speed (high, medium and low).
HEATING MODE (AC12HP)
Press “MODE” to select heating mode, the heating mode indicator will be lit.
Press the “UP” and “DOWN” buttons to adjust the desired temperature (between 16℃to 31℃).
Press “SPEED” to select fan speed (high, medium and low).
DEHUMIDIFY MODE
Press “MODE” to select dehumidify mode, the dehumidifying mode indicator will be lit.
When using dehumidify mode the sleep function cannot be used and the fan speed is low.
The dehumidifier does not need to be externally vented, but continuous drainage should be set up for
the moisture collected.
FAN MODE
Press “MODE” to select fan mode, the fan mode indicator will be lit.
Press “FAN” to select fan speed (high, medium and low).
Desired temperature and sleep function cannot be used.
TIMER MODE
You can only set the auto-shut off timer while the unit is operating (On).
You can only set the auto-start timer while the unit is in standby (Off).
Under standby mode, press “TIMER” to setup the power-on time. The timer indicator turns will be lit.
Under power-on mode, press “TIMER” to setup power-off time. The timer indicator turns will be lit.
Use the “UP” and “DOWN” buttons to adjust the duration of the timer between 1-24 hours.
Timer functions cannot be repeated or combined.
Manual power on / off operations will cancel the timer.

8
FEATURES AND OPERATION
SLEEP MODE
While in cooling pressing the “SLEEP” button will put the unit in sleep mode.
The fan speed will change to low.
It will automatically increase the desired temperature by 1℃after an hour and by a further 1℃after a
further hour. This means the unit will spend less time with the compressor running, and so run
quieter.
The sleep function cannot be used in dehumidify and fan modes.
If the water tank is filled, the unit is put into standby or the mode is changed, sleep mode will be
cancelled.
SWING MODE
After machine turns on, press the “SWING” button, the inner louver will swing continuously left
and right; by pressing the button again the movement will stop and the louver remain in that
position.
COMPRESSOR PROTECTION
There is a 3 minutes compressor start delay after power on or restart.
REMOTE CONTROL

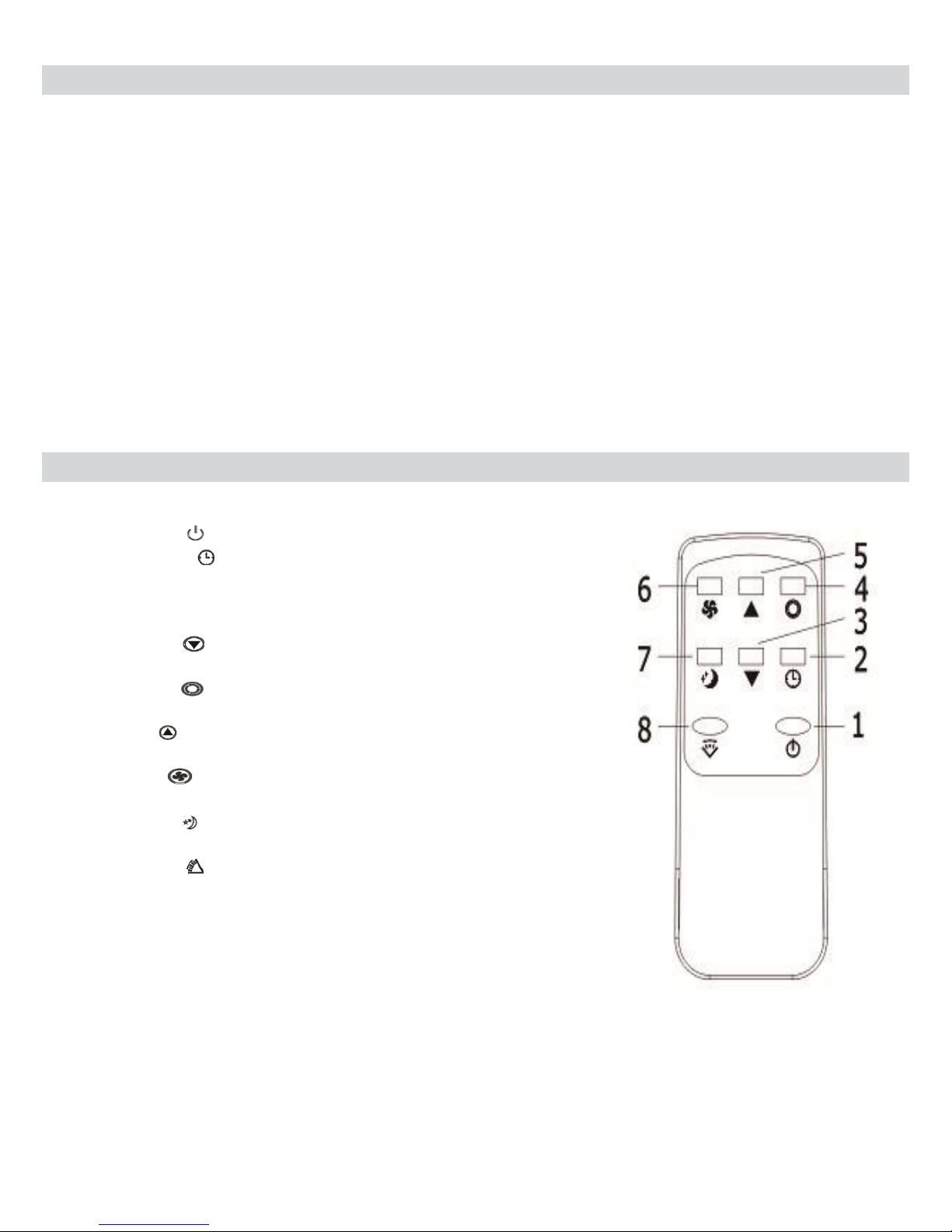

1. Power : Press to turn the unit on/off.
2. TIMER :Press to set the timer. Once set, selected
duration will flash 5 times as confirmation. Under power-on
or standby mode, press this button to setup the on/off
timer between 1~24.
3. Down : Press to decrease the desired temperature, or
the timer duration after pressing the timer button.
4. Mode : Press to choose between cooling, heating
(AC12HP only), dehumidifying or fan modes.
5. Up : Press to increase the desired temperature, or the
timer duration after pressing the timer button.
6. Fan : Press to change between low/medium/high fan
speeds.
7. Sleep : (Only in cooling mode) ：Press to enable sleep
mode.
8. Swing : Press to control swing function.
The air conditioner responds to all signals that are sent by
the remote control. Two AAA-batteries are required to use
the remote control.
Note: the air flow direction cannot be adjusted with the
remote control.
IMPORTANT:
There is a 3 minutes delay on power on. In order to protect the life of the
compressor and electronic components please do not switch on the unit for at least
5 minutes after you turned the unit off.

9
Drain connector
Drain plug cap
WATER-DRAINAGE
MANUAL DRAINAGE
When the internal water tank is full the unit will stop working.
Shut off the unit and unplug. Avoid moving the model abruptly as
this may cause water to spill from the internal tank.
Place a tray under the water plug.
Unscrew the Drain plug cap and remove the rubber stopper - water
will drain from the internal tank.
Put the rubber stopper back and screw the drain plug cap back into
place.
CONTINUOUS DRAINAGE:
Unscrew the drain plug cap and remove the rubber stopper. Fit the
drain connector within the cap
Connect a suitable pipe to the water outlet to remove the water out
continuously.
Note: This model is self-evaporative, which reduces the need to empty
the water tank.
If the unit is vented correctly most of the water is reused to cool the
condenser coils and any excess is evaporated.
Please do not use continuous drainage if you intend to use the self-
evaporate facility.
MAINTENANCE
CLEANING
Turn off the unit and unplug from the mains before cleaning or performing any maintenance.
CLEAN THE SURFACE
Clean the plastic housing with a duster or a soft wet cloth.
Do not use chemical solvents (such as benzene, alcohol or gasoline) as they may cause
irreversible damage.
AIR FILTER CLEANING
Clean the air filters every 2 weeks. If the air filter is blocked with dust, the performance of
the unit will be significantly affected.
Pull out the top and bottom filters as pictured below
Wash the air filters by immersing them in warm (about 40℃) water with a neutral detergent.
Rinse it and then dry it thoroughly.
Carefully re-install air filters
END OF SEASON MAINTENANCE
1.Pull out the plug from the drainage hole and empty the internal tank. You should ensure
the tank is fully drained by leaning the unit backwards.
2.Then switch the unit to Fan mode,
3.Keep the unit in this mode for half day. Doing this helps to keep the inside of the unit dry
and prevents mold developing
4.Turn off the unit and unplug
5.Ensure the water tank is empty before replacing the rubber bung and drain cap.
6.Coil the wire and bind it together, then put it into the accessories space.
7.Separate the air-exhausted pipe and store it safely.
8.Cover the unit and keep it in a dry place.
9.Take the batteries out of remote control and store, or dispose, them safely
Drain plug cap
Rubber stopper
Drain pipe
(size: 10 mm)

10
TROUBLESHOOTING
Do not repair or disassemble the unit by yourself, unauthorized repair
attempts will invalidate the warranty and may cause bodily harm.
Problem
Reason
Solution
The unit
does not
work
No power supply.
Plug in and turn on the unit.
Water-full indicator illuminated.
Drain the internal water tank.
Timer function is active.
Cancel the timer function.
Room temperature too low or too high.
Use only in ambient temperatures between 7-
40℃.
The unit
does not
seem to
perform.
In direct sunlight.
Draw the curtains, UV affects use air conditioner.
Windows or doors open.
Large amount of people or a
heat source in the room.
Close windows and turn on another air
conditioner.
Filter is very dirty.
Clean or change the air filter
Air inlet or air outlet is blocked
Clear out debris.
Room temperature is lower than the
desired temperature set.
Change the desired temperature.
The unit is
loud
The unit is not on a flat surface.
Put the unit on flat surface. Place a piece of
carpet under the unit to prevent vibrations.
Compressor
does not
work
Overheating protection is active.
Check the vent pipe is not restricted.
Restart the unit after 10 minutes when
compressor has cooled.
Remote
control
doesn’t work
Operating distance is too far.
Move remote control closer to the unit and
make sure it aims at the air-outlet grille.
Control panel has not received
the signal from remote control.
The batteries are flat.
Replace the batteries
E1 on LED
Room temperature sensor is abnormal.
Temperature not within 5-40℃operating range.
If the temperature within operating range refer to
the retailer or manufacturer.
E2 on LED
Coil temperature sensor is abnormal.
Refer to the retailer or manufacturer.
OTHERS
Water tank is full inside the machine
Drain water from drain port at bottom rear of
the unit.
Anti-freezing protection.
Defrosting the coils within the unit. Normal
operation will resume automatically. No user input
is required.
No refrigerant or there is very little
refrigerant.
Refer to the retailer or manufacturer.
High pressure protection.
After inside gas pressure comes down, it will
function normally. No user input needed.
If the above solutions do not resolve the problem please contact the retailer or
manufacturer.

11
APPENDIX
Disposal: Do not dispose this product as unsorted municipal waste.
Collection of such waste must be handled separately as special
treatment is necessary.
Recycling facilities are now available for all customers at which you
can deposit your old electrical products. Customers will be able to take any old
electrical equipment to participating civic amenity sites run by their local
councils. Please remember that this equipment will be further handled during
the recycling process, so please be considerate when depositing your
equipment. Please contact the local council for details of your local household
waste recycling centres.
TECHNICAL DATA
Model
AC12/AC12HP
Cooling Capacity
KW/BTU
3.51/12000
Heating Capacity
KW/BTU
2.93/10000
Cooling Rated Input
W
1500
Heating Rated Input
W
1270
Mains
220-240 V / 50 Hz
Current Cooling / Heating
A
5.97/5.62
Refrigerant
R410A
Moisture Removal
L/Day
50
EER Rating
A
Permitted Excessive Operating
Pressure Suction / Discharge
MPa
0.8/3.2
Maximum Allowable Pressure
MPa
5.0
Compressor
Rotary
Fan Speed
3
Noise
dB(A)
Sound Pressure
≤54
Sound Power
≤65
Thermostat
℃
16-31
Timer
h
1-24
Fuse Parameter
Type: FSD / 50F
Voltage: AC 250V;F;3.15AL
Net Weight
kg
29
Dimension(L*D*H)
mm
400 x 370 x 800
Unit must be vented outside when in Air Cooling mode. For the purposes of EU regulation
EN12102 this is a local air conditioner and produces less than 65dB(A) sound energy

12
AMCOR UK SUPPORT
Please,foryourownconvenience,makethesesimplechecksbefore
callingtheserviceline
.
Has the unit been standing upright? (for at least 2 hrs)
Is the unit plugged into the mains? Is the fuse OK?
Switch the unit on and wait three minutes to see if the issue is
resolved.
Check whether the water tank is full.
Iftheunitstillfailstooperatecall:0871 620 1057
Office hours: 9AM-5PMMonday to Friday
UnitJ6LowfieldsWay
EllandWestYorkshire
HX5 9DA
