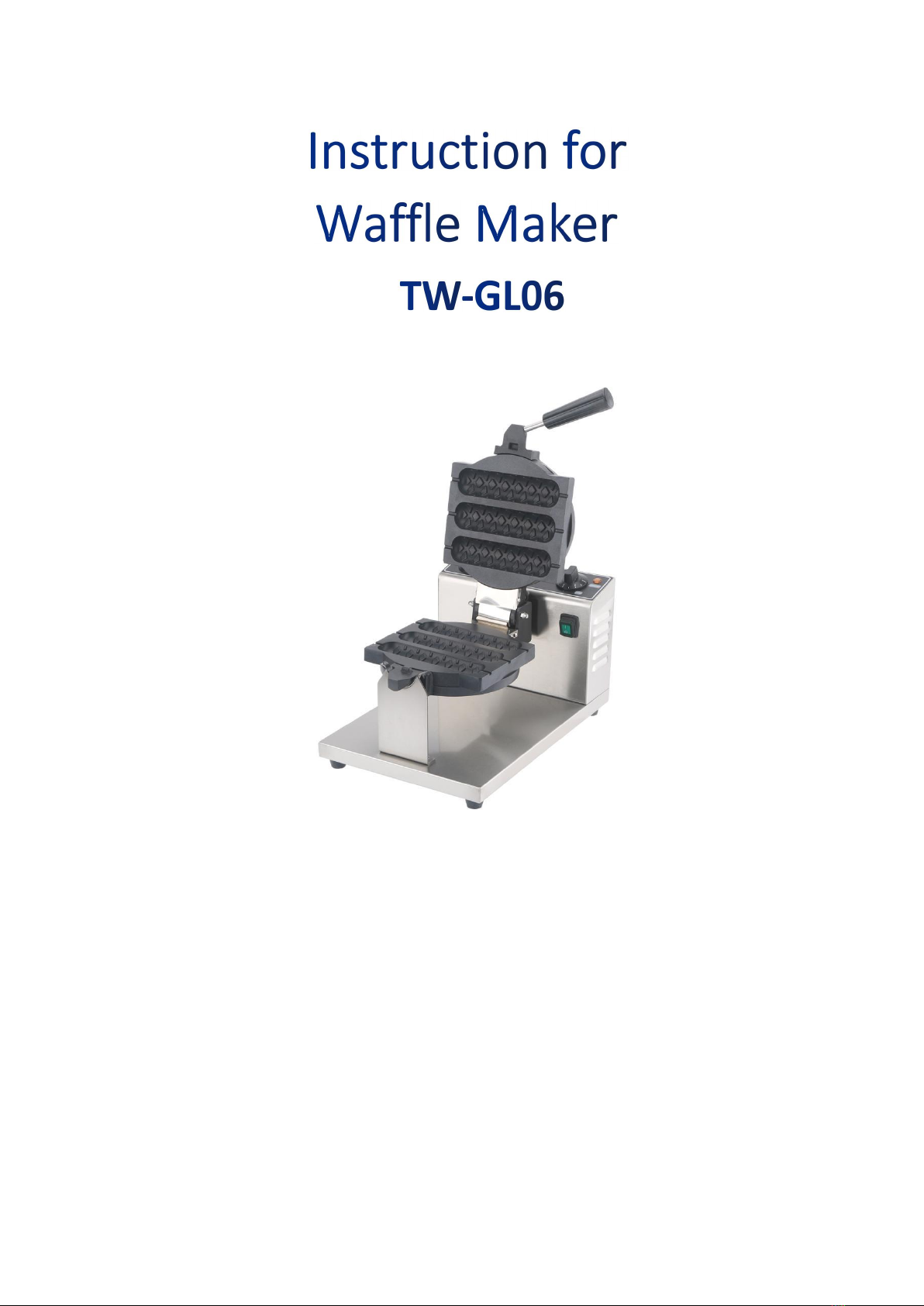

AMERICA FOOD SOLUTIONS TW-GL06 User manual

Thank you for buying our product, in order to ensure safe used, please read the
Instructions before using and keep it for reference.
The following safety precautions must be observed when using this product:
1. Please read the relevant instructions carefully before using this product.
2. Do not share the same power source with other high-power appliances to avoid excessive
power load and other dangers.
3. The surface temperature of this product is very hot after working or just using. Burns may
be caused by contact with hot parts.
4. If children are nearby, use the product with extra care. Do not leave the product to
children alone.
5. Do not allow this product to be used unattended.
6. Do not touch the power cord with sharp objects and high-temperature surface to avoid
damage to the power cord.
7. Frequently check whether the power cord and plug are damaged. Once any signs of
damage are found, please stop using immediately and ask for professional maintenance or
replacement.
8. After use, press the power button to close and pull out the plug from the socket to avoid
leakage or shock due to aging insulation
9. The product shall be installed in a dry, clean and ventilated place;And put the product in a
horizontal and smooth position
10. For the sake of safety, the product must be reliable grounding, and install leakage switch to
ensure personal safety, otherwise not to use.
11. Please unplug the power cord and remove, check or clean the product after it has cooled
completely.
12. Do not plug or unplug the power cord in wet hands to avoid electric shock.
1. Please read the Instructions carefully.
2. Please check if all switches are in off position.
3. Please check all the accessories are complete.
Model
Dimensions(mm)
Voltage（v）
Power （w）
Hz
Waffle size-mm
TW-GL06
505*315*345
110
1750
60
45*175

4. Please tear up the protective film on the surface of the product, then clean the rust oil
wipe on surface of the product with a dry cloth.
5. The supply voltage must match the voltage specified on this machine.
6. The smoke is normal when first time turn on the machine, it’s the oil inside the machine
which to protect it become rusting.
1.Mix the ingredients. 2.Turn on the switch , adjust the
temperature to 160-180℃.
3.Wait for the indicator light to go out. 4.Pour liquid to the non-stick plate.
5.Turn the machine and adjust the timer 6.Turn on the machine and take out
to 3 minutes. the waffle.

1. Unplug the power cable and ensure that the product is cooled
2. completely, then cleaning and collection.
3. Cleaning cooking surface with a soft cloth or sponge dampened in a mild detergent.
4. Please don’t use wire brush, stiff brush or other corrosive liquids to clean it, avoiding
damage the surface coating.
5. If batter adheres to plates, simply pour a little cooking oil onto the baked batter and let
stand approximately 5 minutes, allowing batter to soften for easy removal.
6. Never use an abrasive cleanser or harsh pad.
7. Never clean the product by sprinkling water and immersed in water.
1. Pan MUST be open when pre-heating (if closed the temperature inside is much more
higher than open, long time high temperature is not good for Teflon coating), 160-180℃is
our best temperature during the test.
2. If waffle maker is an additional product to your shop, please keep temperature under 80℃
when no customers, it’s better to turn off the machine if there’s long time no customer.
3. We have changeable pan ,which could change pan easily by two screws.And that
you bought one like you get two machines.
4. We have Temperature Limiter,which could be turned off automatically when temper
ature above 290℃and it can extend the life of machine.
5. Use wet towel to clean the pan, if anything difficult to wipe off, use professional kitchen
glue brush, put some water in holes, heat the water a bit, it’s easier for cleaning, but do not
let water go inside of machine.
6. Do not brush oil on pan directly, you can add oil inside your recipe or waffle mix, but do not
add too much oil, or it will get infiltrate and heater may get burnt.
7. Do not use corrosive cleanser to clean the waffle pan.
This machine shell must be grounded and ensure safety, thank you for your
cooperation.

The products which electric
power is over 1kw must
plug a properly (grounded)
individual receptacle.
It could result in
fire by ignition.
Do not cover the product
with a cloth or plastic bag
while you are using it.
It could result in
fire.
Ensure to unplug the
product while you don't use
it.
It could result in
fire or electric
shock.
Do not touch the product
with wet hands.
It could result in
electric shock.
Never clean the machine by
sprinkling water.
It could result in
electric shock or
product damage.
Do not use the product
outside in the rain or wet
area.
It could result in
electric shock.
Use the product in a light
place.
It could result in
accident or burn if
you use it in a dark
room.
Do not use the product
near flammable gas or Do
not use the
It could result in
explosion or fire.

Fault
Reason
Method
Turn on the power，but the green
light doesn't work
1.There is no power at the outlet
2.The power cord contacts bad
terminal is loose
3.The green light was burnt out
1.Check the socket for power
2、Fastening the power cord
and terminals wiring
3.Replace the green light
The yellow light didn't go out and
the temperature of the machine is
out of control
1.The thermostat doesn't work
1.Replace the thermostat
The indicator light is not on, but
the temperature control is normal
1.The indicator light has bad contact
2.The indicator light was burnt out
1.Tighten the wires
2.Replace the indicator light
The yellow light is on but not
heated
1.Wrong connection of indicator light
2.The heating tube was burnt out;
1.Rewire according to correct
wiring
2.Replace the heating tube
The green light is on, the yellow
light is off, but the machine is not
heated
Thermostat was damaged
Replace the thermostat
Yellow indicator light is always on,
the lower plate is not hot, the
upper plate has been heating and
the temperature is ultra high
1.The connection of lower board
heating pipes is loose
2.The lower heating tube is
damaged
1.Check the connection of
heating pipes
2.Replace the lower heating
tube
The yellow light is on and the
temperature of the lower plate is
normal，but the upper plate is not
hot.
1.The connection of upper heating
pipes is loose
2.The top heating tube is burnt out
1.Check the connection of
heating wires
2.Replace the lower heating
tube
Plug in the power and turn on the
thermostat，then caused switch
trip
1.The internal wiring is loose and the
belt parts touch the metal shell;
2.Short circuit is caused by heating
pipe burning
1.Check the internal wiring of
the machine and tighten it
2.Replace with a new heating
tube
