American Leather POWER COMFORT RECLINER User manual

YOUR GUIDE TO OPERATING THE
ULTIMATE POWER RECLINER

2

3
Congratulations on your purchase of the power
Comfort Recliner™by American Leather®.
Following are helpful hints and important safety
information regarding the use and care of your
Comfort Recliner™.
Please review this instruction manual thoroughly
before using your power Comfort Recliner™.
This product is intended for household /
residential use only.

4
Read all instructions before using the power Comfort
Recliner™.
When using an electrical appliance, basic precautions
should always be followed, including the following:
DANGER! To Reduce the Risk of Electric Shock:
Always unplug the power Comfort Recliner™ from the
electrical outlet before cleaning.
WARNING! Risk of Injury:
Keep children away from the extended foot support and
any moving parts.
CAUTION! Do not allow children to play on this power
Comfort Recliner™ or operate the power Comfort Recliner™
mechanism. The leg rest folds down when closing and
could possibly cause injury to a child. Always leave the
power Comfort Recliner™ in an upright and closed position
when not in use. Keep hands and feet clear of mechanism.
Only the occupant should operate it.
Safety or Recall Notices:
Register your Comfort Recliner™ warranty at
americanleather.com. This will ensure that American
Leather®can contact you in the event of a safety notice
or product recall. Please contact your American Leather®
retailer if you did not receive warranty registration
information with your power Comfort Recliner™.
IMPORTANT SAFETY INSTRUCTIONS

5

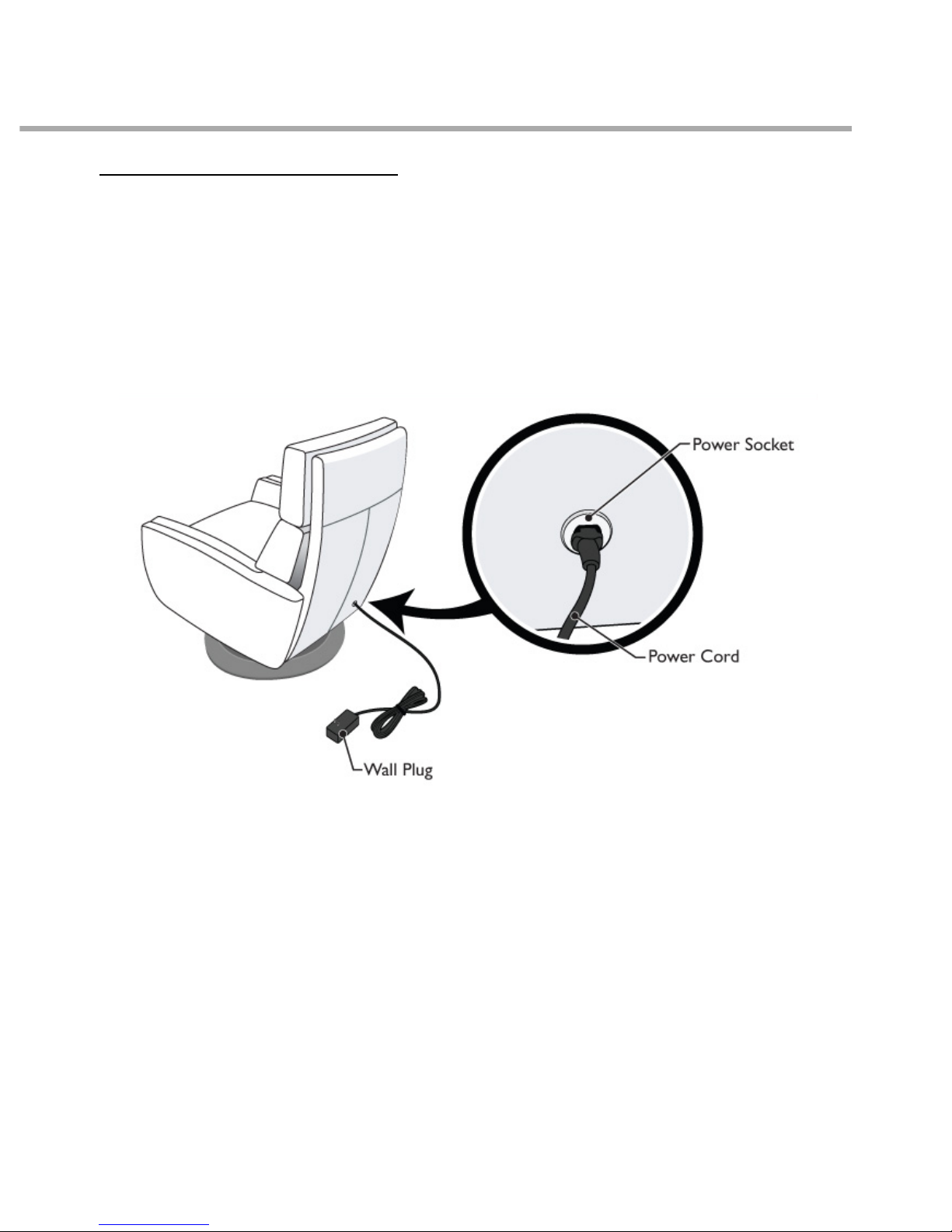

POWER CORD SAFETY
WARNING!
UNPLUG AND REMOVE POWER CORD FROM THE WALL
AND THE POWER SOCKET AT THE REAR OF THE POWER
COMFORT RECLINER™ WHEN NOT IN USE AND STORE
THE CORD OUT OF REACH OF CHILDREN.
Take care when moving the power Comfort Recliner™ that
the power cord is not under the base or legs of the Comfort
Recliner™, or it may get damaged. Never operate the power
Comfort Recliner™ if it has a damaged cord or plug.
Figure 1

6
Footrest Entrapment:
The power Comfort Recliner™ has a spring-loaded footrest
to prevent entrapment when the power Comfort Recliner™
is being closed. In the event that something obstructs the
footrest, it will stay partially open via springs located on
both sides of the power Comfort Recliner™, even if the
motor continues to the fully closed position.
In the Event of an Obstruction:
• Immediately stop the power Comfort Recliner™.
• Carefully open the power Comfort Recliner™ and free
the obstruction. If necessary, manually pull outward on
the spring-loaded footrest and then free the obstruction.
WARNING!
To reduce the risk of burns, fire, electric shock, or injury to persons:
• Use the power Comfort Recliner™ only for its intended
use as described in this manual.
• Only operate the power Comfort Recliner™ when seated.
• Never press or activate the control switch if you are not
actually sitting in the power Comfort Recliner™.
• Only the occupant should activate the switch.
• Operation is designed for one person only.
• Never operate the power Comfort Recliner™ with more
than one person sitting on an individual seat.
• Never sit or stand on the footrest.
IMPORTANT SAFETY INSTRUCTIONS

7
• Each power Comfort Recliner™ seat can accommodate
an occupant of up to 300 pounds maximum.
• Do not race, play with, or abuse the power Comfort
Recliner™ mechanism.
• Never operate the power Comfort Recliner™ if it has a
damaged cord or plug, if it is not working properly, if it
has been dropped or damaged, or dropped into water.
• Contact your local retailer for examination and repair.
• To unplug the power, return the power Comfort
Recliner™ to the upright and closed position and then
remove plug from the wall outlet or power socket from
the rear of the power Comfort Recliner™.
• Unplug from outlet before putting on or taking o parts.
• Close supervision is necessary when the power Comfort
Recliner™ is used by or near children or disabled persons.
• Keep cord away from heated surfaces.
• Never drop or insert any object into any opening.
• Do not use outdoors.
• Do not operate where aerosol (spray) products are
being used or where oxygen is being administered.
• Never operate the power Comfort Recliner™ with theair
openings blocked. Keep the air openings free of lint,
hair, and the like.

8
POWER SUPPLY
Voltage in: 100-120V – 50/60 Hz Lin: 1.2A
Voltage out: 29 Vdc Lout: 1.8A
Duty Cycle 2 min ON/20 min OFF
Class 2 Power Supply
Servicing of Double-Insulated Products:
The power Comfort Recliner™ is a double-insulated product.
In a double-insulated product, two systems of insulation
are provided instead of grounding. No grounding means is
provided on a double-insulated product, nor is a means for
grounding to be added to the product. Servicing a double-
insulated product requires extreme care and knowledge
of the system, and is to be done only by qualified service
personnel. Replacement parts for a double-insulated
product must be identical to the parts they replace.
A double-insulated product is marked with the words
“DOUBLE INSULATION” or “DOUBLE INSULATED.”
The symbol (Square within a square
)
is also able to be marked on the product.
BATTERY SAFETY (OPTIONAL):
If battery operation was purchased as an optional
accessory to your power Comfort Recliner™ there are
additional safety instructions to be followed.
DANGER! Risk of physical injury:

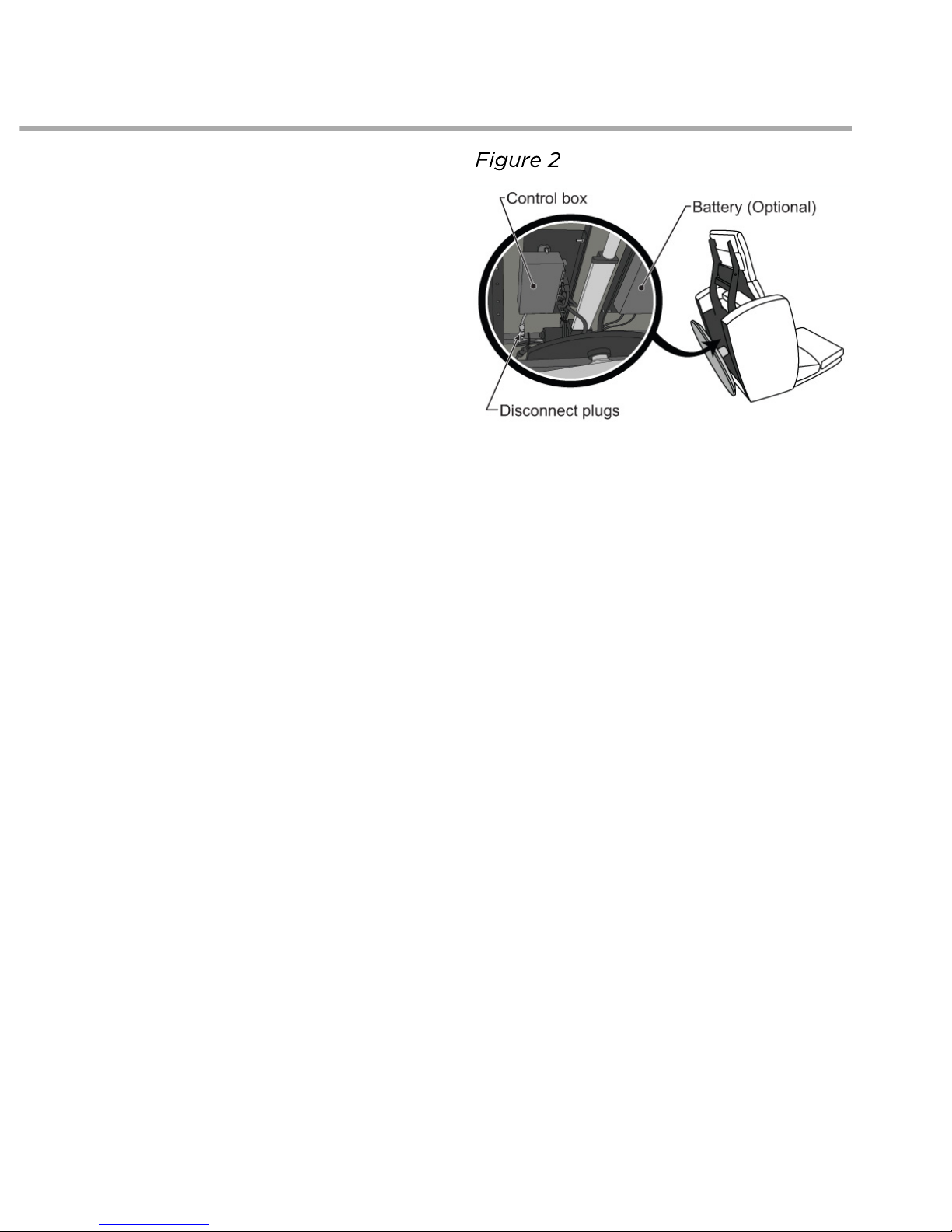

The power Comfort Recliner™ has a control that is located
remotely from the battery that must be secured before
servicing. (See Figure 2)
IMPORTANT SAFETY INSTRUCTIONS

9
WARNING!
Unplug and remove the
power cord from the wall
and FROM the power
socket at the rear of
the power COMFORT
RECLINER™ when not in
use and store out of reach
of children. also, unplug
the master power cord from the control box to prevent use
when a battery is mounted in the COMFORT RECLINER™
power system. (See Figure 2)
WARNING!
Only use an identical replacement battery supplied by your
local American Leather®retailer. The battery is matched to
the charging system in the power Comfort Recliner™. Use
of a non-identical battery could cause risk of burns, fire,
electric shock, or injury to persons.
Replacement batteries can be ordered from your local
American Leather®retailer.
• Do not use a non-rechargeable battery
• Do not mix old and new batteries
• Do not mix non-rechargeable and rechargeable batteries
• Use only one battery – Do not chain batteries together

10
USER MAINTENANCE INSTRUCTIONS
Unplug the outlet cord before cleaning the power Comfort
Recliner™.
If the power Comfort Recliner™ is equipped with an
optional battery, also unplug the master power cord from
the control box before cleaning or performing maintenance.
(See Figure 2)
Do not use any liquids or spray cleaners on any electrical
components.
Follow the cleaning code located on the swatch label
under the footrest or in your warranty booklet to clean the
upholstery cover.
It is not necessary to lubricate any components of the
power Comfort Recliner™.
None of the electrical components are user-serviceable.
Any other servicing should be performed by an authorized
service representative.
If the power cable or transformer are ever damaged, they
can be ordered from your American Leather®retailer.

11
OVERLOAD PROTECTION
The power Comfort Recliner™ has both electronic and
thermal overload protection. If the weight limit of the
power Comfort Recliner™ is substantially exceeded
or an obstruction keeps the power Comfort Recliner™
from being able to open or close, an electronic overload
sensor will prevent the motor from operating. In addition,
the transformer is equipped with a thermal fuse. If the
motor or transformer is overworked, this thermal fuse is
tripped, which shuts o the motor and transformer. The
thermal fuse will automatically reset in 10-15 minutes after
the transformer has cooled down. The power Comfort
Recliner™ may then be used normally.
STORAGE
If the power Comfort Recliner™ will not be used for an
extended period of time, remove the cord from the power
socket and wall outlet and store the cord out of reach of
children. If the power Comfort Recliner™ is equipped with
an optional battery, also unplug the master power cord
from the control box.
• Store the power Comfort Recliner™ in a dry
interior location.
SAVE THESE INSTRUCTIONS

12
Comfort Recliner™
by American Leather®
YOUR GUIDE TO OPERATING THE ULTIMATE POWER RECLINER
OPERATING CONTROL PANEL:
The control buttons are backlit with LED lights that turn on
automatically when a button is touched, and will turn o
automatically about 5 to 6 seconds later. (See Figure 3)
The footrest has infinite stopping positions, independent
from the power Comfort Recliner™ back recline. To raise
the footrest, press the raised area of the front toggle switch
located next to the USB port. If you are sitting in the power
Comfort Recliner™, this is the farthest button from the
backrest. Simply release the button to stop the footrest in
any position. To close, press the rear area of the same toggle
switch. (See Figure 3)
USB Port
Footrest Open
Footrest Close
Backrest Open
Backrest Close
All Open
All Close
(Footrest and backrest)
CONTROL PANEL ATTACHED TO SEATING UNIT
FOOTREST & BACK RECLINE
Figure 3

13
The back recline also has infinite stopping positions,
independent from the footrest. To recline the backrest, press
the raised area of the middle toggle switch. When you have
reached your desired position, simply release the button to
stop the backrest in any position. To close, press the rear area
of the same toggle switch.
To open both the footrest and the backrest at the same time,
press the raised area of the third toggle switch. To close both
footrest and backrest at the same time, press the rear area
of the third button closest to the backrest. This button
will close the footrest and return the backrest to
the full upright position.

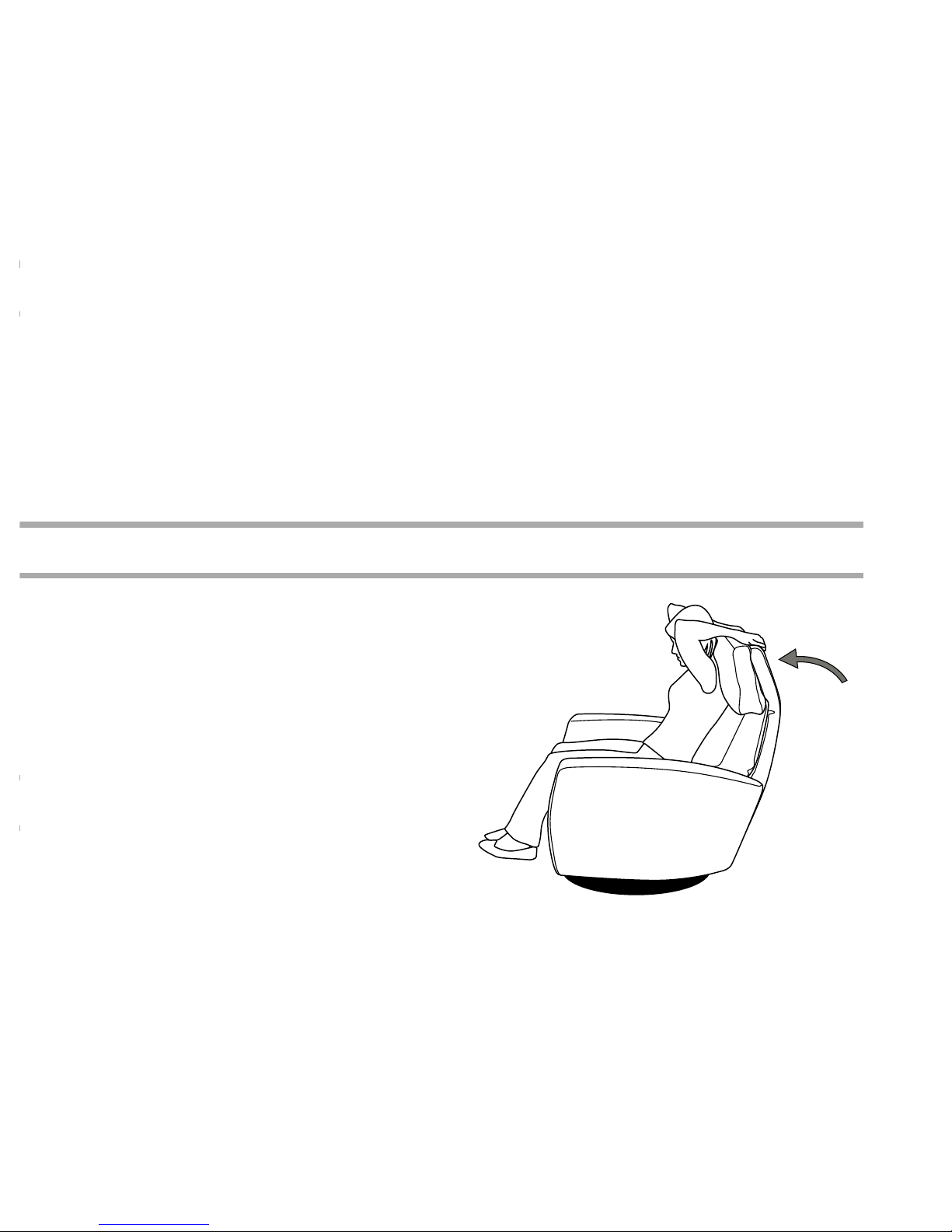

The Comfort Recliner™
headrest adjusts to provide
back and neck support. The
headrest articulates forward
to create the perfect angle
for watching television
or reading a book. When
standing behind the
power Comfort Recliner™,
you can change the angle by
pressing forward on the outside of the headrest. However, if
you are already sitting and want to adjust the angle, place
both hands on the back of the headrest and pull forward to
your desired position. To return the articulating headrest to
its normal position, simply push back with your hands.
CONTROL PANEL ATTACHED TO SEATING UNIT
ADJUSTING HEADREST

14

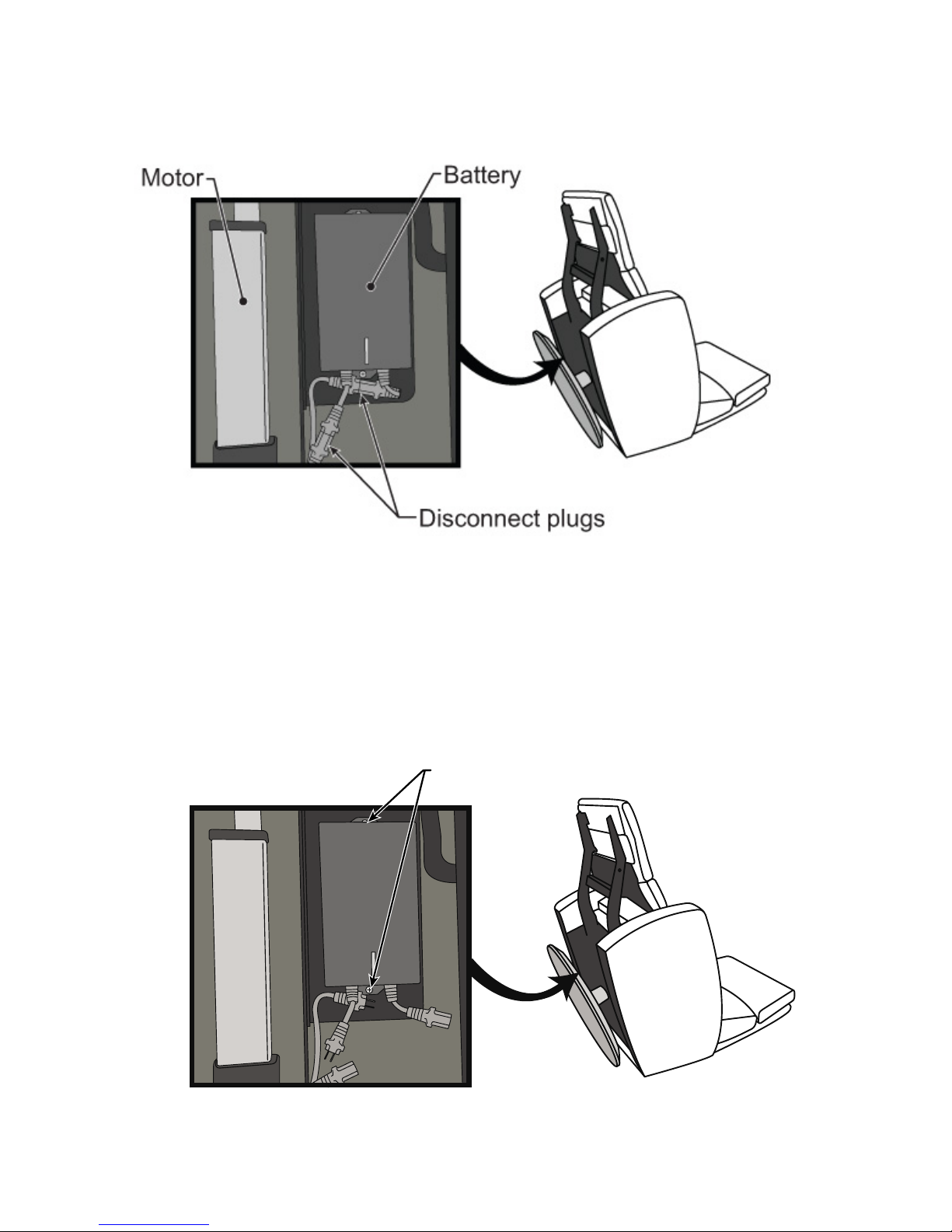

The purchase of the optional battery for use in the power
Comfort Recliner™ allows the power Comfort Recliner™ to
be operated either with the cord plugged into the wall, or
with battery power only. This allows you to float the power
Comfort Recliner™ in the room without cords attached.
Battery Life:
The optional battery is a 1.8 Amp hour Lithium Ion (1.8
A/h Li-ion) battery in a fully enclosed case. The minimum
life expectancy of the battery is 500 complete charge/
discharge cycles.
A fully charged battery will provide about 100 complete
open/close cycles before it needs to be recharged.
When the battery needs charging the power Comfort
Recliner™ will begin to operate more slowly, indicating the
battery is running out. If the battery gets to about 10% of
capacity, a beeping tone will sound when any of the control
buttons are pressed, indicating that the power Comfort
Recliner™ needs to be recharged immediately.
Please note that for optimal battery life, the battery should
not be used to its capacity, or used until the power Comfort
Recliner™ stops working. It is recommended that the
battery be charged once per month if it is not going to be
used for an extended period of time.
OPTIONAL BATTERY POWER

15
Battery Recharging:
To recharge the battery in the power Comfort Recliner™,
plug the cord from the power supply into the power socket
at the rear of the power
Comfort Recliner™ and
then plug the power
supply into an electrical
outlet as shown
in (Figure 4).
The power system has an
automatic power selector
system that chooses battery power or power from the wall
outlet, depending on whether the power Comfort Recliner™
is plugged in or not.
If the power Comfort Recliner™ is plugged in for recharging,
the automatic power selector system will provide power
to charge the battery and operate the power Comfort
Recliner™ at the same time.
If the cord is plugged into the power Comfort Recliner™
continuously, the system will not overcharge the battery.
The charging time for the battery is about eight hours.
To determine if the battery is done charging, open the
footrest and look under the power Comfort Recliner™
footrest at the battery. The LED light on the battery will be
a solid GREEN if it is fully charged and flashing AMBER if it
is still charging.
Power Cord
Power Socket
Wall Plug
Figure 4

16
Battery Replacement Instructions (OPTIONAL)
Your power Comfort Recliner™ may be equipped with
optional battery power. Follow the instructions below for the
power Comfort Recliner™ that are equipped with this feature.

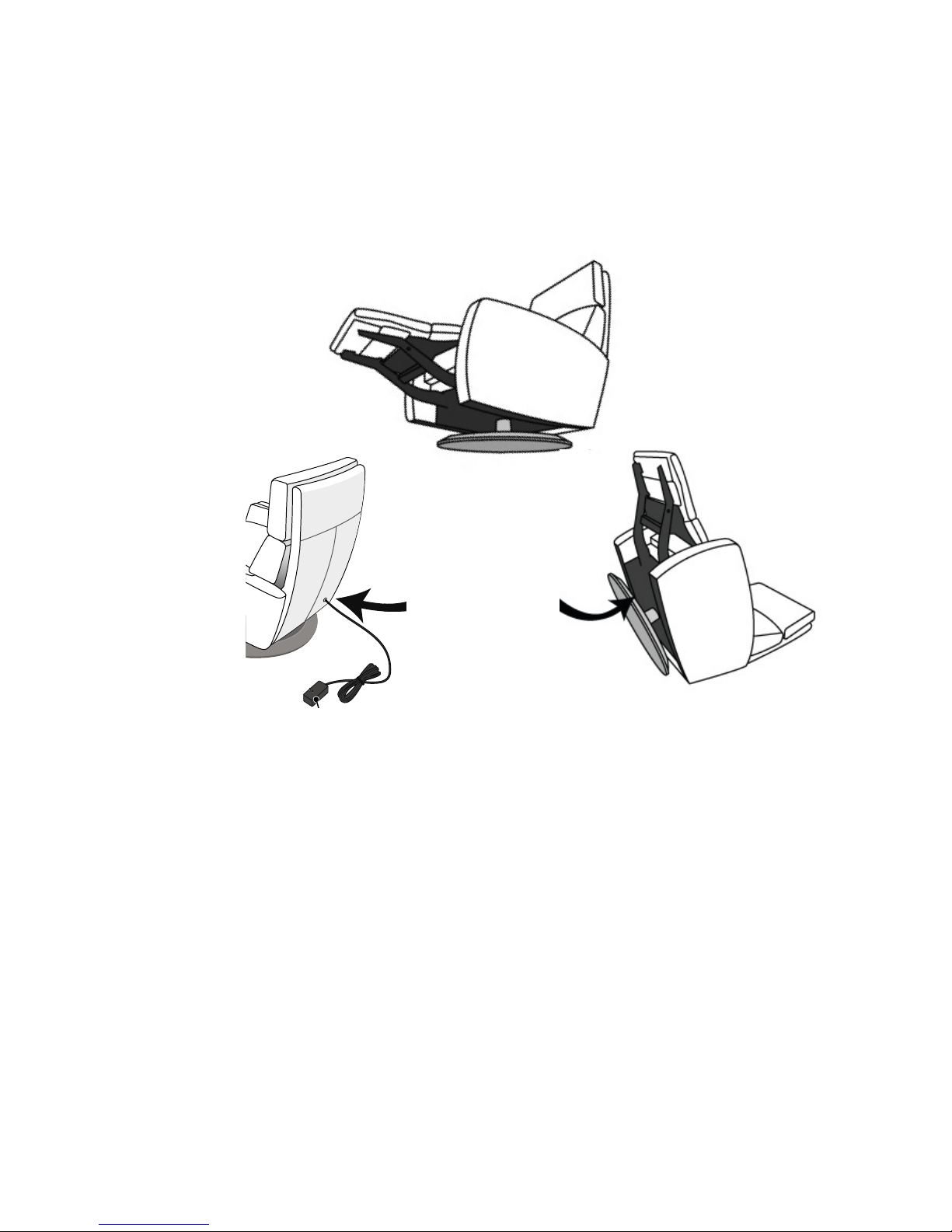

In the event that the battery needs to be replaced: (See Figure 5)
1. Fully open (extend) the footrest and the backrest of the
power Comfort Recliner™.
2. Unplug the power socket from the rear of the power
Comfort Recliner™.
3. Tip the power Comfort Recliner™ onto its back as shown
in Figure 5. Because of the power Comfort Recliner™
weight and size, a second person is recommended to
assist in this task.
4. Locate the battery to the right of the motor. (See Figure 6)
Power Cord
Power Socket
Wall Plug
1
23
Figure 5

17
5. Disconnect both battery cord plugs. (See figure 6)
6. Remove the two screws holding the battery to the tray.
(See Figure 7)
7. Remove battery from the power Comfort Recliner™.
Figure 6
Remove Screws
Figure 7

18
8. Install new battery with two screws, plug
both cords into the connector cords.
(Assembly should look like Figure 7.)
9. Place the power Comfort Recliner™ in the upright
position and plug the cord back into the power socket
at the back of the power Comfort Recliner™. Then plug
the other end of the power cord into the wall outlet.
10. Look under the footrest at the battery; the LED at the
front of the battery will be flashing AMBER when it is
charging and solid GREEN when it is fully charged. Let
the new battery charge overnight. The power Comfort
Recliner™ can be used normally when it is plugged in
and the battery is charging.
We know you will enjoy your Comfort Recliner™
by American Leather®and thank you for your purchase.
Register your Comfort Recliner™ warranty
at americanleather.com.

19

(172910) V12.2018
